xThe sensor area is frozen (Returns to normal operation when the ice is thawed).xThe sensor is covered by a hand.xThe sensor is excessively shocked.xThe vehicle is excessively tilted.xUnder extremely hot or cold weather conditions.xThe vehicle is driven on bumps, inclines, gravel, grating , or grass covered roads.xAnything which generates ultrasonic waves such as another vehicle's horn, the
engine sound of a motorcycle, the air brake sound of a large-sized vehicle, or
another vehicle's sensors approaches the vehicle.
xThe vehicle is driven in heavy rain or in road conditions causing water-splash.xA commercially-available wing pole or an aerial for a radio transmitter is
installed to the vehicle.
xThe vehicle is moving towards a tall or square curbstone, or a steep grade.xAn obstruction is too close to the sensor.xThe vehicle is moving towards an uneven wall or stairs.xThere are multiple obstructions.xThe vehicle is driven in a place with low ceilings.xObstructions under the bumper cannot be detected. Obstructions which are
lower than the sensor or thin may not be detected even though they were
detected once.
xThe following types of obstructions may not be detected:
xThin objects such as wire, rope or polesxThings which absorb sonic waves easily such as cotton or snowxAngular shaped objectsxVery tall objects, and those which are wide at the topxSmall, short objectsxAlways have the system inspected at an expert repairer (we recommend an
Authorised Mazda Repairer) if any shock is applied to the bumpers, even in a
minor accident. If the sensors are deviated, they cannot detect obstructions.
xThe system may have a malfunction if the indicator light does not turn on even
when the parking sensor switch is turned on. Have your vehicle inspected by an
expert repairer (we recommend an Authorised Mazda Repairer).
xThe system may have a malfunction if a message indicating a system malfunction is
displayed. Have your vehicle inspected by an expert repairer (we recommend an
Authorised Mazda Repairer).
xA message may be displayed even when the ambient temperature is extremely
cold, or mud, ice, or snow adheres to the sensor area. Remove any foreign matter
from the sensor area.
xWhen installing a trailer hitch, consult an expert repairer (we recommend an
Authorised Mazda Repairer).
xIf a Mazda genuine trailer hitch is used, the rear side of the parking sensor system
is automatically turned
off.
When Driving
Parking Sensor System
4-253

▼Sensor Detection Range
The sensors detect obstructions within the following range.

1. Front ultrasonic sensor detection range
2. Rear corner/Rear side ultrasonic sensor detection range
3. Rear ultrasonic sensor detection range
4. Front corner ultrasonic sensor detection range
A: About 55.0 cm (About 21.6 in)
B: About 150 cm (About 59.0 in)
C: About 100 cm (About 39.3 in)

Viewing distance display
DisplayDistance between vehicle and obstruc-
tion
Without 360° view monitor
With 360° view
monitorFront ultrasonic
sensor
*/Front cor-
ner ultrasonic sen-
sor
*
Rear ultrasonic sen-
sor/Rear corner ul-
trasonic sensor/
Rear side ultrasonic
sensor
*
Without front ul-
trasonic sensor
and front corner
ultrasonic sensorWith front ultra-
sonic sensor and
front corner ultra-
sonic sensor
Green
Front ultrasonic sen-
sor:
Approx. 100Š60.0
cm (39.3Š23.6 in)Rear ultrasonic sen-
sor:
Approx. 150Š60.0
cm (59.0Š23.6 in)
When Driving
Parking Sensor System
4-254*Some models.

DisplayDistance between vehicle and obstruc-
tion
Without 360° view monitor
With 360° view
monitorFront ultrasonic
sensor
*/Front cor-
ner ultrasonic sen-
sor
*
Rear ultrasonic sen-
sor/Rear corner ul-
trasonic sensor/
Rear side ultrasonic
sensor
*
Without front ul-
trasonic sensor
and front corner
ultrasonic sensorWith front ultra-
sonic sensor and
front corner ultra-
sonic sensor
YellowFront ultrasonic sen-
sor:
Approx. 60.0Š45.0
cm (23.6Š17.7 in)
Front corner ultra-
sonic sensor:
Approx. 55.0Š38.0
cm (21.6Š14.9 in)Rear ultrasonic sen-
sor:
Approx. 60.0Š45.0
cm (23.6Š17.7 in)
Rear corner ultra-
sonic sensor/Rear
side ultrasonic sen-
sor:
Approx. 55.0Š38.0
cm (21.6Š14.9 in)
AmberFront ultrasonic sen-
sor:
Approx. 45.0Š35.0
cm (17.7Š13.7 in)
Front corner ultra-
sonic sensor:
Approx. 38.0Š25
cm (14.9Š9.8 in)Rear ultrasonic sen-
sor:
Approx. 45.0Š35.0
cm (17.7Š13.7 in)
Rear corner ultra-
sonic sensor/Rear
side ultrasonic sen-
sor:
Approx. 38.0Š25
cm (14.9Š9.8 in)
RedFront ultrasonic sen-
sor:
Within approx. 35.0
cm (13.7 in)
Front corner ultra-
sonic sensor:
Within approx. 25
cm (9.8 in)Rear ultrasonic sen-
sor:
Within approx. 35.0
cm (13.7 in)
Rear corner ultra-
sonic sensor/Rear
side ultrasonic sen-
sor:
Within approx. 25
cm (9.8 in)
▼Park Assist Sensor System
Operation
When the parking sensor switch is
pressed with the ignition switched ON,
the indicator light turns on.
When the ignition is switched ON with
the parking sensor activated, the
indicator light turns on.
When Driving
Parking Sensor System
*Some models.4-255

Press the switch again to stop the
operation.
1. Indicator light
NOTE
When the ignition is switched OFF, the
system status before it was turned off is
maintained. For example, if the
ignition is switched OFF while the
parking sensor is activated, the system
will be activated when the ignition is
switched ON the next time.
Operation conditions
The parking sensor system can be used
when all of the following conditions
are met:
xThe ignition is switched ON.xThe parking sensor switch is turned
on.
NOTE
x(Automatic vehicle)
The detection indicator and buzzer
of the front sensors/front corner
sensors do not operate when the
selector lever is in the P position.
xThe detection indicator and buzzer
sound do not activate when the
parking brake is applied.
▼Obstruction Detection Indication
The position of a sensor which has
detected an obstruction is indicated.
The gauge illuminates in different areas
depending on the distance to an
obstruction detected by the sensor.
As the vehicle approaches closer to an
obstruction, the zone in the gauge
closer to the vehicle illuminates.
Without 360°view monitor
1. Front ultrasonic sensor gauge*
2. Right front corner ultrasonic sensor
gauge*
3. Right rear corner ultrasonic sensor
gauge/Right rear side ultrasonic
sensor gauge
*
4. Rear ultrasonic sensor gauge
5. Left rear corner ultrasonic sensor
gauge/Left rear side ultrasonic
sensor gauge
*
6. Left front corner ultrasonic sensor
gauge*
With 360°view monitor
1. Front ultrasonic sensor gauge
2. Right front corner ultrasonic sensor
gauge
When Driving
Parking Sensor System
4-256*Some models.

3. Right rear corner ultrasonic sensor
gauge/Right rear side ultrasonic
sensor gauge
*
4. Rear ultrasonic sensor gauge
5. Left rear corner ultrasonic sensor
gauge/Left rear side ultrasonic
sensor gauge
*
6. Left front corner ultrasonic sensor
gauge
NOTE
The detection indicator can switch
between display and non-display.
Refer to the Settings section in the
Mazda Connect Owner's Manual.
System problem notification
The indication displays if the system
has a malfunction.
Without 360°view monitor
With 360°view monitor
Check the reason for the indication
displaying on the centre display or
multi-information display.
Refer to If a Warning Light Turns On or
Flashes on page 7-49.
When Driving
Parking Sensor System
*Some models.4-257

▼Parking Sensor Warning Beep
Informs the driver of the approximate distance from the vehicle to the obstruction
using warning beeps depending on the distance. If multiple obstructions are
detected at the same time, warning beeps are activated according to the distance to
the nearest obstruction. The warning beeps are activated as follows while the system
is operating. However, the warning beeps are not activated while the seat belt
reminder is operating.
Front ultrasonic sensor
*, Rear ultrasonic sensor
Distance De-
tection areaDistance between vehicle and obstruction
Beeper sound*1Front ultrasonic sensorRear ultrasonic sensor
Farthest dis-
tanceApprox. 100Š60.0 cm
(39.3Š23.6 in)
Approx. 150Š60.0 cm
(59.0Š23.6 in)
Slow intermittent
sound
Far distanceApprox. 60.0Š45.0 cm
(23.6Š17.7 in)
Approx. 60.0Š45.0 cm
(23.6Š17.7 in)
Medium intermit-
tent sound
Middle dis-
tanceApprox. 45.0Š35.0 cm
(17.7Š13.7 in)
Approx. 45.0Š35.0 cm
(17.7Š13.7 in)
Fast intermittent
sound
When Driving
Parking Sensor System
4-258*Some models.

Distance De-
tection areaDistance between vehicle and obstruction
Beeper sound*1Front ultrasonic sensorRear ultrasonic sensor
Close distanceWithin approx. 35.0 cm (13.7
in)
Within approx. 35.0 cm (13.7
in)
Continuous
sound
*1 The rate at which the intermittent sound beeps increases as the vehicle approaches the obstruction.
Front corner ultrasonic sensor*, Rear corner/Rear side* ultrasonic sensor
Distance Detection
areaDistance between vehicle and obstruction
Beeper sound*1Front corner ultrasonic sensor/Rear corner,
Rear side ultrasonic sensor
Far distanceApprox. 55.0Š38.0 cm (21.6Š14.9 in)
Medium intermittent
sound
Middle distanceApprox. 38.0Š25 cm (14.9Š9.8 in)
Fast intermittent sound
When Driving
Parking Sensor System
*Some models.4-259

Distance Detection
areaDistance between vehicle and obstruction
Beeper sound*1Front corner ultrasonic sensor/Rear corner,
Rear side ultrasonic sensor
Close distanceWithin approx. 25 cm (9.8 in)
Continuous sound
*1 The rate at which the intermittent sound beeps increases as the vehicle approaches the obstruction.
NOTE
xIf an obstruction in the same area excluding the close area is detected
continuously for 6 seconds or longer, only the warning beeps stop activating.
(Detection is indicated) If the detection area changes to the close side, the
warning beeps resumes. (If the detection area changes to the far side, the warning
beeps remain off)
xThe sound volume (each of front and rear) can be changed.
Refer to the Settings section in the Mazda Connect Owner's Manual.
▼When Warning Indicator/Beep is Activated
The system notifies the driver of an abnormality by activating the beep sound and
the indicator light.
Indicator/Beep How to check
A message indicating a sys-
tem malfunction or sensor
malfunction is displayed.There may be a problem with the system. Have your vehicle inspected
by an expert repairer (we recommend an Authorised Mazda Repairer)
as soon as possible.
A message indicating that the
sensor is dirty is displayed.Remove any foreign matter from the sensor area. If the system does not
recover, have the vehicle inspected by an expert repairer (we recom-
mend an Authorised Mazda Repairer).
A certain obstruction detec-
tion indication is continuous-
ly displayed.Foreign matter may have gotten on the sensor area corresponding to
the detection indicator. If the system does not recover, have the vehicle
inspected by an expert repairer (we recommend an Authorised Mazda
Repairer).
When Driving
Parking Sensor System
4-260

conditioner automatically turns on.
The air conditioner will directly
dehumidify the air to the front
windscreen and side windows on page
5-4.
Airflow amount will be increased.
WARNING
Set the temperature control to the hot
or warm position when defogging
(
position):
Using the
position with the
temperature control set to the cold
position is dangerous as it will cause
the outside of the windscreen to fog
up. Your vision will be hampered,
which could lead to a serious accident.
NOTE
xFogging on the windows clears up
more easily while the air conditioner
is on, but they will fog up more easily
if the air conditioner is turned off.
xBe careful that the windows do not
fog up when doing any of the
following:
xSwitching to recirculate modexTurning off the air conditionerxUse the temperature control dial to
increase the air flow temperature
and defog the windscreen more
quickly.
▼Sunlight/Temperature Sensor
The air-conditioning system measures
inside and outside temperatures,
humidity and sunlight using the
sunlight/temperature sensor. It sets
temperatures inside the cabin
accordingly.
CAUTION
Do not obstruct both sensors,
otherwise the air-conditioning system
will not operate properly.
Sunlight sensor
1. Sunlight sensor
Interior temperature sensor
1. Interior temperature sensor
Interior Features
Air-Conditioning System
5-12

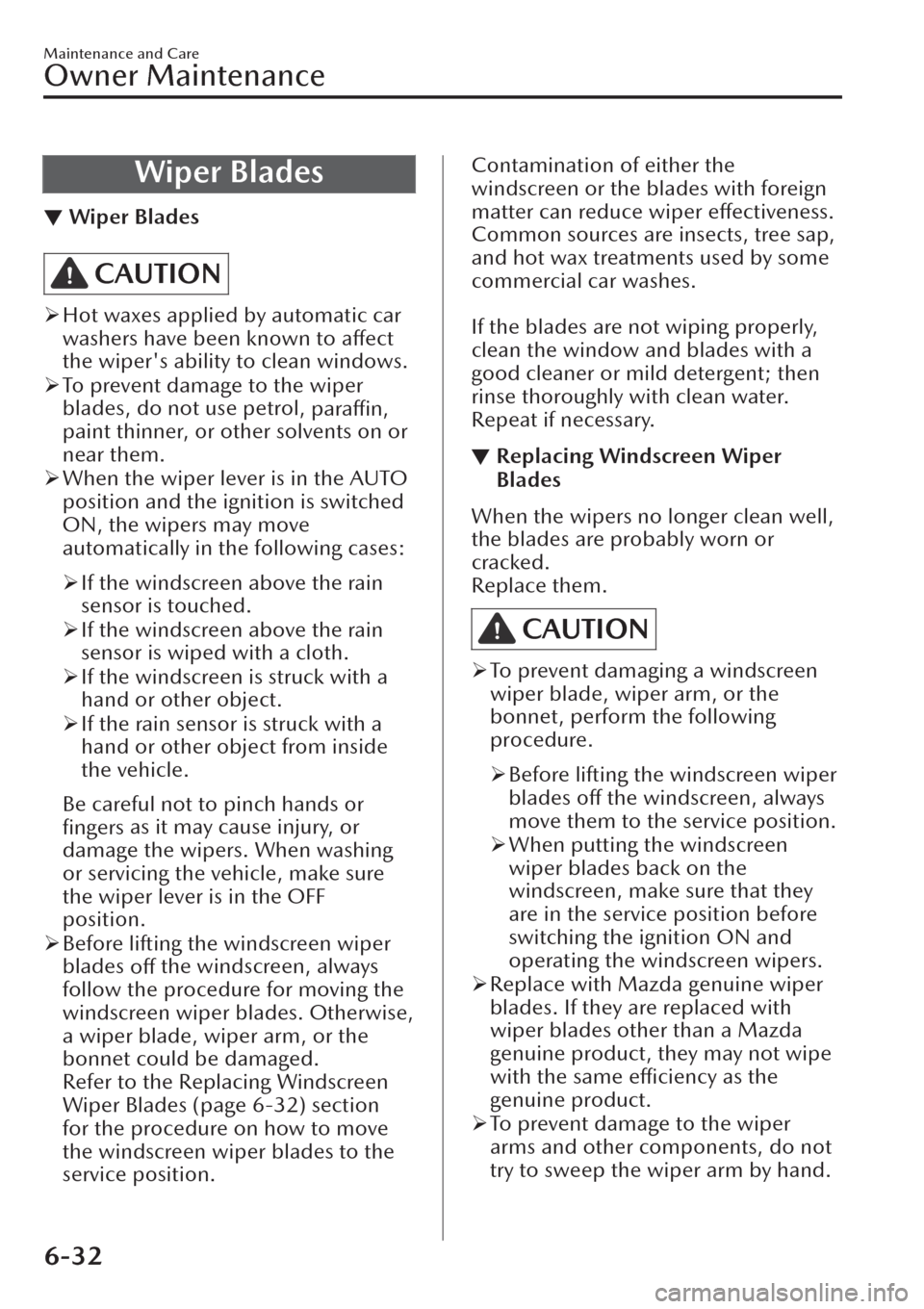

Wiper Blades
▼Wiper Blades
CAUTION
¾Hot waxes applied by automatic car
washers have been known to
affect
the wiper's ability to clean windows.
¾To prevent damage to the wiper
blades, do not use petrol,
paraffin,
paint thinner, or other solvents on or
near them.
¾When the wiper lever is in the AUTO
position and the ignition is switched
ON, the wipers may move
automatically in the following cases:
¾If the windscreen above the rain
sensor is touched.
¾If the windscreen above the rain
sensor is wiped with a cloth.
¾If the windscreen is struck with a
hand or other object.
¾If the rain sensor is struck with a
hand or other object from inside
the vehicle.
Be careful not to pinch hands or
fingers as it may cause injury, or
damage the wipers. When washing
or servicing the vehicle, make sure
the wiper lever is in the OFF
position.
¾Before lifting the windscreen wiper
blades
off the windscreen, always
follow the procedure for moving the
windscreen wiper blades. Otherwise,
a wiper blade, wiper arm, or the
bonnet could be damaged.
Refer to the Replacing Windscreen
Wiper Blades (page 6-32) section
for the procedure on how to move
the windscreen wiper blades to the
service position.
Contamination of either the
windscreen or the blades with foreign
matter can reduce wiper effectiveness.
Common sources are insects, tree sap,
and hot wax treatments used by some
commercial car washes.

If the blades are not wiping properly,
clean the window and blades with a
good cleaner or mild detergent; then
rinse thoroughly with clean water.
Repeat if necessary.
▼Replacing Windscreen Wiper
Blades
When the wipers no longer clean well,
the blades are probably worn or
cracked.
Replace them.
CAUTION
¾To prevent damaging a windscreen
wiper blade, wiper arm, or the
bonnet, perform the following
procedure.
¾Before lifting the windscreen wiper
blades off the windscreen, always
move them to the service position.
¾When putting the windscreen
wiper blades back on the
windscreen, make sure that they
are in the service position before
switching the ignition ON and
operating the windscreen wipers.
¾Replace with Mazda genuine wiper
blades. If they are replaced with
wiper blades other than a Mazda
genuine product, they may not wipe
with the same
efficiency as the
genuine product.
¾To prevent damage to the wiper
arms and other components, do not
try to sweep the wiper arm by hand.
Maintenance and Care
Owner Maintenance
6-32
