Page 575 of 594

▼Engine Number
1. Forward
Specifications
Identification
Numbers
9-3
CX-30_8JP5-EA-20K_Edition1_new
2020-7-22 15:50:09
Page 576 of 594

Specifications
▼Engine
Item Specification
SKYACTIV-G 2.0 SKYACTIV-G 2.5 SKYACTIV-G 2.5T
Type DOHC-16V in-line, 4-cylinder
Bore × Stroke 83.5 × 91.2 mm (3.29 ×
3.59 in) 89.0 × 100 mm (3.50 × 3.94 in)
Displacement 1,997.6 ml (1,997.6 cc) 2,488.5 ml (2,488.5 cc)
Compression
ratio 13.0
10.5
▼Electrical System
Item
Classification
Battery
*112V-60Ah/20HR
Spark-plug
number SKYACTIV-G 2.0, SKY-
ACTIV-G 2.5
Mazda Genuine spark
plug
*2PE5R-18-110 or PE5S-18-110
SKYACTIV-G 2.5T Mazda Genuine spark
plug
*2PY8V-18-110
*1 Check the battery installed on the vehicle and us
e a battery with an equal or higher performance.
However, the performance of the battery may vary even among the same battery types, consult an
Authorized Mazda Dealer for replacement.
*2 This spark plug provides the SKYACTIV-G engine with optimum performance. Contact an Authorized
Mazda Dealer for details.
CAUTION
When cleaning the iridium plugs, do not use a wire brush. The
fine particulate
coating on the iridium alloy and platinum tips could be damaged.
▼ Lubricant Quality
Lubricant
Classification
Engine oil Refer to Recommended Oil on page 6-17.
Coolant FL-22 type
Manual transmission oil Mazda Long Life Gear Oil G7
Automatic transmission fluid Mazda Genuine ATF FZ
Transfer case oil Mazda Long Life Hypoid Gear Oil SG1
Rear differential oil Mazda Long Life Hypoid Gear Oil SG1
Specifications
Specifications
9-4
CX-30_8JP5-EA-20K_Edition1_new 2020-7-22 15:50:09
Page 577 of 594

LubricantClassification
Brake/Clutch fluid SAE J1703 or FMVSS116 DOT-3
NOTE
Refer to Introduction on (page 6-2) for owner's responsibility in protecting your
investment.
▼Capacities
(Approximate Quantities)
Item
Capacity
Engine oil SKYAC-
TIV-G 2.0
With oil filter replacement
4.2 L (4.4 US qt, 3.7 Imp qt)
Without oil filter replacement 4.0 L (4.2 US qt, 3.5 Imp qt)
SKYAC-
TIV-G 2.5 With oil filter replacement
4.5 L (4.8 US qt, 4.0 Imp qt)
Without oil filter replacement 4.3 L (4.5 US qt, 3.8 Imp qt)
SKYAC-
TIV-G 2.5T With oil filter replacement
4.8 L (5.1 US qt, 4.2 Imp qt)
Without oil filter replacement 4.6 L (4.9 US qt, 4.0 Imp qt)
Coolant SKYAC-
TIV-G 2.0
Manual transmission
6.2 L (6.6 US qt, 5.5 Imp qt)
Automatic
transmis-
sion U.S.A. and Canada 6.5 L (6.9 US qt, 5.7 Imp qt)
Mexico
6.6 L (7.0 US qt, 5.8 Imp qt)
SKYAC-
TIV-G 2.5 U.S.A. and Canada
6.5 L (6.9 US qt, 5.7 Imp qt)
Mexico 6.7 L (7.1 US qt, 5.9 Imp qt)
SKYAC-
TIV-G 2.5T For engine
8.2 L (8.7 US qt, 7.2 Imp qt)
For water-cooled charge air cooler 1.6 L (1.7 US qt, 1.4 Imp qt)
Manual transmission oil 1.70 L (1.80 US qt, 1.50 Imp qt)
Automatic
transmission
fluid SKYACTIV-G 2.0
7.6 L (8.0 US qt, 6.7 Imp qt)
SKYAC-
TIV-G 2.5 With Cylinder Deactivation
7.9 L (8.3 US qt, 7.0 Imp qt)
Without Cylinder Deactivation 7.6 L (8.0 US qt, 6.7 Imp qt)
SKYACTIV-G 2.5T 8.0 L (8.5 US qt, 7.0 Imp qt)
Transfer case oil 0.35 L (0.37 US qt, 0.31 Imp qt)
Rear differential oil 0.35 L (0.37 US qt, 0.31 Imp qt)
Fuel tank FWD
51.0 L (13.5 US gal, 11.2 Imp
gal)
AWD 48.0 L (12.7 US gal, 10.6 Imp
gal)
Check oil and fluid levels with dipsticks or reservoir gauges.
Specifications
Specifications
9-5
CX-30_8JP5-EA-20K_Edition1_new 2020-7-22 15:50:09

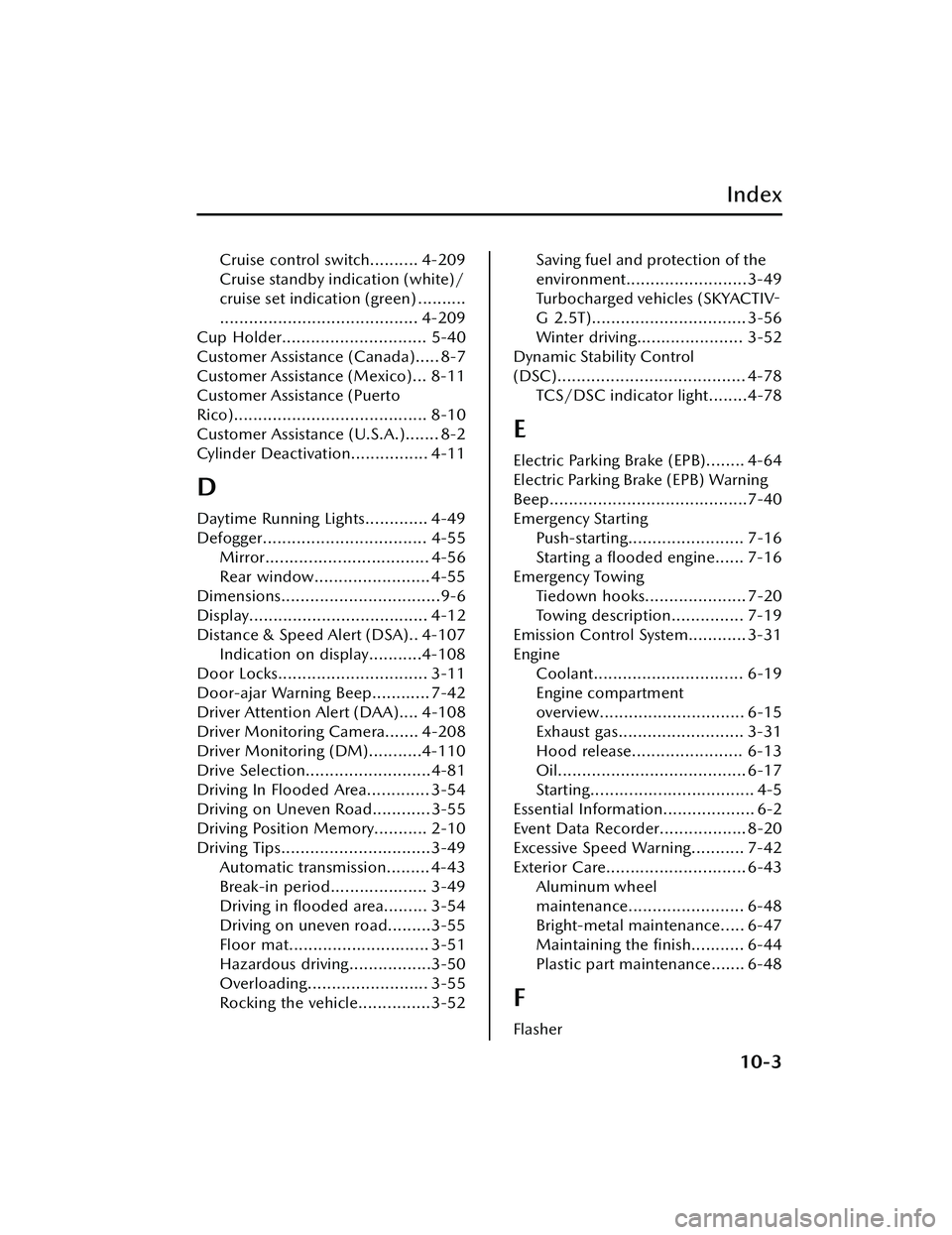

Page 585 of 594

Index
Cruise control switch.......... 4-209
Cruise standby indication (white)/
cruise set indication (green) ..........
......................................... 4-209
Cup Holder.............................. 5-40
Customer Assistance (Canada)..... 8-7
Customer Assistance (Mexico)... 8-11
Customer Assistance (Puerto
Rico)........................................ 8-10
Customer Assistance (U.S.A.)....... 8-2
Cylinder Deactivation................ 4-11
D
Daytime Running Lights............. 4-49
Defogger.................................. 4-55 Mirror.................................. 4-56
Rear window........................ 4-55
Dimensions.................................9-6
Display..................................... 4-12
Distance & Speed Alert (DSA).. 4-107 Indication on display...........4-108
Door Locks............................... 3-11
Door-ajar Warning Beep............ 7-42
Driver Attention Alert (DAA).... 4-108
Driver Monitoring Camera....... 4-208
Driver Monitoring (DM)...........4-110
Drive Selection..........................4-81
Driving In Flooded Area............. 3-54
Driving on Uneven Road............ 3-55
Driving Position Memory........... 2-10
Driving Tips...............................3-49 Automatic transmission......... 4-43
Break-in period.................... 3-49
Driving in flooded area......... 3-54
Driving on uneven road.........3-55
Floor mat............................. 3-51
Hazardous driving.................3-50
Overloading......................... 3-55
Rocking the vehicle...............3-52
Saving fuel and protection of the
environment.........................3-49
Turbocharged vehicles (SKYACTIV-
G 2.5T)................................ 3-56
Winter driving...................... 3-52
Dynamic Stability Control
(DSC)....................................... 4-78 TCS/DSC indicator light........4-78
E
Electric Parking Brake (EPB)........ 4-64
Electric Parking Brake (EPB) Warning
Beep.........................................7-40
Emergency StartingPush-starting........................ 7-16
Starting a flooded engine...... 7-16
Emergency Towing Tiedown hooks..................... 7-20
Towing description............... 7-19
Emission Control System............ 3-31
Engine Coolant............................... 6-19
Engine compartment
overview.............................. 6-15
Exhaust gas.......................... 3-31
Hood release....................... 6-13
Oil....................................... 6-17
Starting.................................. 4-5
Essential Information................... 6-2
Event Data Recorder.................. 8-20
Excessive Speed Warning........... 7-42
Exterior Care............................. 6-43 Aluminum wheel
maintenance........................ 6-48
Bright-metal maintenance..... 6-47
Maintaining the finish........... 6-44
Plastic part maintenance....... 6-48
F
Flasher
10-3
CX-30_8JP5-EA-20K_Edition1_new 2020-7-22 15:50:09
Page 586 of 594

Index
Hazard warning.................... 4-57
Headlights............................4-44
Flat Tire Changing a flat tire................. 7-5
Mounting the spare tire........ 7-10
Removing a flat tire................ 7-6
Floor Mat................................. 3-51
Fluids Brake/Clutch........................6-21
Classification .......................... 9-4
Washer................................ 6-21
Foot Brake................................ 4-63
Forward Sensing Camera (FSC) ..........
.............................................. 4-198
Front Camera/Side Cameras/Rear
Camera.................................. 4-207
Front Cross Tra ffi c Alert (FCTA) ..........
.............................................. 4-112
Front Cross Tra ffi c Alert (FCTA)
Warning Beep........................... 7-41
Front Radar Sensor.................. 4-202
Front Side Radar Sensor........... 4-204
Fuel Filler lid and cap...................3-32
Requirements....................... 3-30
Tank capacity......................... 9-5
Fuses........................................ 6-35 Panel description.................. 6-38
Replacement........................ 6-35
G
Gauges..................................... 4-12
Glove Compartment..................5-43
H
Hazardous Driving.....................3-50
Hazard Warning Flasher............. 4-57
HeadlightsComing home light...............4-47
Flashing................................4-47
High-low beam.................... 4-47
Leaving home light............... 4-48
Leveling................................4-48
Head Restraint.......................... 2-16
High Beam Control System
(HBC)....................................... 4-91 High Beam Control System (HBC)
indicator light (green)........... 4-92
Hill Launch Assist (HLA)............. 4-73
HomeLink Wireless Control
System...................................... 4-57
Hood Release........................... 6-13
Horn........................................ 4-56
I
If a Warning Light Turns On or
Flashes......................................7-22
If the Active Driving Display Does Not
Operate.................................... 7-44
Ignition Not Switched Off (STOP)
Warning Beep........................... 7-38
Ignition Switch............................ 4-4
Illuminated Entry System............ 5-38
Immobilizer System................... 3-45
Inspecting Brake/Clutch Fluid
Level.........................................6-21
Inspecting Coolan t Level............ 6-19
Inspecting Engine Oil Level.........6-18
Inspecting Washer Fluid Level..... 6-21
Instrument Cluster..................... 4-12 Average fuel economy...........4-20
Compass display.................. 4-21
Current fuel economy........... 4-20
Dashboard illumination........ 4-18
Distance-to-empty................4-19
Engine coolant temperature
gauge...................................4-16
Fuel gauge........................... 4-17
Indication/indicator lights..... 4-24
i-ACTIVSENSE display........... 4-20
10-4
CX-30_8JP5-EA-20K_Edition1_new 2020-7-22 15:50:09
Page 588 of 594

Index
i-ACTIV AWD Operation........... 4-83
J
Jack............................................ 7-3
Jump-Starting............................ 7-13
K
Keyless Entry System.................... 3-4
Keys........................................... 3-2Key suspend function..............3-8
Transmitter............................. 3-5
Key Left-in-luggage Compartment
Warning beep (With the advanced
keyless function)....................... 7-39
Key Left-in-vehicle Warning Beep
(With the advanced keyless
function)...................................7-39
Key Removed from Vehicle Warning
Beep.........................................7-38
Key Suspend Function................. 3-8
L
Label Information
Chassis number...................... 9-2
Engine number....................... 9-3
Motor vehicle safety standard
label...................................... 9-2
Tire pressure label.................. 9-2
Vehicle emission control
information label.................... 9-2
Vehicle identification
number..................................9-2
Lane Departure Warning sound.. 7-41
Lane Departure Warning System
(LDWS).....................................4-93
Lane-change Signals.................. 4-50
Lane-keep Assist System (LAS) ...........
.............................................. 4-151
Leaving Home Light................... 4-48
Liftgate..................................... 3-20
Luggage compartment.......... 3-28
When liftgate cannot be
opened................................ 7-43
Liftgate Door-lock Switch Inoperable
Warning Beep........................... 7-39
Lights-on Reminder................... 7-37
Light Bulbs
Specifications ......................... 9-7
Lubricant Quality......................... 9-4
Luggage Compartment.............. 5-44 Cargo sub-compartment....... 5-44
Luggage Compartment Light...... 5-37
M
Maintenance Information............................ 6-2
Scheduled (Canada)............... 6-6
Scheduled (Mexico)................6-9
Scheduled (U.S.A. and Puerto
Rico)......................................6-4
Manual Transmission Shift
Pattern...................................... 4-30
Map Lights................................ 5-37
Mazda Connect........................ 5-14 Appendix............................. 5-27
Connected Service................5-35
Mazda Connect Basic
Operations........................... 5-18
Mazda Radar Cruise Control with
Stop & Go function (MRCC with Stop
& Go function)........................4-127 Close proximity warning...... 4-131
Display indication............... 4-130
Setting the system...............4-132
Stop hold control............... 4-136
Mazda Radar Cruise Control with
Stop & Go function (MRCC with Stop
& Go function) System
Warnings.................................. 7-41
10-6
CX-30_8JP5-EA-20K_Edition1_new 2020-7-22 15:50:09
Page 589 of 594

Index
Mazda Radar Cruise Control
(MRCC).................................. 4-119Close proximity warning...... 4-121
Display indication............... 4-121
Setting the system...............4-123
Shift-up/shift-down request
display............................... 4-126
Mazda Radar Cruise Control (MRCC)
System Warnings....................... 7-41
Message Indicated on Multi-
information Display................... 7-34
Meters...................................... 4-12
Mirrors Outside mirrors.................... 3-35
Rearview mirror.................... 3-37
Mirror Defogger........................ 4-56
Moonroof................................. 3-42
Multi-information Display.......... 4-14
O
Off-Road Traction Assist............ 4-79 Off-Road Traction Assist
indicator light....................... 4-79
Off-Road Traction
Assist switch......................... 4-80
Outside Mirrors.........................3-35
Overhead Console.................... 5-43
Overhead Lights........................ 5-37
Overheating.............................. 7-17
Overloading.............................. 3-55
Owner Maintenance Closing the hood..................6-14
Engine compartment
overview.............................. 6-15
Key battery replacement........6-29
Opening the hood................ 6-13
Owner maintenance
precautions.......................... 6-12
P
Parking Brake............................ 4-64
Parking Sensor System............. 4-232Parking Sensor OFF Switch... 4-236
Sensor detection range........4-234
Power Liftgate........................... 3-22
Power Liftgate Warning Beep...... 7-40
Power Steering.......................... 4-85
Power Windows........................ 3-39
R
Rearview Mirror........................ 3-37
Rear Coat Hooks....................... 5-42
Rear Cross Tra ffi c Alert (RCTA) ...........
.............................................. 4-115
Rear Cross Traffic Alert (RCTA)
Warning Beep........................... 7-41
Rear Door Child Safety Locks..... 3-19
Rear Side Radar Sensor............ 4-205
Rear View Monitor.................. 4-217 Displayable range on the
screen................................ 4-219
Rear view monitor
operation........................... 4-222
Rear view parking camera
location............................. 4-218
Switching to the rear view monitor
display............................... 4-219
Variance between actual road
conditions and displayed
image................................ 4-229
Viewing the display.............4-221
Rear Window Defogger............. 4-55
Rear Window Washer................ 4-54
Rear Window Wiper.................. 4-54
Recommended Oil.................... 6-17
Recording of Vehicle Data..........8-21
Recreational Towing.................. 3-57
10-7
CX-30_8JP5-EA-20K_Edition1_new 2020-7-22 15:50:09
Page 590 of 594

Index
Registering Your Vehicle in A Foreign
Country.................................... 8-17
ReplacementFuse..................................... 6-35
Key battery........................... 6-29
Tires.....................................6-33
Wheel.................................. 6-34
Wiper.................................. 6-23
Rocking the Vehicle................... 3-52
S
Safety Defects, Reporting
(Canada).................................. 8-15
Safety Defects, Reporting
(U.S.A.).................................... 8-14
Saving Fuel and Protection of the
Environment............................. 3-49
Scheduled Maintenance Canada.................................. 6-6
Mexico.................................. 6-9
U.S.A. and Puerto Rico........... 6-4
Seats Driver's seat........................... 2-4
Front passenger's seat........... 2-12
Front seat............................... 2-4
Head restraint...................... 2-16
Rear seat.............................. 2-13
Seat warmer......................... 2-18
Seat Belt System Automatic locking................ 2-23
Emergency locking................ 2-23
Extender.............................. 2-28
Pregnant women.................. 2-23
Seat belt precautions............ 2-21
Seat Belt Warning Beep............. 7-37
Security System Immobilizer system............... 3-45
Theft-deterrent system.......... 3-47
Shift Position Warning Beep....... 7-40
Smart Brake Support (SBS)....... 4-155
Collision warning................ 4-156
Stopping the Smart Brake Support
(SBS) system operation........4-157
Smart Brake Support [Rear Crossing]
(SBS-RC) .................................4-161
Collision warning................ 4-164
Stopping the Smart Brake Support
[Rear Crossing] (SBS-RC) system
operation........................... 4-164
Smart Brake Support [Rear] (SBS-
R) ........................................... 4-157
Collision warning................ 4-160
Stopping the Smart Brake Support
[Rear] (SBS-R) system
operation........................... 4-160
Spare Tire................................... 7-3
Spare Tire and Tool Storage.......... 7-3
Specifications Capacities.............................. 9-5
Dimensions............................ 9-6
Electrical system..................... 9-4
Engine................................... 9-4
Light bulbs............................. 9-7
Lubricant quality..................... 9-4
Tires.......................................9-8
Weights................................. 9-6
SRS Air Bags Driver and front passenger
occupant classification
system................................. 2-66
How the SRS air bags work.... 2-60
Limitations to SRS air bag...... 2-65
Monitoring........................... 2-71
SRS air bag deployment
criteria................................. 2-63
Supplemental restraint system
components......................... 2-58
Supplemental restraint system
(SRS) precautions................. 2-52
Starting the Engine...................... 4-5
Steering Wheel
10-8
CX-30_8JP5-EA-20K_Edition1_new 2020-7-22 15:50:09
Page 591 of 594

Index
Heated steering wheel.......... 2-19
Horn.................................... 4-56
Storage Compartments.............. 5-43 Center console..................... 5-44
Glove compartment..............5-43
Luggage compartment.......... 5-44
Overhead console................ 5-43
Storage pocket..................... 5-43
Storage Pocket.......................... 5-43
Sunshade.................................. 3-44
Sunvisors.................................. 5-36
T
Theft-Deterrent System.............. 3-47
Three-flash Turn Signal...............4-50
Tiedown Hook.......................... 7-20
Tires......................................... 6-31 Replacing a tire.................... 6-33
Replacing a wheel................ 6-34
Snow tires............................ 3-53
Specifications......................... 9-8
Temporary spare tire............. 6-33
Tire chains............................3-53
Tire inflation pressure............6-31
Tire rotation......................... 6-32
Uniform tire quality grading
system (UTQGS)................... 8-22
Tire Information Location of the tire label
(placard).............................. 8-28
Steps for determining the correct
load limit............................. 8-35
Tire labeling......................... 8-24
Tire maintenance.................. 8-30
Vehicle loading.....................8-31
Tire Pressure Monitoring
System.................................... 4-213
Touch Sensor Inoperable Warning
Beep (With the advanced keyless
function)...................................7-39
To w i n g Recreational towing.............. 3-57
Trailer towing....................... 3-57
Towing Description................... 7-19
Traction Control System (TCS).... 4-76 TCS OFF Indicator Light......... 4-77
TCS OFF switch.................... 4-77
TCS/DSC indicator light........4-76
Traffic Jam Assist (TJA).............. 4-137 Close proximity warning...... 4-142
Display indication............... 4-141
Setting the system...............4-143
Shift-up/shift-down request
display............................... 4-149
Stop hold control............... 4-150
Tra ffi c Sign Recognition System
(TSR)...................................... 4-101
Trouble Battery runs out.................... 7-13
Emergency starting................7-16
Flat tire.................................. 7-5
Overheating......................... 7-17
Parking in an emergency......... 7-2
When liftgate cannot be
opened................................ 7-43
Turn and Lane-Change Signals.... 4-49
Turn Signals.............................. 4-49
U
Ultrasonic Sensor.................... 4-207
V
Vehicle Information Labels Chassis number...................... 9-2
Engine number....................... 9-3
Motor vehicle safety standard
label...................................... 9-2
Tire pressure label.................. 9-2
Vehicle emission control
information label.................... 9-2
10-9
CX-30_8JP5-EA-20K_Edition1_new 2020-7-22 15:50:09
