2. Shift into Park (P) and turn off theengine.
3. Turn on the hazard warning flasher.
4. Have passengers get out of the vehicle and away from the vehicle
and traffic.
5. Remove any luggage, the jack, tools, and spare tire (page 7-3).
6. Block the wheel diagonally opposite the flat tire. When
blocking a wheel, place a tire block
both in front and behind the tire.
NOTE
When blocking a tire, use rocks or
wood blocks of sufficient size if
possible to hold the tire in place.
▼Removing a Flat Tire
WARNING
When jacking-up a vehicle, always
shift the selector lever to P position,
apply the parking brake, and place
wheel blocks in the position
diagonally opposed to the jack:
Changing a flat tire without using
wheel blocks is dangerous because the
vehicle may move and fall off the jack
even with the selector lever is in P
position, which could result in an
accident.
1. If your vehicle is equipped with a
wheel cover, pry off the wheel
cover with the beveled end of the
jack lever.

NOTE
Force the end of the jack lever
firmly between wheel and cover, or
removal will be difficult.
If Trouble Arises
Flat Tire
7-6
CX-30_8KN2-EA-21L_Edition1_new 2021-9-15 19:39:56

CAUTION
Align the notch on the wheel cover
with the valve stem when installing
it.

1. Notch
2. Tire valve

Damage could occur during
installation if the wheel cover is not
properly aligned.
2. Loosen the lug nuts by turning them
counterclockwise one turn each,
but do not remove any lug nuts
until the tire has been raised off the
ground.

NOTE
If your Mazda is equipped with the
optional antitheft wheel lug nuts, a
special key must be used to unlock
the locking lug nut for each wheel.
For details, refer to the Locking Lug
Nuts on page 7-10.

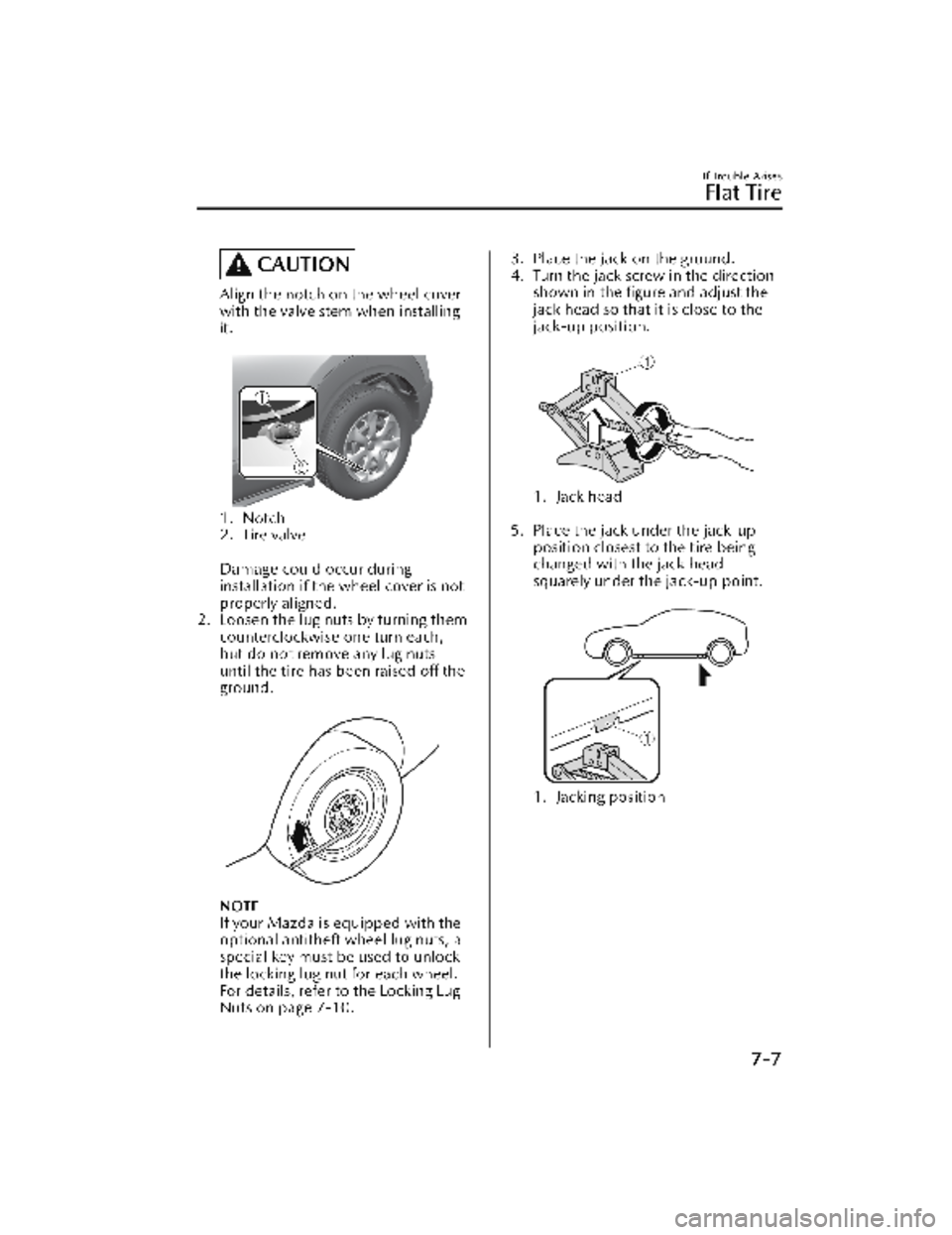

3. Place the jack on the ground.
4. Turn the jack screw in the directionshown in the figure and adjust the
jack head so that it is close to the
jack-up position.

1. Jack head

5. Place the jack under the jack-up
position closest to the tire being
changed with the jack head
squarely under the jack-up point.

1. Jacking position

If Trouble Arises
Flat Tire
7-7
CX-30_8KN2-EA-21L_Edition1_new 2021-9-15 19:39:56

6. Continue raising the jack headgradually by rotating the screw with
your hand until the jack head is
inserted into the jack-up position.

1. Tire blocks
2. Jacking position
WARNING
Use only the front and rear jacking
positions recommended in this
manual:
Attempting to jack the vehicle in
positions other than those
recommended in this manual is
dangerous. The vehicle could slip
off the jack and seriously injure or
even kill someone. Use only the
front and rear jacking positions
recommended in this manual.
Do not jack up the vehicle in a
position other than the designated
jack-up position or place any
objects on or under the jack:
Jacking up the vehicle in a position
other than the designated jack-up
position or placing objects on or
under the jack is dangerous as it
could deform the vehicle body or
the vehicle could fall off the jack
resulting in an accident.
Use only the jack provided with
your Mazda:
Using a jack that is not designed for
your Mazda is dangerous. The
vehicle could slip off the jack and
seriously injure someone.
Never place objects under the
jack:
Jacking the vehicle with an object
under the jack is dangerous. The
jack could slip and someone could
be seriously injured by the jack or
the falling vehicle.
NOTE
When raising the jack head into the
jacking position and aligning the
groove in the jack head with the rail
under the vehicle body, the top of
the jack head contacts the vehicle's
underbody without the rail
contacting the bottom of the
groove.
If Trouble Arises
Flat Tire
7-8
CX-30_8KN2-EA-21L_Edition1_new 2021-9-15 19:39:56

7. Insert the jack lever and attach thelug wrench to tire jack.

8. Turn the jack handle clockwise andraise the vehicle high enough so
that the spare tire can be installed.
Before removing the lug nuts, make
sure your Mazda is firmly in
position and that it cannot slip or
move.

WARNING
Do not jack up the vehicle higher
than is necessary:
Jacking up the vehicle higher than is
necessary is dangerous as it could
destabilize the vehicle resulting in
an accident.
Do not start the engine or shake
the vehicle while it is jacked up:
Starting the engine or shaking the
vehicle while it is jacked up is
dangerous as it could cause the
vehicle to fall off the jack resulting
in an accident.
Never go under the vehicle while it
is jacked up:
Going under the vehicle while it is
jacked up is dangerous as it could
result in death or serious injury if
the vehicle were to fall off the jack.
9. Remove the lug nuts by turning them counterclockwise; then
remove the wheel and center cap.
If Trouble Arises
Flat Tire
7-9
CX-30_8KN2-EA-21L_Edition1_new 2021-9-15 19:39:56

▼Locking Lug Nuts
If your Mazda is equipped with the
optional antitheft wheel lug nuts, a
special key must be
used to unlock the
locking lug nut for each wheel. The key
is stored in the glove compartment,
center console storage, storage box, or
trunk. Register the key and lug nuts
with the lock manufacturer by filling
out the registration card and mailing it
in using the accompanying envelope. If
the key is lost, consult an Authorized
Mazda Dealer or use the lock
manufacturer’s order form to order a
new key.
Antitheft wheel lug nuts cannot be
installed on a steel wheel spare tire.
When installing a temporary spare tire,
use one of the original lug nuts in place
of the locking lug nut. The original lug
nuts are stored inside your Mazda.
1. Antitheft lug nut
2. Special key
To remove an antitheft lug nut
1. Obtain the special key for the antitheft lug nut.
2. Place the special key on top of the antitheft lug nut, and be sure to
hold the key square to it. If you
hold the key at an angle, you may
damage both key and nut. Do not
use a power impact wrench.
3. Place the lug wrench on top of the key and apply pressure. Turn the
wrench counterclockwise.
To install the antitheft lug nut
1. Place the special key on top of the
nut, and be sure to hold the key
square to it. If you hold the key at
an angle, you may damage both key
and nut. Do not use a power
impact wrench.
2. Place the lug wrench on top of the special key, apply pressure, and
turn it clockwise.
Nut tightening torque
N·m (kgf·m, ft·lbf) 108
―147 (12 ―14,
80 ―108)
▼ Mounting the Spare Tire
1. Remove dirt and grime from the
mounting surfaces of the wheel and
hub, including the hub bolts, with a
cloth.

WARNING
Make sure the mounting surfaces
of the wheel, hub and lug nuts are
clean before changing or replacing
tires:
When changing or replacing a tire,
not removing dirt and grime from
the mounting surfaces of the wheel,
hub and hub bolts is dangerous.
The lug nuts could loosen while
driving and cause the tire to come
off, resulting in an accident.
2. Mount the spare tire.
If Trouble Arises
Flat Tire
7-10
CX-30_8KN2-EA-21L_Edition1_new 2021-9-15 19:39:56

3. Install the lug nuts with the bevelededge inward; tighten them by hand.

WARNING
Do not apply oil or grease to lug
nuts and bolts and do not tighten
the lug nuts beyond the
recommended tightening torque:
Applying oil or grease to lug nuts
and bolts is dangerous. The lug nuts
could loosen while driving and
cause the tire to come off, resulting
in an accident. In addition, lug nuts
and bolts could be damaged if
tightened more than necessary.
4. Turn the jack handle counterclockwise using the lug
wrench and lower the vehicle.
5. Use the lug wrench to tighten the nuts in the order shown.

If you are unsure of how tight the
nuts should be, have them
inspected at an Authorized Mazda
Dealer.
Nut tightening torque
N·m (kgf·m, ft·lbf) 108―
147 (12 ―14,
80― 108)
WARNING
Always securely and correctly
tighten the lug nuts:
Improperly or loosely tightened lug
nuts are dangerous. The wheel
could wobble or come off. This
could result in loss of vehicle
control and cause a serious
accident.
Be sure to reinstall the same nuts
you removed or replace them with
metric nuts of the same
configuration:
Because the wheel studs and lug
nuts on your Mazda have metric
threads, using a non-metric nut is
dangerous. On a metric stud, it
would not secure the wheel and
would damage the stud, which
could cause the wheel to slip
off
and cause an accident.
6. (Aluminum wheel equipped
vehicle)
Remove the center cap by tapping
it from the backside of the wheel
using the lug wrench.
7. (Without
flat tire belt)
Store the damaged and/or flat tire
in the rear cargo area.
(With flat tire belt)
Open the luggage mat.
8. Remove the belt for securing the
flat tire.
If Trouble Arises
Flat Tire
7-11
CX-30_8KN2-EA-21L_Edition1_new 2021-9-15 19:39:56

9. Put the flat tire into the liftgate onthe left and toward the back.

10.Fold the right side of the rearseatback forward.
11.Thread the belt through the rear seat as shown in the figure.

12.Thread the buckle through thewheel as shown in the figure and
secure it so that the buckle does
not contact the wheel.

13.Thread the belt through the buckle,then pull the belt end to secure the
flat tire.

14.Return the seatback on the rightside of the rear seat to its original
position.
15.Remove the tire blocks and store the tools and jack.
16.Check the inflation pressure. Refer to Tires on page 9-8.
17.Have the flat tire repaired or replaced as soon as possible.
WARNING
Do not drive with any tires that have
incorrect air pressure:
Driving on tires with incorrect air
pressure is dangerous. Tires with
incorrect pressure could affect
handling and result in an accident.
When you check the regular tires' air
pressure, check the spare tire, too.
NOTE
To prevent the jack and tool from
rattling, store them properly.
If Trouble Arises
Flat Tire
7-12
CX-30_8KN2-EA-21L_Edition1_new 2021-9-15 19:39:56

Jump-Starting
▼Jump-Starting
Jump-starting is dangerous if done incorrec
tly. So follow the procedure carefully. If
you feel unsure about jump-starting, we strongly recommend that you have a
competent service technician do the work.
WARNING
Follow These Precautions Carefully:
To ensure safe and correct handling of the battery, read the following precautions
carefully before using the battery or inspecting it.
Keep flames and sparks away from open battery cells and do not allow
metal tools to contact the positive (+) or negative (–) terminal of the battery when
working near a battery. Do not allow the positive (+) terminal to contact the
vehicle body:
Flames and sparks near open battery cell s are dangerous. Hydrogen gas, produced
during normal battery operation, could ignite and cause the battery to explode. An
exploding battery can cause serious burns and injuries. Keep all flames including
cigarettes and sparks away from open battery cells.
Keep all flames and sparks away from open battery cells because hydrogen
gas is produced from open battery cells while charging the battery or adding
battery fluid:
Flames and sparks near open battery cell s are dangerous. Hydrogen gas, produced
during normal battery operation, could ignite and cause the battery to explode. An
exploding battery can cause serious burns and injuries. Keep all flames including
cigarettes and sparks away from open battery cells.
Do not jump-start a frozen battery or one with a low fluid level:
Jump-starting a frozen battery or one with a low fluid level is dangerous. It may
rupture or explode, causing serious injury.
Connect the negative cable to a good ground point away from the battery:
Connecting the end of the second jumper ca ble to the negative (–) terminal of the
discharged battery is dangerous.
A spark could cause the gas around the battery to explode and injure someone.
If Trouble Arises
Battery Runs Out
7-13
CX-30_8KN2-EA-21L_Edition1_new 2021-9-15 19:39:56

Route the jumper cables away from parts that will be moving:
Connecting a jumper cable near or to moving parts (cooling fans, belts) is
dangerous. The cable could get caught when the engine starts and cause serious
injury.
CAUTION
Use only a 12 V booster system. You can dama ge a 12 V starter, ignition system, and
other electrical parts beyond repair with a 24 V power supply (two 12 V batteries in
series or a 24 V motor generator set).
NOTE
Do not use vehicles with M Hybrid as a booster vehicle.
1. Move the booster vehicle so that its battery is as close as possible to your
vehicle's battery.
2. Make sure that the power such as for th e headlights and air conditioner is turned
off.
3. Remove the battery cover.
4. Turn off the booster vehicle's engine and connect the jumper cables in the
following order.
Make sure that the jumper cables are se curely connected so that they do not
disconnect due to engine vibrations.
1st lead
Positive (+) terminal on the discharged battery
Positive (+) terminal on booster vehicle's battery
2nd lead
Negative (-) terminal on booster vehicle's battery
If Trouble Arises
Battery Runs Out
7-14
CX-30_8KN2-EA-21L_Edition1_new 2021-9-15 19:39:56

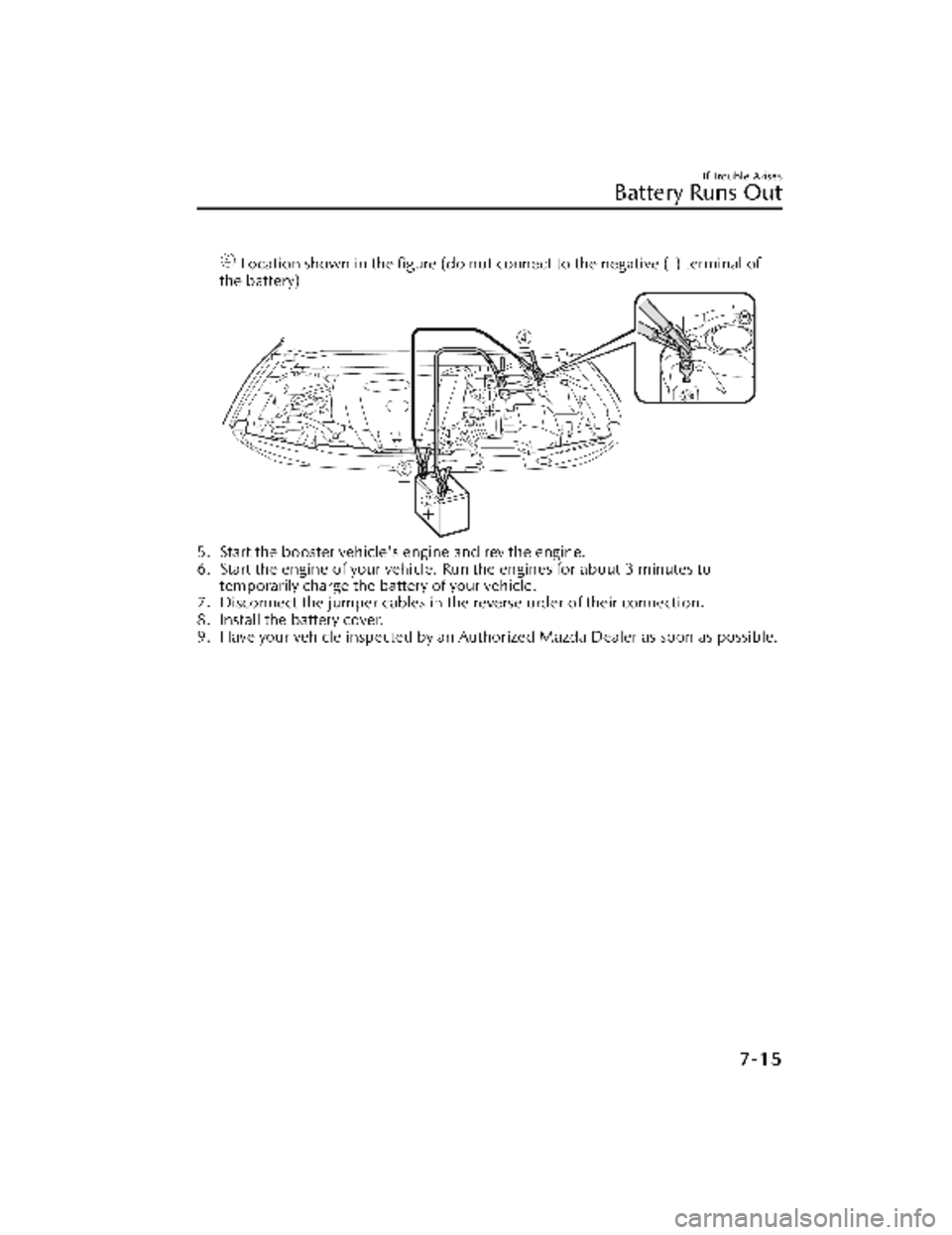

Location shown in the figure (do not connect to the negative (-) terminal of
the battery)
5. Start the booster vehicle's engine and rev the engine.
6. Start the engine of your vehicle. Run the engines for about 3 minutes to
temporarily charge the battery of your vehicle.
7. Disconnect the jumper cables in the reverse order of their connection.
8. Install the battery cover.
9. Have your vehicle inspected by an Author ized Mazda Dealer as soon as possible.
If Trouble Arises
Battery Runs Out
7-15
CX-30_8KN2-EA-21L_Edition1_new 2021-9-15 19:39:56
