l(When only a message is indicated in the display)
Follow the instructions indicated in the display.
If any of the content in the following illustrations is indicated, there may be a problem with
the vehicle. The method for taking action differs depending on the indication.
Check the following illustrations below.
Action: Park the vehicle immediately, view the symbol indicated in the upper part of
the screen and then refer to the“Indication and method for taking action list”
containing the symbol to see what action should be taken.
Indication on display
Action: Consult an Authorized Mazda Dealer to have your vehicle inspected. View the
symbol indicated in the upper part of the screen and refer to the“Indication and
method for taking action list”containing the symbol to see what action should be
taken.
Indication on display
Action: Consult an Authorized Mazda Dealer to have your vehicle inspected.
Indication on display
When Driving
Instrument Cluster and Display
4-23
CX-5_8CT5-EA-12K_Edition1 Page151
Friday, October 19 2012 3:10 PM
Form No.8CT5-EA-12K

Black plate (152,1)
Indication and method for taking action list
Signal Warning/Indicator Lights Page
Master Warning Light 4-28
Brake System Warning Light 4-28
ABS Warning Light 4-29
Charging System Warning Indication 4-30
Engine Oil Warning Indication 4-30
Check Engine Light 4-31
High Engine Coolant Temperature Warning Light (Red) 4-31
AWD Warning Indication 4-32
BSM OFF Indicator Light 4-43
Automatic Transaxle Warning Indication 4-33
Power Steering Malfunction Indication 4-33
Air Bag/Front Seat Belt Pretensioner System Warning Light 4-34
Low Fuel Warning Light 4-34
Check Fuel Cap Warning Indication 4-34
Seat Belt Warning Light 4-35
4-24
When Driving
Instrument Cluster and Display
CX-5_8CT5-EA-12K_Edition1 Page152
Friday, October 19 2012 3:10 PM
Form No.8CT5-EA-12K

Black plate (153,1)
Signal Warning/Indicator Lights Page
Door-Ajar Warning Indication 4-36
Liftgate-Ajar Warning Indication 4-36
Low Washer Fluid Level Warning Indication 4-36
Tire Pressure Monitoring System Warning Light 4-37
KEY Warning Indication 4-38
Wrench Indication 4-40
TCS/DSC Indicator Light 4-40
TCS OFF Indicator Light 4-41
AFS OFF Indicator Light 4-41
Low Engine Coolant Temperature Indicator Light (Blue) 4-41
Shift Position Indication 4-41
Headlight High-Beam Indicator Light 4-42
Turn Signal/Hazard Warning Indicator Lights 4-42
Security Indicator Light 4-42
When Driving
Instrument Cluster and Display
4-25
CX-5_8CT5-EA-12K_Edition1 Page153
Friday, October 19 2012 3:10 PM
Form No.8CT5-EA-12K

Black plate (154,1)
Signal Warning/Indicator Lights Page
Cruise Main Indicator Light (Amber)/Cruise Set Indicator Light (Green) 4-42
Lights-On Indicator Light 4-43
qType B
Warning/Indicator lights will appear in any of the highlighted areas
Signal Warning/Indicator Lights Page
Master Warning Light 4-28
Brake System Warning Light 4-28
ABS Warning Light 4-29
Charging System Warning Light 4-30
Engine Oil Warning Light 4-30
Check Engine Light 4-31
High Engine Coolant Temperature Warning Light (Red) 4-31
AWD Warning Light 4-32
4-26
When Driving
Instrument Cluster and Display
CX-5_8CT5-EA-12K_Edition1 Page154
Friday, October 19 2012 3:10 PM
Form No.8CT5-EA-12K

Black plate (155,1)
Signal Warning/Indicator Lights Page
BSM OFF Indicator Light 4-43
Automatic Transaxle Warning Light 4-33
Power Steering Malfunction Indicator Light 4-33
Air Bag/Front Seat Belt Pretensioner System Warning Light 4-34
Low Fuel Warning Light 4-34
Check Fuel Cap Warning Light 4-34
Seat Belt Warning Light 4-35
Door-Ajar Warning Light 4-36
Low Washer Fluid Level Warning Light 4-36
Tire Pressure Monitoring System Warning Light 4-37
KEY Warning Light 4-38
TCS/DSC Indicator Light 4-40
TCS OFF Indicator Light 4-41
AFS OFF Indicator Light 4-41
Low Engine Coolant Temperature Indicator Light (Blue) 4-41
Shift Position Indication 4-41
When Driving
Instrument Cluster and Display
4-27
CX-5_8CT5-EA-12K_Edition1 Page155
Friday, October 19 2012 3:10 PM
Form No.8CT5-EA-12K

Black plate (156,1)
Signal Warning/Indicator Lights Page
Headlight High-Beam Indicator Light 4-42
Turn Signal/Hazard Warning Indicator Lights 4-42
Security Indicator Light 4-42
Cruise Main Indicator Light (Amber)/Cruise Set Indicator Light (Green) 4-42
Lights-On Indicator Light 4-43

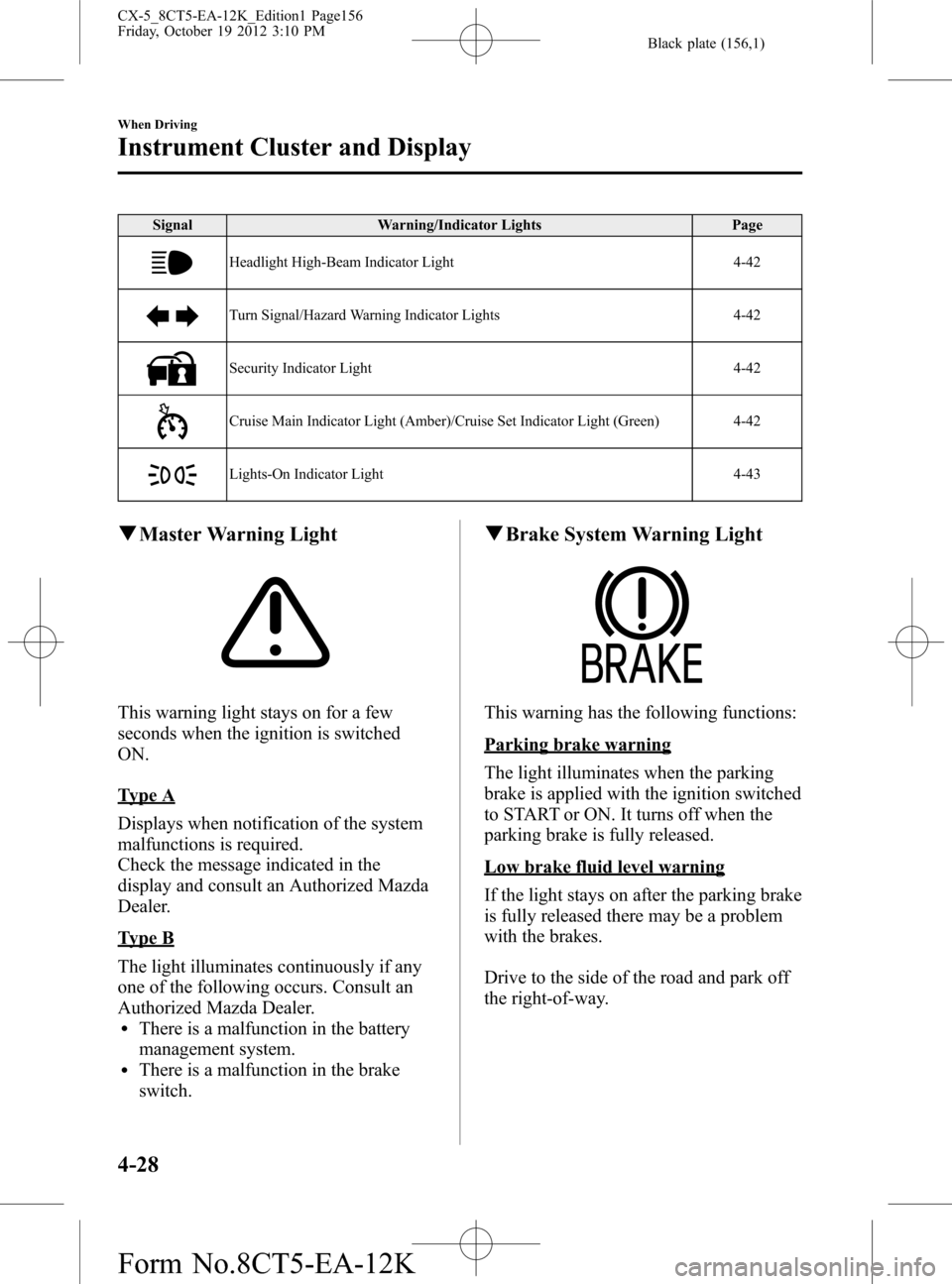

qMaster Warning Light
This warning light stays on for a few
seconds when the ignition is switched
ON.
Type A
Displays when notification of the system
malfunctions is required.
Check the message indicated in the
display and consult an Authorized Mazda
Dealer.
Type B
The light illuminates continuously if any
one of the following occurs. Consult an
Authorized Mazda Dealer.
lThere is a malfunction in the battery
management system.
lThere is a malfunction in the brake
switch.
qBrake System Warning Light
This warning has the following functions:
Parking brake warning
The light illuminates when the parking
brake is applied with the ignition switched
to START or ON. It turns off when the
parking brake is fully released.
Low brake fluid level warning
If the light stays on after the parking brake
is fully released there may be a problem
with the brakes.
Drive to the side of the road and park off
the right-of-way.
4-28
When Driving
Instrument Cluster and Display
CX-5_8CT5-EA-12K_Edition1 Page156
Friday, October 19 2012 3:10 PM
Form No.8CT5-EA-12K

Black plate (157,1)
You may notice that the pedal is harder to
depress or that it may go closer to the
floor. In either case, it will take longer to
stop the vehicle.
1. With the engine stopped, open the
hood and check the brake fluid level
immediately, and then add fluid if
required (page 6-25).
2. After adding fluid, check the light
again.
If the warning light remains on, or if the
brakes do not operate properly, do not
drive the vehicle. Have it towed to an
Authorized Mazda Dealer.
Even if the light turns off, have your
brake system inspected as soon as
possible by an Authorized Mazda Dealer.
NOTE
Having to add brake fluid is sometimes an
indicator of leakage. Consult an Authorized
Mazda Dealer as soon as possible even if the
brake light is no longer illuminated.
WARNING
Do not drive with the brake system
warning light illuminated. Contact an
Authorized Mazda Dealer to have the
brakes inspected as soon as possible:
Driving with the brake system
warning light illuminated is
dangerous. It indicates that your
brakes may not work at all or that
they could completely fail at any
time. If this light remains
illuminated, after checking that the
parking brake is fully released, have
the brakes inspected immediately.
qABS Warning Light
The warning light stays on for a few
seconds when the ignition is switched
ON.
If the ABS warning light stays on while
you're driving, the ABS control unit has
detected a system malfunction. If this
occurs, your brakes will function normally
as if the vehicle had no ABS.
Should this happen, consult an Authorized
Mazda Dealer as soon as possible.
NOTE
When the engine is jump-started to charge the
battery, uneven rpm occurs and the ABS
warning light may illuminate. If this occurs, it
is the result of the weak battery and does not
indicate an ABS malfunction.
Recharge the battery.
When Driving
Instrument Cluster and Display
4-29
CX-5_8CT5-EA-12K_Edition1 Page157
Friday, October 19 2012 3:10 PM
Form No.8CT5-EA-12K

Black plate (158,1)
qElectronic Brake Force
Distribution System Warning
If the electronic brake force distribution
control unit determines that some
components are operating incorrectly, the
control unit may illuminate the brake
system warning light and the ABS
warning light simultaneously. The
problem is likely to be the electronic
brake force distribution system.
WARNING
Do not drive with both the ABS warning
light and brake warning light
illuminated. Have the vehicle towed to
an Authorized Mazda Dealer to have
the brakes inspected as soon as
possible:
Driving when the brake system
warning light and ABS warning light
are illuminated simultaneously is
dangerous.
When both lights are illuminated, the
rear wheels could lock more quickly
in an emergency stop than under
normal circumstances.
qCharging System Warning
Indication/Warning Light
Type B
This warning light illuminates when the
ignition is switched ON and turns off
when the engine is started.
Type A/Type B
If the warning light/indication illuminates
while driving, it indicates a malfunction
of the alternator or of the charging system.
Drive to the side of the road and park off
the right-of-way. Consult an Authorized
Mazda Dealer.
CAUTION
Do not continue driving when the
charging system warning light is
illuminated because the engine could
stop unexpectedly.
qEngine Oil Warning Indication/
Warning Light
Type B
This warning light illuminates when the
ignition is switched ON and turns off
when the engine is started.
4-30
When Driving
Instrument Cluster and Display
CX-5_8CT5-EA-12K_Edition1 Page158
Friday, October 19 2012 3:10 PM
Form No.8CT5-EA-12K

Black plate (159,1)

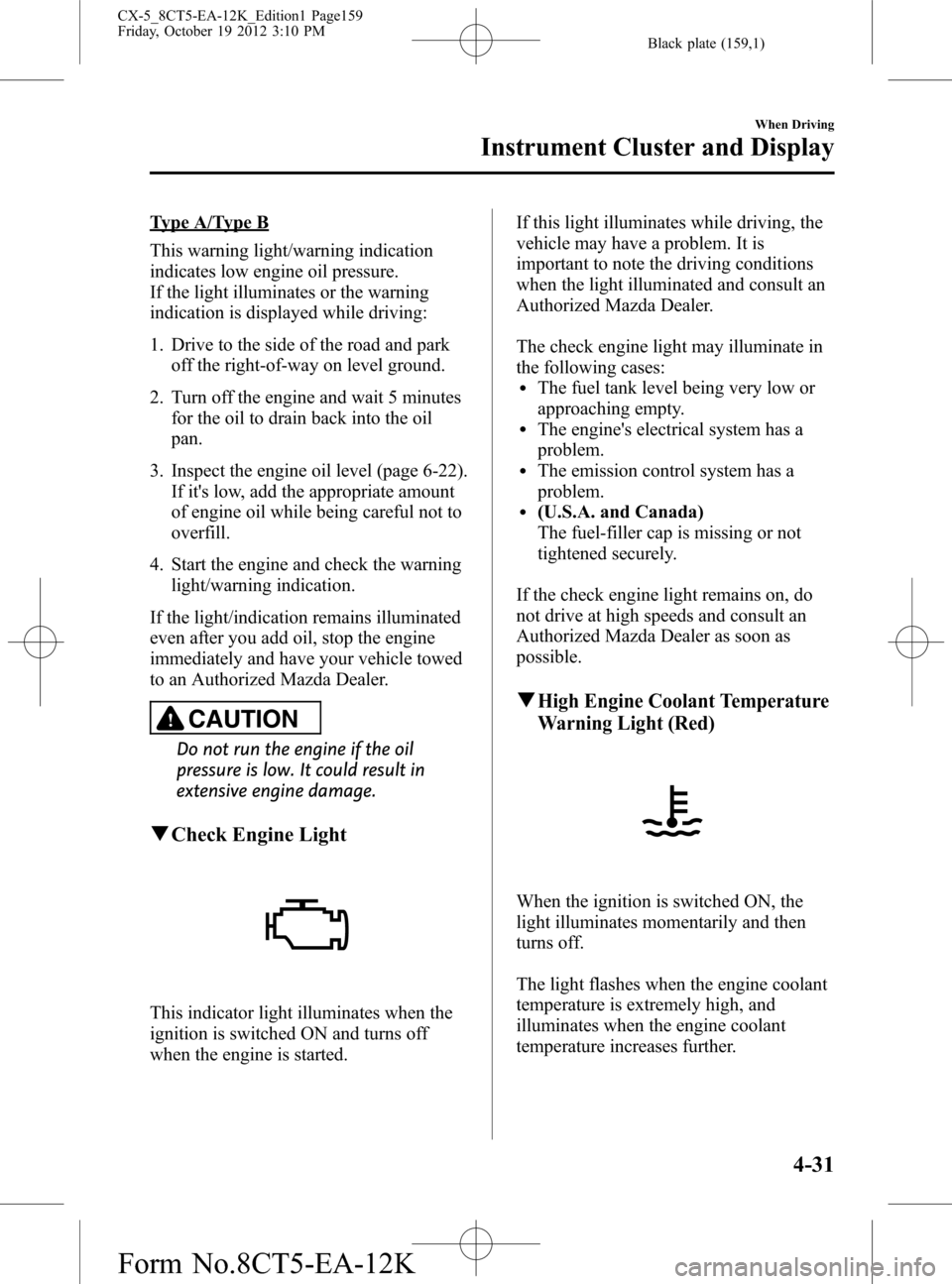

Type A/Type B
This warning light/warning indication
indicates low engine oil pressure.
If the light illuminates or the warning
indication is displayed while driving:
1. Drive to the side of the road and park
off the right-of-way on level ground.
2. Turn off the engine and wait 5 minutes
for the oil to drain back into the oil
pan.
3. Inspect the engine oil level (page 6-22).
If it's low, add the appropriate amount
of engine oil while being careful not to
overfill.
4. Start the engine and check the warning
light/warning indication.
If the light/indication remains illuminated
even after you add oil, stop the engine
immediately and have your vehicle towed
to an Authorized Mazda Dealer.
CAUTION
Do not run the engine if the oil
pressure is low. It could result in
extensive engine damage.
qCheck Engine Light
This indicator light illuminates when the
ignition is switched ON and turns off
when the engine is started.If this light illuminates while driving, the
vehicle may have a problem. It is
important to note the driving conditions
when the light illuminated and consult an
Authorized Mazda Dealer.
The check engine light may illuminate in
the following cases:
lThe fuel tank level being very low or
approaching empty.
lThe engine's electrical system has a
problem.
lThe emission control system has a
problem.
l(U.S.A. and Canada)
The fuel-filler cap is missing or not
tightened securely.
If the check engine light remains on, do
not drive at high speeds and consult an
Authorized Mazda Dealer as soon as
possible.
qHigh Engine Coolant Temperature
Warning Light (Red)
When the ignition is switched ON, the
light illuminates momentarily and then
turns off.
The light flashes when the engine coolant
temperature is extremely high, and
illuminates when the engine coolant
temperature increases further.
When Driving
Instrument Cluster and Display
4-31
CX-5_8CT5-EA-12K_Edition1 Page159
Friday, October 19 2012 3:10 PM
Form No.8CT5-EA-12K

Black plate (160,1)
Handling Procedure
Flashing light
Drive slowly to reduce engine load until
you can find a safe place to stop the
vehicle and wait for the engine to cool
down.
Illuminated light
This indicates the possibility of
overheating. Park the vehicle in a safe
place immediately and stop the engine.
Refer to Overheating (page 7-18).
CAUTION
Do not drive the vehicle with the high
engine coolant temperature warning
light illuminated. Otherwise, it could
result in damage to the engine.
qAWD Warning Indication/
Warning Lightí
Type A
The warning indication will display under
the following conditions;
lWhen there is an abnormality with the
AWD system.
lIf there is too much difference in tire
radius between the front and rear
wheels.
lWhen the differential oil temperature is
abnormally high.
lWhen there are continually large
differences between front and rear
wheel rotation, such as when trying to
pull away from an icy surface, or when
trying to remove the vehicle from mud,
sand or similar conditions.
When“4WD system inspection
required”is indicated
Contact an Authorized Mazda Dealer.
When“Stop vehicle at safe area”is
indicated
Park the vehicle in a safe place. After a
few moments, if the indication disappears,
you can resume driving. If the indication
does not disappear, contact an Authorized
Mazda Dealer.
Type B
This warning light stays on for a few
seconds when the ignition is switched
ON.
The warning light will illuminate or flash
under the following conditions:
lIlluminates when there is an
abnormality with the AWD system.
lIlluminates if there is too much
difference in tire radius between the
front and rear wheels.
lFlashes when the differential oil
temperature is abnormally high.
lFlashes when there are continually
large differences between front and rear
wheel rotation, such as when trying to
pull away from an icy surface, or when
trying to remove the vehicle from mud,
sand or similar conditions.
When illuminated
If the AWD warning light illuminates,
contact an Authorized Mazda Dealer.
4-32
When Driving
íSome models.
Instrument Cluster and Display
CX-5_8CT5-EA-12K_Edition1 Page160
Friday, October 19 2012 3:10 PM
Form No.8CT5-EA-12K
