qInformation on Temporary Tires
Please refer to the sample below.
1. Temporary tires
2. Nominal width of tire in millimeters
3. Ratio of height to width (aspect ratio)
4. Diagonal
5. Rim diameter code
6. Load index & speed symbol
T115/70D 16 90M is an example of a tire size and load index rating. Here is an explanation
of the various components of that tire size and load index rating. Note that the tire size and
load index rating may be different from the example.
T
Indicates a tire that may be installed on cars, SUVs, minivans and light trucks as designated
by the Tire and Rim Association (T&RA).
11 5
“115”is the nominal width of the tire in millimeters. This three-digit number gives the
width in millimeters of the tire from sidewall edge to sidewall edge. In general, the larger
the number, the wider the tire.
Customer Information and Reporting Safety Defects
Tire Information (U.S.A.)
8-29
CX-5_8CT5-EA-12K_Edition1 Page487
Friday, October 19 2012 3:13 PM
Form No.8CT5-EA-12K

Black plate (488,1)
70
“70”is the aspect ratio. This two-digit number indicates the tire's ratio of height to width.
D
“D”is the tire construction symbol. D indicates“diagonal ply construction”.
16
“16”is the wheel rim diameter in inches.
90
“90”is the Load Index. This two-or three-digit number indicates how much weight each
tire can support.
M
“M”is the speed rating. The speed rating denotes the maximum speed for which the use of
the tire is rated.
Letter Rating Speed Rating
M 81 mph
8-30
Customer Information and Reporting Safety Defects
Tire Information (U.S.A.)
CX-5_8CT5-EA-12K_Edition1 Page488
Friday, October 19 2012 3:13 PM
Form No.8CT5-EA-12K

Black plate (503,1)

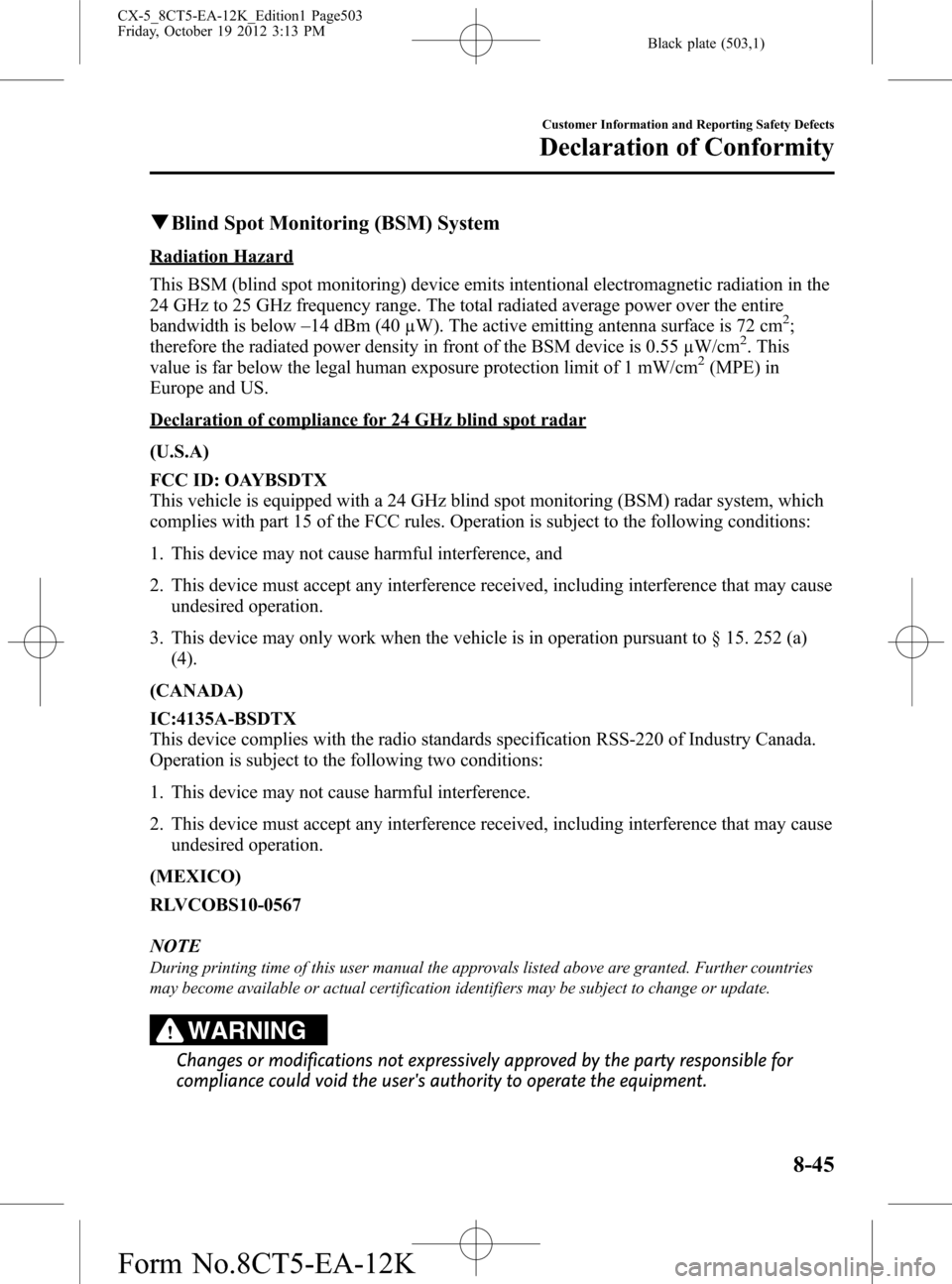

qBlind Spot Monitoring (BSM) System
Radiation Hazard
This BSM (blind spot monitoring) device emits intentional electromagnetic radiation in the
24 GHz to 25 GHz frequency range. The total radiated average power over the entire
bandwidth is below_
14 dBm (40 µW). The active emitting antenna surface is 72 cm
2;
therefore the radiated power density in front of the BSM device is 0.55 µW/cm2. This
value is far below the legal human exposure protection limit of 1 mW/cm2(MPE) in
Europe and US.
Declaration of compliance for 24 GHz blind spot radar
(U.S.A)
FCC ID: OAYBSDTX
This vehicle is equipped with a 24 GHz blind spot monitoring (BSM) radar system, which
complies with part 15 of the FCC rules. Operation is subject to the following conditions:
1. This device may not cause harmful interference, and
2. This device must accept any interference received, including interference that may cause
undesired operation.
3. This device may only work when the vehicle is in operation pursuant to § 15. 252 (a)
(4).
(CANADA)
IC:4135A-BSDTX
This device complies with the radio standards specification RSS-220 of Industry Canada.
Operation is subject to the following two conditions:
1. This device may not cause harmful interference.
2. This device must accept any interference received, including interference that may cause
undesired operation.
(MEXICO)
RLVCOBS10-0567
NOTE
During printing time of this user manual the approvals listed above are granted. Further countries
may become available or actual certification identifiers may be subject to change or update.
WARNING
Changes or modifications not expressively approved by the party responsible for
compliance could void the user's authority to operate the equipment.
Customer Information and Reporting Safety Defects
Declaration of Conformity
8-45
CX-5_8CT5-EA-12K_Edition1 Page503
Friday, October 19 2012 3:13 PM
Form No.8CT5-EA-12K

Black plate (513,1)
qCapacities
(Approximate Quantities)
Item Capacity
Engine oil
SKYACTIV-G 2.0With oil filter replacement 4.2 L (4.4 US qt, 3.7 Imp qt)
Without oil filter replacement 4.0 L (4.2 US qt, 3.5 Imp qt)
SKYACTIV-G 2.5With oil filter replacement 4.5 L (4.8 US qt, 4.0 Imp qt)
Without oil filter replacement 4.3 L (4.5 US qt, 3.8 Imp qt)
CoolantU.S.A. and
Canada
SKYACTIV-G 2.0
Manual transaxle 7.4 L (7.8 US qt, 6.5 Imp qt)
Automatic
transaxle7.6 L (8.0 US qt, 6.7 Imp qt)
SKYACTIV-G 2.5 7.8 L (8.2 US qt, 6.9 Imp qt)
Mexico
SKYACTIV-G 2.0
Manual transaxle 7.5 L (7.9 US qt, 6.6 Imp qt)
Automatic
transaxle7.8 L (8.2 US qt, 6.9 Imp qt)
SKYACTIV-G 2.5 7.9 L (8.3 US qt, 7.0 Imp qt)
Manual transaxle oil 1.65 L (1.74 US qt, 1.45 Imp qt)
Automatic transaxle fluid 7.8 L (8.2 US qt, 6.9 Imp qt)
Transfer case oil 0.45 L (0.48 US qt, 0.40 Imp qt)
Rear differential oil 0.45 L (0.48 US qt, 0.40 Imp qt)
Fuel tank2WD 56.0 L (14.8 US gal, 12.3 Imp gal)
AWD 58.0 L (15.3 US gal, 12.8 Imp gal)
Check oil and fluid levels with dipsticks or reservoir gauges.
qDimensions
Item Vehicle specification
Overall length 4,540 mm (178.7 in)
Overall width 1,840 mm (72.4 in)
Overall height 1,710 mm (67.3 in)
