lUnder the following conditions, the Smart City Brake Support (SCBS) system may not operate
normally.
lHeavy luggage is loaded in the luggage compartment or on the rear seat.lWhen there is the possibility of partial contact with a vehicle or obstruction ahead.lWhen driving on continuously curving roads, entering and exiting curves, and unstable driving
due to a vehicle accident or breakdown in a driving lane.
lElongated luggage or cargo is loaded onto installed roof rails and covers the laser sensor.lExhaust gas from the vehicle ahead, sand, snow, and water vapor rising from manholes and
grating, and water splashed into the air.
lIn the following cases, if the laser sensor determines that there is a vehicle ahead and the Smart
City Brake Support (SCBS) system may operate.
lObjects on the road at the entrance to a curve.lVehicles passing in the opposite lane while making a curve.lMetal objects, bumps, or protruding objects on the road.lWhen passing through a toll gate.lWhen passing under a vinyl curtain or flag.lPlastic objects such as pylons.lTwo-wheeled vehicles, pedestrians, animals or standing trees.lIf the vehicle is driven with some of the tires having significant wear, the system may not operate
correctly. If the tires are returned to a normal state and the master warning light still illuminates,
have your vehicle inspected by an Authorized Mazda Dealer.
qLaser Sensor Handling
The Smart City Brake Support (SCBS) laser sensor is installed at the top of the windshield
near the rearview mirror.
Laser sensor
Always keep the surface of the windshield around the laser sensor clean to assure proper
operation of the Smart City Brake Support (SCBS) system.
When Driving
Brake
4-79
CX-5_8CT5-EA-12K_Edition1 Page207
Friday, October 19 2012 3:11 PM
Form No.8CT5-EA-12K

Black plate (208,1)

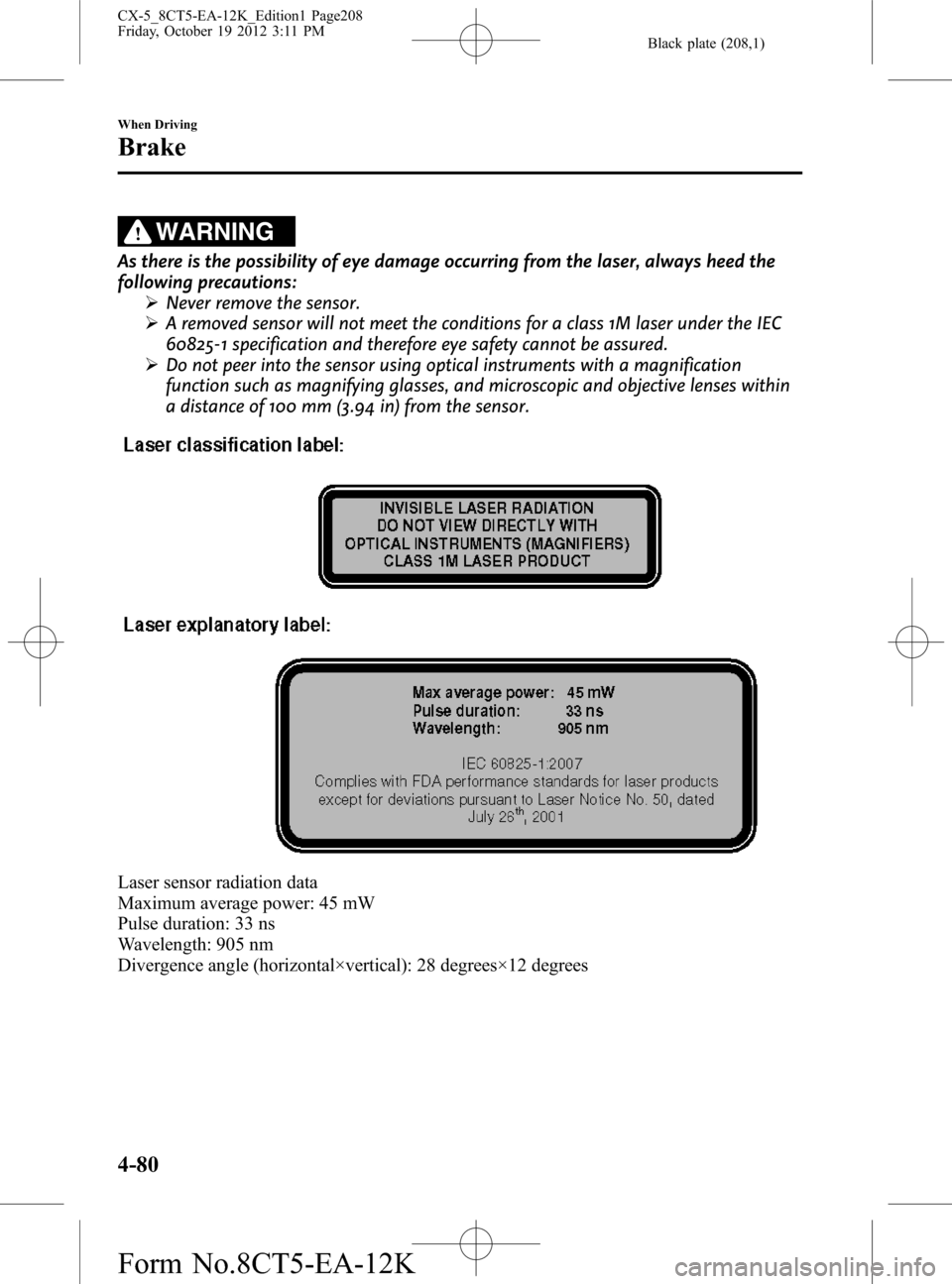

WARNING
As there is the possibility of eye damage occurring from the laser, always heed the
following precautions:
ØNever remove the sensor.
ØA removed sensor will not meet the conditions for a class 1M laser under the IEC
60825-1 specification and therefore eye safety cannot be assured.
ØDo not peer into the sensor using optical instruments with a magnification
function such as magnifying glasses, and microscopic and objective lenses within
a distance of 100 mm (3.94 in) from the sensor.
Laser sensor radiation data
Maximum average power: 45 mW
Pulse duration: 33 ns
Wavelength: 905 nm
Divergence angle (horizontal×vertical): 28 degrees×12 degrees
4-80
When Driving
Brake
CX-5_8CT5-EA-12K_Edition1 Page208
Friday, October 19 2012 3:11 PM
Form No.8CT5-EA-12K

Black plate (220,1)
Tire Pressure Monitoring System
lThe Tire Pressure Monitoring System (TPMS) monitors the air pressure of all four
wheels. If the air pressure of one or more tires is too low, the system warns the driver by
indicating the tire pressure monitoring system warning light in the instrument cluster
(the warning is also indicated in the display on the type A instrument cluster) and
operating a beep sound. The system monitors the tire pressures indirectly using the data
sent from the ABS wheel speed sensors.
To allow the system to operate correctly, the system needs to be initialized with the
specified tire pressure (value on the tire pressure label). Follow the procedure and
perform the initialization.
lFor vehicles with the type A instrument cluster, check the vehicle condition or have the
vehicle inspected at an Authorized Mazda Dealer according to the indication.
lA system malfunction or operation conditions are indicated by a warning.
Refer to Warning/Indicator Lights on page 4-22.
Refer to Tire Inflation Pressure Warning Beep on page 7-34.
ABS wheel speed sensor
4-92
When Driving
Tire Pressure Monitoring System
CX-5_8CT5-EA-12K_Edition1 Page220
Friday, October 19 2012 3:11 PM
Form No.8CT5-EA-12K

Black plate (224,1)
Blind Spot Monitoring (BSM) Systemí
The Blind Spot Monitoring (BSM) system is designed to assist the driver by monitoring
blind spots on both sides of the vehicle to the rear in certain situations such as when
changing lanes on roads and freeways.
The BSM system monitors the detection areas on both sides of the vehicle to the rear when
the vehicle speed is about 32 km/h (20 mph) or more, and notifies the driver of vehicles in
the detection area by illuminating the BSM warning light.
If the turn signal lever is operated in the direction the BSM warning light is illuminated, the
system warns the driver of the vehicle in the detection area with a beep sound.
A system malfunction or operation conditions are indicated by a warning. Refer to
Warning/Indicator Lights on page 4-22.Refer to Blind Spot Monitoring (BSM) System
Warning Beep on page 7-34.
Detection areas
Your vehicle
WARNING
Do not rely completely on the BSM system and be sure to look over your shoulder
before changing lanes:
The BSM system can assist the driver in confirming the safety of the surroundings
but is not a complete substitute. The driver is responsible for assuring lane changes
and other maneuvers. Always pay attention to the direction in which the vehicle is
traveling and the vehicle's surroundings.
NOTE
lThe BSM system does not operate when the vehicle speed is lower than about 32 km/h (20 mph).lThe radar sensors are equipped inside the rear bumper. (page 4-99)lThe system may not operate normally when towing a trailer. Turn off the system by operating the
BSM OFF switch when towing a trailer.
4-96
When Driving
íSome models.
Blind Spot Monitoring (BSM) System
CX-5_8CT5-EA-12K_Edition1 Page224
Friday, October 19 2012 3:11 PM
Form No.8CT5-EA-12K

Black plate (225,1)
lThe radar sensors do not detect human, animal, or static objects such as fences. In addition, the
system pauses when the selector lever is shifted to the R position. (The system resumes
automatically when the selector lever is shifted from the R position.)
lThe detectability of the radar sensors has its limitations. The BSM system may not operate
properly under the following conditions:
lIce, snow, or soil adheres to the rear bumper surface around the radar sensors.lDuring adverse weather conditions such as rain or snow, or under conditions where water is
sprayed.
lThe rear bumper area around the radar sensors is blocked by foreign material (such as
stickers or a bicycle carrier).
lThe radar sensors may not detect all types of vehicles around your vehicle, especially the
following types of vehicles:
lMotorcycleslVehicles with body shapes that radar may not reflect such as a flatbed trailer with no cargo.lVehicles with lower body height such as sports cars.lHave the radar sensors inspected at an Authorized Mazda Dealer if any shock is applied to the
rear bumper, even in a minor accident. If the vehicle is driven with a damaged radar sensor, the
system may not operate properly resulting in an accident.
lFor repairs or paintwork around the radar sensors, or replacement of the bumper, consult an
Authorized Mazda Dealer.
lThe radar sensors of the BSM system may be regulated under the radio wave related laws of the
country where the vehicle is driven. The sensors in this system are approved for use in the U.S.A.
(including territories), Canada, and Mexico. If a vehicle with a BSM system is driven in a country
other than the U.S.A., Canada, or Mexico, the system has to be turned off using the BSM OFF
switch.
lThe detection area of the system has been determined based on the lane width of general
freeways. Therefore on a road with a narrower lane width, the system may detect vehicles on a
lane next to the adjacent lane and operate the warning light/beep. On a road with wider lane
width, the system may not detect vehicles on the adjacent lane and may not operate the warning
light/beep.
lOperation of the warning light/beep may be delayed or the system may not operate the warning
light/beep under the following conditions:
lThe vehicle accelerates from a standing-start with a vehicle alongside.lA vehicle moves from a lane two lanes over to the adjacent lane.lThe difference in vehicle speed between your vehicle and another vehicle is larger when
passing or being passed, and the vehicle passes the detection area within a short period of
time.
lOn a steep incline, or when there is a difference in height between lanes.lImmediately after the system has been activated by pressing the BSM OFF switch again after it
has been turned off (BSM OFF indicator light in instrument panel illuminates) by pressing the
switch.
lAlthough the system may detect objects on the road side such as parked vehicles or guardrails and
operate the warning light/beep, it does not indicate a malfunction.
When Driving
Blind Spot Monitoring (BSM) System
4-97
CX-5_8CT5-EA-12K_Edition1 Page225
Friday, October 19 2012 3:11 PM
Form No.8CT5-EA-12K

Black plate (226,1)
lIf the vehicle is driven on a road with less traffic and few vehicles that the radar sensors can
detect, the system may pause (The BSM OFF indicator light in the instrument panel flashes).
However, it does not indicate a malfunction.
lThe following conditions may affect the visibility of the BSM warning lights on the outside mirror,
making it difficult to confirm the illumination of the lights:
lIce or snow adheres to the surface of the outside mirrors.lThe door window glass is tinted.
qBSM Warning Light
The blind spot monitoring system alerts the driver to the presence of another vehicle in an
adjacent lane using the BSM warning lights and the warning beep while the system is
operational.
BSM warning light
Equipped on the left and right door mirrors.
This warning light illuminates for a few seconds when the ignition is switched ON.
If the BSM system detects a vehicle in the detection area while the vehicle is driven at a
speed of about 32 km/h (20 mph) or more, the BSM warning light illuminates on the side
of the vehicle where the rear on-coming vehicle is detected.
NOTE
lIf ice or snow adhere to the outer mirror surface, the BSM warning light may not be visible.lIf the door window glass is tinted, it may affect the visibility of the BSM warning light, making it
difficult to confirm the illumination of the light.
4-98
When Driving
Blind Spot Monitoring (BSM) System
CX-5_8CT5-EA-12K_Edition1 Page226
Friday, October 19 2012 3:11 PM
Form No.8CT5-EA-12K

Black plate (227,1)
qBSM OFF Switch
When the BSM OFF switch is pressed,
the BSM system turns off and the BSM
OFF indicator light illuminates.
Press the BSM OFF switch again to turn
on the BSM system. The BSM OFF
indicator light turns off.
NOTE
lThe system may not operate normally when
towing a trailer. Turn off the system by
operating the BSM OFF switch when
towing a trailer.
lIf the ignition is switched off with the BSM
system turned off, the system becomes
operable automatically when the ignition is
switched ON.
qCare of Radar Sensors
The radar sensors are equipped inside the
rear bumper.
Radar sensors
Always keep the bumper surface near the
radar sensor area clean so that the BSM
system operates normally. Refer to
Exterior Care on page 6-56.
NOTE
lThe BSM OFF indicator light flashes if the
radar sensors cannot operate normally. If
the light remains flashing after cleaning the
bumper surface near the radar sensor area,
consult an Authorized Mazda Dealer.
lFor repairs or paintwork around the radar
sensors, or replacement of the bumper,
consult an Authorized Mazda Dealer.
When Driving
Blind Spot Monitoring (BSM) System
4-99
CX-5_8CT5-EA-12K_Edition1 Page227
Friday, October 19 2012 3:11 PM
Form No.8CT5-EA-12K

Black plate (250,1)
WARNING
Set the temperature control to the hot
or warm position when defogging (
position):
Using the
position with the
temperature control set to the cold
position is dangerous as it will cause
the outside of the windshield to fog
up. Your vision will be hampered,
which could lead to a serious
accident.
NOTE
Use the temperature control dial to increase
the air flow temperature and defog the
windshield more quickly.
qSunlight/Temperature Sensor
The fully automatic air conditioner
function measures inside and outside
temperatures, and sunlight. It then sets
temperatures inside the passenger
compartment accordingly.
CAUTION
Do not obstruct either sensor,
otherwise the automatic air
conditioner will not operate properly.
Sunlight sensor
Interior temperature sensor
5-12
Interior Features
Climate Control System
CX-5_8CT5-EA-12K_Edition1 Page250
Friday, October 19 2012 3:11 PM
Form No.8CT5-EA-12K

Black plate (385,1)
Body Lubrication
All moving points of the body, such as
door and hood hinges and locks, should
be lubricated each time the engine oil is
changed. Use a nonfreezing lubricant on
locks during cold weather.
Make sure the hood's secondary latch
keeps the hood from opening when the
primary latch is released.
Wiper Blades
CAUTION
ØHot waxes applied by automatic
car washers have been known to
affect the wiper's ability to clean
windows.
ØTo prevent damage to the wiper
blades, do not use gasoline,
kerosene, paint thinner, or other
solvents on or near them.
ØWhen the wiper lever is in the
AUTO position and the ignition is
switched ON, the wipers may
move automatically in the
following cases:
ØIf the windshield above the rain
sensor is touched.
ØIf the windshield above the rain
sensor is wiped with a cloth.
ØIf the windshield is struck with
a hand or other object.
ØIf the rain sensor is struck with
a hand or other object from
inside the vehicle.
Be careful not to pinch hands or
fingers as it may cause injury, or
damage the wipers. When
washing or servicing your Mazda,
make sure the wiper lever is in the
OFF position.
Contamination of either the windshield or
the blades with foreign matter can reduce
wiper effectiveness. Common sources are
insects, tree sap, and hot wax treatments
used by some commercial car washes.
If the blades are not wiping properly,
clean the window and blades with a good
cleaner or mild detergent; then rinse
thoroughly with clean water. Repeat if
necessary.
Maintenance and Care
Owner Maintenance
6-27
CX-5_8CT5-EA-12K_Edition1 Page385
Friday, October 19 2012 3:12 PM
Form No.8CT5-EA-12K

Black plate (412,1)
DESCRIPTIONFUSE
RATINGPROTECTED COMPONENT
53 HORN 15 A Horn
54 ROOM 15 A Overhead light
*1 With xenon fusion headlights
*2 With halogen headlights
Fuse block (Left side)
DESCRIPTIONFUSE
RATINGPROTECTED COMPONENT
1 P.SEAT D 30 A Power seat
í
2 P.WINDOW3――
3 R.OUTLET3 15 A Accessory sockets
4 P.WINDOW2 25 A Power windows
5 SRS2/ESCL 15 A Seat weight sensor
í
6 D.LOCK 25 A Power door locks
7 SEAT WARM 20 A Seat warmerí
8 SUNROOF 10 A Moonroofí
9 F.OUTLET 15 A Accessory sockets
10 MIRROR 7.5 A Power control mirror
11 R.OUTLET1――
12―― ―
6-54
Maintenance and Care
íSome models.
Owner Maintenance
CX-5_8CT5-EA-12K_Edition1 Page412
Friday, October 19 2012 3:12 PM
Form No.8CT5-EA-12K
