Black plate (415,1)
Prevention
It is necessary to wash and wax your
vehicle to preserve its finish according to
the instructions in this section. These
steps should be taken immediately after
you find water marks on your vehicle's
finish.
Paint Chipping
Occurrence
Paint chipping occurs when gravel thrown
in the air by another vehicle's tires hits
your vehicle.
How to avoid paint chipping
Keeping a safe distance between you and
the vehicle ahead reduces the chances of
having your paint chipped by flying
gravel.
NOTE
lThe paint chipping zone varies with the
speed of the vehicle. For example, when
traveling at 90 km/h (56 mph), the paint
chipping zone is 50 m (164 ft).
lIn low temperatures a vehicle's finish
hardens. This increases the chance of paint
chipping.
lChipped paint can lead to rust forming on
your Mazda. Before this happens, repair the
damage by using Mazda touch-up paint
according to the instructions in this section.
Failure to repair the affected area could
lead to serious rusting and expensive
repairs.
Followalllabel and container directions
when using a chemical cleaner or polish.
Read all warnings and cautions.
qMaintaining the Finish
Washing
CAUTION
ØWhen the wiper lever is in the
AUTO position and the ignition is
switched ON, the wipers may
move automatically in the
following cases:
ØIf the windshield above the rain
sensor is touched or wiped with
a cloth.
ØIf the windshield is struck with
a hand or other object from
either outside or inside the
vehicle.
Keep hands and scrapers clear of
the windshield when the wiper
lever is in the AUTO position and
the ignition is switched ON as
fingers could be pinched or the
wipers and wiper blades damaged
when the wipers activate
automatically.
If you are going to clean the
windshield, be sure the wipers are
turned off completely―this is
particularly important when
clearing ice and snow―when it is
most likely that the engine is left
running.
ØDo not spray water in the engine
compartment. Otherwise, it could
result in engine-starting problems
or damage to electrical parts.
To help protect the finish from rust and
deterioration, wash your Mazda
thoroughly and frequently, at least once a
month, with lukewarm or cold water.
Maintenance and Care
Appearance Care
6-57
CX-5_8CT5-EA-12K_Edition1 Page415
Friday, October 19 2012 3:12 PM
Form No.8CT5-EA-12K

Black plate (453,1)
qIf the adaptive front lighting system
(AFS) OFF indicator light flashesí
The indicator light flashes continuously if
the system is malfunctioning. Consult an
Authorized Mazda Dealer.
NOTE
lEven if the AFS is not operating due to
some malfunction, the normal headlight
function is still operable.
lIf there is a malfunction with the headlight
auto-leveling function, the indicator light
flashes.
qIf the low engine coolant
temperature indicator light (blue)
does not turn off
If the low engine coolant temperature
indicator light remains illuminated after
the engine has been sufficiently warmed
up, the temperature sensor could have a
malfunction. Consult an Authorized
Mazda Dealer.
qIf the turn signal/hazard warning
indicator light illuminates or flashes
at an abnormally high speed
If an indicator light remains illuminated
(does not flash) or if it flashes abnormally,
one of the turn signal bulbs may be
burned out. Consult an Authorized Mazda
Dealer.
qIf the security indicator light
illuminates or flashes
If the engine does not start with the
correct key, and the security indicator
light keeps illuminating or flashing, the
system may have a malfunction. Consult
an Authorized Mazda Dealer.
If Trouble Arises
Warning/Indicator Lights and Warning Sounds
7-31íSome models. CX-5_8CT5-EA-12K_Edition1 Page453
Friday, October 19 2012 3:12 PM
Form No.8CT5-EA-12K

Black plate (454,1)
qIf the blind spot monitoring (BSM)
system OFF indicator light flashesí
The indicator light flashes if the BSM
system has a malfunction. Consult an
Authorized Mazda Dealer.
NOTE
If the vehicle is driven on a road with less
traffic and few vehicles that the radar sensors
can detect, the system may pause (The BSM
OFF indicator light in the instrument panel
flashes). However, it does not indicate a
malfunction.
qIf the lights-on indicator light flashes
The light continues to flash if the lighting
system has a malfunction. Consult an
Authorized Mazda Dealer.
Warning Sound is Activated
qLights-On Reminder
If lights are on and the ignition is
switched to ACC or the ignition is
switched off, a continuous beep sound
will be heard when the driver's door is
opened.
NOTE
lWhen the ignition is switched to ACC, the
“Ignition Not Switched Off (STOP)
Warning Beep”(page 7-33) overrides the
lights-on reminder.
lA personalized function is available to
change the sound volume for the lights-on
reminder.
Refer to Personalization Features on page
9-10.
qAir Bag/Front Seat Belt
Pretensioner System Warning Beep
If a malfunction is detected in the air bag/
front seat belt pretensioner systems and
the warning light, a warning beep sound
will be heard for about 5 seconds every
minute.
The air bag and seat belt pretensioner
system warning beep sound will continue
to be heard for approximately 35 minutes.
Have your vehicle inspected at an
Authorized Mazda Dealer as soon as
possible.
7-32
If Trouble Arises
íSome models.
Warning/Indicator Lights and Warning Sounds
CX-5_8CT5-EA-12K_Edition1 Page454
Friday, October 19 2012 3:12 PM
Form No.8CT5-EA-12K

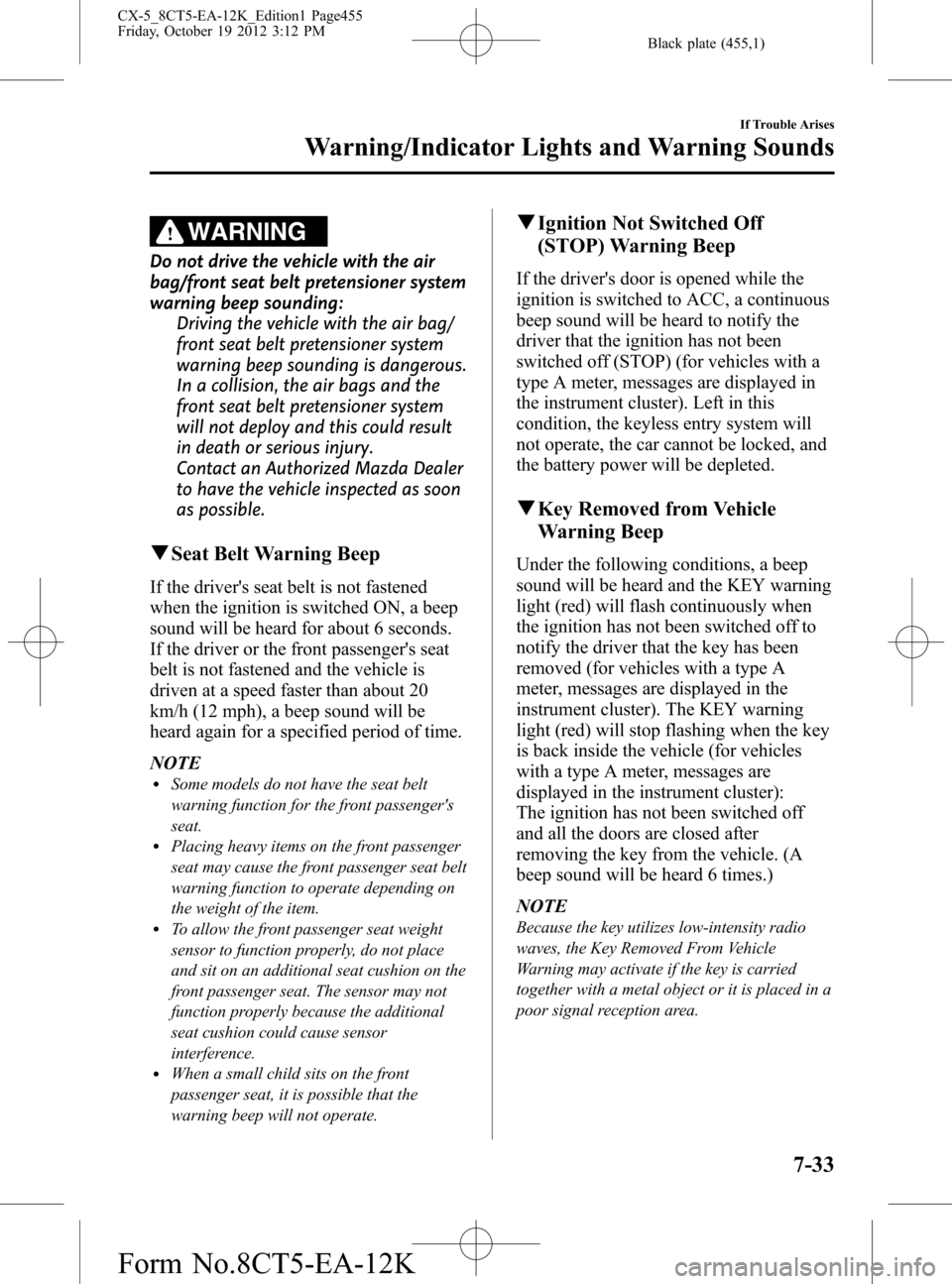

Black plate (455,1)
WARNING
Do not drive the vehicle with the air
bag/front seat belt pretensioner system
warning beep sounding:
Driving the vehicle with the air bag/
front seat belt pretensioner system
warning beep sounding is dangerous.
In a collision, the air bags and the
front seat belt pretensioner system
will not deploy and this could result
in death or serious injury.
Contact an Authorized Mazda Dealer
to have the vehicle inspected as soon
as possible.
qSeat Belt Warning Beep
If the driver's seat belt is not fastened
when the ignition is switched ON, a beep
sound will be heard for about 6 seconds.
If the driver or the front passenger's seat
belt is not fastened and the vehicle is
driven at a speed faster than about 20
km/h (12 mph), a beep sound will be
heard again for a specified period of time.
NOTE
lSome models do not have the seat belt
warning function for the front passenger's
seat.
lPlacing heavy items on the front passenger
seat may cause the front passenger seat belt
warning function to operate depending on
the weight of the item.
lTo allow the front passenger seat weight
sensor to function properly, do not place
and sit on an additional seat cushion on the
front passenger seat. The sensor may not
function properly because the additional
seat cushion could cause sensor
interference.
lWhen a small child sits on the front
passenger seat, it is possible that the
warning beep will not operate.
qIgnition Not Switched Off
(STOP) Warning Beep
If the driver's door is opened while the
ignition is switched to ACC, a continuous
beep sound will be heard to notify the
driver that the ignition has not been
switched off (STOP) (for vehicles with a
type A meter, messages are displayed in
the instrument cluster). Left in this
condition, the keyless entry system will
not operate, the car cannot be locked, and
the battery power will be depleted.
qKey Removed from Vehicle
Warning Beep
Under the following conditions, a beep
sound will be heard and the KEY warning
light (red) will flash continuously when
the ignition has not been switched off to
notify the driver that the key has been
removed (for vehicles with a type A
meter, messages are displayed in the
instrument cluster). The KEY warning
light (red) will stop flashing when the key
is back inside the vehicle (for vehicles
with a type A meter, messages are
displayed in the instrument cluster):
The ignition has not been switched off
and all the doors are closed after
removing the key from the vehicle. (A
beep sound will be heard 6 times.)
NOTE
Because the key utilizes low-intensity radio
waves, the Key Removed From Vehicle
Warning may activate if the key is carried
together with a metal object or it is placed in a
poor signal reception area.
If Trouble Arises
Warning/Indicator Lights and Warning Sounds
7-33
CX-5_8CT5-EA-12K_Edition1 Page455
Friday, October 19 2012 3:12 PM
Form No.8CT5-EA-12K

Black plate (522,1)
A
Accessory Socket ............................ 5-114
Adaptive Front Lighting System
(AFS) ................................................ 4-59
Add-On Non-Genuine Parts and
Accessories ....................................... 8-20
Advanced Key
Operational range ......................... 3-9
Advanced Keyless Entry System ........ 3-8
Air Bag Systems ............................... 2-39
All-Wheel Drive
(AWD) Operation ............................. 4-86
Antilock Brake System (ABS) .......... 4-82
Audio Control Switch
Adjusting the Volume ................ 5-57
Mute Switch ............................... 5-57
Seek Switch ................................ 5-57
Audio System
Antenna ...................................... 5-13
Audio Control Switch ................ 5-56
Audio Set (Type A) .................... 5-25
Audio Set (Type B) .................... 5-35
AUX/USB/iPod mode ................ 5-58
Operating Tips for Audio
System ........................................ 5-13
Satellite Radio ............................ 5-44
Automatic Transaxle
Driving tips ................................ 4-53
Manual shift mode ..................... 4-49
Shift-lock override ..................... 4-48
Shift-lock system ....................... 4-48
Transaxle ranges ........................ 4-47
B
Battery ............................................... 6-31
Maintenance ............................... 6-32
Specifications ............................... 9-4
B
Battery runs out ................................. 7-14
Jump-Starting ............................. 7-14
Beep Sounds
Air bag/front seat belt pretensioner
system warning .......................... 7-32
Blind spot monitoring
(BSM) system warning .............. 7-34
Ignition not switched off
(STOP) warning ......................... 7-33
Key left-in-luggage compartment
warning ...................................... 7-34
Key left-in-vehicle warning ....... 7-34
Key removed from vehicle
warning ...................................... 7-33
Lights-on reminder ..................... 7-32
Request switch inoperable
warning ...................................... 7-34
Seat belt warning ........................ 7-33
Tire inflation pressure warning ... 7-34
Blind Spot Monitoring
(BSM) System .................................. 4-96
BSM OFF switch ....................... 4-99
BSM warning light ..................... 4-98
Care of radar sensors .................. 4-99
Bluetooth® ....................................... 5-77
Bluetooth® Audio .................... 5-102
Bluetooth® Hands-Free ............. 5-83
Troubleshooting ....................... 5-106
Body Lubrication .............................. 6-27
Bottle Holder ................................... 5-117
Brakes
Brakes assist ............................... 4-73
Foot brake .................................. 4-71
Pad wear indicator ...................... 4-73
Parking brake ............................. 4-72
Break-In ............................................ 3-39
10-2
Index
CX-5_8CT5-EA-12K_Edition1 Page522
Friday, October 19 2012 3:13 PM
Form No.8CT5-EA-12K

Black plate (526,1)
P
Personalization Features ................... 9-10
Power Steering .................................. 4-88
Power Windows ................................ 3-30
R
Rear Coat Hooks ............................. 5-119
Rear Door Child Safety Locks .......... 3-18
Rear Seat ............................................. 2-7
Rear View Monitor ......................... 4-100
Rear Window Defroster .................... 4-66
Rear Window Washer ....................... 4-65
Rear Window Wiper .......................... 4-65
Rearview Mirror ................................ 3-28
Recommended Oil ............................ 6-21
Recreational Towing ......................... 3-53
Registering Your Vehicle in A Foreign
Country ............................................. 8-19
Replacement
Electrical battery ......................... 6-33
Fuse ............................................ 6-49
Light Bulbs ................................ 6-40
Tires ........................................... 6-37
Wheel ......................................... 6-38
Wiper .......................................... 6-27
Rocking the Vehicle .......................... 3-41
S
Safety Defects, Reporting ................. 8-15
Satellite Radio ................................... 5-44
Scheduled Maintenance ...................... 6-4
Seat Belt System
3-point type ................................ 2-17
Automatic locking ...................... 2-16
Emergency locking .................... 2-16
Extender ..................................... 2-21
Pregnant women ........................ 2-16
S
Seats
Front seat ...................................... 2-4
Head restraint ............................. 2-12
Rear seat ....................................... 2-7
Seat warmer .................................. 2-6
Security System
Immobilizer system .................... 3-35
Theft-deterrent system ............... 3-37
Service Publications .......................... 8-49
Smart City Brake Support (SCBS) .... 4-76
Laser Sensor Handling ............... 4-79
Stopping The Smart City Brake
Support
(SCBS) System Operation ......... 4-81
Spare Tire ............................................ 7-5
Specifications ...................................... 9-4
Speedometer ...................................... 4-11
SRS Air Bags
Driver and front passenger occupant
classification system .................. 2-55
How the SRS air bags work ....... 2-48
Limitations to SRS air bag ......... 2-53
Monitoring ................................. 2-61
SRS air bag deployment
criteria ........................................ 2-52
Supplemental restraint system
components ................................ 2-46
Starting the Engine .............................. 4-3
Steering Wheel .................................. 3-26
Horn ........................................... 4-67
Storage Compartments .................... 5-117
Cargo securing loops ................ 5-118
Center console .......................... 5-118
Glove compartment .................. 5-118
Luggage Compartment ............. 5-119
Overhead console ..................... 5-117
Rear coat hooks ........................ 5-119
Sunshade ........................................... 3-34
10-6
Index
CX-5_8CT5-EA-12K_Edition1 Page526
Friday, October 19 2012 3:13 PM
Form No.8CT5-EA-12K
