With the advanced keyless function
Interior antenna
Operational range
Without the advanced keyless function
Interior antenna
Operational range
NOTE
The engine may not start if the key is placed in
the following areas:
lAround the dashboardlIn the storage compartments such as the
glove box
qKey Suspend Function
If a key is left in the vehicle, the functions
of the key left in the vehicle are
temporarily suspended to prevent theft of
the vehicle.
The following are inoperable:
lStarting the engine using the push
button start.
l(With the advanced keyless function)
Operating the request switches.
To restore these functions, perform any
one of the following:
lPress a button on the key which has
had its functions temporarily
suspended.
l(Manual transaxle)
When carrying another key, depress the
clutch pedal until the KEY indicator
light (green) illuminates.
(Automatic transaxle)
When carrying another key, depress the
brake pedal until the KEY indicator
light (green) illuminates.
Refer to Warning/Indicator Lights on
page 4-22.
Before Driving
Keys
3-7
CX-5_8CT5-EA-12K_Edition1 Page81
Friday, October 19 2012 3:10 PM
Form No.8CT5-EA-12K

Black plate (82,1)
Advanced Keyless Entry
System
í
WARNING
Radio waves from the key may affect
medical devices such as pacemakers:
Before using the key near people who
use medical devices, ask the medical
device manufacturer or your
physician if radio waves from the key
will affect the device.
The advanced keyless function allows you
to lock/unlock the doors and liftgate, or
open the liftgate while carrying the key
without using the key.
System malfunctions or operations are
indicated by the following warnings.
lRequest switch Inoperable Warning
Beep
Refer to Request Switch Inoperable
Warning Beep (With the advanced
keyless function) on page 7-34.
lKey Left-in-luggage Compartment
Warning Beep
Refer to Key Left-in-luggage
Compartment Warning Beep (With the
advanced keyless function) on page
7-34.
lKey Left-in-vehicle Warning Beep
Refer to Key Left-in-vehicle Warning
Beep (With the advanced keyless
function) on page 7-34.NOTE
The advanced keyless entry system functions
can be deactivated to prevent any possible
adverse effect on a user wearing a pacemaker
or other medical device. If the system is
deactivated, you will be unable to start the
engine by carrying the key. Consult an
Authorized Mazda Dealer for details. If the
advanced keyless entry system has been
deactivated, you can start the engine by
following the procedure indicated when the key
battery goes dead.
Refer to Engine Start Function When Key
Battery is Dead on page 4-6.
3-8
Before Driving
íSome models.
Advanced Keyless Entry System
CX-5_8CT5-EA-12K_Edition1 Page82
Friday, October 19 2012 3:10 PM
Form No.8CT5-EA-12K

Black plate (83,1)

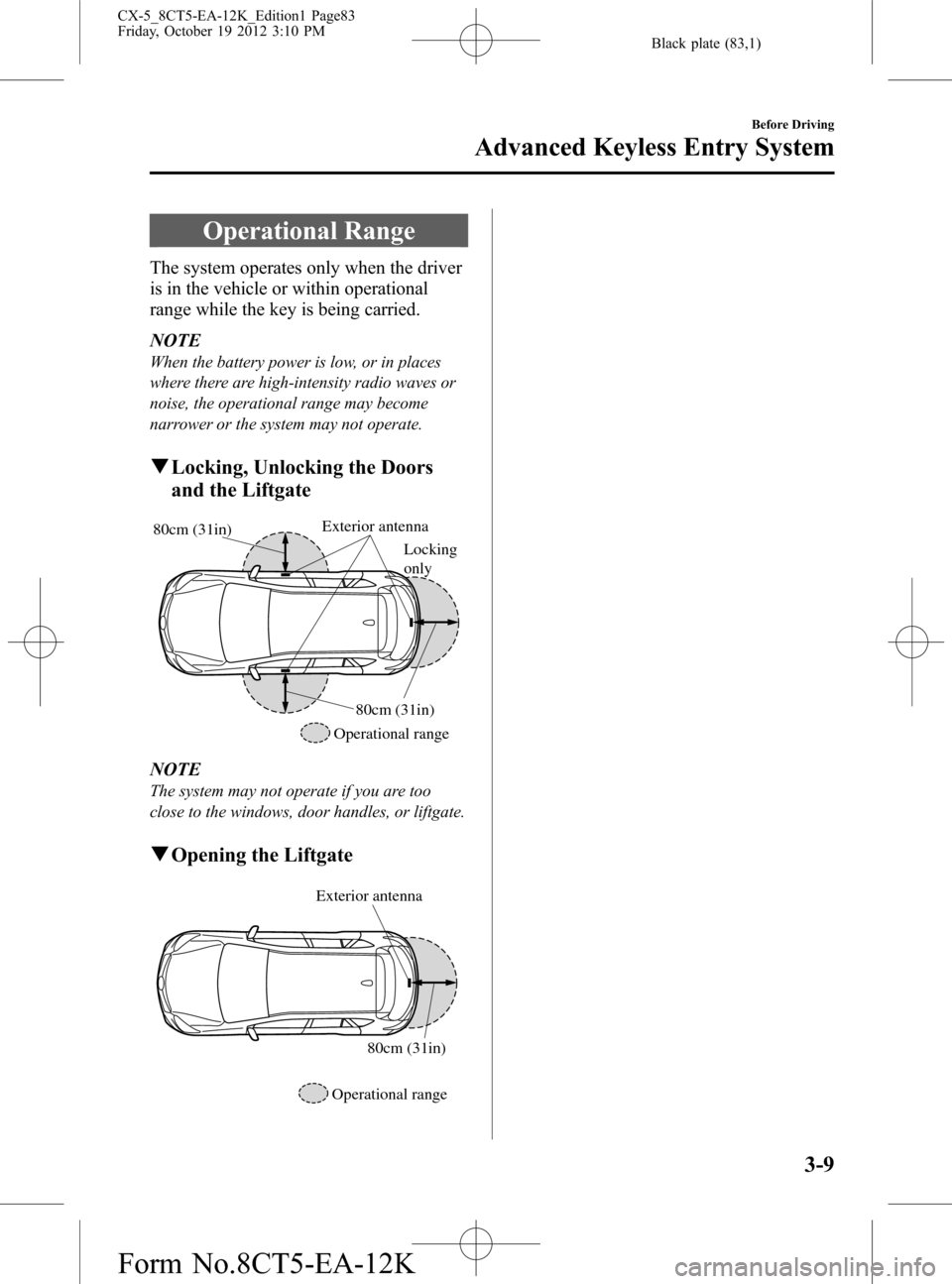

Operational Range
The system operates only when the driver
is in the vehicle or within operational
range while the key is being carried.
NOTE
When the battery power is low, or in places
where there are high-intensity radio waves or
noise, the operational range may become
narrower or the system may not operate.
qLocking, Unlocking the Doors
and the Liftgate
Exterior antenna
Locking
only
Operational range80cm (31in) 80cm (31in)
NOTE
The system may not operate if you are too
close to the windows, door handles, or liftgate.
qOpening the Liftgate
Exterior antenna
Operational range80cm (31in)
Before Driving
Advanced Keyless Entry System
3-9
CX-5_8CT5-EA-12K_Edition1 Page83
Friday, October 19 2012 3:10 PM
Form No.8CT5-EA-12K

Black plate (84,1)
Door Locks
WARNING
Always take all children and pets with
you or leave a responsible person with
them:
Leaving a child or a pet unattended
in a parked vehicle is dangerous. In
hot weather, temperatures inside a
vehicle can become high enough to
cause brain damage or even death.
Do not leave the key in your vehicle
with children and keep them in a place
where your children will not find or
play with them:
Leaving children in a vehicle with the
key is dangerous. This could result in
someone being badly injured or even
killed.
Keep all doors locked when driving:
Unlocked doors in a moving vehicle
are dangerous. Passengers can fall
out if a door is accidentally opened
and can more easily be thrown out in
an accident.
Always close all the windows and
moonroof, lock the doors and take the
key with you when leaving your vehicle
unattended:
Leaving your vehicle unlocked is
dangerous as children could lock
themselves in a hot vehicle, which
could result in death. Also, a vehicle
left unlocked becomes an easy target
for thieves and intruders.After closing the doors, always verify
that they are securely closed:
Doors not securely closed are
dangerous, if the vehicle is driven
with a door not securely closed, the
door could open unexpectedly
resulting in an accident.
Always confirm the safety around the
vehicle before opening a door:
Suddenly opening a door is
dangerous. A passing vehicle or a
pedestrian could be hit and cause an
accident.
3-10
Before Driving
Doors and Locks
CX-5_8CT5-EA-12K_Edition1 Page84
Friday, October 19 2012 3:10 PM
Form No.8CT5-EA-12K

Black plate (85,1)
NOTElWhen the ignition is switched to ACC or
ON, the vehicle lock-out prevention feature
prevents you from locking yourself out of
the vehicle.
All doors and the liftgate will automatically
unlock if they are locked using the power
door locks with any door or the liftgate
open.
The vehicle lock-out prevention feature
does not operate while the ignition is
switched off.
(With the advanced keyless function)
When any door is opened from the outside
while the key is inside the vehicle, the
closed doors are locked. All the doors are
automatically unlocked by closing the open
door and the beep sound is heard for about
10 seconds to notify the driver that the key
has been left in the vehicle.
l(Door unlock (control) system with
collision detection)
This system automatically unlocks the
doors in the event the vehicle is involved in
an accident to allow passengers to get out
of the vehicle immediately and prevent
being trapped inside. While the ignition is
switched ON and in the event the vehicle
receives an impact strong enough to inflate
the air bags, all the doors are automatically
unlocked after about 6 seconds have
elapsed from the time of the accident.
The doors may not unlock depending on
how an impact is applied, the force of the
impact, and other conditions of the
accident.
If door-related systems or the battery is
malfunctioning, the doors will not unlock.
qLocking, Unlocking with Key
All doors and the liftgate lock
automatically when the driver's door is
locked with the key.
All doors and the liftgate unlock when the
driver's door is unlocked and the key is
held in the unlock position for one second
or longer.
Turn the key toward the front to lock,
toward the back to unlock.
LockUnlock
NOTE
Holding the key in the unlocked position in the
driver's door lock for about a second unlocks
all doors and the liftgate. To unlock only the
driver's door, insert the key into the driver's
door lock and turn the key briefly to the unlock
position and then immediately return it to the
center position.
qLocking, Unlocking with Request
Switch (With the advanced
keyless function)
All doors and the liftgate can be locked/
unlocked by pressing the request switch
on the front doors while the key is being
carried.
The request switch on the liftgate can only
be used to lock all doors and the liftgate.
Before Driving
Doors and Locks
3-11
CX-5_8CT5-EA-12K_Edition1 Page85
Friday, October 19 2012 3:10 PM
Form No.8CT5-EA-12K

Black plate (86,1)
Front doors
Request switch
Liftgate (Lock only)
Request switch
To lock
To lock the doors and the liftgate, press
the request switch and the hazard warning
lights will flash once.
A beep sound will be heard once.
To unlock
Driver's door request switch
To unlock the driver's door, press the
request switch. A beep sound will be
heard twice and the hazard warning lights
will flash twice.
To unlock all doors and the liftgate, press
the request switch again within 3 seconds
and two more beep sounds will be heard.Front passenger door request switch
To unlock all doors and the liftgate, press
the request switch. A beep sound will be
heard twice and the hazard warning lights
will flash twice.
NOTE
lThe system can be set to unlock all doors by
performing a single operation.
Refer to Personalization Features on page
9-10.
Use the following procedure to change the
setting.
1. Switch the ignition off and close all of the
doors and the liftgate.
2. Open the driver's door.
3. Within 30 seconds of opening the driver's
door, press and hold the UNLOCK button
on the key for 5 seconds or longer.
When you hear the lock/unlock operation
sound for the doors, the system switches to
the new setting. After this, if you want to
continue changing the setting, the system
switches through the sequence of available
settings and sounds the lock/unlock
operation sound each time you press the
UNLOCK button on the transmitter.
4. The setting change is completed by doing
any one of the following:
lSwitch the ignition to ACC or ON.lClose the driver's door.lOpen the liftgate.lThe key is not operated for 10 seconds.lPress any button except the UNLOCK
button on the key.
lA request switch is pressed.lConfirm that all doors and the liftgate are
securely locked.
lAll doors and the liftgate cannot be locked
when any door or the liftgate is open.
lIt may require a few seconds for the doors
to unlock after the request switch is
pressed.
3-12
Before Driving
Doors and Locks
CX-5_8CT5-EA-12K_Edition1 Page86
Friday, October 19 2012 3:10 PM
Form No.8CT5-EA-12K

Black plate (87,1)
lA beep sound is heard for confirmation
when the doors and the liftgate are locked/
unlocked using the request switch. If you
prefer, the beep sound can be turned off.
The volume of the beep sound can also be
changed.
Refer to Personalization Features on page
9-10.
Use the following procedure to change the
setting.
1. Switch the ignition off and close all of the
doors and the liftgate.
2. Open the driver's door.
3. Within 30 seconds of opening the driver's
door, press and hold the LOCK button on
the key for 5 seconds or longer.
All of the doors and the liftgate lock and the
beep sound activates at the currently set
volume. (If the beep sound is currently set
to not activate, it will not activate.) The
setting changes each time the LOCK button
on the key is pressed and the beep sound
activates at the set volume. (If the beep
sound has been set to not activate, it will
not activate.)
4. The setting change is completed by doing
any one of the following:
lSwitch the ignition to ACC or ON.lClose the driver's door.lOpen the liftgate.lThe key is not operated for 10 seconds.lPress any button except the LOCK
button on the key.
lA request switch is pressed.l(With theft-deterrent system)
The hazard warning lights flash when the
theft-deterrent system is armed or turned
off.
Refer to Theft-Deterrent System on page
3-37.
lThe setting can be changed so that the
doors and the liftgate are locked
automatically without pressing the request
switch.
Refer to Personalization Features on page
9-10.
(Auto-lock function)
Three seconds after the doors and the
liftgate are closed and the key is out of the
operational range, the doors and the
liftgate will lock automatically. Also, the
hazard warning lights flash once. (Even if
the driver is in the operational range, all
doors and the liftgate are locked
automatically after about 30 seconds.) If
you are out of the operational range before
the doors and the liftgate are completely
closed or another key is left in the vehicle,
the auto-lock function will not work.
Always make sure that all doors and the
liftgate are closed and locked before
leaving the vehicle. The auto-lock function
does not close the power windows.
l(Auto re-lock function)
After unlocking with the request switch, all
doors and the liftgate will automatically
lock if any of the following operations are
not performed within about 60 seconds. If
your vehicle has a theft-deterrent system,
the hazard warning lights will flash for
confirmation.
The time required for the doors to lock
automatically can be changed.
Refer to Personalization Features on page
9-10.
lA door or the liftgate is opened.lThe ignition is switched to any position
other than off.
Before Driving
Doors and Locks
3-13
CX-5_8CT5-EA-12K_Edition1 Page87
Friday, October 19 2012 3:10 PM
Form No.8CT5-EA-12K

Black plate (88,1)
qLocking, Unlocking with Transmitter
All doors and the liftgate can be locked/
unlocked by operating the keyless entry
system transmitter, refer to Keyless Entry
System (page 3-3).
qLocking, Unlocking with Door-
Lock Switch
All doors and the liftgate lock
automatically when lock side is pressed.
They all unlock when unlock side is
pressed.
Driver's door
Unlock
Lock
Front passenger's door
UnlockLock
To lock all the doors/liftgate from an open
front door, press the lock side of the door
lock switch and then close the door.NOTE
When locking the doors this way, be careful
not to leave the key inside the vehicle.
qAuto Lock/Unlock Function
WARNING
Do not pull the inner handle on a front
door:
Pulling an inner handle on a front
door while the vehicle is moving is
dangerous. Passengers can fall out of
the vehicle if a front door accidentally
opens, which could result in death or
serious injury.
lWhen the vehicle speed exceeds 20
km/h (12 mph), all doors and the
liftgate lock automatically.
lWhen the ignition is switched off, all
doors and the liftgate unlock
automatically.
These functions can also be disabled so
that they do not operate.
Auto lock/unlock function setting
change using door-lock switch
The doors and the liftgate can set to lock
or unlock automatically by selecting any
one of the functions from the following
table and using the driver's door-lock
switch on the interior door panel to
perform the setting change as indicated in
the procedure which follows.
Settings can be changed using the
following operation.
3-14
Before Driving
Doors and Locks
CX-5_8CT5-EA-12K_Edition1 Page88
Friday, October 19 2012 3:10 PM
Form No.8CT5-EA-12K

Black plate (89,1)
NOTElFunction number 3 is the factory setting for
your vehicle.
lThere are only a total of five auto lock/
unlock settings available for automatic
transaxle vehicles, and three for manual
transaxle vehicles. Be sure to press the
unlock side of the driver's door-lock switch
the correct number of times according to
the selected function number. If the switch
is mistakenly pressed six times on an
automatic transaxle vehicle or four times
on a manual transaxle, the procedure will
be invalidated. If this occurs, start the
procedure from the beginning.
Function
numberFunction*1
1The auto door-lock function is
disabled.
2All the doors and the liftgate lock
automatically when the vehicle speed
is about 20 km/h (12 mph) or more.
3All the doors and the liftgate lock
automatically when the vehicle speed
is about 20 km/h (12 mph) or more.
All the doors and the liftgate unlock
when the ignition is switched from ON
to Off.
4(Automatic transaxle vehicles only)
When the ignition is switched ON and
the shift lever is shifted from park (P)
to any other gear position, all the
doors and the liftgate lock
automatically.
5(Automatic transaxle vehicles only)
When the ignition is switched ON and
the shift lever is shifted from park (P)
to any other gear position, all the
doors and the liftgate lock
automatically.
When the shift lever is shifted to park
(P) while the ignition is switched ON,
all the doors and the liftgate unlock
automatically.
*1 Other settings for the auto door lock function are
available at an Authorized Mazda Dealer. For
details consult an Authorized Mazda Dealer.
Refer to Personalization Features on page 9-10.
1. Safely park the vehicle. All doors must
remain closed.
2. Switch the ignition ON.
3. Press and hold the lock side of the
driver's door-lock switch within 20
seconds of switching the ignition ON,
and make sure a beep sound is heard
about eight seconds afterwards.
4. Referring to the auto lock/unlock
function setting table and determine the
function number for the desired setting.
Press the unlock side of the driver's
door-lock switch the same number of
times as the selected function number
(Ex. If you select function 2, press the
unlock side of the switch only 2 times).
5. Three seconds after the function setting
has been changed, a beep sound will
beep in the amount of the selected
function number. (Ex. Function
number 3 = 3 beep sounds)
Before Driving
Doors and Locks
3-15
CX-5_8CT5-EA-12K_Edition1 Page89
Friday, October 19 2012 3:10 PM
Form No.8CT5-EA-12K

Black plate (90,1)
(Manual transaxle vehicles)
Press 2 times
Press 3 times Current Function Number
Function Number 1
Function Number 2
Function Number 3
Press 4 times Press unlock side of
lock switch once
Cancel settingCancel setting
Function set (The
number of beeps
heard is the same as
the selected function
number) Press lock side of
lock switch
Wait for 3 second
(Automatic transaxle vehicles)
Press unlock side of
lock switch once
Press 2 times
Press 3 times Current Function Number
Function Number 1
Function Number 2
Press 4 times Function Number 3
Press 5 times Function Number 4
Press 6 times Function Number 5
Cancel settingCancel setting
Function set (The
number of beeps
heard is the same as
the selected function
number) Press lock side of
lock switch
Wait for 3 second
NOTElThe doors cannot be locked or unlocked
while the setting function is being
performed.
lThe procedure can be cancelled by pressing
the lock side of the driver's door-lock
switch.
3-16
Before Driving
Doors and Locks
CX-5_8CT5-EA-12K_Edition1 Page90
Friday, October 19 2012 3:10 PM
Form No.8CT5-EA-12K
