Keyless Entry System
This system uses the key buttons to
remotely lock and unlock the doors and
the liftgate.
The system can start the engine without
having to take the key out of your purse
or pocket.
It can also help you signal for attention.
Operating the theft-deterrent system is
also possible on theft-deterrent system-
equipped vehicles.
Press the buttons slowly and carefully.
System malfunctions or warnings are
indicated by the following warning lights
or beeps.
For vehicles with the type A instrument
cluster, check the displayed message for
more information and, if necessary, have
the vehicle inspected at an Authorized
Mazda Dealer, according to the indication.
lKEY Warning Light (Red)
Refer to Warning/Indicator Lights on
page 4-20.
lIgnition Not Switched Off (STOP)
Warning Beep
Refer to Ignition Not Switched Off
(STOP) Warning Beep on page 7-36.
lKey Removed from Vehicle Warning
Beep
Refer to Key Removed from Vehicle
Warning Beep on page 7-36.
If you have a problem with the key,
consult an Authorized Mazda Dealer.
If your key is lost or stolen, consult an
Authorized Mazda Dealer as soon as
possible for a replacement and to make
the lost or stolen key inoperative.
CAUTION
Radio equipment like this is governed
by laws.
Changes or modifications not
expressly approved by the party
responsible for compliance could void
the user's authority to operate the
equipment.
NOTE
lThe keyless entry system operation may
vary due to local conditions.
lThe keyless entry system is fully operational
(door/liftgate lock/unlock) when the push
button start is switched off. The system does
not operate if the push button start is
switched to any position other than off.
lIf the key does not operate when pressing a
button or the operational range becomes
too small, the battery may be dead. To
install a new battery, refer to Replace
Electrical Battery(page 6-39).
lBattery life is about one year. Replace the
battery with a new one if the KEY indicator
light (green) flashes in the instrument
cluster. Replacing the battery about once a
year is recommended because the KEY
warning light/indicator light may not
illuminate or flash depending on the rate of
battery depletion.
lAdditional keys can be obtained at an
Authorized Mazda Dealer. Up to 6 keys can
be used with the keyless functions per
vehicle. Bring all keys to an Authorized
Mazda Dealer when additional keys are
required.
3-4
Before Driving
Keys
CX-5_8DV2-EA-14K_Edition3 Page82
Thursday, February 26 2015 5:32 PM
Form No.8DV2-EA-14K

Black plate (83,1)
qTransmitter
Operation buttons Operation indicator light
NOTElThe headlights turn on/off by operating the
transmitter.
Refer to Leaving Home Light System on
page 4-62.
l(With theft-deterrent system)
The hazard warning lights flash when the
theft-deterrent system is armed or turned
off.
Refer to Theft-Deterrent System on page
3-39.
l(With the advanced keyless function)
A beep sound can be heard for confirmation
when the doors and liftgate are locked/
unlocked using the key. If you prefer, the
beep sound can be turned off.
The volume of the beep sound can also be
changed.
Refer to Personalization Features on page
9-10.
Use the following procedure to change the
setting.
1. Switch the ignition off and close all of the
doors and the liftgate.
2. Open the driver's door.3. Within 30 seconds of opening the driver's
door, press and hold the LOCK button on
the key for 5 seconds or longer.
All of the doors and the liftgate lock and the
beep sound activates at the currently set
volume. (If the beep sound is currently set
to not activate, it will not activate.) The
setting changes each time the LOCK button
on the key is pressed and the beep sound
activates at the set volume. (If the beep
sound has been set to not activate, it will
not activate.)
4. The setting change is completed by doing
any one of the following:
lSwitch the ignition to ACC or ON.lClose the driver's door.lOpen the liftgate.lThe key is not operated for 10 seconds.lPress any button except the LOCK
button on the key.
lA request switch is pressed.
The operation indicator light flashes when
the buttons are pressed.
Lock button
To lock the doors and the liftgate, press
the lock button and the hazard warning
lights will flash once.
(With the advanced keyless function)
A beep sound will be heard once.
To confirm that all doors and the liftgate
have been locked, press the lock button
again within 5 seconds. If they are closed
and locked, the horn will sound.
Before Driving
Keys
3-5
CX-5_8DV2-EA-14K_Edition3 Page83
Thursday, February 26 2015 5:32 PM
Form No.8DV2-EA-14K

Black plate (84,1)
NOTElThe doors and the liftgate can be locked by
pressing the lock button while any other
door or the liftgate is open. The hazard
warning lights will not flash.
When the lock button is pressed while any
door is open and then the door is closed, all
the doors and the liftgate are locked.
lConfirm that all doors and the liftgate are
locked visually or audibly by use of the
double click.
lMake sure all doors and the liftgate are
locked after pressing the button.
l(With theft-deterrent system)
When the doors are locked by pressing the
lock button on the key while the theft-
deterrent system is armed, the hazard
warning lights will flash once to indicate
that the system is armed.
Unlock button
To unlock the driver's door, press the
unlock button and the hazard warning
lights will flash twice.
(With the advanced keyless function)
A beep sound will be heard twice.
To unlock all doors and the liftgate, press
the unlock button again within 3 seconds
and two more beep sounds will be heard.
NOTElThe system can be set to unlock all doors by
performing a single operation.
Refer to Personalization Features on page
9-10.
Use the following procedure to change the
setting.
1. Switch the ignition off and close all of the
doors and the liftgate.
2. Open the driver's door.
3. Within 30 seconds of opening the driver's
door, press and hold the UNLOCK button
on the key for 5 seconds or longer. The
sound of the doors locking/unlocking can
be heard.
After this, the system switches the setting
each time the UNLOCK button is pressed
(the sound of the doors locking/unlocking
can be heard).
4. The setting change is completed by doing
any one of the following:
lSwitch the ignition to ACC or ON.lClose the driver's door.lOpen the liftgate.lThe key is not operated for 10 seconds.lPress any button except the UNLOCK
button on the key.
lA request switch is pressed.l(Auto re-lock function)
After unlocking with the key, all doors and
the liftgate will automatically lock if any of
the following operations are not performed
within about 60 seconds. If your vehicle has
a theft-deterrent system, the hazard
warning lights will flash for confirmation.
The time required for the doors to lock
automatically can be changed.
Refer to Personalization Features on page
9-10.
lA door or the liftgate is opened.lThe push button start is switched to any
position other than off.
3-6
Before Driving
Keys
CX-5_8DV2-EA-14K_Edition3 Page84
Thursday, February 26 2015 5:32 PM
Form No.8DV2-EA-14K

Black plate (90,1)
NOTElWhen the ignition is switched to ACC or
ON, the vehicle lock-out prevention feature
prevents you from locking yourself out of
the vehicle.
All doors and the liftgate will automatically
unlock if they are locked using the power
door locks with any door or the liftgate
open.
The vehicle lock-out prevention feature
does not operate while the ignition is
switched off.
When any door is opened from the outside
while the key is inside the vehicle, the
closed doors are locked. All the doors are
automatically unlocked by closing the open
door.
(With the advanced keyless function)
The beep sound is heard for about 10
seconds to notify the driver that the key has
been left in the vehicle.
(Without the advanced keyless function)
The horn sound is heard twice to notify the
driver that the key has been left in the
vehicle.
l(Door unlock (control) system with
collision detection)
This system automatically unlocks the
doors in the event the vehicle is involved in
an accident to allow passengers to get out
of the vehicle immediately and prevent
being trapped inside. While the ignition is
switched ON and in the event the vehicle
receives an impact strong enough to inflate
the air bags, all the doors are automatically
unlocked after about 6 seconds have
elapsed from the time of the accident.
The doors may not unlock depending on
how an impact is applied, the force of the
impact, and other conditions of the
accident.
If door-related systems or the battery is
malfunctioning, the doors will not unlock.
qLocking, Unlocking with Key
All doors and the liftgate lock
automatically when the driver's door is
locked with the key.
All doors and the liftgate unlock when the
driver's door is unlocked and the key is
held in the unlock position for one second
or longer.
Turn the key toward the front to lock,
toward the back to unlock.
LockUnlock
NOTE
Holding the key in the unlocked position in the
driver's door lock for about a second unlocks
all doors and the liftgate. To unlock only the
driver's door, insert the key into the driver's
door lock and turn the key briefly to the unlock
position and then immediately return it to the
center position.
qLocking, Unlocking with Request
Switch (With the advanced
keyless function)
All doors and the liftgate can be locked/
unlocked by pressing the request switch
on the front doors while the key is being
carried.
The request switch on the liftgate can only
be used to lock all doors and the liftgate.
3-12
Before Driving
Doors and Locks
CX-5_8DV2-EA-14K_Edition3 Page90
Thursday, February 26 2015 5:32 PM
Form No.8DV2-EA-14K

Black plate (91,1)
Front doors
Request switch
Liftgate (Lock only)
Request switch
To lock
To lock the doors and the liftgate, press
the request switch and the hazard warning
lights will flash once.
A beep sound will be heard once.
To unlock
Driver's door request switch
To unlock the driver's door, press the
request switch. A beep sound will be
heard twice and the hazard warning lights
will flash twice.
To unlock all doors and the liftgate, press
the request switch again within 3 seconds
and two more beep sounds will be heard.Front passenger door request switch
To unlock all doors and the liftgate, press
the request switch. A beep sound will be
heard twice and the hazard warning lights
will flash twice.
NOTE
lThe system can be set to unlock all doors by
performing a single operation.
Refer to Personalization Features on page
9-10.
Use the following procedure to change the
setting.
1. Switch the ignition off and close all of the
doors and the liftgate.
2. Open the driver's door.
3. Within 30 seconds of opening the driver's
door, press and hold the UNLOCK button
on the key for 5 seconds or longer. The
sound of the doors locking/unlocking can
be heard.
After this, the system switches the setting
each time the UNLOCK button is pressed
(the sound of the doors locking/unlocking
can be heard).
4. The setting change is completed by doing
any one of the following:
lSwitch the ignition to ACC or ON.lClose the driver's door.lOpen the liftgate.lThe key is not operated for 10 seconds.lPress any button except the UNLOCK
button on the key.
lA request switch is pressed.lConfirm that all doors and the liftgate are
securely locked.
For the liftgate, move it without pressing
the electric liftgate opener to verify that the
liftgate has not been left ajar.
lAll doors and the liftgate cannot be locked
when any door or the liftgate is open.
lIt may require a few seconds for the doors
to unlock after the request switch is
pressed.
Before Driving
Doors and Locks
3-13
CX-5_8DV2-EA-14K_Edition3 Page91
Thursday, February 26 2015 5:32 PM
Form No.8DV2-EA-14K

Black plate (92,1)
lA beep sound is heard for confirmation
when the doors and the liftgate are locked/
unlocked using the request switch. If you
prefer, the beep sound can be turned off.
The volume of the beep sound can also be
changed.
Refer to Personalization Features on page
9-10.
Use the following procedure to change the
setting.
1. Switch the ignition off and close all of the
doors and the liftgate.
2. Open the driver's door.
3. Within 30 seconds of opening the driver's
door, press and hold the LOCK button on
the key for 5 seconds or longer.
All of the doors and the liftgate lock and the
beep sound activates at the currently set
volume. (If the beep sound is currently set
to not activate, it will not activate.) The
setting changes each time the LOCK button
on the key is pressed and the beep sound
activates at the set volume. (If the beep
sound has been set to not activate, it will
not activate.)
4. The setting change is completed by doing
any one of the following:
lSwitch the ignition to ACC or ON.lClose the driver's door.lOpen the liftgate.lThe key is not operated for 10 seconds.lPress any button except the LOCK
button on the key.
lA request switch is pressed.l(With theft-deterrent system)
The hazard warning lights flash when the
theft-deterrent system is armed or turned
off.
Refer to Theft-Deterrent System on page
3-39.
lThe setting can be changed so that the
doors and the liftgate are locked
automatically without pressing the request
switch.
Refer to Personalization Features on page
9-10.
(Auto-lock function)
A beep sound is heard when all doors and
the liftgate are closed while the advanced
key is being carried. All doors and the
liftgate are locked automatically after about
three seconds when the advanced key is out
of the operational range. Also, the hazard
warning lights flash once. (Even if the
driver is in the operational range, all doors
and the liftgate are locked automatically
after about 30 seconds.) If you are out of
the operational range before the doors and
the liftgate are completely closed or
another key is left in the vehicle, the auto-
lock function will not work. Always make
sure that all doors and the liftgate are
closed and locked before leaving the
vehicle. The auto-lock function does not
close the power windows.
l(Auto re-lock function)
After unlocking with the request switch, all
doors and the liftgate will automatically
lock if any of the following operations are
not performed within about 60 seconds. If
your vehicle has a theft-deterrent system,
the hazard warning lights will flash for
confirmation.
The time required for the doors to lock
automatically can be changed.
Refer to Personalization Features on page
9-10.
lA door or the liftgate is opened.lThe ignition is switched to any position
other than off.
3-14
Before Driving
Doors and Locks
CX-5_8DV2-EA-14K_Edition3 Page92
Thursday, February 26 2015 5:32 PM
Form No.8DV2-EA-14K

Black plate (93,1)
qLocking, Unlocking with Transmitter
All doors and the liftgate can be locked/
unlocked by operating the keyless entry
system transmitter, refer to Keyless Entry
System (page 3-4).
qLocking, Unlocking with Door-
Lock Switch
All doors and the liftgate lock
automatically when lock side is pressed.
They all unlock when unlock side is
pressed.
Driver's door
Unlock
Lock
Front passenger's door
UnlockLock
To lock all the doors/liftgate from an open
front door, press the lock side of the door
lock switch and then close the door.NOTE
When locking the doors this way, be careful
not to leave the key inside the vehicle.
qAuto Lock/Unlock Function
WARNING
Do not pull the inner handle on a front
door:
Pulling an inner handle on a front
door while the vehicle is moving is
dangerous. Passengers can fall out of
the vehicle if a front door accidentally
opens, which could result in death or
serious injury.
lWhen the vehicle speed exceeds 20
km/h (12 mph), all doors and the
liftgate lock automatically.
lWhen the ignition is switched off, all
doors and the liftgate unlock
automatically.
These functions can also be disabled so
that they do not operate.
Auto lock/unlock function setting
change using door-lock switch
The doors and the liftgate can set to lock
or unlock automatically by selecting any
one of the functions from the following
table and using the driver's door-lock
switch on the interior door panel to
perform the setting change as indicated in
the procedure which follows.
Settings can be changed using the
following operation.
Before Driving
Doors and Locks
3-15
CX-5_8DV2-EA-14K_Edition3 Page93
Thursday, February 26 2015 5:32 PM
Form No.8DV2-EA-14K

Black plate (94,1)

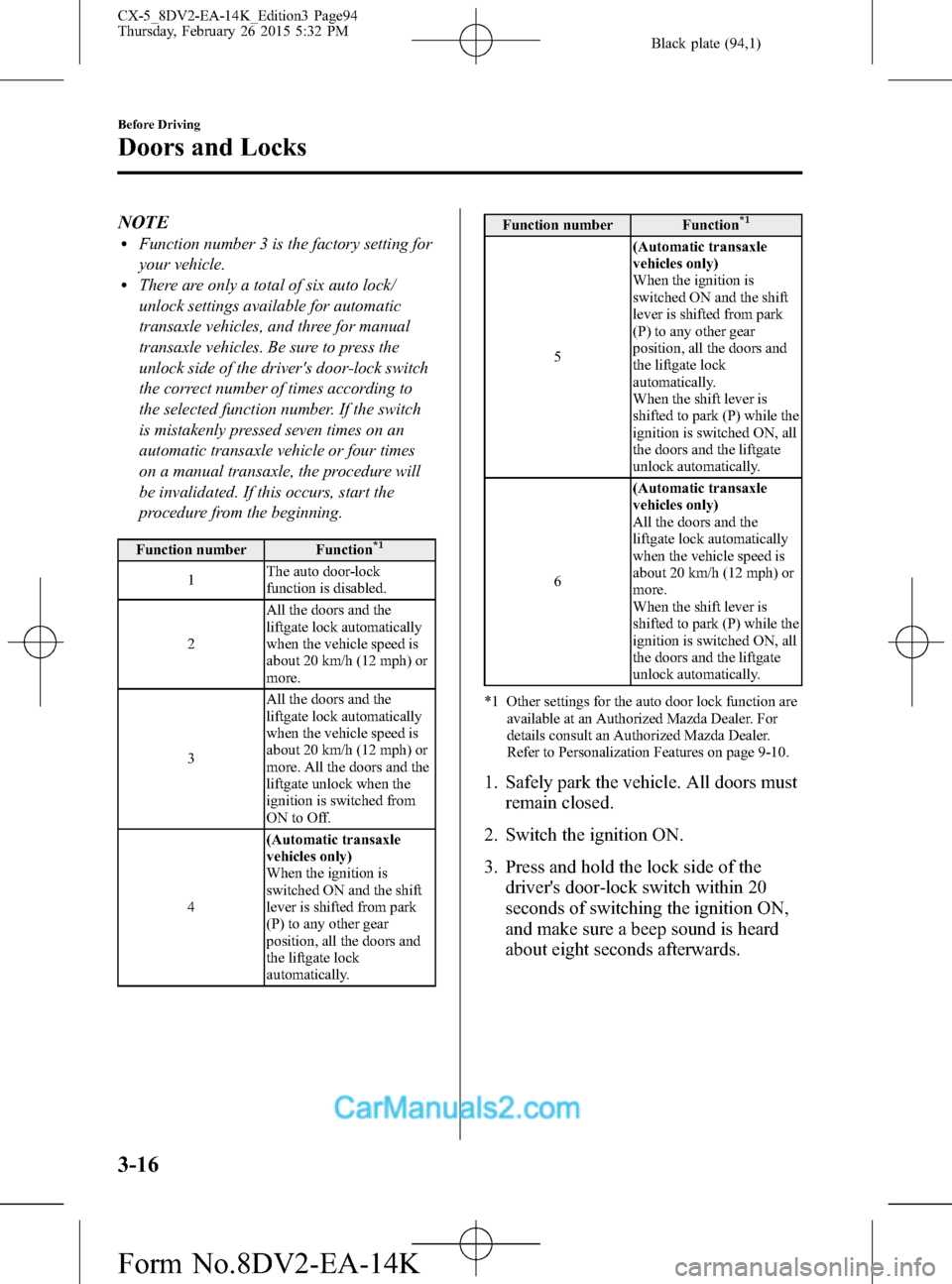

NOTElFunction number 3 is the factory setting for
your vehicle.
lThere are only a total of six auto lock/
unlock settings available for automatic
transaxle vehicles, and three for manual
transaxle vehicles. Be sure to press the
unlock side of the driver's door-lock switch
the correct number of times according to
the selected function number. If the switch
is mistakenly pressed seven times on an
automatic transaxle vehicle or four times
on a manual transaxle, the procedure will
be invalidated. If this occurs, start the
procedure from the beginning.
Function number Function*1
1The auto door-lock
function is disabled.
2All the doors and the
liftgate lock automatically
when the vehicle speed is
about 20 km/h (12 mph) or
more.
3All the doors and the
liftgate lock automatically
when the vehicle speed is
about 20 km/h (12 mph) or
more. All the doors and the
liftgate unlock when the
ignition is switched from
ON to Off.
4(Automatic transaxle
vehicles only)
When the ignition is
switched ON and the shift
lever is shifted from park
(P) to any other gear
position, all the doors and
the liftgate lock
automatically.Function number Function
*1
5(Automatic transaxle
vehicles only)
When the ignition is
switched ON and the shift
lever is shifted from park
(P) to any other gear
position, all the doors and
the liftgate lock
automatically.
When the shift lever is
shifted to park (P) while the
ignition is switched ON, all
the doors and the liftgate
unlock automatically.
6(Automatic transaxle
vehicles only)
All the doors and the
liftgate lock automatically
when the vehicle speed is
about 20 km/h (12 mph) or
more.
When the shift lever is
shifted to park (P) while the
ignition is switched ON, all
the doors and the liftgate
unlock automatically.
*1 Other settings for the auto door lock function are
available at an Authorized Mazda Dealer. For
details consult an Authorized Mazda Dealer.
Refer to Personalization Features on page 9-10.
1. Safely park the vehicle. All doors must
remain closed.
2. Switch the ignition ON.
3. Press and hold the lock side of the
driver's door-lock switch within 20
seconds of switching the ignition ON,
and make sure a beep sound is heard
about eight seconds afterwards.
3-16
Before Driving
Doors and Locks
CX-5_8DV2-EA-14K_Edition3 Page94
Thursday, February 26 2015 5:32 PM
Form No.8DV2-EA-14K

Black plate (102,1)
qEmission Control System
Your vehicle is equipped with an emission control system (the catalytic converter is part of
this system) that enables your vehicle to comply with existing exhaust emissions
requirements.
WARNING
Never park over or near anything flammable:
Parking over or near anything flammable, such as dry grass, is dangerous. Even with
the engine turned off, the exhaust system remains very hot after normal use and
could ignite anything flammable. A resulting fire could cause serious injury or death.
CAUTION
Ignoring the following precautions could cause lead to accumulate on the catalyst
inside the converter or cause the converter to get very hot. Either condition will
damage the converter and cause poor performance.
ØUSE ONLY UNLEADED FUEL.
ØDo not drive your Mazda with any sign of engine malfunction.
ØDo not coast with the ignition switched off.
ØDo not descend steep grades in gear with the ignition switched off.
ØDo not operate the engine at high idle for more than 2 minutes.
ØDo not tamper with the emission control system. All inspections and adjustments
must be made by a qualified technician.
ØDo not push-start or pull-start your vehicle.
NOTE
lUnder U.S. federal law, any modification to the original-equipment emission control system before
the first sale and registration of a vehicle is subject to penalties. In some states, such modification
made on a used vehicle is also subject to penalties.
lWhile the engine is off, the sound of a valve opening and closing can be heard at the rear of the
right side of the vehicle, however this does not indicate an abnormality. Your vehicle has a self-
checking device and it operates while the engine is off.
3-24
Before Driving
Fuel and Emission
CX-5_8DV2-EA-14K_Edition3 Page102
Thursday, February 26 2015 5:32 PM
Form No.8DV2-EA-14K

Black plate (107,1)
Mirrors
Before driving, adjust the inside and
outside mirrors.
qOutside Mirrors
WARNING
Be sure to look over your shoulder
before changing lanes:
Changing lanes without taking into
account the actual distance of the
vehicle in the convex mirror is
dangerous. You could have a serious
accident. What you see in the convex
mirror is closer than it appears.
Mirror type
Flat type (driver's side)
Flat surface mirror.
Convex type (front passenger side)
The mirror has single curvature on its
surface.
Power mirror adjustment
The ignition must be switched to ACC or
ON position.
To adjust:
1. Rotate the mirror switch to the left (
)
or right (
) to choose the left or right
side mirror.2. Press the mirror switch in the
appropriate direction.
Mirror switchCenter position
After adjusting the mirror, lock the control
by rotating the switch in the center
position.
Folding mirror
WARNING
Always return the outside mirrors to
the driving position before you start
driving:
Driving with the outside mirrors
folded in is dangerous. Your rear view
will be restricted, and you could have
an accident.
Fold the outside mirror rearward until it is
flush with the vehicle.
Before Driving
Mirrors
3-29
CX-5_8DV2-EA-14K_Edition3 Page107
Thursday, February 26 2015 5:32 PM
Form No.8DV2-EA-14K
