1 Warnings and Safety information
The navigation system guides you to your destination using the GPS recei\
ver. The
navigation system does not transmit your GPS position and you cannot be \
tracked.
It is important that you look at the display only when it is safe to do \
so.
If you are the driver of the vehicle, we recommend that you operate the
navigation system before you start your journey. Plan the route before
your departure and stop if you need to change the route.
Drive the vehicle according to the road signs and the road shape. If you\
deviate from
the recommended route, the navigation system changes the instructions ac\
cordingly.
For more information, consult the End-User Terms (page 88).
/"7$76&&JOEC


 /"7$76&&JOEC











5
1
2
3
4
5
6
Memo
/"7$76&&JOEC



/"7$76&&JOEC











6
2 Getting started
2.1 Before using the navigation system

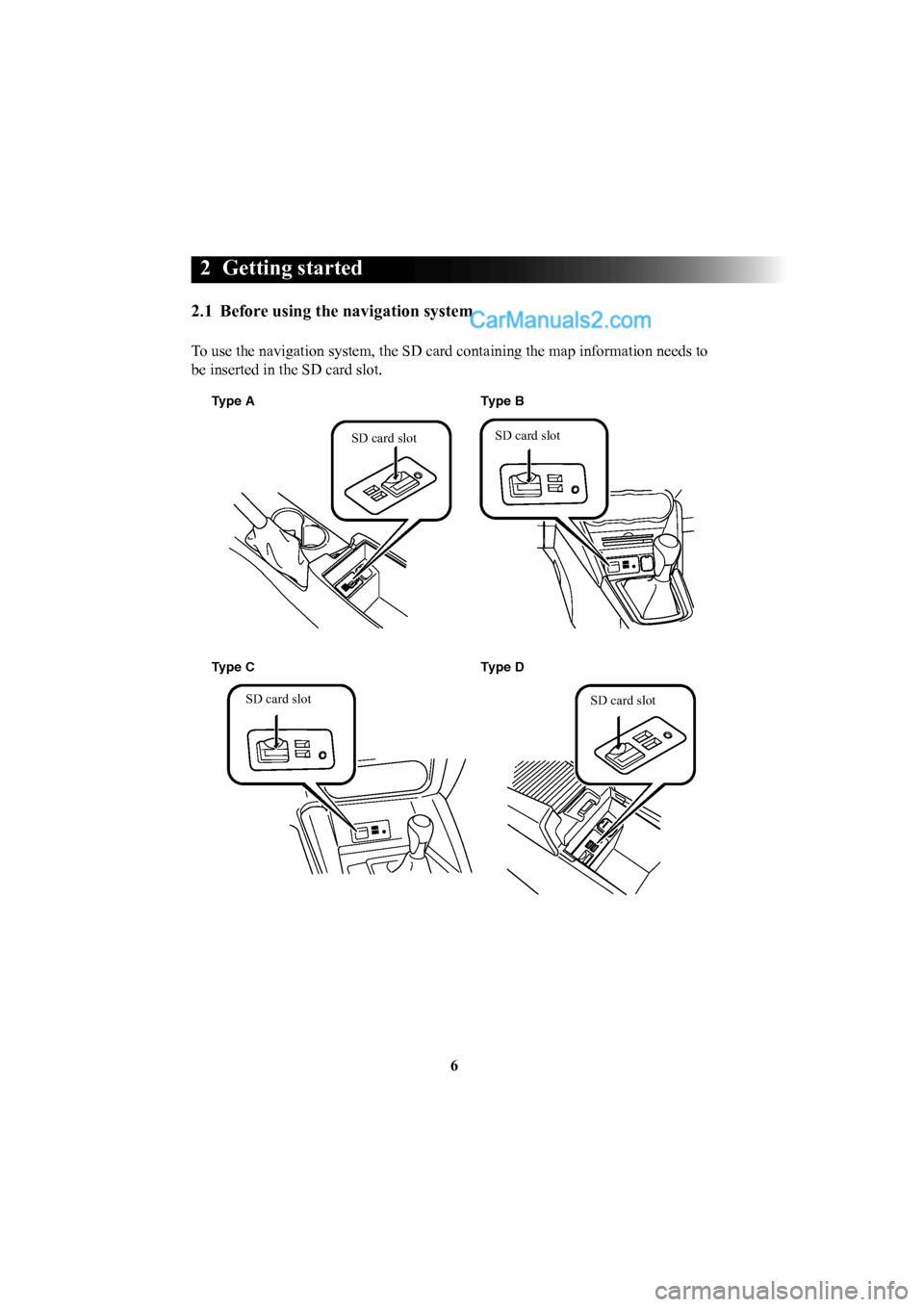

To use the navigation system, the SD card containing the map information \
needs to
be inserted in the SD card slot.
Type AType D
Type C Type B
SD card slot
SD card slot SD card slot
SD card slot
/"7$76&&JOEC


 /"7$76&&JOEC











7
1
2
3
4
5
6

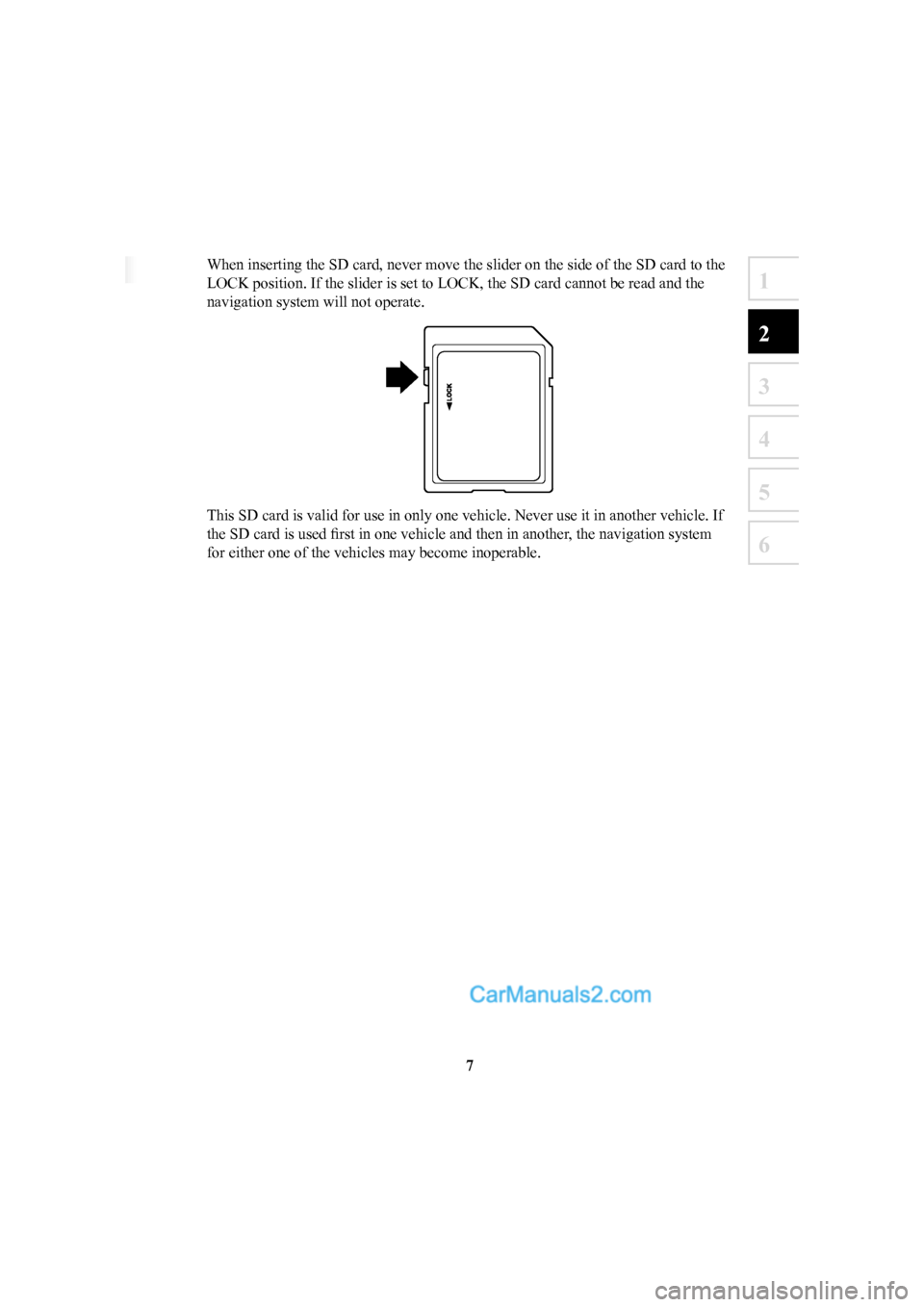

When inserting the SD card, never move the slider on the side of the SD \
card to the
LOCK position. If the slider is set to LOCK, the SD card cannot be read \
and the
navigation system will not operate.
This SD card is valid for use in only one vehicle. Never use it in anoth\
er vehicle. If
the SD card is used fi rst in one vehicle and then in another, the navigation system
for either one of the vehicles may become inoperable.
/"7$76&&JOEC


 /"7$76&&JOEC











8
2.2 Navigation menu

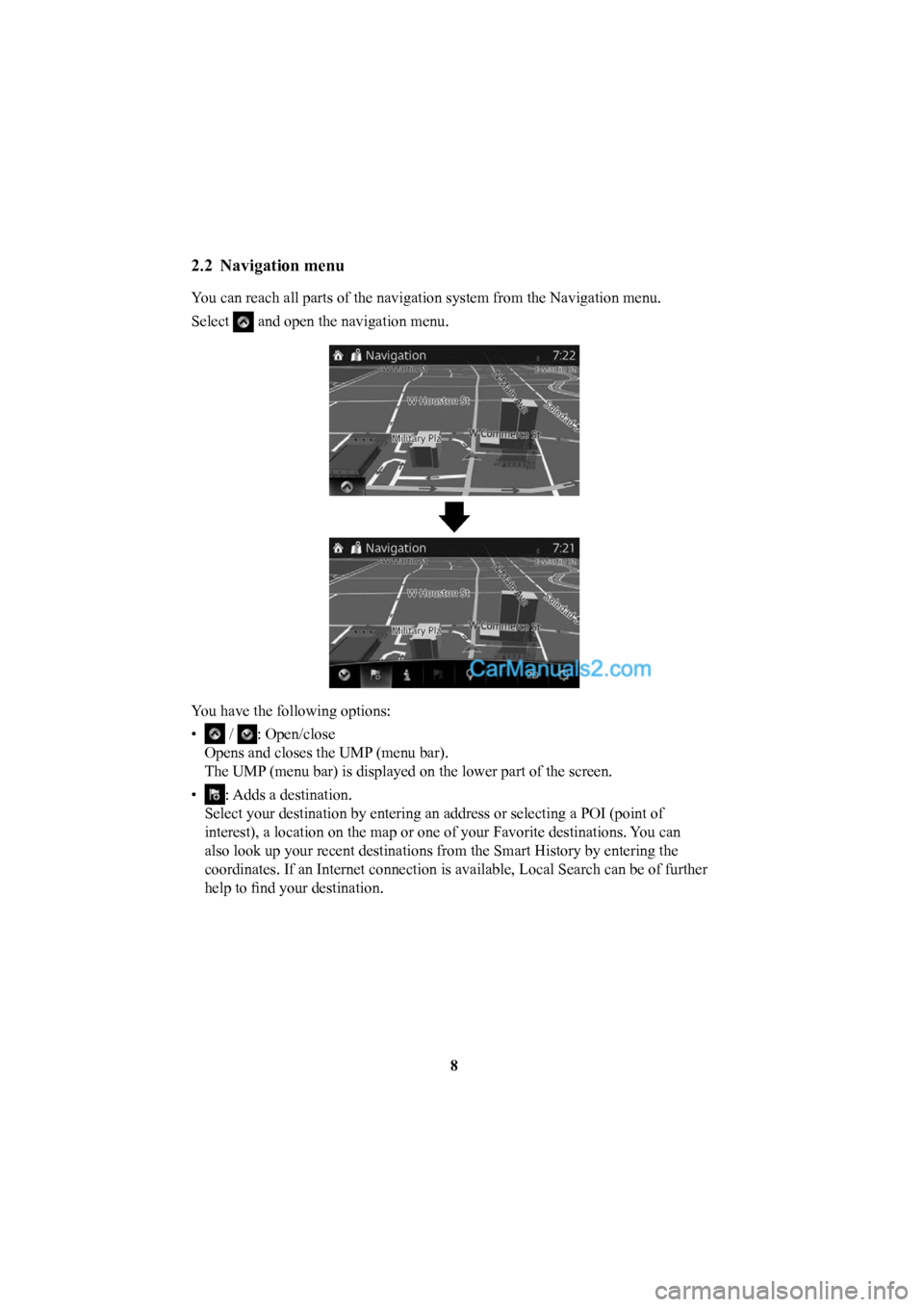

You can reach all parts of the navigation system from the Navigation menu\
.
Select
and open the navigation menu.
You have the following options:
•
/ : Open/close
Opens and closes the UMP (menu bar).
The UMP (menu bar) is displayed on the lower part of the screen.
•
: Adds a destination.
Select your destination by entering an address or selecting a POI (poin\
t of
interest), a location on the map or one of your Favorite destinations. \
You can
also look up your recent destinations from the Smart History by entering\
the
coordinates. If an Internet connection is available, Local Search can be\
of further
help to fi nd your destination.
/"7$76&&JOEC


 /"7$76&&JOEC











9
1
2
3
4
5
6
• : Displays the screen where traffi c information and the GPS reception
conditions can be set and veri fi ed.
•
: Cancels waypoint/route
•
: Finds Places nearby
You can search for points of interest (POI) near the vehicle position.
•
: Displays the route parameters and the route in its full length on the \
map. You
can also perform route-related actions such as editing or canceling your\
route,
picking route alternatives, avoiding parts of the route, simulating navi\
gation or
adding the destination to your Favorites.
•
/ / : Changes View mode
The map view mode can be changed (2D north up/2D heading up/3D).
•
: Switches to the Settings screen where you change navigation settings.
Some functions are not available depending on some countries and regions\
.
/"7$76&&JOEC


 /"7$76&&JOEC











10
2.3 Buttons and other controls on the screen
2.3.1 Using keyboards
You only need to enter letters or numbers when you cannot avoid it. You can type
with your fi ngertips on the full-screen keyboards and you can switch between
various keyboard layouts, for example English, Greek or numerical.
Task Instruction
Correcting your entry on
the keyboard Select
to remove the unneeded character(s).
Select and hold the button to delete several
characters or the entire input string.
Entering a space, for
example between a fi rst
name and a family name
or in multi-word street
names Select the
button at the
bottom center of the screen.
Entering upper and lower
case letters When entering a text, the
fi rst character appears in
upper case while the rest of the text is in lower case.
Select
to enter an upper case letter or select twice
to turn on Caps Lock. Select again and lower case
letters return.
Finalizing the keyboard
entry Select
.
• Accepting the suggested search result
• Saving your input
Select
.
• Opening the list of search results
Canceling the keyboard
entry (returning to the
previous screen) Select
.
