Tire Pressure Monitoring System
lThe Tire Pressure Monitoring System (TPMS) monitors the air pressure of all four tires.
If the air pressure of one or more tires is too low, the system warns the driver by
indicating the tire pressure monitoring system warning light in the instrument cluster
(the warning is also indicated in the display on the type A
*1instrument cluster) and
operating a beep sound. The system monitors the tire pressures indirectly using the data
sent from the ABS wheel speed sensors.
To allow the system to operate correctly, the system needs to be initialized with the
specified tire pressure (value on the tire pressure label). Follow the procedure and
perform the initialization.
*1 Refer to Type A on page 4-20.
lFor vehicles with the type A*1instrument cluster, check the vehicle condition or have
the vehicle inspected at an Authorized Mazda Dealer according to the indication.
*1 Refer to Type A on page 4-20.
lA system malfunction or operation conditions are indicated by a warning.
Refer to Warning/Indicator Lights on page 4-20.
Refer to Tire Inflation Pressure Warning Beep on page 7-37.
ABS wheel speed sensor
4-148
When Driving
Tire Pressure Monitoring System
CX-5_8DV2-EA-14K_Edition3 Page282
Thursday, February 26 2015 5:33 PM
Form No.8DV2-EA-14K

Black plate (284,1)
NOTE
Because this system detects slight changes in tire conditions, the timing of the warning may be faster
or slower in the following cases:
lThe size, manufacturer, or the type of tires is different from the specification.lThe size, manufacturer, or the type of a tire is different from the others, or the level of tire wear is
excessively different between them.
lA run-flat tire, studless tire, snow tire, or tire chains are used.lAn emergency tire is used (The tire pressure monitoring system warning light may flash and then
continue illuminating).
lA tire is repaired using the emergency flat tire repair kit.lThe tire pressure is excessively higher than the specified pressure, or the tire pressure is suddenly
lowered for some reason such as a tire burst during driving.
lThe vehicle speed is lower than about 15 km/h (9.3 mph) (including when the vehicle is stopped),
or the drive period is shorter than 5 minutes.
lThe vehicle is driven on an extremely rough road or a slippery, icy road.lHard steering and rapid acceleration/deceleration are repeated such as during aggressive driving
on a winding road.
lLoad on the vehicle is applied to a tire such as by loading heavy luggage to one side of the
vehicle.
lSystem initialization has not been implemented with the specified tire pressure.
qTire Pressure Monitoring System
Initialization
In the following cases, system
initialization must be performed so that
the system operates normally.
lA tire pressure is adjusted.lTire rotation is performed.lA tire or wheel is replaced.lThe battery is replaced or completely
drained.
lThe tire pressure monitoring system
warning light is illuminated.
Initialization method
1. Park the car in a safe place and firmly
apply the parking brake.2. Let the tires cool, then adjust the tire
pressure of all four (4) tires to the
specified pressure indicated on the tire
pressure label located on the door jamb
of the driver's door (door open). Refer
to Tires on page 9-8.
3. Switch the ignition ON.
4-150
When Driving
Tire Pressure Monitoring System
CX-5_8DV2-EA-14K_Edition3 Page284
Thursday, February 26 2015 5:33 PM
Form No.8DV2-EA-14K

Black plate (346,1)
Tab Item Function
SystemTool Tips Turns button explanations ON/OFF.
Language Changes the language.
TemperatureChanges the setting between Fahrenheit and
Celsius.
DistanceChanges the setting between miles and
kilometers.
Music Database UpdateUsed to update Gracenote
®. Gracenote is used
with USB Audio, and provides:
1. Supplemental music information
(Such as song name, artist name)
2. Voice recognition assistance for Play Artist
and Play Album
Gracenote can be downloaded from the Mazda
Hands Free Website.
Refer to Gracenote Database (Type B) on page
5-66.
Restore All Factory SettingsMemory and settings are initialized to the
factory settings.
The initialization launches by selecting the
button.
AboutAgreements and
DisclaimersVerify the disclaimer and agree.
Version InformationCan verify the current audio unit OS version
and Gracenote Database version.
qApplications
NOTE
Depending on the grade and specification, the
screen display may differ.
Select theicon on the home screen to
display the Applications screen. The
following information can be verified.
Top screen Item Function
HD
Radio™
Traffic Map――
Fuel
Economy
MonitorFuel Consumption
SettingsRefer to Fuel
Economy Monitor
on page 4-84.
Maintenance
Scheduled
Maintenance
Tire Rotation
Oil ChangeRefer to
Maintenance
Monitor on page
6-20.
Warning
GuidanceWarnings currently
active can be
verified.Refer to When
Warning/Indicator
Lights
Illuminate/Flash
on page 7-23.
5-50
Interior Features
Audio System
CX-5_8DV2-EA-14K_Edition3 Page346
Thursday, February 26 2015 5:33 PM
Form No.8DV2-EA-14K

Black plate (473,1)
CAUTION
ØBe careful not to allow the rubber
ring shown in the figure to be
scratched or damaged.
ØIf the rubber ring detaches,
reattach it before inserting a new
battery.
Rubber ring
Tires
For reasons of proper performance, safety,
and better fuel economy, always maintain
recommended tire inflation pressures and
stay within the recommended load limits
and weight distribution.
WARNING
Using Different Tire Types:
Driving your vehicle with different
types of tires is dangerous. It could
cause poor handling and poor
braking; leading to loss of control.
Except for the limited use of the
temporary spare tire, use only the
same type tires (radial, bias-belted,
bias-type) on all four wheels.
Using Wrong-Sized Tires:
Using any other tire size than what is
specified for your Mazda (page 9-8)
is dangerous. It could seriously affect
ride, handling, ground clearance, tire
clearance, and speedometer
calibration. This could cause you to
have an accident. Use only tires that
are the correct size specified for your
Mazda.
Maintenance and Care
Owner Maintenance
6-41
CX-5_8DV2-EA-14K_Edition3 Page473
Thursday, February 26 2015 5:34 PM
Form No.8DV2-EA-14K

Black plate (476,1)
NOTE
Tires degrade over time, even when they are
not being used on the road. It is recommended
that tires generally be replaced when they are
6 years or older. Heat caused by hot climates
or frequent high loading conditions can
accelerate the aging process. You should
replace the spare tire when you replace the
other road tires due to the aging of the spare
tire. The period in which the tire was
manufactured (both week and year) is
indicated by a 4-digit number.
Refer to Tire Labeling on page 8-25.
qTemporary Spare Tire
Inspect the temporary spare tire at least
monthly to make sure it is properly
inflated and stored.
NOTE
The temporary spare tire condition gradually
deteriorates even if it has not been used.
The temporary spare tire is easier to
handle because of its construction which
is lighter and smaller than a conventional
tire. This tire should be used only for an
emergency and only for a short distance.
Use the temporary spare tire only until the
conventional tire is repaired, which should
be as soon as possible.
Refer to Tires on page 9-8.
CAUTION
ØDo not use your temporary spare
tire rim with a snow tire or a
conventional tire. Neither will
properly fit and could damage
both tire and rim.
ØThe temporary spare tire has a
tread life of less than 5,000 km
(3,000 miles). The tread life may
be shorter depending on driving
conditions.
ØThe temporary spare tire is for
limited use, however, if the tread
wear solid-band indicator
appears, replace the tire with the
same type of temporary spare
(page 6-44).
NOTE
Tires degrade over time, even when they are
not being used on the road. It is recommended
that tires generally be replaced when they are
6 years or older. Heat caused by hot climates
or frequent high loading conditions can
accelerate the aging process. You should
replace the spare tire when you replace the
other road tires due to the aging of the spare
tire. The period in which the tire was
manufactured (both week and year) is
indicated by a 4-digit number.
Refer to Tire Labeling on page 8-25.
qReplacing a Wheel
WARNING
Always use wheels of the correct size
on your vehicle:
Using a wrong-sized wheel is
dangerous. Braking and handling
could be affected, leading to loss of
control and an accident.
6-44
Maintenance and Care
Owner Maintenance
CX-5_8DV2-EA-14K_Edition3 Page476
Thursday, February 26 2015 5:34 PM
Form No.8DV2-EA-14K

Black plate (505,1)
Spare Tire and Tool Storage
Spare tire and tools are stored in the locations illustrated in the diagram.
Except Mexico
Spare tireSpare tire hold-down bolt
Tire hold-down boltJack
Lug wrenchJack leverTiedown eyelet (Short type)Tiedown eyelet (Long type)
Some models.
If Trouble Arises
Flat Tire
7-3
CX-5_8DV2-EA-14K_Edition3 Page505
Thursday, February 26 2015 5:35 PM
Form No.8DV2-EA-14K

Black plate (506,1)

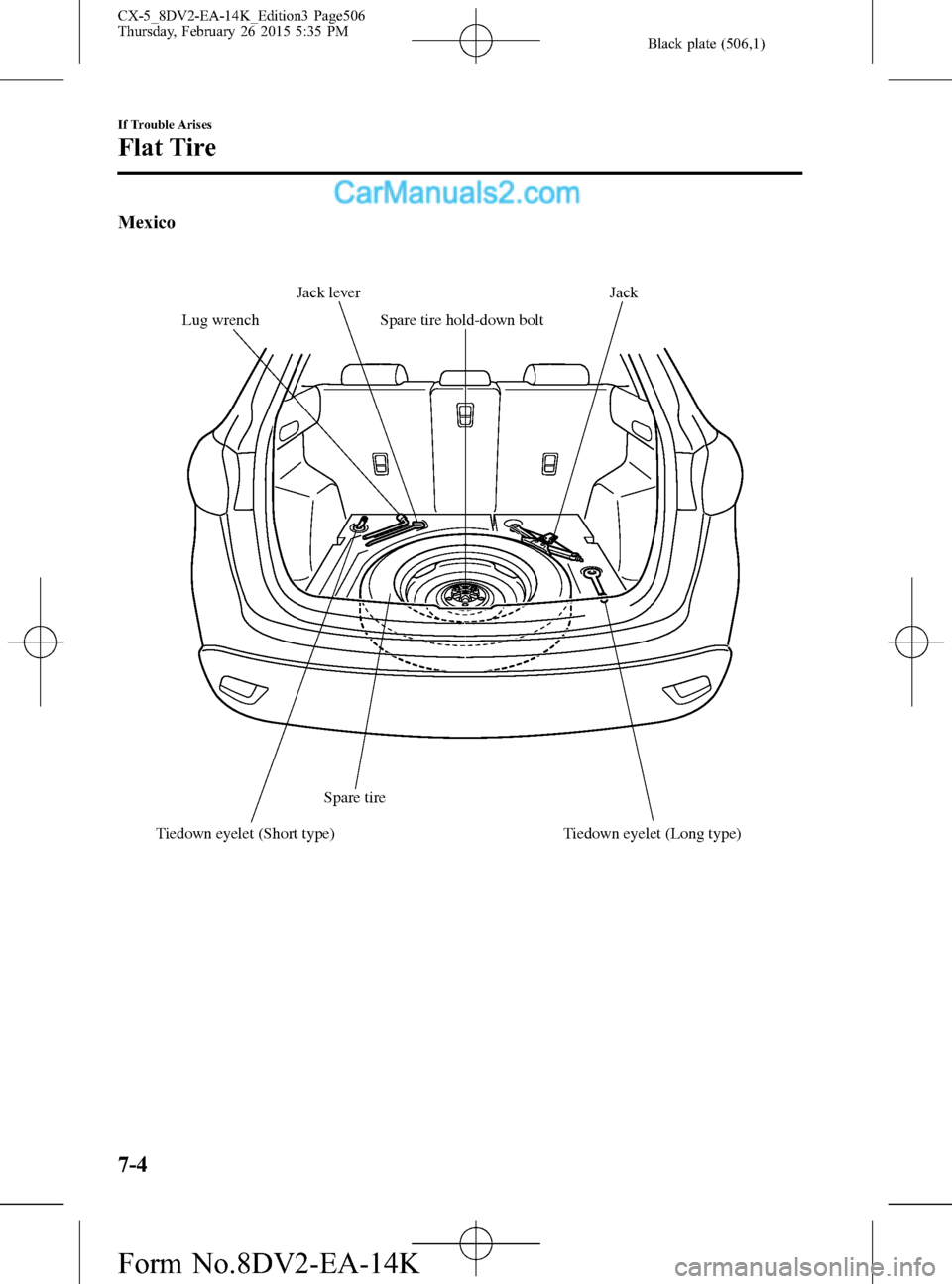

Mexico
Spare tireSpare tire hold-down boltJack
Lug wrenchJack lever
Tiedown eyelet (Short type) Tiedown eyelet (Long type)
7-4
If Trouble Arises
Flat Tire
CX-5_8DV2-EA-14K_Edition3 Page506
Thursday, February 26 2015 5:35 PM
Form No.8DV2-EA-14K

Black plate (529,1)
qIf the high engine coolant
temperature warning light (red)
illuminates or flashes
The light flashes when the engine coolant
temperature is extremely high, and
illuminates when the engine coolant
temperature increases further.
Handling Procedure
Flashing light
Drive slowly to reduce engine load until
you can find a safe place to stop the
vehicle and wait for the engine to cool
down.
Illuminated light
This indicates the possibility of
overheating. Park the vehicle in a safe
place immediately and stop the engine.
Refer to Overheating (page 7-18).
CAUTION
Do not drive the vehicle with the high
engine coolant temperature warning
light illuminated. Otherwise, it could
result in damage to the engine.
qIf the lane departure warning
system (LDWS) OFF Indication/
Indicator Light is indicated
í
Type A
If the indication remains displayed even
though the LDWS switch has been
operated, it indicates a problem in the
system. Have your vehicle inspected at an
Authorized Mazda Dealer.
Type B
A problem in the system may be indicated
under the following conditions. Have your
vehicle inspected at an Authorized Mazda
Dealer.
lThe light does not turn on when the
ignition is switched ON.
lIt remains illuminated even though the
LDWS switch has been switched off.
CAUTION
ØAlways use tires for all wheels that
are of the specified size, and the
same manufacture, brand, and
tread pattern. In addition, do not
use tires with significantly
different wear patterns on the
same vehicle. If such improper
tires are used, the LDWS may not
operate normally.
ØWhen an emergency spare tire is
used, the system may not operate
normally.
If Trouble Arises
Warning/Indicator Lights and Warning Sounds
7-27íSome models. CX-5_8DV2-EA-14K_Edition3 Page529
Thursday, February 26 2015 5:35 PM
Form No.8DV2-EA-14K

Black plate (530,1)
qIf the AWD warning indication/
warning light is indicated
Type A
The warning indication will display under
the following conditions;
lThere is an abnormality with the AWD
system.
lThere is too much difference in tire
radius between the front and rear
wheels.
lThe differential oil temperature is
abnormally high.
lThere is a continuous large difference
between front and rear wheel rotation,
such as when trying to pull away from
an icy surface or when trying to
remove the vehicle from mud, sand or
similar conditions.
When“4WD system malfunction”is
indicated
Contact an Authorized Mazda Dealer.
When“4WD system high-load”is
indicated
Park the vehicle in a safe place. After a
few moments, if the indication disappears,
you can resume driving. If the indication
does not disappear, contact an Authorized
Mazda Dealer.
Type B
The warning light will illuminate or flash
under the following conditions:
lIlluminates when there is an
abnormality with the AWD system.
lIlluminates if there is too much
difference in tire radius between the
front and rear wheels.
lFlashes when the differential oil
temperature is abnormally high.
lFlashes when there is a continuous
large difference between front and rear
wheel rotation, such as when trying to
pull away from an icy surface or when
trying to remove the vehicle from mud,
sand or similar conditions.
When illuminated
If the AWD warning light illuminates,
contact an Authorized Mazda Dealer.
When flashing
Park the vehicle in a safe place. After a
few moments, if the warning light stops
flashing, you can resume driving. If the
light does not stop flashing, contact an
Authorized Mazda Dealer.
qIf the automatic transaxle warning
indication/warning light is indicated
Type A/Type B
The light/indication illuminates when the
transaxle has a problem.
7-28
If Trouble Arises
Warning/Indicator Lights and Warning Sounds
CX-5_8DV2-EA-14K_Edition3 Page530
Thursday, February 26 2015 5:35 PM
Form No.8DV2-EA-14K

Black plate (532,1)
WARNING
Never tamper with the air bag/
pretensioner systems and always have
an Authorized Mazda Dealer perform
all servicing and repairs:
Self-servicing or tampering with the
systems is dangerous. An air bag/
pretensioner could accidentally
activate or become disabled causing
serious injury or death.
qIf the tire pressure monitoring
system warning light flashes
If the tire pressure monitoring system has
a malfunction, the tire pressure warning
light flashes for about 1 minute when the
ignition is switched ON and then
continues illuminating. Have your vehicle
checked by an Authorized Mazda Dealer
as soon as possible.
qIf the KEY warning indication/
warning light (red) is indicated
Type A
“Keyless System malfunction”is
displayed
This message is displayed if the advanced
keyless entry & push button start system
has a problem.
Contact an Authorized Mazda Dealer.
CAUTION
If the above message is indicated, or
the push button start indicator light
(amber) flashes, the engine may not
start. If the engine cannot be started,
try starting it using the emergency
operation for starting the engine, and
have the vehicle inspected at an
Authorized Mazda Dealer as soon as
possible.
Refer to Emergency Operation for
Starting the Engine on page 4-8.
“Ignition is on”is displayed
This message is displayed when the
driver's door is opened without switching
the ignition off.
7-30
If Trouble Arises
Warning/Indicator Lights and Warning Sounds
CX-5_8DV2-EA-14K_Edition3 Page532
Thursday, February 26 2015 5:35 PM
Form No.8DV2-EA-14K
