MAZDA MODEL CX-5 2016 Owners Manual (in English)

Black plate (271,1)
Radar Sensor (Front)í
Your vehicle is equipped with a radar sensor (front).
The following systems also use the radar sensor (front).
lMazda Radar Cruise Control (MRCC)lDistance Recognition Support System (DRSS)lSmart Brake Support (SBS)
The radar sensor (front) functions by detecting the radio waves reflected off a vehicle
ahead or an obstruction sent from the radar sensor.
The radar sensor (front) is mounted behind the front emblem.
Radar Sensor (Front)
If“Front radar blocked”is displayed in the multi-information display of the instrument
cluster, clean the area around the radar sensor (front).
When Driving
i-ACTIVSENSE
4-137íSome models. CX-5_8DV2-EA-14K_Edition3 Page271
Thursday, February 26 2015 5:33 PM
Form No.8DV2-EA-14K

Black plate (272,1)
CAUTION
Heed the following precautions to assure correct operation of each system.
ØDo not adhere stickers (including transparent stickers) to the surface of the
radiator grille and front emblem in and around the radar sensor (front), and do
not replace the radiator grille and front emblem with any product that is not a
genuine product designed for use with the radar sensor (front).
ØThe radar sensor (front) includes a function for detecting soiling of the radar
sensor's front surface and informing the driver, however, depending on the
conditions, it may require time to detect or it may not detect plastic shopping
bags, ice or snow. If this occurs, the system may not operate correctly, therefore
always keep the radar sensor (front) clean.
ØDo not install a grille guard.
ØIf the front part of the vehicle has been damaged in a vehicle accident, the
position of the radar sensor (front) may have moved. Stop the system immediately
and always have the vehicle inspected at an Authorized Mazda Dealer.
ØDo not use the front bumper to push other vehicles or obstructions such as when
pulling out of a parking space. Otherwise, the radar sensor (front) could be hit
and its position deviated.
ØDo not remove, disassemble, or modify the radar sensor (front).
ØFor repairs, replacement or paint work around the radar sensor (front), consult an
Authorized Mazda Dealer.
ØDo not modify the suspension. If the suspension are modified, the vehicle's posture
could change and the radar sensor (front) may not be able to correctly detect a
vehicle ahead or an obstruction.
4-138
When Driving
i-ACTIVSENSE
CX-5_8DV2-EA-14K_Edition3 Page272
Thursday, February 26 2015 5:33 PM
Form No.8DV2-EA-14K

Black plate (273,1)
NOTElUnder the following conditions, the radar sensor (front) may not be able to detect vehicles ahead
or obstructions correctly and each system may not operate normally.
lThe rear surface of a vehicle ahead does not reflect radio waves effectively, such as an
unloaded trailer or an automobile with a loading platform covered by a soft top, vehicles with
a hard plastic tailgate, and round-shaped vehicles.
lVehicles ahead with low vehicle height and thus less area for reflecting radio waves.lVisibility is reduced due to a vehicle ahead casting off water, snow, or sand from its tires and
onto your windshield.
lThe trunk/luggage compartment is loaded with heavy objects or the rear passenger seats are
occupied.
lIce, snow, or soiling is on the front surface of the front emblem.lDuring inclement weather such as rain, snow, or sand storms.lWhen driving near facilities or objects emitting strong radio waves.lUnder the following conditions, the radar sensor (front) may not be able to detect vehicles ahead
or obstructions.
lThe beginning and end of a curve.lRoads with continuous curves.lNarrow lane roads due to road construction or lane closures.lThe vehicle ahead enters the radar sensor's blind spot.lThe vehicle ahead is running abnormally due to accident or vehicle damage.lRoads with repeated up and down slopeslDriving on poor roads or unpaved roads.lThe distance between your vehicle and the vehicle ahead is extremely short.lA vehicle suddenly comes close such as by cutting into the lane.lTo prevent incorrect operation of the system, use tires of the same specified size, manufacturer,
brand, and tread pattern on all four wheels. In addition, do not use tires with significantly
different wear patterns or tire pressures on the same vehicle (Including the temporary spare tire).
lIf the battery power is weak, the system may not operate correctly.lWhen driving on roads with little traffic and few vehicles ahead or obstructions for the radar
sensor (front) to detect,“Radar blocked”may be temporarily displayed, however, this does not
indicate a problem.
When Driving
i-ACTIVSENSE
4-139
CX-5_8DV2-EA-14K_Edition3 Page273
Thursday, February 26 2015 5:33 PM
Form No.8DV2-EA-14K

Black plate (274,1)
Laser Sensor (Front)í
Your vehicle is equipped with a laser sensor (front). The laser sensor (front) is positioned
near the rearview mirror and used by the following systems.
lSmart Brake Support (SBS)lSmart City Brake Support (SCBS)
CAUTION
Heed the following precautions to assure correct operation of the system.
ØKeep the windshield clean at all times.
ØDo not apply stickers to the surface of the windshield (including transparent
stickers).
ØIf cracks or damage caused by flying gravel or debris is visible near the laser
sensor (front), stop using the system immediately and have your vehicle inspected
by an Authorized Mazda Dealer.
See the next page on how to turn off the system. Refer to Personalization Features
on page 9-10.
ØDo not apply a coating agent to the windshield.
ØWhen replacing the windshield wipers or windshield, consult an Authorized
Mazda Dealer.
ØNever remove the sensor.
ØA removed sensor will not meet the conditions for a class 1M laser under the IEC
60825-1 specification and therefore eye safety cannot be assured.
ØDo not peer into the sensor using optical instruments with a magnification
function such as magnifying glasses, and microscopic and objective lenses within
a distance of 100 mm (3.94 in) from the sensor.
4-140
When Driving
íSome models.
i-ACTIVSENSE
CX-5_8DV2-EA-14K_Edition3 Page274
Thursday, February 26 2015 5:33 PM
Form No.8DV2-EA-14K

Black plate (275,1)
Laser sensor radiation data
Maximum average power:45 mW
Pulse duration:33 ns
Wavelength:905 nm
Divergence angle (horizontal×vertical):28 degrees×12 degrees
NOTE
lIn the following cases, the laser sensor (front) cannot detect vehicles ahead correctly, and each
system may be unable to operate normally.
lThe windshield is dirty.lElongated luggage or cargo is loaded onto installed roof rails and covers the laser sensor
(front).
lExhaust gas from the vehicle in front, sand, snow, and water vapor rising from manholes and
grating, and water splashed into the air.
lIf there are recognizable cracks or damage caused by flying gravel or debris on the windshield,
always have the windshield replaced. Consult an Authorized Mazda Dealer for replacement.
When Driving
i-ACTIVSENSE
4-141
CX-5_8DV2-EA-14K_Edition3 Page275
Thursday, February 26 2015 5:33 PM
Form No.8DV2-EA-14K

Black plate (276,1)
Radar Sensors (Rear)í
Your vehicle is equipped with radar sensors (rear). The following systems also use the
radar sensors (rear).
lBlind Spot Monitoring system (BSM)lRear Cross Traffic Alert (RCTA)
The radar sensors (rear) function by detecting the radio waves reflected off a vehicle
approaching from the rear or an obstruction sent from the radar sensor.
Radar Sensors (Rear)
The radar sensors (rear) are installed inside the rear bumper, one each on the left and right
sides.
Always keep the surface of the rear bumper near the radar sensors (rear) clean so that the
radar sensors (rear) operate normally. Also, do not apply items such as stickers.
Refer to Exterior Care on page 6-62.
CAUTION
If the rear bumper receives a severe impact, the system may no longer operate
normally. Stop the system immediately and have the vehicle inspected at an
Authorized Mazda Dealer.
4-142
When Driving
íSome models.
i-ACTIVSENSE
CX-5_8DV2-EA-14K_Edition3 Page276
Thursday, February 26 2015 5:33 PM
Form No.8DV2-EA-14K

Black plate (277,1)
NOTElThe detection ability of the radar sensors (rear) has limitations. In the following cases, the
detection ability may lower and the system may not operate normally.
lThe rear bumper near the radar sensors (rear) has become deformed.lSnow, ice or mud adheres to the radar sensors (rear) on the rear bumper.lUnder bad weather conditions such as rain, snow and fog.lUnder the following conditions, the radar sensors (rear) cannot detect target objects or it may be
difficult to detect them.
lStationary objects on a road or a road side such as small, two-wheeled vehicles, bicycles,
pedestrians, animals, and shopping carts.
lVehicle shapes which do not reflect radar waves well such as empty trailers with a low vehicle
height and sports cars.
lVehicles are shipped with the direction of the radar sensors (rear) adjusted for each vehicle to a
loaded vehicle condition so that the radar sensors (rear) detect approaching vehicles correctly. If
the direction of the radar sensors (rear) has deviated for some reason, have the vehicle inspected
at an Authorized Mazda Dealer.
lFor repairs or replacement of the radar sensors (rear), or bumper repairs, paintwork, and
replacement near the radar sensors, consult an Authorized Mazda Dealer.
lTurn off the system while pulling a trailer or while an accessory such as a bicycle carrier is
installed to the rear of the vehicle. Otherwise, the radio waves emitted by the radar will be
blocked causing the system to not operate normally.
lThe radar sensors are regulated by the relevant radio wave laws of the country in which the
vehicle is driven. If the vehicle is driven abroad, authorization from the country in which the
vehicle is driven may be required.
When Driving
i-ACTIVSENSE
4-143
CX-5_8DV2-EA-14K_Edition3 Page277
Thursday, February 26 2015 5:33 PM
Form No.8DV2-EA-14K

Black plate (278,1)

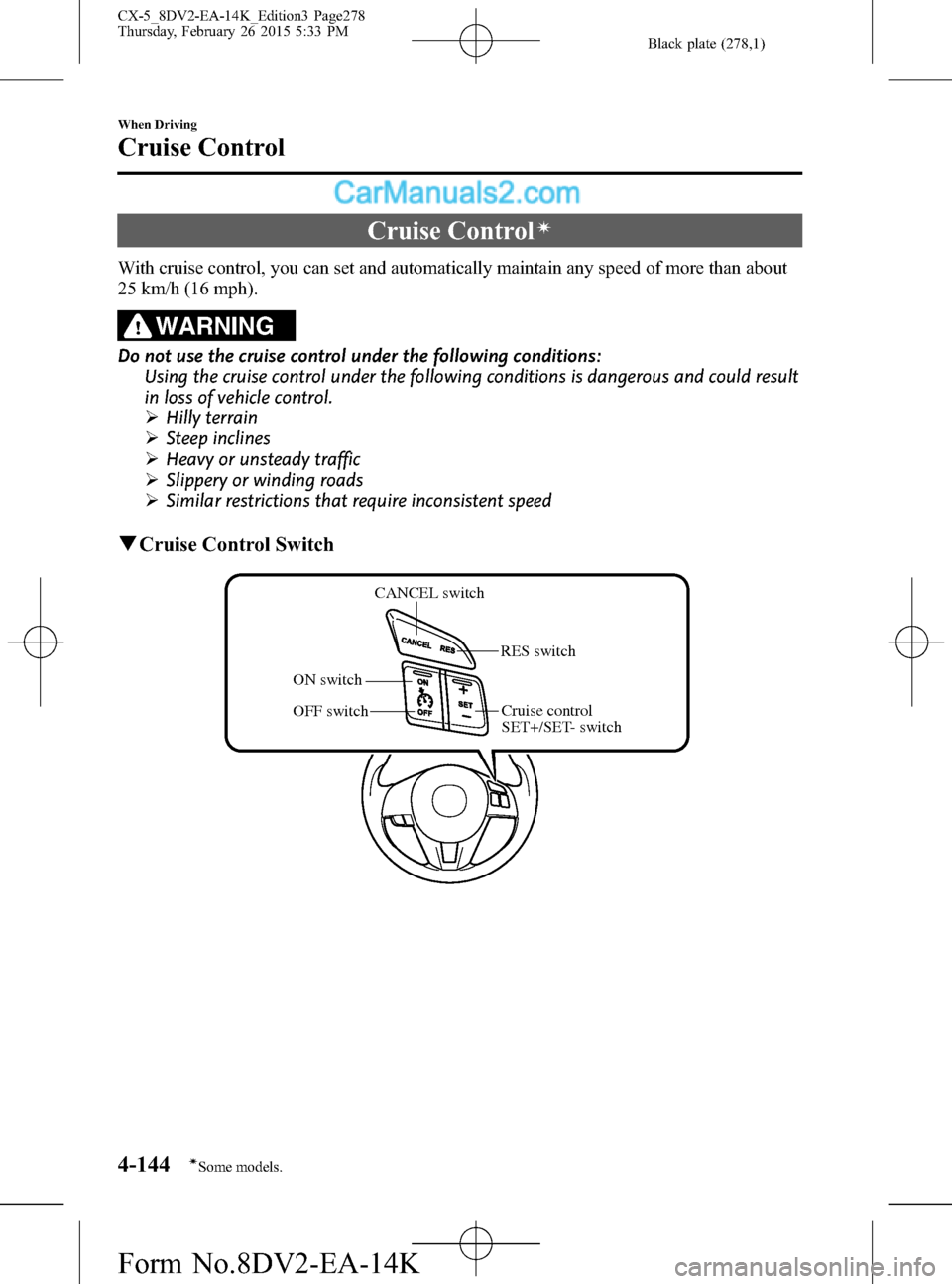

Cruise Controlí
With cruise control, you can set and automatically maintain any speed of more than about
25 km/h (16 mph).
WARNING
Do not use the cruise control under the following conditions:
Using the cruise control under the following conditions is dangerous and could result
in loss of vehicle control.
ØHilly terrain
ØSteep inclines
ØHeavy or unsteady traffic
ØSlippery or winding roads
ØSimilar restrictions that require inconsistent speed
qCruise Control Switch
CANCEL switch
OFF switch ON switchRES switch
Cruise control
SET+/SET- switch
4-144
When Driving
íSome models.
Cruise Control
CX-5_8DV2-EA-14K_Edition3 Page278
Thursday, February 26 2015 5:33 PM
Form No.8DV2-EA-14K

Black plate (279,1)
qActivation/Deactivation
To activate the system, press the ON
switch.
The cruise main indicator light (Amber)
illuminates.
Refer to Warning/Indicator Lights on page
4-20.
To deactivate the system, press the OFF
switch.
The cruise main indicator light (Amber)
turns off.
WARNING
Always turn off the cruise control
system when it is not in use:
Leaving the cruise control system in
an activation-ready state while the
cruise control is not in use is
dangerous as the cruise control could
unexpectedly activate if the
activation button is accidentally
pressed, and result in loss of vehicle
control and an accident.
NOTE
When the ignition is switched OFF, the system
status before it was turned off is maintained.
For example, if the ignition is switched OFF
with the cruise control system operable, the
system will be operable when the ignition is
switched ON the next time.
qTo Set Speed
1. Activate the cruise control system by
pressing the ON switch.
The cruise main indicator light
(Amber) illuminates. Refer to Warning/
Indicator Lights on page 4-20.
2. Accelerate to the desired speed, which
must be more than 25 km/h (16 mph).3. Set the cruise control by pressing the
SET
or SET - switch at the desired
speed. The cruise control is set at the
moment the SET
or SET - switch is
pressed. Release the accelerator pedal
simultaneously. The cruise set indicator
light (Green) illuminates.
NOTE
lThe cruise control speed setting cannot be
performed under the following conditions:
l(Automatic transaxle)
The selector lever is in the P or N
position.
l(Manual transaxle)
The shift lever is in the neutral position.
lThe parking brake is applied.lRelease the SETor SET - switch at the
desired speed, otherwise the speed will
continue increasing while the SET
switch is pressed and held, and continue
decreasing while the SET - switch is pressed
and held (except when the accelerator
pedal is depressed).
lOn a steep grade, the vehicle may
momentarily slow down while ascending,
or speed up while descending.
lCruise control will cancel if the vehicle
speed decreases below 21 km/h (13 mph)
when cruise is activated, such as when
climbing a steep grade.
lCruise control may cancel at about 15 km/h
(9 mph) below the preset speed (such as
may happen when climbing a long, steep
grade).
When Driving
Cruise Control
4-145
CX-5_8DV2-EA-14K_Edition3 Page279
Thursday, February 26 2015 5:33 PM
Form No.8DV2-EA-14K

Black plate (280,1)
For the Type A instrument cluster, the
vehicle speed preset using the cruise
control is displayed in the instrument
cluster.
qTo Increase Cruising Speed
Follow either of these procedures.
To increase speed using cruise control
switch
Press the SET
switch and hold it. Your
vehicle will accelerate.
Release the switch at the speed you want.
Press the SET
and release it
immediately to adjust the preset speed.
Multiple operations will increase the
preset speed according to the number of
times it is operated.
Increasing speed with a single SET
operation
Meter display for vehicle speed indicated
in km/h: 1 km/h (0.6 mph)
Meter display for vehicle speed indicated
in mph: 1 mph (1.6 km/h)
To increase speed using accelerator
pedal
Depress the accelerator pedal to accelerate
to the desired speed. Press the SET
or
SET - switch and release it immediately.NOTE
Accelerate if you want to speed up temporarily
when the cruise control is on. Greater speed
will not interfere with or change the set speed.
Take your foot off the accelerator to return to
the set speed.
qTo Decrease Cruising Speed
Press the SET - switch and hold it. The
vehicle will gradually slow.
Release the switch at the speed you want.
Press the SET- switch and release it
immediately to adjust the preset speed.
Multiple operations will decrease the
preset speed according to the number of
times it is operated.
Decreasing speed with a single SET-
operation
Meter display for vehicle speed indicated
in km/h: 1 km/h (0.6 mph)
Meter display for vehicle speed indicated
in mph: 1 mph (1.6 km/h)
qTo Resume Cruising Speed at
More Than 25 km/h (16 mph)
If some other method besides the OFF
switch was used to cancel cruising speed
(such as applying the brake pedal) and the
system is still activated, the most recent
set speed will automatically resume when
the RES switch is pressed.
If vehicle speed is below 25 km/h (16
mph), increase the vehicle speed up to 25
km/h (16 mph) or more and press the RES
switch.
4-146
When Driving
Cruise Control
CX-5_8DV2-EA-14K_Edition3 Page280
Thursday, February 26 2015 5:33 PM
Form No.8DV2-EA-14K
