qHBC Warning Light (Amber)/
HBC Indicator Light (Green)í
HBC warning light (Amber)
When illuminated
When the ignition is switched ON, this
warning light illuminates and then turns
off after a few seconds. The warning light
illuminates if the area of the windshield in
front of the forward sensing camera (FSC)
is fogged or obstructed.
This light turns on if there is a
malfunction in the high beam control
system (HBC). Have your vehicle
inspected by an Authorized Mazda
Dealer.
HBC indicator light (Green)
This indicator light illuminates when the
system is operating and turns off when the
system operation is canceled.
qWrench Indication/Indicator Light
Type A
Perform maintenance in accordance with
the message.
Type B
This indicator light stays on for a few
seconds when the ignition is switched
ON.
The wrench indicator light illuminates
when the engine oil replacement period is
reached.
If the light is illuminated, replace the
engine oil.
Refer to Engine Oil on page 6-27.
qTCS/DSC Indicator Light
This indicator light stays on for a few
seconds when the ignition is switched
ON. If the TCS or DSC is operating, the
indicator light flashes.
If the light stays on, the TCS, DSC or the
brake assist system may have a
malfunction and they may not operate
correctly. Take your vehicle to an
Authorized Mazda Dealer.
NOTE
lIn addition to the indicator light flashing, a
slight lugging sound will come from the
engine. This indicates that the TCS/DSC is
operating properly.
lOn slippery surfaces, such as fresh snow, it
will be impossible to achieve high rpm
when the TCS is on.
When Driving
Instrument Cluster and Display
4-41íSome models. CX-5_8DV2-EA-14K_Edition3 Page175
Thursday, February 26 2015 5:32 PM
Form No.8DV2-EA-14K

Black plate (176,1)
qTCS OFF Indicator Light
This indicator light stays on for a few
seconds when the ignition is switched
ON.
It also illuminates when the TCS OFF
switch is pressed and TCS is switched off.
Refer to TCS OFF Switch on page 4-82.
If the light remains illuminated and the
TCS is not switched off, take your vehicle
to an Authorized Mazda Dealer. The DSC
may have a malfunction.
qSmart Brake Support/Smart City
Brake Support (SBS/SCBS) OFF
Indicator Light (Type A)
í
This indicator light illuminates for a few
seconds when the ignition is switched
ON.
When the Smart Brake Support/Smart
City Brake Support (SBS/SCBS) system
is turned off, the Smart Brake Support/
Smart City Brake Support (SBS/SCBS)
OFF indicator light turns on.
Refer to Personalization Features on page
9-10.
qSmart City Brake Support (SCBS)
Warning Indication (Type A)í
The indication is displayed in the multi
information display during SCBS brake
operation or brake assist (SCBS brake
assist) operation.
qLow Engine Coolant Temperature
Indicator Light (Blue)
The light illuminates continuously when
the engine coolant temperature is low and
turns off after the engine is warm.
If the low engine coolant temperature
indicator light remains illuminated after
the engine has been sufficiently warmed
up, the temperature sensor could have a
malfunction. Consult an Authorized
Mazda Dealer.
4-42
When Driving
íSome models.
Instrument Cluster and Display
CX-5_8DV2-EA-14K_Edition3 Page176
Thursday, February 26 2015 5:32 PM
Form No.8DV2-EA-14K

Black plate (178,1)
qSecurity Indicator Light
This indicator light starts flashing every
two seconds when the ignition is switched
from ON to OFF and the immobilizer
system is armed.
The light stops flashing when the ignition
is switched ON with the correct key.
At this time, the immobilizer system is
disarmed and the light illuminates for
about three seconds and then turns off.
If the engine does not start with the
correct key, and the security indicator
light keeps illuminating or flashing, the
system may have a malfunction. Consult
an Authorized Mazda Dealer.
qMazda Radar Cruise Control
(MRCC) Warning Light (Amber)/
Indicator Light (Green) (Type A)
í
Mazda Radar Cruise Control (MRCC)
Warning Light (Amber)
Illuminated
When the ignition is switched ON, the
warning light is illuminated and then turns
off after a few seconds.
The warning light turns on if there is a
malfunction in the system while the
Mazda Radar Cruise Control (MRCC)
system is on. Have your vehicle inspected
at an Authorized Mazda Dealer.
Mazda Radar Cruise Control (MRCC)
Indicator Light (Green)
Illuminated
Illuminated when the speed for the Mazda
Radar Cruise Control (MRCC) system is
set.
qCruise Main Indicator Light
(Amber)/Cruise Set Indicator
Light (Green)
The indicator light has two colors.
4-44
When Driving
íSome models.
Instrument Cluster and Display
CX-5_8DV2-EA-14K_Edition3 Page178
Thursday, February 26 2015 5:32 PM
Form No.8DV2-EA-14K

Black plate (179,1)
Cruise Main Indicator Light (Amber)
The indicator light illuminates amber
when the cruise control system is
activated.
Cruise Set Indicator Light (Green)
The indicator light illuminates green when
a cruising speed has been set.
qBlind Spot Monitoring (BSM)
OFF Indication/Indicator Lightí
Type A
The Blind Spot Monitoring (BSM) OFF
indication illuminates when the Blind
Spot Monitoring (BSM) switch is pressed
to turn off the Blind Spot Monitoring
(BSM) and Rear Cross Traffic Alert
(RCTA) systems.
If the indication remains displayed even
though the Blind Spot Monitoring (BSM)
switch has been operated, it indicates a
problem in the system. Have your vehicle
inspected at an Authorized Mazda Dealer.
Type B
This indicator light illuminates for a few
seconds when the ignition is switched
ON.
The Blind Spot Monitoring (BSM) OFF
indicator light illuminates when the Blind
Spot Monitoring (BSM) switch is pressed
to turn off the Blind Spot Monitoring
(BSM) and Rear Cross Traffic Alert
(RCTA) systems.
A problem in the system may be indicated
under the following conditions. Have your
vehicle inspected at an Authorized Mazda
Dealer.
lThe light does not turn on when the
ignition is switched ON.
lIt remains illuminated even though the
Blind Spot Monitoring (BSM) switch
has been switched off.
lIt turns on while driving the vehicle.
NOTE
If the vehicle is driven on a road with less
traffic and few vehicles that the radar sensors
can detect, the system may pause (The Blind
Spot Monitoring (BSM) OFF indication/
indicator light in the instrument cluster
illuminates). However, it does not indicate a
malfunction.
qLights-On Indicator Light
This indicator light illuminates when the
exterior lights and dashboard illumination
are on.
When Driving
Instrument Cluster and Display
4-45íSome models. CX-5_8DV2-EA-14K_Edition3 Page179
Thursday, February 26 2015 5:32 PM
Form No.8DV2-EA-14K

Black plate (180,1)
The light continues to flash if the lighting
system has a malfunction. Consult an
Authorized Mazda Dealer.
qLED Headlight Warning Lightí
This warning light illuminates for a few
seconds when the ignition is switched
ON.
This light illuminates if there is a
malfunction in the LED headlight. Have
your vehicle inspected by an Authorized
Mazda Dealer.
4-46
When Driving
íSome models.
Instrument Cluster and Display
CX-5_8DV2-EA-14K_Edition3 Page180
Thursday, February 26 2015 5:32 PM
Form No.8DV2-EA-14K

Black plate (186,1)
qManual Shift Mode
This mode gives you the feel of driving a
manual transaxle vehicle by operating the
selector lever and allows you to control
engine rpm and torque to the drive wheels
much like a manual transaxle when more
control is desired.
To change to manual shift mode, shift the
lever from D to M.
NOTE
Changing to manual shift mode while driving
will not damage the transaxle.
To return to automatic shift mode, shift
the lever from M to D.
NOTE
lIf you change to manual shift mode when
the vehicle is stopped, the gear will shift to
M1.
lIf you change to manual shift mode without
depressing the accelerator pedal when
driving in D range, 5th gear/6th gear, the
gear will shift to M4/M5.
Indicators
Manual shift mode indicator
In manual shift mode, the“M”of the shift
position indicator in the instrument panel
illuminates.Gear position indicator
The numeral for the selected gear
illuminates.
Manual shift mode indicator
Gear position indicator
NOTElIf the gears cannot be shifted down when
driving at higher speeds, the gear position
indicator will flash twice to signal that the
gears cannot be shifted down (to protect the
transaxle).
lIf the automatic transaxle fluid (ATF)
temperature becomes too high, there is the
possibility that the transaxle will switch to
automatic shift mode, canceling manual
shift mode and turning off the gear position
indicator illumination. This is a normal
function to protect the AT. After the ATF
temperature has decreased, the gear
position indicator illumination turns back
on and driving in manual shift mode is
restored.
4-52
When Driving
Transaxle
CX-5_8DV2-EA-14K_Edition3 Page186
Thursday, February 26 2015 5:32 PM
Form No.8DV2-EA-14K

Black plate (188,1)

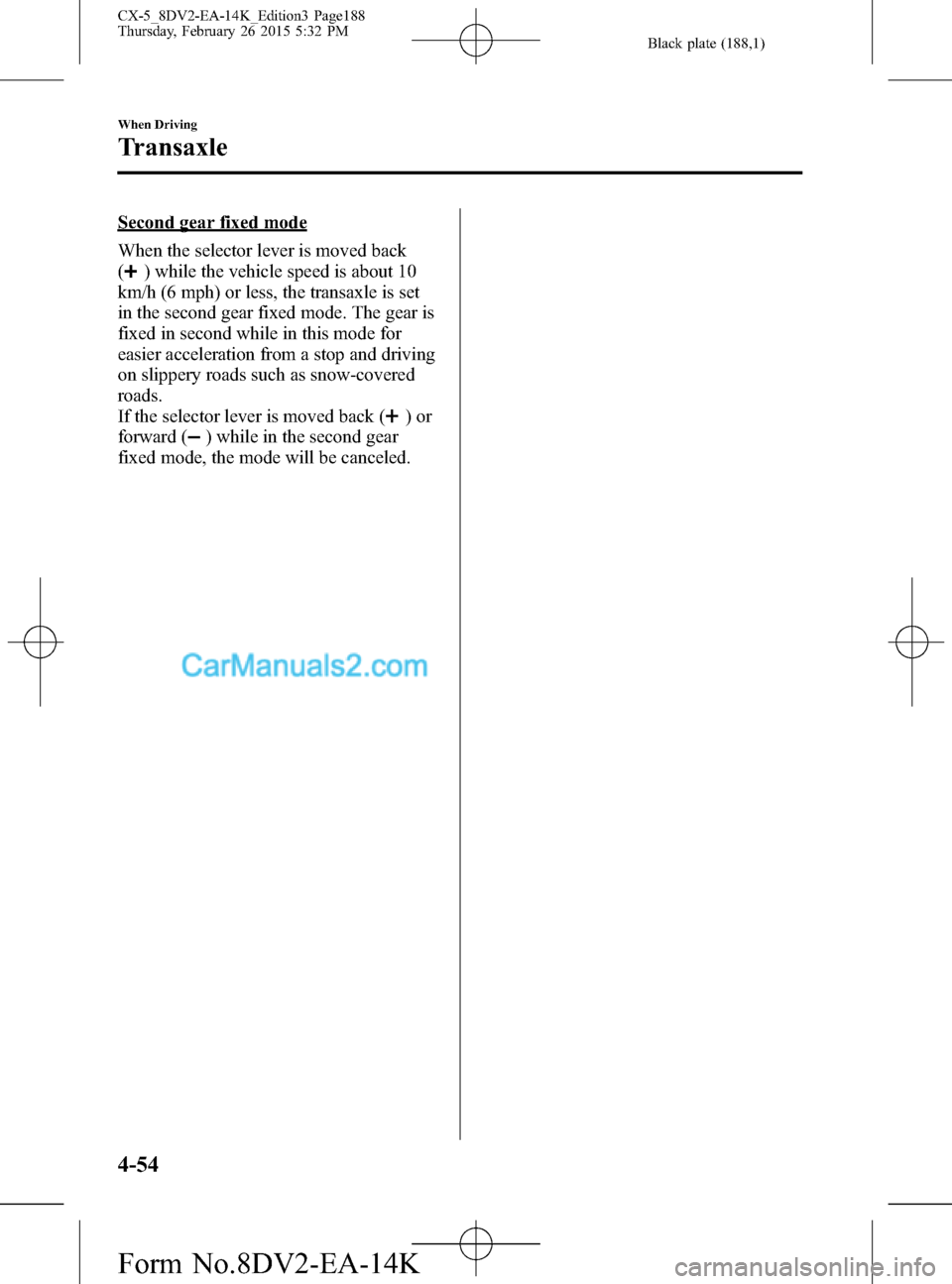

Second gear fixed mode
When the selector lever is moved back
(
) while the vehicle speed is about 10
km/h (6 mph) or less, the transaxle is set
in the second gear fixed mode. The gear is
fixed in second while in this mode for
easier acceleration from a stop and driving
on slippery roads such as snow-covered
roads.
If the selector lever is moved back (
)or
forward (
) while in the second gear
fixed mode, the mode will be canceled.
4-54
When Driving
Transaxle
CX-5_8DV2-EA-14K_Edition3 Page188
Thursday, February 26 2015 5:32 PM
Form No.8DV2-EA-14K

Black plate (189,1)
Shift gear (shifting) speed limit
For each gear position while in the manual mode, the speed limit is set as follows: When
the selector lever is operated within the range of the speed limit, the gear is shifted.
Shift up
The gear does not shift up while the vehicle speed is lower than the speed limit.
Shift down
The gear does not shift down while the vehicle speed exceeds the speed limit.
If the vehicle speed exceeds the speed limit and the gear does not shift down, the gear
position indication flashes 2 times to notify the driver that the gear cannot be shifted.
Kickdown
When the accelerator pedal is depressed fully while driving, the gear shifts down.
NOTE
The gear also shifts down using kickdown while in the second gear fixed mode.
Auto-shift down
The gear shifts down automatically depending on the vehicle speed during deceleration.
NOTE
If the vehicle comes to a stop while in the second gear fixed mode, the gear remains in second.
When Driving
Transaxle
4-55
CX-5_8DV2-EA-14K_Edition3 Page189
Thursday, February 26 2015 5:32 PM
Form No.8DV2-EA-14K

Black plate (194,1)
Auto-light control
When the headlight switch is in the
position and the ignition is switched ON, the
light sensor senses the surrounding lightness or darkness and automatically turns the
headlights, other exterior lights and dashboard illumination on or off (see chart above).
CAUTION
ØDo not shade the light sensor by adhering a sticker or a label on the windshield.
Otherwise the light sensor will not operate correctly.
ØThe light sensor also works as a rain sensor for the auto-wiper control. Keep
hands and scrapers clear of the windshield when the wiper lever is in the
position and the ignition is switched ON as fingers could be pinched or the wipers
and wiper blades damaged when the wipers activate automatically. If you are
going to clean the windshield, be sure the wipers are turned off completely―this
is particularly important when clearing ice and snow―when it is particularly
tempting to leave the engine running.
NOTE
lThe headlights, other exterior lights and dashboard illumination may not turn off immediately
even if the surrounding area becomes well-lit because the light sensor determines that it is
nighttime if the surrounding area is continuously dark for several minutes such as inside long
tunnels, traffic jams inside tunnels, or in indoor parking lots.
In this case, the lights turn off if the light switch is turned to the
position.lThe dashboard illumination can be adjusted by rotating the knob in the instrument cluster. Also,
the day/night mode can be changed by rotating the knob until a beep sound is heard. To adjust the
brightness of the dashboard illumination:
Refer to Dashboard Illumination on page 4-14.
lThe sensitivity of the AUTO lights may be changed.
Refer to Personalization Features on page 9-10.
4-60
When Driving
Switches and Controls
CX-5_8DV2-EA-14K_Edition3 Page194
Thursday, February 26 2015 5:32 PM
Form No.8DV2-EA-14K

Black plate (196,1)
qLeaving Home Light System
The leaving home light system turns on
the lights when the key unlock button is
pressed while away from the vehicle.
To turn on the system
When the ignition switch and the
headlight switch are as indicated below,
the lights will illuminate when the
transmitter unlock button is pressed and
the vehicle receives the transmitter signal.
The lights turn off after a certain period of
time has elapsed (30 seconds).
lIgnition switch: offlHeadlight switch:or
The following lights turn on when the
leaving home light system is operated.
Low beams, Parking lights, Taillights,
License lights
Unlock button
Lock button
NOTElOperation of the leaving home light system
can be turned on or off.
Refer to Personalization Features on page
9-10.
lWhen the transmitter lock button is pressed
and the vehicle receives the transmitter
signal, the lights turn off.
lWhen the headlight switch is in a position
other than
or, the lights turn off.
qHeadlight Levelingí
The number of passengers and weight of
cargo in the luggage compartment change
the angle of the headlights.
The angle of the headlights will be
automatically adjusted when turning on
the headlights.
A system malfunction or operation
conditions are indicated by a warning.
Refer to Warning/Indicator Lights on page
4-20.
qDaytime Running Lights
Some countries require moving vehicles
to have their lights on (daytime running
lights) during the daytime.
The daytime running lights turn on
automatically when the vehicle starts
moving.
They turn off when the parking brake is
operated or the shift lever is shifted to the
P position (automatic transaxle vehicle).
NOTE
(Except Canada)
The daytime running lights can be deactivated.
Refer to Personalization Features on page
9-10.
4-62
When Driving
íSome models.
Switches and Controls
CX-5_8DV2-EA-14K_Edition3 Page196
Thursday, February 26 2015 5:32 PM
Form No.8DV2-EA-14K
