Overheating
If the High engine coolant temperature
warning light illuminates, the vehicle
loses power, or you hear a loud knocking
or pinging noise, the engine is probably
too hot.
WARNING
Switch the ignition to off and
make sure the fan is not running before
attempting to work near the cooling
fan:
Working near the cooling fan when it
is running is dangerous. The fan
could continue running indefinitely
even if the engine has stopped and
the engine compartment temperature
is high. You could be hit by the fan
and seriously injured.
Do not remove either
cooling system cap when the engine
and radiator are hot:
When the engine and radiator are
hot, scalding coolant and steam may
shoot out under pressure and cause
serious injury.
Open the hood ONLY after steam is no
longer escaping from the engine:
Steam from an overheated engine is
dangerous. The escaping steam could
seriously burn you.
If the High engine coolant temperature
warning light illuminates:
1. Drive safely to the side of the road and
park off the right-of-way.2. Put a vehicle with an automatic
transaxle in park (P), a manual
transaxle in neutral.
3. Apply the parking brake.
4. Turn off the air conditioner.
5. Check whether coolant or steam is
escaping from the engine compartment.
If steam is coming from the engine
compartment:
Do not go near the front of the vehicle.
Stop the engine.
Wait until the steam dissipates, then
open the hood and start the engine.
If neither coolant nor steam is
escaping:
Open the hood and idle the engine until
it cools.
CAUTION
If the cooling fan does not operate
while the engine is running, the
engine temperature will increase.
Stop the engine and call an
Authorized Mazda Dealer.
6. Make sure the cooling fan is operating,
then turn off the engine after the
temperature has decreased.
7. When cool, check the coolant level.
If it is low, look for coolant leaks from
the radiator and hoses.
7-18
If Trouble Arises
Overheating
CX-5_8DV2-EA-14K_Edition3 Page520
Thursday, February 26 2015 5:35 PM
Form No.8DV2-EA-14K

Black plate (526,1)
qIf the brake system warning light
illuminates
When the light turns on
If the brake system warning light remains
turned on even though the electric parking
brake is released, the brake fluid may be
low or there could be a problem with the
brake system. Park the vehicle in a safe
place immediately and contact an
Authorized Mazda Dealer.
When the light is flashing
The light flashes if the electric parking
brake has a malfunction.
If the light remains flashing even if the
electric parking brake switch is operated,
consult an Authorized Mazda Dealer as
soon as possible.
WARNING
Do not drive with the brake system
warning light illuminated. Contact an
Authorized Mazda Dealer to have the
brakes inspected as soon as possible:
Driving with the brake system
warning light illuminated is
dangerous. It indicates that your
brakes may not work at all or that
they could completely fail at any
time. If this light remains
illuminated, after checking that the
parking brake is fully released, have
the brakes inspected immediately.
CAUTION
In addition, the effectiveness of the
braking may diminish so you may
need to depress the brake pedal more
strongly than normal to stop the
vehicle.
qIf the antilock brake system
(ABS) warning light illuminates
If the ABS warning light stays on while
you're driving, the ABS control unit has
detected a system malfunction. If this
occurs, your brakes will function normally
as if the vehicle had no ABS.
Should this happen, consult an Authorized
Mazda Dealer as soon as possible.
NOTE
lWhen the engine is jump-started to charge
the battery, uneven rpm occurs and the ABS
warning light may illuminate. If this occurs,
it is the result of the weak battery and does
not indicate an ABS malfunction.
Recharge the battery.
lThe brake assist system does not operate
while the ABS warning light is illuminated.
7-24
If Trouble Arises
Warning/Indicator Lights and Warning Sounds
CX-5_8DV2-EA-14K_Edition3 Page526
Thursday, February 26 2015 5:35 PM
Form No.8DV2-EA-14K

Black plate (528,1)

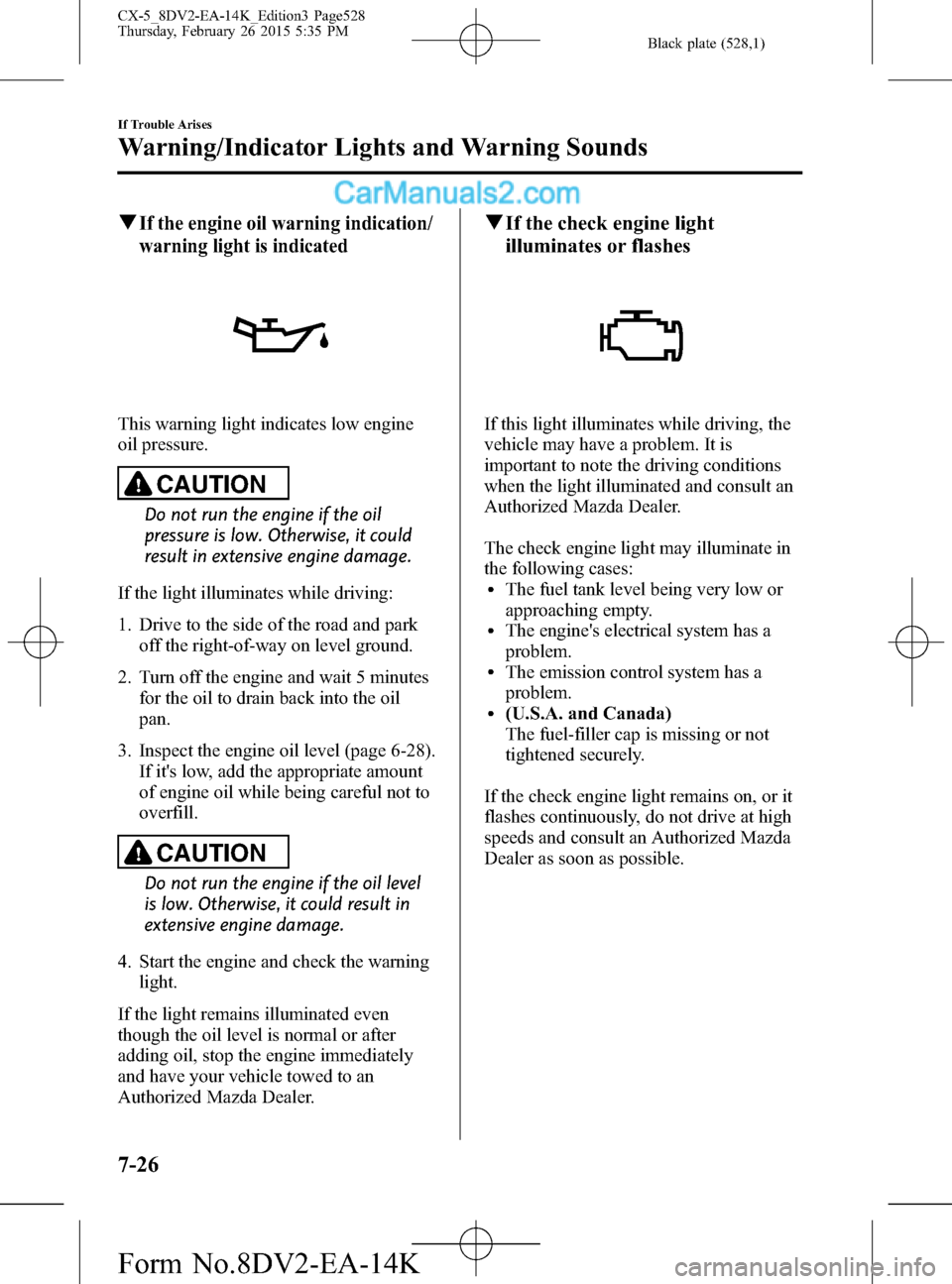

qIf the engine oil warning indication/
warning light is indicated
This warning light indicates low engine
oil pressure.
CAUTION
Do not run the engine if the oil
pressure is low. Otherwise, it could
result in extensive engine damage.
If the light illuminates while driving:
1. Drive to the side of the road and park
off the right-of-way on level ground.
2. Turn off the engine and wait 5 minutes
for the oil to drain back into the oil
pan.
3. Inspect the engine oil level (page 6-28).
If it's low, add the appropriate amount
of engine oil while being careful not to
overfill.
CAUTION
Do not run the engine if the oil level
is low. Otherwise, it could result in
extensive engine damage.
4. Start the engine and check the warning
light.
If the light remains illuminated even
though the oil level is normal or after
adding oil, stop the engine immediately
and have your vehicle towed to an
Authorized Mazda Dealer.
qIf the check engine light
illuminates or flashes
If this light illuminates while driving, the
vehicle may have a problem. It is
important to note the driving conditions
when the light illuminated and consult an
Authorized Mazda Dealer.
The check engine light may illuminate in
the following cases:
lThe fuel tank level being very low or
approaching empty.
lThe engine's electrical system has a
problem.
lThe emission control system has a
problem.
l(U.S.A. and Canada)
The fuel-filler cap is missing or not
tightened securely.
If the check engine light remains on, or it
flashes continuously, do not drive at high
speeds and consult an Authorized Mazda
Dealer as soon as possible.
7-26
If Trouble Arises
Warning/Indicator Lights and Warning Sounds
CX-5_8DV2-EA-14K_Edition3 Page528
Thursday, February 26 2015 5:35 PM
Form No.8DV2-EA-14K

Black plate (532,1)
WARNING
Never tamper with the air bag/
pretensioner systems and always have
an Authorized Mazda Dealer perform
all servicing and repairs:
Self-servicing or tampering with the
systems is dangerous. An air bag/
pretensioner could accidentally
activate or become disabled causing
serious injury or death.
qIf the tire pressure monitoring
system warning light flashes
If the tire pressure monitoring system has
a malfunction, the tire pressure warning
light flashes for about 1 minute when the
ignition is switched ON and then
continues illuminating. Have your vehicle
checked by an Authorized Mazda Dealer
as soon as possible.
qIf the KEY warning indication/
warning light (red) is indicated
Type A
“Keyless System malfunction”is
displayed
This message is displayed if the advanced
keyless entry & push button start system
has a problem.
Contact an Authorized Mazda Dealer.
CAUTION
If the above message is indicated, or
the push button start indicator light
(amber) flashes, the engine may not
start. If the engine cannot be started,
try starting it using the emergency
operation for starting the engine, and
have the vehicle inspected at an
Authorized Mazda Dealer as soon as
possible.
Refer to Emergency Operation for
Starting the Engine on page 4-8.
“Ignition is on”is displayed
This message is displayed when the
driver's door is opened without switching
the ignition off.
7-30
If Trouble Arises
Warning/Indicator Lights and Warning Sounds
CX-5_8DV2-EA-14K_Edition3 Page532
Thursday, February 26 2015 5:35 PM
Form No.8DV2-EA-14K

Black plate (605,1)
qAir Conditioner
The type of refrigerant used is indicated on a label attached to the inside of the engine compartment. Check the
label before recharging the refrigerant. Refer to Climate Control System on page 5-2.
Item Classification
Refrigerant Type HFC134a (R-134a)
qLight Bulbs
Exterior light
Light bulbCategory
Wattage UNECE
*1(SAE)
HeadlightsHalogen
headlightsHigh beam 60 HB3 (9005)
Low beam 55 H11 (H11)
LED headlightsHigh beam LED
*2―(―)
Low beam LED*2―(―)
Daytime running lightsWith halogen
headlights60 HB3 (9005)
Daytime running lights/Parking
lightsWith LED headlights LED
*2―(―)
Front turn signal lights/Parking
lights (Front side-marker lights)With halogen
headlights27/8―(1157NA)
Front turn signal lights/Front
side-marker lightsWith LED headlights 28/8―(7444NA)
Fog lights
íWith halogen
headlights55 H11 (H11)
With LED headlights LED
*2―(―)
Side turn signal lights LED*2―(―)
High-mount brake light LED*2―(―)
Rear turn signal lights 21 WY21W (7443NA)
Brake lights/TaillightsWith halogen
headlights21/5 W21/5W (7443)
With LED headlights LED
*2―(―)
Taillights (Liftgate side)With halogen
headlights5 W5W (―)
With LED headlights LED
*2―(―)
Rear side-marker lightsWith halogen
headlights5 W5W (―)
With LED headlights LED
*2―(―)
Reverse lights 18 W16W (921)
License plate lights 5 W5W (―)
*1 UNECE stands for United Nations Economic Commission for Europe.
*2 LED is the abbreviation for Light Emitting Diode.
Specifications
9-7íSome models. CX-5_8DV2-EA-14K_Edition3 Page605
Thursday, February 26 2015 5:35 PM
Form No.8DV2-EA-14K

Black plate (625,1)
W
Warning Lights
ABS ............................................ 4-28
Air bag system ........................... 4-34
Automatic transaxle ................... 4-33
AWD .......................................... 4-32
Brake system .............................. 4-27
Charging system ......................... 4-29
Check engine .............................. 4-30
Check fuel cap ........................... 4-35
Door-ajar .................................... 4-36
Electric parking brake ................ 4-29
Engine oil ................................... 4-30
Front seat belt pretensioner
system ........................................ 4-34
HBC ........................................... 4-41
High engine coolant
temperature ................................ 4-31
KEY ............................................ 4-39
LDWS ........................................ 4-31
LED headlight ............................ 4-46
Low fuel ..................................... 4-35
Low washer fluid level ............... 4-37
Mazda Radar Cruise Control
(MRCC) ..................................... 4-44
Seat belt ...................................... 4-35
Tire pressure monitoring
system ........................................ 4-37
Warning/Buzzer ................................ 7-23
Warranty ............................................ 8-16
Weights ............................................... 9-5
Windows
Power windows .......................... 3-32
Windshield Washer ........................... 4-68
Windshield Wipers ............................ 4-65
Winter Driving .................................. 3-44
W
Wiper
Replacing Rear Window Wiper
Blade .......................................... 6-34
Replacing Windshield Wiper
Blades ........................................ 6-33
Index
10-9
CX-5_8DV2-EA-14K_Edition3 Page625
Thursday, February 26 2015 5:35 PM
Form No.8DV2-EA-14K
