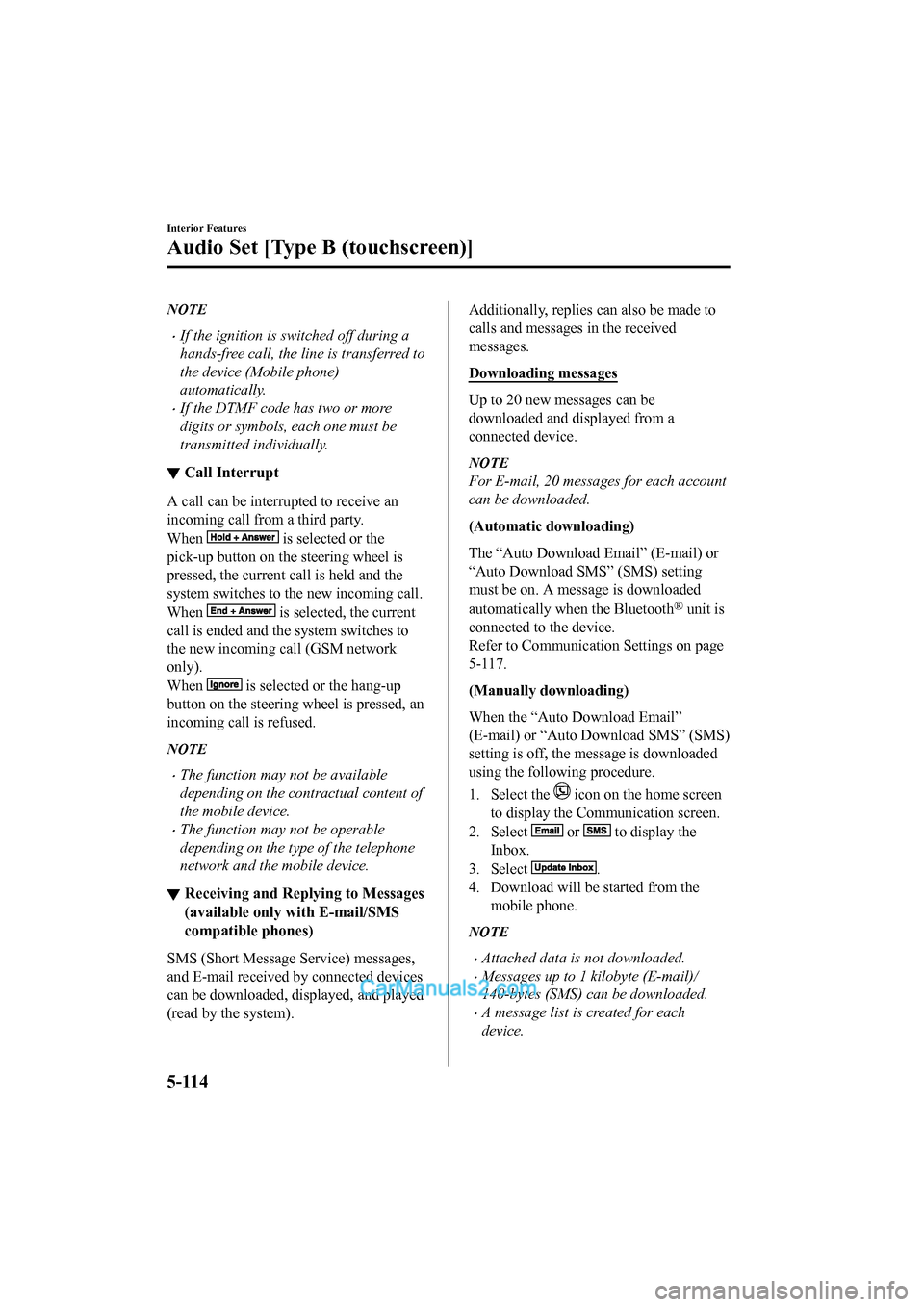

NOTE
•If the ignition is switched off during a
hands-free call, the line is transferred to
the device (Mobile phone)
automatically.
•If the DTMF code has two or more
digits or symbols, each one must be
transmitted individually.
▼Call Interrupt
A call can be interrupted to receive an
incoming call from a third party.
When
is selected or the
pick-up button on the steering wheel is
pressed, the current call is held and the
system switches to t he new incoming call.
When
is selected, the current
call is ended and the system switches to
the new incoming call (GSM network
only).
When
is selected or the hang-up
button on the steering wheel is pressed, an
incoming call is refused.
NOTE
•The function may not be available
depending on the contractual content of
the mobile device.
•The function may not be operable
depending on the type of the telephone
network and the mobile device.
▼ Receiving and Reply
ing to Messages
(available only with E-mail/SMS
compatible phones)
SMS (Short Message Service) messages,
and E-mail received by connected devices
can be downloaded, displayed, and played
(read by the system).
Additionally, replies can also be made to
calls and messages in the received
messages.
Downloading messages
Up to 20 new messages can be
downloaded and displayed from a
connected device.
NOTE
For E-mail, 20 messages for each account
can be downloaded.
(Automatic downloading)
The “Auto Download Email” (E-mail) or
“Auto Download SMS” (SMS) setting
must be on. A message is downloaded
automatically when the Bluetooth
® unit is
connected to the device.
Refer to Communication Settings on page
5-117.
(Manually downloading)
When the “Auto Download Email”
(E-mail) or “Auto Do wnload SMS” (SMS)
setting is off, the message is downloaded
using the following procedure.
1. Select the
icon on the home screen
to display the Communication screen.
2. Select
or to display the
Inbox.
3. Select
.
4. Download will be started from the mobile phone.
NOTE
•Attached data is not downloaded.
•Messages up to 1 kilobyte (E-mail)/
140-bytes (SMS) can be downloaded.
•A message list is created for each
device.
Interior Features
Audio Set [Type B (touchscreen)]
5-114
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

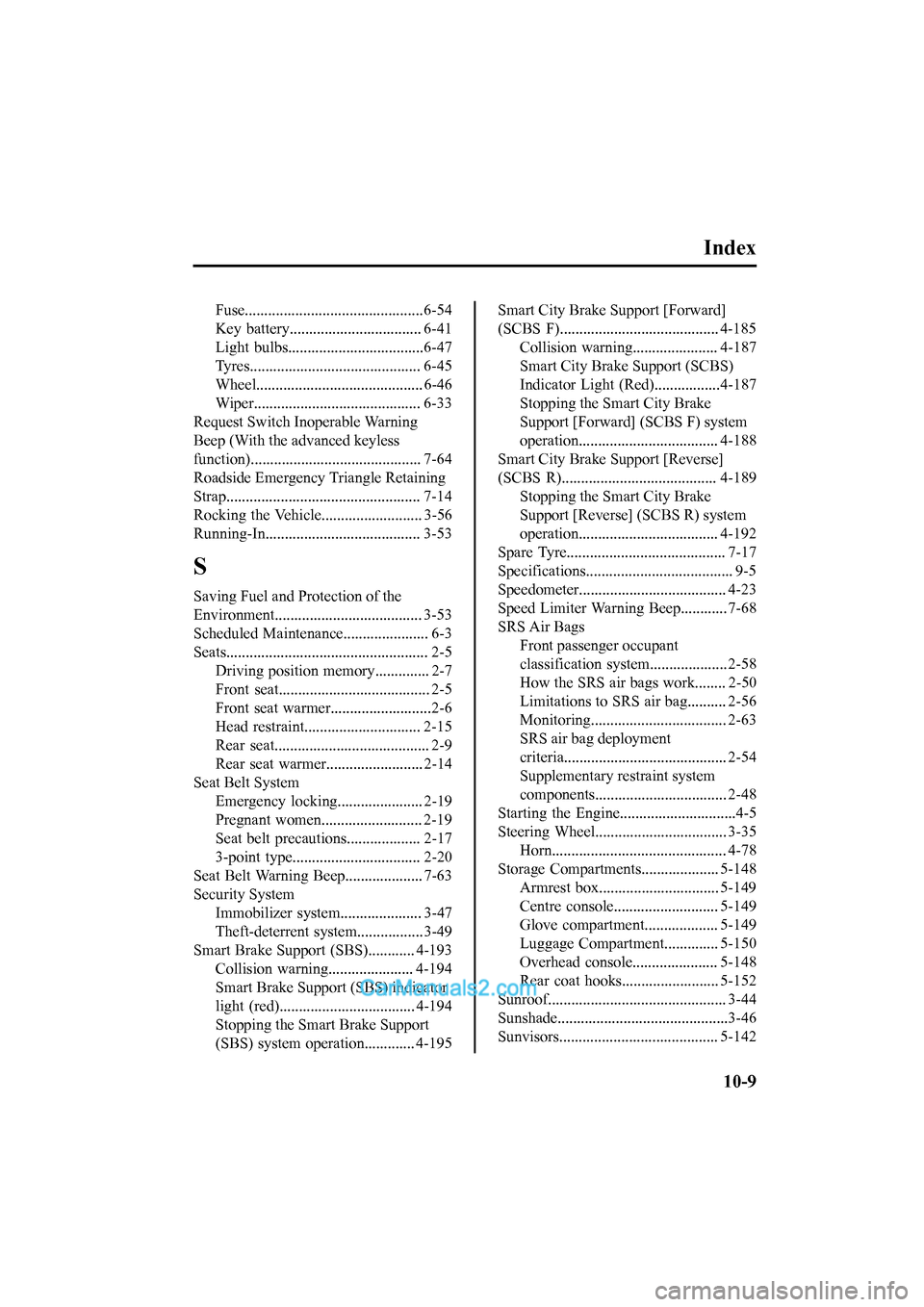

Index
Fuse..............................................6-54
Key battery.................................. 6-41
Light bulbs...................................6-47
Tyres............................................ 6-45
Wheel........................................... 6-46
Wiper........................................... 6-33
Request Switch Inoperable Warning
Beep (With the advanced keyless
function)............................................ 7-64
Roadside Emergency Triangle Retaining
Strap.................................................. 7-14
Rocking the Vehicle.......................... 3-56
Running-In........................................ 3-53
S
Saving Fuel and Protection of the
Environment...................................... 3-53
Scheduled Maintenance...................... 6-3
Seats.................................................... 2-5
Driving position memory.............. 2-7
Front seat....................................... 2-5
Front seat warmer..........................2-6
Head restraint.............................. 2-15
Rear seat........................................ 2-9
Rear seat warmer......................... 2-14
Seat Belt System Emergency locking...................... 2-19
Pregnant women.......................... 2-19
Seat belt precautions................... 2-17
3-point type................................. 2-20
Seat Belt Warning Beep.................... 7-63
Security System Immobilizer system..................... 3-47
Theft-deterrent system................. 3-49
Smart Brake Support (SBS)............ 4-193 Collision warning...................... 4-194
Smart Brake Support (SBS) indicator
light (red)................................... 4-194
Stopping the Smart Brake Support
(SBS) system operation............. 4-195
Smart City Brake Support [Forward]
(SCBS F)......................................... 4-185Collision warning...................... 4-187
Smart City Brake Support (SCBS)
Indicator Light (Red).................4-187
Stopping the Smart City Brake
Support [Forward] (SCBS F) system
operation.................................... 4-188
Smart City Brake Support [Reverse]
(SCBS R)........................................ 4-189
Stopping the Smart City Brake
Support [Reverse] (SCBS R) system
operation.................................... 4-192
Spare Tyre......................................... 7-17
Specifications...................................... 9-5
Speedometer...................................... 4-23
Speed Limiter Warning Beep............ 7-68
SRS Air Bags Front passenger occupant
classification system.................... 2-58
How the SRS air bags work........ 2-50
Limitations to SRS air bag.......... 2-56
Monitoring................................... 2-63
SRS air bag deployment
criteria.......................................... 2-54
Supplementary restraint system
components.................................. 2-48
Starting the Engine..............................4-5
Steering Wheel.................................. 3-35
Horn............................................. 4-78
Storage Compartments.................... 5-148
Armrest box............................... 5-149
Centre console........................... 5-149
Glove compartment................... 5-149
Luggage Compartment.............. 5-150
Overhead console...................... 5-148
Rear coat hooks......................... 5-152
Sunroof.............................................. 3-44
Sunshade............................................3-46
Sunvisors......................................... 5-142
