horn MAZDA MODEL CX-5 2017 Owner's Manual - RHD (UK, Australia) (in English)

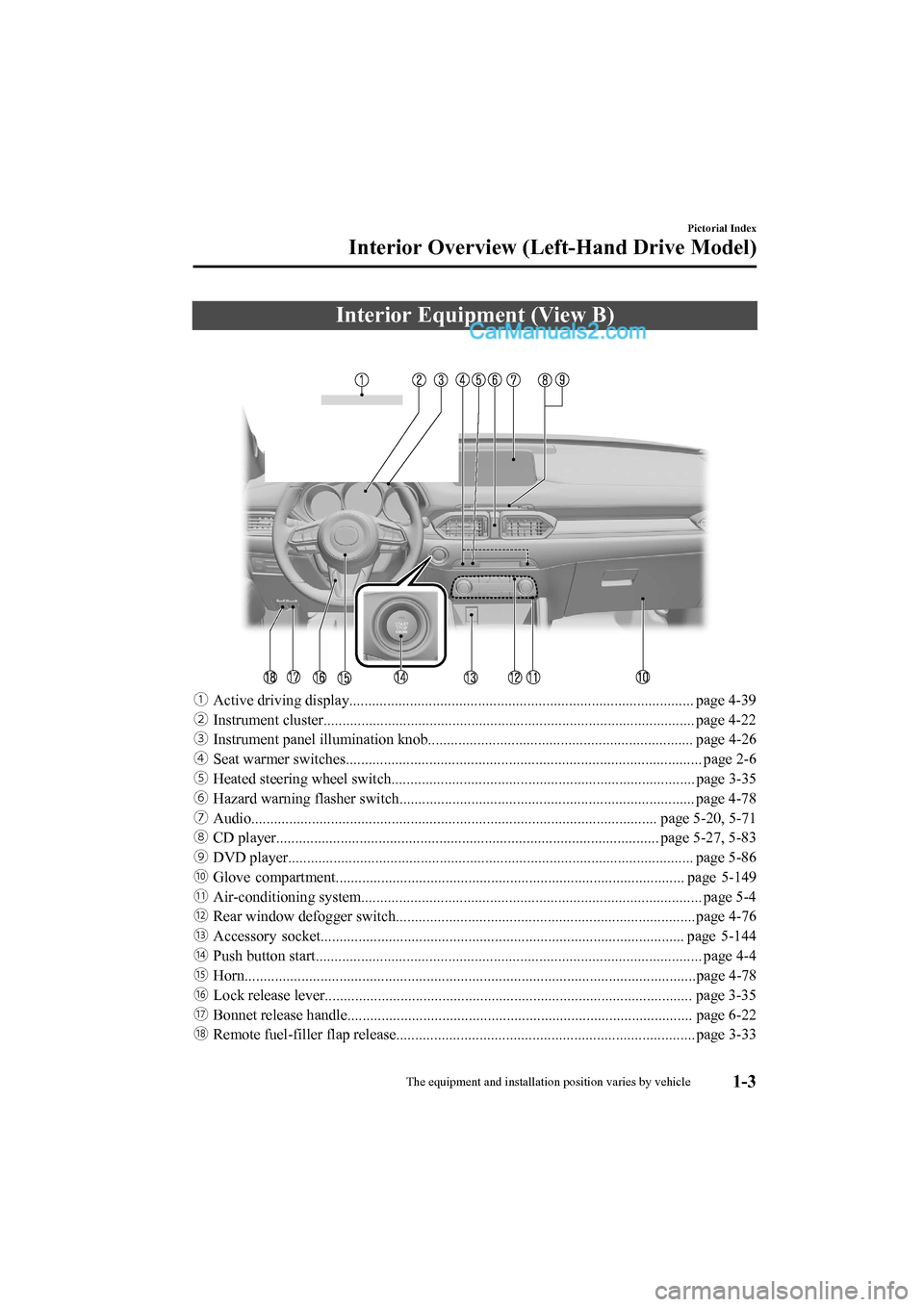

Interior Equipment (View B)
ƒActive driving display........................................................................................... page 4-39
„ Instrument cluster.................................................................................................. page 4-22
… Instrument panel illumination knob............................. ......................................... page 4-26
† Seat warmer switches........................................... ................................................... page 2-6
‡ Heated steering wheel switch................................... ............................................. page 3-35
ˆ Hazard warning flasher switch.............................................................................. page 4-78
‰ Audio.......................................................... ................................................. page 5-20, 5-7 1
Š CD player..................................................................................................... page 5-27, 5-83
‹ DVD player........................................................................................................... page 5-86
ΠGlove compartment.............................................. .............................................. page 5-149
 Air-conditioning system.......................................................................................... page 5-4
Ž Rear window defogger switch.................................... ........................................... page 4-76
 Accessory socket............................................... ................................................. page 5-144
 Push button start...................................................................................................... page 4-4
‘ Horn........................................................... ............................................................page 4-78
’ Lock release lever................................................................................................. page 3-35
“ Bonnet release handle .......................................... ................................................. page 6-22
” Remote fuel-filler flap release................................ ............................................... page 3-33
Pictorial Index
Interior Overview (Left-Hand Drive Model)
The equipment and installation position varies by vehicle1-3
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

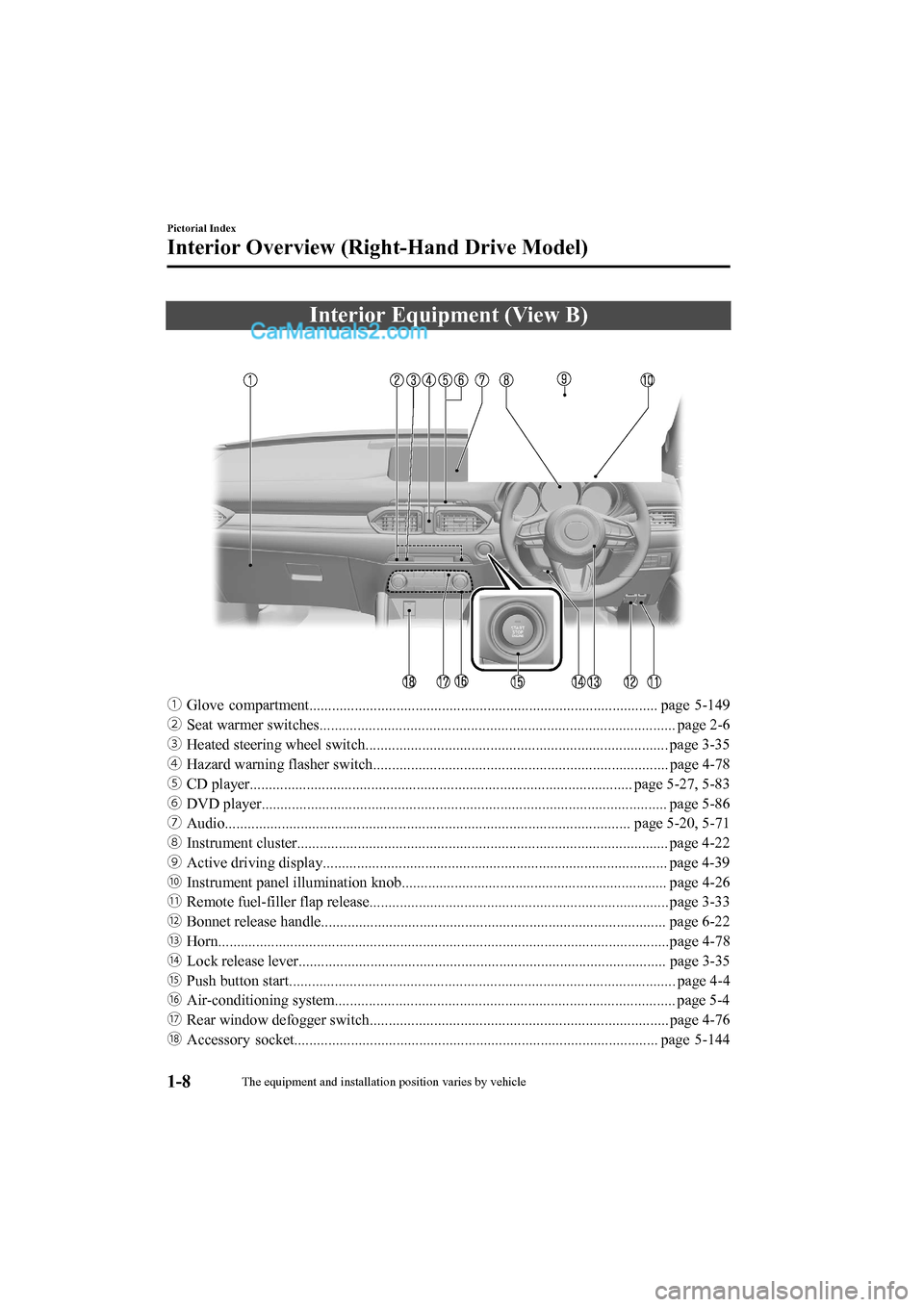

Interior Equipment (View B)
ƒGlove compartment............................................................................................ page 5-149
„ Seat warmer switches........................................... ................................................... page 2-6
… Heated steering wheel switch................................................................................ page 3-35
† Hazard warning flasher switch.................................. ............................................ page 4-78
‡ CD player..................................................................................................... page 5-27, 5-83
ˆ DVD player........................................................................................................... page 5-86
‰ Audio.......................................................... ................................................. page 5-20, 5-7 1
Š Instrument cluster.................................................................................................. page 4-22
‹ Active driving display........................................................................................... page 4-39
ΠInstrument panel illumination knob............................. ......................................... page 4-26
 Remote fuel-filler flap re lease............................................................................... page 3-33
Ž Bonnet release handle........................................................................................... page 6-22
 Horn.......................................................................................................................pag e 4-78
 Lock release lever............................................. .................................................... page 3-35
‘ Push button start.............................................. ........................................................ page 4-4
’ Air-conditioning system.......................................................................................... page 5-4
“ Rear window defogger switch.................................... ...........................................page 4-76
” Accessory socket............................................... ................................................. page 5-144
Pictorial Index
Interior Overview (Right-Hand Drive Model)
1-8The equipment and installatio n position varies by vehicle
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

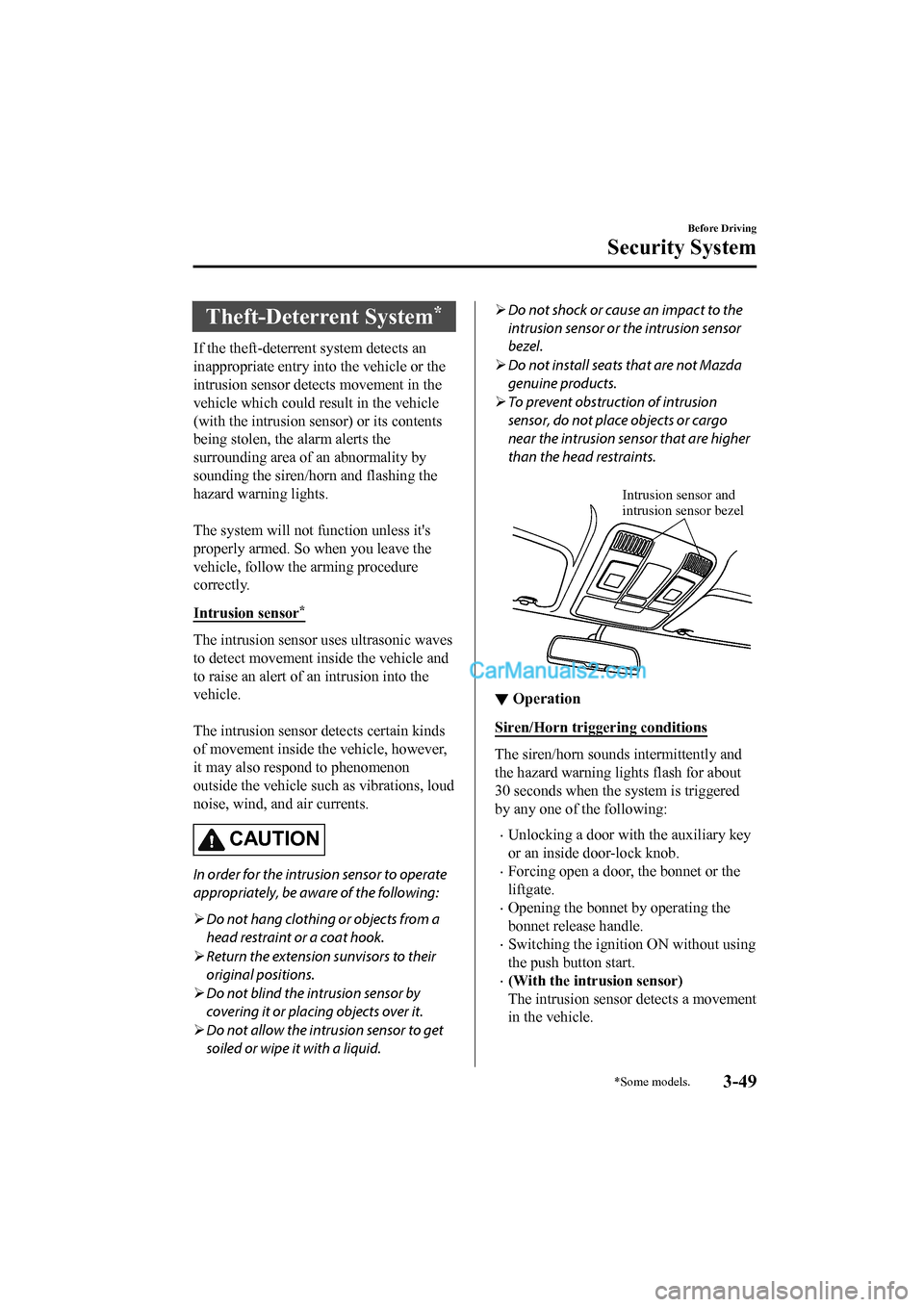

Theft-Deterrent System*
If the theft-deterrent system detects an
inappropriate entry in to the vehicle or the
intrusion sensor detects movement in the
vehicle which could result in the vehicle
(with the intrusion sensor) or its contents
being stolen, the alarm alerts the
surrounding area of an abnormality by
sounding the siren/horn and flashing the
hazard warning lights.

The system will not function unless it's
properly armed. So when you leave the
vehicle, follow the arming procedure
correctly.
Intrusion sensor
*
The intrusion s ensor uses ultrasonic waves
to detect movement inside the vehicle and
to raise an alert of an intrusion into the
vehicle.

The intrusion s ensor detects certain kinds
of movement inside the vehicle, however,
it may also respond to phenomenon
outside the vehicle such as vibrations, loud
noise, wind, and air currents.
CAUTION
In order for the intrusion sensor to operate
appropriately, be aware of the following:
 Do not hang clothing or objects from a
head restraint or a coat hook.
 Return the extension sunvisors to their
original positions.
 Do not blind the intrusion sensor by
covering it or placing objects over it.
 Do not allow the intrusion sensor to get
soiled or wipe it with a liquid.
Do not shock or cause an impact to the
intrusion sensor or the intrusion sensor
bezel.
 Do not install seats that are not Mazda
genuine products.
 To prevent obstruction of intrusion
sensor, do not place objects or cargo
near the intrusion sensor that are higher
than the head restraints.

Intrusion sensor and
intrusion sensor bezel
▼ Operation
Siren/Horn triggering conditions
The siren/horn sounds intermittently and
the hazard warning lights flash for about
30 seconds when the system is triggered
by any one of the following:
•Unlocking a door with the auxiliary key
or an inside door-lock knob.
•Forcing open a door, the bonnet or the
liftgate.
•Opening the bonnet by operating the
bonnet release handle.
•Switching the ignition ON without using
the push button start.
•(With the intr
usion sensor)
The intrusion sensor detects a movement
in the vehicle.
Before Driving
Security System
*Some models.3-49
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

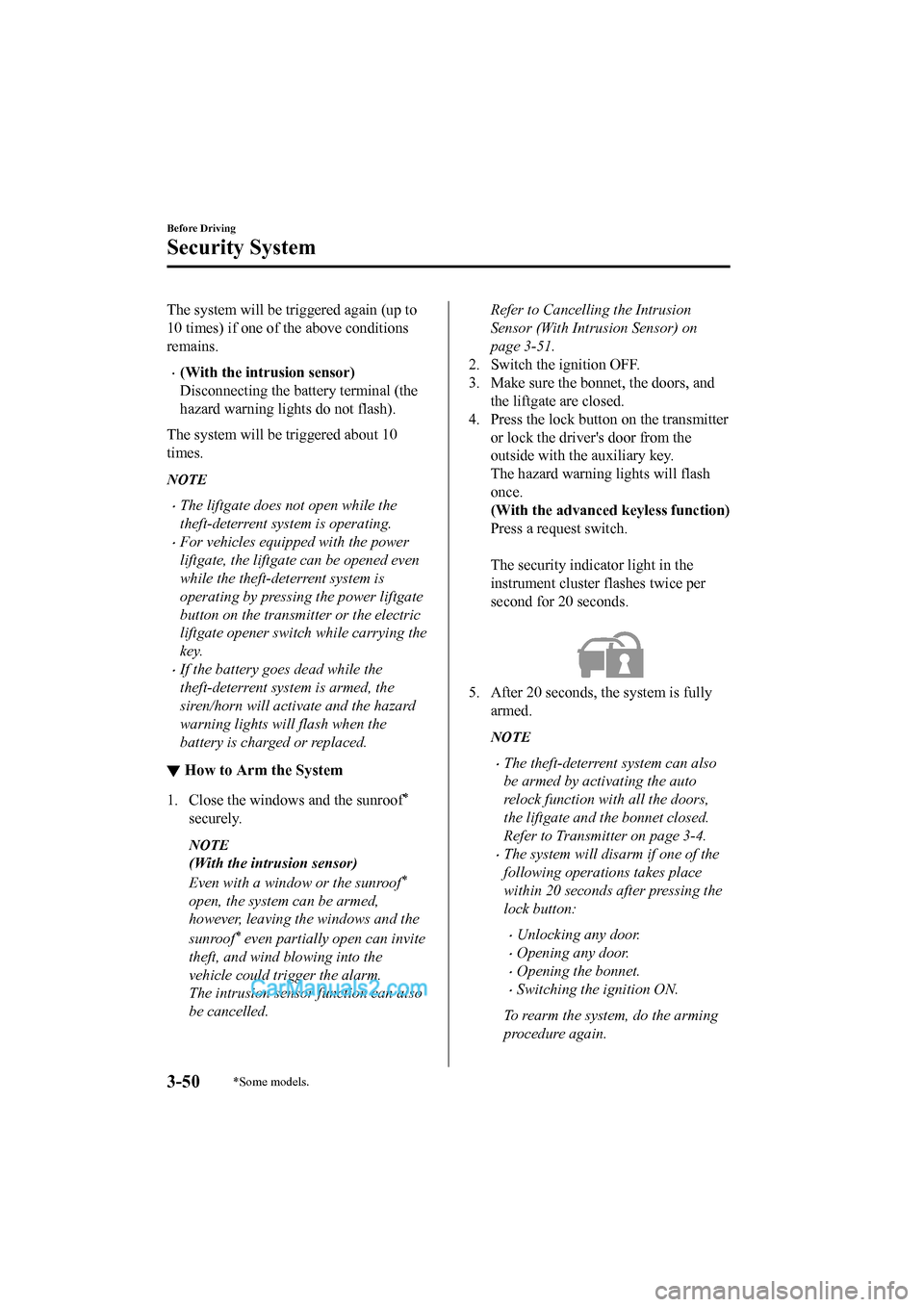

The system will be triggered again (up to
10 times) if one of the above conditions
remains.
•(With the intrusion sensor)
Disconnecting the battery terminal (the
hazard warning lights do not flash).
The system will be triggered about 10
times.
NOTE
•The liftgate does not open while the
theft-deterrent system is operating.
•For vehicles equipped with the power
liftgate, the liftgate can be opened even
while the theft-deterrent system is
operating by pressing the power liftgate
button on the transmitter or the electric
liftgate opener switc h while carrying the
key.
•If the battery goes dead while the
theft-deterrent system is armed, the
siren/horn will activate and the hazard
warning lights will flash when the
battery is charged or replaced.
▼ How to Arm the System
1. Close the windows and the sunroof*
securely.
NOTE
(With the intrusion sensor)
Even with a window or the sunroof
*
open, the system can be armed,
however, leaving the windows and the
sunroof
* even partially open can invite
theft, and wind blowing into the
vehicle could trigger the alarm.
The intrusion sensor function can also
be cancelled.
Refer to Cancelling the Intrusion
Sensor (With Intrusion Sensor) on
page 3-51.
2. Switch the ignition OFF.
3. Make sure the bonnet, the doors, and the liftgate are closed.
4. Press the lock butto n on the transmitter
or lock the driver's door from the
outside with the auxiliary key.
The hazard warning lights will flash
once.
(With the advanced keyless function)
Press a request switch.

The security indicator light in the
instrument cluster flashes twice per
second for 20 seconds.

5. After 20 seconds, the system is fully armed.
NOTE
•The theft-deterrent system can also
be armed by activating the auto
relock function with all the doors,
the liftgate and the bonnet closed.
Refer to Transmitter on page 3-4.
•The system will disarm if one of the
following operations takes place
within 20 seconds after pressing the
lock button:
•Unlocking any door.
•Opening any door.
•Opening the bonnet.
•Switching the ignition ON.
To rearm the system, do the arming
procedure again.
Before Driving
Security System
3-50*Some models.
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

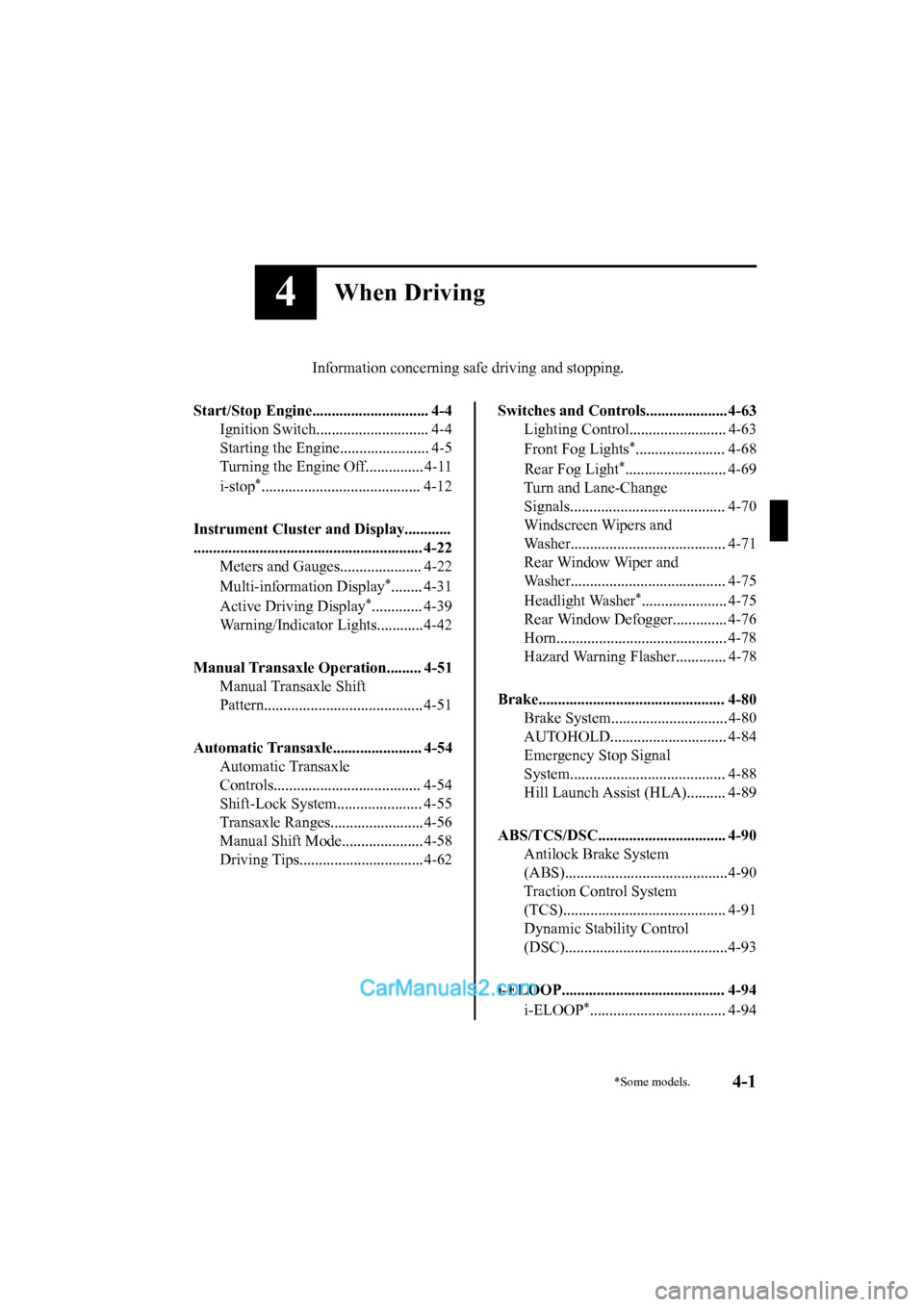

4When Driving
Information concerning safe driving and stopping.
Start/Stop Engine.............................. 4-4 Ignition Switch........ ..................... 4-4
Starting the Engine....................... 4-5
Turning the Engine Off............... 4-11
i-stop
*......................................... 4-12
Instrument Cluster and Display............
........................................................... 4-22 Meters and Gauges..................... 4-22
Multi-information Display
*........ 4-31
Active Driving Display
*............. 4-39
Warning/Indicator Lights............4-42
Manual Transaxle Operation......... 4-51 Manual Transaxle Shift
Pattern......................................... 4-51
Automatic Transaxle....................... 4-54 Automatic Transaxle
Controls...................................... 4-54
Shift-Lock System...................... 4-55
Transaxle Ranges........................4-56
Manual Shift Mode..................... 4-58
Driving Tips................................4-62
Switches and Controls..................... 4-63
Lighting Control......................... 4-63
Front Fog Lights
*....................... 4-68
Rear Fog Light
*.......................... 4-69
Turn and Lane-Change
Signals........................................ 4-70
Windscreen Wipers and
Washer........................................ 4-71
Rear Window Wiper and
Washer........................................ 4-75
Headlight Washer
*...................... 4-75
Rear Window Defogg er.............. 4-76
Horn............................................ 4-78
Hazard Warning Flasher............. 4-78
Brake................................................ 4-80 Brake System.............................. 4-80
AUTOHOLD.............................. 4-84
Emergency Stop Signal
System........................................ 4-88
Hill Launch Assist (HLA).......... 4-89
ABS/TCS/DSC................................. 4-90 Antilock Brake System
(ABS)..........................................4-90
Traction Control System
(TCS).......................................... 4-91
Dynamic Stability Control
(DSC)..........................................4-93
i-ELOOP.......................................... 4-94 i-ELOOP
*................................... 4-94
*Some models.4-1
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

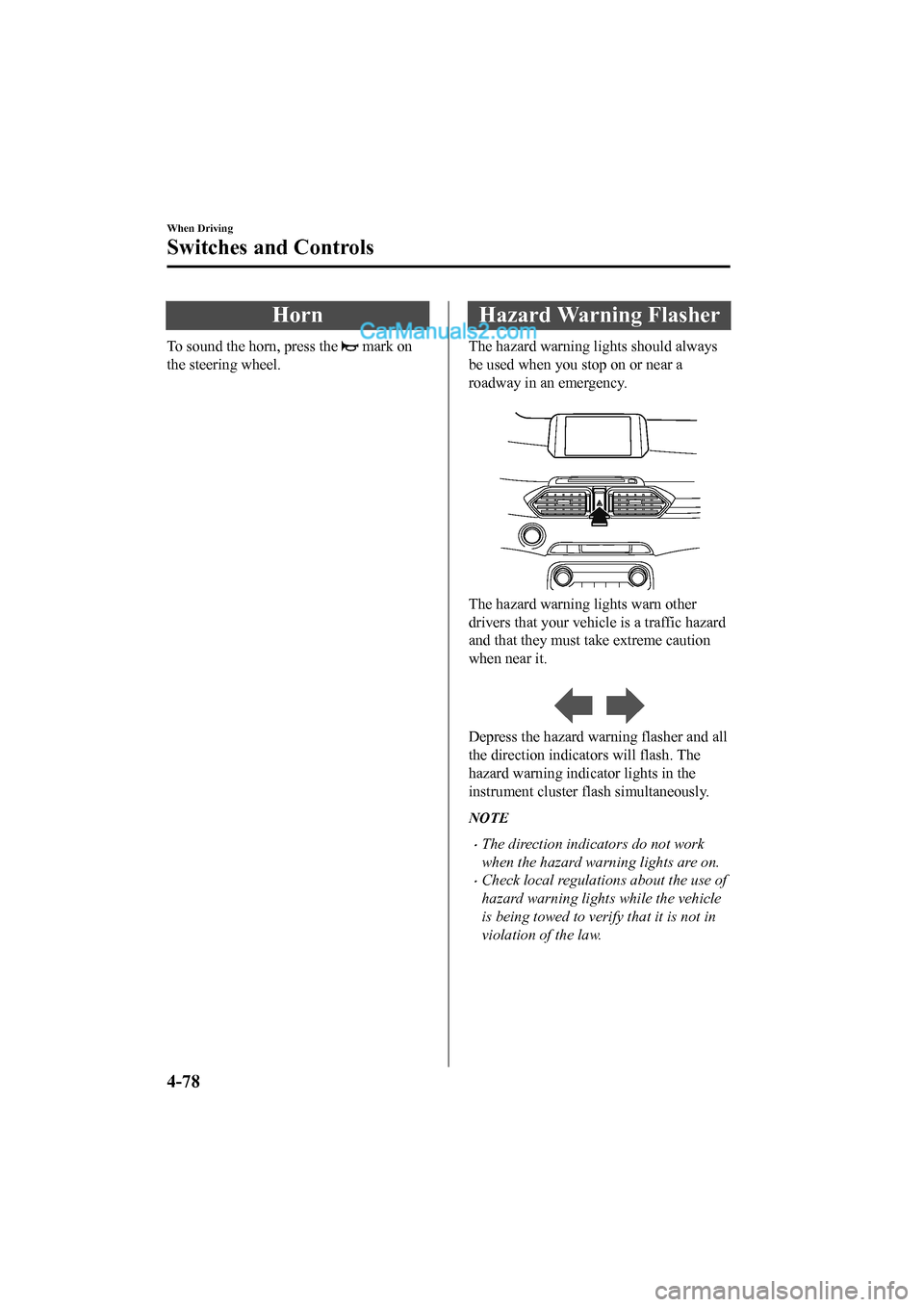

Horn
To sound the horn, press the mark on
the steering wheel.
Hazard Warning Flasher
The hazard warning lights should always
be used when you stop on or near a
roadway in an emergency.

The hazard warning lights warn other
drivers that you r vehicle is a traffic hazard
and that they must take extreme caution
when near it.

Depress the hazard warning flasher and all
the direction indicators will flash. The
hazard warning indicator lights in the
instrument cluster flash simultaneously.
NOTE
•The direction indi cators do not work
when the hazard warning lights are on.
•Check local regulations about the use of
hazard warning lights while the vehicle
is being towed to verify that it is not in
violation of the law.
When Driving
Switches and Controls
4-78
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

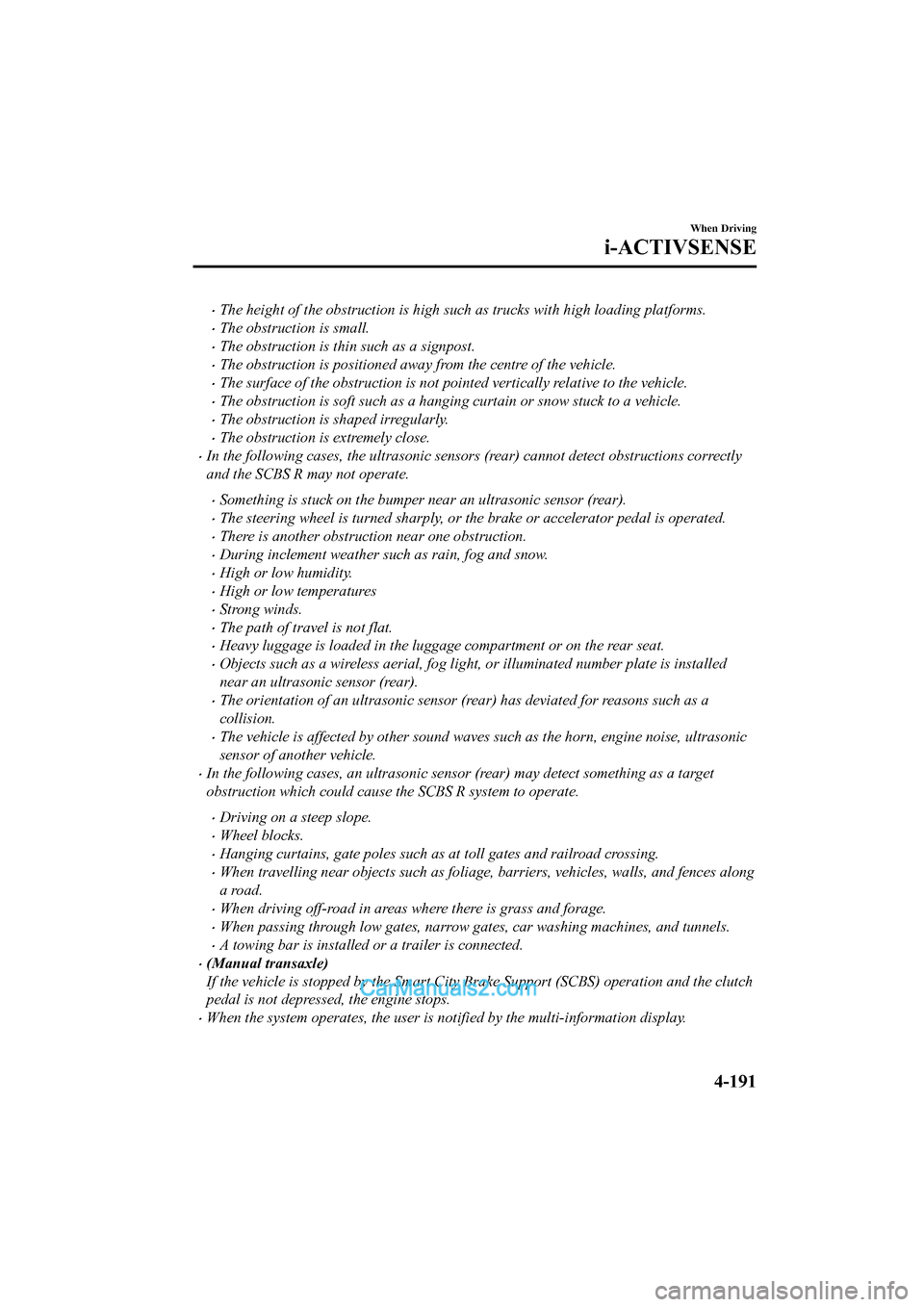

•The height of the obstruction is high such as trucks with high loading platforms.
•The obstruction is small.
•The obstruction is thin such as a signpost.
•The obstruction is positioned away from the centre of the vehicle.
•The surface of the obstruction is not pointed vertically relative to the vehicle.
•The obstruction is soft such as a hanging curtain or snow stuck to a vehicle.
•The obstruction is shaped irregularly.
•The obstruction is extremely close.
•In the following cases, the ultrasonic sensors (rear) cannot detect obstructions correctly
and the SCBS R may not operate.
•Something is stuck on the bumper near an ultrasonic sensor (rear).
•The steering wheel is turned sharply, or the brake or accelerator pedal is operated.
•There is another obstruction near one obstruction.
•During inclement weather such as rain, fog and snow.
•High or low humidity.
•High or low temperatures
•Strong winds.
•The path of travel is not flat.
•Heavy luggage is loaded in the luggage compartment or on the rear seat.
•Objects such as a wireless aerial, fog light , or illuminated number plate is installed
near an ultrasonic sensor (rear).
•The orientation of an ultrasonic sensor (rear) has deviated for reasons such as a
collision.
•The vehicle is affected by other sound waves such as the horn, engine noise, ultrasonic
sensor of another vehicle.
•In the following cases, an ultrasonic sensor (rear) may detect something as a target
obstruction which could cause the SCBS R system to operate.
•Driving on a steep slope.
•Wheel blocks.
•Hanging curtains, gate poles such as at toll gates and railroad crossing.
•When travelling near objects such as foliage, barriers, vehicles, walls, and fences along
a road.
•When driving off-road in areas where there is grass and forage.
•When passing through low gates, narrow gates, car washing machines, and tunnels.
•A towing bar is installed or a trailer is connected.
•(Manual transaxle)
If the vehicle is stopped by the Smart City Brake Support (SCBS) operation and the clutch
pedal is not depressed, the engine stops.
•When the system operates, the user is no tified by the multi-information display.
When Driving
i-ACTIVSENSE
4-191
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

•The vehicle is driven on bumps, inclines, gravel, or grass covered roads.
•Anything which generates ultrasound is near the vehicle, such as another vehicle's
horn, the engine sound of a motorcycle, the air brake sound of a large-sized vehicle, or
another vehicle's sensors.
•The vehicle is driven in heavy rain or in road conditions causing water-splash.
•A commercially-available wing pole or an aerial for a radio transmitter is installed to
the vehicle.
•The vehicle is moving towards a tall or square curbstone.
•An obstruction is too close to the sensor.
•Obstructions under the bumper may not be detected. Obstructions that are lower than the
bumper or thin which may have been initially detected but are no longer detected as the
vehicle approaches more closely.
•The following types of obstructions may not be detected:
•Thin objects such as wire or rope
•Things which absorb sonic waves easily such as cotton or snow
•Angular shaped objects
•Very tall objects, and those which are wide at the top
•Small, short objects
•Always have the system inspected at an expert repairer, we recommend an Authorised
Mazda Repairer if any shock is applied to the bumpers, even in a minor accident. If the
sensors are deviated, they cannot detect obstructions.
•The system may have a malfunction if the b eep does not operate or the indicator light
does not illuminate when the park assist sensors switch is turned on. Consult an expert
repairer, we recommend an Authorised Mazda Repairer.
•The system may have a malfunction if the beep sound which indicates a system
malfunction is heard and the indicator light flashes. Consult an expert repairer, we
recommend an Authorised Mazda Repairer.
•The beeper which indicates a system malfunction may not be heard if the ambient
temperature is extremely cold, or mud, ice, or snow adheres to the sensor area. Remove
any foreign material from the sensor area.
•When installing a trailer hitch, consult an expert repairer, we recommend an Authorised
Mazda Repairer.
When Driving
Parking Sensor System
4-230
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

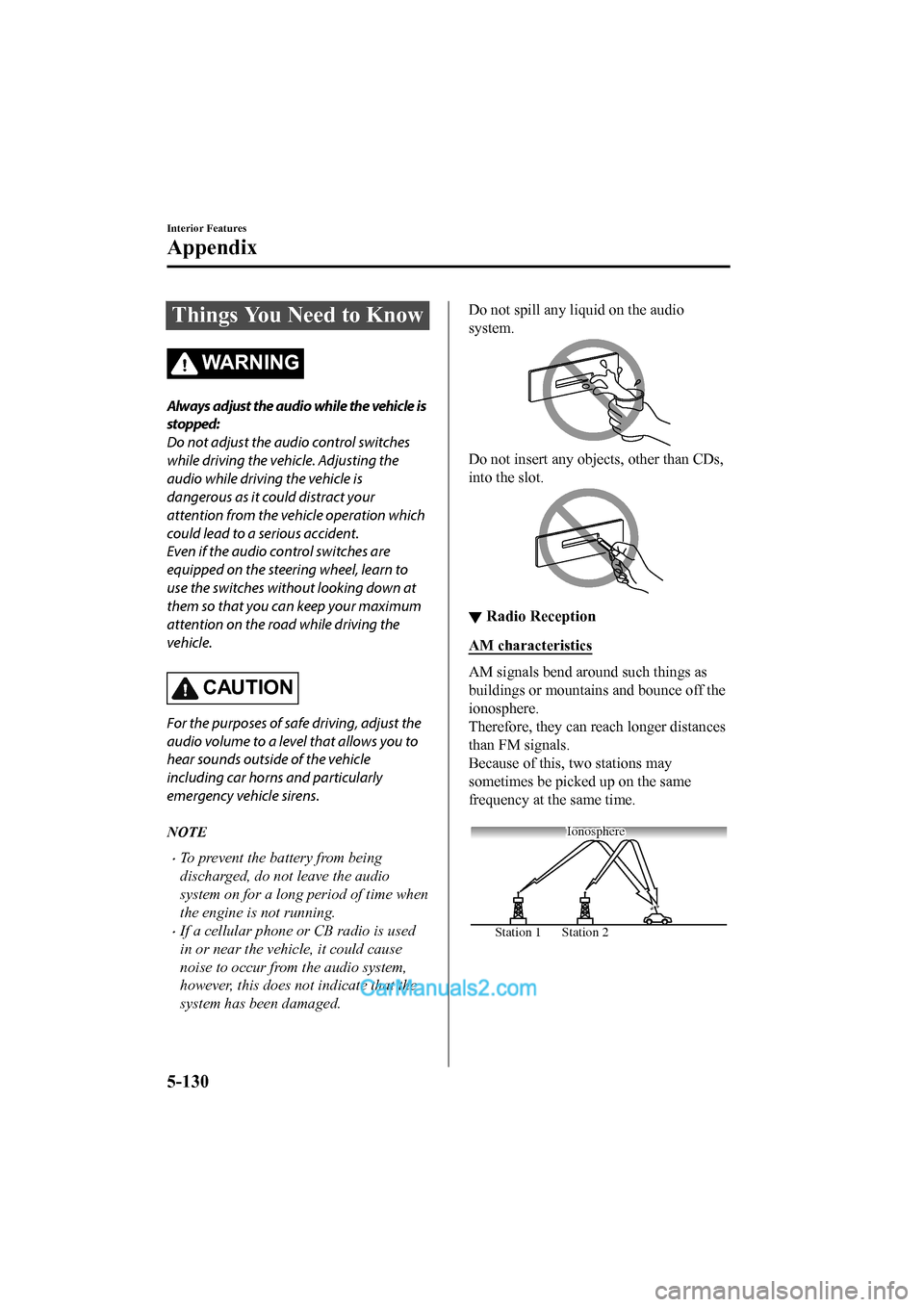

Things You Need to Know
WA R N I N G
Always adjust the audio while the vehicle is
stopped:
Do not adjust the audio control switches
while driving the vehicle. Adjusting the
audio while driving the vehicle is
dangerous as it could distract your
attention from the vehicle operation which
could lead to a serious accident.
Even if the audio control switches are
equipped on the steering wheel, learn to
use the switches without looking down at
them so that you can keep your maximum
attention on the road while driving the
vehicle.
CAUTION
For the purposes of safe driving, adjust the
audio volume to a level that allows you to
hear sounds outside of the vehicle
including car horns and particularly
emergency vehicle sirens.
NOTE
•To prevent the battery from being
discharged, do not leave the audio
system on for a long period of time when
the engine is not running.
•If a cellular phone or CB radio is used
in or near the vehicle, it could cause
noise to occur from the audio system,
however, this does not indicate that the
system has been damaged.
Do not spill any liquid on the audio
system.
Do not insert any objects, other than CDs,
into the slot.
▼ Radio Reception
AM characteristics
AM signals bend around such things as
buildings or mountains and bounce off the
ionosphere.
Therefore, they can reach longer distances
than FM signals.
Because of this,
two stations may
sometimes be picked up on the same
frequency at the same time.
Station 2
Station 1 Ionosphere
Interior Features
Appendix
5-130
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

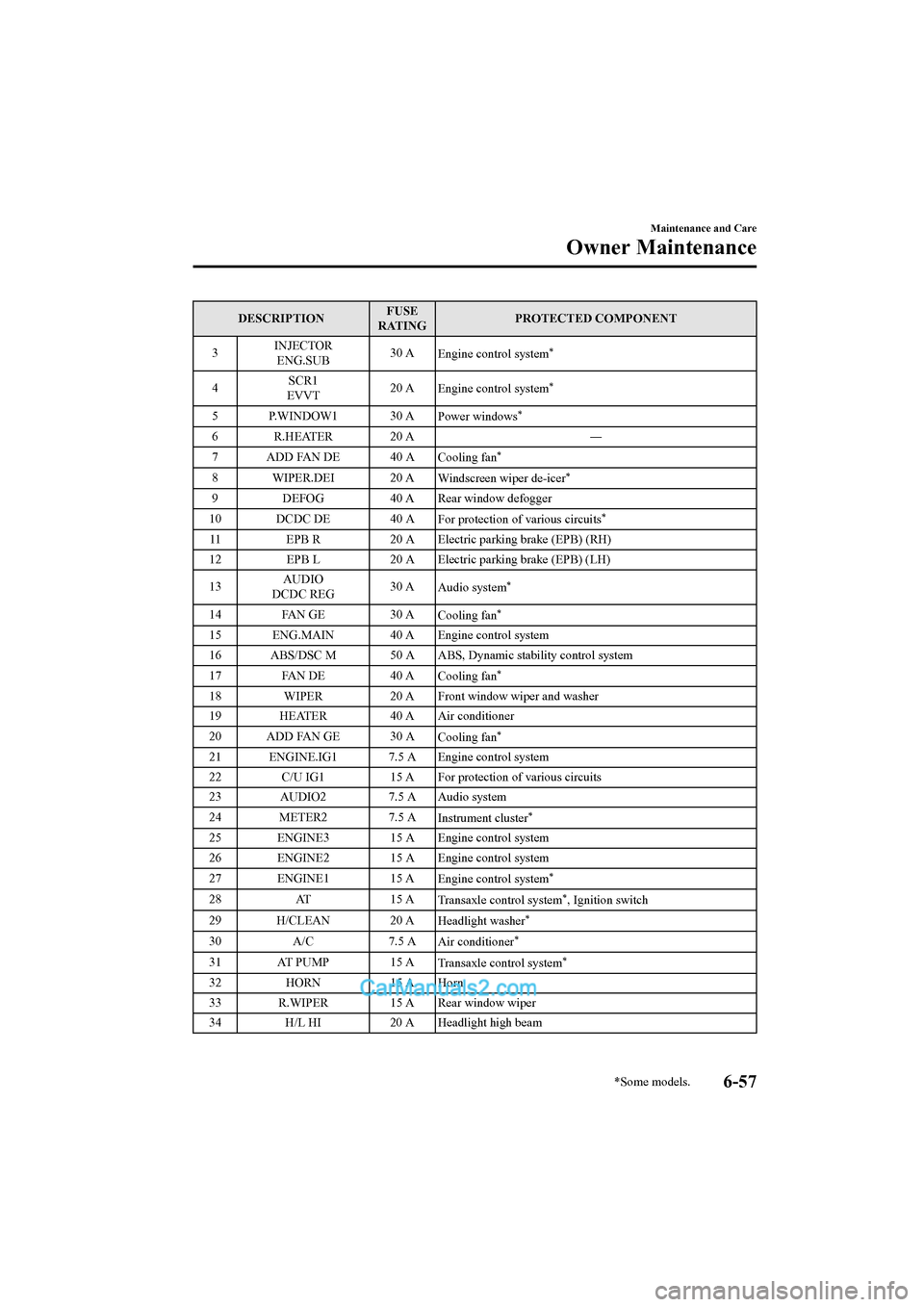

DESCRIPTIONFUSE
RATING PROTECTED COMPONENT
3 INJECTOR
ENG.SUB 30 A
Engine control system
*
4 SCR1
EVVT 20 A
Engine control system*
5 P.WINDOW1 30 A Power windows*
6 R.HEATER 20 A ―
7 ADD FAN DE 40 A Cooling fan
*
8 WIPER.DEI 20 AWindscreen wiper de-icer*
9DEFOG 40 A Rear window defogger
10 DCDC DE 40 A For protection of various circuits
*
11EPB R 20 A Electric parking brake (EPB) (RH)
12 EPB L 20 A Electric parking brake (EPB) (LH)
13 AUDIO
DCDC REG 30 A
Audio system
*
14 FAN GE 30 A
Cooling fan*
15 ENG.MAIN 40 A Engine control system
16 ABS/DSC M 50 A ABS, Dynamic stability control system
17 FAN DE 40 A
Cooling fan
*
18 WIPER 20 A Front window wiper and washer
19 HEATER 40 A Air conditioner
20 ADD FAN GE 30 A Cooling fan
*
21 ENGINE.IG1 7.5 A Engine control system
22 C/U IG115 A For protection of various circuits
23 AUDIO2 7.5 A Audio system
24 METER2 7.5 A Instrument cluster
*
25 ENGINE3 15 A Engine control system
26 ENGINE2 15 A Engine control system
27 ENGINE1 15 AEngine control system
*
28AT 15 A
Transaxle control system*, Ignition switch
29 H/CLEAN 20 A Headlight washer
*
30A/C 7.5 A
Air conditioner*
31 AT PUMP 15 A Transaxle control system*
32HORN 15 A Horn
33 R.WIPER 15 A Rear window wiper
34 H/L HI 20 A Headlight high beam
Maintenance and Care
Owner Maintenance
*Some models.6-57
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2
