low beam MAZDA MODEL CX-5 2017 Owner's Manual - RHD (UK, Australia) (in English)

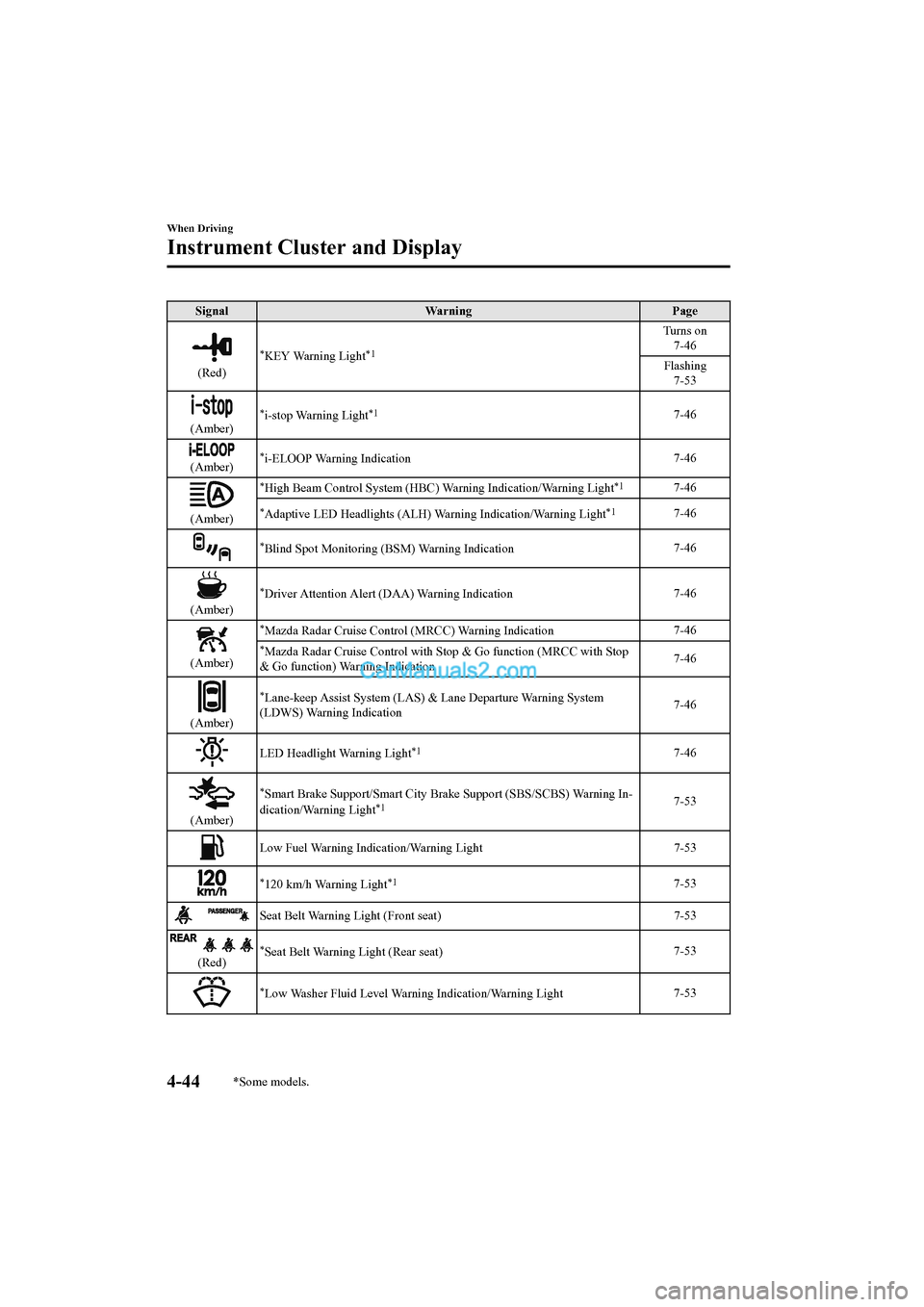

SignalWarning Page
(Red)
*KEY Warning Light*1
Turns on
7-46
Flashing 7-53
(Amber)
*i-stop Warning Light*17-46
(Amber)*i-ELOOP Warning Indication 7-46
(Amber)
*High Beam Control System (HBC) W
arning Indication/Warning Light*17-46
*Adaptive LED Headlights (ALH) Warning Indication/Warning Light*17-46
*Blind Spot Monitoring (BSM) Warning Indication 7-46
(Amber)
*Driver Attention Alert (D
AA) Warning Indication 7-46
(Amber)
*Mazda Radar Cruise Control (MRCC) Warning
Indication7-46
*Mazda Radar Cruise Control with Stop & Go func
tion (MRCC with Stop
& Go function) Warning Indication 7-46
(Amber)
*Lane-keep Assist System (LAS) &
Lane Departure Warning System
(LDWS) Warning Indication 7-46
LED Headlight Warning Light*17-46
(Amber)
*Smart Brake Support/Sma
rt City Brake Support (SBS/SCBS) Warning In-
dication/Warning Light*17-53
Low Fuel Warning Indication/Warning Light 7-53
*120 km/h Warning Light*17-53
Seat Belt Warning Light (Front seat) 7-53
(Red)*Seat Belt Warning Light (Rear seat)7-53
*Low Washer Fluid Level Warning Indication/Warning Light
7-53
When Driving
Instrument Cluster and Display
4-44*Some models.
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

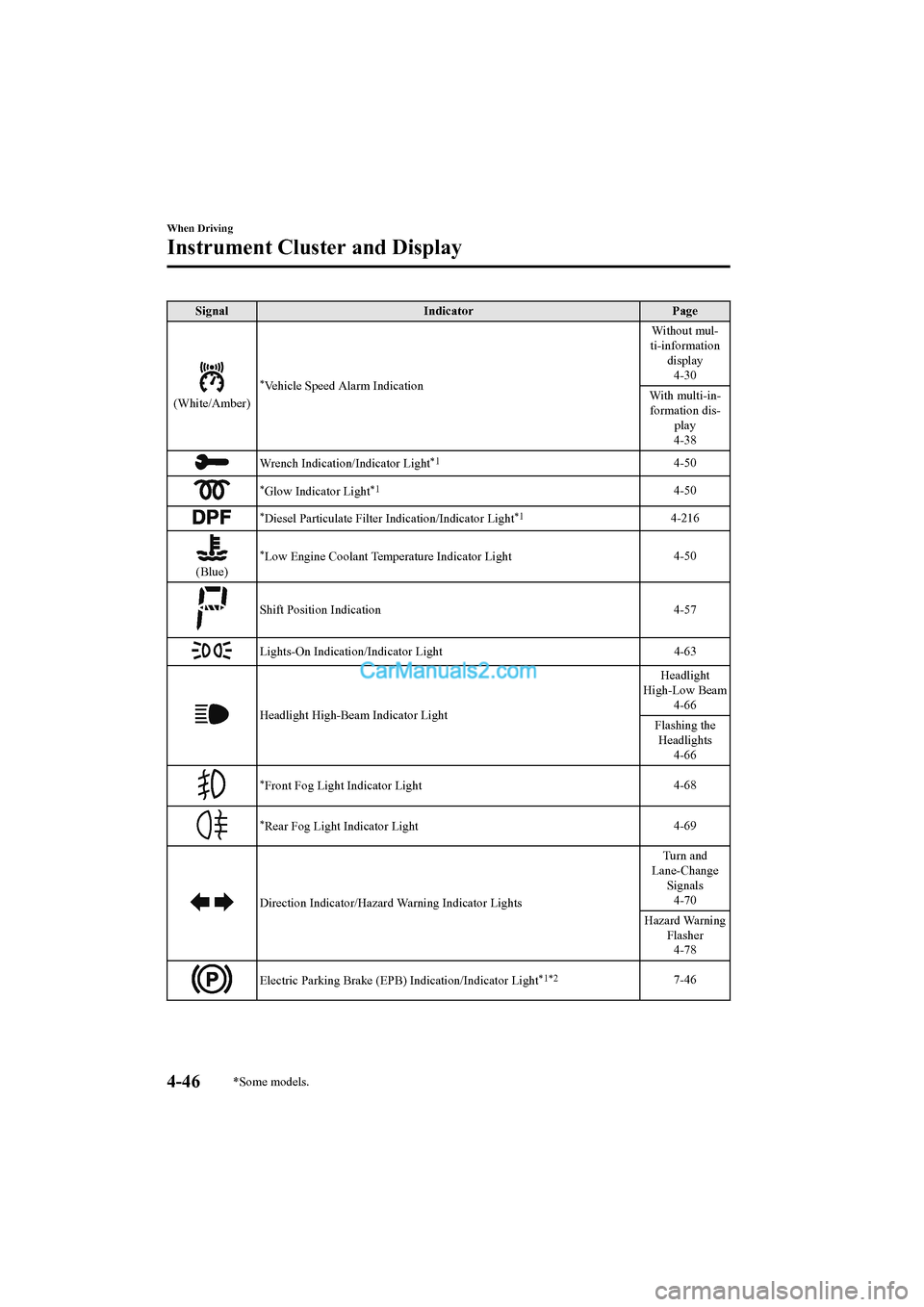

SignalIndicator Page
(White/Amber)
*Vehicle Speed Alarm Indication Without mul-
ti-information display
4-30
With multi-in- formation dis- play
4-38
Wrench Indication/Indicator Light*14-50
*Glow Indicator Light*14-50
*Diesel Particulate Filter Indication/Indicator Light*14-216
(Blue)
*Low Engine Coolant Temperature Indicator Light 4-50
Shift Position Indication
4-57
Lights-On Indication/Indicator Light 4-63
Headlight High-Beam Indicator LightHeadlight
High-Low Beam 4-66
Flashing the Headlights 4-66
*Front Fog Light Indicator Light 4-68
*Rear Fog Light Indicator Light4-69
Direction Indicator/Hazard Warning Indicator LightsTurn and
Lane-Change Signals4-70
Hazard Warning Flasher4-78
Electric Parking Brake (EPB ) Indication/Indicator Light*1*27-46
When Driving
Instrument Cluster and Display
4-46*Some models.
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

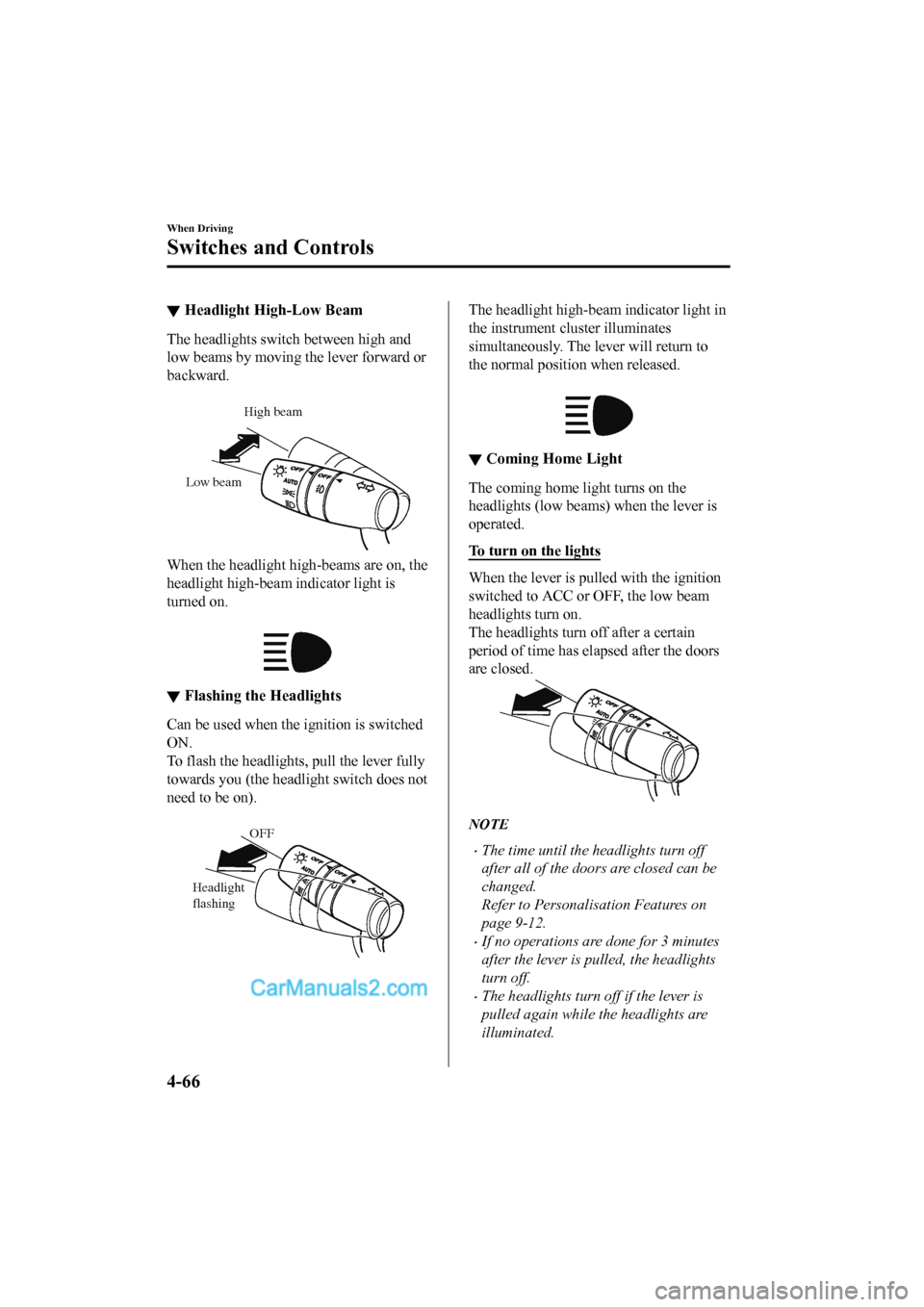

▼Headlight High-Low Beam
The headlights switch between high and
low beams by moving the lever forward or
backward.

High beam
Low beam
When the headlight high-beams are on, the
headlight high-beam indicator light is
turned on.

▼ Flashing the Headlights
Can be used when the ignition is switched
ON.
To flash the headlights
, pull the lever fully
towards you (the headlight switch does not
need to be on).

OFF
Headlight
flashing
The headlight high-b eam indicator light in
the instrument cluster illuminates
simultaneously. The lever will return to
the normal position when released.

▼ Coming Home Light
The coming home light turns on the
headlights (low beam
s) when the lever is
operated.
To turn on the lights
When the lever is pulled with the ignition
switched to ACC or OFF, the low beam
headlights turn on.
The headlights turn o ff after a certain
period of time has elapsed after the doors
are closed.
NOTE
•The time until the headlights turn off
after all of the doors are closed can be
changed.
Refer to Personalisation Features on
page 9-12.
•If no operations are done for 3 minutes
after the lever is pu lled, the headlights
turn off.
•The headlights turn off if the lever is
pulled again while the headlights are
illuminated.
When Driving
Switches and Controls
4-66
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

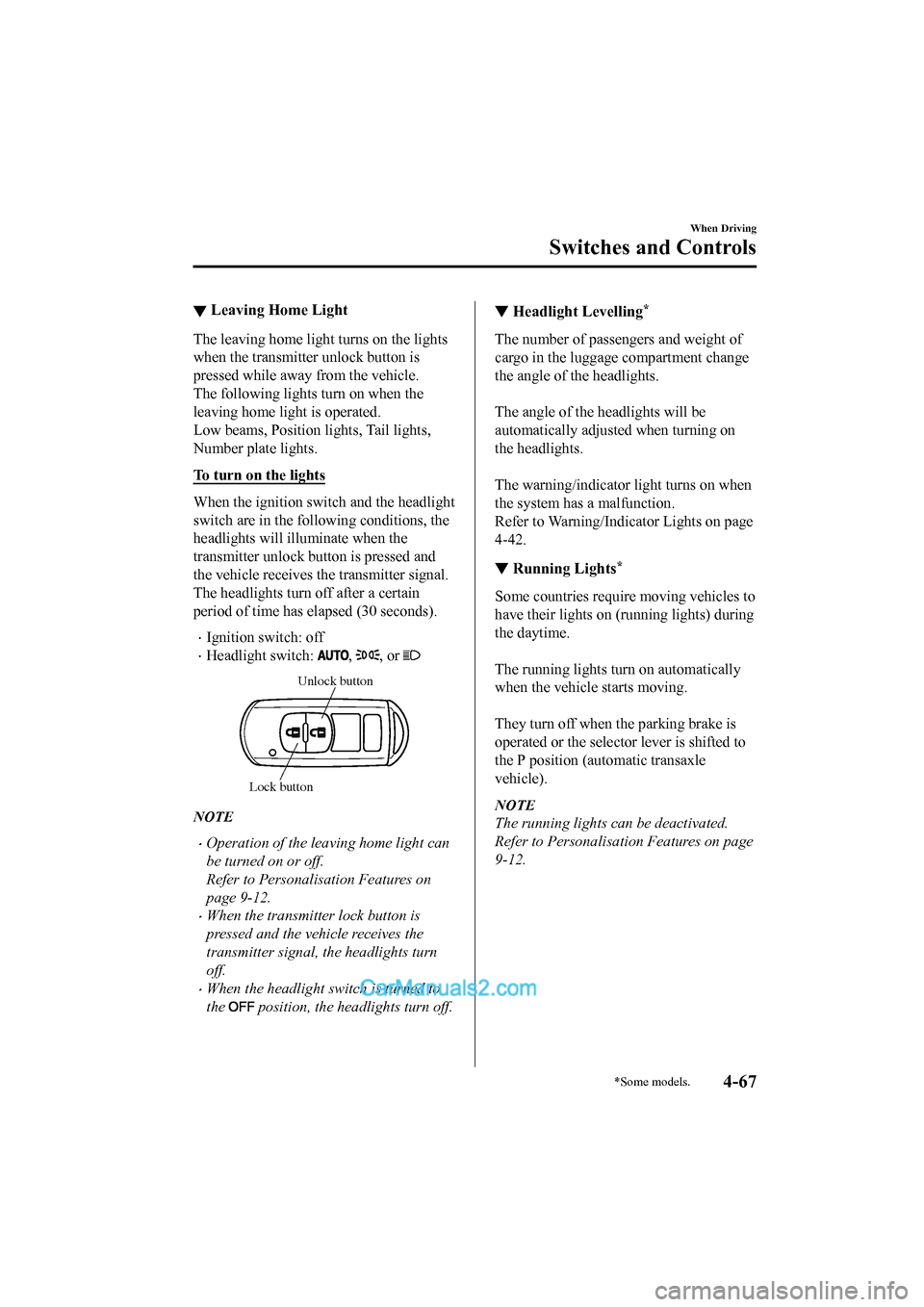

▼Leaving Home Light
The leaving home light turns on the lights
when the transmitter unlock button is
pressed while away from the vehicle.
The following lights turn on when the
leaving home light is operated.
Low beams, Position l
ights, Tail lights,
Number plate lights.
To turn on the lights
When the ignition swi tch and the headlight
switch are in the following conditions, the
headlights will illuminate when the
transmitter unlock button is pressed and
the vehicle receives the transmitter signal.
The headlights turn off after a certain
period of time has elapsed (30 seconds).
•Ignition switch: off
•Headlight switch: , , or
Unlock button
Lock button
NOTE
•Operation of the leaving home light can
be turned on or off.
Refer to Personalisation Features on
page 9-12.
•When the transmitter lock button is
pressed and the vehicle receives the
transmitter signal, the headlights turn
off.
•When the headlight switch is turned to
the
position, the headlights turn off.
▼ Headlight Levelling*
The number of passengers and weight of
cargo in the luggage compartment change
the angle of the headlights.

The angle of the headlights will be
automatically adjusted when turning on
the headlights.

The warning/indicato
r light turns on when
the system has a malfunction.
Refer to Warning/Indicator Lights on page
4-42.
▼ Running Lights*
Some countries require moving vehicles to
have their lights on (running lights) during
the daytime.

The running lights turn on automatically
when the vehicle starts moving.

They turn off when the parking brake is
operated or the selector lever is shifted to
the P position (automatic transaxle
vehicle).
NOTE
The running lights can be deactivated.
Refer to Personalisation Features on page
9-12.
When Driving
Switches and Controls
*Some models.4-67
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

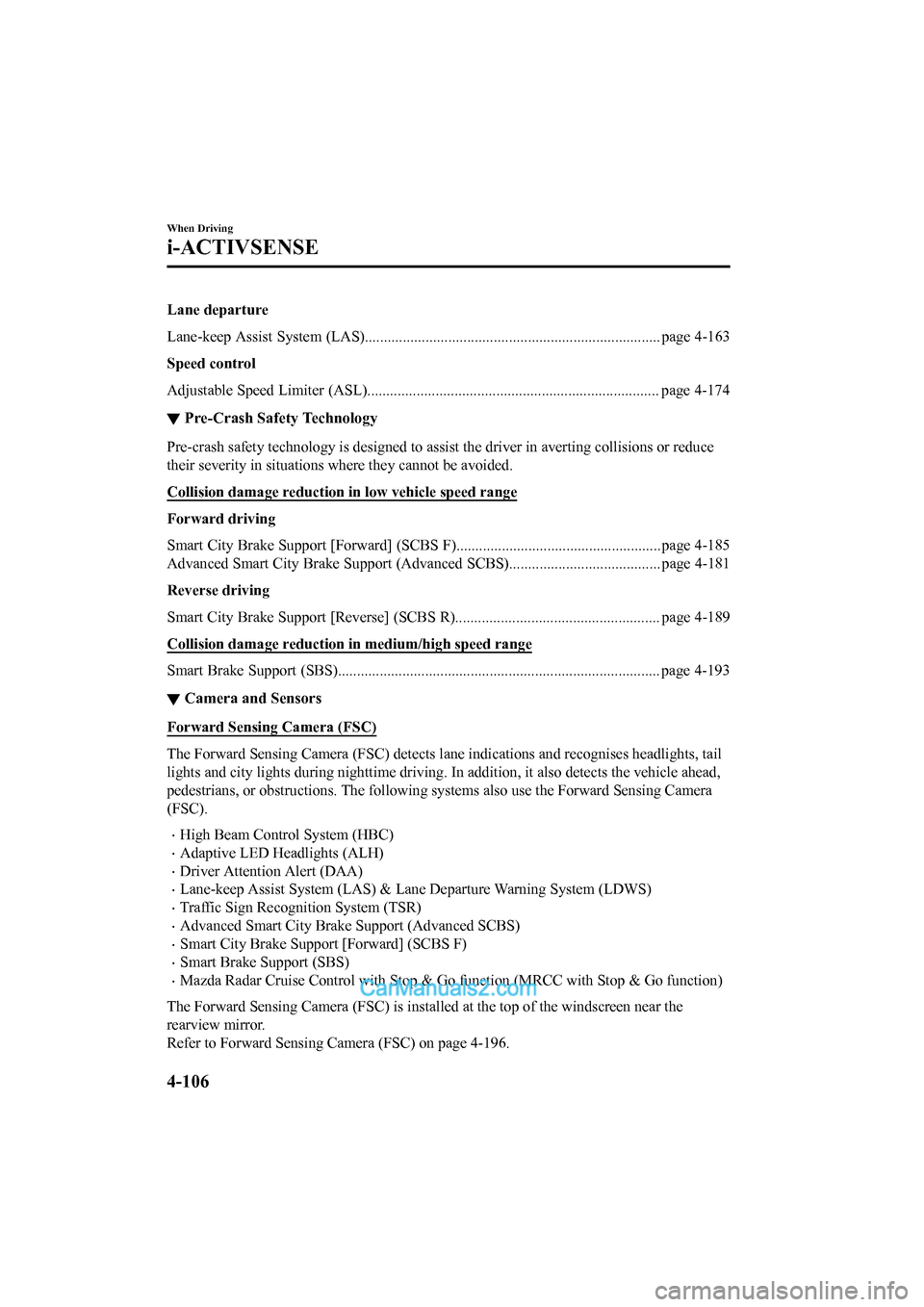

Lane departure
Lane-keep Assist System (LAS).............................................................................. page 4-163
Speed control
Adjustable Speed Limiter (ASL)............................................................................. page 4-174
▼Pre-Crash Safety Technology
Pre-crash safety technology is designed to assist the driver in
averting collisions or reduce
their severity in situations where they cannot be avoided.
Collision damage reduction in low vehicle speed range
Forward driving
Smart City Brake Support [Forward] (SCBS F).................... ..................................page 4-185
Advanced Smart City Brake S upport (Advanced SCBS).............. .......................... page 4-181
Reverse driving
Smart City Brake Support [Reverse] (SCBS R).................... .................................. page 4-189
Collision damage reduction in medium/high speed range
Smart Brake Support (SBS)..................................................................................... page 4-193
▼Camera and Sensors
Forward Sensing Camera (FSC)
The Forward Sensing Camera (FSC) detects lane indications and r
ecognises headlights, tail
lights and city lights during nighttime driving. In addition, i t also detects the vehicle ahead,
pedestrians, or obstructions. The following systems also use th e Forward Sensing Camera
(FSC).
•High Beam Control System (HBC)
•Adaptive LED Headlights (ALH)
•Driver Attention Alert (DAA)
•Lane-keep Assist System (LAS) & Lane Departure Warning System ( LDWS)
•Traffic Sign Recognition System (TSR)
•Advanced Smart City Brake Support (Advanced SCBS)
•Smart City Brake Support [Forward] (SCBS F)
•Smart Brake Support (SBS)
•Mazda Radar Cruise Control with S top & Go function (MRCC with Stop & Go function)
The Forward Sensing Camera (FSC) is installed at the top of the windscreen near the
rearview mirror.
Refer to Forward Sensing Camera (FSC) on page 4-196.
When Driving
i-ACTIVSENSE
4-106
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

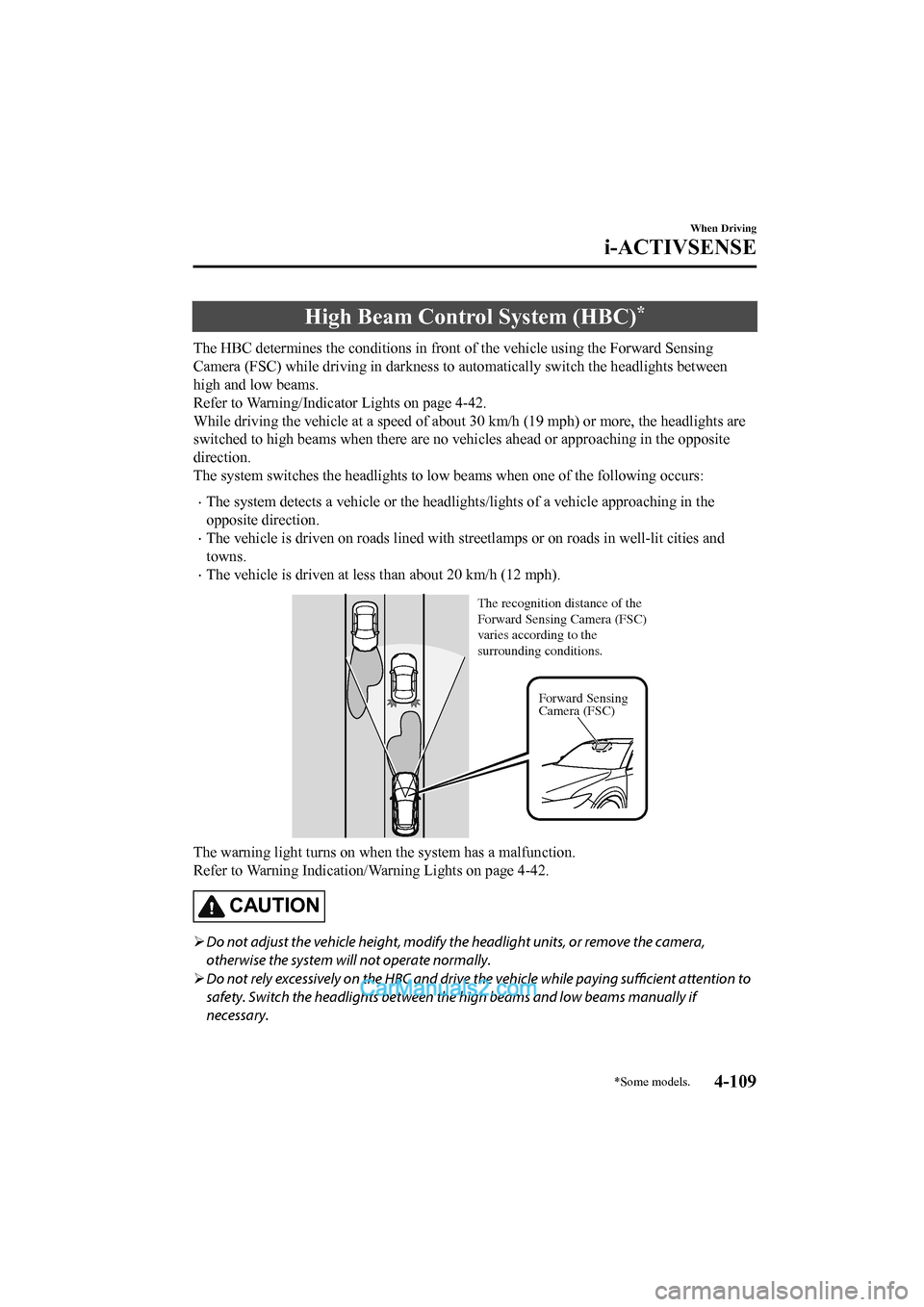

High Beam Control System (HBC)*
The HBC determines the conditions in front of the vehicle using the Forward Sensing
Camera (FSC) while driving in darkness to automatically switch the headlights between
high and low beams.
Refer to Warning/Indicator Lights on page 4-42.
While driving the vehicle at a speed of about 30 km/h (19 mph) or more, the headlights are
switched to high beams when there are no vehicles ahead or appr oaching in the opposite
direction.
The system switches the headlights to low beams when one of the following occurs:
•The system detects a vehicle or the headlights/lights of a vehicle approaching in the
opposite direction.
•The vehicle is driven on roads lin ed with streetlamps or on roads in well-lit cities and
towns.
•The vehicle is driven at less than about 20 km/h (12 mph).
Forward Sensing
Camera (FSC)
The recognition distance of the
Forward Sensing Camera (FSC)
varies according to the
surrounding conditions.
The warning light turns on when the system has a malfunction.
Refer to Warning Indication/Warning Lights on page 4-42.
CAUTION

Do not adjust the vehicle he ight, modify the headlight units, or remove the camera,
otherwise the system will not operate normally.
 Do not rely excessively on the HBC and drive the vehicle while paying
sufficient attention to
safety. Switch the headlights between th e high beams and low beams manually if
necessary.
When Driving
i-ACTIVSENSE
*Some models.4-109
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

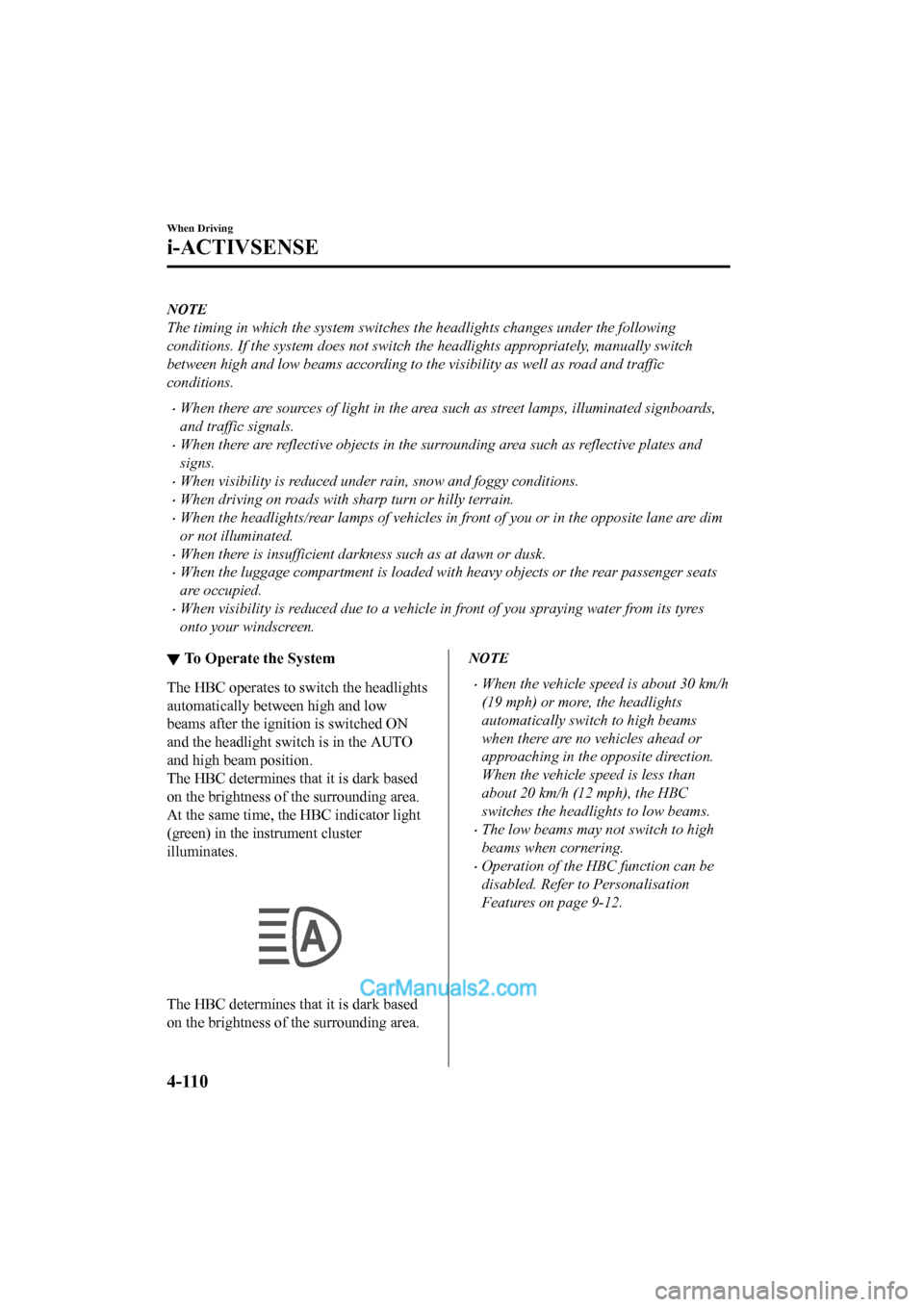

NOTE
The timing in which the system switches the headlights changes under the following
conditions. If the system does not switch the headlights appropriately, manually switch
between high and low beams according to the visibility as well as road and traffic
conditions.
•When there are sources of light in the area such as street lamps, illuminated signboards,
and traffic signals.
•When there are reflective objects in the surrounding area such as reflective plates and
signs.
•When visibility is reduced under rain, snow and foggy conditions.
•When driving on roads with sharp turn or hilly terrain.
•When the headlights/rear lamps of vehicles in front of you or in the opposite lane are dim
or not illuminated.
•When there is insufficient darkness such as at dawn or dusk.
•When the luggage compartment is loaded with heavy objects or the rear passenger seats
are occupied.
•When visibility is reduced due to a vehicle in front of you spraying water from its tyres
onto your windscreen.
▼ To Operate the System
The HBC operates to sw
itch the headlights
automatically between high and low
beams after the ignition is switched ON
and the headlight switch is in the AUTO
and high beam position.
The HBC determines t hat it is dark based
on the brightness of the surrounding area.
At the same time, th e HBC indicator light
(green) in the instrument cluster
illuminates.

The HBC determines t hat it is dark based
on the brightness of the surrounding area.
NOTE
•When the vehicle speed is about 30 km/h
(19 mph) or more, the headlights
automatically switch to high beams
when there are no vehicles ahead or
approaching in the opposite direction.
When the vehicle speed is less than
about 20 km/h (12 mph), the HBC
switches the headlights to low beams.
•The low beams may not switch to high
beams when cornering.
•Operation of the HBC function can be
disabled. Refer to Personalisation
Features on page 9-12.
When Driving
i-ACTIVSENSE
4-110
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

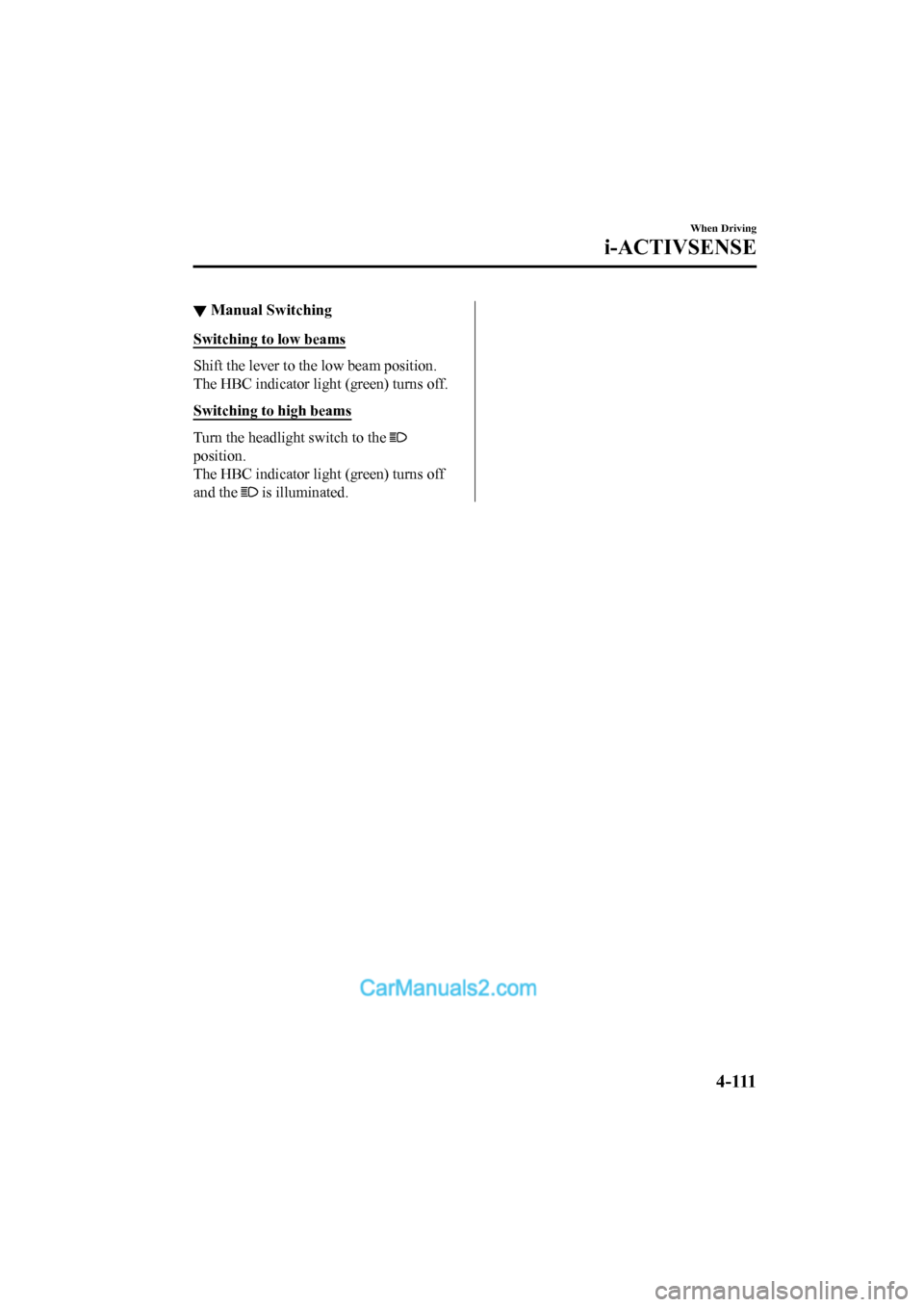

▼Manual Switching
Switching to
low beams
Shift the lever to the low beam position.
The HBC indicator light (green) turns off.
Switching to high beams
Turn the headlight switch to the
position.
The HBC indicator light (green) turns off
and the
is illuminated.
When Driving
i-ACTIVSENSE
4 - 111
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

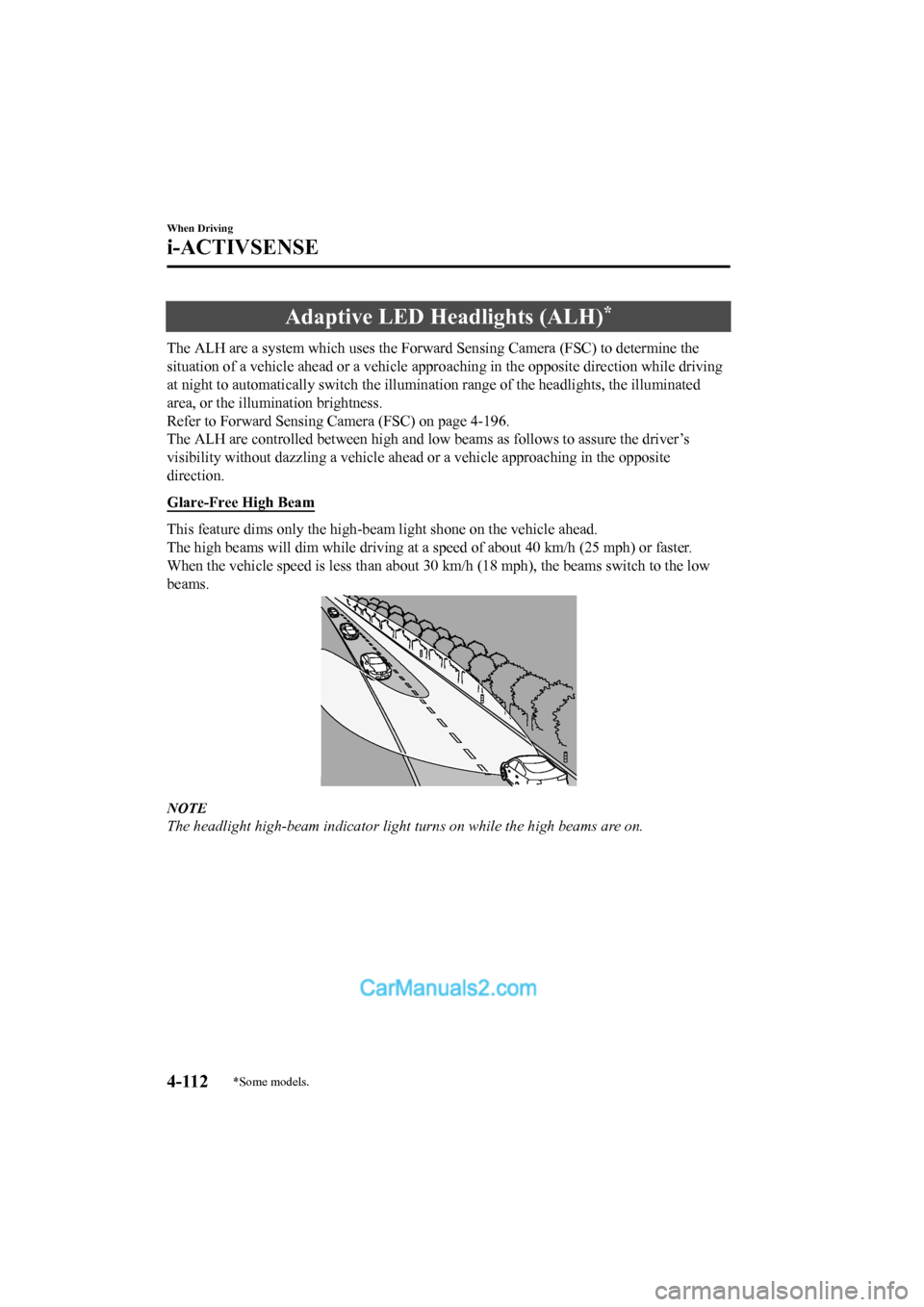

Adaptive LED Headlights (ALH)*
The ALH are a system which uses the Forward Sensing Camera (FSC) to determine the
situation of a vehicle ahead or a vehicle approaching in the op posite direction while driving
at night to automatically switc h the illumination range of the headlights, the illuminated
area, or the illumination brightness.
Refer to Forward Sensing Camera (FSC) on page 4-196.
The ALH are controlled between high and low beams as follows to assure the driver’s
visibility without dazzling a ve hicle ahead or a vehicle approaching in the opposite
direction.
Glare-Free High Beam
This feature dims only the high-beam light shone on the vehicle ahead.
The high beams will dim while driving at a speed of about 40 km /h (25 mph) or faster.
When the vehicle speed is less than about 30 km/h (18 mph), the beams switch to the low
beams.
NOTE
The headlight high-beam indicator light turns on while the high beams are on.
When Driving
i-ACTIVSENSE
4-112*Some models.
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

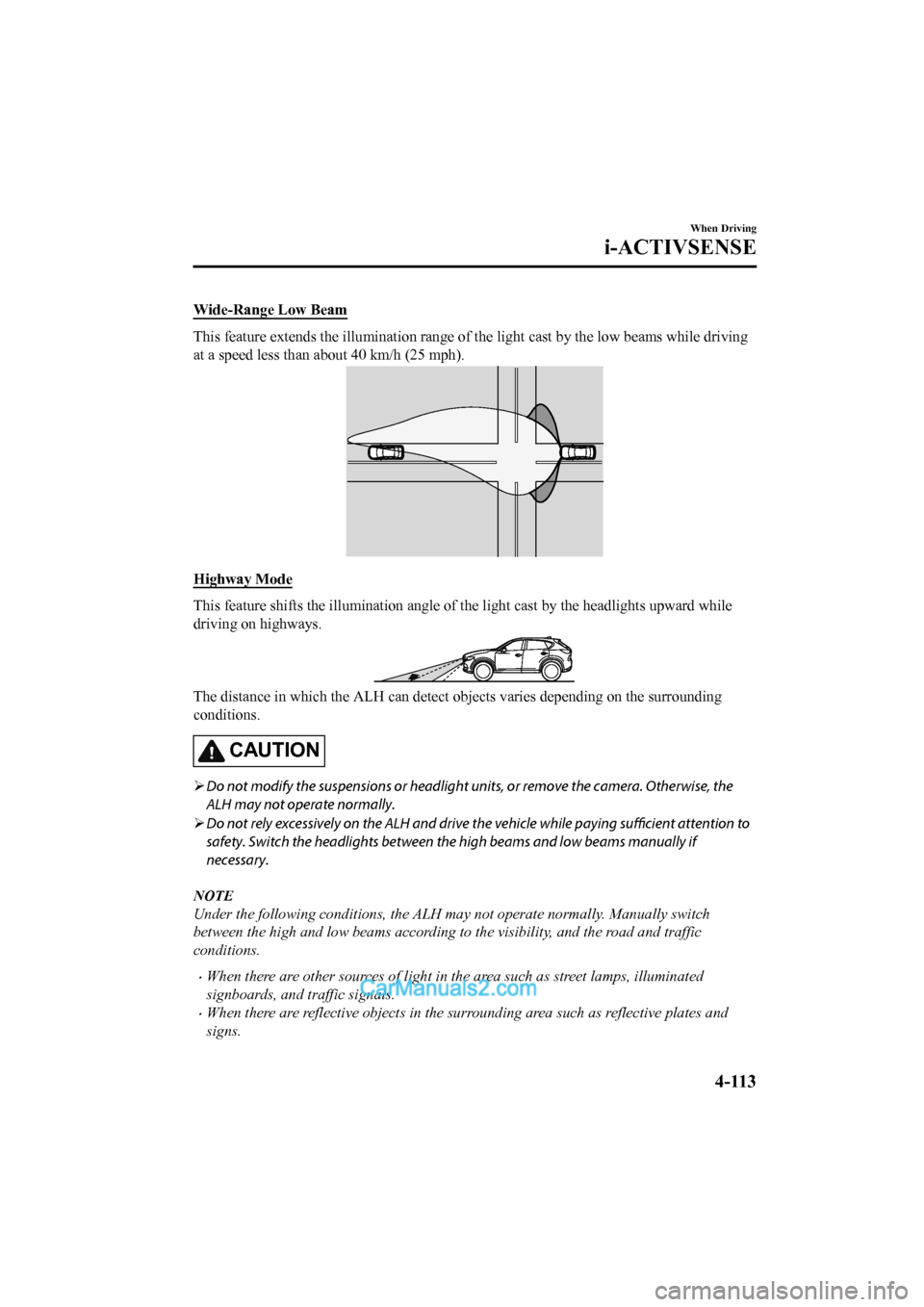

Wide-Range Low Beam
This feature extends the illumination range of the light cast by the low beams while driving
at a speed less than about 40 km/h (25 mph).
Highway Mode
This feature shifts the illumina tion angle of the light cast by the headlights upward while
driving on highways.
The distance in which the ALH can detect objects varies depending on the surrounding
conditions.
CAUTION
 Do not modify the suspensions or headlight units, or remove the camera. Otherwise, the
ALH may not operate normally.
 Do not rely excessively on the ALH and drive the vehicle while paying sufficient attention to
safety. Switch the headlights between th e high beams and low beams manually if
necessary.
NOTE
Under the following conditions, the ALH may not operate normally. Manually switch
between the high and low beams according to the visibility, and the road and traffic
conditions.
•When there are other sources of light in the area such as street lamps, illuminated
signboards, and traffic signals.
•When there are reflective objects in the surrounding area such as reflective plates and
signs.
When Driving
i-ACTIVSENSE
4-113
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2
