Rocking the Vehicle
WA R N I N G
Do not spin the wheels at high speed, and
do not allow anyone to stand behind a
wheel when pushing the vehicle:
When the vehicle is stuck, spinning the
wheels at high speed is dangerous. The
spinning tyre could overheat and explode.
This could cause serious injuries.
CAUTION
Too much rocking may cause engine
overheating, transaxle failure, and tyre
damage.
If you must rock the vehicle to free it from
snow, sand or mud, depress the accelerator
slightly and slowly move the shift lever/
selector lever from 1 (D) to R.
Winter Driving
Carry emergency gear, including tyre
chains, window scraper, flares, a small
shovel, jumper leads, and a small bag of
sand or salt.
Ask an expert repairer, we recommend an
Authorised Mazda Repairer to check the
following:
•Have the proper ratio of antifreeze in the
radiator.
Refer to Engine Coolant on page 6-29.
•Inspect the ba ttery and its leads. Cold
reduces battery capacity.
•Use an engine oil appropriate for the
lowest ambient temperatures that the
vehicle will be driven in (page 6-25).
•Inspect the ignition system for damage
and loose connections.
•Use washer fluid made with
antifreeze―but do not use engine
coolant antifreeze for washer fluid (page
6-32).
NOTE
•Remove snow before driving. Snow left
on the windscreen is dangerous as it
could obstruct vision.
•Do not apply excessive force to a
window scraper when removing ice or
frozen snow on the mirror glass and
windscreen.
•Never use warm or hot water for
removing snow or ice from windows and
mirrors as it could result in the glass
cracking.
Before Driving
Driving Tips
3-56
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

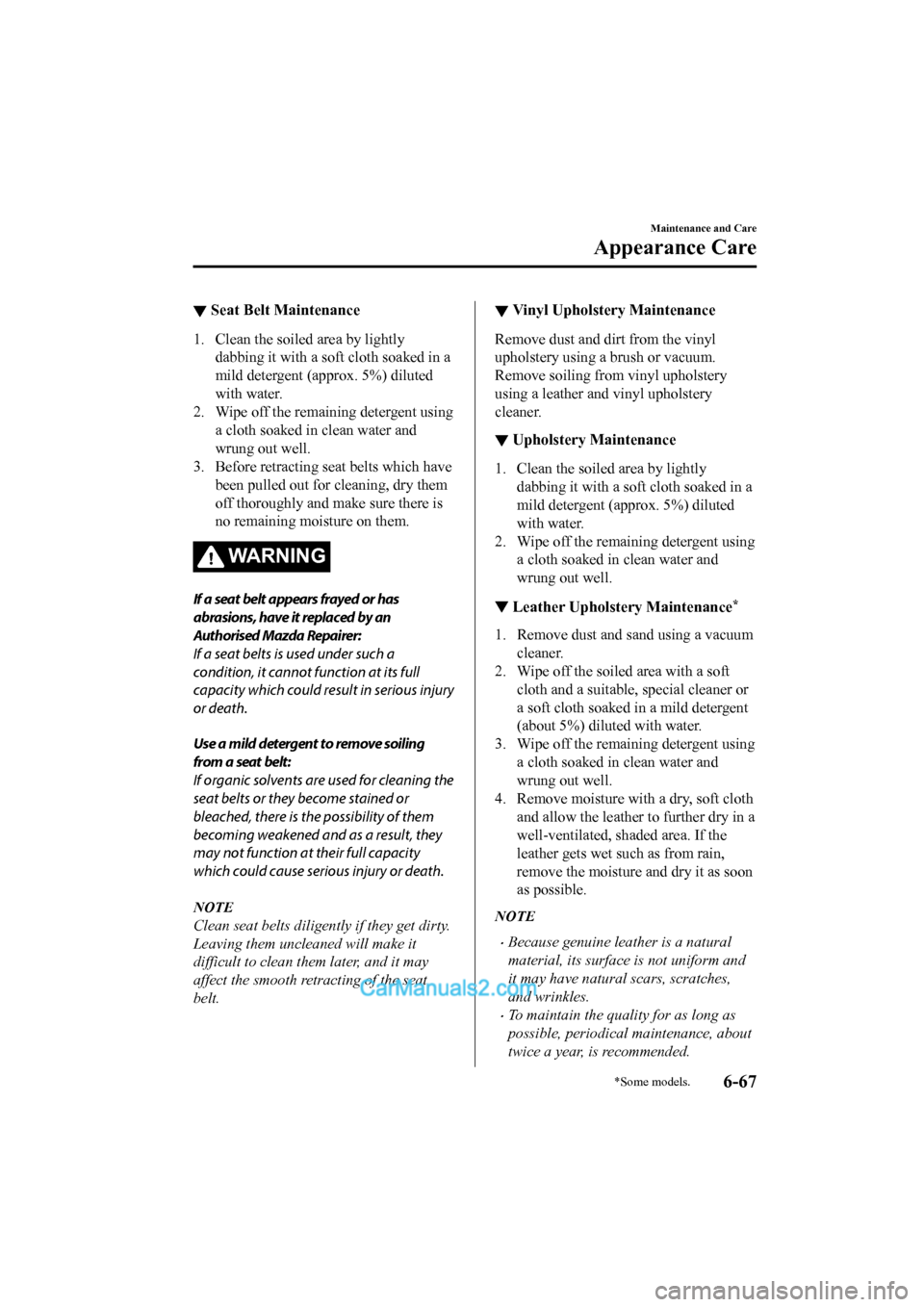

▼Seat Belt Maintenance
1. Clean the soiled area by lightly
dabbing it with a soft cloth soaked in a
mild detergent (approx. 5%) diluted
with water.
2. Wipe off the remaining detergent using a cloth soaked in clean water and
wrung out well.
3. Before retracting seat belts which have
been pulled out for cleaning, dry them
off thoroughly and make sure there is
no remaining moisture on them.
WA R N I N G
If a seat belt appears frayed or has
abrasions, have it replaced by an
Authorised Mazda Repairer:
If a seat belts is used under such a
condition, it cannot function at its full
capacity which could result in serious injury
or death.
Use a mild detergent to remove soiling
from a seat belt:
If organic solvents are used for cleaning the
seat belts or they become stained or
bleached, there is the possibility of them
becoming weakened and as a result, they
may not function at their full capacity
which could cause serious injury or death.
NOTE
Clean seat belts diligently if they get dirty.
Leaving them uncleaned will make it
difficult to clean them later, and it may
affect the smooth retracting of the seat
belt.
▼Vinyl Upholstery Maintenance
Remove dust and dirt from the vinyl
upholstery using a brush or vacuum.
Remove soiling from
vinyl upholstery
using a leather and vinyl upholstery
cleaner.
▼ Upholstery Maintenance
1. Clean the soiled area by lightly
dabbing it with a soft cloth soaked in a
mild detergent (approx. 5%) diluted
with water.
2. Wipe off the remaining detergent using a cloth soaked in clean water and
wrung out well.
▼Leather Upholstery Maintenance*
1. Remove dust and sand using a vacuum
cleaner.
2. Wipe off the soiled area with a soft cloth and a suitable, special cleaner or
a soft cloth soaked in a mild detergent
(about 5%) diluted with water.
3. Wipe off the remaining detergent using a cloth soaked in clean water and
wrung out well.
4. Remove moisture with a dry, soft cloth
and allow the leather to further dry in a
well-ventilated, s haded area. If the
leather gets wet such as from rain,
remove the moisture and dry it as soon
as possible.
NOTE
•Because genuine leather is a natural
material, its surface is not uniform and
it may have natural scars, scratches,
and wrinkles.
•To maintain the quality for as long as
possible, periodical maintenance, about
twice a year, is recommended.
Maintenance and Care
Appearance Care
*Some models.6-67
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

Do not use oils which do not meet the above specification or requirements. Use of unsuitable oil may lead to engine
damage which is not covere d by the Mazda Warranty.
Lubricant Classification
Coolant FL-22 type
Manual transaxle oil API Service
GL-4
SAE 75W-80
Automatic transaxle fluid Mazda Original Oil ATF-FZ
Transfer case oil Mazda Long Life Hypoid Gear Oil SG1
Rear differential oil Mazda Long Life Hypoid Gear Oil SG1
Brake/Clutch fluid SAE J1703 or FMVSS116 DOT-3 or DOT-4
▼Capacities
(Approximate Quantities)
Item
Capacity
Engine oil SKYAC-
TIV-G 2.0
With oil filter replacement
4.2 L (4.4 US qt, 3.7 Imp qt)
Without oil filter replacement 4.0 L (4.2 US qt, 3.5 Imp qt)
SKYAC-
TIV-G 2.5 With oil filter replacement
4.5 L (4.8 US qt, 4.0 Imp qt)
Without oil filter replacement 4.3 L (4.5 US qt, 3.8 Imp qt)
SKYAC-
TIV-D 2.2 With oil filter replacement
5.1 L (5.4 US qt, 4.5 Imp qt)
Without oil filter replacement 4.8 L (5.1 US qt, 4.2 Imp qt)
Coolant SKYAC-
TIV-G 2.0
Manual
transaxle
Left-hand drive model
7.0 L (7.4 US qt, 6.2 Imp qt)
Right-hand drive model 6.8 L (7.2 US qt, 6.0 Imp qt)
Automat-
ic trans-
axle Israel
7.3 L (7.7 US qt, 6.4 Imp qt)
Except
above Left-hand drive model 7.2 L (7.6 US qt, 6.3 Imp qt)
Right-hand drive model 7.1 L (7.5 US qt, 6.2 Imp qt)
SKYAC-
TIV-G 2.5 Left-hand drive model
7.3 L (7.7 US qt, 6.4 Imp qt) / 7.4
L (7.8 US qt, 6.5 Imp qt)
Right-hand drive model 7.2 L (7.6 US qt, 6.3 Imp qt)
SKYAC-
TIV-D 2.2 Manual
transaxle
Left-hand drive model
8.5 L (9.0 US qt, 7.5 Imp qt)
Right-hand drive model 8.6 L (9.1 US qt, 7.6 Imp qt)
Automat-
ic trans-
axle Europe
Left-hand drive model 8.6 L (9.1 US qt, 7.6 Imp qt)
Right-hand drive model 8.8 L (9.3 US qt, 7.7 Imp qt)
Except
above Left-hand drive model 8.7 L (9.2 US qt, 7.7 Imp qt)
Right-hand drive model 8.9 L (9.4 US qt, 7.8 Imp qt)
Manual trans-
axle oil SKYAC-
TIV-G 2.0
2WD
1.65 L (1.74 US qt, 1.45 Imp qt)
4WD 1.70 L (1.80 US qt, 1.50 Imp qt)
SKYACTIV-D 2.2 2.40 L (2.54 US qt, 2.11 Imp qt)
Specifications
Specifications
9-7
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

ItemCapacity
Automatic
transaxle flu-
id SKYACTIV-G 2.0, SKYACTIV-G 2.5
7.8 L (8.2 US qt, 6.9 Imp qt)
SKYACTIV-D 2.2 8.0 L (8.5 US qt, 7.0 Imp qt)
Transfer case oil 0.45 L (0.48 US qt, 0.40 Imp qt)
Rear differential oil 0.35 L (0.37 US qt, 0.31 Imp qt)
Fuel tank 2WD
56.0 L (14.8 US gal, 12.3 Imp
gal)
4WD 58.0 L (15.3 US gal, 12.8 Imp
gal)
Check oil and fluid levels with d ipsticks or reservoir gauges.
▼Dimensions
Item
Vehicle specification
Overall length 4,550 mm (179.1 in)
Overall width 1,840 mm (72.4 in)
Overall height 17 inch wheel vehicle
1,675 mm (65.9 in)
19 inch wheel vehicle 1,680 mm (66.1 in)
Front tread 17 inch styled steel wheel
vehicle
1,585 mm (62.4 in)
17 inch aluminium wheel
vehicle 1,595 mm (62.8 in)
19 inch aluminium wheel
vehicle 1,595 mm (62.8 in)
Rear tread 17 inch styled steel wheel
vehicle
1,585 mm (62.4 in)
17 inch aluminium wheel
vehicle 1,595 mm (62.8 in)
19 inch aluminium wheel
vehicle 1,595 mm (62.8 in)
Wheelbase 2,700 mm (106.3 in)
▼Light Bulbs
Exterior light
Light bulb Category
Wa t t ag e UNECE*1(SAE)
Headlights High beam
LED
*2― (―)
Low beam LED
*2― (―)
Running lights
*LED type LED*2― (―)
Bulb type 21/5W21/5W (7443)
Specifications
Specifications
9-8*Some models.
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

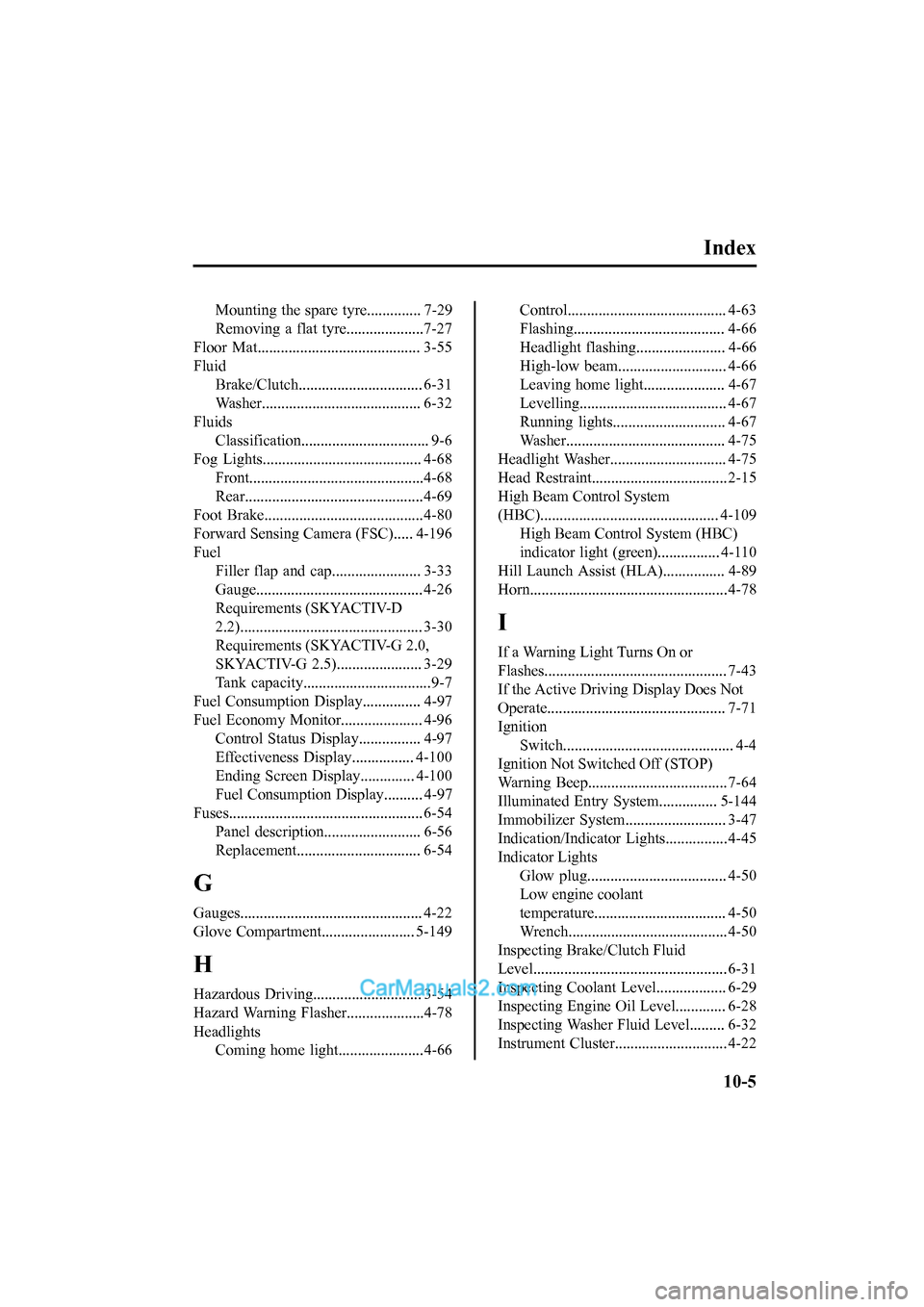

Index
Mounting the spare tyre.............. 7-29
Removing a flat tyre....................7-27
Floor Mat.......................................... 3-55
Fluid
Brake/Clutch................................ 6-31
Washer......................................... 6-32
Fluids
Classification................................. 9-6
Fog Lights......................................... 4-68 Front.............................................4-68
Rear..............................................4-69
Foot Brake.........................................4-80
Forward Sensing Camera (FSC)..... 4-196
Fuel Filler flap and cap....................... 3-33
Gauge........................................... 4-26
Requirements (SKYACTIV-D
2.2)............................................... 3-30
Requirements (SKYACTIV-G 2.0,
SKYACTIV-G 2.5)...................... 3-29
Tank capacity.................................9-7
Fuel Consumption Display............... 4-97
Fuel Economy Monitor. .................... 4-96
Control Status Display................ 4-97
Effectiveness Display................ 4-100
Ending Screen Display.............. 4-100
Fuel Consumption Display.......... 4-97
Fuses.................................................. 6-54
Panel description......................... 6-56
Replacement................................ 6-54
G
Gauges............................................... 4-22
Glove Compartment........................ 5-149
H
Hazardous Driving.... ........................ 3-54
Hazard Warning Flasher....................4-78
Headlights Coming home light......................4-66
Control......................................... 4-63
Flashing....................................... 4-66
Headlight flashing....................... 4-66
High-low beam............................ 4-66
Leaving home light..................... 4-67
Levelling...................................... 4-67
Running lights... .......................... 4-67
Washer......................................... 4-75
Headlight Washer.............................. 4-75
Head Restraint................................... 2-15
High Beam Control System
(HBC).............................................. 4-109 High Beam Control System (HBC)
indicator light (green )................ 4-110
Hill Launch Assist (HLA)................ 4-89
Horn...................................................4-78
I
If a Warning Light Turns On or
Flashes............................................... 7-43
If the Active Driving Display Does Not
Operate.............................................. 7-71
Ignition Switch............................................ 4-4
Ignition Not Switched Off (STOP)
Warning Beep.................................... 7-64
Illuminated Entry System............... 5-144
Immobilizer System.......................... 3-47
Indication/Indicator L ights................4-45
Indicator Lights Glow plug.................................... 4-50
Low engine coolant
temperature.................................. 4-50
Wrench......................................... 4-50
Inspecting Brak e/Clutch Fluid
Level.................................................. 6-31
Inspecting Coolant Leve l.................. 6-29
Inspecting Engine Oil Level............. 6-28
Inspecting Washer Fluid Level......... 6-32
Instrument Cluster...... ....................... 4-22
