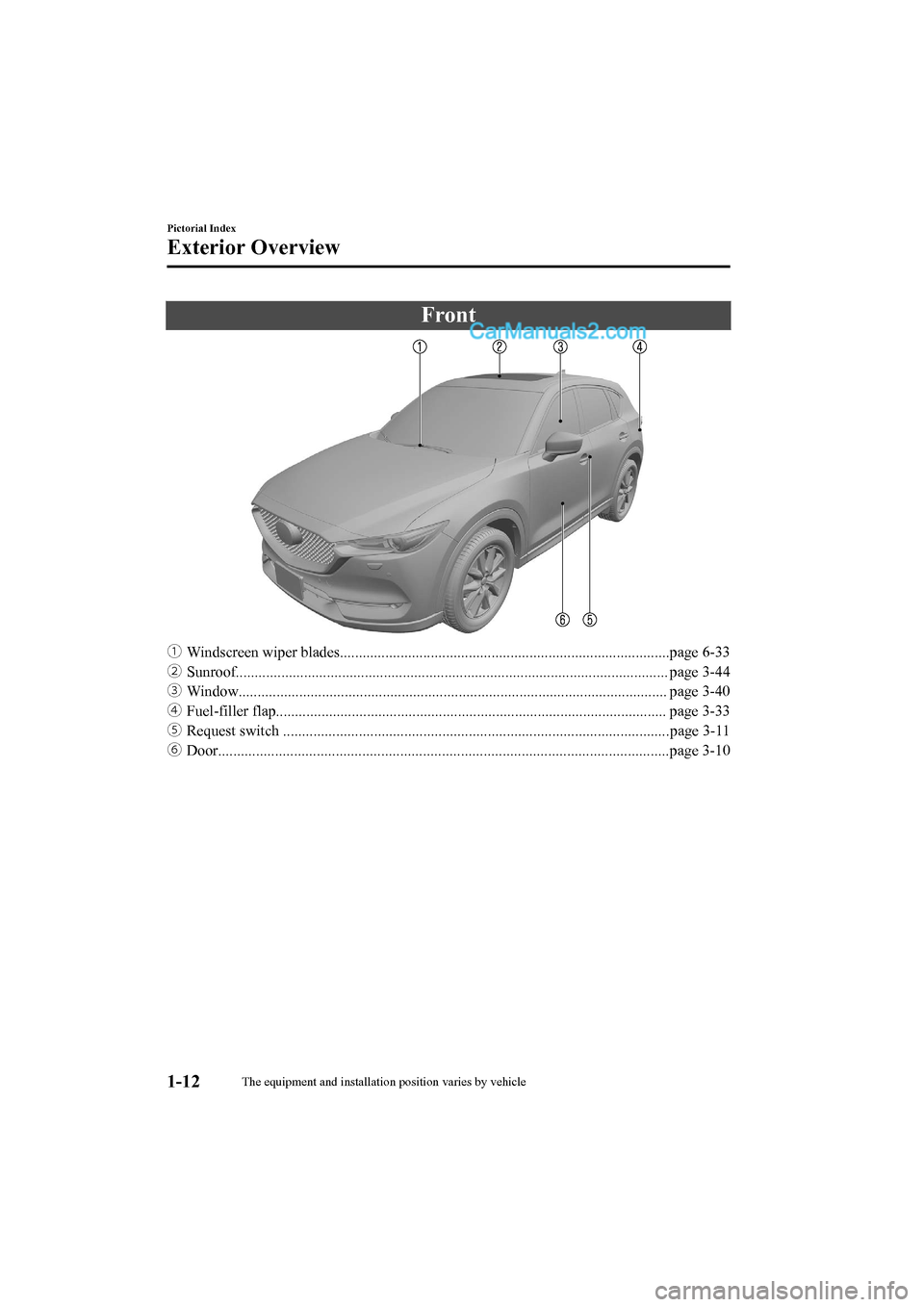

Front
ƒWindscreen wiper blades........................................ ...............................................page 6-33
„ Sunroof........................................................ .......................................................... page 3-44
… Window......................................................... ........................................................ page 3-40
† Fuel-filler flap............................................... ........................................................ page 3-33
‡ Request switch ......................................................................................................page 3-11
ˆ Door.......................................................................................................................pag e 3-10
Pictorial Index
Exterior Overview
1-12The equipment and installation position varies by vehicle
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

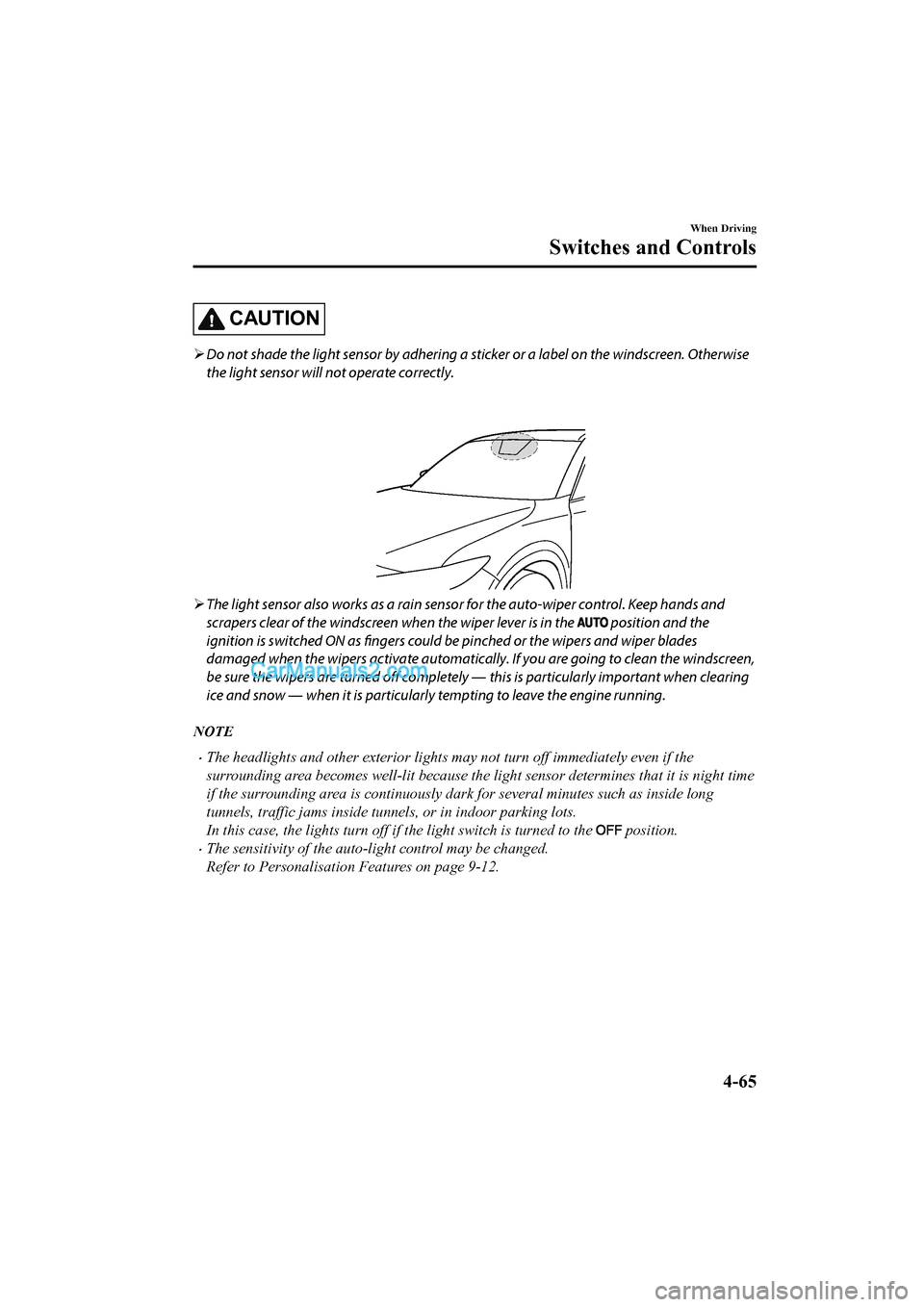

CAUTION
Do not shade the light sensor by adhering a st icker or a label on the windscreen. Otherwise
the light sensor will not operate correctly.

 The light sensor also works as a rain sensor for the auto-wiper control. Keep hands and
scrapers clear of the windscreen when the wiper lever is in the
position and the
ignition is switched ON as fingers could be pinched or the wipers and wiper blades
damaged when the wipers activate automatically. If you are going to clean the windscreen,
be sure the wipers are turned off completely ― this is particularly important when clearing
ice and snow ― when it is particularly tempting to leave the engine running.
NOTE
•The headlights and other exterior lights may not turn off immediately even if the
surrounding area becomes well-lit because the light sensor determines that it is night time
if the surrounding area is continuously dark for several minute s such as inside long
tunnels, traffic jams inside tunn els, or in indoor parking lots.
In this case, the lights turn off if the light switch is turned to the
position.
•The sensitivity of the auto-light control may be changed.
Refer to Personalisation Features on page 9-12.
When Driving
Switches and Controls
4-65
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

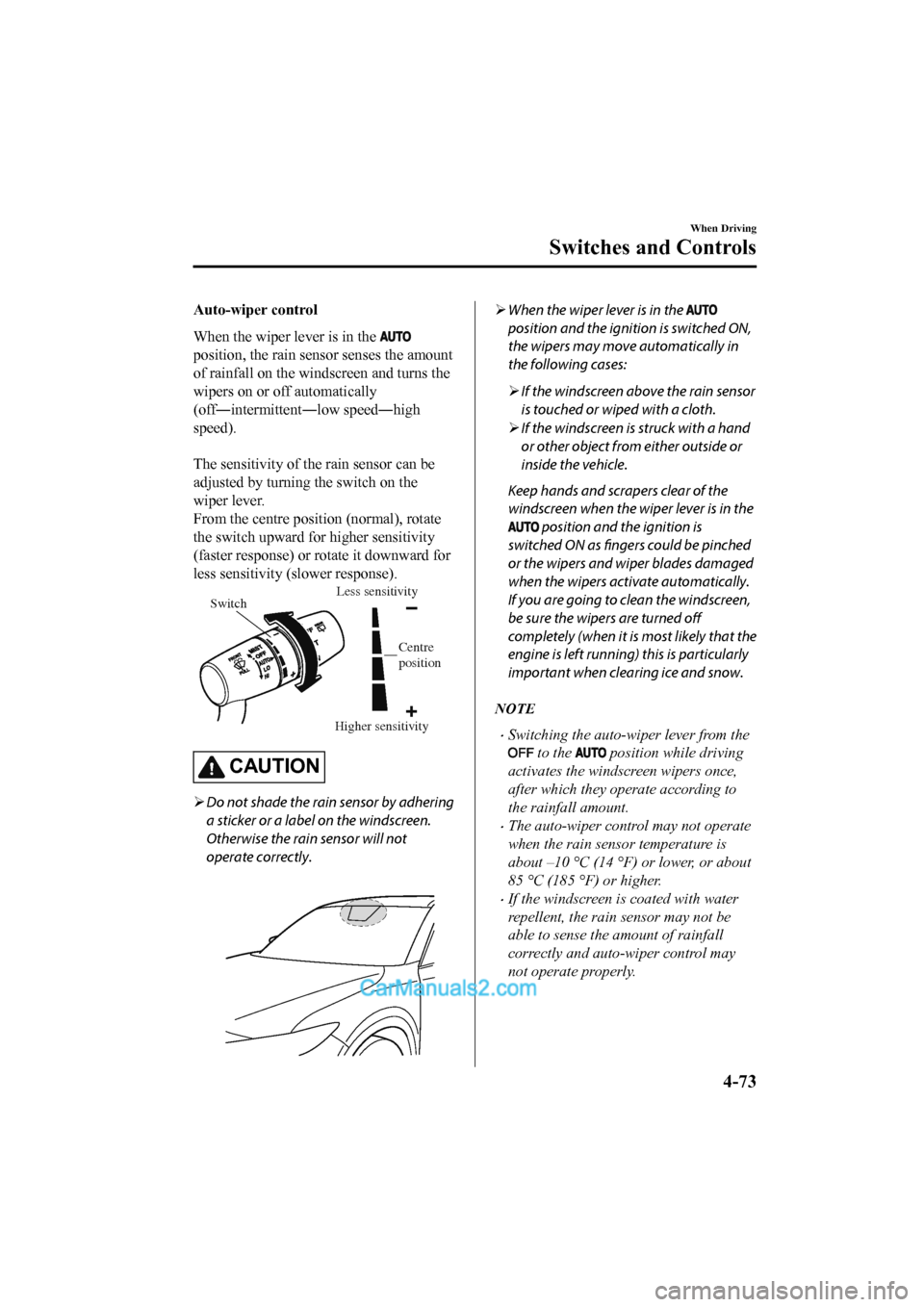

Auto-wiper control
When the wiper lever is in the
position, the rain sensor senses the amount
of rainfall on the windscreen and turns the
wipers on or off automatically
(off―intermittent―low speed―high
speed).

The sensitivity of the rain sensor can be
adjusted by turning the switch on the
wiper lever.
From the centre position (normal), rotate
the switch upward for higher sensitivity
(faster response) or rotate it downward for
less sensitivity (slower response).
Higher sensitivity
Less sensitivitySwitch
Centre
position
CAUTION
Do not shade the rain sensor by adhering
a sticker or a label on the windscreen.
Otherwise the rain sensor will not
operate correctly.
When the wiper lever is in the
position and the ignition is switched ON,
the wipers may move automatically in
the following cases:
 If the windscreen above the rain sensor
is touched or wiped with a cloth.
 If the windscreen is struck with a hand
or other object from either outside or
inside the vehicle.
Keep hands and scrapers clear of the
windscreen when the wiper lever is in the
position and the ignition is
switched ON as fingers could be pinched
or the wipers and wiper blades damaged
when the wipers activate automatically.
If you are going to clean the windscreen,
be sure the wipers are turned off
completely (when it is most likely that the
engine is left running) this is particularly
important when clearing ice and snow.
NOTE
•Switching the auto-wiper lever from the
to the position while driving
activates the windscreen wipers once,
after which they operate according to
the rainfall amount.
•The auto-wiper control may not operate
when the rain sensor temperature is
about –10 °C (14 °F) or lower, or about
85 °C (185 °F) or higher.
•If the windscreen is coated with water
repellent, the rain sensor may not be
able to sense the amount of rainfall
correctly and auto-wiper control may
not operate properly.
When Driving
Switches and Controls
4-73
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

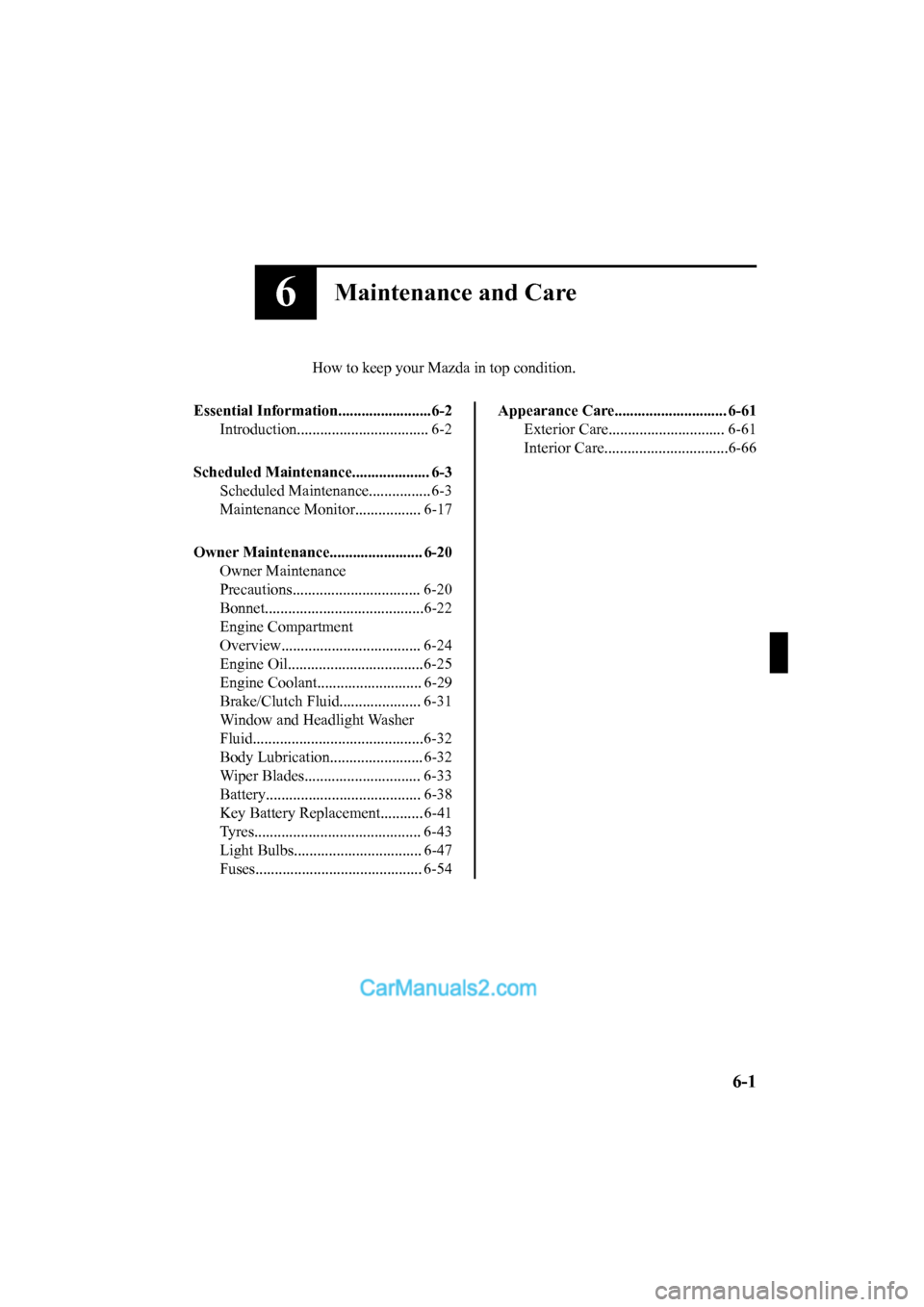

6Maintenance and Care
How to keep your Mazda in top condition.
Essential Information........................6-2 Introduction.................................. 6-2
Scheduled Maintenance.................... 6-3 Scheduled Maintenance................ 6-3
Maintenance Monitor................. 6-17
Owner Maintenance........................ 6-20 Owner Maintenance
Precautions................................. 6-20
Bonnet........................ .................6-22
Engine Compartment
Overview.................................... 6-24
Engine Oil...................................6-25
Engine Coolant........................... 6-29
Brake/Clutch Fluid ..................... 6-31
Window and Headlight Washer
Fluid............................................6-32
Body Lubrication...... .................. 6-32
Wiper Blades.............................. 6-33
Battery........................................ 6-38
Key Battery Replacement........... 6-41
Tyres........................................... 6-43
Light Bulbs................................. 6-47
Fuses........................................... 6-54
Appearance Care............................. 6-61
Exterior Care.............................. 6-61
Interior Care................................6-66
6-1
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

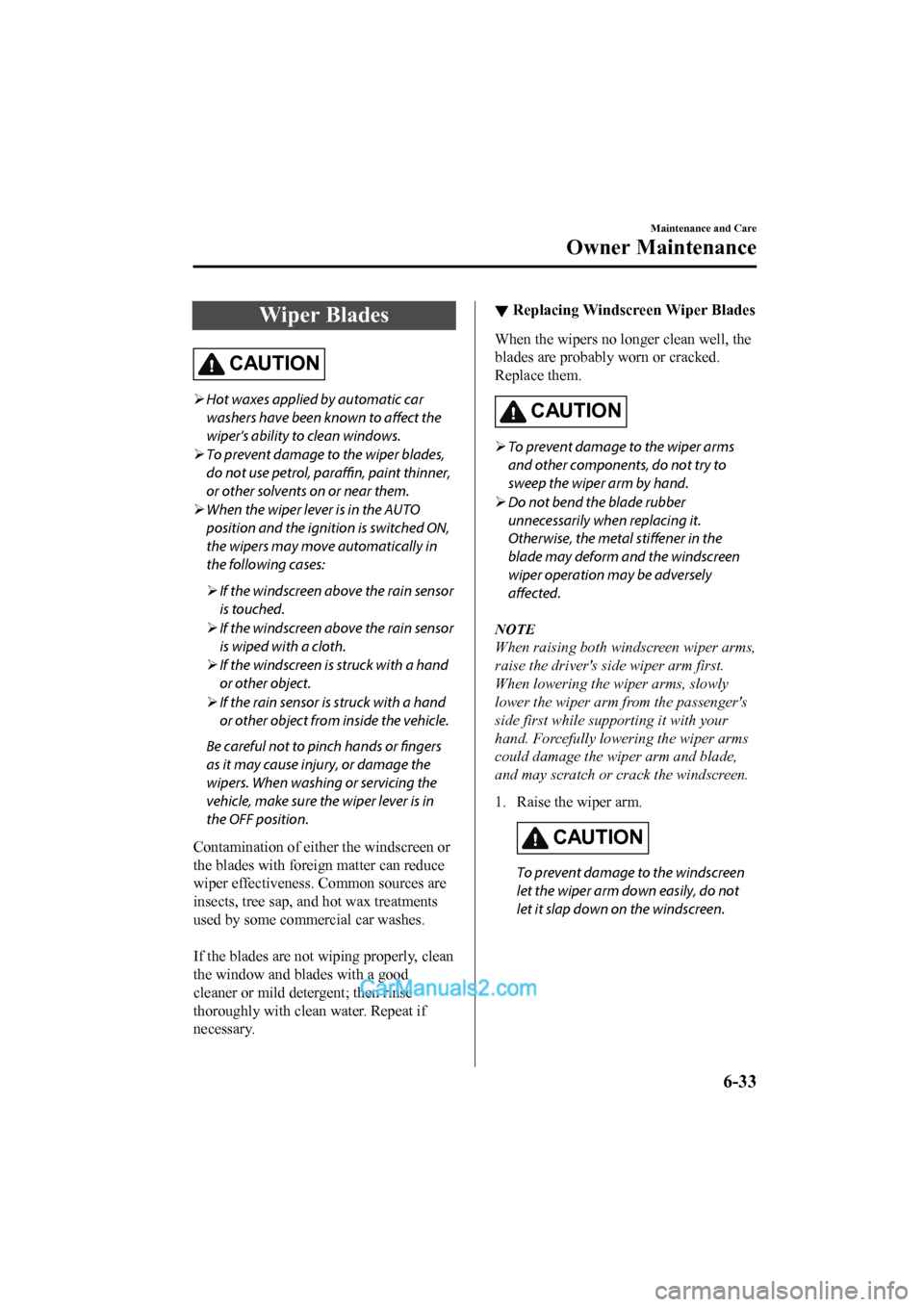

Wiper Blades
CAUTION
Hot waxes applied by automatic car
washers have been known to
affect the
wiper's ability to clean windows.
 To prevent damage to the wiper blades,
do not use petrol, paraffin, paint thinner,
or other solvents on or near them.
 When the wiper lever is in the AUTO
position and the ignition is switched ON,
the wipers may move automatically in
the following cases:
 If the windscreen above the rain sensor
is touched.
 If the windscreen above the rain sensor
is wiped with a cloth.
 If the windscreen is struck with a hand
or other object.
 If the rain sensor is struck with a hand
or other object from inside the vehicle.
Be careful not to pinch hands or fingers
as it may cause injury, or damage the
wipers. When washing or servicing the
vehicle, make sure the wiper lever is in
the OFF position.
Contamination of either the windscreen or
the blades with foreign matter can reduce
wiper effectiveness. Common sources are
insects, tree sap, and hot wax treatments
used by some commercial car washes.

If the blades are not wiping properly, clean
the window and blades with a good
cleaner or mild detergent; then rinse
thoroughly with clean water. Repeat if
necessary.
▼ Replacing Windscreen Wiper Blades
When the wipers no longer clean well, the
blades are probably worn or cracked.
Replace them.
CAUTION

To prevent damage to the wiper arms
and other components, do not try to
sweep the wiper arm by hand.
 Do not bend the blade rubber
unnecessarily when replacing it.
Otherwise, the metal stiffener in the
blade may deform and the windscreen
wiper operation may be adversely
affected.
NOTE
When raising both windscreen wiper arms,
raise the driver's side wiper arm first.
When lowering the wiper arms, slowly
lower the wiper arm from the passenger's
side first while supporting it with your
hand. Forcefully lowering the wiper arms
could damage the wiper arm and blade,
and may scratch or crack the windscreen.
1. Raise the wiper arm.
CAUTION
To prevent damage to the windscreen
let the wiper arm down easily, do not
let it slap down on the windscreen.
Maintenance and Care
Owner Maintenance
6-33
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

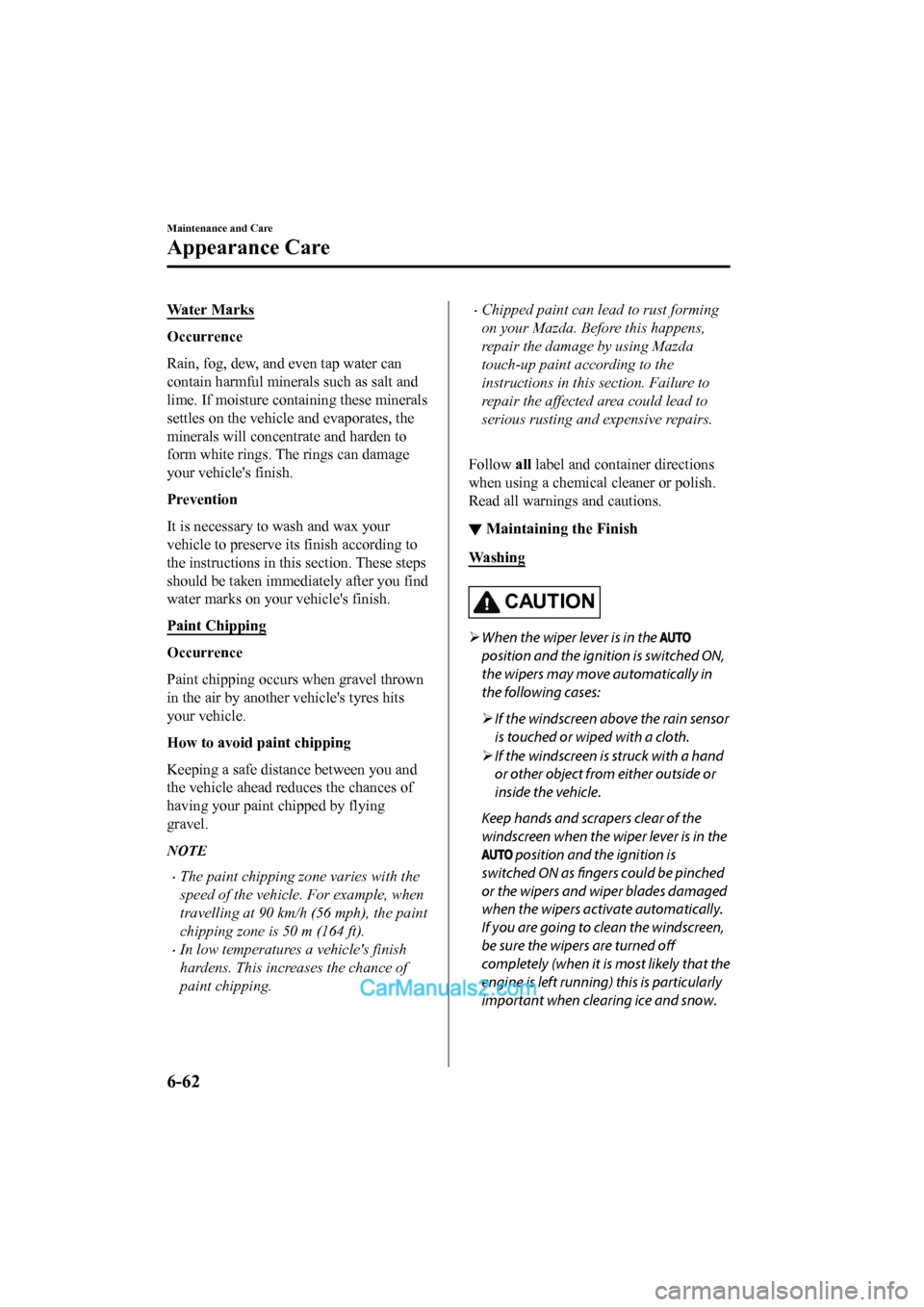

Wa t e r M a r k s
Occurrence
Rain, fog, dew, and even tap water can
contain harmful minerals such as salt and
lime. If moisture containing these minerals
settles on the vehicle and evaporates, the
minerals will concentrate and harden to
form white rings. The rings can damage
your vehicle's finish.
Prevention
It is necessary to wash and wax your
vehicle to preserve its finish according to
the instructions in this section. These steps
should be taken immediately after you find
water marks on your vehicle's finish.
Paint Chipping
Occurrence
Paint chipping occurs when gravel thrown
in the air by another v ehicle's tyres hits
your vehicle.
How to avoid paint chipping
Keeping a safe distance between you and
the vehicle ahead reduces the chances of
having your paint chipped by flying
gravel.
NOTE
•The paint chipping zone varies with the
speed of the vehicle. For example, when
travelling at 90 km/h (56 mph), the paint
chipping zone is 50 m (164 ft).
•In low temperatures a vehicle's finish
hardens. This increases the chance of
paint chipping.
•Chipped paint can lead to rust forming
on your Mazda. Before this happens,
repair the damage by using Mazda
touch-up paint according to the
instructions in this section. Failure to
repair the affected area could lead to
serious rusting and expensive repairs.

Follow all label and container directions
when using a chemical cleaner or polish.
Read all warnings and cautions.
▼ Maintaining the Finish
Wa s h i n g
CAUTION

When the wiper lever is in the
position and the ignition is switched ON,
the wipers may move automatically in
the following cases:
 If the windscreen above the rain sensor
is touched or wiped with a cloth.
 If the windscreen is struck with a hand
or other object from either outside or
inside the vehicle.
Keep hands and scrapers clear of the
windscreen when the wiper lever is in the
position and the ignition is
switched ON as fingers could be pinched
or the wipers and wiper blades damaged
when the wipers activate automatically.
If you are going to clean the windscreen,
be sure the wipers are turned off
completely (when it is most likely that the
engine is left running) this is particularly
important when clearing ice and snow.
Maintenance and Care
Appearance Care
6-62
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

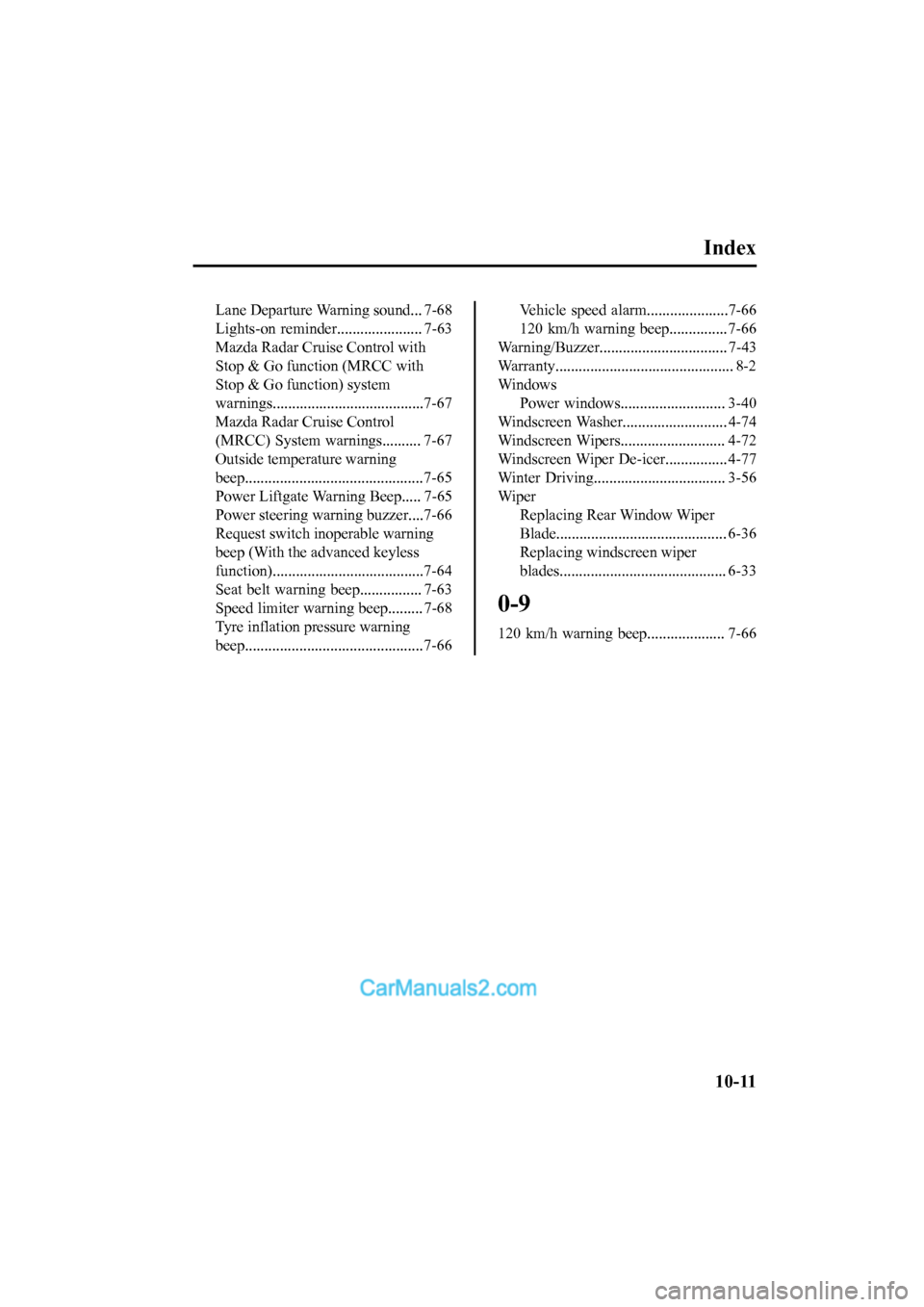

Index
Lane Departure Warning sound... 7-68
Lights-on reminder...................... 7-63
Mazda Radar Cruise Control with
Stop & Go function (MRCC with
Stop & Go function) system
warnings.......................................7-67
Mazda Radar Cruise Control
(MRCC) System warnings.......... 7-67
Outside temperature warning
beep..............................................7-65
Power Liftgate Warning Beep..... 7-65
Power steering warning buzzer....7-66
Request switch inoperable warning
beep (With the advanced keyless
function).......................................7-64
Seat belt warning beep................ 7-63
Speed limiter warning beep......... 7-68
Tyre inflation pressure warning
beep..............................................7-66Vehicle speed alarm.....................7-66
120 km/h warning beep............... 7-66
Warning/Buzzer................................. 7-43
Warranty.............................................. 8-2
Windows Power windows......... .................. 3-40
Windscreen Washer........................... 4-74
Windscreen Wipers........................... 4-72
Windscreen Wiper De-i cer................ 4-77
Winter Driving.................................. 3-56
Wiper
Replacing Rear Window Wiper
Blade............................................ 6-36
Replacing windscreen wiper
blades........................................... 6-33
