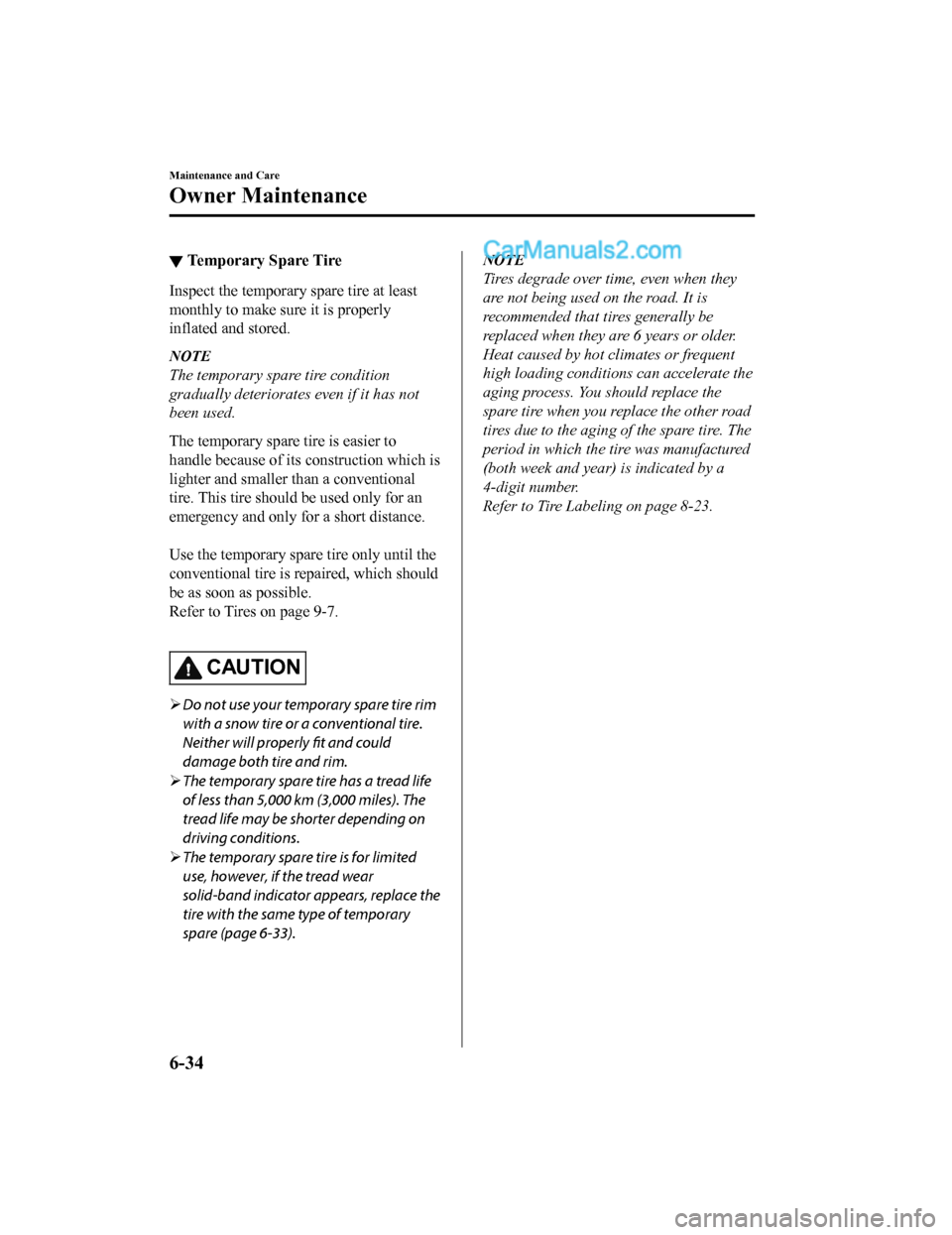

▼Temporary Spare Tire
Inspect the temporary spare tire at least
monthly to make sure it is properly
inflated and stored.
NOTE
The temporary spare tire condition
gradually deteriorates even if it has not
been used.
The temporary spare tire is easier to
handle because of its construction which is
lighter and smaller than a conventional
tire. This tire should be used only for an
emergency and only for a short distance.

Use the temporary spare tire only until the
conventional tire is repaired, which should
be as soon as possible.
Refer to Tires on page 9-7.

CAUTION

Do not use your temporary spare tire rim
with a snow tire or a conventional tire.
Neither will properly fit and could
damage both tire and rim.
 The temporary spare tire has a tread life
of less than 5,000 km (3,000 miles). The
tread life may be shorter depending on
driving conditions.
 The temporary spare tire is for limited
use, however, if the tread wear
solid-band indicator appears, replace the
tire with the same type of temporary
spare (page 6-33).
NOTE
Tires degrade over time, even when they
are not being used on the road. It is
recommended that tires generally be
replaced when they are 6 years or older.
Heat caused by hot climates or frequent
high loading conditions can accelerate the
aging process. You should replace the
spare tire when you replace the other road
tires due to the aging of the spare tire. The
period in which the tire was manufactured
(both week and year) is indicated by a
4-digit number.
Refer to Tire Labeling on page 8-23.
Maintenance and Care
Owner Maintenance
6-34
CX-5_8GN5-EA-17J_Edition1 2017-8-18 12:58:27

Spare Tire and Tool Storage
Spare tire and tools are stored in the locations illustrated in the diagram.
Tiedown eyelet
Flat tire hold-down bolt
Jack lever
Lug wrench Spare tire
Jack
Type A
Type B
Spare tire
Tiedown eyelet
Flat tire hold-down bolt
Jack lever
Lug wrench Jack
Some models.
If Trouble Arises
Flat Tire
7-3
CX-5_8GN5-EA-17J_Edition1
2017-8-18 12:58:27

Traction: The traction grades, from highe st to lowest are AA, A, B, and C. The grades
represent the tire's ability to stop on wet pavement as measure d under controlled conditions
on specified government test surfaces of asphalt and concrete. A tire marked C may have
poor traction performance.
Te m p e r a t u r e : The temperature grades are A (the highest), B and C, represent ing the tire's
resistance to the generation of heat and its ability to dissipa te heat when tested under
controlled conditions on a spec ified indoor laboratory test whe el.
Snow Tires
In some heavy snow areas, local governments may require true sn ow tires, those with very
deeply cut tread. These tires should only be used in pairs or p laced on all four wheels. Make
sure you purchase snow tires that are the same size and construction type as the other tires
on your vehicle.
SAFETY WARNING
The following safety warning a ppears on the tire's sidewall.
SERIOUS INJURY MAY RESULT FROM:
•EXPLOSION OF TIRE/RIM ASSEMBLY DUE TO IMPROPER MOUNTING-MATCH
TIRE DIAMETER TO RIM D IAMETER; NEVER EXCEED 40 psi (275 kPa) TO SEAT
BEADS-ONLY SPECIALLY TRAINED PERSONS SHOULD MOUNT TIRES.
•TIRE FAILURE DUE TO UNDER-INFLATION/OVERLOADING/
DAMAGE-FOLLOW OWNER'S MANUAL AND PLACARD IN
VEHICLE-FREQUENTLY CHECK INFLATION PRESSURE AND INSPECT FOR
DAMAGE.
▼ Information on Temporary Tires
Please refer to the sample below.
Customer Information and Reporting Safety Defects
Tire Information (U.S.A.)
8-26
CX-5_8GN5-EA-17J_Edition1
2017-8-18 12:58:27

▼Light Bulbs
Exterior light
Light bulb Category
Wattage UNECE*1(SAE)
Headlights/Daytime running lights LED
*2― (―)
Parking lights LED type
LED
*2― (―)
Front turn signal lights/Parking lights
*28/8 ― (#7444NA)
Front side-marker lights LED type
LED
*2― (―)
Bulb type 5 W5W (―)
Fog lights
*LED*2― (―)
Side turn signal lights LED
*2― (―)
High-mount brake light LED
*2― (―)
Rear turn signal lights 21WY21W (7443NA)
Brake lights/Taillights/Rear
side-marker lights LED type
LED
*2― (―)
Bulb type 21/5 W21/5W (7443)
Reverse lights LED
*2― (―)
License plate lights 5 W5W (―)
*1 UNECE stands for United Nations Economic Commission for Europe.*2 LED is the abbreviation for Light Emitting Diode.
Interior light
Light bulb Category
Wa t t ag e UNECE*1
Luggage compartment light 8―
Overhead light (Fr ont)/Map lights 8―
Rear map lights 8―
Vanity mirror lights
*2―
*1 UNECE stands for United Nations Economic Commission for Europe.
▼Tires
NOTE
The tires have been optimally matched with the chassis of your vehicle.
When replacing tires, Mazda recommends that you replace tires of the same type originally
fitted to your vehicle. For details, contact an Authorized Mazda Dealer.
Check the tire pressure label for tire size and inflation press
ure.
Refer to Tire Inflation Pressure on page 6-31.
Specifications
Specifications
*Some models.9-7
CX-5_8GN5-EA-17J_Edition1 2017-8-18 12:58:27

Index
Saving Fuel and Protection of the
Environment...................................... 3-45
Scheduled Maintenance...................... 6-4
Seats.................................................... 2-5Driving position memory.............. 2-7
Front seat....................................... 2-5
Front seat warmer..........................2-6
Head restraint.............................. 2-16
Rear seat........................................ 2-9
Rear seat warmer......................... 2-14
Seat Belt System............................... 2-21 Automatic locking....................... 2-20
Emergency locking...................... 2-20
Extender....................................... 2-24
Pregnant women.......................... 2-20
Seat belt precautions................... 2-18
3-point type................................. 2-21
Seat Belt Warning Beep.................... 7-43
Security System
Immobilizer system..................... 3-43
Smart Brake Support (S BS)............ 4-144
Collision warning.... .................. 4-146
Stopping the Smart Brake Support
(SBS) system operation............. 4-146
Smart City Brake Support
(SCBS)............................................ 4-140
Collision warning.... .................. 4-142
Smart City Brake Support (SCBS)
Indicator Light (Red).................4-142
Stopping the Smart City Brake
Support (SCBS) System
Operation................................... 4-143
Spare Tire............................................ 7-4
Specifications...................................... 9-4
Speedometer...................................... 4-13
SRS Air Bags Front passenger occupant
classification system.................... 2-58
How the SRS air bags work........ 2-52
Limitations to SRS air bag.......... 2-56
Monitoring................................... 2-62SRS air bag deployment
criteria.......................................... 2-55
Supplemental restraint system
components.................................. 2-51
Starting the Engine..............................4-5
Steering Wheel.................................. 3-33 Horn............................................. 4-59
Storage Compartments .................... 5-135
Armrest box............................... 5-136
Center console........................... 5-135
Glove compartment................... 5-135
Luggage compartment ............... 5-137
Overhead console...................... 5-135
Rear coat hooks........ ................. 5-139
Sunshade............................................3-42
Sunvisors......................................... 5-128
T
Tachometer........................................ 4-14
Three-flash Turn Signal.................... 4-52
Tiedown Hook.............. .............................. 7-21
Tires................................................... 6-31 Flat tire.......................................... 7-3
Replacing a tire........................... 6-33
Replacing a wheel....................... 6-35
Snow tires.................................... 3-48
Specifications.................................9-7
Temporary spare tire....................6-34
Tire chains................................... 3-49
Tire inflation pressure................. 6-31
Tire rotation................................. 6-32
Uniform tire quality grading system
(UTQGS)..................................... 8-21
Tire Inflation Pressure Warning
Beep...................................................7-45
Tire Information................................ 8-23
Tire Pressure Monitoring System.... 4-162
To w i n g Recreational towing.....................3-60
