Distance Recognition Support System (DRSS)*
The DRSS measures the distance between your vehicle and a vehicle ahead using a radar
sensor (front) while the vehicle speed is about 30 km/h (19 mph) or faster, and if your
vehicle approaches a vehicle ahead more closely than what is ap propriate for maintaining
distance between the vehicles according to the vehicle speed, a notification in the active
driving display is indicated to advise you to keep a safe dista nce from the vehicle ahead.
WA R N I N G
Do not rely completely on the DRSS and always drive carefully:
The ability to detect a vehicle ahead is limited depending on th e type of vehicle ahead, the
weather conditions, and the traffic conditions. Therefore, if the accelerator and brake pedals
are not operated correctly it could lead to an accident. Always verify the safety of the
surrounding area and depress the brake pedal or accelerator pedal while keeping a safer
distance from vehicles ahead or on-coming vehicles.
NOTE
•The DRSS operates when all of the following conditions are met:
•The ignition is switched ON.
•The DRSS is on.
•The selector lever is in a position other than reverse (R).
•The vehicle speed is 30 km/h or faster (19 mph or faster).
•The objects which activate the system are 4-wheeled vehicles.
•The DRSS may also operate in the presence of motorcycles and bicycles.
•The DRSS may not operate normally under the following conditions:
•The Dynamic Stability Control (DSC) has a malfunction.
•The vehicle ahead is traveling at an extremely slow speed.
•The system does not operate with the following objects:
•Vehicles approaching in the opposite direction.
•Stationary objects (stopped vehicles, obstructions)
When Driving
i-ACTIVSENSE
*Some models.4-105
CX-5_8GN5-EA-17J_Edition1 2017-8-18 12:58:27

â–¼Indication on Display
The DRSS operation status is indicated in the active driving di
splay or multi-information
display. Regarding malfunctions, check the vehicle conditions o r have it inspected by an
Authorized Mazda Dealer according to the content of the display ed message.
Refer to Warning/Indicator Lights on page 4-30.
NOTE
•When the ignition is switched off, the operation status before the system was turned off is
maintained. For example, if th e ignition is switched off with the DRSS operable, the
system will be operable when the ig nition is switched ON the next time.
•The DRSS can be turned on/off and the system's sensitivity can be changed.
Refer to Personalization Features on page 9-9.

Multi-information display Active driving display
Vehicle ahead
display Vehicle ahead
display
When Driving
i-ACTIVSENSE
4-106
CX-5_8GN5-EA-17J_Edition1 2017-8-18 12:58:27

Distance-between-vehicles guidelines*1
Indication on display Distance between vehi-
cles guidelines
(During travel at about 40 km/h (25 mph) Distance between vehi-
cles guidelines
(During travel at about 80 km/h (50 mph)
Multi-information dis-
play Active driving display
About 25 m (82 ft) About 50 m (164 ft)
About 20 m (66 ft) About 40 m (131 ft)
About 15 m (49 ft) About 30 m (98 ft)
About 10 m (33 ft) About 20 m (66 ft)
Flashes in white*2
Illuminated in
amber
About 10 m (32 ft) or less About 20 m (65 ft) or less
*1 The distance between vehicles differs depending on vehicle spe
ed.
*2 Indication when the distance setting for notifying the driver that the vehicle approaches
a vehicle ahead is Near.
When Driving
i-ACTIVSENSE
4-107
CX-5_8GN5-EA-17J_Edition1 2017-8-18 12:58:27

Rear Cross Traffic Alert (RCTA)*
The RCTA system is designed to assist the driver in checking the area to the rear of the
vehicle on both sides while the vehicle is reversing by alertin g the driver to the presence of
vehicles approaching the rear of the vehicle.
The RCTA system detects vehicles approaching from the left and right sides of the vehicle,
and the rear of the vehicle while the vehicle is being reversed out of a parking space, and
notifies the driver of possible d anger using the Blind Spot Mon itoring (BSM) warning
indicator lights and the warning buzzer.
Detection areas
Your vehicle
When Driving
i-ACTIVSENSE
4-108*Some models.
CX-5_8GN5-EA-17J_Edition1 2017-8-18 12:58:27

RCTA operation
1. The RCTA system operates when the selector lever is shifted to the reverse (R) position.
2. If there is the po ssibility of a collision with an approachin g vehicle, the Blind Spot
Monitoring (BSM) warning indicator lights flashes and the warni ng beep is activated
simultaneously.
(With rear view monitor)
The RCTA warning indication in t he rearview monitor also synchronizes with the Blind
Spot Monitoring (BSM) warning indicator light on the door mirro rs.
(With rear view monitor)
WA R N I N G
Always check the surrounding area visually before actually putting the vehicle in reverse:
The system is only designed to assist you in checking for vehicles at the rear when putting the
vehicle in reverse. Due to certain limitations with the operation of this system, the Blind Spot
Monitoring (BSM) warning indicator lights may not flash or it might be delayed even though
a vehicle is behind your vehicl e. Always make it your responsibility as a driver to check the
rear.
NOTE
•In the following cases, the Blind Spot Monitoring (BSM) OFF indicator light turns on and
operation of the system is stopped. If the Blind Spot Monitoring (BSM) OFF indicator
light remains illuminated, have the vehicle inspected at an Authorized Mazda Dealer as
soon as possible.
•Some problem with the system including the Blind Spot Monitoring (BSM) warning
indicator lights has occurred.
When Driving
i-ACTIVSENSE
4-109
CX-5_8GN5-EA-17J_Edition1 2017-8-18 12:58:27

•A large deviation in the installation position of a radar sensor (rear) on the vehicle has
occurred.
•There is a large accumulation of snow or ice on the rear bumper near a radar sensor
(rear).
•Driving on snow-covered roads for long periods.
•The temperature near the radar sensors becomes extremely hot due to driving for long
periods on slopes during the summer.
•The battery voltage has decreased.
•Under the following conditions, the radar sensors (rear) cannot detect target objects or it
may be difficult to detect them.
•The vehicle speed when reversing is about 15 km/h (9 mph) or faster.
•The radar sensor (rear) detection area is obstructed by a nearby wall or parked vehicle.
(Reverse the vehicle to a position where the radar sensor detection area is no longer
obstructed.)
Your vehicle
•A vehicle is approaching directly from the rear of your vehicle.
Your vehicle
•The vehicle is parked on a slant.
Your vehicle
•Directly after the Blind Spot Monitoring (BSM) system becomes operable using the
personalization feature.
•Radio wave interference from a radar sensor equipped on a nearby parked vehicle.
When Driving
i-ACTIVSENSE
4-110
CX-5_8GN5-EA-17J_Edition1 2017-8-18 12:58:27

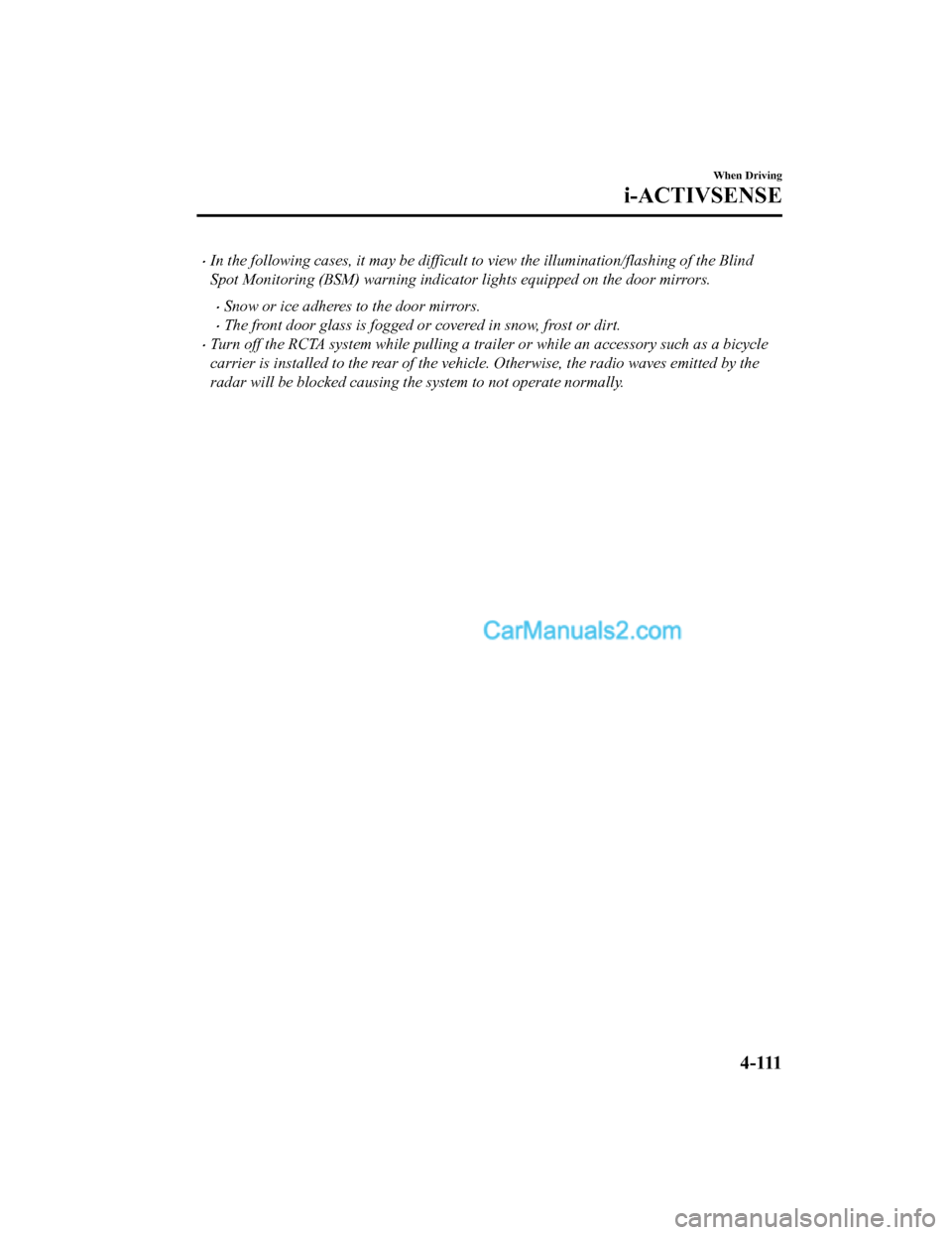

•In the following cases, it may be difficult to view the illumination/flashing of the Blind
Spot Monitoring (BSM) warning indicator lights equipped on the door mirrors.
•Snow or ice adheres to the door mirrors.
•The front door glass is fogged or covered in snow, frost or dirt.
•Turn off the RCTA system while pulling a trailer or while an accessory such as a bicycle
carrier is installed to the rear of the vehic le. Otherwise, the radio waves emitted by the
radar will be blocked causing the system to not operate normally.
When Driving
i-ACTIVSENSE
4 - 111
CX-5_8GN5-EA-17J_Edition1 2017-8-18 12:58:27

Mazda Radar Cruise Control with Stop & Go function(MRCC with Stop & Go function)
*
The MRCC with Stop & Go function system is designed to maintain headway control*1
with a vehicle ahead according to your vehicle's speed using a radar sensor (front) to detect
the distance to the vehicle ahead and a preset vehicle speed wi thout you having to use the
accelerator or brake pedals.
*1 Headway Control: Control of the distance between your vehicle and the vehicle ahead
detected by the Mazda Radar Cruise Control (MRCC) system.
Additionally, if your vehicle starts closing in on the vehicle ahead such as if the vehicle
ahead brakes suddenly, a warning sound and a warning indication in the display are
activated simultaneously to alert you to maintain a sufficient distance between the vehicles.
If the vehicle ahead stops while you are following behind it, y our vehicle will stop and be
held stopped automatically (stop hold control), and headway con trol will resume when you
resume driving the vehicle such as by pressing the RES switch.
Also refer to the following befo re using the MRCC with Stop & G o function.
•AUTOHOLD (page 4-69)
•Forward Sensing Camera (FSC) (page 4-147)
•Radar sensor (front) (page 4-152)
WA R N I N G
Do not rely completely on the MRCC with Stop & Go function:
The MRCC with Stop & Go function system has detection limitations depending on the type of
vehicle ahead and its conditions, the weather conditions, and the road conditions.
Additionally, the system may be unable to dece lerate sufficiently to avoid hitting the vehicle
ahead if the vehicle ahead applies the brakes sudd enly or another vehicle cuts into the driving
lane, which could result in an accident.
Always drive carefully and verify the surroundi ng conditions and depress the brake pedal or
accelerator pedal while keeping a safer distance from vehicles ahead or on-coming vehicles.
Do not use the MRCC with Stop & Go function system in the following locations, using the
MRCC with Stop & Go function system at the following locations may result in an unexpected
accident:
 General roads other than high ways (Driving under these conditions using the MRCC with
Stop & Go function system is not possible.)
 Roads with sharp curves and where vehicle
traffic is heavy and there is
insufficient space
between vehicles.
When Driving
i-ACTIVSENSE
4-112*Some models.
CX-5_8GN5-EA-17J_Edition1 2017-8-18 12:58:27

Roads where frequent and repetitive accelerati on and deceleration occur (Driving under
these conditions using the MRCC with Stop & Go function system is not possible).
 When entering and exiting interchanges, servic e areas, and parking areas of highways (If
you exit a highway while headway control is in use, the vehicle ahead will no longer be
tracked and your vehicle may a ccelerate to the set speed).
 Slippery roads such as ice or snow-bound roads (Tires could spin causing you to lose vehicle
control, or the stop hold control may not operate.)
 Long, descending slopes (to maintain distance between vehicles, the system automatically
and continuously applies the brakes which could result in the loss of brake power.)
 Slopes with a steep gradient (The vehicle ahea d may not be detected correctly, your vehicle
may slide while stopped by the stop hold control, and it may accelerate suddenly after it
starts moving.)
For safety purposes, switch the MRCC with Stop & Go function system off when it is not being
used.
Do not get out of the vehicle while the stop hold control is operating:
Getting out of the vehicle while the stop hold co ntrol is operating is dangerous as the vehicle
may move unexpectedly and result in an accident . Before getting out of the vehicle, switch the
MRCC with Stop & Go function system off, shift the selector lever to the P position, and apply
the electric parking brake (EPB).
CAUTION
If your vehicle is towed or you are towing something, switch the MRCC with Stop & Go
function system off to prevent a miss-operation.
NOTE
•The MRCC with Stop & Go function system do es not detect the following as physical
objects.
•Vehicles approaching in the opposite direction
•Pedestrians
•Stationary objects (stopped vehicles, obstructions)
•If a vehicle ahead is traveling at an extremely low speed, the system may not detect it
correctly.
•During headway control travel, do not set the system for detection of two-wheeled
vehicles such as motorcycles and bicycles.
•Do not use the MRCC with Stop & Go function system under conditions in which close
proximity warnings are frequently activated.
When Driving
i-ACTIVSENSE
4-113
CX-5_8GN5-EA-17J_Edition1 2017-8-18 12:58:27

•During headway control travel, the system accelerates and decelerates your vehicle in
conjunction with the speed of the vehicle ahead. However, if it is necessary to accelerate
for a lane change or if the vehicle ahead brakes suddenly causing you to close in on the
vehicle rapidly, accelerate using the accelerator pedal or decelerate using the brake
pedal depending on the conditions.
•While the MRCC with Stop & Go function system is in use, it does not cancel even if the
selector lever is operated and any intended engine braking does not occur. If deceleration
is required, lower the set speed or depress the brake pedal.
•The sound of the automatic brakes operating may be heard, however, it does not indicate
a problem.
•The brake lights turn on while the MRCC with Stop & Go function automatic braking is
operating.
â–¼ Mazda Radar Cruise Control with
Stop & Go function (MRCC with Stop & Go
function) Display Indication
The MRCC with Stop & Go function setting status and operation c onditions are indicated
on the multi-information display and the active driving display.
MRCC Distance
between vehicle
display
MRCC Set vehicle speed Vehicle ahead display
Vehicle ahead display
MRCC Distance
between vehicle
display
MRCC Set
vehicle speed
Active driving display
Multi-information display
If there is a problem with the MRCC with Stop & Go function sys tem, a message is
displayed on the multi-information display. Check the center di splay to verify the problem
and then have your vehicle inspected by an Authorized Mazda Dea ler.
Refer to Message Indicated on Display on page 7-40.
When Driving
i-ACTIVSENSE
4-114
CX-5_8GN5-EA-17J_Edition1 2017-8-18 12:58:27
