CAUTION
In the following cases, turn the system off to prevent a mis-operation:
The vehicle is being towed or when towing another vehicle.
 The vehicle is on a chassis roller.
 When driving on rough roads such as in areas of dense grass or off-road.
Refer to Stopping the Advanced Smart City Brake Support (Advanced SCBS) System Operation
on page 4-139 on how to turn off the Advanced SCBS system.
NOTE
•The Advanced SCBS system will operate under the following conditions.
•The engine is running.
•The Smart City Brake Support (SCBS) wa rning light (amber) does not illuminate.
•(Object is vehicle ahead)
The vehicle speed is between about 4 to 80 km/h (2 to 50 mph).
•(Object is a pedestrian)
The vehicle speed is between about 10 to 80 km/h (6.2 to 50 mph).
•The Advanced SCBS system is not turned off.
•Under the following conditions, the Advan ced SCBS system may not operate normally:
•The Advanced SCBS system will not operate if the driver is deliberately performing
driving operations (accelerator pedal and steering wheel).
•If there is the possibility of partial contact with a vehicle ahead.
•The vehicle is driven on a slippery road surface such as wet roads or icy or snow-bound
roads.
•The braking performance is adversely affected due to cold temperatures or wet brakes.
•The vehicle is driven at the same speed as the vehicle ahead.
•The accelerator pedal is depressed.
•The brake pedal is depressed.
•The steering wheel is being operated.
•The selector lever is being operated.
•In the following cases, the Advanced SCBS may operate.
•Objects on the road at the entrance to a curve.
•Vehicles passing in the opposite lane while making a curve.
•When passing through a toll gate.
•When passing through low gates, narrow gates, car washing machines, or tunnels.
•If you suddenly come close to a vehicle ahead.
•2-wheeled vehicles, animals, or standing trees.
When Driving
i-ACTIVSENSE
4-137
CX-5_8GN5-EA-17J_Edition1 2017-8-18 12:58:27

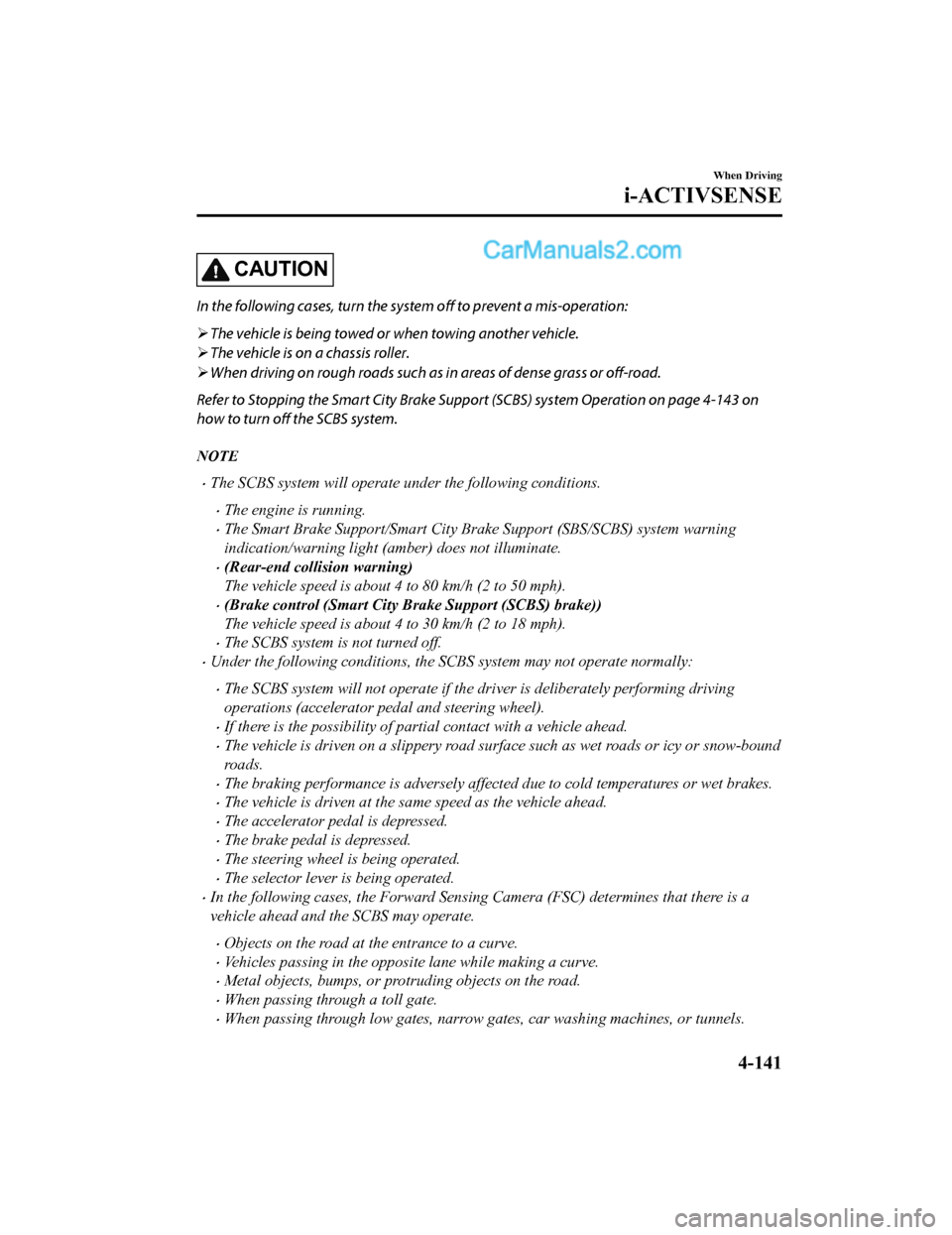

CAUTION
In the following cases, turn the system off to prevent a mis-operation:
The vehicle is being towed or when towing another vehicle.
 The vehicle is on a chassis roller.
 When driving on rough roads such as in areas of dense grass or off-road.
Refer to Stopping the Smart Ci ty Brake Support (SCBS) system Operation on page 4-143 on
how to turn off the SCBS system.
NOTE
•The SCBS system will operate under the following conditions.
•The engine is running.
•The Smart Brake Support/Smart City Brake Support (SBS/SCBS) system warning
indication/warning light (amber) does not illuminate.
•(Rear-end collision warning)
The vehicle speed is about 4 to 80 km/h (2 to 50 mph).
•(Brake control (Smart City Brake Support (SCBS) brake))
The vehicle speed is about 4 to 30 km/h (2 to 18 mph).
•The SCBS system is not turned off.
•Under the following conditions, the SCBS system may not operate normally:
•The SCBS system will not operate if the dr iver is deliberately performing driving
operations (accelerator pedal and steering wheel).
•If there is the possibility of partial contact with a vehicle ahead.
•The vehicle is driven on a slippery road surface such as wet roads or icy or snow-bound
roads.
•The braking performance is adversely affected due to cold temperatures or wet brakes.
•The vehicle is driven at the same speed as the vehicle ahead.
•The accelerator pedal is depressed.
•The brake pedal is depressed.
•The steering wheel is being operated.
•The selector lever is being operated.
•In the following cases, the Forward Sensing Camera (FSC) determines that there is a
vehicle ahead and the SCBS may operate.
•Objects on the road at the entrance to a curve.
•Vehicles passing in the opposite lane while making a curve.
•Metal objects, bumps, or protruding objects on the road.
•When passing through a toll gate.
•When passing through low gates, narrow gates, car washing machines, or tunnels.
When Driving
i-ACTIVSENSE
4-141
CX-5_8GN5-EA-17J_Edition1 2017-8-18 12:58:27

Smart Brake Support (SBS)*
The SBS system alerts the driver of a possible collision using a display and warning sound
if the radar sensor (front) and the Forward Sensing Camera (FSC ) determine that there is the
possibility of a collision with a vehicle ahead while the vehicle is being driven at about 15
km/h or faster (10 mph or faster). Furthermore, if the radar se nsor (front) and the Forward
Sensing Camera (FSC) determines that a collision is unavoidable , the automatic brake
control is performed to reduce da mage in the event of a collision.
In addition, whe n the driver depresses the brake ped al, the brakes are applied firmly and
quickly to assist. (Brake Assist (SBS brake assist))
WA R N I N G
Do not rely completely on the SBS system and always drive carefully:
The SBS is designed to reduce damage in the ev ent of a collision, not avoid an accident. The
ability to detect an obstruction is limited depending on the obstruction, weather conditions,
or traffic conditions. Therefore, if the accelerator
pedal or brake pedal is mistakenly operated
it could result in an accident. Always verify the safety of the surrounding area and depress the
brake pedal or accelerator pe dal while keeping a safer distance from vehicles ahead or
on-coming vehicles.
CAUTION
In the following cases, turn the system off to prevent a mis-operation:
 The vehicle is being towed or when towing another vehicle.
 The vehicle is on a chassis roller.
 When driving on rough roads such as in areas of dense grass or
off-road.
NOTE
•The SBS system operates when all of the following conditions are met:
•The ignition is switched ON.
•The SBS system is on.
•The vehicle speed is about 15 km/h or faster (10 mph or faster).
•The relative speed between your vehicle and the vehicle ahead is about 15 km/h or
faster (10 mph or faster).
•The Dynamic Stability Control (DSC) is not operating.
When Driving
i-ACTIVSENSE
4-144*Some models.
CX-5_8GN5-EA-17J_Edition1 2017-8-18 12:58:27

The Forward Sensing Camera (FSC) includes a function for detecting a soiled windshield
and informing the driver, however, depending on the conditions, it may not detect plastic
shopping bags, ice or snow on the windshield . In such cases, the system cannot accurately
determine a vehicle ahead and may not be able to operate normally. Always drive carefully
and pay attention to the road ahead.
NOTE
•In the following cases, the Forward Sensing Camera (FSC) cannot detect target objects
correctly, and each system may be unable to operate normally.
•The height of the vehicle ahead is low.
•You drive your vehicle at the same speed as the vehicle ahead.
•Headlights are not turned on during the night or when going through a tunnel.
•In the following cases, the Forward Sensing Camera (FSC) may not be able to detect
target objects correctly.
•Under bad weather condition, such as rain, fog and snow.
•The window washer is being used or the windshield wipers are not used when it's
raining.
•Ice, fog, snow, frost, rainfall, dirt, or foreign matter such as a plastic bag is stuck on the
windshield.
•Trucks with low loading platforms and vehicl es with an extremely low or high profile.
•When driving next to walls with no patterning (including fences and longitudinally
striped walls).
•The taillights of the vehicle ahead are turned off.
•A vehicle is outside the illumi nation range of the headlights.
•The vehicle is making a sharp turn, or ascending or descending a steep slope.
•Entering or exiting a tunnel.
•Heavy luggage is loaded causing the vehicle to tilt.
•Strong light is shone at the front of the vehicle (back light or high-beam light from
on-coming vehicles).
•There are many light emitters on the vehicle ahead.
•When the vehicle ahead is not equipped with taillights or the taillights are turned off at
nighttime.
•Elongated luggage or cargo is loaded onto installed roof rails and covers the Forward
Sensing Camera (FSC).
•Exhaust gas from the vehicle in front, sand, snow, and water vapor rising from
manholes and grating, and water splashed into the air.
•When towing a malfunctioning vehicle.
•The vehicle is driven with tires having significantly different wear.
•The vehicle is driven on down slopes or bumpy roads.
•There are water puddles on the road.
When Driving
i-ACTIVSENSE
4-149
CX-5_8GN5-EA-17J_Edition1 2017-8-18 12:58:27

•The surroundings are dark such as during the night, early evening, or early morning, or
in a tunnel or indoor parking lot.
•The illumination brightness of the headlights is reduced or the headlight illumination is
weakened due to dirt or a deviated optical axis.
•The target object enters the blind spot of the Forward Sensing Camera (FSC).
•A person or object bursts onto the road from the shoulder or cuts right in front of you.
•You change lanes and approach a vehicle ahead.
•When driving extremely close to the target object.
•Tire chains or a temporary spare tire is installed.
•The vehicle ahead has a special shape. For example, a vehicle towing a trailer house or
a boat, or a vehicle carrier carrying a vehicle with its front pointed rearward.
•If the Forward Sensing Camera (FSC) cannot operate normally due to backlight or fog,
the system functions related to the Forward Sensing Camera (FSC) are temporarily
stopped and the following warn ing lights turn on. However, this does not indicate a
malfunction.
•High Beam Control System (HBC) warning light (amber)
•Lane-keep Assist System (LAS) & Lane Departure Warning System (LDWS) warning
indication
•Mazda Radar Cruise Control with Stop & Go function (MRCC with Stop & Go
function) warning indication
•Smart Brake Support/Smart City Brake Support (SBS/SCBS) warning indication/
warning light (amber)
•If the Forward Sensing Camera (FSC) cannot operate normally due to high temperatures,
the system functions related to the Forward Sensing Camera (FSC) are temporarily
stopped and the following warn ing lights turn on. However, this does not indicate a
malfunction. Cool down the area around the Forward Sensing Camera (FSC) such as by
turning on the air conditioner.
•High Beam Control System (HBC) warning light (amber)
•Lane-keep Assist System (LAS) & Lane Departure Warning System (LDWS) warning
indication
•Mazda Radar Cruise Control with Stop & Go function (MRCC with Stop & Go
function) warning indication
•Smart Brake Support/Smart City Brake Support (SBS/SCBS) warning indication/
warning light (amber)
When Driving
i-ACTIVSENSE
4-150
CX-5_8GN5-EA-17J_Edition1 2017-8-18 12:58:27

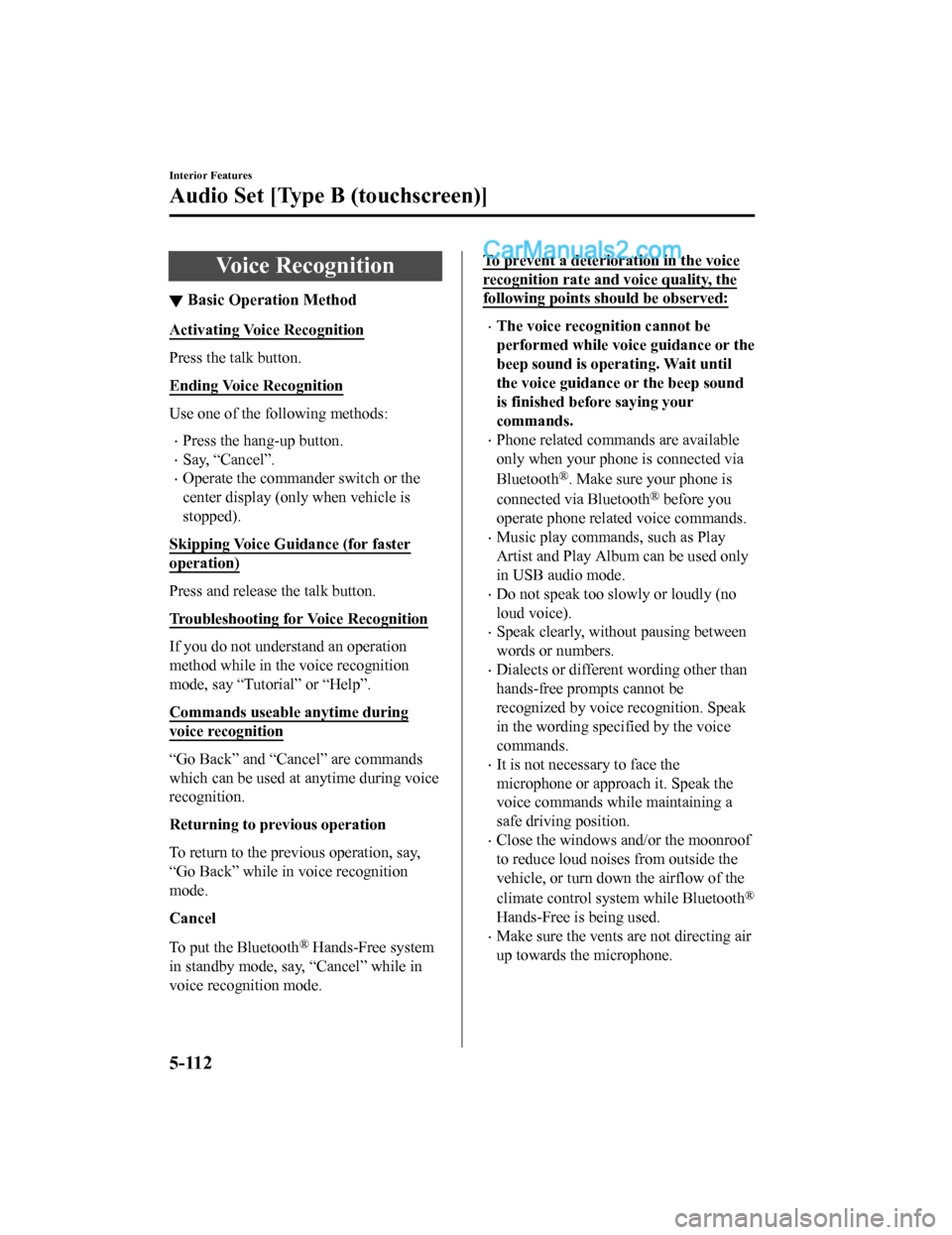

•Speak clearly, without pausing between
words or numbers.
•Close the windows to reduce loud noises
from outside the vehicle, or turn down
the airflow of the climate control system
while Bluetooth
® Hands-Free is being
used.
•Make sure the vents are not directing air
up towards the microphone.
NOTE
If the voice recognition performance is not
satisfactory.
Refer to Voice Recognition Learning
Function (Speaker Enrollment) (Type A)
on page 5-58.
Refer to Troubleshooting on page 5-61.
Voice Recognition
Learning Function
(Speaker Enrollment)
The voice recognition learning function
enables voice recognition appropriate to
the characteristics of the user's voice. If
the recognition of the voice input
commands to the system is not adequate,
this function can l argely improve the
system's voice recognition of the user. If
your voice can be recognized sufficiently
without using this function, you may not
realize the added bene fit of the function.
To register your voice, the voice input
command list must be read out. Read out
the list when the vehicle is parked.
Perform the registratio n in as quiet a place
as possible (page 5- 57). The registration
must be performed completely. The
required time is a few minutes. The user
needs to be seated in the driver's seat with
the voice input command list for voice
recognition learning visible.
▼ When voice recognit
ion learning is
done for the first time
1. Press the pick-up button or talk button with a short press.
2. Say: [Beep] “Voice training”
3. Prompt: “This operation must be
performed in a quiet environment
while the vehicle is stopped. See the
owner's manual for the list of required
training phrases. Press and release the
talk button when you are ready to
begin. Press the hang-up button to
cancel at any time.”
4. Press the talk button with a short press.
Interior Features
Audio Set [Type A (non-touchscreen)]
5-58
CX-5_8GN5-EA-17J_Edition1 2017-8-18 12:58:27

Voice Recognition
▼Basic Operation Method
Activating Voice Recognition
Press the talk button.
Ending Voice Recognition
Use one of the following methods:
•Press the hang-up button.
•Say, “Cancel”.
•Operate the commander switch or the
center display (only when vehicle is
stopped).
Skipping Voice Guidance (for faster
operation)
Press and release the talk button.
Troubleshooting for Voice Recognition
If you do not understand an operation
method while in the voice recognition
mode, say “Tutorial” or “Help”.
Commands useable anytime during
voice recognition
“Go Back” and “Cancel” are commands
which can be used at anytime during voice
recognition.
Returning to previous operation
To return to the previous operation, say,
“Go Back” while in voice recognition
mode.
Cancel
To put the Bluetooth
® Hands-Free system
in standby mode, say, “Cancel” while in
voice recognition mode.
To prevent a deterioration in the voice
recognition rate and voice quality, the
following points should be observed:
•The voice recognition cannot be
performed while voi ce guidance or the
beep sound is operating. Wait until
the voice guidance or the beep sound
is finished before saying your
commands.
•Phone related commands are available
only when your phone is connected via
Bluetooth
®. Make sure your phone is
connected via Bluetooth
® before you
operate phone related voice commands.
•Music play commands, such as Play
Artist and Play Album can be used only
in USB audio mode.
•Do not speak too sl owly or loudly (no
loud voice).
•Speak clearly, without pausing between
words or numbers.
•Dialects or different wording other than
hands-free prompts cannot be
recognized by voice recognition. Speak
in the wording specified by the voice
commands.
•It is not necessary to face the
microphone or approach it. Speak the
voice commands while maintaining a
safe driving position.
•Close the windows and/or the moonroof
to reduce loud noises from outside the
vehicle, or turn dow n the airflow of the
climate control system while Bluetooth
®
Hands-Free is being used.
•Make sure the vents are not directing air
up towards the microphone.
Interior Features
Audio Set [Type B (touchscreen)]
5-112
CX-5_8GN5-EA-17J_Edition1 2017-8-18 12:58:27

Weak signal noise
In suburban areas, broadcast signals
become weak because of distance from the
transmitter. Reception in such fringe areas
is characterized by sound breakup.
Strong signal noise
This occurs very close to a transmitter
tower. The bro adcast signals are extremely
strong, so the result is noise and sound
breakup at the radio receiver.
Station drift noise
When a vehicle reaches the area of two
strong stations broadcasting at similar
frequencies, the original station may be
temporarily lost and the second station
picked up. At this time there will be some
noise from this disturbance.
Station 2
88.3 MHz
Station 1
88.1 MHz
▼
Operating Tips for MP3
MP3 stands for MPEG
Audio Layer 3, which
is standardized voice c ompression established
by the ISO
*1 working group (MPEG).
Use of MP3 allows for audio data to be
compressed to approximately a tenth of
the source data size.
This unit plays files with the extension
(.mp3) as MP3 files.
*1 International Organization for Standardization
CAUTION
Do not use an audio file extension on files
other than audio files. In addition, do not
change the audio file extension. Otherwise,
the unit will not recognize the file correctly
resulting in noise or a malfunction.
NOTE
Supply of this product only conveys a license
for private, non-commercial use and does not
convey a license nor imply any right to use this
product in any commercial (i.e.
revenue-generating) real time broadcasting
(terrestrial, satellite, cable and/or any other
media), broadcasting/streaming via the
Internet, intranets and/or other networks or in
other electronic content distribution systems,
such as pay-audio or audio-on-demand
applications. An independent license for such
use is required. For details, please visit http://
www.mp3licensing.com.
•When naming an MP3 file, be sure to
add an MP3 file extension (.mp3) after
the file name.
•The number of characters which can be
displayed is restricted.
Interior Features
Appendix
5-124
CX-5_8GN5-EA-17J_Edition1 2017-8-18 12:58:27

Storage Compartments
WA R N I N G
Keep storage boxes closed when driving:
Driving with the storage boxes open is
dangerous. To reduce the possibility of
injury in an accident or a sudden stop, keep
the storage boxes closed when driving.
Do not put articles in storage spaces with
no lid:
Putting articles in st orage spaces with no
lid is dangerous as they could be thrown
around the cabin if th e vehicle is suddenly
accelerated and cause injury depending on
how the article is stored.
CAUTION
Do not leave lighters or eyeglasses in the
storage boxes while parked under the sun.
A lighter could explode or the plastic
material in eyeglasses could deform and
crack from high temperature.
▼ Overhead Console
This console box is designed to store
eyeglasses or other accessories.
Push and release to open.
▼Glove Compartment
To open the glove compartment, pull the
latch toward you.
To close the glove
compartment, firmly
press in the center of the glove
compartment lid.
▼ Center Console
To open, pull the release latch.
Storage tray
The storage tray can be removed.
Storage tray
Interior Features
Interior Equipment
5-135
CX-5_8GN5-EA-17J_Edition1
2017-8-18 12:58:27

7If Trouble Arises
Helpful information on what to do if a problem arises with the vehicle.
Parking in an Emergency................. 7-2 Parking in an Emergency..............7-2
Flat Tire.............................................. 7-3 Spare Tire and Tool Storage......... 7-3
Changing a Flat Tire..................... 7-6
Battery Runs Out............................ 7-14 Jump-Starting............................. 7-14
Emergency Starting.........................7-17 Starting a Flooded Engine.......... 7-17
Push-Starting.............................. 7-17
Overheating......................................7-18 Overheating................................ 7-18
Emergency Towing.......................... 7-20 Towing Description.................... 7-20
Tiedown Hooks
*......................... 7-21
Warning/Indicator Lights and
Warning Sounds.............................. 7-23If a Warning Light Turns On or
Flashes........................................ 7-23
Message Indicated in Multi-
information Display
*.................. 7-38
Message Indicated on Display
*..........
.................................................... 7-40
Warning Sound is Activated....... 7-42
When Liftgate Cannot be
Opened..............................................7-47 When Liftgate Cannot be
Opened........................................7-47
Active Driving Display Does Not
Operate............................................. 7-48 If the Active Driving Display Does
Not Operate................................ 7-48
*Some models.7-1
CX-5_8GN5-EA-17J_Edition1 2017-8-18 12:58:27
