Ta bI t e m E x p l a n a t i o n
Tire Rotation Setting
Notification can be switched on/off.
Distance (km or
mile) Displays the distance until tire rotation is due.
Select this item to set the tire rotation distance.
The wrench indication/indicator
light in the instrument cluster will be illu-
minated when the remaining dista nce is less than 1,000 km or 600 mile.
Reset Resets the remaining distance to the initial value.
Once the system turns on, it need
s to be reset whenever rotating the tires.
Oil Change Setting Interval
Oil replacement period can be se
lected from the flexible setting or fixed
setting, or it can be set to non-display.
The flexible setting is availabl e only in the United States and Puerto Rico.
Once engine oil flexible maintenance is selected, the vehicle c alculates
the remaining oil life based on the engine operating conditions. The vehi-
cle lets you know when an oil change is due by illuminating the wrench
indicator light in the instrument cluster.
Distance (km or
mile)
(Displays only in
fixed setting) Displays the distance until the oil replacement is due.
Select this item to set the oil replacement distance.
The wrench indication/indicator
light in the instrument cluster will be illu-
minated when the remaining dista nce is less than 1,000 km or 600 mile.
Oil life (km or
mile)
(Displays only in
flexible setting) Displays the engine oil life unt
il the oil replacement is due.
The wrench indication/indicator light in the instrument cluster will be illu-
minated when the remaining oil li fe distance is less than 1,000 km or 600
mile.
Reset Resets the remaining distance to the initial value.
Once the system turns on, it need
s to be reset whenever replacing the en-
gine oil.
Maintenance and Care
Scheduled Maintenance
6-11
CX-5_8GN5-EA-17J_Edition1 2017-8-18 12:58:27

Owner Maintenance Precautions
The owner or a qualified service technician should make these vehicle inspections at the
indicated intervals to ensure safe and dependable operation.

Bring any problem to the attention of an Authorized Mazda Deale r or qualified service
technician as soon as possible.
When Refueling
•Brake fluid level (page 6-20)
•Engine coolant level (page 6-18)
•Engine oil level (page 6-17)
•Washer fluid level (page 6-20)
At Least Monthly
•Tire inflation pressures (page 6-31)
At Least Twice a Year (For Example, Every Spring and Fall)
You can do the following schedu led maintenance items if you hav e some mechanical ability
and a few basic tools and if you closely follow the directions in this manual.
•Engine coolant (page 6-18)
•Engine oil (page 6-17)

Improper or incomplete service may result in problems. This sec tion gives instructions only
for items that are easy to perform.

As explained in the Introduction (page 6-2), several procedures can be done only by a
qualified service technician with special tools.

Improper owner maintenance during the warranty period may affec t warranty coverage.
Refer to Introduction (page 6-2) for owner's responsibility in protecting your investment.
For details, read the separate Mazda Warranty statement provide d with the vehicle. If you
are unsure about any servicing or maintenance procedure, have i t done by an Authorized
Mazda Dealer.

There are strict environmental laws regarding the disposal of w aste oil and fluids. Please
dispose of your waste properly and with due regard to the envir onment.

We recommend that you entrust the oil and fluid changes of your vehicle to an Authorized
Mazda Dealer.
Maintenance and Care
Owner Maintenance
6-12
CX-5_8GN5-EA-17J_Edition1 2017-8-18 12:58:27

WA R N I N G
Do not perform maintenance work if you lack sufficient knowledge and experience or the
proper tools and equipment to do the work. Have maintenance work done by a qualified
technician:
Performing maintenance work on a vehicle is dangerous if not done properly. You can be
seriously injured while performing some maintenance procedures.
If you must run the engine while working under the hood, make certain that you remove all
jewelry (especially rings, bracelets, watches, and necklaces) and all neckties, scarves, and
similar loose clothing before getting near the engine or cooling fan which may turn on
unexpectedly:
Working under the hood with the engine running is dangerous. It becomes even more
dangerous when you wear jewelry or loose clothing.
Either can become entangled in moving parts and result in injury.
Pull over to a safe location, then switch the ignition off and make sure the fan is not
running before attempting to work near the cooling fan:
Working near the cooling fan when it is running is dangerous. The fan could continue running
indefinitely even if the engine has stopped and the engine compartment temperature is high.
You could be hit by the fan and seriously injured.
Do not leave items in the engine compartment:
After you have finished checking or doing servicing in the engine compartment, do not forget
and leave items such as tools or rags in the engine compartment.
Tools or other items left in the engine compartment could cause engine damage or a fire
leading to an unexpected accident.
Maintenance and Care
Owner Maintenance
6-13
CX-5_8GN5-EA-17J_Edition1 2017-8-18 12:58:27

Hood
WA R N I N G
Always check that the hood is closed and
securely locked:
A hood that is not closed and securely
locked is dangerous as it could fly open
while the vehicle is moving and block the
driver's vision which could result in a
serious accident.
▼ Opening the Hood
1. With the vehicle parked, pull the
release handle to unlock the hood.

Release handle
2. Insert your hand into the hood
opening, slide the latch lever to the
right, and lift up the hood.

Lever
3. Grasp the support rod in the padded
area and secure it in the support rod
hole indicated by the arrow to hold the
hood open.

Pad
Support rod
Maintenance and Care
Owner Maintenance
6-14
CX-5_8GN5-EA-17J_Edition1 2017-8-18 12:58:27

▼Closing the Hood
1. Check under the hood area to make
certain all filler caps are in place and
all loose items (e.g. tools, oil
containers, etc.) have been removed.
2. Lift the hood, grasp the padded area on the support rod, and secure the support
rod in the clip. Verify that the support
rod is secured in the clip before closing
the hood.

Clip ClipClip
3. Lower the hood slowly to a height of
about 20 cm (7.9 in) above its closed
position and then let it drop.
CAUTION
When closing the hood, do not push it
excessively such as by applying your
weight. Otherwise, the hood could be
deformed.
Maintenance and Care
Owner Maintenance
6-15
CX-5_8GN5-EA-17J_Edition1 2017-8-18 12:58:27

Engine Compartment Overview
Windshield washer fluid reservoirEngine oil-filler capBrake fluid reservoir
Engine oil-dipstick Battery
Fuse block
Cooling system cap Engine coolant reservoir
Maintenance and Care
Owner Maintenance
6-16
CX-5_8GN5-EA-17J_Edition1 2017-8-18 12:58:27

Engine Oil
NOTE
Changing the engine oil should be
performed by an Authorized Mazda
Dealer.
Refer to Introduction (page 6-2) for
owner's responsibility in protecting your
investment.
▼Recommended Oil
Use SAE 0W-20 engine oil.
Mazda Genuine Oil is used in your Mazda
vehicle. Mazda Genuine 0W-20 Oil is
required to achie
ve optimum fuel
economy.

For maintenance service, Mazda
recommends Mazda Genuine Parts and
Castrol
® (U.S.A. only).


(ILSAC)
Only use SAE 0W-20 o il “Certified For
Gasoline Engines” by the American
Petroleum Institute (API).
Oil with this tradem ark symbol conforms
to the current engine and emission system
protection standards and fuel economy
requirements of the International
Lubricant Standardization and Approval
Committee (ILSAC), comprised of U.S.
and Japanese automobile manufacturers.

80
60
40
20
0
–40 –20
30
100
40
20
10
0
–10
–20
–30
–40
▼ Vehicle Engine Control Unit Reset
Procedure
After replacing the engine oil, it is
recommended to have a repair shop such
as an Authorized Mazda Dealer perform
the initialization (engine oil data resetting)
of the recorded value. If the value
recorded by the computer is not initialized,
the wrench indicator light may not turn off
or it may turn on earlier than normal.
Refer to Maintenance Monitor on page
6-10.
▼Inspecting Engine Oil Level
1. Be sure the vehicle is on a level
surface.
2. Warm up the engine to normal operating temperature.
3. Turn it off and wait at least 5 minutes
for the oil to return to the oil pan.
Maintenance and Care
Owner Maintenance
6-17
CX-5_8GN5-EA-17J_Edition1 2017-8-18 12:58:27

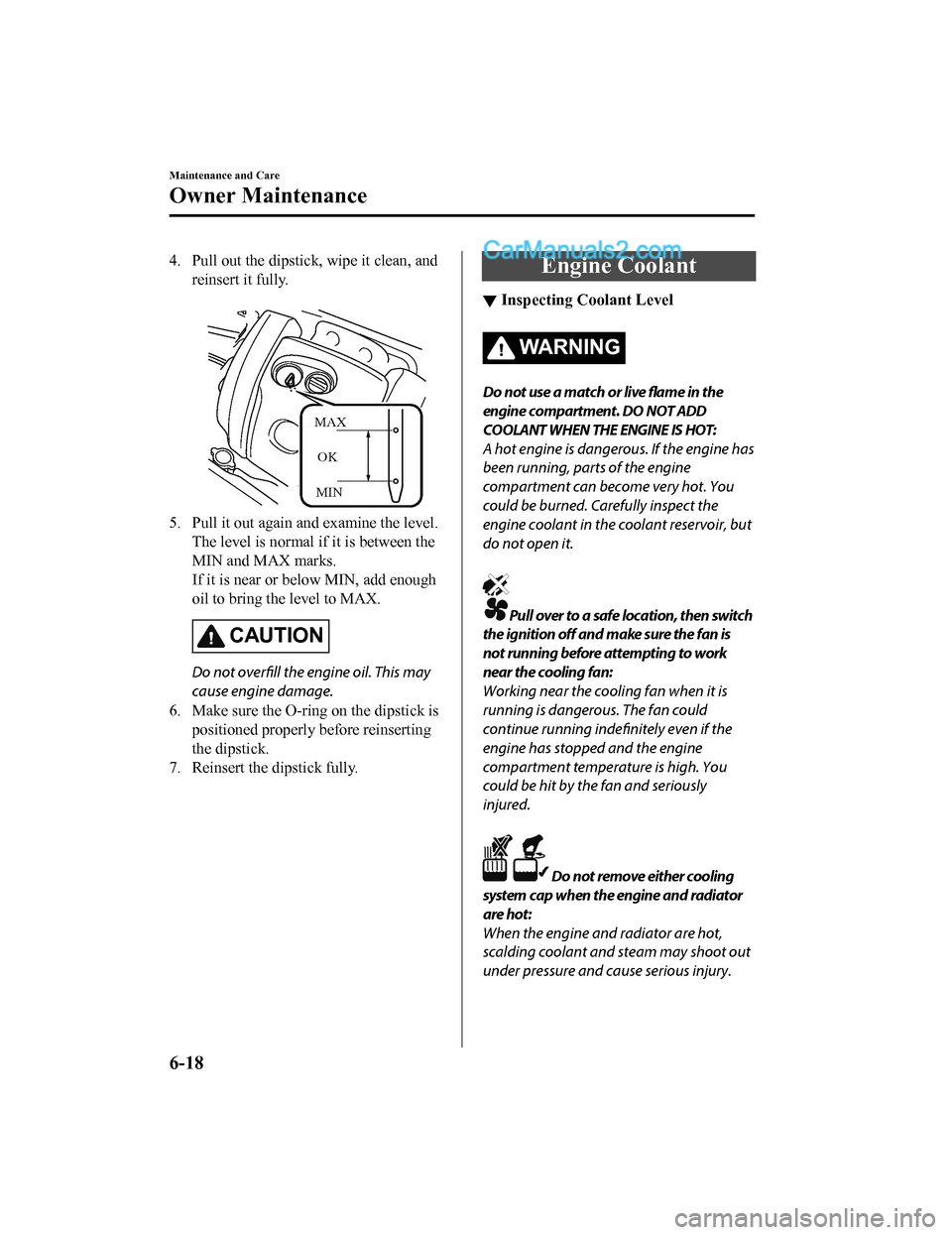

4. Pull out the dipstick, wipe it clean, and
reinsert it fully.

MAX
OK
MIN
5. Pull it out again and examine the level. The level is normal if it is between the
MIN and MAX marks.
If it is near or below MIN, add enough
oil to bring the level to MAX.
CAUTION
Do not overfill the engine oil. This may
cause engine damage.
6. Make sure the O-ring on the dipstick is positioned properly before reinserting
the dipstick.
7. Reinsert the dipstick fully.
Engine Coolant
▼ Inspecting Coolant Level
WA R N I N G
Do not use a match or live flame in the
engine compartment. DO NOT ADD
COOLANT WHEN THE ENGINE IS HOT:
A hot engine is dangerous. If the engine has
been running, parts of the engine
compartment can become very hot. You
could be burned. Carefully inspect the
engine coolant in the coolant reservoir, but
do not open it.
Pull over to a safe location, then switch
the ignition off and make sure the fan is
not running before attempting to work
near the cooling fan:
Working near the cooling fan when it is
running is dangerous. The fan could
continue running indefinitely even if the
engine has stopped and the engine
compartment temperature is high. You
could be hit by the fan and seriously
injured.
Do not remove either cooling
system cap when the engine and radiator
are hot:
When the engine and radiator are hot,
scalding coolant and steam may shoot out
under pressure and cause serious injury.
Maintenance and Care
Owner Maintenance
6-18
CX-5_8GN5-EA-17J_Edition1 2017-8-18 12:58:27

NOTE
Changing the coolant should be done by
an Authorized Mazda Dealer.
Inspect the antifreeze protection and
coolant level in the coolant reservoir at
least once a year―at the beginning of the
winter season―and before traveling where
temperatures may drop below freezing.

Inspect the condition and connections of
all cooling system and heater hoses.
Replace any that are swollen or
deteriorated.

The coolant should be at full in the
radiator and between the F and L marks on
the coolant reservoir when the engine is
cool.

If it is at or near L, add enough coolant to
the coolant reservoir to provide freezing
and corrosion protection and to bring the
level to F.
Securely tighten the coolant reservoir tank
cap after adding coolant.
CAUTION
 Radiator coolant will damage paint.
Rinse it off quickly if spilled.
If the “FL22” mark is shown on or near
the cooling system cap, use of FL-22 is
recommended when replacing engine
coolant. Using engine coolant other than
FL-22 may cause serious damage to the
engine and cooling system.

If the coolant reservoir is empty or new
coolant is required frequently, consult an
Authorized Mazda Dealer.
Maintenance and Care
Owner Maintenance
6-19
CX-5_8GN5-EA-17J_Edition1 2017-8-18 12:58:27

Brake Fluid
▼Inspecting Brake Fluid Level
WA R N I N G
If the brake fluid level is low, have the
brakes inspected:
A low brake
fluid level is dangerous.
A low level could indica te brake lining wear
or a brake system leak which could cause
the brakes to fail and lead to an accident.
Inspect the fluid level in the reservoir
regularly. It should be kept between the
MAX and MIN lines.
The level normally drops with
accumulated distance, a condition
associated with wear of brake linings. If it
is excessively low, have the brake system
inspected by an Authorized Mazda Dealer.
Washer Fluid
▼ Inspecting Washer Fluid Level
WA R N I N G
Use only windshield washer fluid or plain
water in the reservoir:
Using radiator antifreeze as washer
fluid is
dangerous. If sprayed on the windshield, it
will dirty the windshield, affect your
visibility, and could result in an accident.
Using Washer Fluid Without Anti-freeze
Protection in Cold Weather:
Operating your vehicle in temperatures
below 4 degrees C (40 degrees F) using
washer fluid without anti-freeze protection
is dangerous as it could cause impaired
windshield vision and result in an accident.
In cold weather, always use washer fluid
with anti-freeze protection.
Maintenance and Care
Owner Maintenance
6-20
CX-5_8GN5-EA-17J_Edition1 2017-8-18 12:58:27
