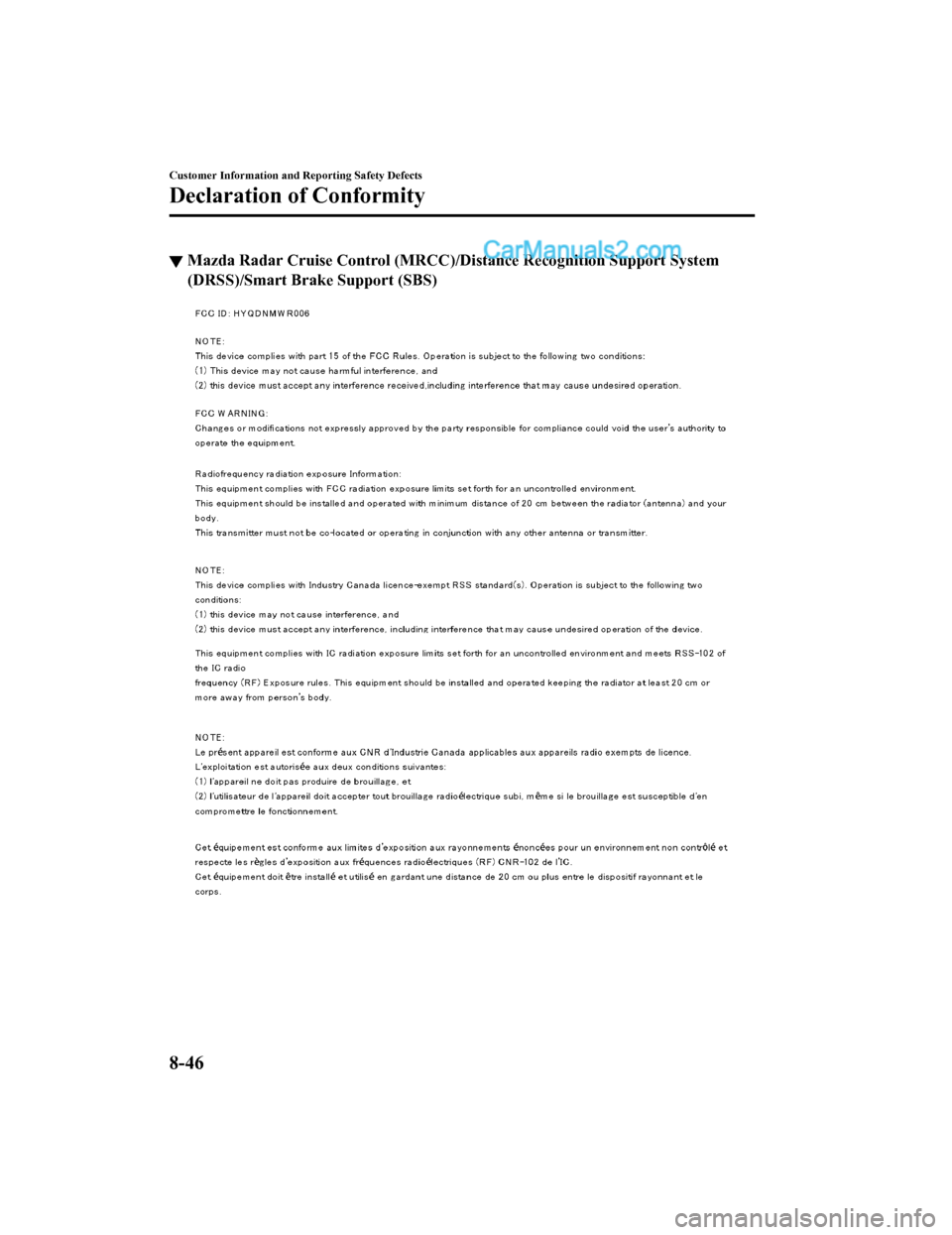

▼Mazda Radar Cruise Control (MRCC
)/Distance Recognition Support System
(DRSS)/Smart Brake Support (SBS)
Customer Information and Reporting Safety Defects
Declaration of Conformity
8-46
CX-5_8GN5-EA-17J_Edition1 2017-8-18 12:58:27

9Specifications
Technical information about your Mazda.
Identification Numbers..................... 9-2 Vehicle Information Labels.......... 9-2
Specifications..................................... 9-4 Specifications............................... 9-4
Personalization Featur es...................9-9
Personalization Features............... 9-9
9-1
CX-5_8GN5-EA-17J_Edition1 2017-8-18 12:58:27

Vehicle InformationLabels
▼Vehicle Identification Number
The vehicle identification number legally
identifies your vehicle. The number is on a
plate attached to the cowl panel located on
the left corner of the dashboard. This plate
can easily be seen through the windshield.
▼Motor Vehicle Safety Standard
Label
▼ Chassis Number
Open the cover shown in the figure to
check the chassis number.
▼Vehicle Emission Control
Information Label
▼Tire Pressure Label
Specifications
Identification Numbers
9-2
CX-5_8GN5-EA-17J_Edition1
2017-8-18 12:58:27

▼Engine Number
Forward
Specifications
Identification Numbers
9-3
CX-5_8GN5-EA-17J_Edition1
2017-8-18 12:58:27

Specifications
▼Engine
Item
Specification
Type DOHC-16V in-line, 4-cylinder
Bore × Stroke 89.0 × 100 mm (3.50 × 3.94 in)
Displacement 2,488.5 ml (2,488.5 cc)
Compression ratio 13.0
▼Electrical System
Item
Classification
Battery 12V-60Ah/20HR or 12V-65Ah/20HR
Spark-plug number Mazda Genuine spark plug
*1PE5R-18-110 or PE5S-18-110
*1 The spark plugs provide the SKY ACTIV-G its optimum performance. Consult an Authorized Mazda Dealer
for details.
CAUTION
When cleaning the iridium plugs, do not use a wire brush. The
fine particulate coating on the
iridium alloy and platinum tips could be damaged.
Specifications
Specifications
9-4
CX-5_8GN5-EA-17J_Edition1 2017-8-18 12:58:27

▼Lubricant Quality
Lubricant
Classification
Engine oil Refer to Recommended Oil on page 6-17.
Coolant FL-22 type
Automatic transaxle fluid Mazda Genuine ATF-FZ
Transfer case oil Mazda Long Life Hypoid Gear Oil SG1
Rear differential oil Mazda Long Life Hypoid Gear Oil SG1
Brake fluid SAE J1703 or FMVSS116 DOT-3
NOTE
Refer to Introduction on (page 6-2) for owner's responsibility in protecting your investment.
▼Capacities
(Approximate Quantities)
Item
Capacity
Engine oil With oil filter replacement
4.5 L (4.8 US qt, 4.0 Imp qt)
Without oil filter replacement 4.3 L (4.5 US qt, 3.8 Imp qt)
Coolant 7.4 L (7.8 US qt, 6.5 Imp qt)
Automatic transaxle fluid 8.0 L (8.5 US qt, 7.0 Imp qt)
Transfer case oil 0.45 L (0.48 US qt, 0.40 Imp qt)
Rear differential oil 0.35 L (0.37 US qt, 0.31 Imp qt)
Fuel tank 2WD
56.0 L (14.8 US gal, 12.3 Imp gal)
AWD 58.0 L (15.3 US gal, 12.8 Imp gal)
Check oil and fluid levels with dipsticks or reservoir gauges.
▼Dimensions
Item
Vehicle specification
Overall length 4,550 mm (179.1 in)
Overall width 1,840 mm (72.4 in)
Overall height 1,675 mm (65.9 in)
Front tread 1,596 mm (62.8 in)
Rear tread 1,596 mm (62.8 in)
Wheelbase 2,698 mm (106.2 in)
Specifications
Specifications
9-5
CX-5_8GN5-EA-17J_Edition1 2017-8-18 12:58:27

▼We i g h t s
Item Indication on display
2WD AWD
GVWR (Gross Vehicle Weight Rating) 2,061 kg (4,544 lbs) 2,118 kg (4,669 lbs)
GAWR (Gross Axle Weight
Rating) Front
1,069 kg (2,357 lbs) 1,089 kg (2,401 lbs)
Rear 992 kg (2,187 lbs) 1,029 kg (2,269 lbs)
▼Air Conditioner
The type of refrigerant used is indicated on a label attached t
o the inside of the engine com-
partment. Check the la bel before recharging the refrigerant. Re fer to Climate Control Sys-
tem on page 5-4.
Item Classification
Refrigerant Type HFC134a (R-134a)
Specifications
Specifications
9-6
CX-5_8GN5-EA-17J_Edition1 2017-8-18 12:58:27

▼Light Bulbs
Exterior light
Light bulb Category
Wattage UNECE*1(SAE)
Headlights/Daytime running lights LED
*2― (―)
Parking lights LED type
LED
*2― (―)
Front turn signal lights/Parking lights
*28/8 ― (#7444NA)
Front side-marker lights LED type
LED
*2― (―)
Bulb type 5 W5W (―)
Fog lights
*LED*2― (―)
Side turn signal lights LED
*2― (―)
High-mount brake light LED
*2― (―)
Rear turn signal lights 21WY21W (7443NA)
Brake lights/Taillights/Rear
side-marker lights LED type
LED
*2― (―)
Bulb type 21/5 W21/5W (7443)
Reverse lights LED
*2― (―)
License plate lights 5 W5W (―)
*1 UNECE stands for United Nations Economic Commission for Europe.*2 LED is the abbreviation for Light Emitting Diode.
Interior light
Light bulb Category
Wa t t ag e UNECE*1
Luggage compartment light 8―
Overhead light (Fr ont)/Map lights 8―
Rear map lights 8―
Vanity mirror lights
*2―
*1 UNECE stands for United Nations Economic Commission for Europe.
▼Tires
NOTE
The tires have been optimally matched with the chassis of your vehicle.
When replacing tires, Mazda recommends that you replace tires of the same type originally
fitted to your vehicle. For details, contact an Authorized Mazda Dealer.
Check the tire pressure label for tire size and inflation press
ure.
Refer to Tire Inflation Pressure on page 6-31.
Specifications
Specifications
*Some models.9-7
CX-5_8GN5-EA-17J_Edition1 2017-8-18 12:58:27

Standard tire
Tire sizeInflation pressure
Front Rear
P225/65R17 100H 230 kPa (34 psi)230 kPa (34 psi)
P225/55R19 99V 240 kPa (35 psi)240 kPa (35 psi)
1 person's weight: About 75 kg
Temporary spare tire
Tire size Inflation pressure
T145/90D16 106M 420 kPa (60 psi)
Lug nut tightening torque
When installing a tire, tighten the lug nut to the following torque.
108―147 N·m (12―14 kgf·m, 80―108 ft·lbf)
▼ Fuses
Refer to Fuses on page 6-42.
Specifications
Specifications
9-8
