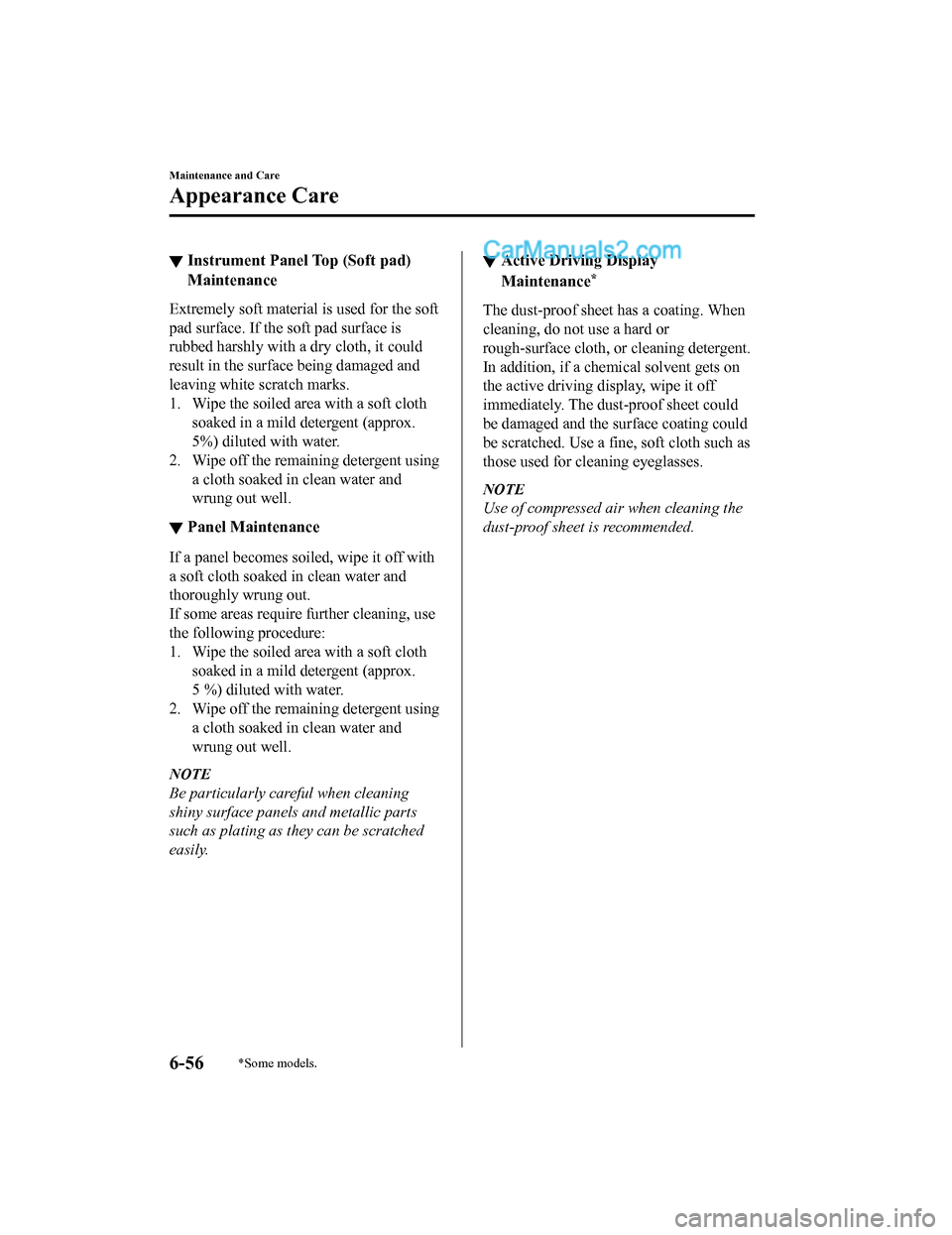

▼Instrument Panel Top (Soft pad)
Maintenance
Extremely soft material
is used for the soft
pad surface. If the soft pad surface is
rubbed harshly with a dry cloth, it could
result in the surface being damaged and
leaving white scratch marks.
1. Wipe the soiled area with a soft cloth
soaked in a mild detergent (approx.
5%) diluted with water.
2. Wipe off the remaining detergent using
a cloth soaked in clean water and
wrung out well.
▼Panel Maintenance
If a panel becomes soiled, wipe it off with
a soft cloth soaked in clean water and
thoroughly wrung out.
If some areas require further cleaning, use
the following procedure:
1. Wipe the soiled area with a soft cloth
soaked in a mild detergent (approx.
5 %) diluted with water.
2. Wipe off the remaining detergent using a cloth soaked in clean water and
wrung out well.
NOTE
Be particularly careful when cleaning
shiny surface panels and metallic parts
such as plating as they can be scratched
easily.
▼Active Driving Display
Maintenance*
The dust-proof sheet has a coating. When
cleaning, do not use a hard or
rough-surface cloth, o
r cleaning detergent.
In addition, if a chemical solvent gets on
the active driving d isplay, wipe it off
immediately. The dust-proof sheet could
be damaged and the surface coating could
be scratched. Use a fine, soft cloth such as
those used for cleaning eyeglasses.
NOTE
Use of compressed air when cleaning the
dust-proof sheet is recommended.
Maintenance and Care
Appearance Care
6-56*Some models.
CX-5_8GN5-EA-17J_Edition1 2017-8-18 12:58:27

SignalWarning
(Red)
Brake Pedal Opera-
tion Demand Warn-
ing Light
*
When only flashing
Flashes if there is the possibility of the vehicle not being he ld in the stopped position by
the AUTOHOLD function, such as on steep slopes. Depress and hol d your foot on the
brake pedal.
When flashing and beep sound is activated at the same time
The warning light flashes and the beep sound is activated for a bout five seconds if there is
a problem with the system. If th e warning light flashes and the warning sound is activated,
immediately depress the brake pedal and stop using the AUTOHOLD function then con-
tact an Authorized Mazda Dealer.
WA R N I N G
Immediately depress the brake pedal if the warning light flashes and the beep sound is acti‐
vated while using the AUTOHOLD function:
Because the AUTOHOLD function is canceled forcibly, the vehicle may move unexpectedly
and result in an accident.
Check Engine Light If this light illuminates while d
riving, the vehicle may have a problem. It is important to
note the driving conditions whe n the light illuminated and consult an Authorized Mazda
Dealer.
The check engine light may illuminate in the following cases:
•The fuel tank level being very low or approaching empty.•The engine's electrical system has a problem.•The emission control system has a problem.•The fuel-filler cap is missing or not tightened securely.
If the check engine light remains on, or it flashes continuously , do not drive at high
speeds and consult an Authorized Mazda Dealer as soon as possible.
WA R N I N G
If the check engine light turns on, do not disconnect the battery cables.
If the battery cables are disconnected and th en reconnected, the engine could be damaged
and catch on fire.
Engine Oil Level
Warning Indication*
The message is displayed when the system has a malfunction. Have your vehicle inspect-
ed at an Authorized Mazda Dealer.
Automatic Trans-
axle Warning Indi- cation/Warning Light The indication/light illuminates
when the transaxle has a problem.CAUTION
If the automatic transaxle warning indication/lig ht illuminates, the transaxle has an electri‐
cal problem. Continuing to drive your Mazda in this condition could cause damage to your
transaxle. Consult an Authorized Mazda Dealer as soon as possible.
If Trouble Arises
Warning/Indicator Lights and Warning Sounds
7-28*Some models.
CX-5_8GN5-EA-17J_Edition1 2017-8-18 12:58:27

SignalWarning
AWD Warning Indi-
cation*
“4WD System Malfunction” is displayed
The indication is displayed under the following conditions. The system may have a mal-
function. Have the vehicle checked at an Authorized Mazda Deale r.
•When there is a malfunction in the AWD system.•When there is a large difference between the tire size of the front and rear wheels.
“4WD System High Load” is displayed
The indication is displayed unde r the following conditions. Park the vehicle in a safe place
and check that the warning indi cation light turns off, and then drive the vehicle. Contact
an Authorized Mazda Dealer if th e indication is continuously displayed.
•When the differential oil temp erature is excessively high.•When there is a large difference between the front and rear whe el rotation, such as when
trying to remove the vehicle from mud.
AW D Wa r n i n g
Light*
When the light is turned on
The light turns on under the following conditions. The system m ay have a malfunction.
Have the vehicle checked at an Authorized Mazda Dealer.
•When there is a malfunction in the AWD system.•When there is a large difference between the tire size of the f ront and rear wheels.
When the light is flashing
Park the vehicle in a safe place. After a few moments, if the w arning light stops flashing,
you can resume driving. If the light does not stop flashing, co ntact an Authorized Mazda
Dealer.
•When the differential oil temp erature is excessively high.•When there is a large difference between the front and rear whe el rotation, such as when
trying to remove the vehicle from mud.
(Turns on)
TCS/DSC Indicator Light If the light stays on, the TCS, DSC or the brake assist system may have a malfunction and
they may not operate correctly.
Take your vehicle to an Authori zed Mazda Dealer.
Air Bag/Front Seat
Belt PretensionerSystem Warning Light A system malfunction is indicated
if the warning light constantly flashes, constantly illu-
minates or does not illuminate a t all when the ignition is switched ON. If any of these oc-
cur, consult an Authorized Mazda Dealer as soon as possible. The system may not operate
in an accident.WA R N I N G
Never tamper with the air bag/pretensioner systems and always have an Authorized Mazda
Dealer perform all servicing and repairs:
Self-servicing or tampering with the systems is dangerous. An air bag/pretensioner could
accidentally activate or become disabled causing serious injury or death.
If Trouble Arises
Warning/Indicator Lights and Warning Sounds
*Some models.7-29
CX-5_8GN5-EA-17J_Edition1 2017-8-18 12:58:27

▼Request Switch Inoperable Warning
Beep (With the advanced keyless
function)
If the request switch is pressed with the
door open or ajar, or the ignition is not
switched OFF with a key being carried, a
beep will be heard outside for about 2
seconds to notify the driver that the door
or liftgate cannot be locked.
▼Key Left-in-luggage Compartment
Warning Beep (With the advanced
keyless function)
If the key is left in the luggage
compartment with all
the doors locked and
the liftgate closed, a beep will be heard
outside for about 10 seconds to notify the
driver that the key is in the luggage
compartment. In this case, take out the key
by pressing the electric liftgate opener and
opening the liftgate. The key taken out of
the luggage compartment may not operate
because its functions have been
temporarily stopped. To restore the key's
functions, perform the applicable
procedure (page 3-8).
▼ Key Left-in-vehicle Warning Beep
(With the advanced keyless
function)
If all the doors and luggage compartment
are locked using another key while the key
is left in the cabin,
the beep which sounds
outside of the vehicle will be heard for
about 10 seconds to notify the driver that
the key is in the cabin. In this case, take
out the key by opening the door. A key
taken out of the vehicle using this method
may not operate because its functions have
been temporarily stopped. To restore the
key's functions, perform the applicable
procedure (page 3-8).
▼ Power Liftgate Warning Beep*
If system operation precautions are
necessary, the driver is notified by the
warning sound.
Cautions
What to check
The beep sounds 3 times The conditions required
for the power liftgate to
operate have not been
met, such as an object
being stuck in the lift-
gate.
The beep sound contin-
ues The vehicle is being
driven with the liftgate
open. Stop the vehicle
and close the liftgate.
▼
Electric Parking Brake (EPB)
Warning Beep
The warning buzzer is activated under the
following conditions:
•The vehicle is driven with the electric
parking brake (EPB) applied.
•The electric parking
brake (EPB) switch
is pulled while the vehicle is driven.
If Trouble Arises
Warning/Indicator Lights and Warning Sounds
7-44*Some models.
CX-5_8GN5-EA-17J_Edition1 2017-8-18 12:58:27

▼AUTOHOLD Warning Beep
Warning light flashes/message is displayed
and beep sound is activated
simultaneously for about five seconds
when using AUTOHOLD function or
when AUTOHOLD switch is operated.
Because a problem with AUTOHOLD
function has occurred, AUTOHOLD
function does not operate even if
AUTOHOLD switch is operated.

If the warning light flashes/message is
displayed and the beep sound is activated
simultaneously, h
ave your vehicle
inspected at an Authorized Mazda Dealer.
▼ Power Steering Warning Buzzer
If the power steering system has a
malfunction, the power steering
malfunction light turns on or flashes and
the buzzer operates at the same time.
Refer to Warning Indication/Warning
Lights on page 4-30.
▼Tire Inflation Pressure Warning
Beep
The warning beep sound will be heard for
about 3 seconds if the tire pressures
decrease.
Refer to Tire Pressure Monitoring System
on page 4-162.
▼Blind Spot Monitoring (BSM)
Warning Beep*
Driving forward
The warning beep operates when the turn
signal lever is operated to the side where
the Blind Spot Monitoring (BSM) warning
light is illuminated.
NOTE
A personalized function is available to
change the Blind Spot Monitoring (BSM)
warning beep sound volume.
Refer to Personalization Features on page
9-9.
Reversing
The Blind Spot Monitoring (BSM)
warning sound is activated if there is a
possibility of collision with a vehicle
approaching from behind and from the
rear on the left and right sides of the
vehicle.
If Trouble Arises
Warning/Indicator Lights and Warning Sounds
*Some models.7-45
CX-5_8GN5-EA-17J_Edition1
2017-8-18 12:58:27

▼Lane Departure Warning Sound*
While the system is operating, if the
system determines that the vehicle may
depart from the lane, it sounds a warning
sound.
NOTE
•The volume of the Lane-keep Assist
System (LAS) & Lane Departure
Warning System (LDWS) warning sound
can be changed.
Refer to Personalization Features on
page 9-9.
•The type of the Lane-keep Assist System
(LAS) & Lane Departure Warning
System (LDWS) warning sound can be
changed.
Refer to Personalization Features on
page 9-9.
▼Excessive Speed Warning*
If the vehicle speed exceeds the speed
limit sign displayed on the active driving
display, the warning sound is activated and
the area around the speed limit sign
displayed on the active driving display
flashes 3 times in amber, and if the vehicle
speed continues to exceed the displayed
speed limit sign, the indication stops
flashing and remains on.
▼Collision warning*
If there is a possibility of a collision with a
vehicle ahead or an obs
truction at the rear
of the vehicle, the warning light in the
instrument cluster flashes at the same time
as the warning indication is displayed in
the multi-information d isplay or the active
driving display, and a warning sound is
activated intermittently.
▼ Mazda Radar Cruise Control with
Stop & Go function (MRCC with
Stop & Go function) System
Wa r n i n g s
*
The Mazda Radar Cruise Control with
Stop & Go function (MRCC with Stop &
Go function) system warnings notify the
driver of system problems and precautions
on use when required. Check after hearing
a warning beep sound.
Warning beep What to check
While the Mazda Radar
Cruise Control with Stop
& Go function (MRCC
with Stop & Go func-
tion) system is operating,
a single beep sound is
heard when “Front radar
blocked” is displayed in
the multi-information
display. Cancel the Mazda Radar
Cruise Control with Stop
& Go function (MRCC
with Stop & Go func-
tion) system if the radar
sensor (front) becomes
dirty. Clean the area
around the radar sensor
(front).
The beep sounds inter-
mittently while the vehi-
cle is being driven. The distance between
your vehicle and the ve-
hicle ahead is too close.
Verify the safety of the
surrounding area and re-
duce vehicle speed.
While the Mazda Radar
Cruise Control with Stop
& Go function (MRCC
with Stop & Go func-
tion) system is operating,
a single beep sound is
heard when “Front radar
sensor system malfunc-
tion” is displayed in the
multi-information dis-
play. A malfunction in the
system may be indicated.
Check the center display
to verify th
e problem
and then have your vehi-
cle inspected by an Au-
thorized Mazda Dealer.
If Trouble Arises
Warning/Indicator Lights and Warning Sounds
7-46*Some models.
CX-5_8GN5-EA-17J_Edition1 2017-8-18 12:58:27

▼STEP 2: Contact Mazda No
rth American Operations
If for any reason you feel the need for further assistance afte r contacting your dealership
management or it becomes necessary to have the components or wi ring system for the
supplementary restraint system m odified to accommodate a person with certain medical
conditions in accordance with a certified physician, you can re ach Mazda North American
Operations by one of the following ways.

Log on: at www.MazdaUSA.com

Answers to many questions, including how to locate or contact a local Mazda dealership in
the U.S., can be found here.

E-mail: click on “Contact Us” lo cated on the bottom of the page at www.mazdausa.com
under “Help”

By phone at: 1 (800) 222-5500

By letter at:
ATTN: Customer Experience Center
Mazda North American Operations
200 Spectrum Center Drive
Irvine, California 92618
P.O. Box 19734
Irvine, CA 92623-9734

In order to serve you efficiently and effectively, please help us by providing the following
information:
1. Your name, address, and telephone number
2. Year and model of vehicle
3. Vehicle Identification Number (17 digits, noted on your regis tration or title or located on
the upper driver's side corner of the dash)
4. Purchase date and current mileage
5. Your dealer's name and location
6. Your question(s)

If you live outside the U.S.A., please contact your nearest Maz da Distributor.
Customer Information and Reporting Safety Defects
Customer Assistance
8-3
CX-5_8GN5-EA-17J_Edition1 2017-8-18 12:58:27

Customer Assistance (Canada)
▼Satisfaction Review Process
Your complete and permanent satisfaction is of primary concern
to Mazda. All Authorized
Mazda Dealers have both the knowledge and tools to keep your Ma zda in top condition. In
our experience, any questions, pro blems, or complaints regarding the operation of your
Mazda or any other general service transactions are most effect ively resolved by your
dealer. If the cause of your dissatisfaction cannot adequately be addressed by normal
dealership procedures, we recommend that you take the following steps:
▼STEP 1: Contact the Mazda Dealer
Discuss the matter with a member of dealership management. If t
he Service Manager has
already reviewed your concerns, contact the owner of the dealership or its General Manager.
▼STEP 2: Contact the
Mazda Regional Office
If you feel that you still requ ire assistance, ask the dealer S ervice Manager to arrange for
you to meet the local Mazda Service Representative. If more exp edient, contact Mazda
Canada Inc. Regional Office nearest you for such arrangements. Regional Office address
and phone numbers are shown (page 8-9).
▼ STEP 3: Contact the Mazda Cu
stomer Relations Department
If still not substantially satisfied, contact the Customer Rela tions Department, Mazda
Canada Inc., 55 Vogell Road, Richmond Hill, Ontario, L4B 3K5 Ca nada TEL: 1 (800)
263-4680.
Provide the Department wit h the following information:

1. Your name, address and telephone number
2. Year and model of vehicle
3. Vehicle Identification Number ( VIN). Refer to the Vehicle Identification Number on
page 9-2 for the location of the VIN.
4. Purchase date
5. Present odometer reading
6. Your dealer's name and location
7. The nature of your problem and/or cause of dissatisfaction

The Department, in cooperation wi th the local Mazda Service Representative, will review
the case to determine if everything possible has been done to e nsure your satisfaction.

Please recognize that the resolution of service problems in mos t cases requires the use of
your Mazda dealer's service facilities, personnel and equipment . We urge you to follow the
above three steps in sequenc e for most effective results.
Customer Information and Reporting Safety Defects
Customer Assistance
8-7
CX-5_8GN5-EA-17J_Edition1 2017-8-18 12:58:27

Customer Assistance (Puerto Rico)
Your complete and permanent satisfaction is our business. That is why all Authorized
Mazda Dealers have the knowledge and the tools to keep your Maz da vehicle in top
condition.
If you have any questions or recommendations for improvement re garding the service of
your Mazda vehicle or servicing by Mazda Dealer personnel, we r ecommend that you take
the following steps:
▼ STEP 1
Discuss the matter wi
th an Authorized Mazda Dealer. This is the quickest and best way to
address the issue. If your concern has not been resolved by the CUSTOMER RELATIONS,
SALES, SERVICE, or PARTS MANAGER, then please contact the GENERAL
MANAGER of the dealership or the OWNER.
▼ STEP 2
If, after following STEP 1, you feel the need for further assis
tance, please contact your
area's Mazda representative.
Refer to Importer/Distributor on page 8-11.

Please help us by providing t he following information:

1. Your name, address, and telephone number
2. Year and model of vehicle
3. Vehicle Identification Number ( 17 digits, noted on your registration or title or located on
the upper driver's side corner of the dash)
4. Purchase date and current mileage
5. Your dealer's name and location
6. Your question(s)
Customer Information and Reporting Safety Defects
Customer Assistance
8-10
CX-5_8GN5-EA-17J_Edition1 2017-8-18 12:58:27

▼Light Bulbs
Exterior light
Light bulb Category
Wattage UNECE*1(SAE)
Headlights/Daytime running lights LED
*2― (―)
Parking lights LED type
LED
*2― (―)
Front turn signal lights/Parking lights
*28/8 ― (#7444NA)
Front side-marker lights LED type
LED
*2― (―)
Bulb type 5 W5W (―)
Fog lights
*LED*2― (―)
Side turn signal lights LED
*2― (―)
High-mount brake light LED
*2― (―)
Rear turn signal lights 21WY21W (7443NA)
Brake lights/Taillights/Rear
side-marker lights LED type
LED
*2― (―)
Bulb type 21/5 W21/5W (7443)
Reverse lights LED
*2― (―)
License plate lights 5 W5W (―)
*1 UNECE stands for United Nations Economic Commission for Europe.*2 LED is the abbreviation for Light Emitting Diode.
Interior light
Light bulb Category
Wa t t ag e UNECE*1
Luggage compartment light 8―
Overhead light (Fr ont)/Map lights 8―
Rear map lights 8―
Vanity mirror lights
*2―
*1 UNECE stands for United Nations Economic Commission for Europe.
▼Tires
NOTE
The tires have been optimally matched with the chassis of your vehicle.
When replacing tires, Mazda recommends that you replace tires of the same type originally
fitted to your vehicle. For details, contact an Authorized Mazda Dealer.
Check the tire pressure label for tire size and inflation press
ure.
Refer to Tire Inflation Pressure on page 6-31.
Specifications
Specifications
*Some models.9-7
CX-5_8GN5-EA-17J_Edition1 2017-8-18 12:58:27
