Interior Equipment (View A)
ƒLighting control.....................................................................................................page 4-46
„ Turn and lane-change sig nal..................................................................................page 4-52
… Audio control switches......................................... .................................................page 5-15
† INFO switch.................................................................................................page 4-17, 4-19
‡ Cruise control switches............................................................................ page 4-115, 4-157
ˆ Wiper and washer lever......................................... ................................................ page 4-53
‰ TCS OFF Switch................................................................................................... page 4-77
Š Lane-keep Assist System (LAS) & Lane Departure Warning System ( LDWS) OFF
switch.................................................................................................................. page 4 -132
‹ Power liftgate switch.......................................... ................................................... page 3-22
ΠHeadlight leveling switch...................................... ................................................page 4-50
 Outside mirror switch.......................................... ..................................................page 3-34
Ž Door-lock switch................................................................................................... page 3-15
 Power window switches........................................................................................ page 3-37
 Power window lock switch................................................................................... page 3-37
‘ Door-lock knob..................................................................................................... page 3-18
Pictorial Index
Interior Overview
1-2The equipment and installatio n position varies by vehicle
CX-5_8GN5-EA-17J_Edition1 2017-8-18 12:58:27

Interior Equipment (View B)
ƒActive driving display........................................................................................... page 4-27
„ Instrument cluster............................................. ..................................................... page 4-11
… Dashboard illumination knob................................................................................ page 4-15
† Seat warmer switches........................................... ................................................... page 2-6
‡ Heated steering wheel switch................................... ............................................. page 3-33
ˆ Hazard warning flasher switch.............................................................................. page 4-59
‰ Rear window defogger switch.................................... ........................................... page 4-57
Š Audio.......................................................... ................................................. page 5-20, 5-6 5
‹ Glove compartment.............................................. .............................................. page 5-135
ΠClimate control system............................................................................................page 5-4
 Accessory socket............................................... ................................................. page 5-131
Ž Push button start...................................................................................................... page 4-4
 Horn........................................................... ............................................................page 4-59
 Lock release lever................................................................................................. page 3-33
‘ Hood release handle............................................ .................................................. page 6-14
’ Remote fuel-filler lid release................................. ................................................ page 3-31
Pictorial Index
Interior Overview
The equipment and installation position varies by vehicle1-3
CX-5_8GN5-EA-17J_Edition1 2017-8-18 12:58:27

Interior Equipment (View D)
ƒSeat belt................................................................................................................. page 2-18
„ Lever.............................................................................................................. page 2-9, 2 -13
… Head restraint........................................................................................................ page 2-1 6
† USB power outlet............................................... ................................................ page 5-132
‡ Child safety locks.................................................................................................. page 3-19
ˆ Armrest box.................................................... .................................................... page 5-136
‰ Seat warmer switches........................................... ................................................. page 2-14
Š Cup holder.......................................................................................................... page 5-133
‹ Rear coat hook....................................................................................................page 5-139
ΠRear map lights.................................................................................................. page 5-129
 Door-lock knob................................................. .................................................... page 3-18
Ž Center console................................................. ................................................... page 5-135
 External input terminal........................................
.................................................. page 5-16
 Accessory socket............................................... ................................................. page 5-131
‘ Power window switch........................................................................................... page 3-37
’ Bottle holder.................................................. ..................................................... page 5-134
“ Armrest..................................................................................................................page 2-15
” Rear seat...................................................... ............................................................ page 2-9
• LATCH lower anchors.......................................................................................... page 2-40
Pictorial Index
Interior Overview
The equipment and installatio n position varies by vehicle1-5
CX-5_8GN5-EA-17J_Edition1 2017-8-18 12:58:27

Front
ƒWindshield wiper blades....................................................................................... page 6-22
„ Moonroof...............................................................................................................page 3- 40
… Window......................................................... ........................................................ page 3-37
† Fuel-filler lid......................................................................................................... page 3 -31
‡ Request switch ..................................................................................................... page 3-13
ˆ Door........................................................... ............................................................page 3-11
Pictorial Index
Exterior Overview
The equipment and installation position varies by vehicle1-7
CX-5_8GN5-EA-17J_Edition1 2017-8-18 12:58:27

Rear
ƒRear window wiper blade........................................ ..............................................page 6-25
„ Liftgate....................................................... ........................................................... page 3-20
… Outside mirror....................................................................................................... page 3-34
† Request switch ..................................................................................................... page 3-13
‡ Electric liftgate opener....................................... ................................................... page 3-21
Pictorial Index
Exterior Overview
1-8The equipment and installation position varies by vehicle
CX-5_8GN5-EA-17J_Edition1 2017-8-18 12:58:27

Seating a child in a child-restraint system on the front passenger seat is dangerous under
certain conditions :
Your vehicle is equipped with front passenger occupant classification sensor. Even with the
front passenger occupant classification sensor, if you must use the front passenger seat to
seat a child, using a child-restraint system on the front passenger seat under the following
conditions increases the danger of the front passenger air bag deploying and could result in
serious injury or death to the child.
 The front passenger air bag deactivation indicator light does not illuminate when seating a
child in the child-restraint system.
 Luggage or other items are placed on the seat with the child in the child-restraint system.
 A rear passenger or luggage pushing or pulling down on the front passenger seatback.
 Luggage or other items are placed on the seatback or hung on the head restraint.
 The seat is washed.
 Liquids are spilled on the seat.
 The front passenger seat is moved backward, pushing into luggage or other items placed
behind it.
 The front passenger seatback contacts the rear seat.
 Luggage or other items are placed between the front passenger seat and driver seat.
 An electric device is put on the front passenger's seat.
 An additional electrical device, such as a seat warmer is installed to the surface of the front
passenger seat.
The designated positions with seat belts on the rear seats are the safest places for children.
Always use seat belts and child restraints.
Do not allow a child or anyone to lean over or against the side window of a vehicle with side
and curtain air bags:
It is dangerous to allow anyone to lean over or against the side window, the area of the front
passenger seat, the front and rear window pillar s and the roof edge along both sides from
which the side and curtain air bags deploy, even if a child-restraint system is used. The impact
of inflation from a side or curtain air bag could cause serious injury or death to an out of
position child. Furthermore, le aning over or against the front door could block the side and
curtain air bags and eliminate th e advantages of supplemental protection. With the front air
bag and the additional side air bag that comes out of the front seat, the rear seat is always a
better location for children. Take special care not to allow a child to lean over or against the
side window, even if the child is seated in a child-restraint system.
Essential Safety Equipment
Child Restraint
2-29
CX-5_8GN5-EA-17J_Edition1 2017-8-18 12:58:27

▼If You Must Use the Front Seat for
Children
If you cannot put all children in the rear
seat, at least put the
smallest children in
the rear and be sure the largest child up
front uses the shoulder belt over the
shoulder.
NEVER put a rear-facing child-restraint
system on the front passenger seat whether
your vehicle is equipped with an occupant
classification sensor or not.
This seat is also not set up for tethered
child-restraint system s, put them in one of
the rear seat positions set up with tether
anchors.
Likewise the LATCH child-restraint
system cannot be secured in the front
passenger's seat and should be used in the
rear seat.
Do not allow anyone to sleep against the
side window since your vehicle has side
and curtain air bags, it could cause serious
injuries to an out of position occupant. As
children more often sleep in cars, it is
better to put them in the rear seat. If
installing the child-re straint system on the
front seat is unavoidable, follow these
instructions when using a front-facing
child-restraint sy stem in the front
passenger's seat.
NOTE
•To check if your front seats have side air
bags:
Mazda vehicles equipped with side air
bag will have a "SRS AIRBAG" tag on
the outboard shoulder of the front seats.
•To check if your vehicle has curtain air
bags:
Mazda vehicles equipped with curtain
air bag will have an "SRS AIRBAG"
marking on the window pillars along the
roof edge.
WA R N I N G
Always move the front passenger seat as
far back as possible if installing a
front-facing child-restraint system on it is
unavoidable:
As your vehicle has front air bags and
doubly so because your vehicle has side air
bags, a front-facing child-restraint system
should be put on the front passenger seat
only when it is unavoidable.
Even if the front passenger air bag
deactivation indicator light illuminates,
always move the seat as far back as
possible, because the force of a deploying
air bag could cause serious injury or death
to the child.
Essential Safety Equipment
Child Restraint
2-36
CX-5_8GN5-EA-17J_Edition1 2017-8-18 12:58:27

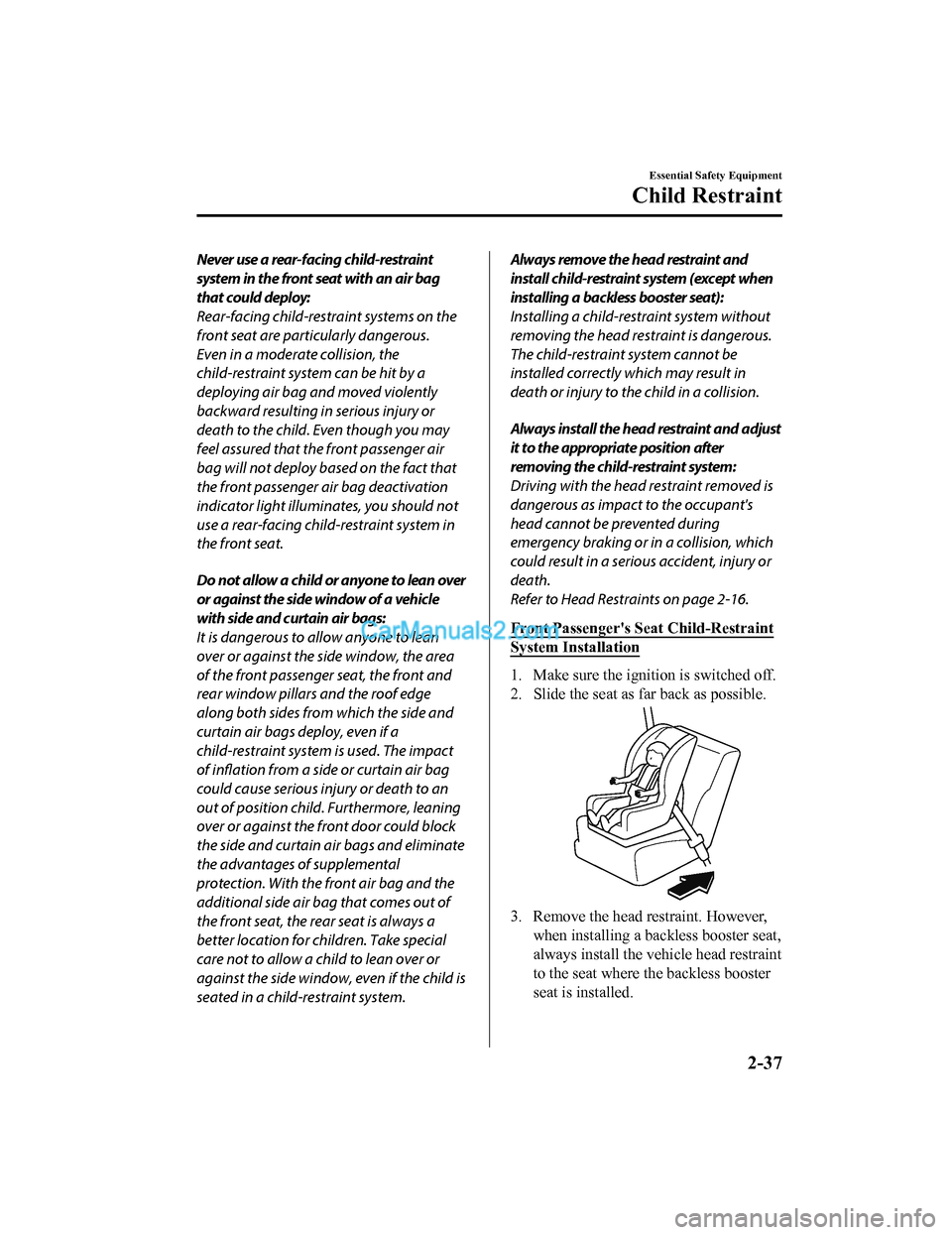

Never use a rear-facing child-restraint
system in the front seat with an air bag
that could deploy:
Rear-facing child-restraint systems on the
front seat are particularly dangerous.
Even in a moderate collision, the
child-restraint system can be hit by a
deploying air bag and moved violently
backward resulting in serious injury or
death to the child. Even though you may
feel assured that the front passenger air
bag will not deploy based on the fact that
the front passenger air bag deactivation
indicator light illuminates, you should not
use a rear-facing child-restraint system in
the front seat.
Do not allow a child or anyone to lean over
or against the side window of a vehicle
with side and curtain air bags:
It is dangerous to allow anyone to lean
over or against the side window, the area
of the front passenger seat, the front and
rear window pillars and the roof edge
along both sides from which the side and
curtain air bags deploy, even if a
child-restraint system is used. The impact
of inflation from a side or curtain air bag
could cause serious injury or death to an
out of position child. Furthermore, leaning
over or against the front door could block
the side and curtain air bags and eliminate
the advantages of supplemental
protection. With the front air bag and the
additional side air bag that comes out of
the front seat, the rear seat is always a
better location for children. Take special
care not to allow a child to lean over or
against the side window, even if the child is
seated in a child-restraint system.Always remove the head restraint and
install child-restraint system (except when
installing a backless booster seat):
Installing a child-restraint system without
removing the head restraint is dangerous.
The child-restraint system cannot be
installed correctly which may result in
death or injury to the child in a collision.
Always install the head restraint and adjust
it to the appropriate position after
removing the child-restraint system:
Driving with the head restraint removed is
dangerous as impact to the occupant's
head cannot be prevented during
emergency braking or in a collision, which
could result in a serious accident, injury or
death.
Refer to Head Restraints on page 2-16.
Front Passenger's Seat Child-Restraint
System Installation
1. Make sure the ignition is switched off.
2. Slide the seat as far back as possible.
3. Remove the head restraint. However,
when installing a backless booster seat,
always install the vehicle head restraint
to the seat where the backless booster
seat is installed.
Essential Safety Equipment
Child Restraint
2-37
CX-5_8GN5-EA-17J_Edition1 2017-8-18 12:58:27

Supplemental Restraint System (SRS) Precautions
The front and side supplemental restraint systems (SRS) include different types of air bags.
Please verify the different types of air bags which are equippe d on your vehicle by
locating the “SRS AIRBAG” location indicators. These indicators are visible in the area
where the air bags are installed.
The air bags are installed in the following locations:

•The steering wheel h ub (driver air bag)
•The front passenger dashboard (front passenger air bag)
•The outboard sides of the front seatbacks (side air bags)
•The front and rear window pillars, and the roof edge along both sides (curtain air bags)


The air bag supplemental restraint systems are designed to prov ide supplemental protection
in certain situations so seat bel ts are always important in the following ways:

Without seat belt usage, the air bags cannot provide adequate p rotection during an accident.
Seat belt usage is necessary to:
•Keep the occupant from being thrown into an inflating air bag.
•Reduce the possibility of injuries during an accident that is n ot designed for air bag
inflation, such as rear impact.
•Reduce the possibility of injuries in frontal, near frontal or side collisions or roll-over
accidents that are not severe enough to activate the air bags.
•Reduce the possibility of being thrown from your vehicle.
•Reduce the possibility of injurie s to lower body and legs during an accident because the
air bags provide no protection to these parts of the body.
•Hold the driver in a position wh ich allows better control of the vehicle.

Essential Safety Equipment
SRS Air Bags
2-44
CX-5_8GN5-EA-17J_Edition1 2017-8-18 12:58:27
