Tire Maintenance
Improper or inadequate vehicle maintenance can cause tires to wear abnormally. Here are
some important maintenance points:
▼Tire Inflation Pressure
Inspect all tire pressure monthly (including the spare) when the tires are cold. Maintain
recommended pressures for the best ride, top handling, and minimum tire wear. Use the
pressures specified on the vehicle tire informat
ion placard or tire label for optimum service.
▼Tire Rotation
To equalize tread wear, rotate the tires every 12,000 km (7,500 miles) at the latest or sooner
if irregular wear develops. Mazda recommends to rotate every 8,000 km (5,000 miles) to
help increase tire life and di
stribute wear more evenly.
Do not include (TEMPORARY USE ONLY)
spare tire in rotation.Forward
Inspect the tires for uneven wear and damage. Abnormal wear is usually caused by one or a
combination of the following:
Incorrect tire pressure
Improper wheel alignment
Out-of-balance wheel
Severe braking
After rotation, inflate all tire pressures to sp ecification (page 9-8) and inspect the lug nuts
for tightness.
CAUTION
Rotate unidirectional tires and radial tires that have an asymmetrical tread pattern or studs
only from front to rear, not from side to side . Tire performance will be weakened if rotated
from side to side.

Customer Information and Reporting Safety Defects
Tire Information (U.S.A.)
8-33
CX-5_8JM9-EA-20G_Edition6_old 2021-12-9 11:43:53

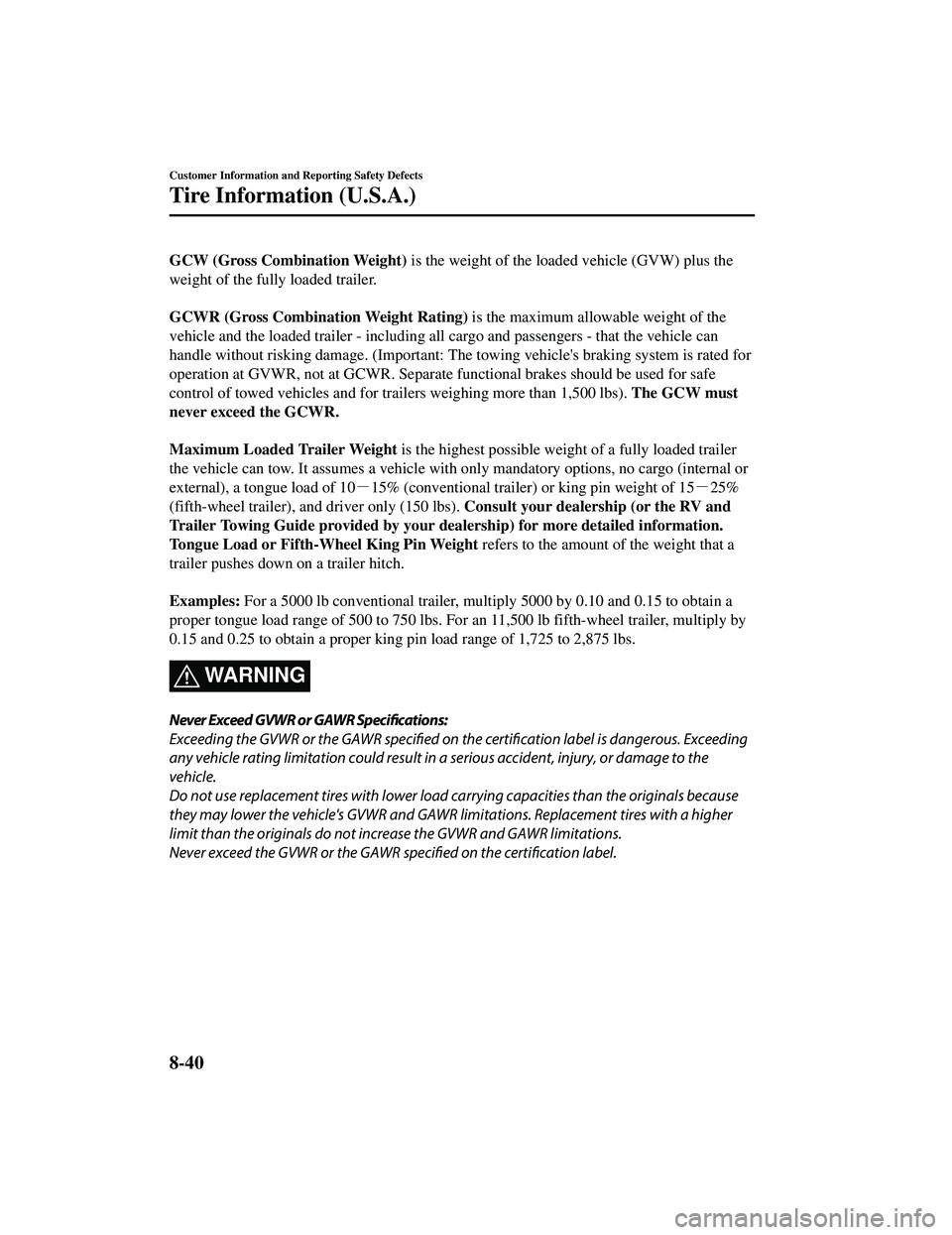

GCW (Gross Combination Weight) is the weight of the loaded vehicle (GVW) plus the
weight of the fully loaded trailer.

GCWR (Gross Combination Weight Rating) is the maximum allowable weight of the
vehicle and the loaded trailer - including al l cargo and passengers - that the vehicle can
handle without risking damage. (Important: The towing vehicle's braking system is rated for
operation at GVWR, not at GCWR. Separate f unctional brakes should be used for safe
control of towed vehicles and for trailers weighing more than 1,500 lbs). The GCW must
never exceed the GCWR.

Maximum Loaded Trailer Weight is the highest possible weight of a fully loaded trailer
the vehicle can tow. It assumes a vehicle with only mandatory options, no cargo (internal or
external), a tongue load of 10 －15% (conventional trailer) or king pin weight of 15－25%
(fifth-wheel trailer), and driver only (150 lbs). Consult your dealership (or the RV and
Trailer Towing Guide provided by your de alership) for more detailed information.
Tongue Load or Fifth-Wheel King Pin Weight refers to the amount of the weight that a
trailer pushes down on a trailer hitch.

Examples: For a 5000 lb conventional trailer, multiply 5000 by 0.10 and 0.15 to obtain a
proper tongue load range of 500 to 750 lbs. For an 11,500 lb fifth-wheel trailer, multiply by
0.15 and 0.25 to obtain a proper king pin load range of 1,725 to 2,875 lbs.
WA R N I N G
Never Exceed GVWR or GAWR Specifications:
Exceeding the GVWR or the GAWR specified on the certification label is dangerous. Exceeding
any vehicle rating limitation could result in a serious accident, injury, or damage to the
vehicle.
Do not use replacement tires with lower load carrying capacities than the originals because
they may lower the vehicle's GVWR and GAWR limitations. Replacement tires with a higher
limit than the originals do not increase the GVWR and GAWR limitations.
Never exceed the GVWR or the GAWR specified on the certification label.
Customer Information and Reporting Safety Defects
Tire Information (U.S.A.)
8-40
CX-5_8JM9-EA-20G_Edition6_old 2021-12-9 11:43:53

ItemCapacity
Fuel tank FWD
56.0 L (14.8 US gal, 12.3 Imp gal)
AWD 58.0 L (15.3 US gal, 12.8 Imp gal)
Check oil and fluid levels with dipsticks or reservoir gauges.
▼Dimensions
Item
Vehicle specification
Overall length 4,550 mm (179.1 in)
Overall width 1,840 mm (72.4 in)
Overall height 1,675 mm (65.9 in)
Front tread 17 inch styled steel wheel
vehicle
1,586 mm (62.4 in)
17 inch aluminum wheel
vehicle 1,596 mm (62.8 in)
19 inch aluminum wheel
vehicle 1,596 mm (62.8 in)
Rear tread 17 inch styled steel wheel
vehicle
1,586 mm (62.4 in)
17 inch aluminum wheel
vehicle 1,596 mm (62.8 in)
19 inch aluminum wheel
vehicle 1,596 mm (62.8 in)
Wheelbase 2,698 mm (106.2 in)
▼We i g h t s
U.S.A. and Canada
SKYACTIV-G 2.5
Item Weight
FWD AWD
GVWR (Gross Vehicle Weight Rating) 2,060 kg (4,541 lbs)/
2,075 kg (4,575 lbs) 2,143 kg (4,724 lbs)
GAWR (Gross Axle Weight
Rating) Front
1,060 kg (2,337 lbs)/
1,075 kg (2,370 lbs) 1,100 kg (2,425 lbs)
Rear 1,000 kg (2,205 lbs) 1,043 kg (2,299 lbs)
Item Weight
FWD AWD
GVWR (Gross Vehicle Weight Rating) 2,140 kg (4,718 lbs) 2,180 kg (4,806 lbs)
9-6
CX-5_8JM9-EA-20G_Edition6_old 2021-12-9 11:43:53
