display MAZDA MODEL CX-5 2021 Owners Manual

7If Trouble Arises
Helpful information on what to do if a problem arises with the vehicle.
Parking in an Emergency................. 7-2 Parking in an Emergency..............7-2
Flat Tire.............................................. 7-3 Spare Tire and Tool Storage......... 7-3
Changing a Flat Tire..................... 7-6
Battery Runs Out............................ 7-13 Jump-Starting............................. 7-13
Emergency Starting.........................7-16 Starting a Flooded Engine
(SKYACTIV-G 2.5 and SKYACTIV-
G 2.5T)....................................... 7-16
Push-Starting.............................. 7-16
Running Out of Fuel (SKYACTIV-D
2.2).............................................. 7-17
Overheating......................................7-18 Overheating................................ 7-18
Emergency Towing.......................... 7-20 Towing Description.................... 7-20
Tiedown Hooks*......................... 7-21
Warning/Indicator Lights and
Warning Sounds.............................. 7-23 If a Warning Light Turns On or
Flashes........................................ 7-23
Message Indicated on Multi-
information Display
*.................. 7-39
Message Indicated on Display
*..........
.................................................... 7-41
Warning Sound is Activated....... 7-43
When Liftgate Cannot be
Opened..............................................7-48 When Liftgate Cannot be
Opened........................................7-48
Active Driving Display Does Not
Operate............................................. 7-49 If the Active Driving Display Does
Not Operate................................ 7-49
*Some models.7-1
CX-5_8JM9-EA-20G_Edition6_old 2021-12-9 11:43:53

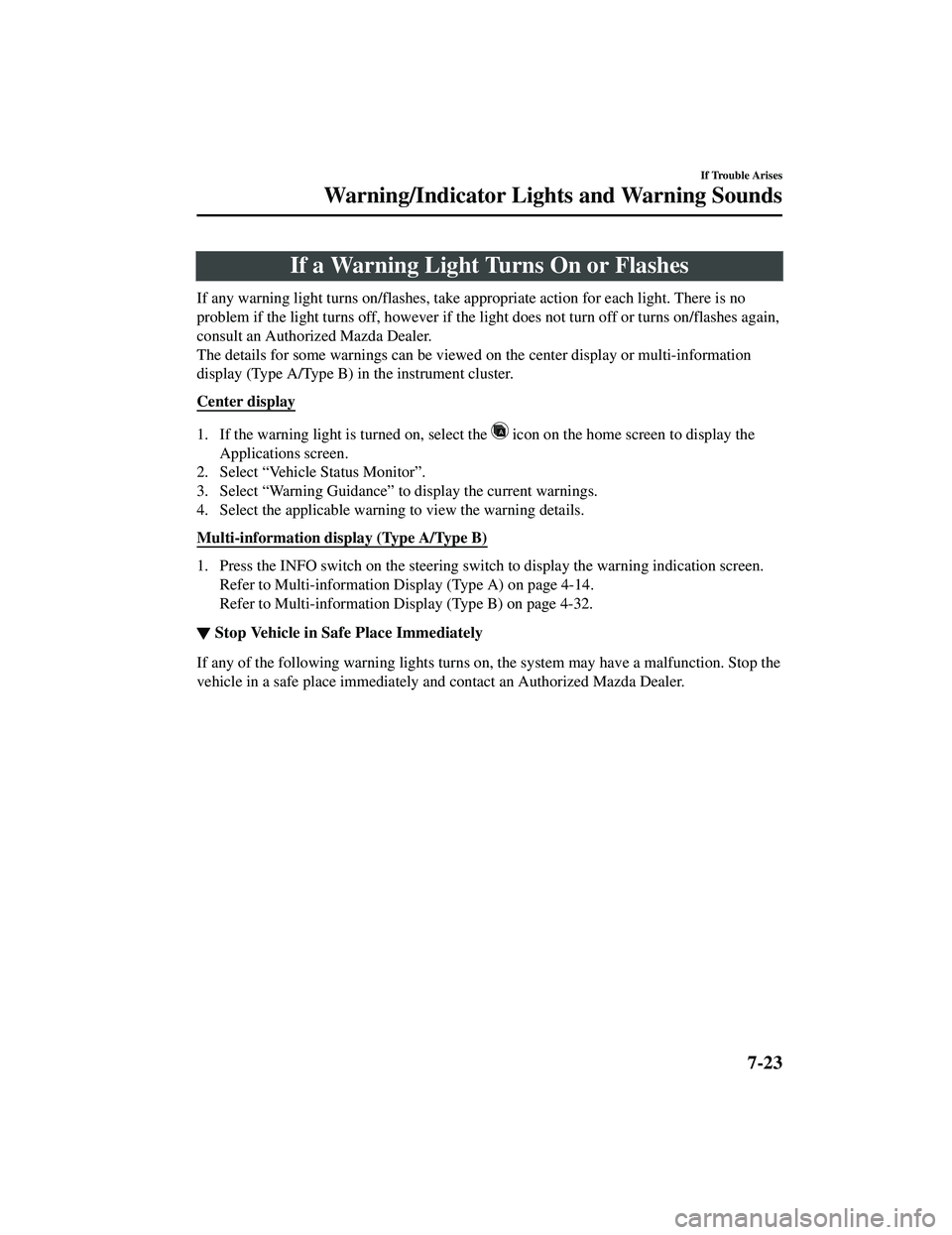

If a Warning Light Turns On or Flashes
If any warning light turns on/flashes, take appropriate action for each light. There is no
problem if the light turns off, ho wever if the light does not turn off or turns on/flashes again,
consult an Authorized Mazda Dealer.
The details for some warnings can be viewed on the center display or multi-information
display (Type A/Type B) in the instrument cluster.
Center display
1. If the warning light is turned on, select the icon on the home screen to display the
Applications screen.
2. Select “Vehicle Status Monitor”.
3. Select “Warning Guidance” to display the current warnings.
4. Select the applicable warni ng to view the warning details.
Multi-information display (Type A/Type B)
1. Press the INFO switch on the steering switch to display the warn ing indication screen.
Refer to Multi-information Display (Type A) on page 4-14.
Refer to Multi-information Display (Type B) on page 4-32.
▼ Stop Vehicle in Safe Place Immediately
If any of the following warning lights turns on,
the system may have a malfunction. Stop the
vehicle in a safe place immediately and contact an Authorized Mazda Dealer.
If Trouble Arises
Warning/Indicator Lights and Warning Sounds
7-23
CX-5_8JM9-EA-20G_Edition6_old 2021-12-9 11:43:53

SignalWarning
Charging System Warn‐
ing Indication/Warning Light If the warning light illuminates while drivin
g, it indicates a malfunction of the alter‐
nator or of the charging system.
Drive to the side of the road and park off the right-of-way. Consult an Authorized
Mazda Dealer.
CAUTION
Do not continue driving when the charging system warning light is illuminated be‐
cause the engine could stop unexpectedly.
Engine Oil Warning Light This warning light indicates
low engine oil pressure.
CAUTION
Do not run the engine if the oil pressure is low. Otherwise, it could result in extensive
engine damage.
If the light illuminates or the warni ng indication is displayed while driving:
1. Drive to the side of the road and park off the right-of-way on level ground.
2. Turn off the engine and wait 5 minutes for the oil to drain ba ck into the oil pan.
3. Inspect the engine oil level (page 6-24). If it's low, add the appropriate amount of
engine oil while being careful not to overfill.
CAUTION
Do not run the engine if the oil level is low. Otherwise, it could result in extensive
engine damage.
4. Start the engine and check the warning light.

If the light remains illuminated even though the oil level is normal or after adding oil,
stop the engine immediately and have your vehicle towed to an Authorized Mazda
Dealer.
(Red)
High Engine Coolant
Temperature Warning Indication/Warning Light The light flashes when the en
gine coolant temperature is extremely high, and illumi‐
nates when the engine coolant temperature increases further.
Handling Procedure
Flashing light
Drive slowly to reduce engine load until you can find a safe place to stop the vehicle
and wait for the engine to cool down.
Illuminated light
This indicates the possibility of overheating. Park the vehicle in a safe place immedi ‐
ately and stop the engine.
Refer to Overheating on page 7-18.
CAUTION
Do not drive the vehicle with the high engi ne coolant temperature warning light illumi‐
nated. Otherwise, it could resu lt in damage to the engine.
If Trouble Arises
Warning/Indicator Lights and Warning Sounds
7-25
CX-5_8JM9-EA-20G_Edition6_old 2021-12-9 11:43:53

SignalWarning
Power Steering Mal‐
function Indication*
The message is displayed if the electric power steering has a malfunction.
If the message is displayed, stop the vehicle in a safe place and do not operate the
steering wheel. There is no problem if the message in the display turns off after a
while. Contact an Authorized Mazda Dealer if the message is displayed continuously.
NOTE
If the message is displayed, the power steering will not operate normally. In this
case, the steering wheel can still be operated, however, the operation may feel
heavy compared to normal, or the stee ring wheel could vibrate when turning.
Repeatedly jerking the steering wheel left and right while the vehicle is stopped or
moving extremely slowly will cause the po wer steering system to go into protective
mode which will make the steering feel heavy, but this does not indicate a problem.
If this occurs, park the vehicle safely and wait several minutes for the system to
return to normal.
Power Steering Mal‐ function Indicator
Light
*
The light illuminates/flashes if the el ectric power steering has a malfunction.
If the light illuminates/flashes, stop the ve hicle in a safe place and do not operate the
steering wheel. There is no problem if the lig ht turns off after a while. Contact an Au‐
thorized Mazda Dealer if the light illuminates/flashes continuously.
NOTE
If the indicator light illuminates/flashes , the power steering will not operate nor ‐
mally. If this happens, th e steering wheel can still be operated, however, the opera ‐
tion may feel heavy compared to normal, or the steering wheel could vibrate when
turning.
Repeatedly jerking the steering wheel left and right while the vehicle is stopped or
moving extremely slowly will cause the po wer steering system to go into protective
mode which will make the steering feel heavy, but this does not indicate a problem.
If this occurs, park the vehicle safely and wait several minutes for the system to
return to normal.
▼ Contact Authorized Mazda Deal
er and Have Vehicle Inspected
If any of the following warning lights or the i ndicator light turns on/flashes, the system may
have a malfunction. Contact an Authorized Mazda Dealer to have your vehicle inspected.
Signal Warning
ABS Warning LightIf the ABS warning light stays on while you're
driving, the ABS control unit has detected
a system malfunction. If this occurs, your br akes will function normally as if the vehicle
had no ABS.
Should this happen, consult an Authori zed Mazda Dealer as soon as possible.
NOTE
When the engine is jump-started to charge the battery, uneven rpm occurs and the ABS
warning light may illuminate. If this occurs, it is the result of the weak battery and does
not indicate an ABS malfunction.
Recharge the battery.
The brake assist system does not operate while the ABS warning light is illuminated.
If Trouble Arises
Warning/Indicator Lights and Warning Sounds
7-26*Some models.
CX-5_8JM9-EA-20G_Edition6_old 2021-12-9 11:43:53

SignalWarning
Master Warning In‐
dication/Warning Light With Multi-information Display (Type A/Type B)
Displays when notifica
tion of the system malf unctions is required.
Check the message indicated in the display and consult an Authorized Mazda Dealer.
Master warning
indication
Master
warning lightMaster
warning light
Master warning
indication
Multi-information Display
Type A Type B
Indication in display and master warning light in instrument cluster are illuminated at
same time.
This indicates a malfunction w ith the vehicle system. Check the message indicated in the
display and consult an Au thorized Mazda Dealer.
For details, refer to the explanations for the warning/indicator lights, in the warning/indi ‐
cator lights section, which match the symbol in the upper part of the display.
If a message is not indicated in the display, operate the INFO switch to display the “Warn‐
ing” screen.
Refer to Message Indicated in Multi-info rmation Display (Type A) on page 4-14.
Refer to Message Indicated in Multi-info rmation Display (Type B) on page 4-32.
With Multi-information Display (Type C)
Electric Parking
Brake (EPB) Warn ‐
ing Indication/ Warning Light The warning light illuminates when the system
has a malfunction. Have your vehicle in‐
spected at an Authorized Mazda Dealer.
If Trouble Arises
Warning/Indicator Lights and Warning Sounds
7-27
CX-5_8JM9-EA-20G_Edition6_old 2021-12-9 11:43:53

SignalWarning
Selective Catalytic
Reduction (SCR)
Warning Light
*
If the light turns on
The amount of Diesel Exhaust Fluid (DEF) is low or too much was added. Check the mes ‐
sage indicated on the display and c onsult an Authorized Mazda Dealer.
NOTE
If the vehicle continues to be driven while the SCR warning light is turned on, the vehi ‐
cle's speed may be restricted.
If the light is flashing
There is a problem with the SCR system or the remaining amount of DEF is extremely
low. Check the message indicated on the display and have the vehicle inspected by an Au ‐
thorized Mazda Dealer.
CAUTION
If the vehicle continues to be driven while th e SCR warning light is flashing, the vehicle may
stop running. If the SCR warnin g light flashes, have the vehicle inspected immediately at an
Authorized Mazda Dealer.
Automatic Trans‐
axle Warning Indi ‐
cation/Warning
Light
*
The indication/light illuminates wh en the transaxle has a problem.
CAUTION
If the automatic transaxle warning indication/ light illuminates, the transaxle has an electri‐
cal problem. Continuing to drive your Mazda in this condition could cause damage to your
transaxle. Consult an Authorized Mazda Dealer as soon as possible.
AWD Warning Indi ‐
cation*
“4WD System Malfunction” is displayed
The indication is displayed under the follow ing conditions. The system may have a mal‐
function. Have the vehicle checked at an Authorized Mazda Dealer.
When there is a malfunction in the AWD system.When there is a large difference between th e tire size of the front and rear wheels.
“4WD System High Load” is displayed
The indication is displayed under the followin g conditions. Park the vehicle in a safe place
and check that the warning indi cation light turns off, and then drive the vehicle. Contact
an Authorized Mazda Deal er if the indication is continuously displayed.
When the differential oil temperature is excessively high.When there is a large difference between the front and rear wheel rotation, such as
when trying to remove the vehicle from mud.
If Trouble Arises
Warning/Indicator Lights and Warning Sounds
*Some models.7-29
CX-5_8JM9-EA-20G_Edition6_old 2021-12-9 11:43:53

SignalWarning
(Flashing)
Tire Pressure Moni ‐
toring System
Warning Light
*
If the tire pressure monitoring system has a malfunction, the tire pressure warning light
flashes. Have your vehicle checked by an Au thorized Mazda Dealer as soon as possible.
WA R N I N G
If the tire pressure monitoring system warning light illuminates or
flashes, or the tire pres‐
sure warning beep sound is heard, decrease vehicle speed immediately and avoid sudden
maneuvering and braking:
If the tire pressure monitoring system warning light illuminates or flashes, or the tire pres‐
sure warning beep sound is heard, it is dangerous to drive the vehicle at high speeds, or
perform sudden maneuvering or braking. Vehicle drivability could worsen and result in an
accident.
To determine if you have a slow leak or a flat, pull over to a safe position where you can
check the visual condition of the tire and determine if you have enough air to proceed to a
place where air may be added and the system monitored again by an Authorized Mazda
Dealer or a tire repair station.
Do not ignore the TPMS Warning Light:
Ignoring the TPMS warning light is dangerous, even if you know why it is illuminated. Have
the problem taken care of as soon as possible before it develops into a more serious situa‐
tion that could lead to tire failure and a dangerous accident.
(Amber)
KEY Warning Indi ‐
cation
*
“Keyless System Malfunction” is displayed
This message is displayed if the advanced keyless entry & push button start system has a
problem.
Contact an Authori zed Mazda Dealer.
CAUTION
If the message is indicated, or the pu sh button start indicator light (amber)
flashes, the en‐
gine may not start. If the engine cannot be st arted, try starting it using the emergency oper‐
ation for starting the engine, and have the vehicle inspected at an Authorized Mazda Deal‐
er as soon as possible.
Refer to Emergency Operation for Starting the Engine on page 4-9.
“Ignition is On” is displayed
This message is displayed when the driver's door is opened without switching the ignition
off.
“Key Not Detected” is displayed
This message is displayed when any of the fo llowing operations is performed with the key
out of the operational range or placed in areas inside the cabin where it is difficult for the
key to be detected.
The push button start is pressed with the ignition switched offThe ignition is switched onAll doors are closed withou t switching the ignition off
If Trouble Arises
Warning/Indicator Lights and Warning Sounds
*Some models.7-31
CX-5_8JM9-EA-20G_Edition6_old 2021-12-9 11:43:53

SignalWarning
(Red)
(Turns on)
KEY Warning
Light
*
If any malfunction occurs in the keyless entry system, it illuminates continuously.
CAUTION
If the key warning indicator light illuminates or the push button start indicator light (amber)
flashes, the engine may not start. If the engine cannot be started, try starting it using the
emergency operation for starting the engine, and have the vehicle inspected at an Author‐
ized Mazda Dealer as soon as possible.
Refer to Emergency Operation for St arting the Engine on page 4-9.
(Amber)
High Beam Control
System (HBC)
Warning Indication/
Wa r n i n g L i g h t
*
The light remains turned on if there is a pr oblem with the system. Have your vehicle in ‐
spected at an Authorized Mazda Dealer.
NOTE
If the Forward Sensing Camera (FSC) field of view is impaired during bad weather condi ‐
tions (such as rain, fog, and snow) and when the windshield is dirty, the warning indica ‐
tion/warning light for the High Beam Contro l System (HBC) may display/turn on. Howev‐
er, this does not indicate a problem.
Blind Spot Monitor ‐
ing (BSM) Warning
Indication
*
The Warning indication turns on if there is any malfunction in the Blind Spot Monitoring
(BSM). Have your vehicle inspected by an Authorized Mazda Dealer.
NOTE
If the vehicle is driven on a road with less traffic and few vehicles that the radar sensors
can detect, the system may pause. How ever, it does not indicate a malfunction.
Blind Spot Monitor‐
ing (BSM) OFF In ‐
dicator Light
*
A problem in the system may be indicated under the following conditions.
Have your vehicle inspected at an Authorized Mazda Dealer.
The light does not turn on when the ignition is switched ON.The light remains on even when the Blind Spot Monitoring (BSM) system can be oper‐
ated.
It turns on while driving the vehicle.
NOTE
If the vehicle is driven on a road with less traffic and few vehicles that the radar sensors
can detect, the system may pause (The Blin d Spot Monitoring (BSM) OFF indicator light
in the instrument cluster illuminates). Ho wever, it does not indicate a malfunction.
(Amber)
Driver Attention
Alert (DAA) Warn ‐
ing Indication
*
The message is displayed when the system ha s a malfunction. Have your vehicle inspect‐
ed at an Authorized Mazda Dealer.
If Trouble Arises
Warning/Indicator Lights and Warning Sounds
7-32*Some models.
CX-5_8JM9-EA-20G_Edition6_old 2021-12-9 11:43:53

SignalWarning
(Amber)
Mazda Radar Cruise Control with Stop & Go function
(MRCC with Stop & Go function)
Warning Indication
*
The message is displayed when the system has a malfunction. Have your vehicle inspect ‐
ed at an Authorized Mazda Dealer.
Lane-keep Assist System (LAS) & Lane Departure
Wa r n i n g S y s t e m
(LDWS) Warning
Indication
*
The message is displayed when the system has a malfunction. Have your vehicle inspect ‐
ed at an Authorized Mazda Dealer.
The system does not operate when the warning message is displayed.
CAUTION
Always use tires for all wheels that are of the specified size, and the same manufacture,
brand, and tread pattern. In addition, do not use tires with significantly different wear
patterns on the same vehicle. If such improper tires are used, the system may not operate
normally.
 When an emergency spare tire is used, the system may not operate normally.
LED Headlight
Warning Light This light illuminates if ther
e is a malfunction in the LED headlight. Have your vehicle
inspected by an Authorized Mazda Dealer.
▼ Taking Action
Take the appropriate action and verify that the warning light turns off.
Signal
Warning Action to be taken
(Amber)
Smart Brake Support/
Smart City Brake Sup ‐
port (SBS/SCBS)
Warning Indication/
Wa r n i n g L i g h t
*
The light turns on if th e windshield or the
radar sensor are dirty, or there is a malfunc ‐
tion in the system. Verify the reason why the warning light is
illuminated on the center display.
If the reason why the warning light is illu
‐
minated is due to a dirty windshield, clean
the windshield.
If the warning light is illuminated because
of a dirty radar sensor, clean the front em ‐
blem.
For any other reasons, have the vehicle in ‐
spected at an Authorized Mazda Dealer.
If Trouble Arises
Warning/Indicator Lights and Warning Sounds
*Some models.7-33
CX-5_8JM9-EA-20G_Edition6_old 2021-12-9 11:43:53

Message Indicated on Multi-information Display*
If there is a notification from the vehicle, a message is displayed in the multi-information
display. Check the information and take the necessary action.

(Display example) Instrument Cluster
Type A
Type B
If the warning light turns on/flashes simultaneous ly or a symbol is indicated in the display,
check the information regarding the warning light or symbol.
Refer to If a Warning Light Turns On or Flashes on page 7-23.
Display Content Action to be taken
Indicated when the push button start is
pressed while the selector lever is not in
the P position. Shift the selector lever to the P position.
Indicated when the push button start is
pressed without depressing the brake
pedal.Depress the brake pedal and press the
push button start.
Indicates when the Electric Parking
Brake (EPB) switch is operated without
depressing the brake pedal.Operate the Electric Parking Brake
(EPB) switch while depressing the brake
pedal.
Indicates when there is a problem with
the brake related system while the vehi
‐
cle is being held in a stop position by the
AUTOHOLD function or during the
Mazda Radar Cruise Control with Stop
& Go function (MRCC with Stop & Go
function) stop hold control. Depress the brake pedal.
Cancel the AUTOHOLD function or the
Mazda Radar Cruise Control with Stop
& Go function (MRCC with Stop & Go
function), and have your vehicle inspect
‐
ed at an Authorized Mazda Dealer.
Indicates the possibility of the vehicle
not being held in the stopped position by
the AUTOHOLD function or the Mazda
Radar Cruise Control with Stop & Go
function (MRCC with Stop & Go func ‐
tion) stop hold control, such as on steep
slopes. Depress and hold your foot on the brake
pedal.
If Trouble Arises
Warning/Indicator Lights and Warning Sounds
*Some models.7-39
CX-5_8JM9-EA-20G_Edition6_old
2021-12-9 11:43:53
