SignalWarning
Charging System Warn‐
ing Indication/Warning Light If the warning light illuminates while drivin
g, it indicates a malfunction of the alter‐
nator or of the charging system.
Drive to the side of the road and park off the right-of-way. Consult an Authorized
Mazda Dealer.
CAUTION
Do not continue driving when the charging system warning light is illuminated be‐
cause the engine could stop unexpectedly.
Engine Oil Warning Light This warning light indicates
low engine oil pressure.
CAUTION
Do not run the engine if the oil pressure is low. Otherwise, it could result in extensive
engine damage.
If the light illuminates or the warni ng indication is displayed while driving:
1. Drive to the side of the road and park off the right-of-way on level ground.
2. Turn off the engine and wait 5 minutes for the oil to drain ba ck into the oil pan.
3. Inspect the engine oil level (page 6-24). If it's low, add the appropriate amount of
engine oil while being careful not to overfill.
CAUTION
Do not run the engine if the oil level is low. Otherwise, it could result in extensive
engine damage.
4. Start the engine and check the warning light.

If the light remains illuminated even though the oil level is normal or after adding oil,
stop the engine immediately and have your vehicle towed to an Authorized Mazda
Dealer.
(Red)
High Engine Coolant
Temperature Warning Indication/Warning Light The light flashes when the en
gine coolant temperature is extremely high, and illumi‐
nates when the engine coolant temperature increases further.
Handling Procedure
Flashing light
Drive slowly to reduce engine load until you can find a safe place to stop the vehicle
and wait for the engine to cool down.
Illuminated light
This indicates the possibility of overheating. Park the vehicle in a safe place immedi ‐
ately and stop the engine.
Refer to Overheating on page 7-18.
CAUTION
Do not drive the vehicle with the high engi ne coolant temperature warning light illumi‐
nated. Otherwise, it could resu lt in damage to the engine.
If Trouble Arises
Warning/Indicator Lights and Warning Sounds
7-25
CX-5_8JM9-EA-20G_Edition6_old 2021-12-9 11:43:53

SignalWarning
Power Steering Mal‐
function Indication*
The message is displayed if the electric power steering has a malfunction.
If the message is displayed, stop the vehicle in a safe place and do not operate the
steering wheel. There is no problem if the message in the display turns off after a
while. Contact an Authorized Mazda Dealer if the message is displayed continuously.
NOTE
If the message is displayed, the power steering will not operate normally. In this
case, the steering wheel can still be operated, however, the operation may feel
heavy compared to normal, or the stee ring wheel could vibrate when turning.
Repeatedly jerking the steering wheel left and right while the vehicle is stopped or
moving extremely slowly will cause the po wer steering system to go into protective
mode which will make the steering feel heavy, but this does not indicate a problem.
If this occurs, park the vehicle safely and wait several minutes for the system to
return to normal.
Power Steering Mal‐ function Indicator
Light
*
The light illuminates/flashes if the el ectric power steering has a malfunction.
If the light illuminates/flashes, stop the ve hicle in a safe place and do not operate the
steering wheel. There is no problem if the lig ht turns off after a while. Contact an Au‐
thorized Mazda Dealer if the light illuminates/flashes continuously.
NOTE
If the indicator light illuminates/flashes , the power steering will not operate nor ‐
mally. If this happens, th e steering wheel can still be operated, however, the opera ‐
tion may feel heavy compared to normal, or the steering wheel could vibrate when
turning.
Repeatedly jerking the steering wheel left and right while the vehicle is stopped or
moving extremely slowly will cause the po wer steering system to go into protective
mode which will make the steering feel heavy, but this does not indicate a problem.
If this occurs, park the vehicle safely and wait several minutes for the system to
return to normal.
▼ Contact Authorized Mazda Deal
er and Have Vehicle Inspected
If any of the following warning lights or the i ndicator light turns on/flashes, the system may
have a malfunction. Contact an Authorized Mazda Dealer to have your vehicle inspected.
Signal Warning
ABS Warning LightIf the ABS warning light stays on while you're
driving, the ABS control unit has detected
a system malfunction. If this occurs, your br akes will function normally as if the vehicle
had no ABS.
Should this happen, consult an Authori zed Mazda Dealer as soon as possible.
NOTE
When the engine is jump-started to charge the battery, uneven rpm occurs and the ABS
warning light may illuminate. If this occurs, it is the result of the weak battery and does
not indicate an ABS malfunction.
Recharge the battery.
The brake assist system does not operate while the ABS warning light is illuminated.
If Trouble Arises
Warning/Indicator Lights and Warning Sounds
7-26*Some models.
CX-5_8JM9-EA-20G_Edition6_old 2021-12-9 11:43:53

SignalWarning Action to be taken
Seat Belt Warning
Light (Front seat) Mexico
The seat belt warning light turns on if the
driver or front passenger's seat is occupied
and the seat belt is not fastened with the ig
‐
nition switched ON.
If the driver or front passenger's seat belt is
unfastened (only when the front passenger's
seat is occupied) and the vehicle is driven at
a speed faster than about 20 km/h (12 mph),
the warning light flashes. After a short time,
the warning light stops flashing, but re ‐
mains illuminated. If a seat belt remains un ‐
fastened, the warning light flashes again for
a given period of time.
NOTE
Placing heavy items on the front pas‐
senger's seat may cause the front pas ‐
senger's seat belt warning function to op ‐
erate depending on the weight of the
item.
To allow the front passenger seat weight
sensor to function properly, do not place
and sit on an additional seat cushion on
the front passenger's seat. The sensor
may not function properly because the
additional seat cushion could cause sen ‐
sor interference.
If a small child is seated on the front pas ‐
senger's seat, the warning light may not
operate. Fasten the seat belts.
(Red)
Seat Belt Warning Light (Rear seat) If the rear seat belts are not fastened while
the ignition is switched
ON , the driver and
the passenger are alerted by the warning
light.
The warning light operates even if there is
no passenger on the rear seat.
NOTE
If a rear seat belt is not fastened by a cer ‐
tain period of time after the engine has
been started, the warning light turns off. Fasten the seat belts.
Low Washer Fluid
Level Warning Indica ‐
tion/Warning Light
*
This warning light indicates that little wash ‐
er fluid remains. Add washer fluid (page 6-28).
If Trouble Arises
Warning/Indicator Lights and Warning Sounds
*Some models.7-35
CX-5_8JM9-EA-20G_Edition6_old
2021-12-9 11:43:53

Message Indicated on Multi-information Display*
If there is a notification from the vehicle, a message is displayed in the multi-information
display. Check the information and take the necessary action.

(Display example) Instrument Cluster
Type A
Type B
If the warning light turns on/flashes simultaneous ly or a symbol is indicated in the display,
check the information regarding the warning light or symbol.
Refer to If a Warning Light Turns On or Flashes on page 7-23.
Display Content Action to be taken
Indicated when the push button start is
pressed while the selector lever is not in
the P position. Shift the selector lever to the P position.
Indicated when the push button start is
pressed without depressing the brake
pedal.Depress the brake pedal and press the
push button start.
Indicates when the Electric Parking
Brake (EPB) switch is operated without
depressing the brake pedal.Operate the Electric Parking Brake
(EPB) switch while depressing the brake
pedal.
Indicates when there is a problem with
the brake related system while the vehi
‐
cle is being held in a stop position by the
AUTOHOLD function or during the
Mazda Radar Cruise Control with Stop
& Go function (MRCC with Stop & Go
function) stop hold control. Depress the brake pedal.
Cancel the AUTOHOLD function or the
Mazda Radar Cruise Control with Stop
& Go function (MRCC with Stop & Go
function), and have your vehicle inspect
‐
ed at an Authorized Mazda Dealer.
Indicates the possibility of the vehicle
not being held in the stopped position by
the AUTOHOLD function or the Mazda
Radar Cruise Control with Stop & Go
function (MRCC with Stop & Go func ‐
tion) stop hold control, such as on steep
slopes. Depress and hold your foot on the brake
pedal.
If Trouble Arises
Warning/Indicator Lights and Warning Sounds
*Some models.7-39
CX-5_8JM9-EA-20G_Edition6_old
2021-12-9 11:43:53

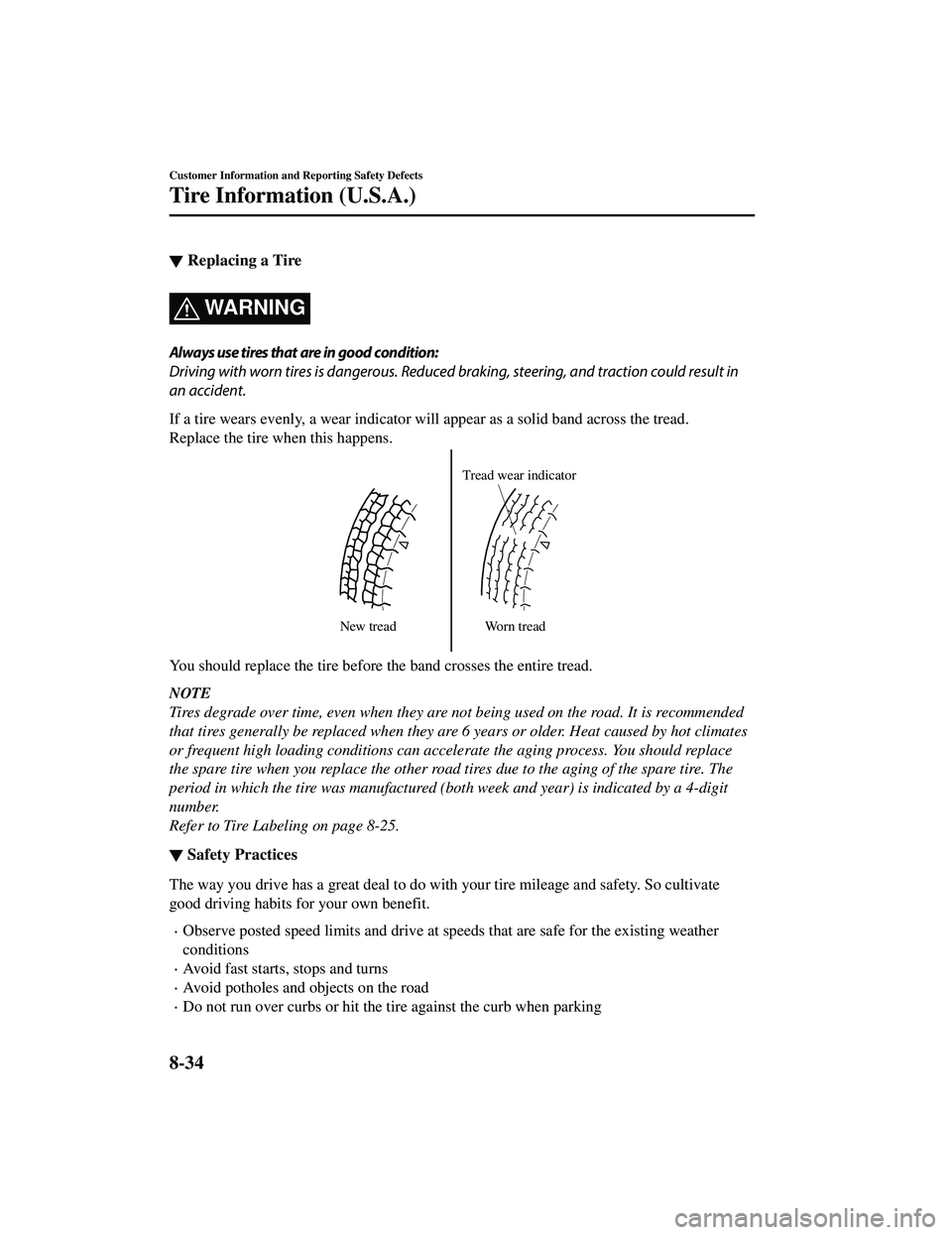

▼Replacing a Tire
WA R N I N G
Always use tires that are in good condition:
Driving with worn tires is dangerous. Reduce
d braking, steering, and traction could result in
an accident.
If a tire wears evenly, a wear indicator will appear as a solid band across the tread.
Replace the tire when this happens.
New tread Tread wear indicator
Worn tread
You should replace the tire before the band crosses the entire tread.
NOTE
Tires degrade over time, even when they are not being used on the road. It is recommended
that tires generally be replaced when they are 6 years or older. Heat caused by hot climates
or frequent high load ing conditions can accelerate the aging proc ess. You should replace
the spare tire when you replace the other road tires due to the aging of the spare tire. The
period in which the tire was manufactured (both week and year) is indicated by a 4-digit
number.
Refer to Tire Labeling on page 8-25.
▼ Safety Practices
The way you drive has a great deal to do with
your tire mileage and safety. So cultivate
good driving habits for your own benefit.
Observe posted speed limits and drive at speeds that are safe for the existing weather
conditions
Avoid fast starts, stops and turns
Avoid potholes and objects on the road
Do not run over curbs or hit the ti re against the curb when parking
Customer Information and Reporting Safety Defects
Tire Information (U.S.A.)
8-34
CX-5_8JM9-EA-20G_Edition6_old 2021-12-9 11:43:53

Index
A
Accessory Socket.............................. 5-58
Active Driving Display..................... 4-60
Adaptive Front Lighting System
(AFS)............................................... 4-122
Add-On Non-Genuine Parts and
Accessories........................................ 8-19
Advanced Key
Advanced keyless entry system... 3-10
Operational range........................ 3-11
Advanced Key Removed from Vehicle
Warning Beep.................................... 7-44
Advanced Smart City Brake Support
(Advanced SCBS)........................... 4-173
Collision warning.... .................. 4-175
Stopping the Advanced Smart City
Brake Support (Advanced SCBS)
system operation........................ 4-175
Air Bag Systems............................... 2-56
Air Bag/Front Seat Belt Pretensioner
System Warning Beep....................... 7-43
Antilock Brake System (ABS)........ 4-108
Armrest Box...................................... 5-63
AUTOHOLD................................... 4-102
AUTOHOLD Warning Beep.............7-45
Automatic Transaxle......................... 4-63
Active Adaptive Shift (AAS)...... 4-65
Automatic transaxle controls....... 4-63
Direct mode................................. 4-72
Driving tips..................................4-73
Manual shift mode.......................4-66
Shift-lock system...... ................... 4-64
Transaxle ranges.......................... 4-64
B
Battery............................................... 6-39 Maintenance.................................6-40
Replacement................................ 6-40
Specifications.................................9-4
Battery Runs Out.............................. 7-13
Jump-starting............................... 7-13
Blind Spot Monitoring (BSM)........ 4-126 Canceling operation of Blind Spot
Monitoring (BSM).....................4-130
Blind Spot Monitoring (BSM) Warning
Beep...................................................7-46
Body Lubrication.............................. 6-33
Bottle Holder..................................... 5-62
Brakes
Brake assist................................ 4-101
Electric parking brake (EPB)...... 4-98
Foot brake....................................4-98
Pad wear indicator... .................. 4-101
Warning light............................. 4-100
Break-In Period................................. 3-50
C
Capacities............................................ 9-5
Carbon Monoxide......... .................... 3-31
Cell Phones....................................... 8-20
Center Console.................................. 5-63
Child Restraint Categories of child-restraint
systems.........................................2-40
Child-restraint precautions.......... 2-35
Child-restraint system
installation................................... 2-40
Child-restraint system suitability for
various seat positions table..........2-42
Installing child-restraint
systems.........................................2-45
ISOFIX child-restraint systems
(Mexico)...................................... 2-52
LATCH child-restraint systems
(Except Mexico).......................... 2-52
Child Safety Locks for Rear Doors... 3-19
Climate Control System...................... 5-2 Fully Automatic Type....................5-9
Manual Type.................................. 5-5
10-2
CX-5_8JM9-EA-20G_Edition6_old 2021-12-9 11:43:53

Index
Indication/Indicator Lights.......... 4-57
Multi-information Display (Type
C)................................................. 4-49
Odometer..................................... 4-49
Outside Temperature Display...... 4-52
Speedometer................................ 4-48
Tachometer.................................. 4-48
Trip Computer............................. 4-53
Trip Meter....................................4-49
Warning Indication/Warning
Lights........................................... 4-55
Interior Care...................................... 6-66 Active driving display
maintenance................................. 6-68
Cleaning the floor mats............... 6-68
Cleaning the window interiors.....6-68
Instrument panel top (Soft pad)
maintenance................................. 6-67
Leather upholstery
maintenance................................. 6-67
Panel maintenance....................... 6-68
Plastic part maintenance.............. 6-67
Seat belt maintenance..................6-66
Upholstery maintena nce.............. 6-66
Vinyl upholstery maintenance..... 6-66
Interior Lights................................... 5-54 Luggage compartment light.........5-54
Map lights....................................5-54
Overhead lights............................5-54
i-ACTIVSENSE.............................. 4-119 Active safety technology........... 4-119
Adaptive Front Lighting System
(AFS)......................................... 4-122
Advanced Smart City Brake Support
(Advanced SCBS)..................... 4-173
Blind Spot Monitoring (BSM) ............
................................................... 4-126
Camera and sensors................... 4-120
Distance Recognition Support System
(DRSS).......................................4-137
Driver Attention Alert (DAA)... 4-141Forward Sensing Camera
(FSC)......................................... 4-239
High Beam Control System
(HBC)........................................ 4-123
Lane-keep Assist System (LAS) &
Lane Departure Warning System
(LDWS)..................................... 4-162
Mazda Radar Cruise Control with
Stop & Go function (MRCC with
Stop & Go function)..................4-147
Pre-crash safety technology.......4-120
Radar sensors (rear)...................4-247
Radar sensor (front)...................4-244
Rear Cross Traffic Alert
(RCTA)...................................... 4-143
Smart Brake Suppor t (SBS)...... 4-183
Smart City Brake Support [Forward]
(SCBS F)................................... 4-176
Smart City Brake Support [Reverse]
(SCBS R)................................... 4-179
Traffic Sign Recognition System
(TSR)......................................... 4-131
Ultrasonic sensor (rear)............. 4-249
360°View Monitor (Mazda Connect
(Type A))................................... 4-185
360°view monitor (Mazda Connect
(Type B))................................... 4-211
i-ACTIV AWD Operation............... 4-116
J
Jack...................................................... 7-4
Jump-Starting.................................... 7-13
K
Keyless Entry System......................... 3-4
Keys.....................................................3-2 Key suspend function.................... 3-9
Transmitter..................................... 3-5
10-6
CX-5_8JM9-EA-20G_Edition6_old 2021-12-9 11:43:53

Index
Recreational Towing......................... 3-66
Registering Your Vehicle in A Foreign
Country.............................................. 8-18
ReplacementFuse..............................................6-53
Key battery.................................. 6-41
Light bulbs...................................6-47
Tires............................................. 6-44
Wheel........................................... 6-46
Wiper........................................... 6-34
Request Switch Inoperable Warning
Beep (With the advanced keyless
function)............................................ 7-45
Rocking the Vehicle.......................... 3-52
S
Safety Defects, Reporting................. 8-14
Saving Fuel and Protection of the
Environment...................................... 3-50
Scheduled Maintenance...................... 6-4
Seats.................................................... 2-5 Driving position memory............ 2-11
Front seat....................................... 2-5
Head restraint.............................. 2-20
Rear seat...................................... 2-15
Seat ventilation....... ..................... 2-23
Seat warmer................................. 2-22
Seat Belt System Automatic locking....................... 2-28
Emergency locking...................... 2-28
Extender....................................... 2-33
Pregnant women.......................... 2-28
Seat belt precautions................... 2-26
3-point type................................. 2-29
Seat Belt Warning Beep.................... 7-43
Security System Immobilizer system..................... 3-46
Theft-deterrent system................. 3-48
Selective Catalytic Reduction (SCR)
System (SKYACTIV-D 2.2)............4-261
Selective Catalytic Reduction (SCR)
Warning Beep.................................... 7-46
Smart Brake Support (SBS)............ 4-183 Collision warning...................... 4-184
Stopping the Smart Brake Support
(SBS) system operation............. 4-184
Smart City Brake Support (SCBS)
Collision warning...................... 4-178
Smart City Brake Support (SCBS)
Indicator Light (Red).................4-178
Stopping the Smart City Brake
Support (SCBS) System
Operation................................... 4-178
Smart City Brake Support [Forward]
(SCBS F)......................................... 4-176
Smart City Brake Support [Reverse]
(SCBS R)........................................ 4-179 Stopping the Smart City Brake
Support [Reverse] (SCBS R) system
operation.................................... 4-182
Spare Tire............................................ 7-4
Specifications...................................... 9-4
SRS Air Bags Front passenger occupant
classification system.................... 2-71
How the SRS air bags work........ 2-65
Limitations to SRS air bag.......... 2-69
Monitoring................................... 2-75
SRS air bag deployment
criteria.......................................... 2-68
Supplemental restraint system
components.................................. 2-63
Starting the Engine..............................4-5
Steering Wheel
Heated steering wh eel................. 2-24
Horn............................................. 4-89
Storage Compartments ...................... 5-62
Armrest box................................. 5-63
Center console............................. 5-63
Glove compartment..................... 5-63
Luggage compartment................. 5-64
10-9
CX-5_8JM9-EA-20G_Edition6_old 2021-12-9 11:43:53

Index
Overhead console........................ 5-62
Rear coat hooks........................... 5-65
Sunshade............................................3-45
Sunvisors........................................... 5-53
T
Theft-Deterrent System..................... 3-48
Three-flash Turn Signal.................... 4-82
Tiedown Hook.............. .............................. 7-21
Tires................................................... 6-43 Flat tire.......................................... 7-3
Replacing a tire........................... 6-44
Replacing a wheel....................... 6-46
Snow tires.................................... 3-53
Specifications.................................9-8
Temporary spare tire....................6-45
Tire chains................................... 3-54
Tire inflation pressure................. 6-43
Tire rotation................................. 6-44
Uniform tire quality grading system
(UTQGS)..................................... 8-23
Tire Inflation Pressure Warning
Beep...................................................7-46
Tire Information................................ 8-25
Tire Pressure Monitoring System.... 4-256
To w i n g Recreational towing.....................3-66
Trailer towing (U.S.A. and
Canada)........................................ 3-58
Towing Description........................... 7-20
Traction Control System (TCS)...... 4-109 TCS OFF Indicator Light.......... 4-109
TCS OFF Switch....................... 4-110
TCS/DSC indicator light........... 4-109
Traffic Sign Recognition System
(TSR)............................................... 4-131
Transmitter.......................................... 3-5
Trouble Battery runs out........................... 7-13
Emergency starting...................... 7-16
Emergency towing....................... 7-20
Flat tire.......................................... 7-3
Overheating................................. 7-18
Parking in an emergency............... 7-2
When Liftgate Cannot be
Opened......................................... 7-48
Turn Signals...................................... 4-81
U
Ultrasonic Sensor (Rear)................. 4-249
USB Power Outlet............................ 5-60
V
Vanity Mirrors................................... 5-53
Vehicle Information Labels................. 9-2
W
Warning Sound is Activated............. 7-43 Advanced Key removed from vehicle
warning beep............................... 7-44
Air bag/front seat belt pretensioner
system warning beep................... 7-43
AUTOHOLD Warning Beep....... 7-45
Blind Spot Monitoring (BSM)
warning beep............................... 7-46
Collision warning...... .................. 7-47
Electric Parking Brake (EPB)
Warning Beep.............................. 7-45
Excessive speed warning.............7-47
Ignition not switched off (STOP)
warning beep............................... 7-44
Key left-in-luggage compartment
warning beep (With the advanced
keyless function)..........................7-45
Key left-in-vehicle warning beep
(With the advanced keyless
function).......................................7-45
Key removed from vehicle warning
beep..............................................7-44
10-10
CX-5_8JM9-EA-20G_Edition6_old 2021-12-9 11:43:53
