roof MAZDA MODEL CX-5 2022 Owner's Manual

It is not necessary to face the microphone or be near it. Speak the voice commands while
maintaining a safe driving position.
Close the windows and the moonroof* to reduce loud noises from outside the vehicle and
to prevent the airflow of the air-conditioning system from being a disturbance when using
Bluetooth
® Hands-Free.
Make sure that the air flow from the air conditioner is not blowing on the microphone.
If the voice recognition is poor with the guidance volume set to high, set the Barge-In to
OFF.
Examples of available voice commands
The specified name and number are put into the {}.
Common
Back
Help (You can listen to help guidance at each screen.)
{Line Number} (You can select the line number on the screen.)
Next Page
Previous Page
Cancel
Menu
All
Navigation
Entertainment
Communication
Setting
Voice Recognition Settings
Display Off
Music
Play Artist (You can also use “Play Artist {Artist name}”.)
Play Album (You can also use “Play Album {Album Name}”.)
Play Playlist (You can also use “Play Playlist {Playlist Name}”.)
Play Song (You can also use “Play Song {Song Name}”.)
Play Audiobook (You can also use “Play Audiobook {Audiobook Name}”.)
Play Podcast (You can also use “Play Podcast {Podcast Name}”.)
Radio
Tune to {Frequency} AM
Tune to {Frequency} FM
Tune to {Frequency} HD {Sub Channel}
Interior Features
Mazda Connect (Mazda Connect (Type B))
5-44*Some models.
CX-5_8KN5-EA-21K_Edition1_old 2021-9-9 8:35:12

DESCRIPTIONFUSE
RATING PROTECTED COMPONENT
6 D.LOCK 25 A Power door locks
7 SEAT WARM 20 A Seat warmer
*
8 SUNROOF 10 AMoonroof*
9 F.OUTLET 15 A Accessory sockets
10 MIRROR 7.5 A Power control mirror 11 R.OUTLET1 15 A ―
12 SCR3 15 A ―
13 SCR4 15 A ―
14 R.OUTLET2 15 A Accessory sockets
15 USB 7.5 A
USB power outlet
*
16 PLG 20 A
Power liftgate*
17 M.DEF 7.5 A
Mirror defogger*
18 R.SEAT W 20 A Rear seat warmer*
19 INTERIOR2 15 A For protection of various circuit
20 AT IND7.5 A AT shift indicator
21 P.SEAT P 30 A Power seat
*
Maintenance and Care
Owner Maintenance
6-48*Some models.
CX-5_8KN5-EA-21K_Edition1_old 2021-9-9 8:35:12

Do not spray water in the engine
compartment. Otherwise, it could result
in engine-starting problems or damage
to electrical parts.
 When washing and waxing the vehicle,
be careful not to apply excessive force to
any single area of the vehicle roof.
Otherwise, you could dent the vehicle.
To help protect the finish from rust and
deterioration, wash your Mazda
thoroughly and frequently, at least once a
month, with lukewarm or cold water.

If the vehicle is washed improperly, the
paint surface could be scratched. Here are
some examples of how scratching could
occur.

Scratches occur on th e paint surface when:
The vehicle is washed without first
rinsing off dirt and other foreign matter.
The vehicle is washed with a rough, dry,
or dirty cloth.
The vehicle is washed at a car wash that
uses brushes that are dirty or too stiff.
Cleansers or wax containing abrasives
are used.
NOTE
Mazda is not responsible for scratches
caused by automatic car washes or
improper washing.
Scratches are more noticeable on
vehicles with darker paint finishes.
To minimize scratches on the vehicle's
paint finish:
Rinse off any dirt or other foreign matter
using lukewarm or cold water before
washing.
Use plenty of lukewarm or cold water
and a soft cloth when washing the
vehicle. Do not use a nylon cloth.
Rub gently when washing or drying the
vehicle.
Take your vehicle only to a car wash
that keeps its brushes well maintained.
Do not use abrasive cleansers or wax
that contain abrasives.
CAUTION
 Do not use steel wool, abrasive cleaners,
or strong detergents containing highly
alkaline or caustic agents on
chrome-plated or anodized aluminum
parts. This may damage the protective
coating; also, cleaners and detergents
may discolor or deteriorate the paint.
Pay special attention to removing salt, dirt,
mud, and other foreign material from the
underside of the fenders, and make sure
the drain holes in the lower edges of the
doors and rocker panels are clean.

Insects, tar, tree sap, bird droppings,
industrial fallout, and similar deposits can
damage the finish if not removed
immediately. When prompt washing with
plain water is ineffective, use a mild soap
made for use on vehicles.

Thoroughly rinse off all soap with
lukewarm or cold water. Do not allow
soap to dry on the finish.

After washing the vehicle, dry it with a
clean chamois to prevent water spots from
forming.
Maintenance and Care
Appearance Care
6-51
CX-5_8KN5-EA-21K_Edition1_old 2021-9-9 8:35:12

▼Panel Maintenance
If a panel becomes soiled, wipe it off with
a soft cloth soaked in clean water and
thoroughly wrung out.
If some areas require further cleaning, use
the following procedure:
1. Wipe the soiled ar
ea with a soft cloth
soaked in a mild detergent (approx.
5 %) diluted with water.
2. Wipe off the remaining detergent using a cloth soaked in clean water and
wrung out well.
NOTE
Be particularly careful when cleaning
shiny surface panels and metallic parts
such as plating as they can be scratched
easily.
▼Active Driving Display
Maintenance*
The dust-proof sheet has a coating. When
cleaning, do not use a hard or
rough-surface cloth, or cleaning detergent.
In addition, if a chem
ical solvent gets on
the active driving disp lay, wipe it off
immediately. The dust-proof sheet could
be damaged and the surface coating could
be scratched. Use a fine, soft cloth such as
those used for cleaning eyeglasses.
NOTE
Use of compressed air when cleaning the
dust-proof sheet is recommended.
▼ Cleaning the Window Interiors
If the windows become covered with an
oily, greasy, or waxy film, clean them with
glass cleaner. Follow th
e directions on the
container.
CAUTION
 Do not scrape or scratch the inside of the
window glass. It could damage the
thermal filaments and the antenna lines.
 When washing the inside of the window
glass, use a soft cloth dampened in
lukewarm water, gently wiping the
thermal
filaments and the antenna lines.
Use of glass cleaning products could
damage the thermal filaments and the
antenna lines.
▼ Cleaning the Floor Mats
Rubber floor mats should be cleaned with
mild soap and water only.
WA R N I N G
Do not use rubber cleaners, such as tire
cleaner or tire shine, when cleaning rubber
floor mats:
Cleaning the rubber
floor mats with rubber
cleaning products makes the floor mats
slippery.
This may cause an accident when
depressing the accelerator or brake pedal
or when getting in or out of the vehicle.
After removing the floor mats for
cleaning, always reinstall them securely
(page 3-47).
Maintenance and Care
Appearance Care
*Some models.6-57
CX-5_8KN5-EA-21K_Edition1_old 2021-9-9 8:35:12

Original Equipment (OE): Describes components originally equipped on the vehicle.
Vehicle Load Limit: The maximum value of the combination weight of occupants and
cargo.
Bead Area of the Tire: Area of the tire next to the rim.
Sidewall Area of the Tire: Area between the bead area and the tread.
Tread Area of the Tire: Area on the perimeter of the tire that contacts the road when it's
mounted on the vehicle.

Seating capacity means the total allowable number of vehicle occupants. Seating capacity
is described on the tire label.

Production options weight is the combination weight of installed regular production
options weighing over 2.3 kilograms in excess of the standard items which they replace, and
not previously considered in the curb weight or accessory weight, including heavy duty
brakes, ride levelers, roof rack, heavy duty battery, and special trim.

Rim is the metal support (wheel) for a tire or a tire and tube assembly upon which the tire
beads are seated.
Customer Information and Reporting Safety Defects
Tire Information (U.S.A.)
8-32
CX-5_8KN5-EA-21K_Edition1_old 2021-9-9 8:35:12

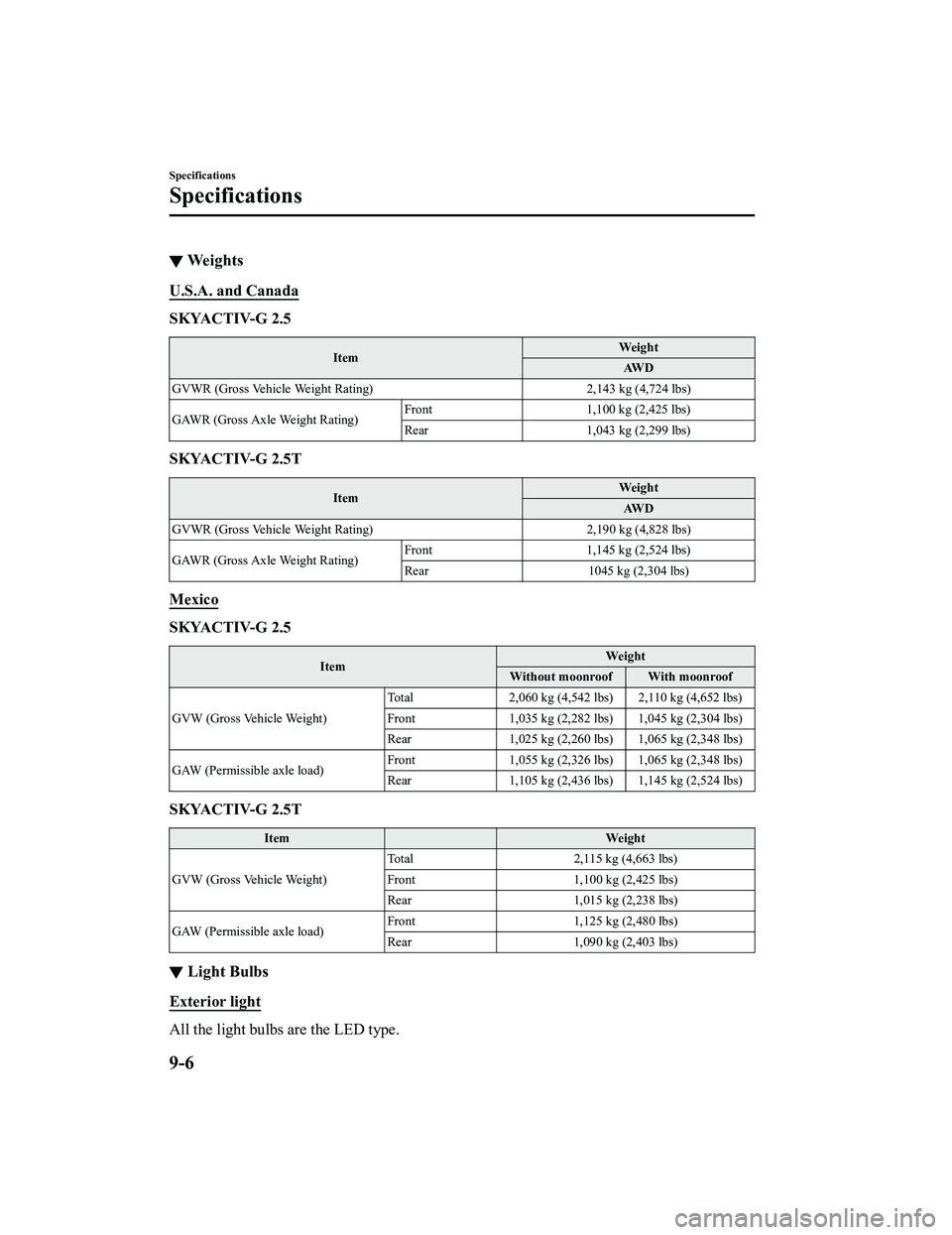

▼We i g h t s
U.S.A. and Canada
SKYACTIV-G 2.5
Item Weight
AW D
GVWR (Gross Vehicle Weight Rating) 2,143 kg (4,724 lbs)
GAWR (Gross Axle Weight Rating) Front
1,100 kg (2,425 lbs)
Rear 1,043 kg (2,299 lbs)
SKYACTIV-G 2.5T
Item Weight
AW D
GVWR (Gross Vehicle Weight Rating) 2,190 kg (4,828 lbs)
GAWR (Gross Axle Weight Rating) Front
1,145 kg (2,524 lbs)
Rear 1045 kg (2,304 lbs)
Mexico
SKYACTIV-G 2.5
Item Weight
Without moonroof With moonroof
GVW (Gross Vehicle Weight) Total
2,060 kg (4,542 lbs) 2,110 kg (4,652 lbs)
Front 1,035 kg (2,282 lbs) 1,045 kg (2,304 lbs)
Rear 1,025 kg (2,260 lbs) 1,065 kg (2,348 lbs)
GAW (Permissible axle load) Front
1,055 kg (2,326 lbs) 1,065 kg (2,348 lbs)
Rear 1,105 kg (2,436 lbs) 1,145 kg (2,524 lbs)
SKYACTIV-G 2.5T
Item Weight
GVW (Gross Vehicle Weight) Total
2,115 kg (4,663 lbs)
Front 1,100 kg (2,425 lbs)
Rear 1,015 kg (2,238 lbs)
GAW (Permissible axle load) Front
1,125 kg (2,480 lbs)
Rear 1,090 kg (2,403 lbs)
▼Light Bulbs
Exterior light
All the light bulbs are the LED type.
Specifications
Specifications
9-6
CX-5_8KN5-EA-21K_Edition1_old
2021-9-9 8:35:12

Index
Liftgate.............................................. 3-18When Liftgate Cannot be
Opened......................................... 7-46
Lighting Control................................4-71
Lights-on Reminder.......................... 7-41
Light Bulbs Replacement................................ 6-39
Specifications.................................9-6
Lubricant Quality ................................ 9-4
Luggage Compartment......................5-70
Cargo securing loops................... 5-70
Cargo sub-compartment.............. 5-70
Luggage Compartment Light............ 5-56
M
Maintenance
Information.................................... 6-2
Scheduled.......................................6-4
Map Lights........................................ 5-56
Mazda Connect................................. 5-14 Appendix (Mazda Connect (Type
A))................................................5-25
Appendix (Mazda Connect (Type
B))................................................ 5-45
Connected Service... .................... 5-53
Mazda Connect Basic Operations
(Mazda Connect (Type A))..........5-17
Mazda Connect Basic Operations
(Mazda Connect (Type B)).......... 5-37
Mazda intelligent Drive Select (Mi-
Drive)............................................... 4-111
Mazda intelligent Drive Select (Mi-
Drive) (AWD)..................................4-111
Mazda intelligent Drive Select (Mi-
Drive) (Type A)............................... 4-111
Mazda Radar Cruise Control with Stop &
Go function (MRCC with Stop & Go
function).......................................... 4-145 Close proximity warning........... 4-149
Cruise control function.............. 4-157
Display indication......................4-147
Setting the system..................... 4-150
Stop hold control....................... 4-156
Mazda Radar Cruise Control with Stop &
Go function (MRCC with Stop & Go
function) System Warnings............... 7-44
Message Indicated on Display.......... 7-39
Message Indicated on Multi-information
Display.............................................. 7-37
Meters................................................ 4-11
Mirrors
Outside mirrors..... ....................... 3-30
Rearview mirror.......................... 3-32
Mirror Defogger......... ....................... 4-85
Moonroof...........................................3-38
Multi-information Display (Type
A).......................................................4-13
Multi-information Display (Type
B)....................................................... 4-31
Multi-information Display (Type
C)....................................................... 4-47
O
Off-Road Traction Assist Off-Road Traction Assist indicator
light............................................ 4-109
Off-Road Traction Assist
switch......................................... 4-110
Outside Mirrors......... ........................ 3-30
Overhead Console............................. 5-68
Overhead Lights................................ 5-56
Overheating....................................... 7-17
Overloading....................................... 3-50
Owner Maintenance Closing the hood...... ................... 6-17
Engine compartment overview.... 6-19
Key battery replacemen t..............6-33
Opening the hood........................ 6-17
Owner maintenance
precautions................................... 6-15
10-7
CX-5_8KN5-EA-21K_Edition1_old 2021-9-9 8:35:12
