Hazardous Driving
WA R N I N G
Be extremely careful if it is necessary to
downshift on slippery surfaces:
Downshifting into lower gear while driving
on slippery surfaces is dangerous. The
sudden change in tire speed could cause
the tires to skid. This could lead to loss of
vehicle control and an accident.
Avoid sharp turns, excessive speed and
abrupt maneuvers when driving this
vehicle:
Sharp turns, excessive speed and abrupt
maneuvering of this vehicle are dangerous
as it could result in the increased risk of loss
of vehicle control, vehicle roll-over,
personal injury or death.
This vehicle has a higher center of gravity.
Vehicles with a higher center of gravity
such as utility vehicles handle differently
than vehicles with a lower center of gravity.
Utility vehicles are not designed for
cornering at high speeds any more than
low profile sports cars are designed to
perform satisfactorily under off-road
conditions.
In addition, utility vehicles have a
significantly higher rollover rate than other
types of vehicles.
In a rollover crash, an unbelted person is
significantly more likely to die than a
person wearing a seat belt.
When driving on ice or in water, snow,
mud, sand, or similar hazards:
Be cautious and allow extra distance for
braking.
Avoid sudden braking and sudden
maneuvering.
Do not pump the brakes. Continue to
press down on the brake pedal.
Refer to Antilock Brake System (ABS)
on page 4-105.
If you get stuck, select a lower gear and
accelerate slowly. Do not spin the front
wheels.
For more traction in starting on slippery
surfaces such as ice or packed snow, use
sand, rock salt, chains, carpeting, or
other nonslip material under the front
wheels.
NOTE
Use snow chains only on the front wheels.
Before Driving
Driving Tips
3-46
CX-5_8KN5-EA-21K_Edition1_old 2021-9-9 8:35:12

4When Driving
Information concerning safer driving and stopping.
Start/Stop Engine.............................. 4-4 Ignition Switch........ ..................... 4-4
Starting the Engine....................... 4-5
Turning the Engine Off...............4-10
Instrument Cluster and Display ............
........................................................... 4-11 Instrument Cluster and
Display........................................ 4-11
Instrument Cluster (Type A)....... 4-12
Instrument Cluster (Type B)....... 4-30
Instrument Cluster (Type C)....... 4-46
Active Driving Display
*............. 4-58
Automatic Transaxle....................... 4-60 Automatic Transaxle
Controls...................................... 4-60
Shift-Lock System...................... 4-61
Transaxle Ranges........................4-61
Manual Shift Mode..................... 4-63
Direct Mode
*.............................. 4-69
Driving Tips................................4-70
Switches and Controls..................... 4-71 Lighting Control......................... 4-71
Fog Lights
*................................. 4-78
Turn and Lane-Change
Signals........................................ 4-78
Windshield Wipers and
Washer........................................ 4-79
Rear Window Wiper and
Washer........................................ 4-83
Rear Window Defogg er.............. 4-83
Horn............................................ 4-86
Hazard Warning Flasher............. 4-86
HomeLink Wireless Control System
(Type A)
*.................................... 4-87
HomeLink Wireless Control System
(Type B)
*.................................... 4-90
Brake................................................ 4-95 Brake System.............................. 4-95
AUTOHOLD.............................. 4-99
Hill Launch Assist (HLA)........ 4-103
ABS/TCS/DSC/Off-Road Traction
Assist............................................... 4-105 Antilock Brake System
(ABS)........................................4-105
Traction Control System
(TCS)........................................ 4-106
Dynamic Stability Control
(DSC)........................................4-108
Off-Road Traction Assist
*........ 4-109
Mazda intelligent Drive Select (Mi-
Drive).............................................. 4-111 Mazda intelligent Drive Select (Mi-
Drive)........................................ 4-111
i-ACTIV AWD............................... 4-114 i-ACTIV AWD Operation
*....... 4-114
Power Steering............................... 4-116 Power Steering..........................4-116
*Some models.4-1
CX-5_8KN5-EA-21K_Edition1_old 2021-9-9 8:35:12

SignalIndicator Page
Lights-On Indication/Indicator Light 4-71
Headlight High-Beam Indicator LightHeadlight
High-Low Beam 4-75
Flashing the Headlights 4-75
Turn Signal/Hazard Warning Indicator Lights Turn and
Lane-Change Signals4-78
Hazard Warning Flasher4-86
AUTOHOLD Active Indicator Light*14-101
*Mazda Radar Cruise Control with Stop & Go function (MRCC with Stop
& Go function) indicator Light 4-156
*Traffic Jam Assist (TJA) indicator Light
4-175
TCS/DSC Indicator Light*1
Traction Control
System (TCS) 4-106
Dynamic Stabil ‐
ity Control (DSC)4-108
Turns on 7-25
*TCS OFF Indicator Light*14-106
*Off-Road Traction Assist Indicator Light*14-109
Select Mode Indication 4-111
(Green)
*High Beam Control System (HBC) Indicator Light 4-122
*Blind Spot Monitoring (BSM) OFF Indicator Light*1
Malfunction
7-25
Except malfunc ‐
tion
4-128
When Driving
Instrument Cluster and Display
4-26*Some models.
CX-5_8KN5-EA-21K_Edition1_old 2021-9-9 8:35:12

SignalIndicator Page
Shift Position Indication 4-62
Lights-On Indication/Indicator Light4-71
Headlight High-Beam Indicator LightHeadlight
High-Low Beam 4-75
Flashing the Headlights 4-75
Turn Signal/Hazard Warning Indicator Lights Turn and
Lane-Change Signals4-78
Hazard Warning Flasher4-86
AUTOHOLD Active Indicator Light*14-101
*Mazda Radar Cruise Control with Stop & Go function (MRCC with Stop
& Go function) indicator Light 4-156
*Traffic Jam Assist (TJA) indicator Light
4-175
TCS/DSC Indicator Light*1
Traction Control
System (TCS) 4-106
Dynamic Stabili‐ ty Control(DSC)4-108
Turns on 7-25
*TCS OFF Indicator Light*14-106
*Off-Road Traction Assist Indicator Light*14-109
Select Mode Indication 4-111
(Green)
*High Beam Control System (HBC) Indicator Light4-122
When Driving
Instrument Cluster and Display
*Some models.4-43
CX-5_8KN5-EA-21K_Edition1_old
2021-9-9 8:35:12

SignalIndicator Page
TCS/DSC Indicator Light*1
Traction Control
System (TCS) 4-106
Dynamic Stabil ‐
ity Control (DSC)4-108
Turns on 7-25
*TCS OFF Indicator Light *14-106
Select Mode Indication 4-111
*Blind Spot Monitoring (BSM) OFF Indicator Light*1
Malfunction
7-25
Except malfunc ‐
tion
4-128
(Red)
*Smart City Brake Support (SCBS) Indicator Light 4-195
*Smart City Brake Support (SCBS) OFF Indicator Light*14-195
(White)Cruise Main Indication 4-269
(Green)Cruise Set Indication 4-269
*1 The light turns on when the i
gnition is switched on for an operation check, and turns off
a few seconds later or when the engine is sta rted. If the light does not turn on or remains
turned on, have the vehicle inspected at an Authorized Mazda Dealer.
▼ Wrench Indicator LightWhen the ignition is switched ON, the
wrench indicator light turns on and then
turns off after a few seconds.

The wrench indicator light turns on under
the following conditions:
When the preset maintenance period has
arrived.
When Driving
Instrument Cluster and Display
4-56*Some models.
CX-5_8KN5-EA-21K_Edition1_old
2021-9-9 8:35:12

NOTE
When driving slowly, the gears may not
shift up.
Do not drive the vehicle with the
tachometer needle in the RED ZONE
while in manual shift mode. In addition,
manual shift mode switches to automatic
shift mode while the accelerator pedal is
completely depressed.
This function is canceled while the TCS
is turned off or the Off-Road Traction
Assist is turned on. However, if the
vehicle is continuously driven at a high
rpm, the gears may automatically shift
up to protect the engine.
The steering shift switch can be used
temporarily even if the selector lever is
in the D position while driving. In
addition, it returns to automatic shift
mode when the UP switch (
) is
pulled rearward for a sufficient amount
of time.
▼ Manually Shifting Down
You can shift gears down by operating the
selector lever or the steering shift
switches
*.
M6 → M5 → M4 → M3 → M2 → M1
Using selector lever
To shift down to a lower gear, tap the
selector lever forward
once.

Using steering shift switch*
To shift down to a lower gear with the
steering shift switches, pull the DOWN
switch
toward you once with your
fingers.

DOWN switch (-)
WA R N I N G
Do not use engine braking on slippery road
surfaces or at high speeds:
Shifting down while driving on wet, snowy,
or frozen roads, or while driving at high
speeds causes sudden engine braking,
which is dangerous. The sudden change in
tire speed could cause the tires to skid. This
could lead to loss of vehicle control and an
accident.
Keep your hands on the steering wheel rim
when using fingers on the steering shift
switches:
Putting your hands inside the rim of the
steering wheel when using the steering
shift switches is dangerous. If the driver's
air bag were to deploy in a collision, your
hands could be impacted causing injury.
NOTE
When driving at high speeds, the gear
may not shift down.
When Driving
Automatic Transaxle
*Some models.4-65
CX-5_8KN5-EA-21K_Edition1_old 2021-9-9 8:35:12

Antilock Brake System(ABS)
The ABS control unit continuously
monitors the speed of each wheel. If one
wheel is about to lock up, the ABS
responds by automatically releasing and
reapplying that wheel's brake.

The driver will feel a slight vibration in
the brake pedal and may hear a chattering
noise from the brake system. This is
normal ABS system operation. Continue
to depress the brake pedal without
pumping the brakes.

The warning light turns on when the
system has a malfunction.
Contact an Authorized Mazda Dealer and
Have Vehicle Inspected on page 7-25.
WARNING
Do not rely on ABS as a substitute for safe
driving:
The ABS cannot compensate for unsafe
and reckless driving, excessive speed,
tailgating (following another vehicle too
closely), driving on ice and snow, and
hydroplaning (reduced tire friction and
road contact because of water on the road
surface). You can still have an accident.
NOTE
Braking distances may be longer on
loose surfaces (snow or gravel, for
example) which usually have a hard
foundation. A vehicle with a normal
braking system may require less
distance to stop under these conditions
because the tires will build up a wedge
of surface layer when the wheels skid.
The sound of the ABS operating may be
heard when starting the engine or
immediately after starting the vehicle,
however, it does not indicate a
malfunction.
When Driving
ABS/TCS/DSC/Off-Road Traction Assist
4-105
CX-5_8KN5-EA-21K_Edition1_old 2021-9-9 8:35:12

Traction Control System(TCS)
The Traction Cont rol System (TCS)
enhances traction and safety by controlling
engine torque and braking. When the TCS
detects driving wheel slippage, it lowers
engine torque and operates the brakes to
prevent loss of traction.

This means that on a slick surface, the
engine adjusts automatically to provide
optimum power to the drive wheels,
limiting wheel spin and loss of traction.

The warning light turns on when the
system has a malfunction.
Contact an Authorized Mazda Dealer and
Have Vehicle Inspected on page 7-25.
WA R N I N G
Do not rely on the Traction Control System
(TCS) as a substitute for safe driving:
The Traction Control System (TCS) cannot
compensate for unsafe and reckless
driving, excessive speed, tailgating
(following another vehicle too closely), and
hydroplaning (reduced tire friction and
road contact because of water on the road
surface). You can still have an accident.
Use snow tires or tire chains and drive at
reduced speeds when roads are covered
with ice and/or snow:
Driving without proper traction devices on
snow and/or ice-covered roads is
dangerous. The Traction Control System
(TCS) alone cannot provide adequate
traction and you could still have an
accident.
NOTE
To turn off the TCS, press the TCS OFF
switch (page 4-107).
▼ TCS/DSC Indicator Light
This indicator light stays on for a few
seconds when the ignition is switched ON.
If the TCS or DSC is operating, the
indicator light flashes.

If the light stays on, the TCS, DSC or the
brake assist system may have a
malfunction and they may not operate
correctly. Take your vehicle to an
Authorized Mazda Dealer.
NOTE
In addition to the indicator light
flashing, a slight lugging sound will
come from the engine. This indicates
that the TCS/DSC is operating properly.
On slippery surfaces, such as fresh
snow, it will be impossible to achieve
high rpm when the TCS is on.
▼
TCS OFF Indicator Light*
When Driving
ABS/TCS/DSC/Off-Road Traction Assist
4-106*Some models.
CX-5_8KN5-EA-21K_Edition1_old
2021-9-9 8:35:12

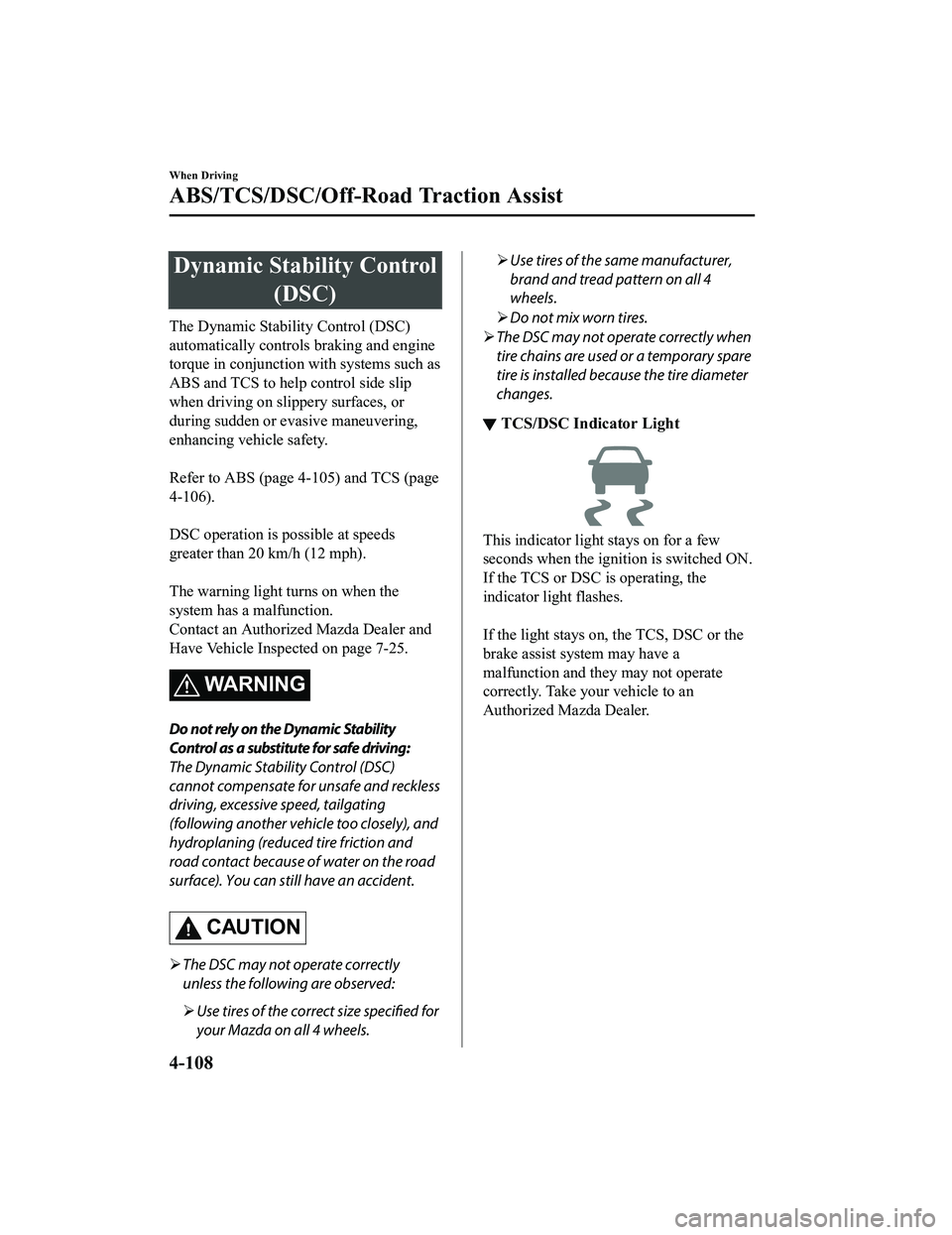

Dynamic Stability Control(DSC)
The Dynamic Stability Control (DSC)
automatically controls braking and engine
torque in conjunction with systems such as
ABS and TCS to help control side slip
when driving on slippery surfaces, or
during sudden or evasive maneuvering,
enhancing vehicle safety.

Refer to ABS (page 4- 105) and TCS (page
4-106).

DSC operation is possible at speeds
greater than 20 km/h (12 mph).

The warning light turns on when the
system has a malfunction.
Contact an Authorized Mazda Dealer and
Have Vehicle Inspected on page 7-25.
WA R N I N G
Do not rely on the Dynamic Stability
Control as a substitute for safe driving:
The Dynamic Stability Control (DSC)
cannot compensate for unsafe and reckless
driving, excessive speed, tailgating
(following another vehicle too closely), and
hydroplaning (reduced tire friction and
road contact because of water on the road
surface). You can still have an accident.
CAUTION
 The DSC may not operate correctly
unless the following are observed:
 Use tires of the correct size
specified for
your Mazda on all 4 wheels.
 Use tires of the same manufacturer,
brand and tread pattern on all 4
wheels.
 Do not mix worn tires.
 The DSC may not operate correctly when
tire chains are used or a temporary spare
tire is installed because the tire diameter
changes.
▼ TCS/DSC Indicator Light
This indicator light stays on for a few
seconds when the ignition is switched ON.
If the TCS or DSC is operating, the
indicator light flashes.

If the light stays on, the TCS, DSC or the
brake assist system may have a
malfunction and they may not operate
correctly. Take your vehicle to an
Authorized Mazda Dealer.
When Driving
ABS/TCS/DSC/Off-Road Traction Assist
4-108
CX-5_8KN5-EA-21K_Edition1_old
2021-9-9 8:35:12
