MAZDA MODEL CX-5 2022 Owners Manual

The tire pressures are not adjusted to the specified pressure.
Tires other than conventional tires are equipped.
Vehicle is driven on an intersection or junction, or on a forked road.
The white (yellow) lane lines are less visible because of dirt or fading/patchiness.
A vehicle in front of your vehicle is running near a white (yellow) lane line making it
less visible.
A white (yellow) lane line is less visible because of bad weather (rain, fog, or snow).
The vehicle is driven on a temporary lane or section with a closed lane resulting from
construction where there may be multiple white (yellow) lane lines or they are
interrupted.
A misleading line is picked up on the road such as a temporary line for construction, or
because of shade, lingering snow, or grooves filled with water.
The surrounding brightness suddenly changes such as when entering or exiting a
tunnel.
The illumination of the headlights is weakened because of dirt or the optical axis is
deviated.
The windshield is dirty or foggy.
The windshield, camera is fogged (water droplets).
Back-light is reflected off the road surface.
The road surface is wet and shiny after rain, or there are puddles on the road.
The shade of a guardrail parallel to a white (yellow) lane line is cast on the road.
The width of the driving lane is narrow or wide.
Driving on roads with tight curves.
The road is excessively uneven.
The vehicle is shaken after hitting a road bump.
There are 2 or more adjacent white (yellow) lane lines.
There are various road markings or lane markings of various shapes near an
intersection.
▼System Operation
System operation
When the ignition is switched ON, the system goes on standby.
Drive the vehicle in the center of the vehicle lane while the system is on standby. When all
of the following conditions are met, and the system becomes operational.
The engine is running.
The vehicle speed is about 64 km/h (40 mph) or faster.
The system detects white (yellow) lane lines on both the right and left sides.
The driver is operating the steering wheel.
The driving lane is neither narrow nor wide.
The steering assist function of the Traf
fic Jam Assist (TJA) is not operating.
When Driving
i-ACTIVSENSE
4-178
CX-5_8KN5-EA-21K_Edition1_old 2021-9-9 8:35:12

When the system becomes operational, the LAS & LDWS indication (white) is displayed on
the multi-information display and active driving display.
Multi-information display (Basic display)
Instrument Cluster (Type A)
Instrument Cluster (Type B)
Multi-information displ ay (i-ACTIVSENSE display)
Active driving display*

The LAS & LDWS goes on stand-by status in the following cases:
The system cannot detect white (yellow) lane lines.
The vehicle speed is less than about 56 km/h (35 mph).
The ABS/TCS is operating.
The TCS is turned off.
The Off-Road Traction Assist is turned on.
When Driving
i-ACTIVSENSE
*Some models.4-179
CX-5_8KN5-EA-21K_Edition1_old 2021-9-9 8:35:12

When Off-road mode is selected using Mazda intellige nt Drive Select (Mi-Drive).
The vehicle is making a sharp curve.
The brake pedal is depressed.
The steering wheel is operated abruptly.
The width of a lane is excessively narrow or wide.
The steering assist function of the TJA operated.
NOTE
The LAS & LDWS does not operate until the system detects white (yellow) lane lines on
either the left or right.
When the system detects a white (yellow) lane line on one side only, the system will not
operate the steering wheel operation assist and the warning for the lane line on the side
that is not being detected. The steering wheel operation assist and the warning is only for
a lane deviation on the side that is being detected.
When the system determines that the driver is driving the vehicle with his or her hands off
the steering wheel while the steering wheel operation assist is operating, and if the
condition continues several times within a certain period of time, the warning sound is
activated. The higher the number of times the steering wheel operation assist operates,
the longer the period of time the warning sound is activated.
The timing at which the lane departure warning is activated and the steering wheel
operation assist is performed varies.
The following settings for the LAS & LDWS can be changed. Refer to the Settings section
in the Mazda Connec t Owner's Manual.
Steering operation assist operational/non-operational
(Mazda Connect (Type A) only)
Cancel sensitivity (likelihood of steering assist)
Vehicle lane line display
When the LAS & LDWS goes on standby, the vehicle lane lines are indicated on the
multi-information display and the active driving display. When white (yellow) lines on both
the left and right sides are detected and th e system becomes operational, the vehicle lane
lines indicated on the multi-information disp lay and the active driving display change to
white.
When Driving
i-ACTIVSENSE
4-180
CX-5_8KN5-EA-21K_Edition1_old 2021-9-9 8:35:12

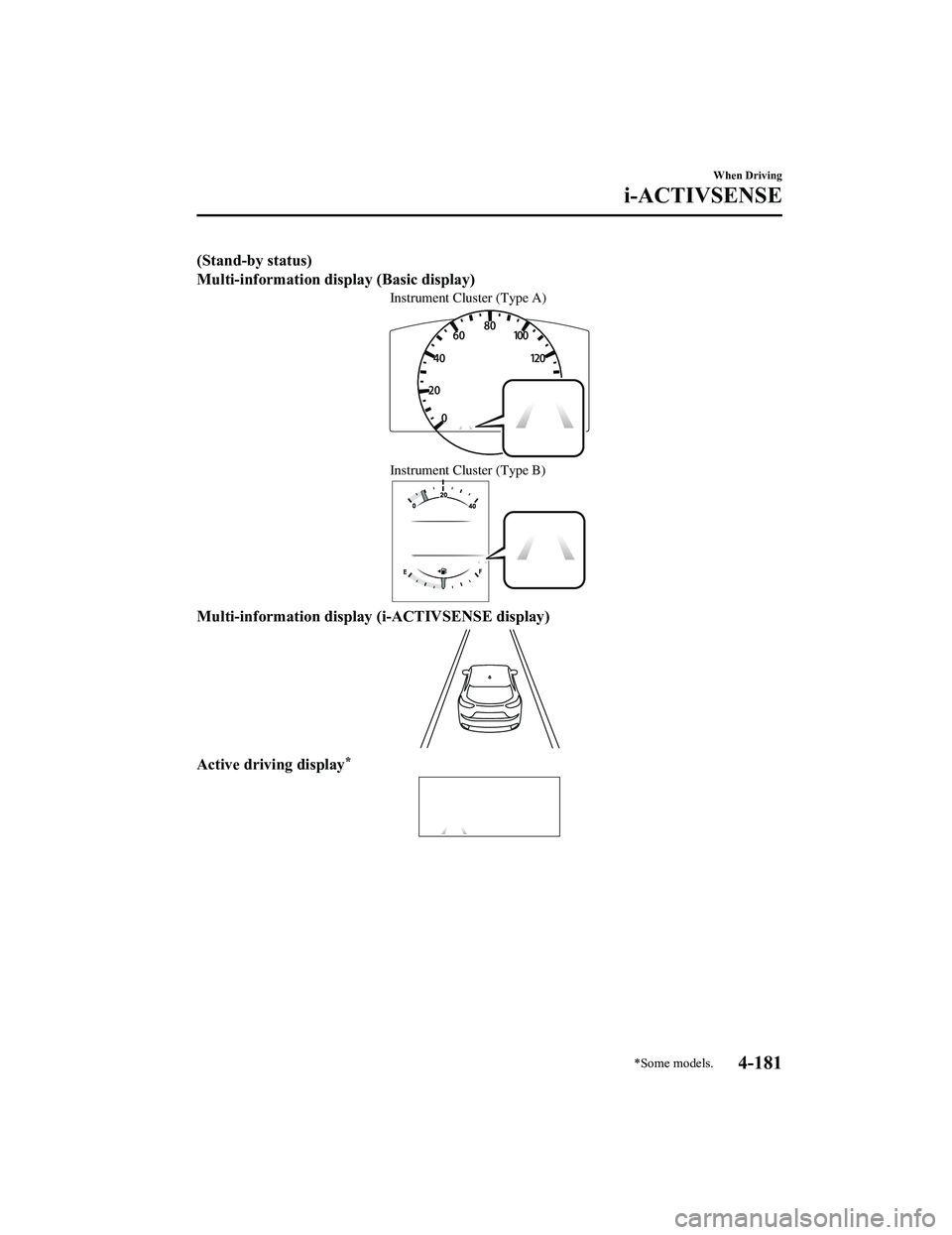

(Stand-by status)
Multi-information display (Basic display)
Instrument Cluster (Type A)
Instrument Cluster (Type B)
Multi-information display (i-ACTIVSENSE display)
Active driving display*
When Driving
i-ACTIVSENSE
*Some models.4-181
CX-5_8KN5-EA-21K_Edition1_old 2021-9-9 8:35:12

(Operational status)
Multi-information display (Basic display)
Instrument Cluster (Type A)
Instrument Cluster (Type B)
Multi-information display (i-ACTIVSENSE display)
Active driving display*
NOTE
When only one side of the white (yellow) lines is detected, only the detected vehicle lane line
indicated on the multi-information display and the active driving display changes to white.
Auto cancel
In the following cases, the LAS & LDWS is automatically canceled, the LAS & LDWS
warning indication (amber) turns on, and an alert is displayed. When the LAS & LDWS
become operational, the system turns back on automatically.
When Driving
i-ACTIVSENSE
4-182*Some models.
CX-5_8KN5-EA-21K_Edition1_old 2021-9-9 8:35:12

The temperature inside the camera is high or low.
The windshield around the camera is foggy.
The windshield around the camera is blocked by an obstruction, causing poor forward
visibility.
Auto cancel of warning/steering assist
When the following operations are performed, the LAS & LDWS operation is canceled
automatically. The LAS & LDWS resumes automatically after the operation.
The steering wheel is operated abruptly.
The brake pedal is operated.
The accelerator pedal is operated.
(Mazda Connect (Type A) only)
(To cancel the automatic sensitivi ty cancel function, deselect “Cancel sensitivity” in the
personalization features setting.)
The turn signal lever is operated.
The vehicle crosses a lane line.
NOTE
After the operation, the LAS & LDWS operation may not operate for a period of 5
seconds at the most until the lane lines are detected.
Under the following conditions, the LAS & LDWS cancels the warning/steering assist
automatically.
The TCS OFF switch is pressed to cancel the TCS.
The Off-Road Traction Assist switch is pressed to turn on the Off-Road Traction Assist.
When Off-road mode is selected using Mazda intelligent Drive Select (Mi-Drive).
Steering wheel operation assist OFF (non-operational)
The steering wheel operation assist for the LAS & LDWS can be turned off. However, when
driving the vehicle while the TJA function is in use, the steering wheel operation assist turns
on automatically.
When the steering wheel operation assist has been turned off, only the lane departure
warning is operational.
Refer to the Settings section in the Mazda Connect Owner's Manual.
System operation
Drive the vehicle in the center of the driving lane while the LAS & LDWS OFF indicator
light in the instrument cluster is turned off.
The system becomes operational when al l of the following conditions are met.
The engine is running.
When Driving
i-ACTIVSENSE
4-183
CX-5_8KN5-EA-21K_Edition1_old 2021-9-9 8:35:12

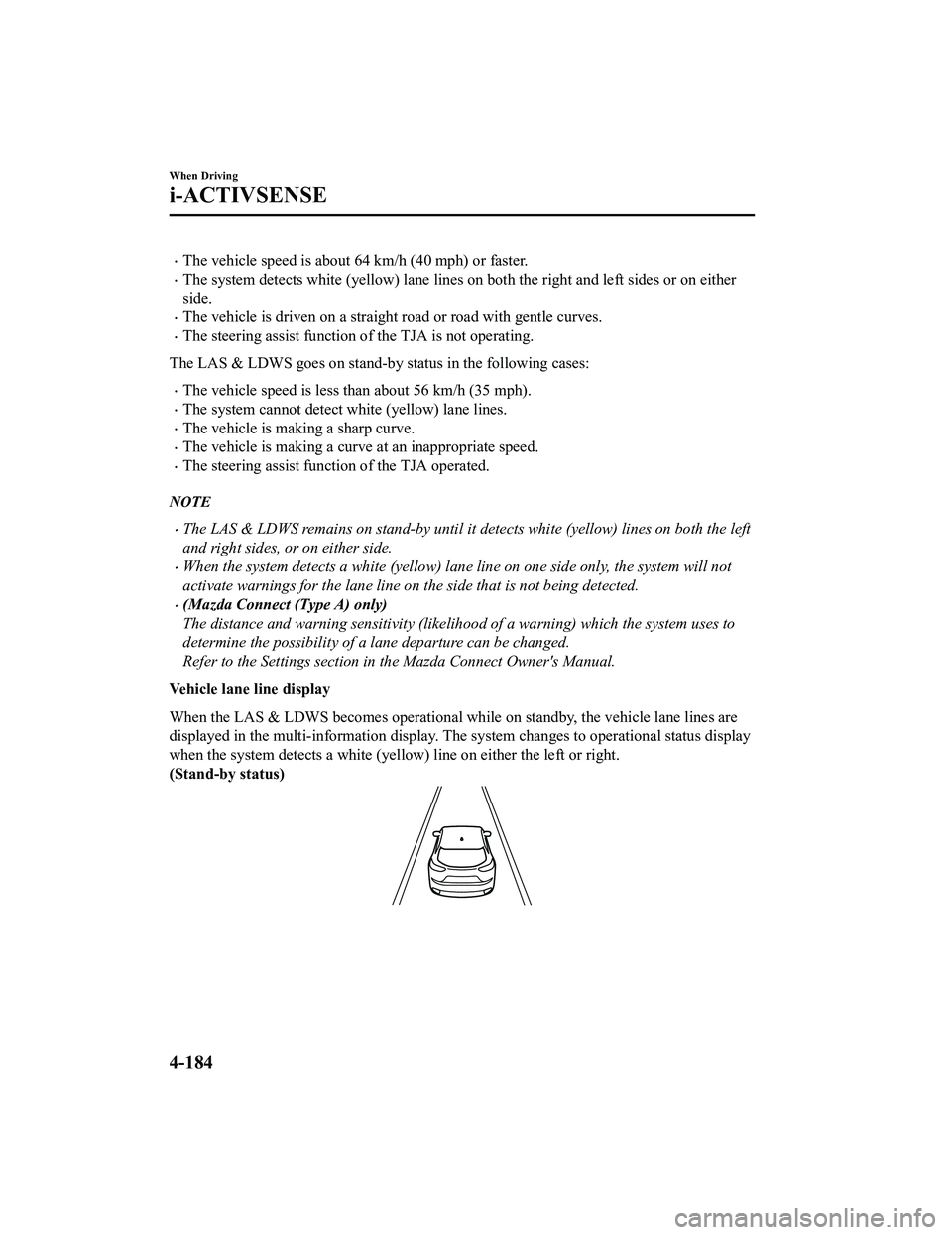

The vehicle speed is about 64 km/h (40 mph) or faster.
The system detects white (yellow) lane lines on both the right and left sides or on either
side.
The vehicle is driven on a straight road or road with gentle curves.
The steering assist function of the TJA is not operating.
The LAS & LDWS goes on stand-by status in the following cases:
The vehicle speed is less than about 56 km/h (35 mph).
The system cannot detect white (yellow) lane lines.
The vehicle is making a sharp curve.
The vehicle is making a curve at an inappropriate speed.
The steering assist function of the TJA operated.
NOTE
The LAS & LDWS remains on stand-by until it detects white (yellow) lines on both the left
and right sides, or on either side.
When the system detects a white (yellow) lane line on one side only, the system will not
activate warnings for the lane line on the side that is not being detected.
(Mazda Connect (Type A) only)
The distance and warning sensitivity (likelihood of a warning) which the system uses to
determine the possibility of a lane departure can be changed.
Refer to the Settings section in the Mazda Connect Owner's Manual.
Vehicle lane line display
When the LAS & LDWS becomes operational while on standby, the vehicle lane lines are
displayed in the multi-information display. The system changes to operational status display
when the system detects a white (yello w) line on either the left or right.
(Stand-by status)
When Driving
i-ACTIVSENSE
4-184
CX-5_8KN5-EA-21K_Edition1_old 2021-9-9 8:35:12

(Operational status)
NOTE
When only one side of the white (yellow) lines is detected, only the detected vehicle lane line
indicated on the multi-information display changes to white.
Auto cancel
In the following cases, th e LAS & LDWS is automatically canceled, the LAS & LDWS
warning indication (amber) turns on, and an alert is displayed. When the LAS & LDWS
become operational, the system turns back on automatically.
The temperature inside the camera is high or low.
The windshield around the camera is foggy.
The windshield around the camera is blocked by an obstruction, causing poor forward
visibility.
Auto cancel of warnings
When the following operations are performed, the LAS & LDWS determines that the driver
intends to make a lane change and the system operation is canceled automatically. The LAS
& LDWS resumes automatical ly after the operation.
The steering wheel is operated abruptly.
The brake pedal is depressed.
The accelerator pedal is depressed.
(Mazda Connect (Type A) only)
(To cancel the automatic sensitivity cancel func tion, deselect “Warning sensitivity” in the
personalization features setting.)
The turn signal lever is operated.
The vehicle crosses a lane line.
▼ Steering Wheel Operation Assist
When the system determines that the
vehicle might be deviating from its lane,
the steering wheel operation assist
operates.
The system notifies the driver that it
provided steering wheel operation
assistance on the multi-information
display and the active driving display.
When Driving
i-ACTIVSENSE
4-185
CX-5_8KN5-EA-21K_Edition1_old
2021-9-9 8:35:12

Multi-information display (Basic
display)
Instrument Cluster (Type A)
Instrument Cluster (Type B)
Multi-information display
(i-ACTIVSENSE display)
Active driving display*
NOTE
When the driver operates the steering
wheel while the steering wheel
operation assist is operating, the
steering wheel operation assistance is
canceled.
When Driving
i-ACTIVSENSE
4-186*Some models.
CX-5_8KN5-EA-21K_Edition1_old2021-9-9 8:35:12

▼Lane Departure Warning
If the system determines that the vehicle ma
y deviate from its lane, the lane departure
warning is activated an d the direction in which the system determines that the vehicle may
deviate is indicated in the multi-information display and the active driving display.
For vehicles equipped with th e multi-information display, the direction which the system
determined that the vehicle may be deviat ing from its lane is indicated in the
multi-information display.
For vehicles equipped with th e active driving display, the co lor of the lane line in the
direction which the system determined that the vehicle may be deviating from its lane
changes from white to amber and the vehicle lane line flashes.
Multi-information Display Active Driving Display
NOTE
If you have set the lane departure warning sound to the beep sound/rumble sound (Mazda
Connect (Type A) only)
*1 setting, the warning sound may not be heard depending on the
surrounding noise conditions.
If you have set the lane departure warning system to the steering wheel vibrations setting,
the vibration may not be felt depending on the road surface conditions.
When the setting for the steering operation assist is changed to operational, the warnings
can be set to activate/not activate. (If the setting for the steering operation assist is
changed to non-operational, the warni ngs cannot be set to non-operational.)
Refer to the Settings section in the Mazda Connect Owner's Manual.
The LAS & LDWS can be changed to the following settings regardless of whether the
steering operation assist has been set to operational/non-operational. Always check the
setting status when driving the vehicle and make setting changes if necessary.
Refer to the Settings section in the Mazda Connect Owner's Manual.
Steering wheel vibration: Strong/weak
Warning sound volume
Types of warnings (steering wheel vibration/beep sound/rumble sound (Mazda Connect
(Type A) only)
*1)
*1 A rumble strip is a series of grooves in the road pavement surface positioned at specific
intervals, and when the vehicle passes over it a vibration and rumble sound is produced
which alerts the driver that the vehicle is departing from the lane.
When Driving
i-ACTIVSENSE
4-187
CX-5_8KN5-EA-21K_Edition1_old 2021-9-9 8:35:12
