surrounding area and depress the brake pedal while keeping a safer distance from the
vehicle ahead. Additionally, keep a safer distance from the vehicles behind you.
NOTE
In the following cases, the warnings and brakes may not operate even if your vehicle starts
closing in on the vehicle ahead.
You are driving your vehicle at the same speed as the vehicle ahead.
Directly after the TJA has been set.
Directly after the accelerator pedal is released.
Another vehicle cuts into the driving lane.
▼Setting the System
Operation conditions
Headway control function
The TJA operates when all of the following conditions are met.
Vehicle speed is 0 km/h (0 mph) to 145 km/h (90 mph)
The headway control function of the Mazda Radar Cruise Control with Stop & Go
function (MRCC with Stop & Go function) is se
t to operable (if it was set to inoperable,
set it to operable using the personalization function).
The selector lever is in the D or M position (manual mode).
The TJA is operating.
The brake pedal is not depressed.
The parking brake is released (Electric Parki ng Brake (EPB) indicator light is turned off).
There is no problem with the DSC.
All the doors are closed.
The driver's seat belt is fastened.

NOTE
Under the following conditions, the TJA cannot be used when the vehicle speed is 30 km/h
(19 mph) or slower.
The Forward Sensing Camera (FSC) cannot detect target objects (There is problem
with the Forward Sensing Camera (FSC) or windshield is dirty).
There is a problem with the stop hold control function.
There is a problem with the Electric Parking Brake (EPB).
When Driving
i-ACTIVSENSE
4-168
CX-5_8KN5-EA-21K_Edition1_old 2021-9-9 8:35:12

The TJA may not launch directly after the engine starts.

Steering assist function
The steering assist function operates when all of the following conditions are met.
Your vehicle is moving and less than about 56 km/h (35 mph).
White (yellow) lane lines on both sides are detected and you are driving near the center of
the lane, or your vehicle detects a vehicle ahead.
The steering wheel is not turned sharply.
The turn signal lever is not operated.
The headway control function is operating.
The Off-Road Traction Assist is not operating.
When Off-road mode is not selected using Mazda intelligent Drive Select (Mi-Drive).
NOTE
The steering assist function ope rates so that the vehicle remains near the center of the
driving lane, however, depending on conditions such as the road curvature, road slope
and undulations, and vehicle speed, the function might not be able to keep the vehicle
near the center of the driving lane.
Setting method
RES switch
SET- switch
MRCC switch
TJA switch
CANCEL switch
SET+ switch
switch
switch
1. Press the TJA switch.
The TJA standby indication (white) turns on. In addition, the TJA display indication is
displayed on the multi-informati on display at the same time.
(White)
When Driving
i-ACTIVSENSE
4-169
CX-5_8KN5-EA-21K_Edition1_old 2021-9-9 8:35:12

2. Adjust the vehicle speed to the desired setting using the accelerator pedal and press theSET+ switch or SET- switch to start headway control.
The set speed is indicated on the display. At the same time, the TJA standby indication
(white) changes to the TJ A set indication (green).
(Green)
3. The headway control is operable when all of the conditions for it to operate are met, or
the steering assist function is operable when all of the conditions for it to operate are
met.
NOTE
If a vehicle ahead is detected while travel ing at a constant speed, the vehicle-ahead
indication is displayed and headway control is performed. Additionally, when a vehicle
ahead is no longer detected, the vehicle-ahead indication turns off and the system
switches back to travel at constant speed.
The lowest possible speed which can be set on the TJA is 30 km/h (19 mph).
Headway control is not possible if the vehicle ahead is driving faster than your vehicle's
set speed. Adjust the system to the desired vehicle speed using the accelerator pedal.
When the ignition is switched OFF, the syst em status before it was turned off is
maintained. For example, if the ignition is switched OFF with the TJA operable, the TJA
remains operational the next time the ignition is switched ON.
When the TJA switch is pressed while the Mazda Radar Cruise Control with Stop & Go
function (MRCC with Stop & Go function) system is operating, the TJA operates. In
addition, when the MRCC switch is pressed while the TJA is operating, the Mazda Radar
Cruise Control with Stop & Go function (MRCC with Stop & Go function) system
operates.

Changing the set vehicle speed
To accelerate/decelerate using the SET switch
When you press the SET+ switch, the vehicle accelerates and when you press the SET-
switch, it decelerates.
Short press 1 km/h (1 mph)
Long press 10 km/h (5 mph)
When Driving
i-ACTIVSENSE
4-170
CX-5_8KN5-EA-21K_Edition1_old 2021-9-9 8:35:12

NOTE
For example, the set vehicle speed is changed by pressing the SET switch four times as
follows:
The vehicle speed accelerates or decelerates by 4 km/h (4 mph).
To increase speed using accelerator pedal
Depress the accelerator pedal and press and release the SET+ switch or SET- switch at the
desired speed. If the switch is not operated, the system returns to the set speed after you
release your foot from the accelerator pedal.
CAUTION
The warnings and brake control do not operate while the accelerator pedal is depressed.
NOTE
When accelerating using the SET+ switch while in headway control, the set vehicle speed
can be adjusted but acceleration is not possible. If there is no longer a vehicle ahead,
acceleration continues until reaching the set vehicle speed. For the set vehicle speed,
check the set vehicle speed indication in the display.
When depressing the accelerator pedal, the inter-vehicle distance indication in the display
changes to the white-line indication.
The setting speed can be changed by operating the SET+ switch or SET- switch during
stop hold control.

Changing the distance between vehicles during headway control
The distance-between-vehicles can be set to 4 levels; Long, medium, short, and extremely
short distance.
The distance-between-vehicles is set to a shorter distance by pressing the
switch. The
distance-between-vehicles is set to a longer distance by pressing the
switch.
Distance-between-vehi ‐
cles guideline
(at 80 km/h (50 mph) vehicle speed) Indication on multi-information display
Indication on active driv‐
ing display
*1Ty p e A Ty p e B
Long (about 50 m (164
ft))
When Driving
i-ACTIVSENSE
4-171
CX-5_8KN5-EA-21K_Edition1_old 2021-9-9 8:35:12

Distance-between-vehi‐cles guideline
(at 80 km/h (50 mph) vehicle speed) Indication on multi-information display
Indication on active driv‐
ing display
*1Ty p e A Ty p e B
Medium (about 40 m
(131 ft))
Short (about 30 m (98
ft))
Extremely short (about
25 m (82 ft))
*1 Displays a pop-up image in the active driving display only when the driver operates the switch.
NOTE
The distance-between-vehicles differs depending on the vehicle speed, and the slower the
vehicle speed, the shorter the distance.
When the ignition is switched to ACC or OFF and then the engine is started again, the
system automatically sets the distance-between-vehicles to the previous setting.

The function is temporarily canceled
Headway control function
When the following operations ar e performed, the headway control function is temporarily
canceled and the TJA set indication (green) changes to the TJA standby indication (white) at
the same time.
The CANCEL switch is pressed.
The brake pedal is depressed.
The parking brake is applied.
The selector lever is in the P, N, or R position.
When Driving
i-ACTIVSENSE
4-172
CX-5_8KN5-EA-21K_Edition1_old 2021-9-9 8:35:12

Under the following conditions, the TJA cancel indication is displayed in the
multi-information display and a single beep sound is heard.
The DSC has operated.
The Smart Brake Support (SBS) has operated.
The Smart City Brake Support [Forward] (SCBS F) or Advanced Smart City Brake
Support (Advanced SCBS) has operated.
When traveling on a downslope for a long period of time.
There is a problem with the system.
The engine has stalled.
Any of the doors is opened.
The driver's seat belt is unfastened.
The radar sensor (front) cannot detect target objects (during rain, fog, snow or other
inclement weather conditions, or wh en the radiator grille is dirty).
The parking brake is automatically applied during stop hold control.
Steering assist function
If any of the following conditions occurs, the steering assist function is temporarily
canceled.
The headway control function is canceled.
White (yellow) lane lines cannot be detected or a vehicle ahead cannot be recognized.
Your vehicle speed is more than about 64 km/h (40 mph).
The accelerator pedal is operated.
The turn signal lever is operated.
The Off-Road Traction Assist has operated.
When Off-road mode is selected using Mazda intelligent Drive Select (Mi-Drive).
The vehicle is being driven on a sharp curve.
The width of a lane is excessively narrow or wide.
The vehicle crosses a lane line.
The driver takes his/her hands off the steering wheel.
The steering wheel is operated abruptly.
There is a problem with the system.
The temperature in the Forward Sensing Camera (FSC) is too high or too low.
The windshield around the Forward Sensing Camera (FSC) is foggy.
The windshield around the Forward Sensing Camera (FSC) is blocked by an obstruction,
causing poor forward visibility.

When Driving
i-ACTIVSENSE
4-173
CX-5_8KN5-EA-21K_Edition1_old 2021-9-9 8:35:12

NOTE
If you take your hands off the steering wheel, a warning is indicated on the
multi-information display and the active driving display. Then, if you continue to leave
your hands off the steering wheel, a warning is indicated on the multi-information display
and the active driving display and a warning sound is activated.
Active Driving Display Multi-information Display
If the steering wheel is held lightly, or depending on the road conditions, the system
determines that you have released the st eering wheel (not holding the steering wheel)
even if you are holding it, and an alert is indicated on the multi-information display and
the active driving display.

To resume operation
If the TJA is temporarily canceled, it will re sume operation at the previously set speed by
pressing the RES switch after all of the operation conditions have been met.
NOTE
If the set speed is not indicated on the displa y, the system does not operate even if the RES
switch is pressed.
After the operation, the steering assist ope ration may not operate for a period of 5
seconds at the most until the lane lines are detected or a vehicle ahead is recognized.

Turning off
When the TJA switch is pressed while the TJA is operating, the TJA turns off.
When Driving
i-ACTIVSENSE
4-174
CX-5_8KN5-EA-21K_Edition1_old 2021-9-9 8:35:12

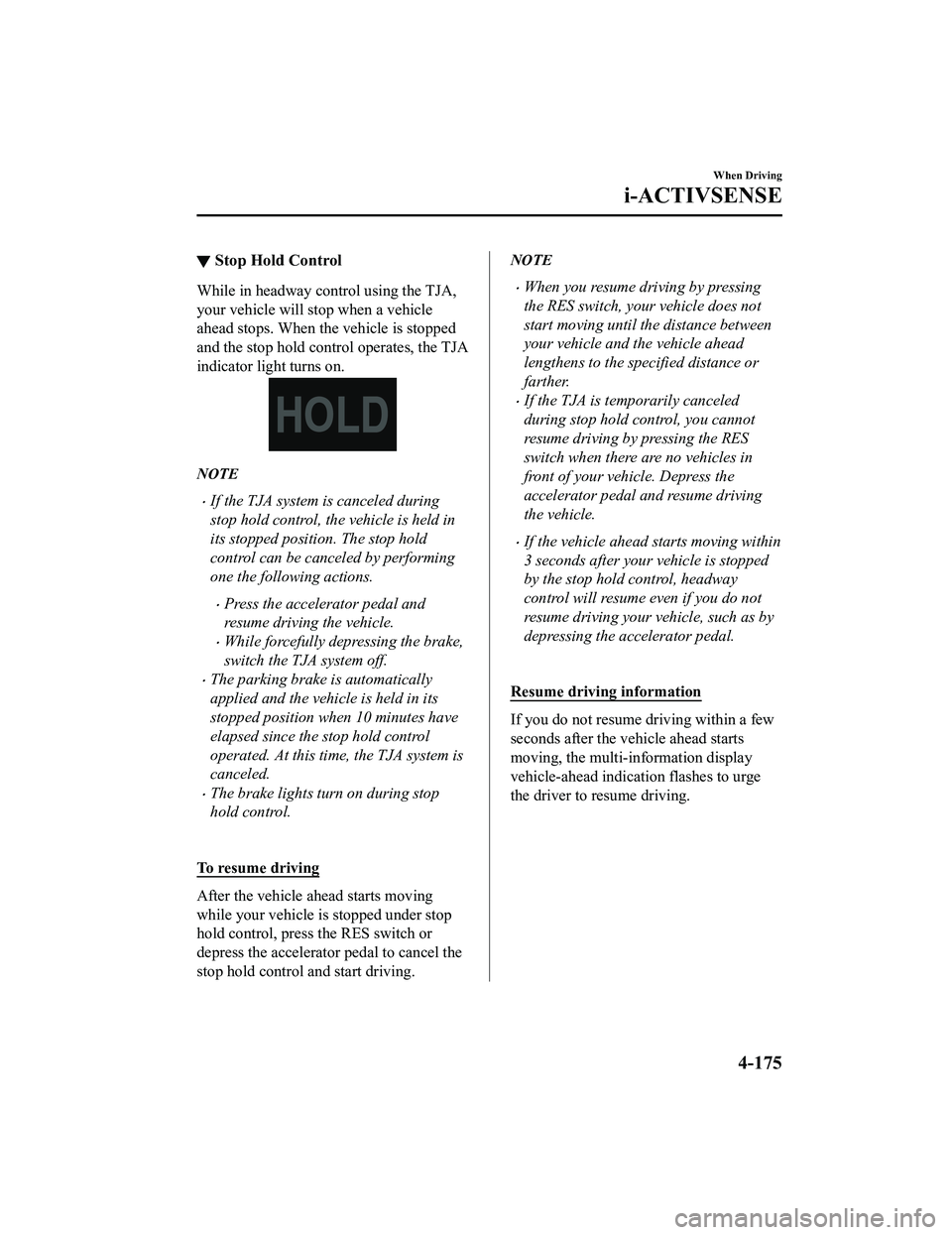

▼Stop Hold Control
While in headway control using the TJA,
your vehicle will stop when a vehicle
ahead stops. When the vehicle is stopped
and the stop hold control operates, the TJA
indicator light turns on.
NOTE
If the TJA system is canceled during
stop hold control, the vehicle is held in
its stopped position. The stop hold
control can be canceled by performing
one the following actions.
Press the accelerator pedal and
resume driving the vehicle.
While forcefully depressing the brake,
switch the TJA system off.
The parking brake is automatically
applied and the vehicle is held in its
stopped position when 10 minutes have
elapsed since the stop hold control
operated. At this time, the TJA system is
canceled.
The brake lights turn on during stop
hold control.

To resume driving
After the vehicle ahead starts moving
while your vehicle is stopped under stop
hold control, pre ss the RES switch or
depress the accelerator pedal to cancel the
stop hold control and start driving.
NOTE
When you resume driving by pressing
the RES switch, your vehicle does not
start moving until the distance between
your vehicle and the vehicle ahead
lengthens to the specified distance or
farther.
If the TJA is temporarily canceled
during stop hold control, you cannot
resume driving by pressing the RES
switch when there are no vehicles in
front of your vehicle. Depress the
accelerator pedal and resume driving
the vehicle.
If the vehicle ahead starts moving within
3 seconds after your vehicle is stopped
by the stop hold control, headway
control will resume even if you do not
resume driving your vehicle, such as by
depressing the accelerator pedal.

Resume driving information
If you do not resume driving within a few
seconds after the vehicle ahead starts
moving, the multi-information display
vehicle-ahead indication flashes to urge
the driver to resume driving.
When Driving
i-ACTIVSENSE
4-175
CX-5_8KN5-EA-21K_Edition1_old 2021-9-9 8:35:12

Lane-keep Assist System (LAS) & Lane Departure
Warning System (LDWS)
*
The LAS & LDWS alerts the driver that the vehicle may be deviating from its lane and it
provides steering assistance to help the driver stay within the vehicle lanes.
The Forward Sensing Camera (FSC) detects the white lines (yellow lines) of the vehicle
lane in which the vehicle is traveling and if the system determines that the vehicle may
deviate from its lane, it operates the electric power steering to assist the driver's steering
operation. The system also alerts the driver by activating a lane departure warning sound,
vibrating the steering wheel, and indicating an alert in the display. Use the system when you
drive the vehicle on roads with white (yello w) lines such as expressways and highways.
Refer to Forward Sensing Camera (FSC) on page 4-256.
Forward Sensing
Camera (FSC)
WA R N I N G
Do not rely completely on the LAS & LDWS:
 The LAS & LDWS is not an automatic driving system. In addition, the system is not designed
to compensate for a driver's lack of caution, and over-reliance on the system could lead to
an accident.
 The detection ability of the LAS & LDWS is limited. Always stay on course using the steering
wheel and drive with care.
Do not use the LAS & LDWS in the following cases:
The system may not operate adequately accordin g to the actual driving conditions, resulting
in an accident.
When Driving
i-ACTIVSENSE
4-176*Some models.
CX-5_8KN5-EA-21K_Edition1_old 2021-9-9 8:35:12

Driving on roads with tight curves.
 Driving under bad weather conditions (rain, fog, and snow).
 Slippery roads such as ice or snow-bound roads.
 Roads with heavy traffic and insufficient distance between vehicles.
 Roads with no white (yellow) lane lines.
 Narrow roads resulting from road construction or lane closures.
 The vehicle is driven on a temporary lane or section with a closed lane resulting from road
construction where there may be multiple white (yellow) lane lines or they are interrupted.
 Vehicle is driven on roads oth er than expressways and highways.
 The tire pressures are not adjusted to the
specified pressure.
 The vehicle is being used to tow a camper or boat trailer.
 Tires of a
different
specified size are used, such as an emergency spare tire.
CAUTION
Heed the following cautions so that the LAS & LDWS can operate normally.

Do not modify the suspensions.
 Always use wheels of the specified type and size for the front and rear wheels. Consult an
Authorized Mazda Dealer for tire replacement.
NOTE
When the turn signal lever is operated for a lane change, the LAS & LDWS is
automatically disabled. The LAS & LDWS becomes operational again when the turn
signal lever is returned and the system detects white (yellow) lane lines while the vehicle
is being driven normally within its vehicle lane.
If the steering wheel, accelerator pedal, or brake pedal is operated abruptly and the
vehicle moves close to a white (yellow) line, the system de termines that the driver is
making a lane change and the LAS & LDWS operation is temporarily canceled. The LAS
& LDWS becomes operational again when the system detects white (yellow) lane lines
while the vehicle is being driven normally within its vehicle lane.
If the vehicle deviates from its lane repeatedly within a short period of time, the LAS &
LDWS may not operate.
When white (yellow) lane lines are not detected, the LAS & LDWS does not operate.
Under the following conditions, the LAS & LDWS may not be able to detect white (yellow)
lane lines correctly and it may not operate normally.
If an object placed on the dashboard is reflected in the windshield and picked up by the
camera.
Heavy luggage is loaded in the luggage compartment or on the rear seat and the
vehicle is tilted.
When Driving
i-ACTIVSENSE
4-177
CX-5_8KN5-EA-21K_Edition1_old 2021-9-9 8:35:12
