MAZDA MODEL CX-5 2022 Owners Manual

When foreign material such as mud is stuck around the camera.
When the camera lens reflects sunlight or headlight beams.
The surroundings are illuminated by vehicle lights, fluorescent lights, or LED lights
(display may flicker).
Extremely small dark or white dots appear on the screen (dots may flicker).
Image display may be delayed if the temperature around the camera is low.
▼Viewing the Display
Guide lines which indicate the width of the vehicle are displayed on the screen as a
reference to the approximate width of the vehicle in comparison to the width of the parking
space you are about to back into.
Use this display view for parking your vehicle in a parking space or garage.
a) Vehicle width guide lines
Guide lines serve as a reference to the approximate width of the vehicle.
b) Distance guide lines These guide lines indicate the approximate distance to a point measured from the
vehicle's rear (from the end of the bumper).
The red line indicates the point about 0.5 m (19 in) from the rear bumper.
The yellow lines indicate the points about 1.0 m (39 in) and 2.0 m (78 in) from the rear
bumper.
▼Rear View Monitor Operation
The operation of the rear view monitor when
reversing the vehicle varies depending on the
traffic, road, and vehicle conditions. The amo unt of steering and the timing also varies
depending on conditions, so confirm the surrou nding conditions directly with your eyes and
steer the vehicle in accordance with the conditions.
Be well aware of the above cautions prior to using the rear view monitor.
NOTE
Images displayed on the monitor from the rear view parking camera are reversed images
(mirror images).
When Driving
Rear View Monitor (Maz da Connect (Type B))
4-288
CX-5_8KN5-EA-21K_Edition1_old 2021-9-9 8:35:12

1. Shift the selector lever to reverse (R) position to switch the display to the rear view
monitor display.
2. Confirming the surrounding co nditions, reverse the vehicle.
3. After your vehicle begins entering the parking space, continue backing up slowly so that the distance between the vehi cle width lines and the sides of the parking space on the
left and right are roughly equal.

(Display condition)
(Vehicle condition)
4. Continue to adjust the steering wheel until the vehicle width guide lines are parallel to
the left and right sides of the parking space.
5. Once they are parallel, straighten the whee ls and back your vehicle slowly into the
parking space. Continue checking the vehicl e's surroundings and then stop the vehicle in
When Driving
Rear View Monitor (Mazda Connect (Type B))
4-289
CX-5_8KN5-EA-21K_Edition1_old 2021-9-9 8:35:12

the best possible position. (If the parking space has division lines, check whether the
vehicle width guide lines are parallel to them.)

(Display condition)
(Vehicle condition)
6. When the selector lever is shifted from reverse (R) position to another selector lever
position, the screen return s to the previous display.
NOTE
Because there may be a difference between the displayed image, such as indicated below,
and the actual conditions when parking, always verify the safety at the rear of the vehicle
and the surrounding area directly with your eyes.
In the image of the parking space (or garage) displayed on the screen, the back end and
distance guide lines may appear aligned in the monitor, but they may not actually be
aligned on the ground.
When Driving
Rear View Monitor (Maz da Connect (Type B))
4-290
CX-5_8KN5-EA-21K_Edition1_old 2021-9-9 8:35:12

When parking in a space with a division line on only one side of the parking space, the
division line and the vehicle width guide line appear aligned in the monitor, but they may
not actually be aligned on the ground.
▼ Variance Between Actual Road Conditions and Displayed Image
Some variance occurs between the actual road
and the displayed road. Such variance in
distance perspective could lead to an accident. Note the following conditions that may cause
a variance in distance perspective.
When the vehicle is tilted due to the weight of passengers and load
When the vehicle rear is lowered, the object displayed on the screen appears farther than the
actual distance.
Variance
Object
When Driving
Rear View Monitor (Maz da Connect (Type B))
4-291
CX-5_8KN5-EA-21K_Edition1_old 2021-9-9 8:35:12

When there is a steep grade behind the vehicle
When there is a steep upgrade (downgrade) behind the vehicle, the object displayed on the
screen appears farther (downgrade: closer) than the actual distance.
A
AB
B
Appears
farther than
actual
distance
Object at actual
position
Object at actual position
Object on screen
A: Distance between the vehicle and object displayed on the screen.
B: Actual distance between the vehicle and object. Object on screenAppears
closer than
actual
distance
Three-dimensional object on vehicle rear
Because the distance guide lines are displayed based on a flat surface, the distance to the
three-dimensional object displayed on the screen is different from the actual distance.
(Screen display)
(Actual view) (Actual distance) B>C=A
Sensed distance on screen A>B>C
A
CB
When Driving
Rear View Monitor (Maz da Connect (Type B))
4-292
CX-5_8KN5-EA-21K_Edition1_old 2021-9-9 8:35:12

Parking Sensor System (Mazda Connect (Type A))*
The parking sensors use ultrasonic sensors which detect obstructions around the vehicle
when the vehicle is driven at low speeds, such as during garage or parallel parking, and a
buzzer sound and detection indicator notify th e driver of the approximate distance from the
vehicle to the surrounding obstruction.

Rear corner ultrasonic sensor
Front corner ultrasonic sensor Rear ultrasonic sensor
Front ultrasonic sensor
WARNING
Do not rely completely on the parking sensor system and be sure to confirm the safety around
your vehicle visually when driving:
This system can assist the driver in operat ing the vehicle in the forward and backward
directions while parking. The detection ranges of the sensors are limited, therefore, driving the
vehicle while relying only on the system may cause an accident. Always confirm the safety
around your vehicle visually when driving.
NOTE
Do not install any accessories within the detection ranges of the sensors. It may affect the
system operation.
Depending on the type of obstruction and the surrounding conditions, the detection range
of a sensor may narrow, or the sensors may not be able to detect obstructions.
The system may not operate normally under the following conditions:
Mud, ice, or snow is adhering to the sensor area (Returns to normal operation when
removed).
The sensor area is frozen (Returns to normal operation when the ice is thawed).
The sensor is covered by a hand.
The sensor is excessively shocked.
The vehicle is excessively tilted.
Under extremely hot or cold weather conditions.
The vehicle is driven on bumps, inclines, gravel, or grass covered roads.
When Driving
Parking Sensor System (Mazda Connect (Type A))
*Some models.4-293
CX-5_8KN5-EA-21K_Edition1_old 2021-9-9 8:35:12

Anything which generates ultrasound is near the vehicle, such as another vehicle's
horn, the engine sound of a motorcycle, the air brake sound of a large-sized vehicle, or
another vehicle's sensors.
The vehicle is driven in heavy rain or in road conditions causing water-splash.
A commercially-available fender pole or an antenna for a radio transmitter is installed
to the vehicle.
The vehicle is moving towards a tall or square curbstone.
An obstruction is too close to the sensor.
Obstructions under the bumper may not be detected. Obstructions that are lower than the
bumper or thin which may have been initially detected may no longer be detected as the
vehicle approaches more closely to the obstruction.
The following types of obstructions may not be detected:
Thin objects such as wire or rope
Things which absorb sonic waves easily such as cotton or snow
Angular shaped objects
Very tall objects, and those which are wide at the top
Small, short objects
Always have the system inspected at an Authorized Mazda Dealer if any shock is applied
to the bumpers, even in a minor accident. If the sensors are deviated, they cannot detect
obstructions.
The system may have a malfunction if the b eep does not operate or the indicator light
does not illuminate when the parking sensor switch is turned on. Consult an Authorized
Mazda Dealer.
The system may have a malfunction if the beep sound which indicates a system
malfunction is heard and the indicator light flashes. Consult an Authorized Mazda Dealer.
The beeper which indicates a system malfunction may not be heard if the ambient
temperature is extremely cold, or mud, ice, or snow adheres to the sensor area. Remove
any foreign material from the sensor area.
When installing a trailer hitch, c onsult an Authorized Mazda Dealer.
When Driving
Parking Sensor System (Mazda Connect (Type A))
4-294
CX-5_8KN5-EA-21K_Edition1_old 2021-9-9 8:35:12

▼Sensor Detection Range
The sensors detect obstructions
within the following range.

Front ultrasonic sensor detection range
Front corner ultrasonic sensor detection range Rear ultrasonic sensor detection range
Rear corner ultrasonic sensor detection range
B
A
D
C A: About 55 cm (About 21.6 in)
B: About 55 cm (About 21.6 in)
C: About 100 cm (About 39.3 in)
D: About 150 cm (About 59.0 in)
Viewing distance display
Display
Distance between vehicle and obstruction
Front ultrasonic sensor/Front ul ‐
trasonic corner sensor Rear ultrasonic sensor/Rear ultra
‐
sonic corner sensor
Green
Front ultrasonic sensor:
Approx. 100 ―60 cm (39.3 ―23.6
in) Rear ultrasonic sensor:
Approx. 150 ―60 cm (59.0 ―23.6
in)
When Driving
Parking Sensor System (M azda Connect (Type A))
4-295
CX-5_8KN5-EA-21K_Edition1_old 2021-9-9 8:35:12

DisplayDistance between vehicle and obstruction
Front ultrasonic sensor/Front ul ‐
trasonic corner sensor Rear ultrasonic sensor/Rear ultra
‐
sonic corner sensor
Yellow
Front ultrasonic sensor:
Approx. 60 ―45 cm (23.6 ―17.7 in)
Front corner ultrasonic sensor:
Approx. 55 ―38 cm (21.6 ―14.9 in) Rear ultrasonic sensor:
Approx. 60 ―45 cm (23.6 ―17.7 in)
Rear corner ultrasonic sensor:
Approx. 55 ―38 cm (21.6 ―14.9 in)
Amber
Front ultrasonic sensor:
Approx. 45 ―35 cm (17.7 ―13.7 in)
Front corner ultrasonic sensor:
Approx. 38 ―25 cm (14.9 ―9.8 in) Rear ultrasonic sensor:
Approx. 45 ―35 cm (17.7 ―13.7 in)
Rear corner ultrasonic sensor:
Approx. 38 ―25 cm (14.9 ―9.8 in)
Red
Front ultrasonic sensor:
Within approx. 35 cm (13.7 in)
Front corner ultrasonic sensor: Within approx. 25 cm (9.8 in) Rear ultrasonic sensor:
Within approx. 35 cm (13.7 in)
Rear corner ultrasonic sensor:Within approx. 25 cm (9.8 in)
▼Parking Sensor System Operation
When the parking sensor switch is pressed with the ignition switched ON, the buzzer sounds
and the indicator light turns on.
When Driving
Parking Sensor System (M
azda Connect (Type A))
4-296
CX-5_8KN5-EA-21K_Edition1_old 2021-9-9 8:35:12

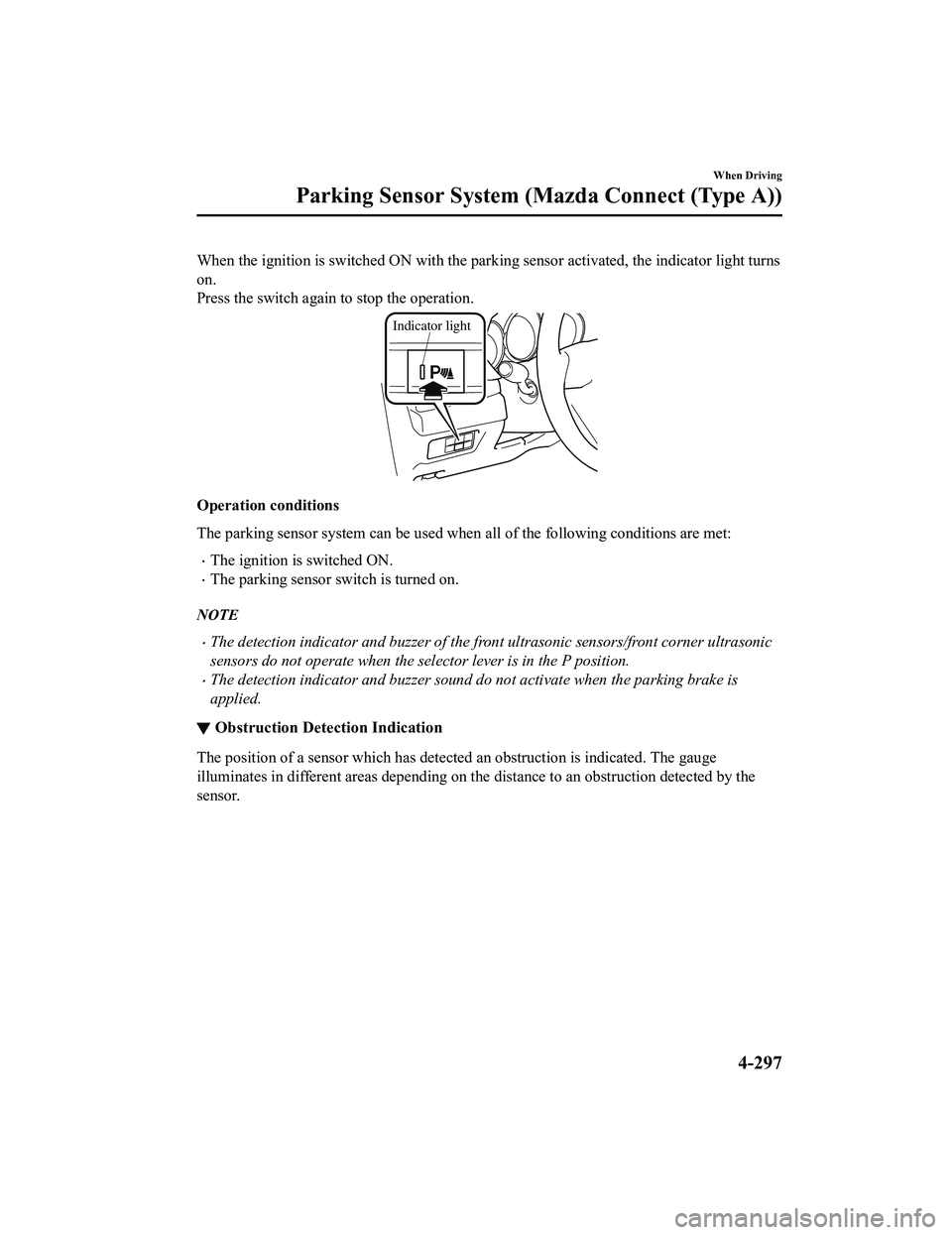

When the ignition is switched ON with the parking sensor activated, the indicator light turns
on.
Press the switch again to stop the operation.
Indicator light
Operation conditions
The parking sensor system can be used when all of the following conditions are met:
The ignition is switched ON.
The parking sensor switch is turned on.
NOTE
The detection indicator and buzzer of the front ultrasonic sensors/front corner ultrasonic
sensors do not operate when the sele ctor lever is in the P position.
The detection indicator and buzzer sound do not activate when the parking brake is
applied.
▼Obstruction Detection Indication
The position of a sensor which has detected an obstruction is indicated. The gauge
illuminates in different areas depending on the distance to an obstruction detected by the
sensor.
When Driving
Parking Sensor System (M
azda Connect (Type A))
4-297
