MAZDA MODEL CX-5 2022 Workshop Manual

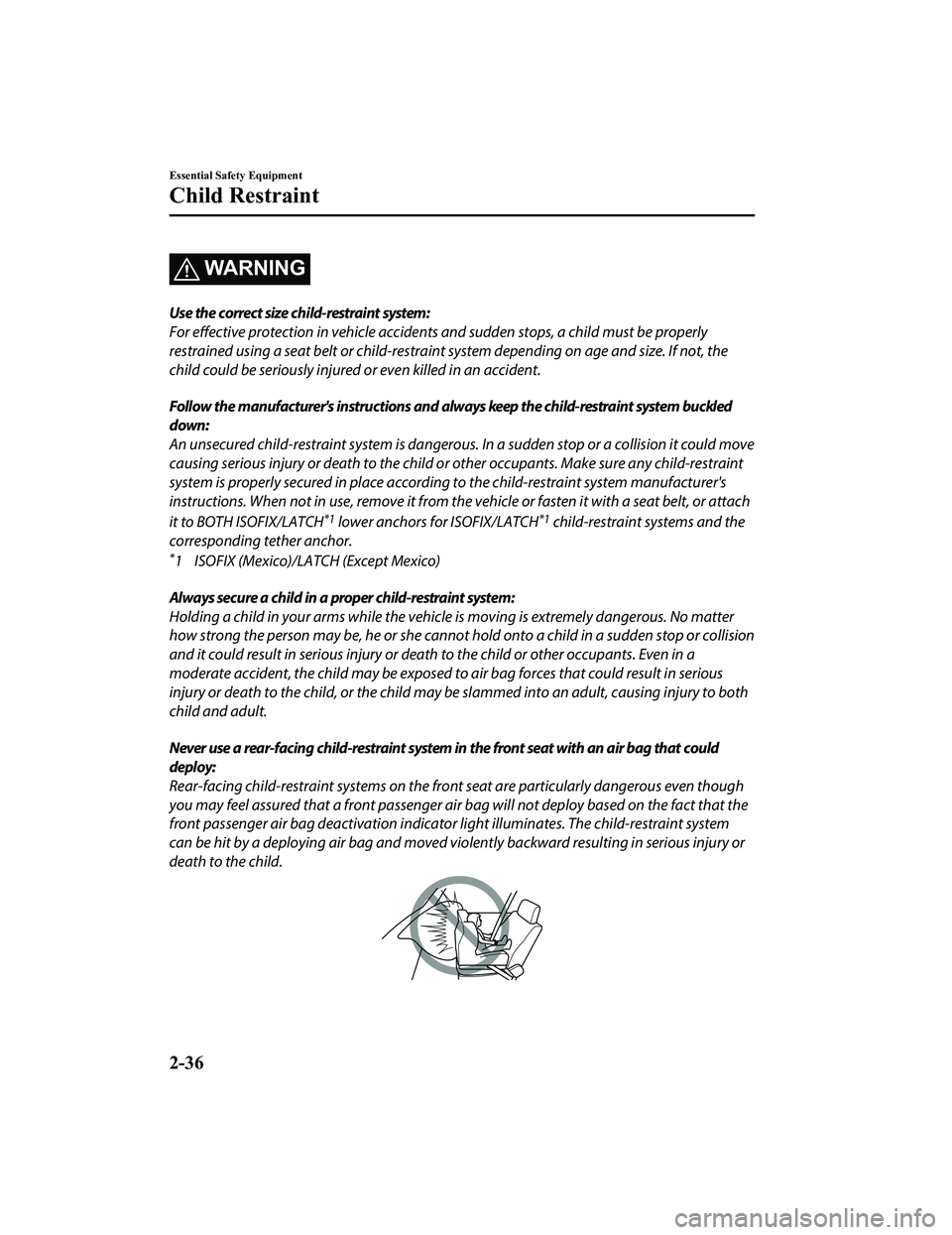

WA R N I N G
Use the correct size child-restraint system:
For effective protection in vehicle accidents and sudden stops, a child must be properly
restrained using a seat belt or child-restraint system depending on age and size. If not, the
child could be seriously injured or even killed in an accident.
Follow the manufacturer's instructions and always keep the child-restraint system buckled
down:
An unsecured child-restraint system is dangerous. In a sudden stop or a collision it could move
causing serious injury or death to the child or other occupants. Make sure any child-restraint
system is properly secured in place according to the child-restraint system manufacturer's
instructions. When not in use, remove it from the vehicle or fasten it with a seat belt, or attach
it to BOTH ISOFIX/LATCH
*1 lower anchors for ISOFIX/LATCH*1 child-restraint systems and the
corresponding tether anchor.
*1 ISOFIX (Mexico)/LATCH (Except Mexico)
Always secure a child in a proper child-restraint system:
Holding a child in your arms while the vehicle is moving is extremely dangerous. No matter
how strong the person may be, he or she cannot hold onto a child in a sudden stop or collision
and it could result in serious injury or death to the child or other occupants. Even in a
moderate accident, the child may be exposed to air bag forces that could result in serious
injury or death to the child, or the child may be slammed into an adult, causing injury to both
child and adult.
Never use a rear-facing child-restraint system in the front seat with an air bag that could
deploy:
Rear-facing child-restraint systems on the front seat are particularly dangerous even though
you may feel assured that a front passenger air ba g will not deploy based on the fact that the
front passenger air bag deactivation indicator light illuminates. The child-restraint system
can be hit by a deploying air bag and moved viol ently backward resulting in serious injury or
death to the child.
Essential Safety Equipment
Child Restraint
2-36
CX-5_8KN5-EA-21K_Edition1_old 2021-9-9 8:35:12

(Except Mexico)
Vehicles with a front passenger air bag have the following warning label. The warning label
reminds you not to put a rear-facing child-restrai nt system on the front passenger seat at any
time.
(Mexico)
NEVER use a rearward facing child restraint on a seat protected by an ACTIVE AIRBAG in front
of it, DEATH or SERIOUS INJURY to the CHILD can occur.
Vehicles with a front passenger air bag have th e following warning label. The warning label
reminds you not to put a rear-facing child-restrai nt system on the front passenger seat at any
time.

Do not install a front-facing child-restraint system on the front passenger seat unless it is
unavoidable:
In a collision, the force of a deploying air bag co uld cause serious injury or death to the child. If
installing a front-facing child-restraint syst em on the front passenger seat is unavoidable,
move the front passenger seat as far back as possible and adjust the seat bottom (height
adjustable seat bottom) to the highest position at which the seat belt fastening the
child-restraint system is securely tightened.
Essential Safety Equipment
Child Restraint
2-37
CX-5_8KN5-EA-21K_Edition1_old 2021-9-9 8:35:12

Seating a child in a child-restraint system on the front passenger seat is dangerous under
certain conditions (With Front Passenger Occupant Classification System):
Your vehicle is equipped with front passenger occupant classification sensor. Even with the
front passenger occupant classification sensor, if you must use the front passenger seat to
seat a child, using a child-restraint system on the front passenger seat under the following
conditions increases the danger of the front passenger air bag deploying and could result in
serious injury or death to the child.
 The front passenger air bag deactivation indica tor light does not illuminate when seating a
child in the child-restraint system.
 Luggage or other items are placed on the seat with the child in the child-restraint system.
 A rear passenger or luggage pushing or pulling down on the front passenger seatback.
 Luggage or other items are placed on the seatback or hung on the head restraint.
 The seat is washed.
 Liquids are spilled on the seat.
 The front passenger seat is moved backward, pushing into luggage or other items placed
behind it.
 The front passenger seatback contacts the rear seat.
 Luggage or other items are placed between the front passenger seat and driver seat.
 An electric device is put on the front passenger's seat.
 An additional electrical device, such as a seat warmer is installed to the surface of the front
passenger seat.
The designated positions with seat belts on the rear seats are the safest places for children.
Always use seat belts and child restraints.
Do not allow a child or anyone to lean over to or against the side window of a vehicle with
side and curtain air bags:
It is dangerous to allow anyone to lean over to or against the side window, the area of the
front passenger seat, the front and rear window pillars and the roof edge along both sides
from which the side and curtain air bags deploy, even if a child-restraint system is used. The
impact of inflation from a side or curtain air bag could cause serious injury or death to an out
of position child. Furthermore, leaning over to or against the door could block the side and
curtain air bags and eliminate the advantages of supplemental protection. Because the front
seats are equipped with front air bags, the rear seat is always a better location for children.
Take special care not to allow a child to lean ov er to or against the side window, even if the
child is seated in a child-restraint system.
Essential Safety Equipment
Child Restraint
2-38
CX-5_8KN5-EA-21K_Edition1_old 2021-9-9 8:35:12

Never use one seat belt on more than one person at a time:
Using one seat belt for more than one person at a time is dangerous. A seat belt used in this
way cannot spread the impact forces properly and the two passengers could be crushed
together and seriously injured or even killed. Ne ver use one belt for more than one person at a
time and always operate the vehicle wi th each occupant properly restrained.
Always remove the child-restraint system from the rear seat before operating the remote
handle for the rear seat:
Operating the remote handle while a rear-facing ch ild-restraint system is in the rear seat is
dangerous. It could cause injury to a child seated in the child-restraint system when the
seatback suddenly flips forward.
CAUTION
A seat belt or child-restraint system can beco me very hot in a closed vehicle during warm
weather. To avoid burning yourself or a child, check them before you or your child touches
them.
NOTE
Your Mazda is equipped with ISOFIX/LATCH*1 lower anchors for atta chment of specially
designed ISOFIX/LATCH
*1 child-restraint systems on the rear seats. When using these
anchors to secure a child-restraint system, refer to "Using ISOFIX Lower Anchor (Mexico)/
Using LATCH Lower Anchor (Except Mexico)" (page 2-52).
*1 ISOFIX (Mexico)/LATCH (Except Mexico)
Essential Safety Equipment
Child Restraint
2-39
CX-5_8KN5-EA-21K_Edition1_old 2021-9-9 8:35:12

Child-Restraint System Installation
▼Categories of Child-Restraint Systems
NOTE
When purchasing, ask the manufacturer of the child-restraint system which type of
child-restraint system is appropriate for your child and vehicle.
(Mexico)
Child-restraint systems are classified into the following 5 groups according to the UN-R 44
and UN-R 129 regulation.
Group
Age WeightSize Classification/
Fixture (CRF)
0 Up to about 9 months old Up to 10 kg (up to 22 lb) ISO/L1
ISO/L2
ISO/R1
0+ Up to about 2 years old Up to 13 kg (up to 29 lb) ISO/R1
ISO/R2
ISO/R3
1 About 8 months to 4 years old 9 kg ― 18 kg (20 lb ― 40 lb) ISO/R2
ISO/R3
ISO/F2
ISO/F2X ISO/F3
2 About 3 to 7 years old 15 kg ― 25 kg (33 lb ― 55 lb) ―
3 About 6 to 12 years old 22 kg ― 36 kg (48 lb ― 79 lb) ―
(Except Mexico)
Please comply with the legal regulations con cerning the use of child-restraint systems in
your country.
▼ Child-Restraint System Types
In this owner's manual, explanation of
child-restraint system
s is provided for the
following three types of popular
child-restraint systems: infant seat, child
seat, booster seat.
NOTE
Installation position is determined by
the type of child-restraint system.
Always read the manufacturer's
instructions and this owner's manual
carefully.
Essential Safety Equipment
Child Restraint
2-40
CX-5_8KN5-EA-21K_Edition1_old 2021-9-9 8:35:12

Due to variations in the design of
child-restraint systems, vehicle seats
and seat belts, all child-restraint systems
may not fit all seating positions. Before
purchasing a child-restraint system, it
should be tested in the specific vehicle
seating position (or positions) where it
is intended to be used. If a previously
purchased child-restraint system does
not fit, you may need to purchase a
different one that will.
Infant seat
An infant seat provides restraint by
bracing the infant's head, neck and back
against the seating surface.
Equal to Group 0 and 0+ of the UN-R 44
and UN-R 129 regulation.
Child seat
A child seat restrains a child's body using
the harness.
Equal to Group 1 of the UN-R 44 and
UN-R 129 regulation.
Booster seat
A booster seat is a child restraint
accessory designed to improve the fit of
the seat belt system around the child's
body.
Equal to Group 2 and 3 of the UN-R 44
and UN-R 129 regulation.
When using a backless booster seat,
always install the vehicle head
restraint to the seat where the
backless booster seat is installed. Backless booster seat
*
1
*1
Essential Safety Equipment
Child Restraint
2-41
CX-5_8KN5-EA-21K_Edition1_old
2021-9-9 8:35:12

Child-Restraint System Suitability for Various SeatPositions Table
(Mexico)
Provided information in the table shows your child-restraint system suitability for various
seating position. For installation suitability of other manufacturer child-restraint system,
carefully consult the manufacturer's instructions which accompany the child-restraint
system.
When installing a child-restraint system, the following points must be observed:
Always remove the head restraint before installing a child-restraint system. However,
when installing a backless booster seat, always install the vehicle head restraint to the seat
where the backless booster seat is installed. In addition, always use a tether strap and
attach it securely. Refer to Head Restraints on page 2-20.
When installing a child-restraint system to the front passenger seat, adjust the seat slide
position as far back as possible. Adjust the se at bottom to the highest position so that the
seat belt can securely fasten the child-restraint system.
Refer to Adjusting the Front Passenger's Seat on page 2-13.
When it is difficult to install a child-restraint system to the front passenger seat, or the seat
belt cannot be secured to the child-restraint system, perform the following operations to
adjust the seat holding the child-restraint system so that the seat belt can be secured
completely to it.
Move the seat forward or back.
Move the seatback forward or back.
Move the seat upward or downward. (Vehic les with height adjustment function)
When installing a child-restrain t system to the rear seat, adjust the front seat position so
that the front seat does not cont act the child-restraint system.
Refer to Adjusting the Driver's Seat on page 2-5.
Refer to Adjusting the Front Passenger's Seat on page 2-13.
When installing a child-res traint system came equipped with a tether, remove the head
restraint.
Refer to Head Restraints on page 2-20.
An i-Size child-restraint system refers to a child-restraint system which has acquired
i-Size category certification for the UN-R 129 regulation.
When installing a child-restraint system to the rear seat, refer to the child-restraint system
manufacturer's instructions and the Using ISOFIX Lower Anchor on page 2-52.
Seating position Passenger Rear (Left) Rear (Center) Rear (Right)
Seating position suit ‐
able for universal
belted (Yes/No) No
Yes (U) NoYes (U)
Essential Safety Equipment
Child Restraint
2-42
CX-5_8KN5-EA-21K_Edition1_old 2021-9-9 8:35:12

Seating position Passenger Rear (Left) Rear (Center) Rear (Right)
i-Size seating posi ‐
tion (Yes/No) No
Yes (i-U) NoYes (i-U)
Largest suitable rear ‐
ward facing fixture
(R1) No
Yes (IL) NoYes (IL)
Largest suitable rear ‐
ward facing fixture
(R2) No
Yes (IL) NoYes (IL)
Largest suitable rear ‐
ward facing fixture
(R2X) No
Yes (IL) NoYes (IL)
Largest suitable rear ‐
ward facing fixture
(R3) No
Yes (IL) NoYes (IL)
Largest suitable for ‐
ward facing fixture
(F2) No
Yes (IUF) NoYes (IUF)
Largest suitable for ‐
ward facing fixture
(F2X) No
Yes (IUF) NoYes (IUF)
Largest suitable for ‐
ward facing fixture
(F3) No
Yes (IUF) NoYes (IUF)
Largest suitable lat ‐
eral facing fixture
(L1) No
NoNo No
Largest suitable lat ‐
eral facing fixture
(L2) No
NoNo No
Largest suitable
booster fixture (B2) No
Yes (IUF) NoYes (IUF)
Largest suitable
booster fixture (B3) No
Yes (IUF) NoYes (IUF)
Non i-size compati ‐
ble with a support
leg (Yes/No) Ye s
*1Ye s
N oYe s
Lower ISOFIX an ‐
chorages but without
Top Tether (Yes/No) No
NoNo No
U = Suitable for “universal” category restra ints approved for use in this mass group.
UF = Suitable for forward-facing “universal” category restraints approved for use in this mass group.
IUF = Suitable for ISOFIX forward child restraints system s of universal category approved for use in the mass
group.
Essential Safety Equipment
Child Restraint
2-43
CX-5_8KN5-EA-21K_Edition1_old 2021-9-9 8:35:12

L = Suitable for particular child restraints given on attached list. These restraints may be of the “specific vehicle”,
“restricted” or “semi- universal” categories.
IL = Suitable for particular ISOFIX child restraint system s (CRS) given in the attached list. These ISOFIX CRS are
those of the “specific vehicle”, “restr icted” or “semi-universal” categories.
i-U = Suitable for i-Size “universal” Child Restraint Systems forward and rearward facing.
i-UF = Suitable for forward-facing i-Size “universal” Child Restraint Systems only.
Yes = Child-restraint system can be secured on the seat.
No = Child-restraint system cannot be secured on the seat, or there is no fixture.
X = Child-restraint system cannot be installed.
*1 Child restraint system can only be installed in the forward-facing position.
A Mazda genuine child-restraint system can be installed. Regarding child-restraint systems which can be installed,
refer to the accessories catalog.
(Except Mexico)
Regarding child-restraint systems which can be installed to your Mazda, consult an Authorized Mazda Dealer.A child-restraint system with a support leg cannot be installed on the rear center seat position.Please comply with the legal regulations concerning the use of child-restraint systems in your country.For the CRS which do not carry the ISO/XX size class identif ication (A to G), for the applicable mass group, the
child seat manufacturer shall indicate the vehicle spec ific LATCH child-restraint systems recommended for each
position.
Essential Safety Equipment
Child Restraint
2-44
CX-5_8KN5-EA-21K_Edition1_old 2021-9-9 8:35:12

Installing Child-RestraintSystems
Accident statistics reveal that a child is
safer in the rear seat. The front passenger's
seat is clearly the worst choice for any
child under 12, and with rear-facing
child-restraint systems it is clearly unsafe
due to air bags.

NOTE
Even if your vehicle is equipped with front
passenger occupant classification sensor
(page 2-71), which automatically
deactivates the front passenger air bag, a
rear seat is the safest place for a child of
any age or size.

Some child-restraint systems now come
with tethers and therefore must be
installed on the seats that take tethers to be
effective. In your Mazda, tethered
child-restraint systems can only be
accommodated in the three positions on
the rear seat.

Some child-restraint systems also employ
specially designed ISOFIX/LATCH
*1
attachments; refer to "Using ISOFIX
Lower Anchor (Mexico)/Using LATCH
Lower Anchor (Excep t Mexico)" (page
2-52).
*1 ISOFIX (Mexico)/LATCH (Except
Mexico)
WARNING
Tethered Child-Restraint Systems Work
Only on Tether-Equipped Rear Seats:
Installation of a tether equipped
child-restraint system in the front
passenger's seat defeats the safety design
of the system and will result in an increased
chance of serious injury if the
child-restraint system goes forward
without benefit of being tethered.
Place tether equipped child-restraint
systems where there are tether anchors.
▼Anchor Bracket
Anchor brackets for securing
child-restraint systems
are equipped in the
vehicle. Locate each anchor position using
the illustration.
To install a child-restraint system, remove
the head restraint. Always follow the
instruction manual accompanying the
child-restraint system.

Anchor bracket location
Use the indicated anchor bracket locations
when installing a child-restraint system
equipped with a tether.
For center
For left For right*
*Except Mexico
Essential Safety Equipment
Child Restraint
2-45
CX-5_8KN5-EA-21K_Edition1_old 2021-9-9 8:35:12
