Always apply the parking brake when parking the vehicle:
Not applying the parking brake when parking the vehicle is dangerous as the vehicle may
move unexpectedly and result in an accident. When parking the vehicle, shift the selector
lever to the P position and apply the parking brake.
CAUTION
If you stop operating the accelerator pedal befo re the vehicle starts moving, the force holding
the vehicle in the stopped position may weaken. Firmly depress the brake pedal or depress the
accelerator pedal to accelerate the vehicle.
NOTE
ï‚·Under the following conditions, a problem wi th the AUTOHOLD is occurring. Have your
vehicle inspected at an Authorized Mazda Dealer as soon as possible.
ï‚·The brake pedal operation demand warning ligh t (red) in the instrument cluster flashes
and the warning sound is activated for about 5 seconds while the AUTOHOLD is
operating or when you press the AUTOHOLD switch.
ï‚·A message is indicated on the multi-information display and a warning sound is
activated for about 5 seconds while the AUTOHOLD is operating or when your press
the AUTOHOLD switch.
ï‚·If you switch the ignition OFF while the AUTOHOLD is operating, the parking brake is
applied automatically to assist you with parking the vehicle.
ï‚·The AUTOHOLD is canceled when the selector lever is shifted to R position while the
vehicle is on level ground, or facing up a hill or grade (as shown below).
Level ground
: Driving in reverse (selector lever in R)
Vehicle tilts forward Vehicle tilts rearward
AUTOHOLD :
Operates AUTOHOLD :
Does not operate,
canceled
AUTOHOLD :
Does not operate,
canceled
When Driving
Brake
4-100
CX-5_8KN5-EA-21K_Edition1_old 2021-9-9 8:35:12

ï‚·The brake pedal response may change, sound may occur from the brakes, or the brake
pedal could vibrate from the operation of the AUTOHOLD function. However, this does
not indicate a malfunction.
â–¼To Tu r n O n A U T O H O L D S y s t e m
Press the AUTOHOLD
switch and when
the AUTOHOLD standby indicator light
turns on, the AUTOHOLD function turns
on.
AUTOHOLD standby
indicator light
NOTE
When all of the following conditions are
met, the AUTOHOLD standby indicator
light turns on when the AUTOHOLD
switch is pressed and the AUTOHOLD
function turns on.
ï‚·The ignition is switched ON (engine is
running).
ï‚·The driver's seat belt is fastened.
ï‚·The driver's door is closed.
ï‚·There is no problem with the
AUTOHOLD function.
To operate AUTOHOLD and hold the
brakes
1. Depress the brake pedal and bring the vehicle to a complete stop.
2. The AUTOHOLD active indicatorlight in the instrument cluster turns on
and the brakes are held.
3. The vehicle is held in its stoppedposition even with the brake pedal
released.
NOTE
When all of the following conditions are
met, the AUTOHOLD operates and the
brakes are held.
ï‚·The ignition is swit ched ON (engine is
running).
ï‚·The vehicle is stopped.
ï‚·The brake pedal is being depressed.
ï‚·The AUTOHOLD active indicator light
turns on.
ï‚·The accelerator pedal is not depressed.
ï‚·The driver's seat belt is fastened.
ï‚·The driver's door is closed.
ï‚·There is no problem with the
AUTOHOLD function.
ï‚·The parking brake is released.
ï‚·There is no problem with the Electric
Parking Brake (EPB) function.
ï‚·The selector lever is in a position other
than R position or the vehicle tilts
forward with the selector lever in the R
position.
When Driving
Brake
4-101
CX-5_8KN5-EA-21K_Edition1_old 2021-9-9 8:35:12

To release AUTOHOLD and start
driving the vehicle
If you try to resume driving the vehicle,
the brakes release automatically and the
AUTOHOLD active indicator light turns
off.
NOTE
ï‚·If the Electric Parking Brake (EPB)
switch is pulled while the AUTOHOLD
is operating, the parking brake is
applied and the AUTOHOLD is
released. In addition, if the parking
brake is released under this condition,
the AUTOHOLD operates to hold the
brakes.
ï‚·Under the following conditions, the
parking brake is automatically applied
and the AUTOHOLD is released. The
AUTOHOLD is re-enabled when the
conditions before the AUTOHOLD is
released are restored.
The driver’s seat belt is unfastened.
The driver’s door is opened.
ï‚·When about 10 minutes or longer have
passed since the AUTOHOLD operation
started, the parking brake is
automatically applied. Because the
AUTOHOLD is restored when releasing
the parking brake, the hold on the
brakes by AUTOHOLD function
resumes.
â–¼To Tu r n O f f A U T O H O L D S y s t e m
Depress the brake pedal and press the
AUTOHOLD switch. The AUTOHOLD is
turned off and the AUTOHOLD standby
indicator light turns off.
AUTOHOLD standby
indicator light
NOTE
ï‚·When the brakes are not held such as
while driving the vehicle, the
AUTOHOLD can be turned off only by
pressing the AUTOHOLD switch.
ï‚·(Type A/B instrument cluster)
If the AUTOHOLD switch is pressed
without depressing the brake pedal
while AUTOHOLD is operating
(AUTOHOLD active indicator light in
instrument cluster is turned on), the
message Brake Pedal Must Be
Depressed to Deactivate Auto Hold
System is indicated on the
multi-information display to notify the
driver to depress the brake pedal.
ï‚·(Type C instrument cluster)
When Driving
Brake
4-102
CX-5_8KN5-EA-21K_Edition1_old
2021-9-9 8:35:12

If the AUTOHOLD switch is pressed
without depressing the brake pedal
while the AUTOHOLD is operating
(AUTOHOLD active indicator light is
turned on), the brake pedal operation
demand indicator light (green) in the
instrument cluster turns on to notify the
driver that it is necessary to depress the
brake pedal.
(Green)
ï‚·If any of the following conditions occurs
while the AUTOHOLD function is
operating (AUTOHOLD active indicator
light is turned on), the parking brake is
applied automatically and the
AUTOHOLD function turns off. For the
Electric Parking Brake (EPB)
operation, refer to the Electric Parking
Brake (EPB) on page 4-95.
ï‚·The ignition is switched OFF.
ï‚·There is a problem with the
AUTOHOLD function.
Hill Launch Assist (HLA)
HLA is a function which assists the driver
in accelerating from a stop while on a
slope. When the driver releases the brake
pedal and depresses the accelerator pedal
while on a slope, the function prevents the
vehicle from rolling. The braking force is
maintained automatical ly after the brake
pedal is released on a steep grade.
HLA operates on a downward slope when
the selector lever is in the reverse (R)
position, and on an upward slope when the
selector lever is in a forward gear.
WA R N I N G
Do not rely completely on HLA :
HLA is an auxiliary device for accelerating
from a stop on a slope. The system only
operates for about 2 seconds and
therefore, relying only on the system, when
accelerating from a stop is dangerous
because the vehicle may move (roll)
unexpectedly and cause an accident.
The vehicle could roll depending on the
vehicle's load or if it is towing something.
Always confirm the safety around the
vehicle before starting to drive the vehicle.
NOTE
ï‚·HLA does not operate on a gentle slope.
In addition, the gradient of the slope on
which the system will operate changes
depending on the vehicle's load.
ï‚·HLA does not operate if the parking
brake is applied, or if the vehicle has not
stopped completely.
ï‚·HLA is operating, the brake pedal may
feel stiff and vibrate, however, this does
not indicate a malfunction.
When Driving
Brake
4-103
CX-5_8KN5-EA-21K_Edition1_old 2021-9-9 8:35:12

This indicator light stays on for a few
seconds when the ignition is switched ON.
It also illuminates when the TCS OFF
switch is pressed and TCS is switched off.
Refer to TCS OFF Switch on page 4-107.

If the light remains illuminated and the
TCS is not switched off, take your vehicle
to an Authorized Mazda Dealer. The DSC
may have a malfunction.
â–¼TCS OFF Switch*
Press the TCS OFF switch to turn off the
TCS. The TCS OFF indicator light in the
instrument cluster will illuminate.
Press the switch agai
n to turn the TCS
back on. The TCS OFF indicator light will
turn off.
NOTE
ï‚·When TCS is on and you attempt to free
the vehicle when it is stuck, or drive it
out of freshly fallen snow, the TCS (part
of the DSC system) will activate.
Depressing the accelerator will not
increase engine power and freeing the
vehicle may be diff icult. When this
happens, turn off the TCS.
ï‚·If the TCS is off when the engine is
turned off, it automatically activates
when the ignition is switched ON.
ï‚·Leaving the TCS on will provide the best
traction.
ï‚·If the TCS OFF switch is pressed and
held for 10 seconds or more, the TCS
OFF switch malfunction detection
function operates and the TCS system
activates automatically. The TCS OFF
indicator light turn s off while the TCS
system is operative.
When Driving
ABS/TCS/DSC/Off-Road Traction Assist
*Some models.4-107
CX-5_8KN5-EA-21K_Edition1_old 2021-9-9 8:35:12

Off-Road Traction Assist*
When the vehicle tires become embedded
in mud, sand, or deep snow, the Off-Road
Traction Assist functions to prevent
drive-wheel spinning and to assist in
freeing tires that are stuck.
Do not drive over rough rocky roads and
river beds.
WARNING
Do not rely completely on the Off-Road
Traction Assist.
The Off-Road Traction Assist has
limitations. Always drive the vehicle safely
according to the road conditions. Do not
drive the vehicle recklessly, otherwise it
may result in an accident. In addition, do
not drive the vehicle under the following
conditions while the Off-Road Traction
Assist is operating. Otherwise, it could
negatively affect the drivetrain parts which
could result in an accident.
 Vehicle is driven on paved roads.
 Temporary spare tire or tires of a
different specified size are used.
 Tire chains are used.
CAUTION
The Off-Road Traction Assist is a function
to assist in freeing tires that are stuck.
When it is not necessary to use this
function, avoid driving the vehicle
continuously with the Off-Road Traction
Assist on.
(Vehicle equipped with Type A/ B
instrument cluster)
If the vehicle is driven continuously with
the Off-Road Traction Assist on, the AWD
warning indication may be displayed.
(Vehicle equipped with Type C instrument
cluster)
If the vehicle is driven continuously with
the Off-Road Traction Assist on, the AWD
warning light may flash.
Refer to If a Warning Light Turns On or
Flashes on page 7-22.
NOTE
The vehicle may vibrate or you might hear
an operation sound while the Off-Road
Traction Assist is operating or is
operational, however, this does not
indicate a problem.

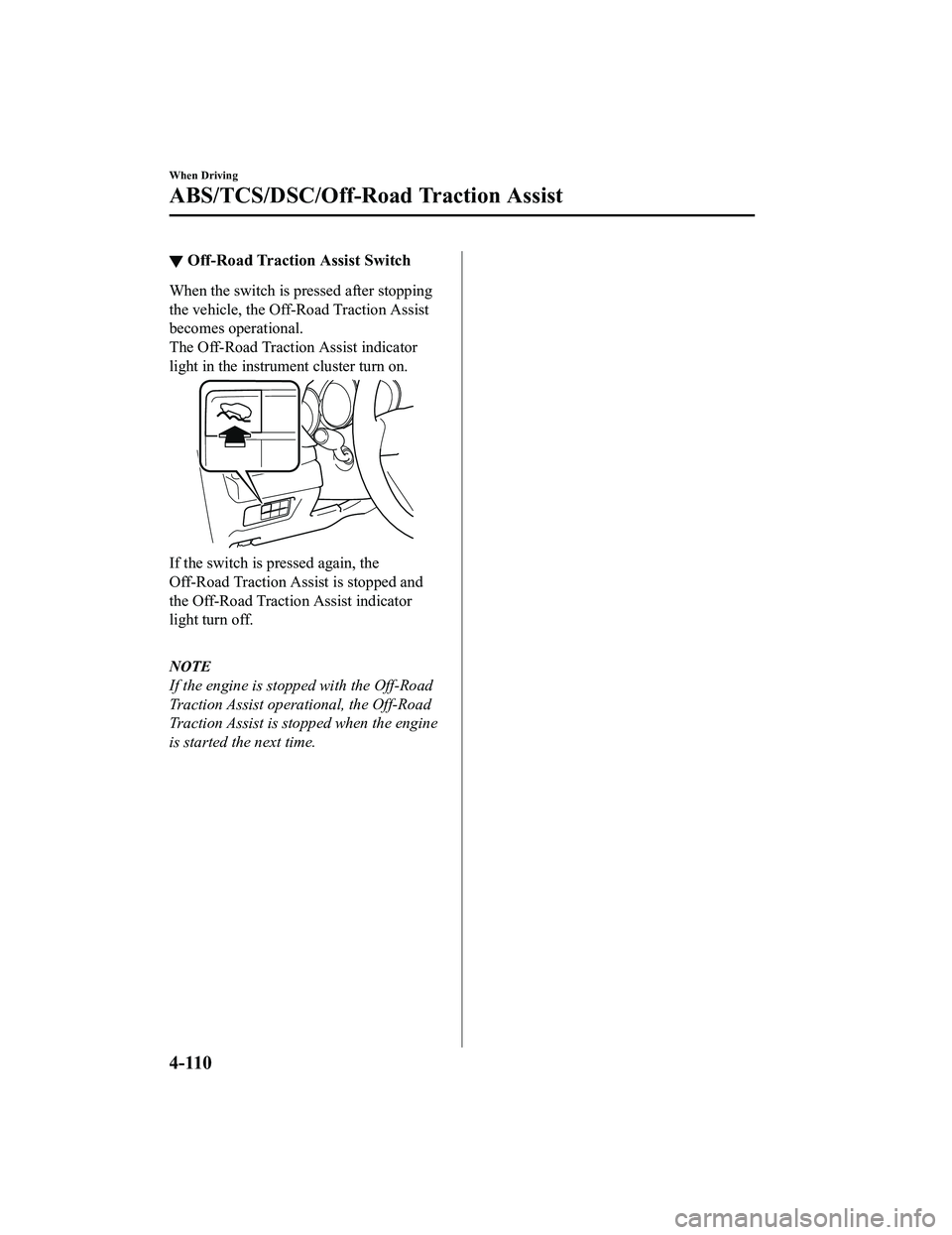

â–¼ Off-Road Traction Assist Indicator
Light
ï‚·When the ignition is switched ON, the
indicator light turns on and then turns
off after a few seconds.
ï‚·When pressing the Off-Road Traction
Assist switch to operate the Off-Road
Traction Assist, the indicator light turns
on.
ï‚·A problem in the system might be
indicated under the following
conditions. Have your vehicle inspected
by an Authorized Mazda Dealer.
ï‚·The indicator light does not turn on
when the ignition is switched ON or it
remains on.
ï‚·The indicator li
ght turns on even
though the Off-Road Traction Assist
was not operated.
When Driving
ABS/TCS/DSC/Off-Road Traction Assist
*Some models.4-109
CX-5_8KN5-EA-21K_Edition1_old 2021-9-9 8:35:12

â–¼Off-Road Traction Assist Switch
When the switch is pressed after stopping
the vehicle, the Off-Road Traction Assist
becomes operational.
The Off-Road Traction Assist indicator
light in the instrument cluster turn on.
If the switch is pressed again, the
Off-Road Traction Assi
st is stopped and
the Off-Road Traction Assist indicator
light turn off.

NOTE
If the engine is stopped with the Off-Road
Traction Assist operational, the Off-Road
Traction Assist is stopped when the engine
is started the next time.
When Driving
ABS/TCS/DSC/Off-Road Traction Assist
4-110
CX-5_8KN5-EA-21K_Edition1_old 2021-9-9 8:35:12

How to use Mi-Drive
Ty p e A
1. Push the Mi-Drive switch forward orpull it toward you.

2. While checking the list displayed inthe instrument cluster, push the
Mi-Drive switch forward or pull it
toward you to select a drive mode.
When the drive mode is set, the display
in the instrument cluster changes.
Refer to Mazda intelligent Drive Select
(Mi-Drive) Display on page 4-13.
Ty p e B
1. Press the Mi-Drive switch forward
(SPORT) to select the sport mode.
2.Instrument Cluster (Type A)
When the drive mode is set, the display
in the instrument cluster changes.
Refer to Mazda intelligent Drive Select
(Mi-Drive) Display on page 4-13.
Instrument Cluster (Type B/C)
When the sport mode is selected, the
select mode indication turns on in the
instrument cluster.
3. Pull the Mi-Drive switch back (OFF)
to cancel the sport mode.
NOTE
ï‚·Depending on the driving conditions
when sport mode is selected, the vehicle
may perform shift-down or slightly
accelerate.
ï‚·When the sport mode is selected, driving
at higher engine speeds increases and it
may increase fuel consumption. Mazda
recommends that you cancel the sport
mode on normal driving.
ï‚·Instrument Cluster (Type A)
The driving mode in which the display in
the instrument clus ter is grayed out
cannot be selected.
When Driving
Mazda intelligent Driv e Select (Mi-Drive)
4-112
CX-5_8KN5-EA-21K_Edition1_old 2021-9-9 8:35:12

NOTE
The timing in which the system switches the headlights changes under the following
conditions. If the system does not switch the headlights appropriately, manually switch
between high and low beams according to the visibility as well as road and traffic
conditions.
ï‚·When there are sources of light in the area such as streetlamps, illuminated signboards,
and traffic signals.
ï‚·When there are reflective objects in the surrounding area such as reflective plates and
signs.
ï‚·When visibility is reduced under rain, snow and foggy conditions.
ï‚·When driving on roads with sharp turn or hilly terrain.
ï‚·When the headlights/rear lamps of vehicles in front of you or in the opposite lane are dim
or not illuminated.
ï‚·When there is sufficient darkness such as at dawn or dusk.
ï‚·When the luggage compartment is loaded with heavy objects or the rear passenger seats
are occupied.
ï‚·When visibility is reduced due to a vehicle in front of you spraying water from its tires
onto your windshield.
â–¼ To Operate the System
The HBC operates to switch the headlights
automatically betw
een high and low
beams after the ignition is switched ON
and the headlight swit ch is in the AUTO
and high beam position.
The HBC determines that it is dark based
on the brightness of the surrounding area.
At the same time, the HBC indicator light
(green) in the instrument cluster
illuminates.

NOTE
ï‚·When the vehicle speed is about 30 km/h
(19 mph) or more, the headlights
automatically switch to high beams
when there are no vehicles ahead or
approaching in the opposite direction.
When the vehicle speed is less than
about 20 km/h (12 mph), the HBC
switches the headlights to low beams.
ï‚·The low beams may not switch to high
beams when cornering.
ï‚·Operation of the HBC function can be
disabled. Refer to the Settings section in
the Mazda Connect Owner's Manual.
â–¼ Manual Switching
Switching to low beams
Shift the lever to the low beam position.
The HBC indicator light (green) turns off.
When Driving
i-ACTIVSENSE
4-122
CX-5_8KN5-EA-21K_Edition1_old
2021-9-9 8:35:12

Blind Spot Monitoring (BSM)*
The BSM is designed to assist the driver in checking the area to the rear of the vehicle on
both sides during lane changes by notifying the driver of the presence of vehicles
approaching from the rear in an adjacent lane.
The BSM detects vehicles approaching from the rear while traveling in the forward
direction at a speed of 10 km/h (6.3 mph) or faster and notifies the driver by turning on the
BSM warning indicator light and displaying th e vehicle detection screen (vehicles with
instrument cluster (Type A/B) and active driving display).
If the turn signal lever is operated to si gnal a turn in the direction in which the BSM
warning indicator light is illuminated while the approaching vehicle is detected, the BSM
notifies the driver of possible danger by tu rning on the BSM warning indicator light, and by
activating the warning sound and the warning screen indicator display (vehicles with
instrument cluster (Type A/B) and active driving display).
The detection area on this system covers the driving lanes on both sides of the vehicle and
from the rear part of the front doors to about 50 m (164 ft) behind the vehicle.
Detection areas
Your vehicle
WA R N I N G
Always check the surrounding area visually before making an actual lane change:
The system is only designed to assist you in checking for vehicles at your rear when making a
lane change. Due to certain limitations with
the operation of this system, the BSM warning
indicator light, the warning sound and the warn ing screen indicator display may not activate
or they might be delayed even though a vehicle is in an adjacent driving lane. Always make it
your responsibility as a driver to check the rear.
When Driving
i-ACTIVSENSE
4-124*Some models.
CX-5_8KN5-EA-21K_Edition1_old 2021-9-9 8:35:12
