Front Seat
▼Adjusting the Driver's Seat
Using the driving position set up procedure recommended by Mazda allows you to maintain
a relaxed posture, drive the vehicle for longer periods without feeling tired, and make quick
operations naturally.
Also, you can be assured of a clear view in the forward direction to help you drive more
safely and comfortably.
The adjustments for the driving position recommended by Mazda are done using the
following procedures.
1. Moving the steering wheel and s
eat to their default positions.
2. Adjusting the seatback angle.
3. Adjusting the seat position forward and back.
4. Adjusting the seat height.
5. Adjusting the steering wheel position.
6. Adjusting the head restraint position.
Power operation
Seat Slide
(Manual Seat)
To move a seat forward or backward, raise the lever and slide the seat to the desired position
and release the lever.
Essential Safety Equipment
Seats
2-5
CX-5_8KN5-EA-21K_Edition1_old 2021-9-9 8:35:12

With the manual seat, if you raise the seat height, the seat moves forward. Adjust the
seat forward or back again.
Manual Seat Power Seat
Adjusting the steering wheel position
Adjust the steering wheel to the position where it can be operated easily and the gauges can
be viewed easily.
1. With your back resting agai nst the seatback, extend both arms, place them on the top of
the steering wheel, and pull the steering wh eel towards you to the position of your
wrists.
2. Adjust the steering wheel height so that the gauges can be viewed easily.
3. Raise the lever to secure ly lock the steering wheel.
Adjusting the head restraint position
To prevent shock to the head and neck, adjust the head restraints to their correct positions.
Essential Safety Equipment
Seats
2-10
CX-5_8KN5-EA-21K_Edition1_old 2021-9-9 8:35:12

Do not place heavy objects with sharp
projections on the seat, or insert needles or
pins into it:
This could cause the seat to become
excessively heated and result in injury from
a minor burn.
CAUTION
(Rear)
Before folding a rear seatback, make sure
that the rear seat warmer switch is off. If
a rear seatback is folded while the rear
seat warmer is in operation, it may heat
the seat excessively and damage the seat
surface.
 Do not use organic solvents to clean the
seat. It may damage the seat surface and
the heater.
NOTE
Use the seat warmer when the engine is
running. Leaving the seat warmer on for
long periods with the engine not running
could cause the battery power to be
depleted.
When the engine is stopped while the
seat warmers are operating and then the
ignition is switched ON, the seat
warmers will not turn back on
automatically. To turn the seat warmers
back on, press the switch. In addition,
the seat warmer operation stops
automatically after the seat warmers
have operated for about 90 minutes.
(Vehicles with seat ventilation)
The front seat warmer cannot be used at
the same time as the seat ventilation.

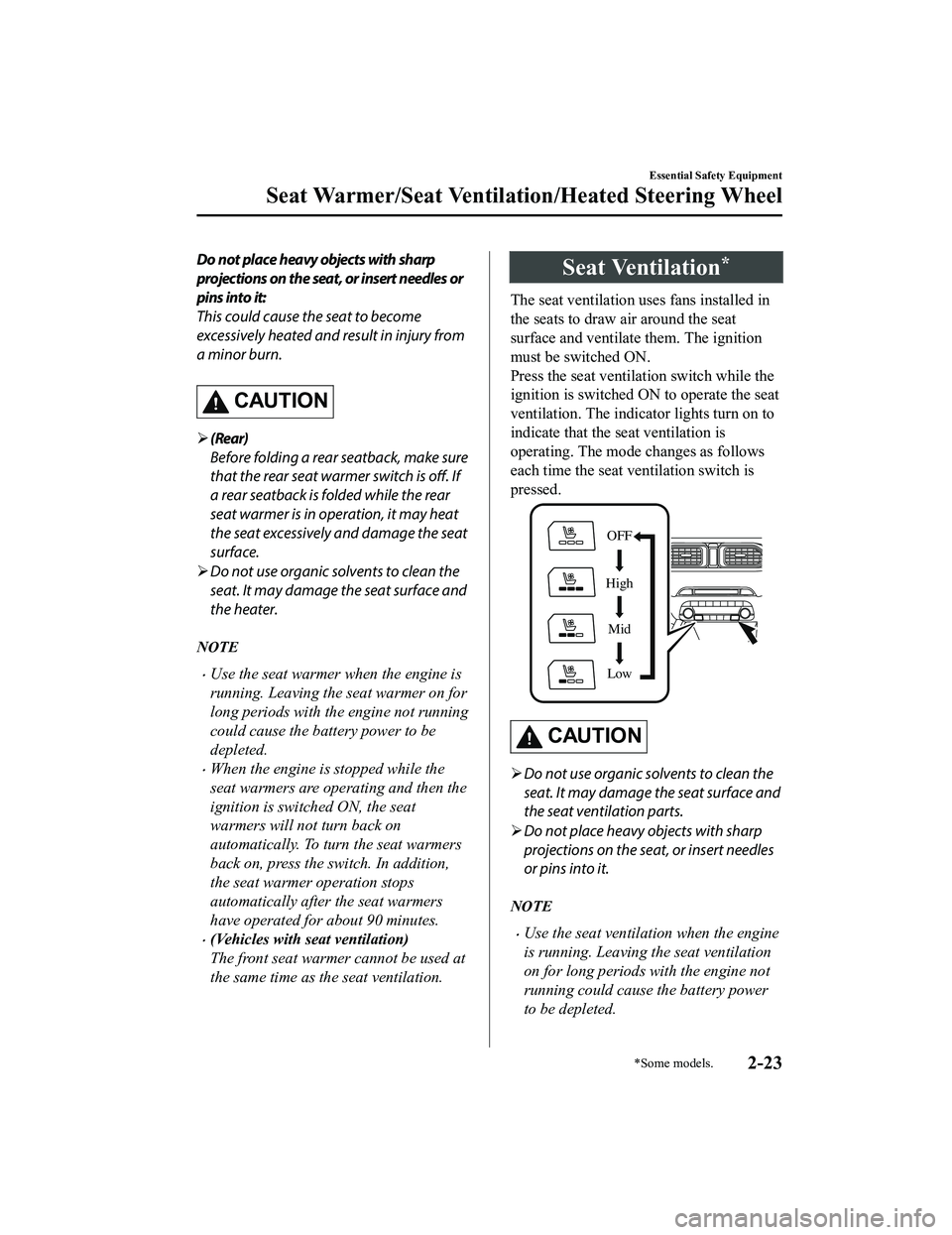

Seat Ventilation*
The seat ventilation uses fans installed in
the seats to draw air around the seat
surface and ventilate them. The ignition
must be switched ON.
Press the seat ventilation switch while the
ignition is switched ON to operate the seat
ventilation. The indicator lights turn on to
indicate that the seat ventilation is
operating. The mode changes as follows
each time the seat ventilation switch is
pressed.
OFF
High Mid
Low
CAUTION
 Do not use organic solvents to clean the
seat. It may damage the seat surface and
the seat ventilation parts.
 Do not place heavy objects with sharp
projections on the seat, or insert needles
or pins into it.
NOTE
Use the seat ventilation when the engine
is running. Leaving the seat ventilation
on for long periods with the engine not
running could cause the battery power
to be depleted.
Essential Safety Equipment
Seat Warmer/Seat Ventilati on/Heated Steering Wheel
*Some models.2-23
CX-5_8KN5-EA-21K_Edition1_old 2021-9-9 8:35:12

Break-In Period
No special break-in is necessary, but a few
precautions in the first 1,000 km (600
miles) may add to the performance,
economy, and life of the vehicle.
Do not race the engine.
Do not maintain one constant speed,
either slow or fast, for a long period of
time.
Do not drive constantly at full-throttle or
high engine rpm for extended periods of
time.
Avoid unnecessary hard stops.
Avoid full-throttle starts.
Do not tow a trailer.
Saving Fuel and Protectionof the Environment
How you operate your Mazda determines
how far it will travel on a tank of fuel. Use
these suggestions to help save fuel and
reduce CO
2.
Avoid long warm-ups. Once the engine
runs smoothly, begin driving.
Avoid fast starts.
Drive at lower speeds.
Anticipate when to apply the brakes
(avoid sudden braking).
Follow the maintenance schedule (page
6-4) and have an Authorized Mazda
Dealer perform inspections and
servicing.
Use the air conditioner only when
necessary.
Slow down on rough roads.
Keep the tires properly inflated.
Do not carry unnecessary weight.
Do not rest your foot on the brake pedal
while driving.
Keep the wheels in correct alignment.
Keep windows closed at high speeds.
Slow down when driving in crosswinds
and headwinds.
WA R N I N G
Never stop the engine when going down a
hill:
Stopping the engine when going down a
hill is dangerous. This causes the loss of
power steering and power brake control,
and may cause damage to the drivetrain.
Any loss of steering or braking control
could cause an accident.
Before Driving
Driving Tips
3-45
CX-5_8KN5-EA-21K_Edition1_old 2021-9-9 8:35:12

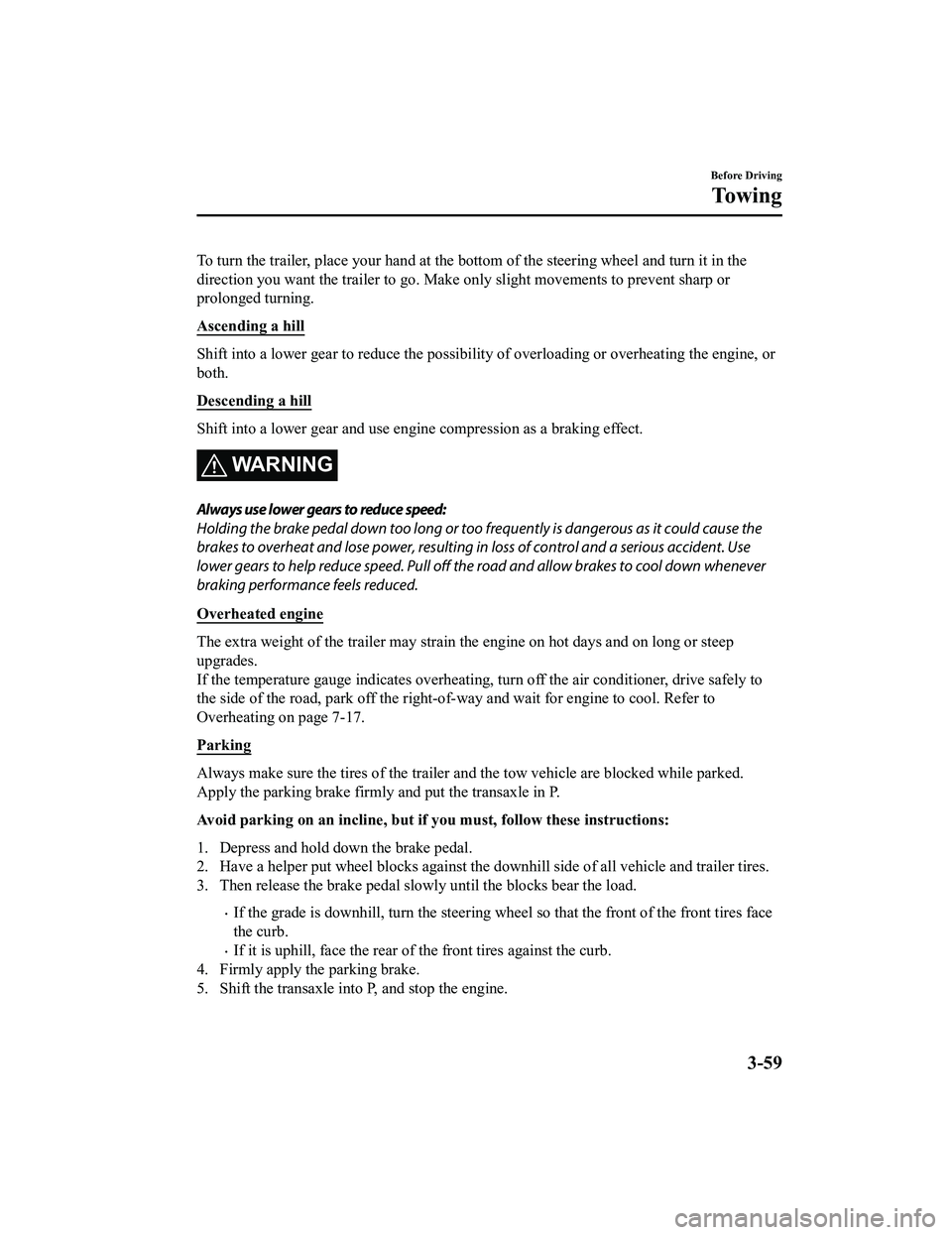

To turn the trailer, place your hand at the bottom of the steering wheel and turn it in the
direction you want the trailer to go. Make only slight movements to prevent sharp or
prolonged turning.
Ascending a hill
Shift into a lower gear to reduce the possibility of overloading or overheating the engine, or
both.
Descending a hill
Shift into a lower gear and use engine compression as a braking effect.
WARNING
Always use lower gears to reduce speed:
Holding the brake pedal down too long or too f requently is dangerous as it could cause the
brakes to overheat and lose power, resulting in loss of control and a serious accident. Use
lower gears to help reduce speed . Pull off the road and allow brakes to cool down whenever
braking performance feels reduced.
Overheated engine
The extra weight of the trailer may strain the engine on hot days and on long or steep
upgrades.
If the temperature gauge indicates overheating, turn off the air conditioner, drive safely to
the side of the road, park off the right-of- way and wait for engine to cool. Refer to
Overheating on page 7-17.
Parking
Always make sure the tires of the trailer and the tow vehicle are blocked while parked.
Apply the parking brake firmly and put the transaxle in P.
Avoid parking on an incline, but if you must, follow these instructions:
1. Depress and hold down the brake pedal.
2. Have a helper put wheel blocks against the downhill side of all vehicle and trailer tires.
3. Then release the brake pedal slowly until the blocks bear the load.
If the grade is downhill, turn the steering wheel so that the front of the front tires face
the curb.
If it is uphill, face the rear of the front tires against the curb.
4. Firmly apply the parking brake.
5. Shift the transaxle into P, and stop the engine.
Before Driving
To w i n g
3-59
CX-5_8KN5-EA-21K_Edition1_old 2021-9-9 8:35:12

4When Driving
Information concerning safer driving and stopping.
Start/Stop Engine.............................. 4-4 Ignition Switch........ ..................... 4-4
Starting the Engine....................... 4-5
Turning the Engine Off...............4-10
Instrument Cluster and Display ............
........................................................... 4-11 Instrument Cluster and
Display........................................ 4-11
Instrument Cluster (Type A)....... 4-12
Instrument Cluster (Type B)....... 4-30
Instrument Cluster (Type C)....... 4-46
Active Driving Display
*............. 4-58
Automatic Transaxle....................... 4-60 Automatic Transaxle
Controls...................................... 4-60
Shift-Lock System...................... 4-61
Transaxle Ranges........................4-61
Manual Shift Mode..................... 4-63
Direct Mode
*.............................. 4-69
Driving Tips................................4-70
Switches and Controls..................... 4-71 Lighting Control......................... 4-71
Fog Lights
*................................. 4-78
Turn and Lane-Change
Signals........................................ 4-78
Windshield Wipers and
Washer........................................ 4-79
Rear Window Wiper and
Washer........................................ 4-83
Rear Window Defogg er.............. 4-83
Horn............................................ 4-86
Hazard Warning Flasher............. 4-86
HomeLink Wireless Control System
(Type A)
*.................................... 4-87
HomeLink Wireless Control System
(Type B)
*.................................... 4-90
Brake................................................ 4-95 Brake System.............................. 4-95
AUTOHOLD.............................. 4-99
Hill Launch Assist (HLA)........ 4-103
ABS/TCS/DSC/Off-Road Traction
Assist............................................... 4-105 Antilock Brake System
(ABS)........................................4-105
Traction Control System
(TCS)........................................ 4-106
Dynamic Stability Control
(DSC)........................................4-108
Off-Road Traction Assist
*........ 4-109
Mazda intelligent Drive Select (Mi-
Drive).............................................. 4-111 Mazda intelligent Drive Select (Mi-
Drive)........................................ 4-111
i-ACTIV AWD............................... 4-114 i-ACTIV AWD Operation
*....... 4-114
Power Steering............................... 4-116 Power Steering..........................4-116
*Some models.4-1
CX-5_8KN5-EA-21K_Edition1_old 2021-9-9 8:35:12

▼Warning/Indicator Lights
Instrument Cluster varies depending on model and specifications.
Center of Dashboard
Warning lights will appear in any of the highlighted areas
Instrument Cluster
▼
Warning Indication/Warning Lights
These lights turn on or flash to notify the us
er of the system operation status or a system
malfunction.
Signal Warning Page
Brake System Warning Indication/Warning Light*1*27-22
ABS Warning Light*1
Electronic Brake
Force Distribu ‐
tion System Wa r n i n g 7-22
ABS warning 7-25
Charging System Warning Indication/Warning Light*17-22
Engine Oil Warning Light*17-22
High Engine Coolant Temper ature Warning Indication 7-22
Power Steering Malfunction Indication 7-22
Master Warning Indication/Warning Light 7-25
When Driving
Instrument Cluster and Display
4-23
CX-5_8KN5-EA-21K_Edition1_old 2021-9-9 8:35:12

▼Warning/Indicator Lights
Instrument Cluster varies depending on model and specifications.
Instrument Cluster
Center of Dashboard
Warning lights will appear in any of the highlighted areas
▼Warning Indication/Warning Lights
These lights turn on or flash to notify the user of the system operation status or a system
malfunction.
Signal
Warning Page
Brake System Warning Indication/Warning Light*1*27-22
ABS Warning Light*1
Electronic Brake
Force Distribu ‐
tion System Wa r n i n g 7-22
ABS warning 7-25
Charging System Warning Indication/Warning Light*17-22
Engine Oil Warning Light*17-22
(Red) High Engine Coolant Temperature Warning Light
*17-22
Power Steering Malfun
ction Indication 7-22
When Driving
Instrument Cluster and Display
4-40
CX-5_8KN5-EA-21K_Edition1_old 2021-9-9 8:35:12

▼Warning/Indicator Lights
Instrument Cluster varies depending on model and specifications.
Instrument Cluster
Center of Dashboard Warning lights will appear in any of the highlighted areas
▼Warning Indication/Warning Lights
These lights turn on or flash to notify the us
er of the system operation status or a system
malfunction.
Signal Warning Page
Brake System Warning Light*1*27-22
ABS Warning Light*1
Electronic Brake
Force Distribu ‐
tion System Wa r n i n g 7-22
ABS warning 7-25
Charging System Warning Light*17-22
Engine Oil Warning Light*17-22
Power Steering Malfunction Indicator Light*17-22
Master Warning Light*17-25
Electric Parking Brake (EPB) Warning Light*17-25
When Driving
Instrument Cluster and Display
4-53
CX-5_8KN5-EA-21K_Edition1_old 2021-9-9 8:35:12

Driving Tips
WA R N I N G
Do not let the vehicle move in a direction
opposite to the direction selected by the
selector lever:
Do not let the vehicle move backward with
the selector lever in a forward position, or
do not let the vehicle move forward with
the selector lever in the reverse position.
Otherwise, the engine may stop, causing
the loss of the power brake and power
steering functions, and make it difficult to
control the vehicle which could result in an
accident.
Passing
For extra power when passing another
vehicle or climbing steep grades, depress
the accelerator fully. The transaxle will
shift to a lower gear, depending on vehicle
speed.
NOTE
The accelerator pedal may initially feel
heavy as it is being depressed, then feel
lighter as it is depressed further. This
change in pedal force aids the engine
control system in determining how much
the accelerator pedal has been
depressed for performing kickdown, and
functions to control whether or not
kickdown should be performed.
While the selector lever is in the M
position and the TCS is turned off,
manual shift mode does not switch to
automatic shift mode even if the
accelerator pedal is completely
depressed. Operate the selector lever.
Climbing steep grades from a stop
To climb a steep grade from a stopped
position:
1. Depress the brake pedal.
2. Shift to D or M1, depending on the load weight and grade steepness.
3. Release the brake pedal while gradually accelerating.
Descending steep grades
When descending a steep grade, shift to
lower gears, depending on load weight and
grade steepness. Descend slowly, using the
brakes only occasion ally to prevent them
from overheating.
When Driving
Automatic Transaxle
4-70
CX-5_8KN5-EA-21K_Edition1_old 2021-9-9 8:35:12
