Care of the Product
Handling and Care of Map Discs
Label side

%:A'#DQQM2CIG6JWTUFC[/CTEJ2/

61
Audio Operation
Contents
Audio System
nAudio OperationlOperating Tips for Audio system ................................................... 62lOperating Tips for Display ............................................................. 62lPower/Volume/Sound Controls ...................................................... 63(Power ON/OFF), (Volume adjustment), (Audio sound adjustment),
(Sound quality adjustment), (Volume balance adjustment), (AudioPilot),
(Centerpoint)
l
Operating the Radio ...................................................................... 66(Radio ON), (Band selection), (Tuning), (Manual tuning), (Seek tuning),
(Scan tuning), (Preset channel tuning), (Auto memory tuning),
(Audio Sound Adjustment), (Satellite Radio (SAT))
l
Operating the In-Dash CD Changer .............................................. 69(Inserting the CD), (During CD playback), (During MP3 CD playback),
(Normal insertion), (Inserting CDs into desired tray number),
(Multiple insertion), (Normal ejection),
(Ejecting CDs from desired tray number), (Multiple ejection),
(Playing), (Fast-forward/Reverse), (Track search), (Disc search),
(Folder search (during MP3 CD playback)), (Music scan), (Repeat play),
(Audio sound adjustment), (Operating Tips for Audio Contorol Switch),
(Safety Certification)
%:A'#DQQM2CIG6JWTUFC[/CTEJ2/

62
Before
UseGetting
started
RoutingAddress
Book
Vo i c e Recognition
Navigation
Set Up
RDM-TMC
Audio Operation
Navigation
Set Up
Audio Operation
Refer to "Operating Tips for Audio system (Sec. 06)".
l
The liquid crystal display may not open if the power supply had been interrupted due to the
vehicle battery being disconnected.
l If the liquid crystal display stays open/closed (or partly opened) and does not move when
the liquid crystal display is pressed, turn the ignition switch and then on again. Then try the
open/close operation again. If the liquid crystal display still does not move, contact an
Authorized Mazda Dealer.
Operating Tips for Audio system
Operating Tips for Display
nDo not place any objects on the dashboard. If you drop any objects onto
the dashboard or spill liquid on it, it may result in system malfunction.
nTo protect the liquid crystal display, close it when it is not used.
nBe careful not to pinch your hands or fingers when the liquid crystal
display is closed.
nDo not open/close the liquid crystal display manually. It may damage the
equipment.
%:A'#DQQM2CIG6JWTUFC[/CTEJ2/

63
Audio Operation
nPower ON/OFF
Turn the ignition switch to the ACC or ON position.
Press the power/volume dial to turn the audio system on.
Press the power/volume dial again to turn the audio system off.
Note
To prevent the battery from being discharged, do not leave the audio system on for a long
period of time when the engine is not running.
nVolume adjustment
To adjust the volume, turn the power/volume dial.
Turn the power/volume dial to the right to increase volume, to the left to decrease it.
Power/Volume/Sound Controls
CD buttonPower / Volume dial
Audio buttonMEDIA button
%:A'#DQQM2CIG6JWTUFC[/CTEJ2/

64
Before
UseGetting
started
RoutingAddress
Book
Vo i c e Recognition
Navigation
Set Up
RDM-TMC
Audio Operation
Navigation
Set Up
nAudio sound adjustment
1.Press the desired button corresponding to one of the following modes.
• Audio button (AUDIO): Audio mode
• CD button (CD): CD mode
• MEDIA button (MEDIA): Image and Sound playback is possible using a portable video player connected to an external input terminal.
*

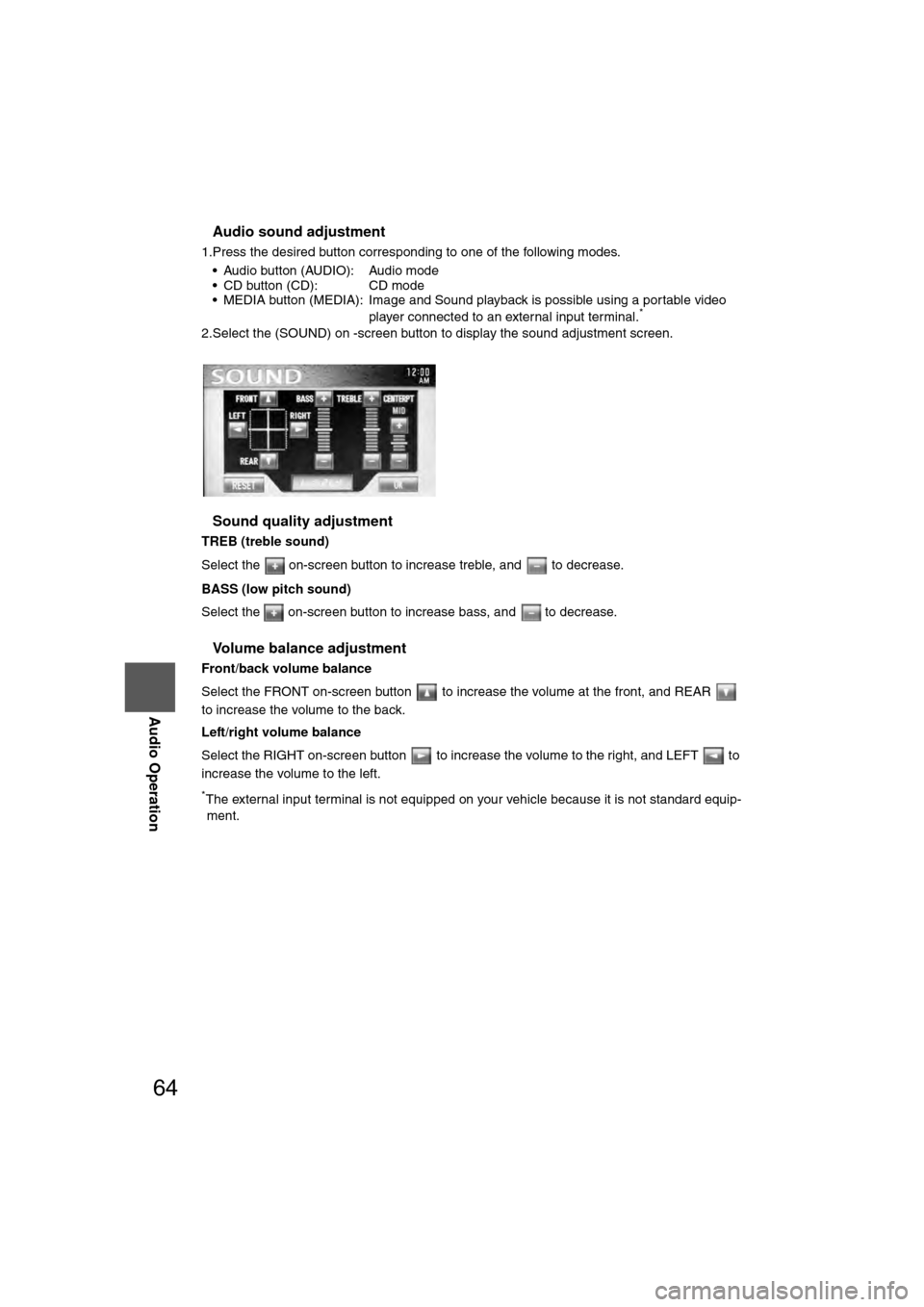

2.Select the (SOUND) on -screen button to display the sound adjustment screen.
nSound quality adjustment
TREB (treble sound)
Select the on-screen button to increase treble, and to decrease.
BASS (low pitch sound)
Select the on-screen button to increase bass, and to decrease.
nVolume balance adjustment
Front/back volume balance
Select the FRONT on-screen button to increase the volume at the front, and REAR
to increase the volume to the back.
Left/right volume balance
Select the RIGHT on-screen button to increase the volume to the right, and LEFT to
increase the volume to the left.
*The external input terminal is not equipped on your vehicle because it is not standard equip-ment.
%:A'#DQQM2CIG6JWTUFC[/CTEJ2/

65
Audio Operation
Note
lPressing an on-screen adjustment button for 0.5 seconds or more progressively changes
the adjustment range towards +/-, up/down, or left/right.
l While an adjustment button is selected in this manner, the level indicator will momentarily
stop at the medium range position and a beep sound will be heard before proceeding.
Note
lSelect the on-screen button to reset bass, treble, and balance.
l To return to the previous screen, select the on-screen button.
n*1AudioPilot
AudioPilot automatically adjusts audio volume and sound quality in accordance with the level
of noise entering the vehicle interior while driving. When AudioPilot is turned ON, the system
automatically calculates the conditions for optimum hearing of sound which may be difficult to
hear depending on exterior noise.
Each time the on-screen button is selected, the Audio Pilot turns on and off.
*1 AudioPilot is a registered trademark of BOSE Corporation.
n*2Centerpoint
Centerpoint
Centerpoint offers you the experience of five-channel surround sound in your vehicle even
with your conventional two-channel stereo CDs.
Turn up the volume to enhance the surround sound effect, or down to lessen it.
Note
Centerpoint is only available in CD mode. Centerpoint is not available for AM or FM broadcasts.
*2 Centerpoint is a registered trademark of BOSE Corporation.
IndicationVolume change
No change
Minimum
Low
Medium
High
Maximum
%:A'#DQQM2CIG6JWTUFC[/CTEJ2/

66
Before
UseGetting
started
RoutingAddress
Book
Vo i c e Recognition
Navigation
Set Up
RDM-TMC
Audio Operation
Navigation
Set Up
nRadio ON
Press a band selector button (FM/AM) to turn the radio on.
nBand selection
Successively pressing the band selector button (FM/AM) switches the bands as follows:
FM1 FM2 AM.
The selected mode will be indicated. If FM stereo is being received, STEREO will be dis-
played.
nTuning
The radio has the following tuning methods: Manual, Seek, Scan, Preset channel, and Auto
memory tuning. The easiest way to tune stations is to set them on preset channels.
Note
l
If the FM broadcast signal becomes weak, reception automatically changes from STEREO
to MONO for reduced noise, and the STEREO indicator will go out.
l To clear the information, press the NAVI button.
l If the power supply is interrupted (fuse blows or the battery is disconnected), the preset
channels will be canceled.
Operating the Radio
Band selector button
Satellite button
Channel preset
on-screen button on-screen button
Seek tuning
button
Scan button
%:A'#DQQM2CIG6JWTUFC[/CTEJ2/

67
Audio Operation
nManual tuning
Pressing the seek tuning button will change the frequency higher or lower.
nSeek tuning
Pressing and holding the seek tuning button ( , ) will cause the tuner to seek a higher
or lower frequency automatically.
Note
If you continue to press and hold the button, the frequency will continue changing without
stopping.
nScan tuning
Press the (SCAN) button to automatically sample strong stations.
Scanning stops at each station for about 5 seconds. To hold a station, press the (SCAN)
button again during this interval.
nPreset channel tuning
The 8 preset channels can be used to store 8 AM and 16 FM stations.
1. To set a channel first select AM, FM1, or FM2. Tune to the desired station.
2.Select any channel preset on-screen button for about 2 seconds until a beep sound is heard. The selected preset channel number and station frequency will be displayed. The
station is now held in the memory.
3.Repeat this operation for the other stations and bands you want to store. To tune one in the memory, select AM, FM1, or FM2 and then press its channel preset button. The station
frequency and the channel number will be displayed.
Note
If the power supply is interrupted (fuse blows or the battery is disconnected), the preset
channels will be canceled.
nAuto memory tuning
This is especially useful when driving in an area where the local stations are not known. Addi-
tional AM/FM stations can be stored without disturbing the previously set channels.
Select and hold the on-screen button for about 2 seconds until a beep sound is heard;
the system will automatically scan and temporarily store up to 8 stations with the strongest
frequencies in each selected band in that area.
nAudio Sound Adjustment
Refer to “Power/Volume/Sound Controls”
%:A'#DQQM2CIG6JWTUFC[/CTEJ2/

68
Before
UseGetting
started
RoutingAddress
Book
Vo i c e Recognition
Navigation
Set Up
RDM-TMC
Audio Operation
Navigation
Set Up
nSatellite Radio (SAT)
Vehicles equipped with the separately purchased SIRIUS digital satellite radio unit have the
ability to receive up to 100 channels of digital quality programming coast to coast via satellite.
For information on use, read the Satellite Radio Kit manual accompanying the SIRIUS digital
satellite radio unit. A subscription to SIRIUS digital satellite radio service is required (available
in the U.S. - Except Alaska and Hawaii) to enable this feature once the separately purchased
SIRIUS digital satellite radio unit has been installed. For subscription information or digital
satellite radio technical issues contact SIRIUS directly at:
-Web: www.siriusradio.com
-Phone (24 hrs/day, 7 days/week): 888-539-SIRI (7474)
-E-mail: [email protected]
-Mailing Address: Sirius Satellite Radio
1221 Avenue Of The Americas
New York, NY 10020
Attention: Customer Care
Include your Sirius Radio ESN (Electronic Serial Number) when subscribing or requesting
technical assistance. See the Satellite Radio Kit manual accompanying the SIRIUS unit for
complete satellite radio activation procedures and information on how to display the ESN#.
%:A'#DQQM2CIG6JWTUFC[/CTEJ2/

69
Audio Operation
nInserting the CD
The display must be open (lowered) to insert the CD.
The CD must be label-side up when inserting. The auto-loading mechanism will set the CD
and begin play. There will be a short lapse before play begins while the player reads the digi-
tal signals on the CD.
Note
"IN" is displayed on the tray number for a CD that is inserted.
nDuring CD playback
The disc title, the track title, and the artist name will be displayed.
nDuring MP3 CD playback
The album title, the track title, the folder name, the file number, and the artist name will be dis-
played.
Note
The CD will begin playback automatically after insertion. A CD cannot be inserted while the
display reads "WAIT".
Operating the In-Dash CD Changer

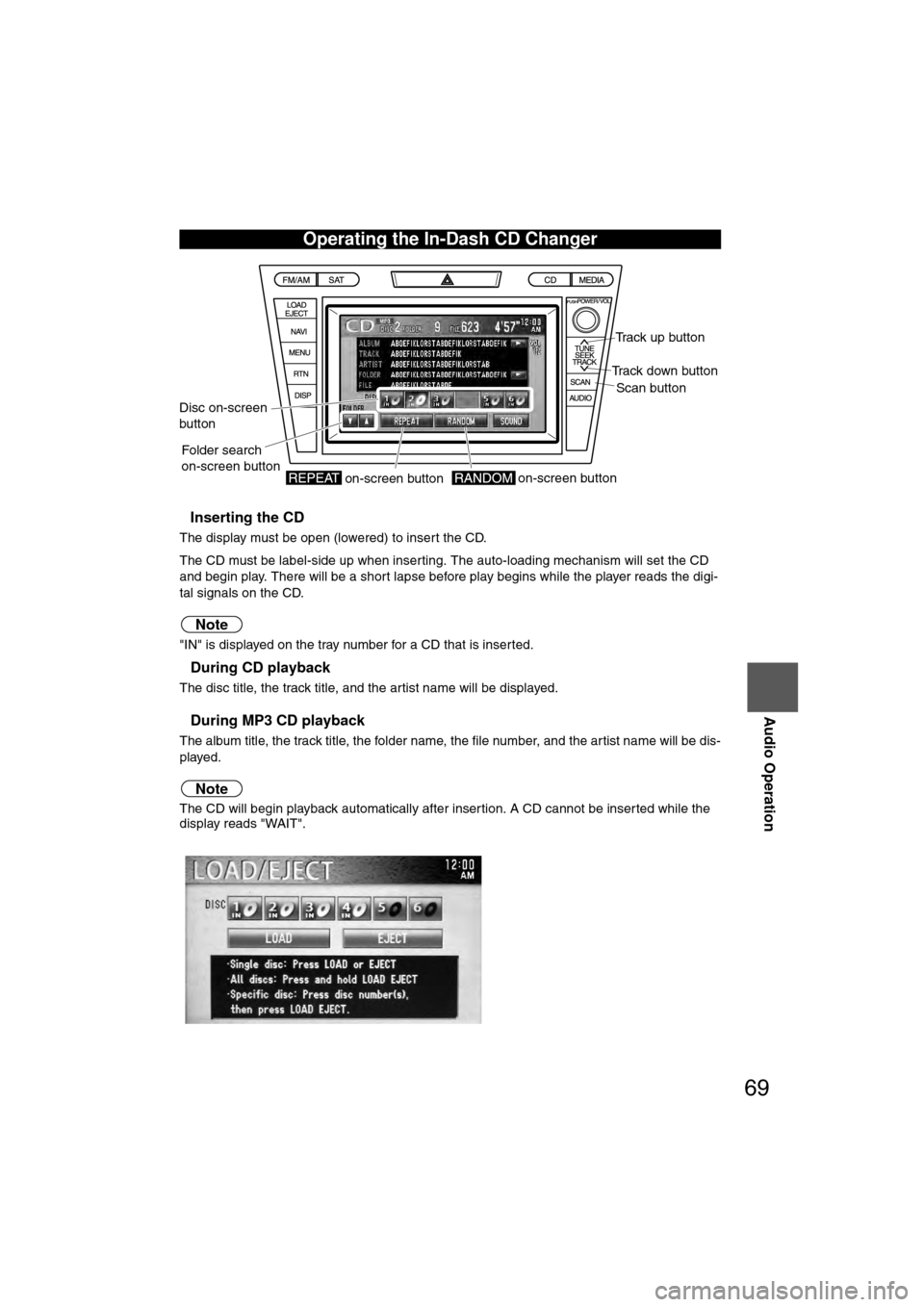

Track up button
Track down button Scan button
Disc on-screen
button
Folder search
on-screen button on-screen button
on-screen button
%:A'#DQQM2CIG6JWTUFC[/CTEJ2/
