window MAZDA MODEL CX-7 2007 (in English) Owner's Manual

Black plate (99,1)
Key extend/retract method (Retractable
type key)
To extend the key, press the release
button.
To retract the key, rotate it into the holder
while pressing the release button.
Keyless Entry System
This system remotely locks and unlocks
the doors and the liftgate, and opens the
power windows and the moonroof.
It can also help you signal for attention.
Press the buttons slowly and carefully.
CAUTION
To avoid damage to the transmitter, do
not:
lDrop it.
lGet it wet.
lDisassemble it.
lExpose it to heat or sunlight.
Knowing Your Mazda
Doors and Locks
3-23
CX-7_8V28-EA-06B_Edition2 Page99
Monday, March 13 2006 5:5 PM
Form No.8V28-EA-06B

Black plate (101,1)
NOTE
The unlock button can be used to open
the power windows and the moonroof,
but the lock button cannot be used to
close the power windows and the
moonroof.
Refer to the following pages:
Opening/Closing the Power Windows
(page 3-39)
Opening/Closing the Moonroof (page
3-46)
The operation indicator light flashes when
the buttons are pressed.
Lock button
To lock the doors and the liftgate, press
the lock button and the hazard warning
lights will flash once.
To confirm that all doors and the liftgate
have been locked, press the lock button
again within 5 seconds. If they are closed
and locked, the horn will sound.
NOTE
(Without theft-deterrent system)
The hazard warning lights will flash
once to indicate that all doors and the
liftgate are locked.
(With theft-deterrent system)
lThe hazard warning lights will not
flash.
lThe hazard warning lights only flash
when the theft deterrent system is
armed or turned off, refer to the
theft-deterrent system (page 3-56).
NOTE
lAll doors and the liftgate cannot be
locked when any door or the liftgate
is open and the key is in the ignition
switch.
lConfirm that all doors and the
liftgate are locked visually or audibly
by use of the double click.
Unlock button
To unlock the driver's door, press the
unlock button and the hazard warning
lights will flash twice.
To unlock all doors and the liftgate, press
the unlock button again within 3 seconds.
NOTE
(Without theft-deterrent system)
The hazard warning lights will flash
twice to indicate that all doors and the
liftgate are unlocked.
(With theft-deterrent system)
lThe hazard warning lights will not
flash.
lThe hazard warning lights only flash
when the theft deterrent system is
armed or turned off, refer to the
theft-deterrent system (page 3-56).
NOTE
After unlocking with the transmitter, all
doors and the liftgate will automatically
lock if one of the doors or the liftgate is
not opened within about 30 seconds.
Knowing Your Mazda
Doors and Locks
3-25
CX-7_8V28-EA-06B_Edition2 Page101
Monday, March 13 2006 5:5 PM
Form No.8V28-EA-06B

Black plate (104,1)
Door Locks
WARNING
Always take all children and pets with
you or leave a responsible person with
them:
Leaving a child or a pet unattended in
a parked vehicle is dangerous. In hot
weather, temperatures inside a vehicle
can become high enough to cause
brain damage or even death.
Do not leave the keys in your vehicle
with children and keep them in a place
where your children will not find or
play with them:
Leaving children in a vehicle with the
key is dangerous. This could result in
someone being badly injured or even
killed. They could play with power
windows or other controls, or even
make the vehicle move.
Keep all doors locked when driving:
Unlocked doors in a moving vehicle
are dangerous. Passengers can fall out
if a door is accidentally opened and
can more easily be thrown out in an
accident.
Always close all the windows, lock the
doors and take the key with you when
leaving your vehicle unattended:
Leaving your vehicle unlocked is
dangerous as children could lock
themselves in a hot vehicle, which
could result in death. Also, a vehicle
left unlocked becomes an easy target
for thieves and intruders.
qLocking, Unlocking with Key
The driver's door can be locked/unlocked
with the key.
Turn the key toward the front to unlock,
toward the back to lock.
Unlock
Lock
qLocking, Unlocking with Request
Switch (with Advanced Key)
The doors can be locked/unlocked by
operating the request switch while
carrying the advanced key outside the
vehicle, refer to Operations Using
Advanced Keyless Functions (page 3-7).
qLocking, Unlocking with
Transmitter (with Advanced Key)
The doors can be locked/unlocked by
operating the keyless entry system
transmitter, refer to Keyless Entry System
(page 3-14).
qLocking, Unlocking with Transmitter
(with Retractable Type Key)
The doors can be locked/unlocked by
operating the keyless entry system
transmitter, refer to Keyless Entry System
(page 3-23).
3-28
Knowing Your Mazda
Doors and Locks
CX-7_8V28-EA-06B_Edition2 Page104
Monday, March 13 2006 5:5 PM
Form No.8V28-EA-06B

Black plate (110,1)
3. Slowly pull out the cover and insert it
into the retainers.
Hook
retainer
Removing the cover
Reverse the procedure for installation.
Power Windows
The ignition switch must be in the ON
position for the power windows to
operate.
WARNING
Make sure the opening is clear before
closing a window:
Closing power windows are
dangerous. A person's hands, head, or
even neck could be caught by the
window and result in serious injury or
even death.
This warning applies especially to
children.
Always lock all passenger power
windows with the power window lock
switch on the driver's side while
children are in the vehicle, and never
allow children to play with power
window switches:
Leaving the power window switches
unlocked while children are in the
vehicle is dangerous. Power window
switches that are not locked with the
power window lock switch would allow
children to operate power windows
unintentionally which could result in
serious injury if a child's hands, head
or neck becomes caught by the
window.
CAUTION
To prevent burning out the fuse and
damaging the power window system,
do not open or close more than three
windows at once.
3-34
Knowing Your Mazda
Doors and Locks
CX-7_8V28-EA-06B_Edition2 Page110
Monday, March 13 2006 5:5 PM
Form No.8V28-EA-06B

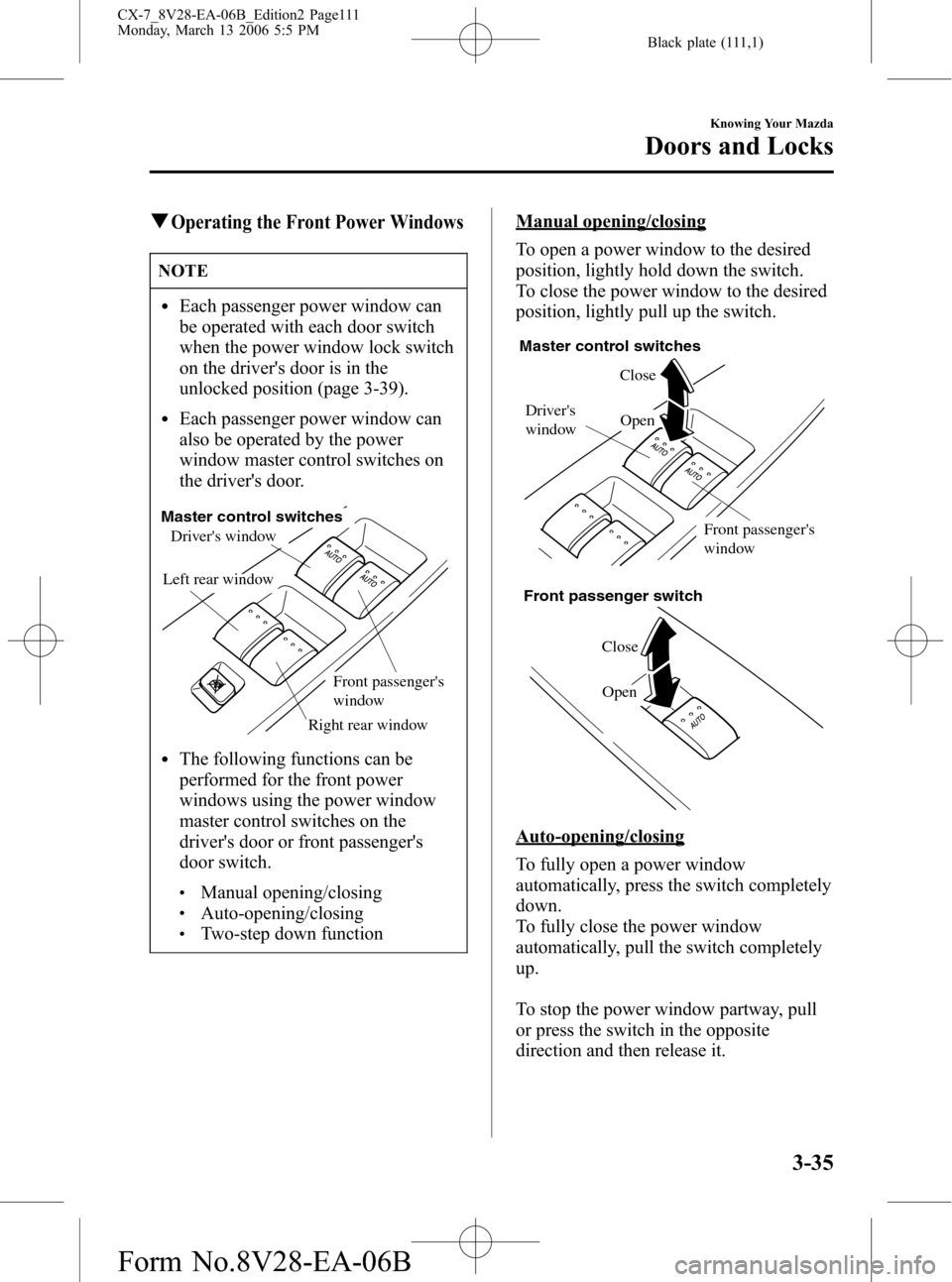

Black plate (111,1)
qOperating the Front Power Windows
NOTE
lEach passenger power window can
be operated with each door switch
when the power window lock switch
on the driver's door is in the
unlocked position (page 3-39).
lEach passenger power window can
also be operated by the power
window master control switches on
the driver's door.
Master control switches
Driver's window
Left rear window
Front passenger's
window
Right rear window
lThe following functions can be
performed for the front power
windows using the power window
master control switches on the
driver's door or front passenger's
door switch.
lManual opening/closinglAuto-opening/closinglTwo-step down function
Manual opening/closing
To open a power window to the desired
position, lightly hold down the switch.
To close the power window to the desired
position, lightly pull up the switch.
Open Close
Master control switches
Driver's
window
Front passenger's
window
Open Close
Front passenger switch
Auto-opening/closing
To fully open a power window
automatically, press the switch completely
down.
To fully close the power window
automatically, pull the switch completely
up.
To stop the power window partway, pull
or press the switch in the opposite
direction and then release it.
Knowing Your Mazda
Doors and Locks
3-35
CX-7_8V28-EA-06B_Edition2 Page111
Monday, March 13 2006 5:5 PM
Form No.8V28-EA-06B

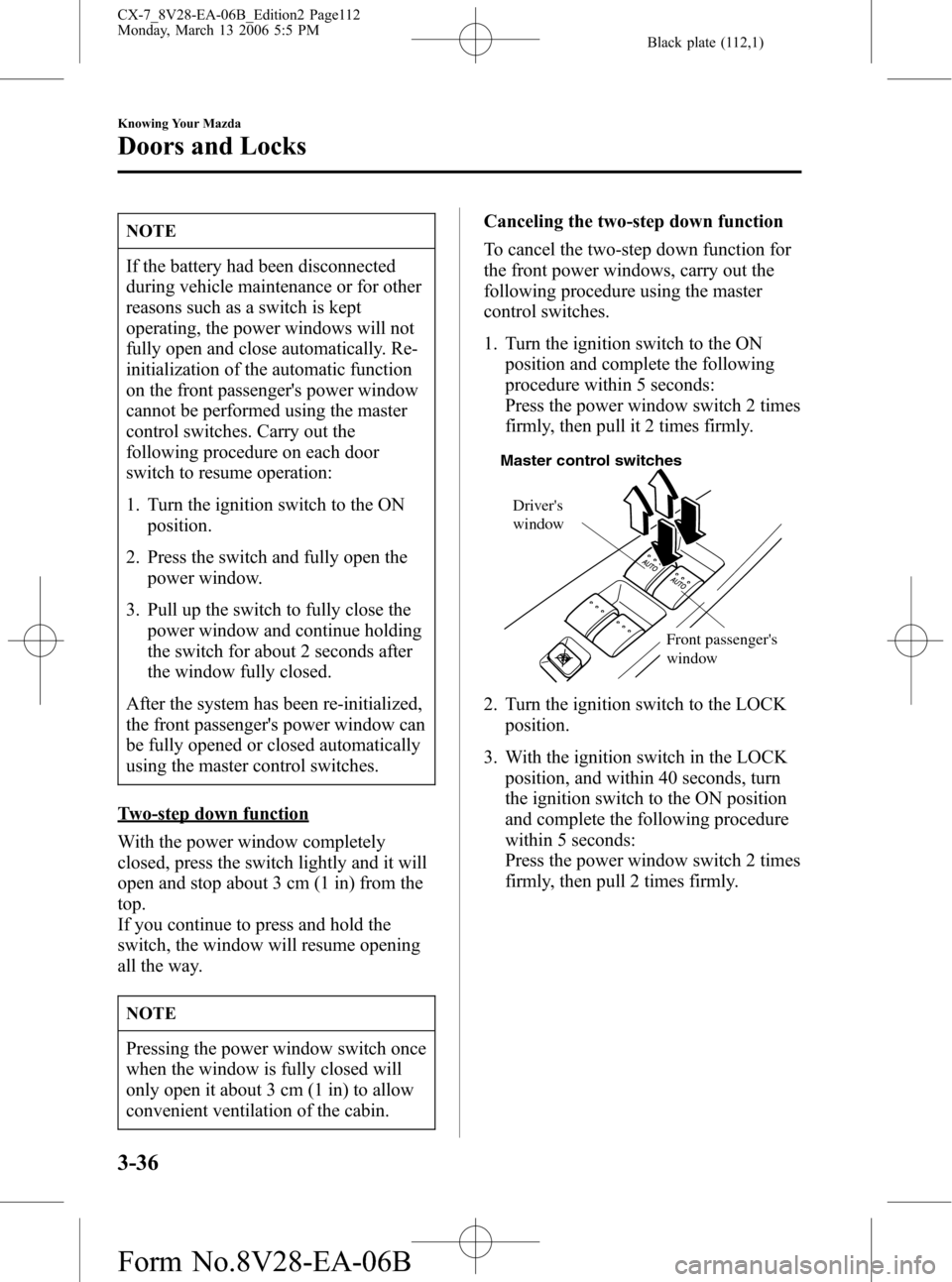

Black plate (112,1)
NOTE
If the battery had been disconnected
during vehicle maintenance or for other
reasons such as a switch is kept
operating, the power windows will not
fully open and close automatically. Re-
initialization of the automatic function
on the front passenger's power window
cannot be performed using the master
control switches. Carry out the
following procedure on each door
switch to resume operation:
1. Turn the ignition switch to the ON
position.
2. Press the switch and fully open the
power window.
3. Pull up the switch to fully close the
power window and continue holding
the switch for about 2 seconds after
the window fully closed.
After the system has been re-initialized,
the front passenger's power window can
be fully opened or closed automatically
using the master control switches.
Two-step down function
With the power window completely
closed, press the switch lightly and it will
open and stop about 3 cm (1 in) from the
top.
If you continue to press and hold the
switch, the window will resume opening
all the way.
NOTE
Pressing the power window switch once
when the window is fully closed will
only open it about 3 cm (1 in) to allow
convenient ventilation of the cabin.Canceling the two-step down function
To cancel the two-step down function for
the front power windows, carry out the
following procedure using the master
control switches.
1. Turn the ignition switch to the ON
position and complete the following
procedure within 5 seconds:
Press the power window switch 2 times
firmly, then pull it 2 times firmly.
Master control switches
Driver's
window
Front passenger's
window
2. Turn the ignition switch to the LOCK
position.
3. With the ignition switch in the LOCK
position, and within 40 seconds, turn
the ignition switch to the ON position
and complete the following procedure
within 5 seconds:
Press the power window switch 2 times
firmly, then pull 2 times firmly.
3-36
Knowing Your Mazda
Doors and Locks
CX-7_8V28-EA-06B_Edition2 Page112
Monday, March 13 2006 5:5 PM
Form No.8V28-EA-06B

Black plate (113,1)
NOTE
lThe two-step down function cannot
be canceled if the procedure is not
completed within the specified times,
or the procedure is changed along
the way. To redo the procedure, first
turn the ignition switch to the LOCK
position and proceed from the
beginning.
lIf you are unable to cancel the
function despite doing the
cancellation procedure, consult an
Authorized Mazda Dealer.
Restoring the two-step down function
With the two-step down function in the
canceled state, repeat the previous
procedure for canceling the function on
each door switch and it will be restored.
NOTE
If you are unable to restore the function
despite doing the restore procedure,
consult an Authorized Mazda Dealer.
Jam-safe window
If a person's hands, head or an object
blocks the window during the manual
closing operation or the auto-closing
operation, the window will stop and open
halfway.
WARNING
Make sure nothing blocks the window
just before it reaches the fully closed
position or while fully holding up the
power window switch:
Blocking the power window just
before it reaches the fully closed
position or while fully holding up the
power window switch is dangerous.
In this case, the jam-safe function
cannot prevent the window from
stopping. If fingers are caught, serious
injuries could occur.
NOTE
Depending on driving conditions, a
closing power window could stop and
start opening when the window feels a
shock that is similar to something
blocking it.
In the event the jam-safe function
activates and the power window cannot
be closed automatically using the auto-
opening method, pull and hold the
switch fully and the window will close.
Engine-off power window operation
The power window can be operated about
40 seconds after the ignition switch is
turned from the ON position to the ACC
or LOCK position with all doors closed. If
either front door is opened, the power
window will be inoperable.
Knowing Your Mazda
Doors and Locks
3-37
CX-7_8V28-EA-06B_Edition2 Page113
Monday, March 13 2006 5:5 PM
Form No.8V28-EA-06B

Black plate (114,1)
NOTE
lFor engine-off operation of the
power window, the switch must be
held up firmly throughout window
closure because the auto-closing
function will be inoperable.
lThe two-step down function is
inoperable during engine-off
operation.
qOperating the Rear Power Windows
The power windows may be operated
when the power window lock switch on
the driver's door is in the unlocked
position.
A rear power windows may be opened or
closed using the power window master
control switches on the driver's door.
Left rear window
Power window lock switchRight rear window
To open the power window to the desired
position, hold down the switch.
To close the power window to the desired
position, pull up the switch.
Close
Open
Engine-off power window operation
The power windows can be operated
about 40 seconds after the ignition switch
is turned from the ON position to the
ACC or LOCK position with all doors
closed. If either front door is opened, the
power windows will be inoperable.
3-38
Knowing Your Mazda
Doors and Locks
CX-7_8V28-EA-06B_Edition2 Page114
Monday, March 13 2006 5:5 PM
Form No.8V28-EA-06B

Black plate (115,1)
qPower Window Lock Switch
With the lock switch in the unlocked
position, all power windows on each door
can be operated.
With the lock switch in the locked
position, only the driver's side power
window can be operated.
Locked position
Unlocked position
WARNING
Unless a passenger needs to operate a
power window, keep the power window
lock switch in the locked position:
Unintentional power window
operation is dangerous. A person's
hands, head, or neck could be caught
by the window and result in serious
injury.
NOTE
When the power window lock switch is
in the locked position, the light on front
passenger's power window switch turns
off. The light may be difficult to see
depending on the surrounding
brightness.
qOpening/Closing the Power
Windows from Outside
The front power windows can be opened
or closed from outside the vehicle after
the doors and the liftgate are closed.
The front power windows may be
operated when the power window lock
switch on the driver's door is in the lock
or unlocked position.
WARNING
Make sure the opening is clear before
closing a window:
Closing power windows are
dangerous. A person's hands, head, or
even neck could be caught by the
window and result in serious injury or
even death.
This warning applies especially to
children.
NOTE
The power windows cannot be opened
or closed from outside the vehicle under
the following condition:
lA door or the liftgate is opened.
lThe key is inserted into the ignition
switch.
l(With advanced key)
The start knob is pushed into the
ignition switch.
Knowing Your Mazda
Doors and Locks
3-39
CX-7_8V28-EA-06B_Edition2 Page115
Monday, March 13 2006 5:5 PM
Form No.8V28-EA-06B

Black plate (116,1)
Auto-Opening
Because nobody likes getting into a very
hot car, we have introduced a way to get a
head start on cooling it, even before you
put your seat belts on and insert your key
in the ignition. If you see the vehicle is in
a secure area, you can open the two front
windows as you approach the vehicle to
get the air moving before you even step
into the hot vehicle.
WARNING
Use the auto-window function only
when you can see the vehicle and it is
in a secure area:
Do not let children play with your
keys. If they open the window without
your knowing, the open windows are
an even bigger invitation to a thief
than leaving the doors unlocked.
The windows can be opened for
ventilating the cabin before getting in the
vehicle.
With unlock button (Keyless entry
system)
Press the unlock button on the transmitter
and hold it. After the doors and the
liftgate are unlocked, the windows fully
open automatically.Advanced key
Panic button
Unlock buttonLock button
Retractable type key
Lock button
Unlock button
Panic button
To stop this operation, press the unlock
button.
NOTE
lThe window opening operation also
can be stopped by pressing the lock
button or panic button. However,
pressing these buttons will operate
their functions.
lThe lock button cannot be used to
close the power windows.
With key
1. Insert the key in the driver's door key
cylinder.
3-40
Knowing Your Mazda
Doors and Locks
CX-7_8V28-EA-06B_Edition2 Page116
Monday, March 13 2006 5:5 PM
Form No.8V28-EA-06B
