tow MAZDA MODEL CX-7 2008 (in English) Workshop Manual

57
If necessary
Troubleshooting
Note
There may be some problems due to operational errors or mistakes. Please read this manual
again and verify that there really is a problem before calling an Expert Dealer, we recommend
an Authorized Mazda Dealer to ask for repair services.
No picturelCheck if a fuse has blown.
Consult an Expert Dealer, we recommend an Authorized
Mazda Dealer.
l Check if the voltage level of the vehicle battery is low.
Recharge the battery or change batteries.
Display does
not open or
close
The vehicle
position is not
correct
lCheck if the vehicle position changed when ACC was set to
OFF.
When, for example,
• The vehicle was transported by a ferry boat.
• The vehicle was rotated on a turn table in a parking lot.
• The vehicle was transported by a tow track or other such
vehicle. Drive the vehicle for a while where you are receiving
GPS signals.
Verification First
SymptomCheck point
'<C)%FSSO4EKI8LYVWHE]1EVGL41

63
Audio Operation
Flutter/Skip noise
Signals from an FM transmitter move in
straight lines and become weak in valleys
between tall buildings, mountains, and other
obstacles. When a vehicle passes through
such an area, the reception conditions may
change suddenly, resulting in annoying
noise.
Weak signal noise
In suburban areas, broadcast signals
become weak because of distance from the
transmitter. Reception in such fringe areas is
characterized by sound breakup.Strong signal noise
This occurs very close to a transmitter tower.
The broadcast signals are extremely strong,
so the result is noise and sound breakup at
the radio receiver.
Station drift noise
When a vehicle reaches the area of two
strong stations broadcasting at similar fre-
quencies, the original station may be tempo-
rarily lost and the second station picked up.
At this time there will be some noise from
this disturbance.
Station 2
88.3 MHz
Station 1
88.1 MHz
'<C)%FSSO4EKI8LYVWHE]1EVGL41

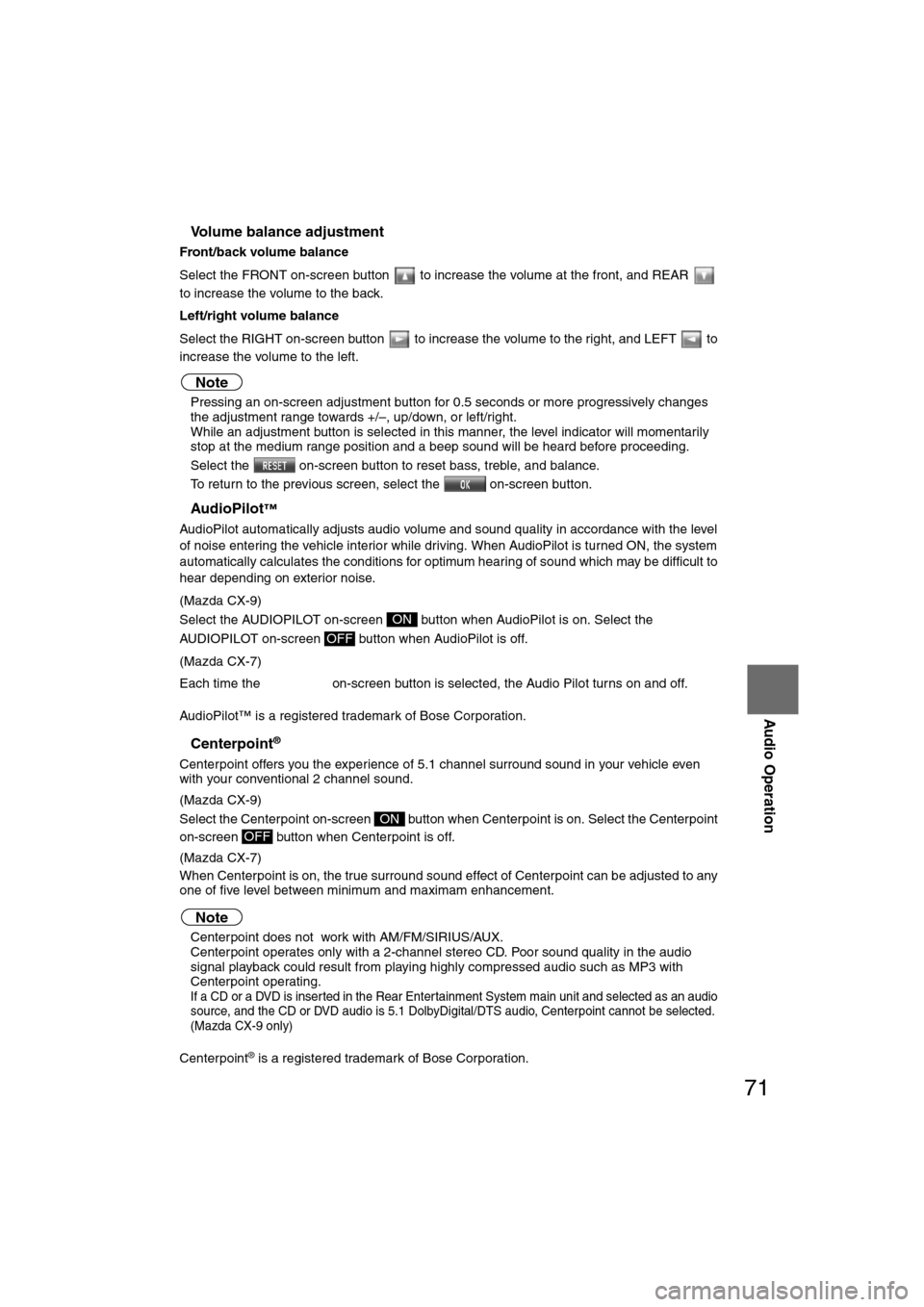

71
Audio Operation
nVolume balance adjustment
Front/back volume balance
Select the FRONT on-screen button to increase the volume at the front, and REAR
to increase the volume to the back.
Left/right volume balance
Select the RIGHT on-screen button to increase the volume to the right, and LEFT to
increase the volume to the left.
Note
lPressing an on-screen adjustment button for 0.5 seconds or more progressively changes
the adjustment range towards +/–, up/down, or left/right.
l While an adjustment button is selected in this manner, the level indicator will momentarily
stop at the medium range position and a beep sound will be heard before proceeding.
l Select the on-screen button to reset bass, treble, and balance.
l To return to the previous screen, select the on-screen button.
nAudioPilot™
AudioPilot automatically adjusts audio volume and sound quality in accordance with the level
of noise entering the vehicle interior while driving. When AudioPilot is turned ON, the system
automatically calculates the conditions for optimum hearing of sound which may be difficult to
hear depending on exterior noise.
(Mazda CX-9)
Select the AUDIOPILOT on-screen button when AudioPilot is on. Select the
AUDIOPILOT on-screen button when AudioPilot is off.
(Mazda CX-7)
Each time the on-screen button is selected, the Audio Pilot turns on and off.
AudioPilot™ is a registered trademark of Bose Corporation.
nCenterpoint®
Centerpoint offers you the experience of 5.1 channel surround sound in your vehicle even
with your conventional 2 channel sound.
(Mazda CX-9)
Select the Centerpoint on-screen button when Centerpoint is on. Select the Centerpoint
on-screen button when Centerpoint is off.
(Mazda CX-7)
When Centerpoint is on, the true surround sound effect of Centerpoint can be adjusted to any
one of five level between minimum and maximam enhancement.
Note
l Centerpoint does not work with AM/FM/SIRIUS/AUX.
l Centerpoint operates only with a 2-channel stereo CD. Poor sound quality in the audio
signal playback could result from playing highly compressed audio such as MP3 with
Centerpoint operating.
l
If a CD or a DVD is inserted in the Rear Entertainment System main unit and selected as an audio
source, and the CD or DVD audio is 5.1 DolbyDigital/DTS audio, Centerpoint cannot be selected.
(Mazda CX-9 only)
Centerpoint® is a registered trademark of Bose Corporation.
ON
OFF
ON
OFF
