NOTE
When closing the engine oil cap, place the cap
with the (
) mark aligned at the OPEN ()
position and then turn the cap to the CLOSE
(
) position.
Engine Coolant
qInspecting Coolant Level
WARNING
Do not use a match or live flame in the
engine compartment. DO NOT ADD
COOLANT WHEN THE ENGINE IS HOT:
A hot engine is dangerous. If the
engine has been running, parts of the
engine compartment can become
very hot. You could be burned.
Carefully inspect the engine coolant
in the coolant reservoir, but do not
open it.
Turn off the ignition switch and
make sure the fan is not running before
attempting to work near the cooling
fan:
Working near the cooling fan when it
is running is dangerous. The fan
could continue running indefinitely
even if the engine has stopped and
the engine compartment temperature
is high. You could be hit by the fan
and seriously injured.
Do not remove either cooling
system cap when the engine and
radiator are hot:
When the engine and radiator are
hot, scalding coolant and steam may
shoot out under pressure and cause
serious injury.
NOTE
Changing the coolant should be done by an
Authorized Mazda Dealer.
Maintenance and Care
Owner Maintenance
8-21
CX-7_8Z60-EA-08D_Edition2 Page357
Friday, May 30 2008 5:28 PM
Form No.8Z60-EA-08D

Black plate (358,1)
Inspect the antifreeze protection and
coolant level in the coolant reservoir at
least once a year―at the beginning of the
winter season―and before traveling
where temperatures may drop below
freezing.
Inspect the condition and connections of
all cooling system and heater hoses.
Replace any that are swollen or
deteriorated.
The coolant should be at full in the
radiator and between the FULL and LOW
marks on the coolant reservoir when the
engine is cool.
If it's at or near LOW, add enough coolant
to the coolant reservoir to provide
freezing and corrosion protection and to
bring the level to FULL.
CAUTION
ØRadiator coolant will damage
paint.
Rinse it off quickly if spilled.
ØUse only soft (demineralized)
water in the coolant mixture.
Water that contains minerals will
cut down on the coolant's
effectiveness.
ØDon't add only water. Always add
a proper coolant mixture.
ØThe engine has aluminum parts
and must be protected by an
ethylene-glycol-based coolant to
prevent corrosion and freezing.
ØDO NOT USE coolants Containing
Alcohol, methanol, Borate or
Silicate.
These coolants could damage the
cooling system.
ØDO NOT MIX alcohol or methanol
with the coolant. This could
damage the cooling system.
ØDon't use a solution that contains
more than 60% antifreeze.
This would reduce effectiveness.
8-22
Maintenance and Care
Owner Maintenance
CX-7_8Z60-EA-08D_Edition2 Page358
Friday, May 30 2008 5:28 PM
Form No.8Z60-EA-08D

Black plate (359,1)

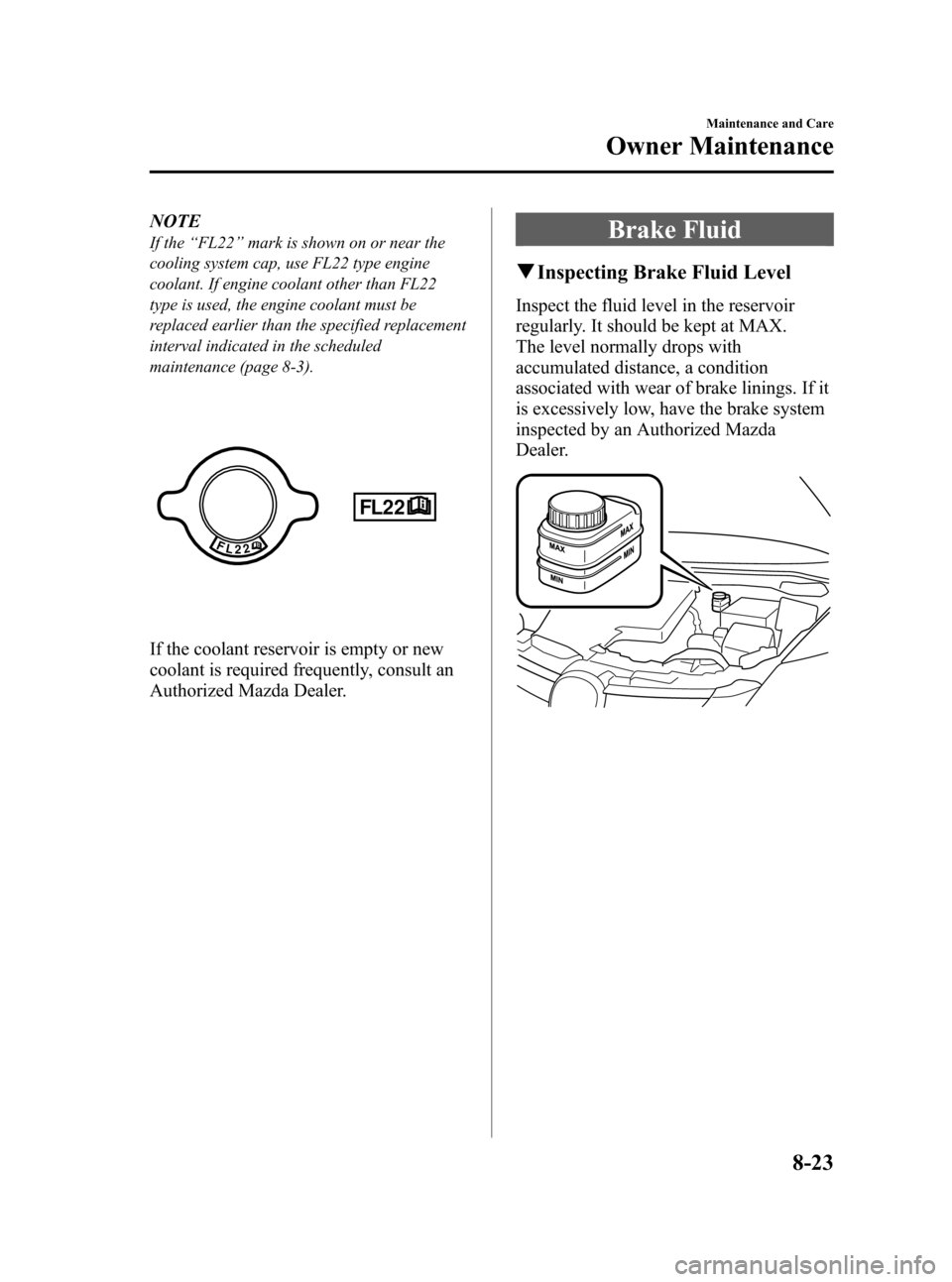

NOTE
If the“FL22”mark is shown on or near the
cooling system cap, use FL22 type engine
coolant. If engine coolant other than FL22
type is used, the engine coolant must be
replaced earlier than the specified replacement
interval indicated in the scheduled
maintenance (page 8-3).
If the coolant reservoir is empty or new
coolant is required frequently, consult an
Authorized Mazda Dealer.
Brake Fluid
qInspecting Brake Fluid Level
Inspect the fluid level in the reservoir
regularly. It should be kept at MAX.
The level normally drops with
accumulated distance, a condition
associated with wear of brake linings. If it
is excessively low, have the brake system
inspected by an Authorized Mazda
Dealer.
Maintenance and Care
Owner Maintenance
8-23
CX-7_8Z60-EA-08D_Edition2 Page359
Friday, May 30 2008 5:28 PM
Form No.8Z60-EA-08D

Black plate (443,1)
qCapacities
(Approximate Quantities)
Item Capacity
Engine oilWith oil filter replacement 5.7 L (6.0 US qt, 5.0 Imp qt)
Without oil filter replacement 5.3 L (5.6 US qt, 4.7 Imp qt)
Coolant 9.0 L (9.5 US qt, 7.9 Imp qt)
Automatic transaxle fluid 7.0 L (7.4 US qt, 6.2 Imp qt)
Transfer case oil 1.2 L (1.3 US qt, 1.1 Imp qt)
Rear differential oil 1.0 L (1.1 US qt, 0.9 Imp qt)
Washer fluidWith low washer fluid level
warning light4.5 L (4.8 US qt, 4.0 Imp qt)
Without low washer fluid level
warning light2.5 L (2.6 US qt, 2.2 Imp qt)
Fuel tank 69.0 L (18.2 US gal, 15.2 Imp gal)
Check oil and fluid levels with dipsticks or reservoir gauges.
qDimensions
Item Vehicle specification
Overall lengthWith license plate holder 4,680 mm (184.3 in)
Without license plate holder 4,675 mm (184.1 in)
Overall width 1,872 mm (73.7 in)
Overall height 1,645 mm (64.8 in)
Front tread 1,617 mm (63.7 in)
Rear tread 1,612 mm (63.5 in)
Wheelbase 2,750 mm (108.3 in)
qWeights
ItemWeight
2WD AWD
GVWR (Gross Vehicle Weight Rating) 2,168 kg (4,780 lbs) 2,267 kg (4,998 lbs)
GAWR (Gross Axle Weight Rating)Front 1,150 kg (2,535 lbs) 1,189 kg (2,621 lbs)
Rear 1,022 kg (2,253 lbs) 1,083 kg (2,388 lbs)
qAir Conditioner
Item Classification
Refrigerant Type HFC134a (R-134a)
Specifications
10-5
CX-7_8Z60-EA-08D_Edition2 Page443
Friday, May 30 2008 5:29 PM
Form No.8Z60-EA-08D

Black plate (449,1)
C
Carbon Monoxide ............................... 4-4
Cargo Securing Loops ...................... 6-90
Catalytic Converter ............................. 4-3
Cell Phones ....................................... 9-19
Center Console .................................. 6-89
Child Restraint
Child restraint precautions ......... 2-28
Installing child-restraint
systems ....................................... 2-32
LATCH child-restraint
systems ....................................... 2-41
Child Safety Locks for Rear Doors ... 3-30
Climate Control System ...................... 6-2
Gas specifications ...................... 10-5
Clock ................................................. 6-86
Cruise Control ................................... 5-19
Cup Holder ........................................ 6-87
Customer Assistance ........................... 9-2
D
Dashboard Illumination .................... 5-36
Daytime Running Lights ................... 5-55
Defroster
Mirror ......................................... 5-59
Rear window .............................. 5-59
Dimensions ....................................... 10-5
Door Locks ....................................... 3-27
Driving In Flooded Area ................... 4-10
Driving Tips ........................................ 4-6
Automatic transaxle ................... 5-15
Break-in period ............................ 4-6
Driving in flooded area .............. 4-10
Hazardous driving ........................ 4-7
Money-saving suggestions ........... 4-6
Rocking the vehicle ...................... 4-8
Turbocharged vehicles ............... 4-12
Winter driving .............................. 4-9
D
Dynamic Stability Control (DSC) ..... 5-25
TCS/DSC Indicator light ............ 5-26
E
Emergency Starting ........................... 7-13
Flooded engine ........................... 7-13
Jump-starting .............................. 7-14
Push-starting .............................. 7-17
Emergency Towing ........................... 7-18
Emission Control System .................... 4-3
Engine
Coolant ....................................... 8-21
Exhaust gas .................................. 4-4
Hood release .............................. 3-42
Oil .............................................. 8-19
Overheating ................................ 7-11
Starting ......................................... 5-4
Engine Compartment Overview ........ 8-18
Engine Coolant
Overheating ................................ 7-11
Engine Coolant Temperature
Gauge ................................................ 5-35
Exhaust Gas ........................................ 4-4
Exterior Care ..................................... 8-52
F
Flasher
Hazard warning .......................... 5-60
Headlights .................................. 5-53
Flat Tire ............................................... 7-3
Changing ...................................... 7-6
Spare tire and tool storage ............ 7-3
Fluids
Classification .............................. 10-4
Owner maintenance ................... 8-16
