Page 354 of 454
Black plate (354,1)
Engine Compartment Overview
Windshield washer
fluid reservoir
Engine oil-filler capAutomatic transaxle fluid-level dipstick
Brake fluid reservoir
Power steering
fluid reservoir
Engine oil dipstickBattery
Engine coolant reservoir
Fuse block
Cooling system cap
8-18
Maintenance and Care
Owner Maintenance
CX-7_8Z60-EA-08D_Edition2 Page354
Friday, May 30 2008 5:28 PM
Form No.8Z60-EA-08D

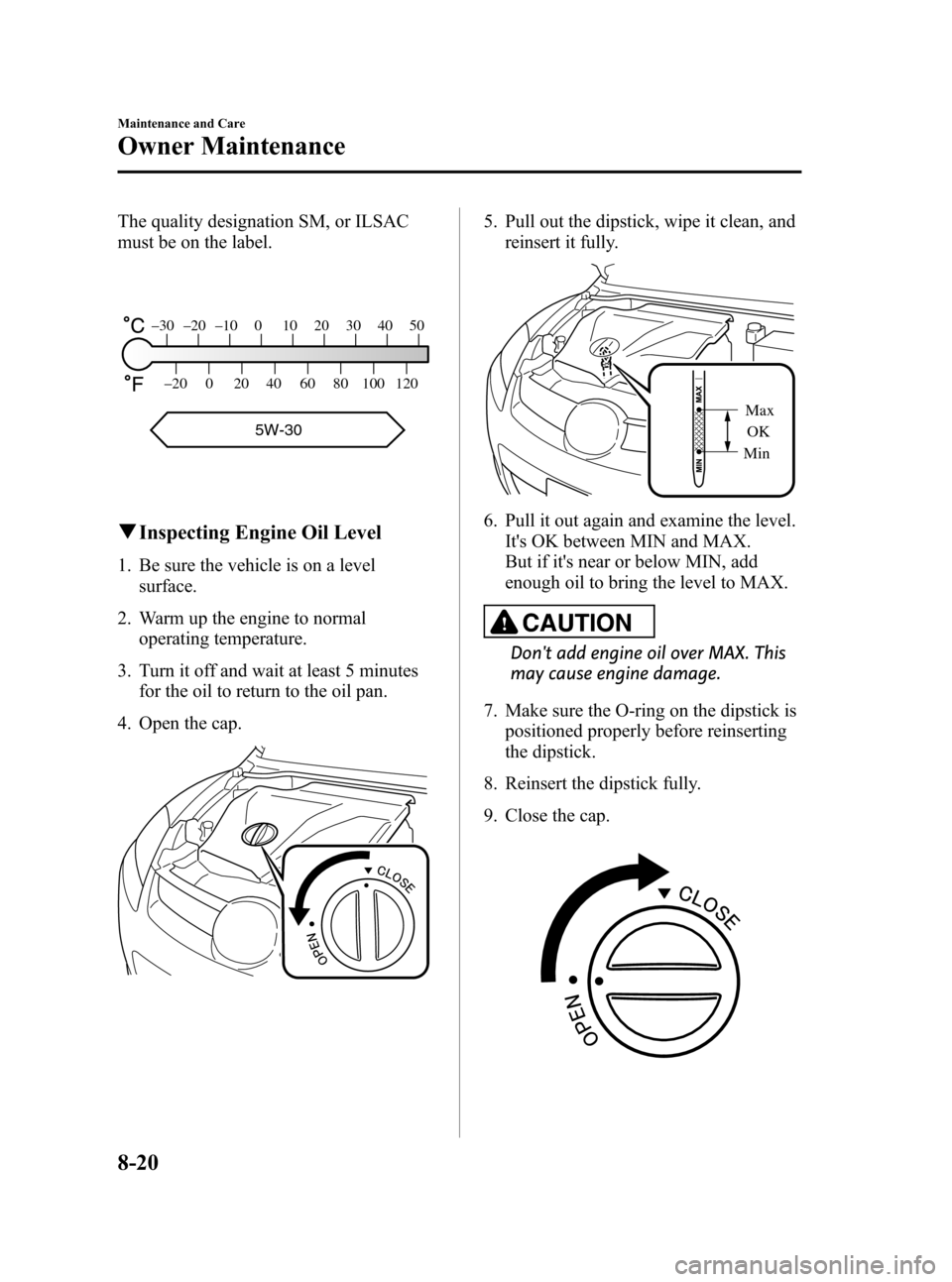

Page 356 of 454
Black plate (356,1)
The quality designation SM, or ILSAC
must be on the label.
–30 –20 –10 0 10 20 30 40 50
–20 0 20 40 60 80 100 120
5W-30
qInspecting Engine Oil Level
1. Be sure the vehicle is on a level
surface.
2. Warm up the engine to normal
operating temperature.
3. Turn it off and wait at least 5 minutes
for the oil to return to the oil pan.
4. Open the cap.
5. Pull out the dipstick, wipe it clean, and
reinsert it fully.
Max
OK
Min
6. Pull it out again and examine the level.
It's OK between MIN and MAX.
But if it's near or below MIN, add
enough oil to bring the level to MAX.
CAUTION
Don't add engine oil over MAX. This
may cause engine damage.
7. Make sure the O-ring on the dipstick is
positioned properly before reinserting
the dipstick.
8. Reinsert the dipstick fully.
9. Close the cap.
8-20
Maintenance and Care
Owner Maintenance
CX-7_8Z60-EA-08D_Edition2 Page356
Friday, May 30 2008 5:28 PM
Form No.8Z60-EA-08D
Page 443 of 454
Black plate (443,1)
qCapacities
(Approximate Quantities)
Item Capacity
Engine oilWith oil filter replacement 5.7 L (6.0 US qt, 5.0 Imp qt)
Without oil filter replacement 5.3 L (5.6 US qt, 4.7 Imp qt)
Coolant 9.0 L (9.5 US qt, 7.9 Imp qt)
Automatic transaxle fluid 7.0 L (7.4 US qt, 6.2 Imp qt)
Transfer case oil 1.2 L (1.3 US qt, 1.1 Imp qt)
Rear differential oil 1.0 L (1.1 US qt, 0.9 Imp qt)
Washer fluidWith low washer fluid level
warning light4.5 L (4.8 US qt, 4.0 Imp qt)
Without low washer fluid level
warning light2.5 L (2.6 US qt, 2.2 Imp qt)
Fuel tank 69.0 L (18.2 US gal, 15.2 Imp gal)
Check oil and fluid levels with dipsticks or reservoir gauges.
qDimensions
Item Vehicle specification
Overall lengthWith license plate holder 4,680 mm (184.3 in)
Without license plate holder 4,675 mm (184.1 in)
Overall width 1,872 mm (73.7 in)
Overall height 1,645 mm (64.8 in)
Front tread 1,617 mm (63.7 in)
Rear tread 1,612 mm (63.5 in)
Wheelbase 2,750 mm (108.3 in)
qWeights
ItemWeight
2WD AWD
GVWR (Gross Vehicle Weight Rating) 2,168 kg (4,780 lbs) 2,267 kg (4,998 lbs)
GAWR (Gross Axle Weight Rating)Front 1,150 kg (2,535 lbs) 1,189 kg (2,621 lbs)
Rear 1,022 kg (2,253 lbs) 1,083 kg (2,388 lbs)
qAir Conditioner
Item Classification
Refrigerant Type HFC134a (R-134a)
Specifications
10-5
