Advanced Keyless Entry and Start System ................................ 3-2
Advanced Keysí...................................................................... 3-2
Operation Using Advanced Keyless Functions ......................... 3-7
Operation Using Advanced Key Functions ............................. 3-13
Advanced Key Suspend Function ........................................... 3-17
Warning and Beep Sounds ...................................................... 3-18
When Warning Indicator/Beep is Activated ............................ 3-20
Doors and Locks ......................................................................... 3-21
Keys (with Retractable Type Key) .......................................... 3-21
Keyless Entry System ............................................................. 3-22
Door Locks ............................................................................. 3-28
Liftgate .................................................................................... 3-31
Power Windows ...................................................................... 3-34
Fuel-Filler Lid and Cap ........................................................... 3-38
Hood ....................................................................................... 3-40
Moonroof
í............................................................................. 3-42
Security System ........................................................................... 3-44
Immobilizer System (with Advanced Key) ............................. 3-44
Immobilizer System (without Advanced Key) ........................ 3-48
Theft-Deterrent System
í........................................................ 3-52
Steering Wheel and Mirrors ...................................................... 3-55
Steering Wheel ........................................................................ 3-55
Mirrors .................................................................................... 3-55
3-1íSome models.
CX-7_8BM8-EA-10I_Edition1 Page79
Friday, September 10 2010 4:22 PM
Form No.8BM8-EA-10I

Black plate (87,1)
NOTE
(Without theft-deterrent system)
The hazard warning lights will flash once to
indicate that the doors and the liftgate are
locked.
(With theft-deterrent system)
The hazard warning lights only flash when the
theft deterrent system is armed.
The hazard warning lights do not flash if all
the doors and the liftgate are locked before the
theft-deterrent system is properly armed.
Refer to the theft-deterrent system on page
3-52.
To unlock
Driver's door request switch
To unlock the driver's door, press the
request switch. A beep sound will be
heard twice and the hazard warning lights
will flash twice.
To unlock all doors and the liftgate, press
the request switch again within 3 seconds
and two more beep sounds will be heard.
NOTE
(Without theft-deterrent system)
The hazard warning lights will flash twice to
indicate that the doors and the liftgate are
unlocked.
(With theft-deterrent system)
The hazard warning lights only flash when the
theft deterrent system is turned off.
The hazard warning lights do not flash unless
the theft deterrent system has been properly
turned off.
Refer to the theft-deterrent system on page
3-52.
Front passenger door/liftgate request
switch
To unlock the doors and the liftgate, press
the request switch. A beep sound will be
heard twice and the hazard warning lights
will flash twice.NOTE
lConfirm that all doors and the liftgate are
securely locked.
lAll doors and the liftgate cannot be locked
when any door or the liftgate is open.
lA beep sound is heard for confirmation
when the doors and the liftgate are locked/
unlocked using the request switch. If you
prefer, the beep sound can be turned off
(page 10-8).
lThe setting can be changed so that the
doors and the liftgate are locked
automatically without pressing the request
switch (page 10-8).
(Auto-lock function)
A beep sound is heard when all doors and
the liftgate are closed while the advanced
key is being carried. All doors and the
liftgate are locked automatically after about
3 seconds when the advanced key is out of
the operational range. Also, the hazard
warning lights flash once. (Even if the
driver is in the operational range, all doors
and the liftgate are locked automatically
after about 30 seconds.)
If you are out of the operational range
before the doors and the liftgate are
completely closed or another advanced key
is left in the vehicle, the auto-lock function
will not work. Always make sure that all
doors and the liftgate are closed and locked
before leaving the vehicle.
l(Auto re-lock function)
After unlocking doors and the liftgate by
pressing the request switch, all doors and
the liftgate will automatically lock if any of
the following operations are not performed
within about 30 seconds. If your vehicle has
a theft-deterrent system, the hazard
warning lights will flash for confirmation.
lA door or the liftgate is opened.lThe auxiliary key is inserted into the
ignition switch.
lThe start knob is pushed.
Knowing Your Mazda
Advanced Keyless Entry and Start System
3-9
CX-7_8BM8-EA-10I_Edition1 Page87
Friday, September 10 2010 4:22 PM
Form No.8BM8-EA-10I

Black plate (88,1)
qStarting the Engine
Ignition switch positions
As there is no traditional key, some of the
ignition switch functions are different.
Start knob
The engraved mark (LOCK) indicated in
the illustration may differ from that
indicated on the actual vehicle (it may
read OFF).
OFF/LOCK―Knob Released
The power supply to electrical devices is
turned off.
OFF/LOCK―Knob Depressed
The ignition can be switched to ACC
when the KEY indicator light (green)
illuminates in the instrument cluster.
WARNING
Before leaving the driver's seat, always
switch the ignition to OFF/LOCK, set the
parking brake and make sure the shift
lever is in P:
It is important to switch the ignition
to OFF/LOCK even if you are not
removing the key from the ignition or
leaving the vehicle. Leaving the key
in other positions will disable some of
the vehicle security systems and run
the battery down.
Leaving the driver's seat without
switching the ignition to OFF/LOCK,
setting the parking brake and
shifting the shift lever to P is
dangerous. Unexpected vehicle
movement could occur. This could
cause an accident.
NOTE
lIf turning the ignition switch is difficult,
jiggle the steering wheel from side to side.
lThe ignition cannot be switched from ACC
to OFF/LOCK when the shift lever is not in
P.
ACC (Accessory)
In this position, some electrical
accessories will operate.
NOTE
The Advanced Keyless Entry System does not
function in the ACC position, and the doors
will not lock/unlock using the transmitter or
request switches even if the advanced key is
carried away from the vehicle.
ON
This is the normal running position after
the engine is started. The warning lights
(except brakes) should be inspected
before the engine is started (page 5-45).
3-10
Knowing Your Mazda
Advanced Keyless Entry and Start System
CX-7_8BM8-EA-10I_Edition1 Page88
Friday, September 10 2010 4:22 PM
Form No.8BM8-EA-10I

Black plate (89,1)
NOTE
When the ignition is switched ON, the sound of
the fuel pump motor operating near the fuel
tank can be heard. This does not indicate an
abnormality.
START
The engine is started in this position. It
will crank until you release the start knob;
then it returns to the ON position. The
brake warning light can be checked after
the engine is started (page 5-45).
Starting the engine
NOTE
lEngine-starting is controlled by the spark
ignition system.
This system meets all Canadian
Interference-Causing Equipment Standard
requirements regulating the impulse
electrical field strength of radio noise.
lThe advanced key must be carried because
the advanced key carries an immobilizer
chip that must communicate with the engine
controls at short range.
lWhen starting the engine, be sure the start
knob is securely attached before trying to
operate it. If the knob becomes detached
from the ignition switch, re-attach it by
pushing it on to the ignition switch.
1. Make sure the advanced key is being
carried.
2. Occupants should fasten their seat
belts.
3. Make sure the parking brake is on.
4. Depress the brake pedal.
5. Put the vehicle in park (P). If you must
restart the engine while the vehicle is
moving, shift into neutral (N).
NOTE
The starter will not operate if the shift lever is
not in P or N.
6. Push the start knob slowly all the way
in.
7. Verify that the KEY indicator light
(green) illuminates in the instrument
cluster. The KEY warning light (red)
means you cannot continue to start the
engine using the Advanced Keyless
System. You may have to use the
auxiliary key instead (page 3-20).
Knowing Your Mazda
Advanced Keyless Entry and Start System
3-11
CX-7_8BM8-EA-10I_Edition1 Page89
Friday, September 10 2010 4:22 PM
Form No.8BM8-EA-10I

Black plate (105,1)
5. Put in the new battery (CR1620 or
equivalent) with the positive pole (
)
facing down.
6. Align the front and back covers and
snap the transmitter shut.
7. Align the key with the transmitter as
shown in the figure, and insert the key
until a click sound is heard.
CAUTION
Insert the key into the transmitter
securely until a click sound is heard.
If it is not inserted securely, it could
detach from the transmitter.
qService
If you have a problem with the keyless
entry system, consult an Authorized
Mazda Dealer.
If your transmitter is lost or stolen, bring
all remaining transmitters to an
Authorized Mazda Dealer as soon as
possible for a replacement and to make
the lost or stolen transmitter inoperative.
CAUTION
Radio equipment like this is governed
by laws in the United States.
Changes or modifications not
expressly approved by the party
responsible for compliance could void
the user's authority to operate the
equipment.
Knowing Your Mazda
Doors and Locks
3-27
CX-7_8BM8-EA-10I_Edition1 Page105
Friday, September 10 2010 4:22 PM
Form No.8BM8-EA-10I

Black plate (106,1)
Door Locks
WARNING
Always take all children and pets with
you or leave a responsible person with
them:
Leaving a child or a pet unattended
in a parked vehicle is dangerous. In
hot weather, temperatures inside a
vehicle can become high enough to
cause brain damage or even death.
Do not leave the key in your vehicle
with children and keep them in a place
where your children will not find or
play with them:
Leaving children in a vehicle with the
key is dangerous. This could result in
someone being badly injured or even
killed.
Keep all doors locked when driving:
Unlocked doors in a moving vehicle
are dangerous. Passengers can fall
out if a door is accidentally opened
and can more easily be thrown out in
an accident.
Always close all the windows and the
moonroof, lock the doors and take the
key with you when leaving your vehicle
unattended:
Leaving your vehicle unlocked is
dangerous as children could lock
themselves in a hot vehicle, which
could result in death. Also, a vehicle
left unlocked becomes an easy target
for thieves and intruders.After closing the doors, always verify
that they are securely closed:
Doors not securely closed are
dangerous, if the vehicle is driven
with a door not securely closed, the
door could open unexpectedly
resulting in an accident.
Always confirm the safety around the
vehicle before opening a door:
Suddenly opening a door is
dangerous. A passing vehicle or a
pedestrian could be hit and cause an
accident.
qLocking, Unlocking with Key
The driver's door can be locked/unlocked
with the key.
Turn the key toward the front to unlock,
toward the back to lock.
Unlock
Lock
qLocking, Unlocking with Request
Switch (with Advanced Key)
The doors can be locked/unlocked by
operating the request switch while
carrying the advanced key outside the
vehicle, refer to Operations Using
Advanced Keyless Functions (page 3-7).
3-28
Knowing Your Mazda
Doors and Locks
CX-7_8BM8-EA-10I_Edition1 Page106
Friday, September 10 2010 4:22 PM
Form No.8BM8-EA-10I

Black plate (110,1)
qLocking, Unlocking with
Transmitter (with Advanced Key)
The liftgate can be locked/unlocked by
operating the keyless entry system
transmitter, refer to Keyless Entry System
(page 3-13).
qLocking, Unlocking with Transmitter
(with Retractable Type Key)
The liftgate can be locked/unlocked by
operating the keyless entry system
transmitter, refer to Keyless Entry System
(page 3-22).
qLocking, Unlocking with Door-
Lock Switch
The liftgate can be locked/unlocked by
operating the door-lock switch, refer to
Power Door Locks (page 3-30).
qOpening and Closing the Liftgate
Opening the liftgate
Pull up on the handle.
NOTE
If the vehicle battery is dead or there is a
malfunction in the electrical system and the
liftgate cannot be unlocked, perform the
following procedure as an emergency measure
to unlock it:
First, remove the cap on the interior surface of
the liftgate with a flathead screwdriver.
Cap
Then, turn the lever to the right to unlock the
liftgate.
Lever
After performing this emergency measure,
have the vehicle inspected at an Authorized
Mazda Dealer as soon as possible.
Closing the liftgate
Use both hands to push the liftgate down
until the lock snaps shut. Do not slam it.
Pull up on the liftgate to make sure it is
securely latched.
3-32
Knowing Your Mazda
Doors and Locks
CX-7_8BM8-EA-10I_Edition1 Page110
Friday, September 10 2010 4:22 PM
Form No.8BM8-EA-10I

Black plate (111,1)
qLuggage Compartment
WARNING
Do not place luggage or other cargo on
top of the luggage compartment cover:
Placing luggage or other cargo on
top of the luggage compartment
cover is dangerous. During sudden
braking or a collision, the cargo
could become a projectile that could
hit and injure someone. The vehicle
has a light weight luggage
compartment cover to keep the
contents of your luggage area out of
sight; it will not retain heavy objects
that are not tied down in an accident
such as a rollover. Tie down all heavy
objects, whether luggage or cargo,
using the tie down hooks.
Make sure luggage and cargo are
secured before driving:
Not securing cargo while driving is
dangerous as it could move or be
crushed during sudden braking or a
collision and cause injury.
CAUTION
Make sure the luggage compartment
cover is firmly secured. If it is not
firmly secured, it could unexpectedly
disengage resulting in injury.
Luggage compartment coverí
Installing the cover
1. Insert the left end of the retractor bar
into the notch.
2. Squeeze the spring holder on right end
of the retractor bar inward, then insert
it into the notch.
Knowing Your Mazda
Doors and Locks
3-33íSome models. CX-7_8BM8-EA-10I_Edition1 Page111
Friday, September 10 2010 4:22 PM
Form No.8BM8-EA-10I

Black plate (118,1)
Hood
WARNING
Always check that the hood is closed
and securely locked:
A hood that is not closed and
securely locked is dangerous as it
could fly open while the vehicle is
moving and block the driver's vision
which could result in a serious
accident.
qOpening the Hood
1. With the vehicle parked, pull the
release handle to unlock the hood.
Release handle
2. Insert your hand into the hood opening,
slide the hood latch lever to the right,
and lift the hood.
3. Grasp the support rod in the padded
area and secure it in the stay hole
indicated by the arrow to hold the hood
open.
Pad
Clip Support rod
qClosing the Hood
WARNING
Do not leave items in the engine
compartment:
After you have finished checking or
doing servicing in the engine
compartment, do not forget and
leave items such as tools or rags in
the engine compartment.
Tools or other items left in the engine
compartment could cause engine
damage or a fire leading to an
unexpected accident.
3-40
Knowing Your Mazda
Doors and Locks
CX-7_8BM8-EA-10I_Edition1 Page118
Friday, September 10 2010 4:22 PM
Form No.8BM8-EA-10I

Black plate (119,1)

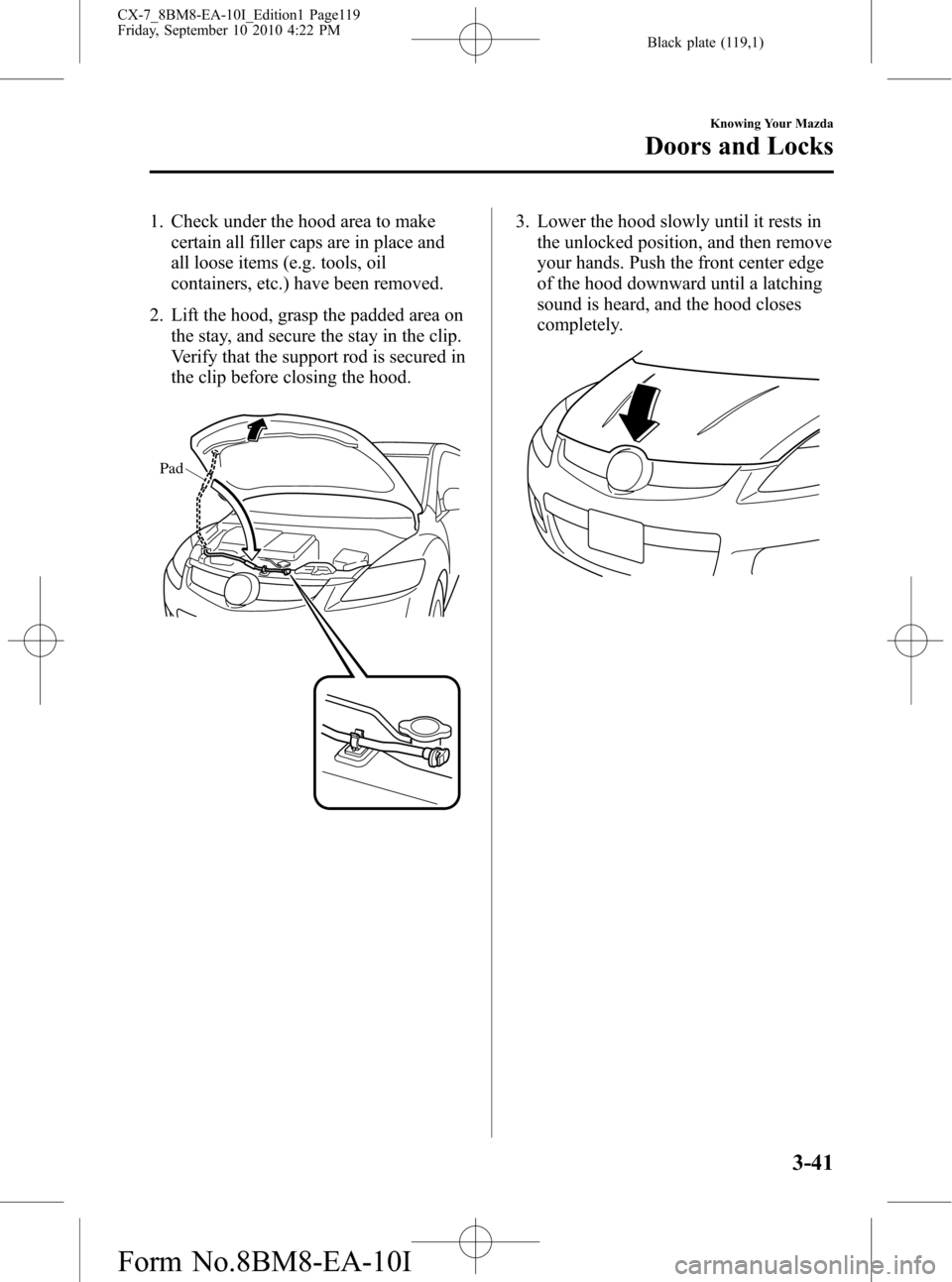

1. Check under the hood area to make
certain all filler caps are in place and
all loose items (e.g. tools, oil
containers, etc.) have been removed.
2. Lift the hood, grasp the padded area on
the stay, and secure the stay in the clip.
Verify that the support rod is secured in
the clip before closing the hood.
Pad
3. Lower the hood slowly until it rests in
the unlocked position, and then remove
your hands. Push the front center edge
of the hood downward until a latching
sound is heard, and the hood closes
completely.
Knowing Your Mazda
Doors and Locks
3-41
CX-7_8BM8-EA-10I_Edition1 Page119
Friday, September 10 2010 4:22 PM
Form No.8BM8-EA-10I
