display MAZDA MODEL CX-9 2009 Navigation Manual (in English)

4
Before Use
Navigation
Set Up
RDM-TMCIf
necessary
Rear View
Monitor
Contents
Preparation
nBefore Use
Accessories ........................................................................\
................ 2
Laser products ........................................................................\
........... 2
Contents ........................................................................\
..................... 4
Safety Information ........................................................................\
...... 6
Introduction ........................................................................\
................ 8
(Use This Product Safety), (Navigation System), (Beep sound and
voice guidance restrictions while using Bluetooth Hands-Free),
(Screens), (LCD (Liquid crystal display))
Names and Functions ........................................................................\
9
Immediate use
nGetting startedlActivation........................................................................\
............... 11(Removing the Map Disc), (On-screen Buttons)
l
Menu ........................................................................\
..................... 14lSet Clock ........................................................................\
............... 15lNavigation Set Up ........................................................................\
. 16(User Setting), (Quick POI Selection), (Language), (Map Configuration),
(Calibration), (Restore System Defaults)
l
Screen Names and Functions....................................................... 25(Screens Before Setting Route), (Screens During Route Guidance),
(Screen adjustments, beep alert and other settings)
l
Screen change ........................................................................\
...... 28(Map orientation), (Map scale)
n
RoutinglDestination Entry and Route Search............................................. 30(Change (Change Search Area)), (Address), (Point of interest),
(Emergency), (Memory Point), (Home), (Preset Destination), (Previous
Destination), (Freeway On/Off Ramp), (Coordinates),
(Select from map)
l
Quick POI ........................................................................\
.............. 38(Displaying POI(s) on a Map), (Local Search), (Deleting POI Markers),
(Showing POI Data)
l
Character Entry ........................................................................\
..... 39(Street name, town name, and other input)
(House phone number, and other input)
l
Direct Destination Input................................................................. 40(Direct Destination Input), (Selecting Route)
l
POI Icons on Maps / Delete Destination ....................................... 41(POI (Point of Interest) Icons), (Delete destination)
l
Route Options ........................................................................\
....... 42(Route Preferences), (Modification of Destination or Way Point Positions),
(Deletion of Destination or Way Points), (Detour), (Turn List),
(Display Route), (Route Preview), (Setting the conditions for simulation run)
2%:':9)FSSO4EKI1SRHE].YRI41

5
Before Use
Ifnecessary
Rear View
Monitor
Advanced use
nAddress BooklAddress Book ........................................................................\
........ 46(Memory Point Storage), (Memory Point Confirmation and Modification),
(Preset Destinations or Home storage), (Memory Point Deletion),
(All Memory Point Deletion), (Displays Icons at Memory Points),
(Avoid Area Storage), (Avoid Area Confirmation and Modification),
(Avoid Area Deletion), (All Avoid Area Deletion),
(Category Name Modification), (Previous Destination Deletion),
(All Previous Destination Deletion)
n
Voice RecognitionlVoice Recognition ........................................................................\
.. 50(Voice Recognition Structure), (Select the Language),
(Voice Recognition Basic Usage Pattern), (Cancel Voice Recognition),
(Switch Operation List), (Voice Recognition Command)
n
Volume AdjustmentlVolume Adjustment........................................................................\
57
If necessary
nIf necessarylPrecautions/System Performance ................................................. 58(Voice Guidance), (GPS), (Map Matching), (Positioning Accuracy),
(Route Guide), (Route Search)
l
Troubleshooting ........................................................................\
..... 62(Verification First), (Error Messages)
l
Maintenance ........................................................................\
.......... 65(Care of the Product), (Handling and Care of Map Discs)
2%:':9)FSSO4EKI1SRHE].YRI41

8
Before Use
Navigation
Set Up
RDM-TMCIf
necessary
Rear View
Monitor
Introduction
nExtremely low or high temperatures may interfere with normal operationThe inside of the vehicle can become very hot or cold when it is parked for extended
periods in direct sunlight or in cold places with the engine turned off. The navigation system
may not operate normally under such circumstances. Turn off the navigation system until
the inside of the vehicle has cooled down or warmed up. If the system does not operate
thereafter, consult an Authorized Dealer, we recommend an Authorized Mazda Dealer.
This navigation system utilizes GPS* satellite signals, a speed sensor and gyrosensor to track
and display your vehicle’s current position, and to guide you from your starting point to your
destination along a calculated route.
* : GPS (Global Positioning System) is a position detecting system utilizing the signals from GPS satellites deployed by the U.S. Defense Department.
The beep sound and voice guidance related to the navigation system operation are not heard
while a Bluetooth Hands-Free is being used.
Screens displayed in this manual may differ from those on the actual display.
Direct sunlight or other outside light sources makes it difficult to view the images on the
display. For moonroof-equipped vehicles, close the sunshade to better view the display.
Use This Product Safety
Navigation System
Beep sound and voice guidance restrictions while using Bluetooth Hands-Free
Screens
LCD (Liquid crystal display)
2%:':9)FSSO4EKI1SRHE].YRI41

9
Before Use
Ifnecessary
Rear View
Monitor
Names and Functions
The navigation system can be operated by pressing a button on the panel (panel button) or
selecting a button displayed on the screen (on-screen button).
1. POWER/VOLUME dial: Turn the audio unit off by pressing the dial. The volume can be adjusted by turning the dial.
2. LOAD/EJECT button: CD loading and ejection. If the display is left in the lowered position for a certain period of time, a beep sound is heard and
the display closes automatically.
3. SOURCE button: Used to change the audio source. • and on-screen buttons : FM/AM broadcast reception.
• on-screen button : CD mode
• on-screen button : Satellite radio
• and on-screen buttons : Image and Sound playback is possible using a portable video player connected to an
external input terminal.
*1
Sound playback is possible using an audio player connected
to an external input terminal.*1
AUX1: External sound
AUX2: External image & sound (if equipped)
• on-screen button: iPod mode
• on-screen button : BT-Audio mode
4. SEEK/TRACK button: Performs tuning (short press) and searching (long press) in FM/AM mode, Performs track skip (short press) and fast-
foward/reverse (long press) in CD mode.
5. SCAN button: Performs scanning operation in FM/AM, CD and Satellite radio modes.
On-screen button
Panel button Panel button
2%:':9)FSSO4EKI1SRHE].YRI41

10
Before Use
Navigation
Set Up
RDM-TMCIf
necessary
Rear View
Monitor
6. TUNE AUDIO dial: The audio display screen can be switched on or off by pressing
the dial.
Turning the dial changes the radio station frequency.
7. MAP/VOICE button
*2 : Used to replay a voice navigation assist while in the navigation mode and to return to a map of the current location when the
displayed area deviates from the current location by scrolling
the screen.
8. RETURN button
*2 : Button used to return to the previous navigation screen.
9. MENU button
*2 : Menu screen display (various settings).
10.DISP button: Screen brightness/contrast mode selection and adjustment display.
11.INFO button: Changes the various indications on the information display.
*1 :The external input terminal is not equipped on your vehicle because it is not standard equipment.
*2 : For navigation unit operation
Note
lIf there is no response after selecting the on-screen button, remove your finger from the
screen and select it again.
l On-screen buttons that cannot be operated are not illuminated.
Select the on-screen button lightly with your finger.
Selecting the on-screen buttons using objects that have a hard or sharp end such
as a ball point pen or mechanical pencil could cause a malfunction.
Caution
2%:':9)FSSO4EKI1SRHE].YRI41

12
RoutingAddress
Book
Getting started
2
Select the MAP on-screen button to open the display.
3
Insert the map disc
with the printed side
facing up.Note
lCondensation may form on the optical lens or the map
disc inside the unit when the temperature in the vehicle
increases in a short time such as when heating the car
on a cold day. This condensation may cause
malfunctions. If so, unload the map disc and do not
operate the unit for approximately 1 hour. Wipe the
condensation off the map disc with a soft cloth.
If the unit does not operate correctly after 1 hour,
consult an Authorised Mazda Dealer.
Note
l
When the ignition switch is in the ACC or ON
position, the screen changes as shown above to
activate the navigation system.
l The screen (audio or navigation) that was displayed
prior to the engine being turned off is displayed.
Before the navigation screen is displayed, the
CAUTION screen will be displayed.
MAP on-screen button
(CAUTION) screen
2%:':9)FSSO4EKI1SRHE].YRI41

13
Getting started
lThe Current Position screen appears.
Note
lYou can select the language by selecting the on-screen button. You can also
change the selected language using Language Selection. ( page 20)
l The CAUTION screen remains on the display unless you select the on-screen
button.
Press the and MAP on-screen button with the ignition switch in the
ACC position.
Select the on-screen button lightly with your finger.
Colors for unavailable buttons will be pale.
4
Read the CAUTION
carefully, and select
the on-screen
button.
Removing the Map Disc
On-screen Buttons
Most functions are inhibited while the
vehicle is in motion.
Please read the handbook for operation
instructions.
Always obey traffic regulations.
Caution
LOAD /
Do not get your hand or fingers caught in
moving parts or in the disc slot. This can
cause injuries. Children are inquisitive, try
to install or remove the map disc without
infants looking on.
Caution
MAP on-screen button
2%:':9)FSSO4EKI1SRHE].YRI41

15
Getting started
Set Clock
The current time is set using this function. Since time notification is provided by a GPS
satellite.
Before Steps select MENU
Open the [SET CLOCK] screen
Select if you prefer 24-hour display; for 12-hour display.
Select to move the setting ahead by 1 hour,
and similarly, select hour to move it back by 1
hour.
Select to move the setting ahead by 1
minute, and similarly, select min to move it
back by 1 minute.
How to exit .
Note
Clock time is adjusted by the GPS, however, it is necessary to adjust hours and
/ or minutes under the following conditions:
l Driving across different time zones
l Daylight saving time start and end
2%:':9)FSSO4EKI1SRHE].YRI41

16
RoutingAddress
Book
Getting started

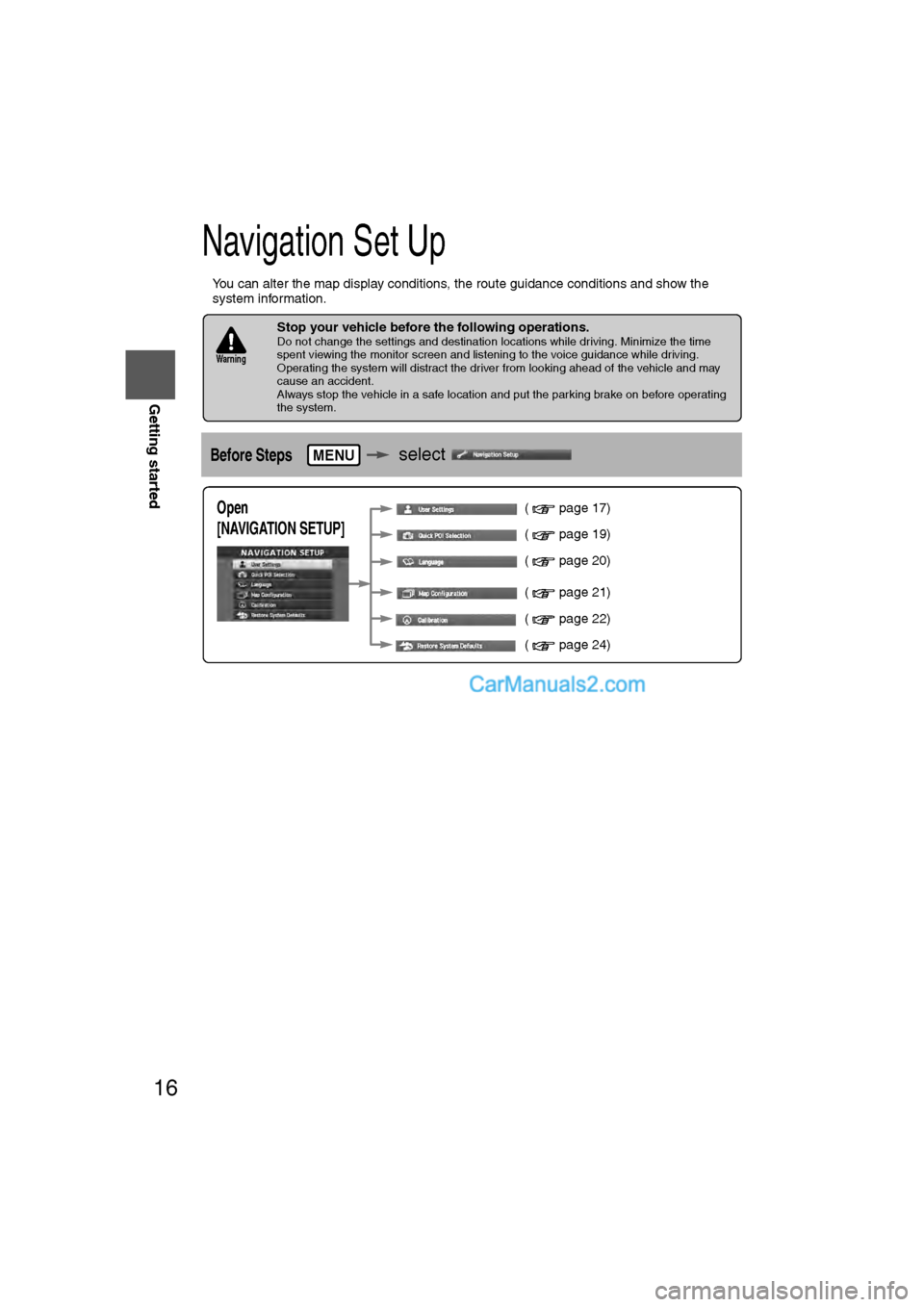

Navigation Set Up
l
You can alter the map display conditions, the route guidance conditions and show the
system information.
nStop your vehicle before the following operations. Do not change the settings and destination locations while driving. Minimize the time
spent viewing the monitor screen and listening to the voice guidance while driving.
Operating the system will distract the driver from looking ahead of the vehicle and may
cause an accident.
Always stop the vehicle in a safe location and put the parking brake on before operating
the system.
Before Stepsselect
Warning
MENU
Open
[NAVIGATION SETUP] ( page 17)
( page 19)
( page 20)
( page 21)
( page 22)
( page 24)
2%:':9)FSSO4EKI1SRHE].YRI41

17
Getting started
Navigation Set Up
Before Steps
select
select
User Setting
MENU
Open the
[USER SETTINGS]
screen
nMap Color
Select a screen color from the to options.
nMAP Mode
lAuto : The display will automatically switch between Day
and Night illumination mode when the headlights are
turned off and on respectively.
lDay :The display will be presented in Day illumination mode
regardless of whether the headlights are on or off.
lNight : The display will be presented in Night illumination mode regardless of whether the headlights are on or off.
nDistance
Select the distance unit from or .
nAverage speed
Set the average speed for each road to be driven.
(This function sets the standard speed (average vehicle speed
for each route) used for calculating the estimated arrival time
when calculating the route time.)
: Average speed setting:Changes back to default
nRoad Restriction Warnings
The display of warnings during route guidance when passing
through areas with traffic restrictions can be turned on or off.
2%:':9)FSSO4EKI1SRHE].YRI41
