Page 8 of 130
8
Before Use
Navigation
Set Up
RDM-TMCIf
necessary
Rear View
Monitor
Introduction
nExtremely low or high temperatures may interfere with normal operationThe inside of the vehicle can become very hot or cold when it is parked for extended
periods in direct sunlight or in cold places with the engine turned off. The navigation system
may not operate normally under such circumstances. Turn off the navigation system until
the inside of the vehicle has cooled down or warmed up. If the system does not operate
thereafter, consult an Authorized Dealer, we recommend an Authorized Mazda Dealer.
This navigation system utilizes GPS* satellite signals, a speed sensor and gyrosensor to track
and display your vehicle’s current position, and to guide you from your starting point to your
destination along a calculated route.
* : GPS (Global Positioning System) is a position detecting system utilizing the signals from GPS satellites deployed by the U.S. Defense Department.
The beep sound and voice guidance related to the navigation system operation are not heard
while a Bluetooth Hands-Free is being used.
Screens displayed in this manual may differ from those on the actual display.
Direct sunlight or other outside light sources makes it difficult to view the images on the
display. For moonroof-equipped vehicles, close the sunshade to better view the display.
Use This Product Safety
Navigation System
Beep sound and voice guidance restrictions while using Bluetooth Hands-Free
Screens
LCD (Liquid crystal display)
2 % : ' : 9 ) F S S O 4 E K I 1 S R H E ] . Y R I 4 1
Page 9 of 130
9
Before Use
Ifnecessary
Rear View
Monitor
Names and Functions
The navigation system can be operated by pressing a button on the panel (panel button) or
selecting a button displayed on the screen (on-screen button).
1. POWER/VOLUME dial: Turn the audio unit off by pressing the dial. The volume can be adjusted by turning the dial.
2. LOAD/EJECT button: CD loading and ejection. If the display is left in the lowered position for a certain period of time, a beep sound is heard and
the display closes automatically.
3. SOURCE button: Used to change the audio source. • and on-screen buttons : FM/AM broadcast reception.
• on-screen button : CD mode
• on-screen button : Satellite radio
• and on-screen buttons : Image and Sound playback is possible using a portable video player connected to an
external input terminal.
*1
Sound playback is possible using an audio player connected
to an external input terminal.*1
AUX1: External sound
AUX2: External image & sound (if equipped)
• on-screen button: iPod mode
• on-screen button : BT-Audio mode
4. SEEK/TRACK button: Performs tuning (short press) and searching (long press) in FM/AM mode, Performs track skip (short press) and fast-
foward/reverse (long press) in CD mode.
5. SCAN button: Performs scanning operation in FM/AM, CD and Satellite radio modes.
On-screen button
Panel button Panel button
2 % : ' : 9 ) F S S O 4 E K I 1 S R H E ] . Y R I 4 1

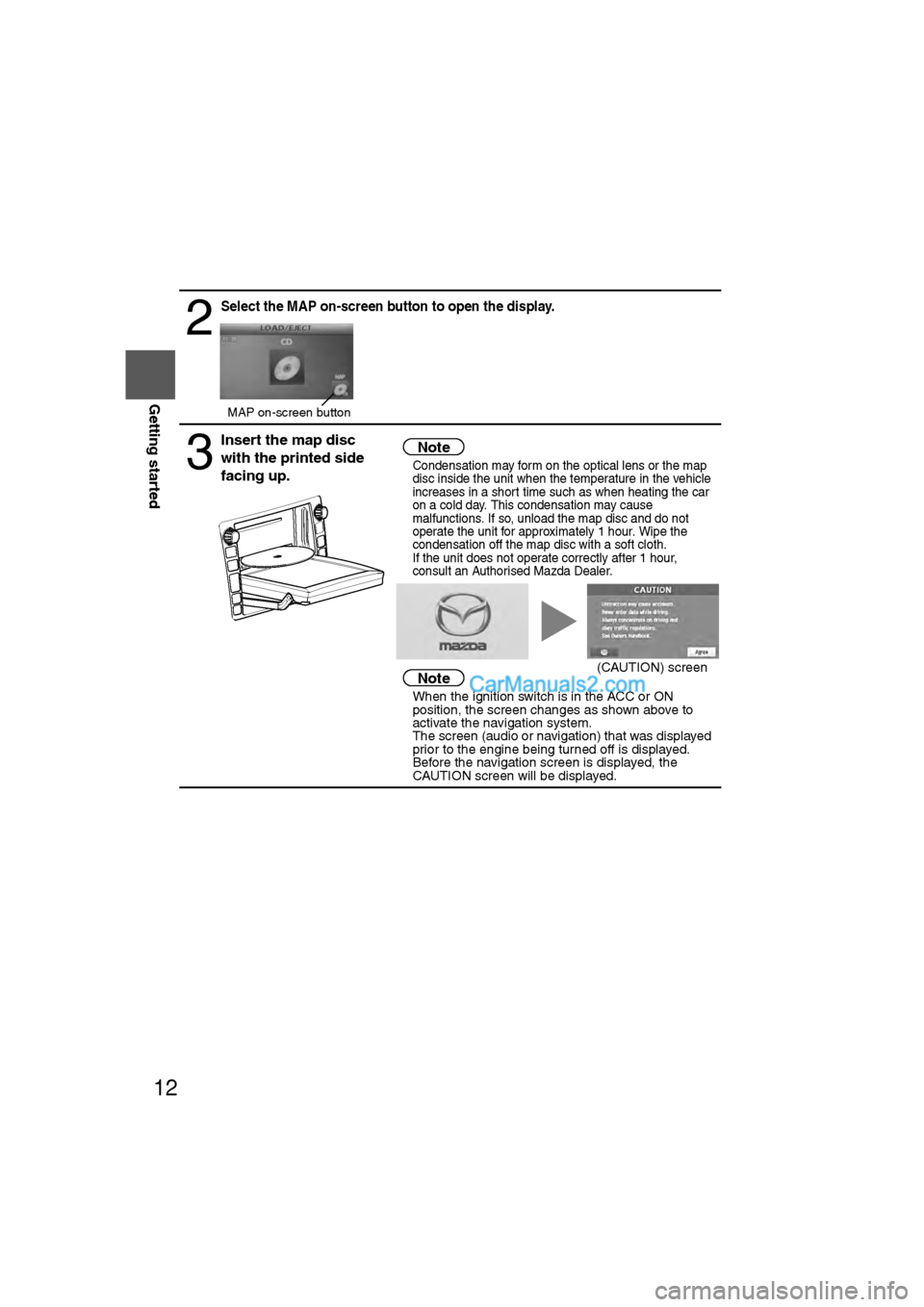

Page 12 of 130
12
RoutingAddress
Book
Getting started
2
Select the MAP on-screen button to open the display.
3
Insert the map disc
with the printed side
facing up.Note
lCondensation may form on the optical lens or the map
disc inside the unit when the temperature in the vehicle
increases in a short time such as when heating the car
on a cold day. This condensation may cause
malfunctions. If so, unload the map disc and do not
operate the unit for approximately 1 hour. Wipe the
condensation off the map disc with a soft cloth.
If the unit does not operate correctly after 1 hour,
consult an Authorised Mazda Dealer.
Note
l
When the ignition switch is in the ACC or ON
position, the screen changes as shown above to
activate the navigation system.
l The screen (audio or navigation) that was displayed
prior to the engine being turned off is displayed.
Before the navigation screen is displayed, the
CAUTION screen will be displayed.
MAP on-screen button
(CAUTION) screen
2 % : ' : 9 ) F S S O 4 E K I 1 S R H E ] . Y R I 4 1
Page 59 of 130
59
Before
UseGetting
started
RoutingAddress
BookVo i c e
Recognition
Navigation
Set Up
If necessary
GPS is a position detecting system utilizing the signals
from GPS satellites deployed by the U.S. Department of
Defense. The Mobile Navigation System uses input from
three or more satellites and calculates the vehicle position
based on the principle of triangulation.
The positioning accuracy of the system corresponds to the
error display of the GPS which is from about 30 to 200 meters.
l If you are using the system for the first time, or if you have not used it for some time, it takes
about 5 minutes (or about 2 minutes in open areas) to calculate your vehicle’s position.
nGPS signal reception is poor in the following places
lThe GPS satellites are controlled by the U.S. Defense Department, which may intentionally
lower positioning accuracy. In such cases, there may be vehicle position deviations.
l There may be vehicle position deviations for some time until GPS signals are received after
switching on the ignition.
This function compares your vehicle’s tracking data with the road data on the map
disc, applies dead reckoning to determine the road you are driving on, and displays
your vehicle on that road on the map.
l Intelligent map matching addresses the following problems to achieve high accuracy in
vehicle positioning.
Position Correction for Elevated RoadsPosition accuracy is improved by detecting if the vehicle is
running on or under an elevated road.
Position Correction for Parking GaragesPosition accuracy is improved by detecting if the vehicle is
driving in an elevated or underground parking garage.
High-precision GyrosensorA gyro detects turns with an accuracy of 0.05° per second.
Combined with a speed sensor, it enables the system to
display the current vehicle position even where GPS signals
may be blocked.
l Using a spare tire in place of the regular one may cause vehicle position deviations.
l Any difference between the direction which your vehicle actually travels and that shown on
the map is automatically eliminated by azimuth correction.
GPS
In tunnelsAmong high-rise buildingsUnder elevated roads In wooded areas
Map Matching
2 % : ' : 9 ) F S S O 4 E K I 1 S R H E ] . Y R I 4 1
Page 70 of 130
70
Before
UseGetting
started
RoutingAddress
Book
Vo i c e Recognition
Navigation
Set Up
RDM-TMC
Audio Operation
Navigation
Set Up
nOperating Tips for Single CD-MP3
Player
Condensation phenomenon
Immediately after turning on the heater
when the vehicle is cold, the CD or optical
components (prism and lens) in Single CD-
MP3 Player may become clouded with
condensation. At this time, the CD will eject
immediately when placed in the unit. A
clouded CD can be corrected simply by
wiping it with a soft cloth. Clouded optical
components will clear naturally in about an
hour. Wait for normal operation to return
before attempting to use the unit.
Handling Single CD-MP3 Player
The following precautions should be
observed.
l
Do not spill any liquid on the audio system.
l Do not insert any objects, other than CDs,
into the slot.
l The CD revolves at high speed within the
unit. Defective (cracked or badly bent) CDs
should never be used. l
Do not use non-conventional discs such as
heart-shaped, octagonal discs, etc. The
disc may not eject resulting in a
malfunction.
l If the memory portion of the CD is
transparent or translucent, do not use the
disc.
l A new CD may have rough edges on its
inner and outer perimeters. If a disc with
rough edges is used, proper setting will not
be possible and Single CD-MP3 Player will
not play the CD. In addition, the disc may
not eject resulting in a malfunction.
Remove the rough edges in advance by
using a ball-point pen or pencil as shown
below. To remove the rough edges, rub the
side of the pen or pencil against the inner
and outer perimeter of the CD.
l When driving over uneven surfaces,
the sound may jump.
Transparent
2 % : ' : 9 ) F S S O 4 E K I 1 S R H E ] . Y R I 4 1
Page 72 of 130
72
Before
UseGetting
started
RoutingAddress
Book
Vo i c e Recognition
Navigation
Set Up
RDM-TMC
Audio Operation
Navigation
Set Up
nOperating tips for MP3
l
This audio system handles MP3 files that
have been recorded on CD-R/CD-RW/CD-
ROMs. Discs that have been recorded
using the following formats can be played:
• ISO 9660 level 1
• ISO 9660 level 2
• Joliet extended format
• Romeo extended format
l This unit handles MP3 files conforming to
the MP3 format containing both header
frames and data frames.
l If a disc has both music data (CD-DA) and
MP3 files, playback of the two file types
differs depending on how the disc was
recorded.
l Packet written discs cannot be played on
this unit.
l This unit does not play CDs recorded
using MP3i (MP3 interactive), MP3 PRO
and RIFF MP3 formats. Specialized glossary
MP3
Abbreviation for “MPEG Audio Layer 3”.
A technical standard for audio compression
as decided by an ISO (International
Organization for Standardization) MPEG
working group.
Use of MP3 allows for audio data to be
compressed to approximately a tenth of the
source data size.
ISO 9660
An international standard for logical
formatting of CD-ROM files and folders.
It is divided into three separate levels based
on differences in file naming procedures,
data configuration and other characteristics.
Bit rate
Refers to the volume of data per second,
expressed in bps (bits per second).
Generally, the larger the number of the
transfer bit rate when compressing an MP3
file, the more information regarding musical
reproduction it carries, and therefore the
better the sound quality.
Packet writing
A general term for the method, similar to that
used for floppy discs or hard drives, of
recording the required file in a single
increment on a CD-R and similar.
NOTE
Supply of this product only conveys a
license for private, non-commercial use
and does not convey a license nor imply
any right to use this product in any
commercial (i.e. revenue-generating) real
time broadcasting (terrestrial, satellite,
cable and/or any other media),
broadcasting/streaming via the Internet,
intranets and/or other networks or in other
electronic content distribution systems,
such as pay-audio or audio-ondemand
applications. An independent license for
such use is required. For details, please
visit http://www.mp3licensing.com.
CAUTION
This unit can only play MP3 files that have
an MP3 file extension (.mp3) attached.
Do not attach an MP3 file extension to
any other type file as it could cause noise
to be emitted or a malfunction in the unit.
2 % : ' : 9 ) F S S O 4 E K I 1 S R H E ] . Y R I 4 1
Page 80 of 130
80
Before
UseGetting
started
RoutingAddress
Book
Vo i c e Recognition
Navigation
Set Up
RDM-TMC
Audio Operation
Navigation
Set Up
nSatellite Radio (SAT)
Vehicles equipped with the separately purchased SIRIUS digital satellite radio unit have the
ability to receive channels of digital quality programming coast to coast via satellite. For infor-
mation on use, read the Satellite Radio Kit manual accompanying the SIRIUS digital satellite
radio unit. A subscription to SIRIUS digital satellite radio service is required (available in the
U.S. - Except Alaska and Hawaii) to enable this feature once the separately purchased SIR-
IUS digital satellite radio unit has been installed. For subscription and channel information, or
for digital satellite radio technical issues, contact SIRIUS directly at:
-Web: www.siriusradio.com
-Phone (24 hrs/day, 7 days/week): 888-539-SIRI (7474)
-E-mail: [email protected]
-Mailing Address: Sirius Satellite Radio
1221 Avenue Of The Americas
New York, NY 10020
Attention: Customer Care
Include your Sirius Radio ESN (Electronic Serial Number) when subscribing or requesting
technical assistance. See the Satellite Radio Kit manual accompanying the SIRIUS unit for
complete satellite radio activation procedures and information on how to display the ESN#.
2 % : ' : 9 ) F S S O 4 E K I 1 S R H E ] . Y R I 4 1
Page 82 of 130
82
Before
UseGetting
started
RoutingAddress
Book
Vo i c e Recognition
Navigation
Set Up
RDM-TMC
Audio Operation
Navigation
Set Up
nHow to subscribe to satellite radio
Once the system is installed you must first subscribe to the Sirius Radio service to activate
the system.
The Sirius Radio service uses an ID code to identify your radio. This code is needed to
subscribe to Sirius Radio, and if needed, is also used to report any problems should there be
any in the future. Listeners can subscribe using any of the following methods:
• Visiting SIRIUS on the web at www sirius.com
• Subscribing to Sirius customer care, available 24 hours a day, 7 days a week.
• Calling (888) 539-7474
• E-mail at: [email protected]
• Writing to: SIRIUS SATELLITE RADIO1221 Avenue of the Americas
New York, NY 10020
Attention: Customer Care
Customers should have their Sirius Radio ID Electronic Serial Number (ESN#) ready.
Note
Your ESN# should have been recorded at the time of installation. If not, refer to ‘Displaying
the SIRIUS ID (ESN)’ to retrieve your ESN#. ( page 89)
nSatellite Radio Activation
For activation and subscription information call toll-free at 1-888-539-SIRI (7474). A SIRIUS
Customer Care representative will take the necessary information and walk you through the
activation process. Or you can visit Sirius online at WWW.siriusradio.com and click on the
‘INSTALL & ACTIVATE’ button.
When you call the SIRIUS Customers Care number you have two options available.
(1) The full package which allows you access to all SIRIUS content except pay- per-view.
(2) The family package which allows access to certain channels. Please see the website: www.sirius.com for details.
Please have the following information ready when attempting to activate your service: • SIRIUS ID (ESN*)
• Valid credit card information (type, number, expiration date)
When you are ready to receive the on-air activation signals, you will be instructed (for
activation via phone) to turn on your tuner, have the antenna pointed skyward, and to set the
channel to channel 184.
Once the signal is sent from the national studio it may take up to 10 minutes to be received by
your unit.
*ESN: Electronic Serial Number.
Note
On-air activation is completed after the procedure, in most cases from 10 seconds to 10
minutes.
2 % : ' : 9 ) F S S O 4 E K I 1 S R H E ] . Y R I 4 1
Page 92 of 130
92
Before
UseGetting
started
RoutingAddress
Book
Vo i c e Recognition
Navigation
Set Up
RDM-TMC
Audio Operation
Navigation
Set Up
7. If the PIN code matches the previously registered PIN code, the system returns to the
normal mode.
8. The parental lock is now released. At this time, mute is off and the sound can be heard.
Note
l If an ID code is not input for ten seconds, the system returns to the previous screen.
l If the input PIN code does not match the registered PIN code, ‘Wrong PIN was input.
Please input the PIN again.’ is displayed for three seconds and the system returns to the
PIN code input screen.
nMaster Code
The Master Code is used to initialize or re-initialize the PIN code in the event that the code is
not set to ‘0000’ and/or the personalized PIN code is not known. The initialization process
resets the PIN code to ‘0000’. The master code can potentially def\
eat the intent of the
security of the parental lock if it is located by persons not authorized by the owner to access
certain channels.
Sirius Satellite Radio Master Code: ‘0913’
nError Signs
(1) Depending on the surrounding conditions (such as large trees, buildings, or tunnels) and special weather conditions, the reception of SIRIUS radio waves may be decreased or
temporarily interrupted. ‘ACQUIRING SIGNAL’ may appear.
The ‘ACQUIRING SIGNAL’ message will clear after one of the following occurs:
1. When the , , , , , or on-screen button is pressed.
2. When the weather conditions have been improved.
(2) In case of an antenna malfunction, ‘ANTENNA FAIL’ is displayed. Check the satellite radio antenna (refer to the ‘Antenna’ in the owner’s manual.), antenna
cable and DLP antenna connector.
The ‘ANTENNA FAIL’ message will clear after the antenna connection failure has been
restored.
Note
If a broken DLP* unit is replaced with a new unit, cancel the license for the broken unit and
make sure to carry out new registration for the replaced unit. If the license for the broken unit
is not canceled, you will be charged a reception fee for both units.
* DLP: Down Link Processor (SATELLITE RADIO Module)
2 % : ' : 9 ) F S S O 4 E K I 1 S R H E ] . Y R I 4 1
