Black plate (357,1)
lOPP (Object Push Profile) Ver. 1.1
Bluetooth is the registered trademark of
Bluetooth SIG. Inc.
NOTE
lThe Bluetooth Hands-Free system is
operable several seconds after turning the
ignition switch to the ACC or ON position
(requires less than 15 seconds).
lIf the ignition switch is turned off during a
hands-free call, the line is transferred to the
device (Mobile phone) automatically.
lIf the device (Mobile phone) is in a location
where radio reception is difficult such as a
metal container or in the trunk, the call may
not be connected using Bluetooth. If
communication is not possible, change the
location of the device (Mobile phone).
qComponent Parts
Bluetooth Hands-Free consists of the
following items:
lTalk buttonlPick-up buttonlHang-up buttonlInformation displaylMicrophonelAudio unit/Navigation system
Talk button, Pick-Up button and Hang-
Up button
Basic functions of Bluetooth Hands-Free
can be used for such things as making
calls or hanging up using the talk button,
pick-up button and hang-up button on the
steering wheel.
Talk button
Hang-up button Pick-up button
Talk button operations
A short press or a long press of the talk
button is used to operate the system as
follows:
lShort press (Press the button less than
0.7 sec.)
lLong press (Press the button 0.7 sec. or
more.)
Interior Comfort
Bluetooth Hands-Free
6-117
CX-9_8Z66-EA-08F_Edition3 Page357
Tuesday, March 31 2009 1:53 PM
Form No.8Z66-EA-08F

Black plate (358,1)
Information display
When available, the information display
shows telephone numbers, Bluetooth
Hands-Free messages, and operation
status.
Microphone
The microphone is used for speaking
voice commands or exchanging
conversation.
Microphone
Audio unit/Navigation system
The audio unit or navigation system is
used for adjusting the volume.
qVoice
To prevent the deterioration in voice
recognition rate and voice quality, the
following points must be observed:
lIt is not necessary to face the
microphone or approach it. Speak the
voice commands while maintaining a
safe driving position.
lClose the windows and/or the
moonroof to reduce loud noises from
outside the vehicle, or turn down the
airflow of the climate control system
while Bluetooth Hands-Free is being
used. Voice recognition may not
function correctly or voice quality may
deteriorate under the following
conditions.
lA passenger is speaking.lDriving with the window and/or the
moonroof open.
lDriving on bumpy roads.lNoise outside of the vehicle is loud.
(Construction sites, inside tunnels,
excess oncoming traffic, or heavy
rain.)
lOperation noise from turn signals,
wipers, or the horn is heard.
lA/C airflow is strong or wind is
blowing on the microphone.
lThere is noise coming from cargo
loaded in the vehicle.
lVoice commands may not be
recognized depending on the voice. If
the voice commands are not recognized
correctly, repeat the commands in a
louder voice, at a natural pace, as if
speaking to another person.
lDialects or different wording other than
hands-free prompts cannot be
recognized by voice recognition. Speak
in the wording specified by the voice
commands.
6-118
Interior Comfort
Bluetooth Hands-Free
CX-9_8Z66-EA-08F_Edition3 Page358
Tuesday, March 31 2009 1:53 PM
Form No.8Z66-EA-08F

Black plate (359,1)
Please be aware that the voice recognition
may error despite following the above
points.
qFunction Restrictions While
Using Bluetooth Hands-Free
Some functions are limited while
Bluetooth Hands-Free is being used. They
include:
lBeep sound and voice guidance related
to the audio unit and navigation system
are not heard.
lBeep sound related to the A/C
operation is not heard.
lThe navigation system's voice
recognition command does not
function.
qHow to Use This Section
Descriptions in the text are as follows:
Say: Voice commands to be spoken by
you.
Prompt: Voice guidance output from the
speaker.
NOTE
Say voice commands after the beep sound
[Beep] is heard.
Example)
Say: [Beep]“Dial”
Prompt:“Number, please”
Say: [Beep]“XXXXXXXXXXX (Ex.
“555-1234”) (Telephone number)”
Bluetooth Hands-Free Activation
Method
Press the pick-up button (with/without
navigation system) or talk button with a
short press (without navigation system) or
a long press (with navigation system).NOTE
For vehicles with the navigation system, you
can also press the talk button with a short
press and Say: [Beep]“Telephone”or
“Phone”.
The hands-free system is activated.
Functions of the hands-free telephone,
such as making and receiving calls, can be
used after the activation. (For details on
the telephone functions, refer to“Basic
Bluetooth Hands-Free Operation”or
“Convenient Use of the Hands-Free
System”.)
NOTE
For vehicles with a navigation system, the
system operates by speaking the voice
recognition command of the navigation system
after pressing the talk button with a short
press. For voice recognition details with the
navigation system, refer to the separate
“NAVIGATION SYSTEM MANUAL”.
Tutorial
The tutorial explains how to use
Bluetooth Hands-Free.
To activate the tutorial, do the following:
1. Press the pick-up button (with/without
navigation system) or talk button with
a short press (without navigation
system) or a long press (with
navigation system).
2.Say: [Beep]“Tutorial”
3. Follow the prompts to receive the
appropriate voice guidance
instructions.
Cancel
The Bluetooth Hands-Free system
transitions to idling status if the following
operation is performed while the system is
activating.
Interior Comfort
Bluetooth Hands-Free
6-119
CX-9_8Z66-EA-08F_Edition3 Page359
Tuesday, March 31 2009 1:53 PM
Form No.8Z66-EA-08F

Black plate (360,1)
Press the hang-up button, or the talk
button with a long press.Basic Bluetooth Hands-
Free Operation
qBluetooth Hands-Free Preparation
Language setting
The available languages are English,
Spanish, and Canadian French. If the
language setting is changed, all of the
voice guidance and voice input
commands are done in the selected
language.
NOTE
If the language setting is changed, device
registration is maintained.
Phonebook records are not cleared, but each
language has a separate phonebook.
Therefore, entries created in one language will
need to be re-entered in the phonebook of the
new language.
Method 1
1. Press the pick-up button (with/without
navigation system) or talk button with
a short press (without navigation
system) or a long press (with
navigation system).
2.Say: [Beep]“Setup”
3.(Without the navigation system)
Prompt:“Select one of the following:
Pairing options, confirmation prompts,
language, passcode, or select phone.”
(With the navigation system)
Prompt:“Select one of the following:
Pairing options, confirmation prompts,
language, passcode, select phone or
select music player.”
4.Say: [Beep]“Language”
5.Prompt:“Select a language: English,
French, or Spanish.”
6-120
Interior Comfort
Bluetooth Hands-Free
CX-9_8Z66-EA-08F_Edition3 Page360
Tuesday, March 31 2009 1:53 PM
Form No.8Z66-EA-08F

Black plate (361,1)
6.Say: [Beep]“French”(Speak the
desired language:“English”,“French”
or“Spanish”)
7.Prompt:“French (Desired language)
selected. Is this correct?”
8.Say: [Beep]“Ye s”
9.Prompt:“French (Desired language)
selected, returning to main menu”
(Spoken in the newly selected
language).
Method 2
1. Press the pick-up button (with/without
navigation system) or talk button with
a short press (without navigation
system) or a long press (with
navigation system).
2.Say:[Beep]“French”(Say the desired
language:“English”,“French”,or
“Spanish”.) (Change the desired
language by saying the language
name.)
3.Prompt:“Would you like to change
the language to French (Desired
language) ?”
4.Say:[Beep]“Ye s”
5.Prompt:“Please wait. Switching to
French phonebook. French selected,
returning to main menu”(Spoken in
the newly selected language).
Device programming (Pairing)
To use Bluetooth Hands-Free, the device
equipped with Bluetooth has to be
programmed to the hands-free unit using
the following procedure.(Without the navigation system)
Up to seven Bluetooth equipped mobile
telephones can be programmed to the
vehicle.
(With the navigation system)
A maximum of seven devices including
hands-free mobile phones and Bluetooth
audio devices can be programmed to one
vehicle.
NOTE
lA device can be programmed only when the
vehicle is parked.
l(With the navigation system)
If a Bluetooth device has already been
programmed to the vehicle as a Bluetooth
audio device, it does not need to be
programmed again when using the device
as a hands-free mobile phone. Conversely,
it does not need to be programmed again as
a Bluetooth audio device if it has already
been programmed as a hands-free mobile
phone.
lSince the communication range of a
Bluetooth equipped device is about 10
meters (32 ft), if a device is placed within a
10-meter (32 ft) radius of the vehicle, it may
be detected/programmed unintentionally
while another device is being programmed.
1. Activate the Bluetooth application of
the device.
NOTE
For the operation of the device, refer to its
instruction manual.
2. Press the pick-up button (with/without
navigation system) or talk button with
a short press (without navigation
system) or a long press (with
navigation system).
3.Say: [Beep]“Setup”
Interior Comfort
Bluetooth Hands-Free
6-121
CX-9_8Z66-EA-08F_Edition3 Page361
Tuesday, March 31 2009 1:53 PM
Form No.8Z66-EA-08F

Black plate (362,1)
4.(Without the navigation system)
Prompt:“Select one of the following:
Pairing options, confirmation prompts,
language, passcode, or select phone.”
(With the navigation system)
Prompt:“Select one of the following:
Pairing options, confirmation prompts,
language, passcode, select phone or
select music player.”
5.Say: [Beep]“Pairing options”
6.Prompt:“Select one of the following:
Pair, edit, delete, or list.”
7.Say: [Beep]“Pair”
8.Prompt:“Please say a 4-digit pairing
code.”
9.Say: [Beep]“XXXX”(Speak an
arbitrary 4-digit pairing code. This can
be any combination of 4 numbers.)
NOTE
Record the code as it will be used to program
your device in Step 16.
10.Prompt:“Pairing code XXXX (4-
digit number). Is this correct?”
11.Say: [Beep]“Ye s”or“No”
12. If“Ye s”, go to Step 13.
If“No”, the procedure returns to Step
8.
13.Prompt:“Start pairing procedure on
the device. See the device manual for
instructions.”
14. Using the device, perform a search
for the Bluetooth device (Peripheral
device).
NOTE
For the operation of the device, refer to its
instruction manual.
15. Select“Mazda”from the device list
searched by the device.
16. Input the 4-digit pairing code set in
Step 9 to the device.
17.Prompt:“Please say the name of the
device after the beep.”
18.Say: [Beep]“XXXX - - -”(Speak a
“device tag”, an arbitrary name for
the device.)
Example:“Stan's device.”
NOTE
Speak a programmed“device tag”within 10
seconds.
If more than two devices are to be
programmed, they cannot be programmed with
the same or similar“device tag”.
19.Prompt:“Adding XXXXXX - - -
(Ex.“Stan's device”) (Device tag). Is
this correct?”
20.Say: [Beep]“Ye s”
21.Prompt:“Pairing complete”
After a device is registered, the system
automatically identifies the device. By
activating Bluetooth Hands-Free again, or
by activating Bluetooth Hands-Free first
after turning the ignition switch from the
LOCK to the ACC position, the system
reads out a voice guidance,“XXXXXX -
- - (Ex.“Stan's device”) (Device tag) is
connected”.
NOTE
(With the navigation system)
Device registration can also be done by
operating the panel buttons on the navigation
unit. Refer to the separate manual
“NAVIGATION SYSTEM”.
6-122
Interior Comfort
Bluetooth Hands-Free
CX-9_8Z66-EA-08F_Edition3 Page362
Tuesday, March 31 2009 1:53 PM
Form No.8Z66-EA-08F

Black plate (363,1)
qMaking a Call Using a Telephone
Number
1. Press the pick-up button (with/without
navigation system) or talk button with
a short press (without navigation
system) or a long press (with
navigation system).
2.Say: [Beep]“Dial”
3.Prompt:“Number, please”
4.Say: [Beep]“XXXXXXXXXXX (Ex.
“555-1234”) (Telephone number)”
5.Prompt:“Dialing XXXXXXXXXXX
(Ex.“555-1234”) (Telephone number)
is this correct?”
6.Say: [Beep]“Ye s”or“No”.
7. When“Ye s”is spoken, the procedure
proceeds to Step 8.
When“No”is spoken, the procedure
returns to Step 3.
8.Prompt:“Dialing”
qReceiving an Incoming Call
1.Prompt:“Incoming call, press the
pickup button to answer”.
2. To accept the call, press the pick-up
button.
To reject the call, press the hang-up
button.
qHanging Up a Call
Press the hang-up button during the call.
A beep sound will confirm that call is
ended.
qVolume Adjustment
The power/volume dial of the audio unit
or navigation system is used to adjust the
volume. Turn the dial to the right to
increase volume, to the left to decrease it.
Audio unit Navigation system
NOTElThe volume can also be adjusted using the
volume button on the steering wheel.
lThe music volume of the audio unit and the
navigation system cannot be adjusted while
Bluetooth Hands-Free is being used.
qVoice Guidance Interrupt Operation
Voice guidance can be stopped by
pressing the talk button with a short press
while it is being heard. A new voice input
command can then be spoken by the user.
· Press the talk button with a short press.
qHelp Function Use
The help function informs the user of all
the available voice commands under the
current conditions.
1. Press the talk button with a short press.
2.Say: [Beep]“Help”
3. Follow the prompts to receive the
appropriate voice guidance
instructions.
Interior Comfort
Bluetooth Hands-Free
6-123
CX-9_8Z66-EA-08F_Edition3 Page363
Tuesday, March 31 2009 1:53 PM
Form No.8Z66-EA-08F

Black plate (364,1)

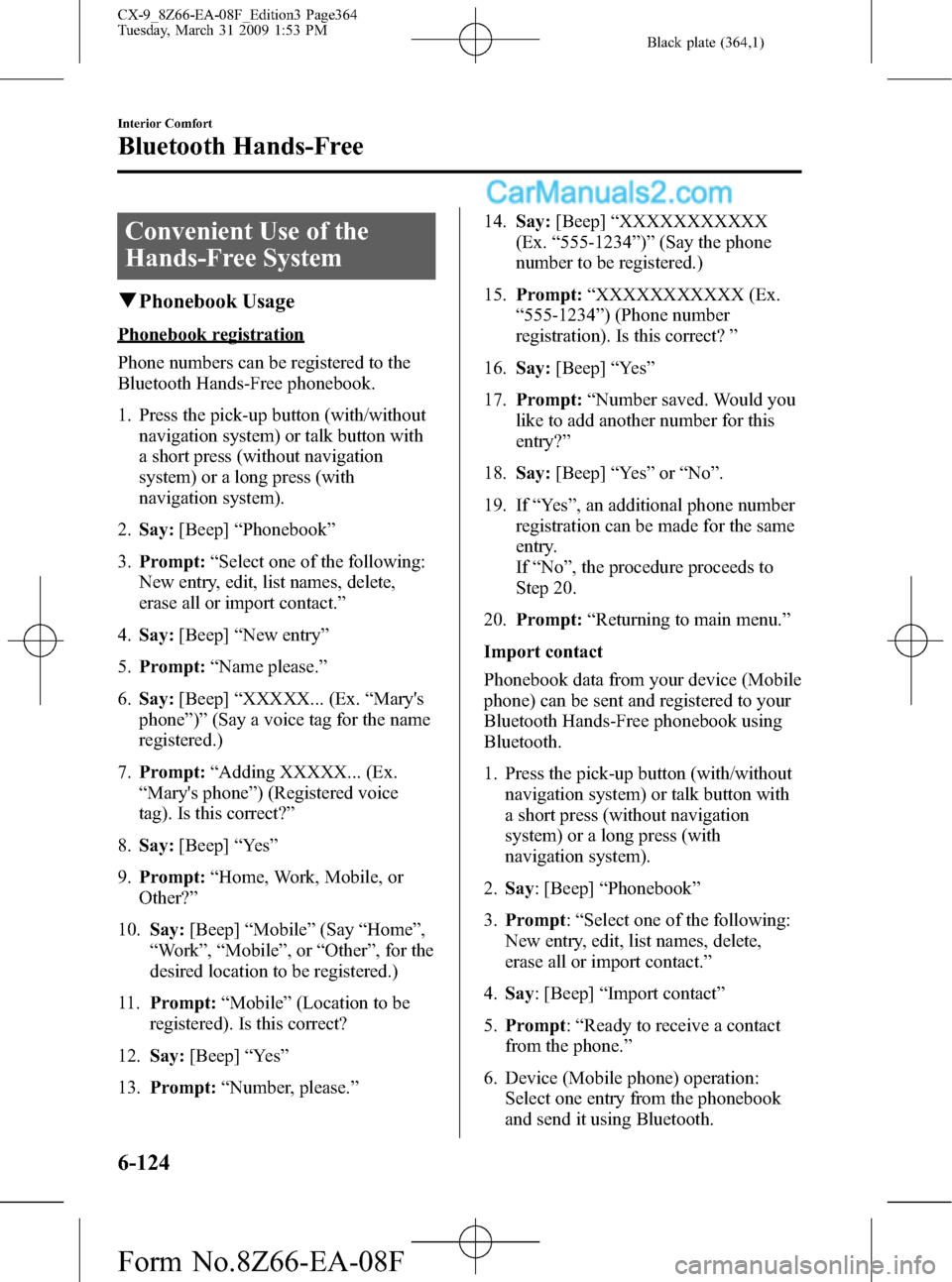

Convenient Use of the
Hands-Free System
qPhonebook Usage
Phonebook registration
Phone numbers can be registered to the
Bluetooth Hands-Free phonebook.
1. Press the pick-up button (with/without
navigation system) or talk button with
a short press (without navigation
system) or a long press (with
navigation system).
2.Say:[Beep]“Phonebook”
3.Prompt:“Select one of the following:
New entry, edit, list names, delete,
erase all or import contact.”
4.Say:[Beep]“New entry”
5.Prompt:“Name please.”
6.Say:[Beep]“XXXXX... (Ex.“Mary's
phone”)”(Say a voice tag for the name
registered.)
7.Prompt:“Adding XXXXX... (Ex.
“Mary's phone”) (Registered voice
tag). Is this correct?”
8.Say:[Beep]“Ye s”
9.Prompt:“Home, Work, Mobile, or
Other?”
10.Say:[Beep]“Mobile”(Say“Home”,
“Work”,“Mobile”,or“Other”, for the
desired location to be registered.)
11.Prompt:“Mobile”(Location to be
registered). Is this correct?
12.Say:[Beep]“Ye s”
13.Prompt:“Number, please.”14.Say:[Beep]“XXXXXXXXXXX
(Ex.“555-1234”)”(Say the phone
number to be registered.)
15.Prompt:“XXXXXXXXXXX (Ex.
“555-1234”) (Phone number
registration). Is this correct?”
16.Say:[Beep]“Ye s”
17.Prompt:“Number saved. Would you
like to add another number for this
entry?”
18.Say:[Beep]“Ye s”or“No”.
19. If“Ye s”, an additional phone number
registration can be made for the same
entry.
If“No”, the procedure proceeds to
Step 20.
20.Prompt:“Returning to main menu.”
Import contact
Phonebook data from your device (Mobile
phone) can be sent and registered to your
Bluetooth Hands-Free phonebook using
Bluetooth.
1. Press the pick-up button (with/without
navigation system) or talk button with
a short press (without navigation
system) or a long press (with
navigation system).
2.Say: [Beep]“Phonebook”
3.Prompt:“Select one of the following:
New entry, edit, list names, delete,
erase all or import contact.”
4.Say: [Beep]“Import contact”
5.Prompt:“Ready to receive a contact
from the phone.”
6. Device (Mobile phone) operation:
Select one entry from the phonebook
and send it using Bluetooth.
6-124
Interior Comfort
Bluetooth Hands-Free
CX-9_8Z66-EA-08F_Edition3 Page364
Tuesday, March 31 2009 1:53 PM
Form No.8Z66-EA-08F

Black plate (365,1)

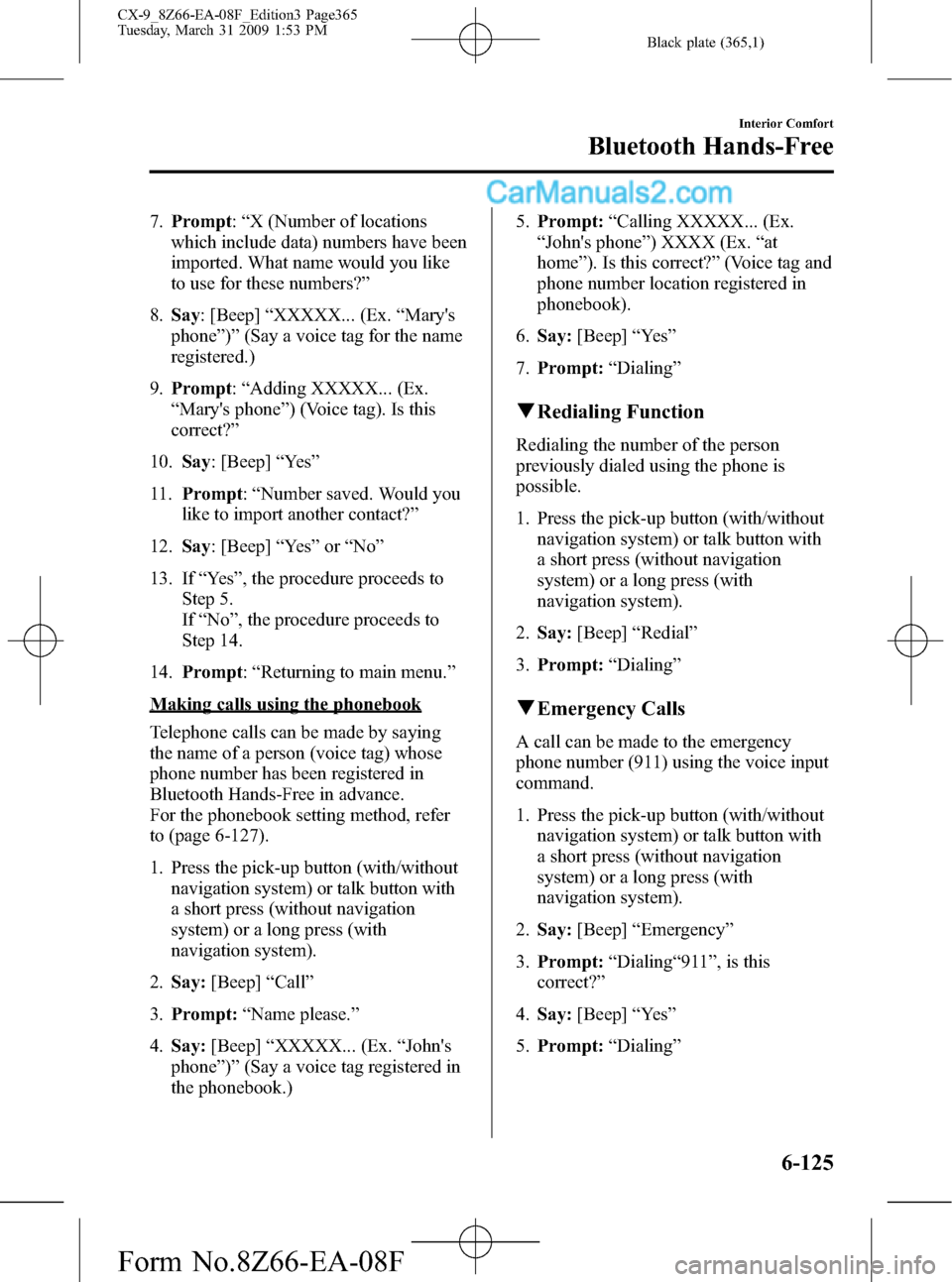

7.Prompt:“X (Number of locations
which include data) numbers have been
imported. What name would you like
to use for these numbers?”
8.Say: [Beep]“XXXXX... (Ex.“Mary's
phone”)”(Say a voice tag for the name
registered.)
9.Prompt:“Adding XXXXX... (Ex.
“Mary's phone”) (Voice tag). Is this
correct?”
10.Say: [Beep]“Ye s”
11.Prompt:“Number saved. Would you
like to import another contact?”
12.Say: [Beep]“Ye s”or“No”
13. If“Ye s”, the procedure proceeds to
Step 5.
If“No”, the procedure proceeds to
Step 14.
14.Prompt:“Returning to main menu.”
Making calls using the phonebook
Telephone calls can be made by saying
the name of a person (voice tag) whose
phone number has been registered in
Bluetooth Hands-Free in advance.
For the phonebook setting method, refer
to (page 6-127).
1. Press the pick-up button (with/without
navigation system) or talk button with
a short press (without navigation
system) or a long press (with
navigation system).
2.Say:[Beep]“Call”
3.Prompt:“Name please.”
4.Say:[Beep]“XXXXX... (Ex.“John's
phone”)”(Say a voice tag registered in
the phonebook.)5.Prompt:“Calling XXXXX... (Ex.
“John's phone”) XXXX (Ex.“at
home”). Is this correct?”(Voice tag and
phone number location registered in
phonebook).
6.Say:[Beep]“Ye s”
7.Prompt:“Dialing”
qRedialing Function
Redialing the number of the person
previously dialed using the phone is
possible.
1. Press the pick-up button (with/without
navigation system) or talk button with
a short press (without navigation
system) or a long press (with
navigation system).
2.Say:[Beep]“Redial”
3.Prompt:“Dialing”
qEmergency Calls
A call can be made to the emergency
phone number (911) using the voice input
command.
1. Press the pick-up button (with/without
navigation system) or talk button with
a short press (without navigation
system) or a long press (with
navigation system).
2.Say:[Beep]“Emergency”
3.Prompt:“Dialing“911”, is this
correct?”
4.Say:[Beep]“Ye s”
5.Prompt:“Dialing”
Interior Comfort
Bluetooth Hands-Free
6-125
CX-9_8Z66-EA-08F_Edition3 Page365
Tuesday, March 31 2009 1:53 PM
Form No.8Z66-EA-08F

Black plate (367,1)

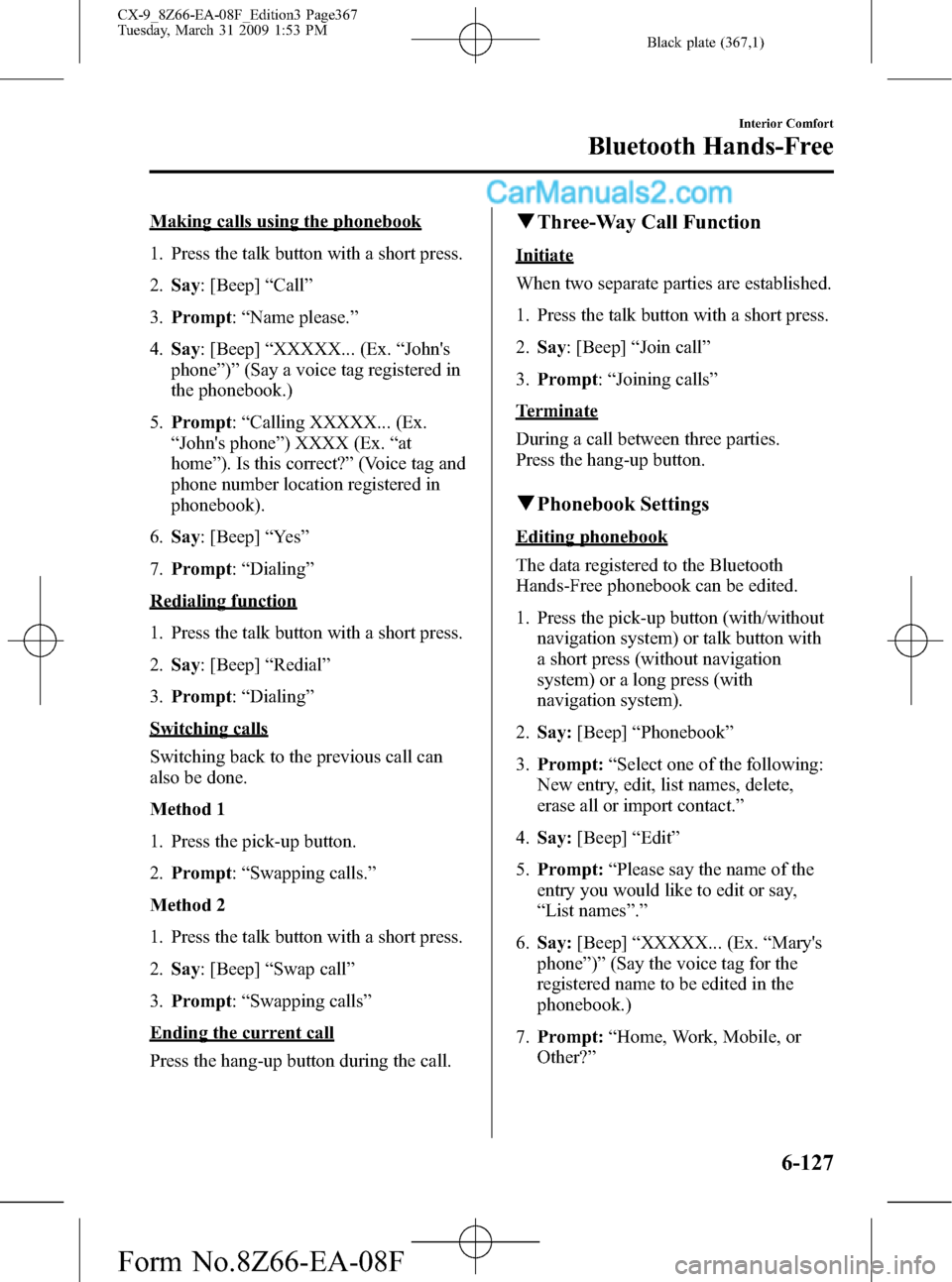

Making calls using the phonebook
1. Press the talk button with a short press.
2.Say: [Beep]“Call”
3.Prompt:“Name please.”
4.Say: [Beep]“XXXXX... (Ex.“John's
phone”)”(Say a voice tag registered in
the phonebook.)
5.Prompt:“Calling XXXXX... (Ex.
“John's phone”) XXXX (Ex.“at
home”). Is this correct?”(Voice tag and
phone number location registered in
phonebook).
6.Say: [Beep]“Ye s”
7.Prompt:“Dialing”
Redialing function
1. Press the talk button with a short press.
2.Say: [Beep]“Redial”
3.Prompt:“Dialing”
Switching calls
Switching back to the previous call can
also be done.
Method 1
1. Press the pick-up button.
2.Prompt:“Swapping calls.”
Method 2
1. Press the talk button with a short press.
2.Say: [Beep]“Swap call”
3.Prompt:“Swapping calls”
Ending the current call
Press the hang-up button during the call.
qThree-Way Call Function
Initiate
When two separate parties are established.
1. Press the talk button with a short press.
2.Say: [Beep]“Join call”
3.Prompt:“Joining calls”
Terminate
During a call between three parties.
Press the hang-up button.
qPhonebook Settings
Editing phonebook
The data registered to the Bluetooth
Hands-Free phonebook can be edited.
1. Press the pick-up button (with/without
navigation system) or talk button with
a short press (without navigation
system) or a long press (with
navigation system).
2.Say:[Beep]“Phonebook”
3.Prompt:“Select one of the following:
New entry, edit, list names, delete,
erase all or import contact.”
4.Say:[Beep]“Edit”
5.Prompt:“Please say the name of the
entry you would like to edit or say,
“List names”.”
6.Say:[Beep]“XXXXX... (Ex.“Mary's
phone”)”(Say the voice tag for the
registered name to be edited in the
phonebook.)
7.Prompt:“Home, Work, Mobile, or
Other?”
Interior Comfort
Bluetooth Hands-Free
6-127
CX-9_8Z66-EA-08F_Edition3 Page367
Tuesday, March 31 2009 1:53 PM
Form No.8Z66-EA-08F
