MAZDA MODEL CX-9 2009 Owners Manual (in English)

Black plate (381,1)
Information Display
Climate control display (Driver)
Audio display
With navigation system Without
navigation system
Climate control display (Front passenger)/
Ambient temperature display
Clock/Trip computer
Hands-free display
qInformation Display Functions
The information display has the following functions:lClockí
lAmbient Temperature Display (Outside Temperature Display)lClimate Control DisplaylAudio DisplaylTrip ComputerlBluetooth Hands-Free DisplayíRefer to Bluetooth Hands-Free on page 6-116.
Interior Comfort
Interior Equipment
6-141íSome models. CX-9_8Z66-EA-08F_Edition3 Page381
Tuesday, March 31 2009 1:53 PM
Form No.8Z66-EA-08F

Black plate (382,1)
qClock
NOTE
Without navigation system
When the trip computer is displayed, press the
CLOCK button to change the display to the
time.
With navigation system
When the trip computer is displayed, press the
INFO button consecutively until the time is
displayed.
When the ignition switch is in the ACC or
ON position, the time is displayed.
Without navigation system
Time setting
1. Press the CLOCK button until the beep
sounds and the displayed time flashes.
2. Press the H switch to set the hour.
3. Press the M switch to set the minutes,
then press the CLOCK button.
Switching between 12 and 24-hour
clock time
1. Press the audio control dial several
times until 12Hr and 24Hr clock time
are displayed.2. Turn the audio control dial in either
direction, select the desired clock
setting, and press the audio control
dial. Press the dial while the preferred
clock time is flashing.
With navigation system
Refer to the separate manual
“NAVIGATION SYSTEM”.
NOTE
Minutes and seconds are adjusted by the GPS,
however, it is necessary to adjust hours under
the following conditions:
lDriving across different time zoneslDaylight saving time start and end
qAmbient Temperature Display
When the ignition switch is in the ON
position, press the OUTSIDE switch
(page 6-6) to display the ambient
temperature.
6-142
Interior Comfort
Interior Equipment
CX-9_8Z66-EA-08F_Edition3 Page382
Tuesday, March 31 2009 1:54 PM
Form No.8Z66-EA-08F

Black plate (383,1)
NOTElUnder the following conditions, the ambient
temperature display may differ from the
actual ambient temperature depending on
the surroundings and vehicle conditions:
lSignificantly cold or hot temperatures.lSudden changes in ambient temperature.lThe vehicle is parked.lThe vehicle is driven at low speeds.lPress the OUTSIDE switch a few seconds
or more to switch the display from
Fahrenheit to Centigrade or vice versa.
lPress the OUTSIDE switch again to switch
the display from ambient temperature to the
temperature set for the air conditioner.
qClimate Control Display
The climate control system status is
displayed. To operate the climate control
system, refer to“Climate Control System”
(page 6-2).
qAudio Display
The audio system status is displayed. To
operate the audio system, refer to
“Audio System”(page 6-17).
qTrip Computer
The trip computer can display the
following:
lThe current fuel economy.lThe average fuel economy.lThe approximate distance you can
travel on the available fuel.
lThe average vehicle speed.
Switch the ignition ON.
Press the INFO switch to change the
display mode.NOTE
When the time is being displayed, press the
INFO switch to change the display to the trip
computer.
If you have any problems with your trip
computer, consult an Authorized Mazda
Dealer.
Current fuel economy mode
This mode displays the current fuel
economy by calculating the amount of
fuel consumption and the distance
traveled.
Current fuel economy will be calculated
and displayed every 2 seconds.
When this mode is selected, CONSUM
CUR will be displayed.
U.S.A.
Interior Comfort
Interior Equipment
6-143
CX-9_8Z66-EA-08F_Edition3 Page383
Tuesday, March 31 2009 1:54 PM
Form No.8Z66-EA-08F

Black plate (384,1)
CANADA
When you've slowed to about 5 km/h (3
mph),—L/100 km (—mpg) will be
displayed.
Average fuel economy mode
This mode displays the average fuel
economy by calculating the fuel
consumption and the distance traveled
since connecting the battery or resetting
the data.
Average fuel economy will be calculated
and displayed every minute.
When this mode is selected, CONSUM
AV will be displayed.
U.S.A.
CANADA
To clear the data being displayed, press
the INFO switch for more than 1.5
second.
After pressing the INFO switch,—L/100
km (—mpg) will be displayed for about 1
minute before the fuel economy is
recalculated and displayed.
Distance-to-empty mode
This mode displays the approximate
distance you can travel on the remaining
fuel based on the fuel economy.
The distance-to-empty will be calculated
and displayed every second.
When this mode is selected, REMNG will
be displayed.
U.S.A.
6-144
Interior Comfort
Interior Equipment
CX-9_8Z66-EA-08F_Edition3 Page384
Tuesday, March 31 2009 1:54 PM
Form No.8Z66-EA-08F

Black plate (385,1)
CANADA
NOTElEven though the distance-to-empty display
may indicate a sufficient amount of
remaining mileage before refueling is
required, refuel as soon as possible if the
fuel gauge needle nears E or the low fuel
warning light illuminates.
lThe display won't change unless you add
more than approximately 20 L (5.3 gal) of
fuel.
Average vehicle speed mode
This mode displays the average vehicle
speed by calculating the distance and the
time traveled since connecting the battery
or resetting the data.
Average vehicle speed will be calculated
and displayed every 10 seconds.
When this mode is selected, AV will be
displayed.U.S.A.
CANADA
To clear the data being displayed, press
the INFO switch for more than 1.5
second. After pressing the INFO switch,
—km/h (—mile/h) will be displayed for
about 1 minute before the vehicle speed is
recalculated and displayed.
Interior Comfort
Interior Equipment
6-145
CX-9_8Z66-EA-08F_Edition3 Page385
Tuesday, March 31 2009 1:54 PM
Form No.8Z66-EA-08F

Black plate (386,1)

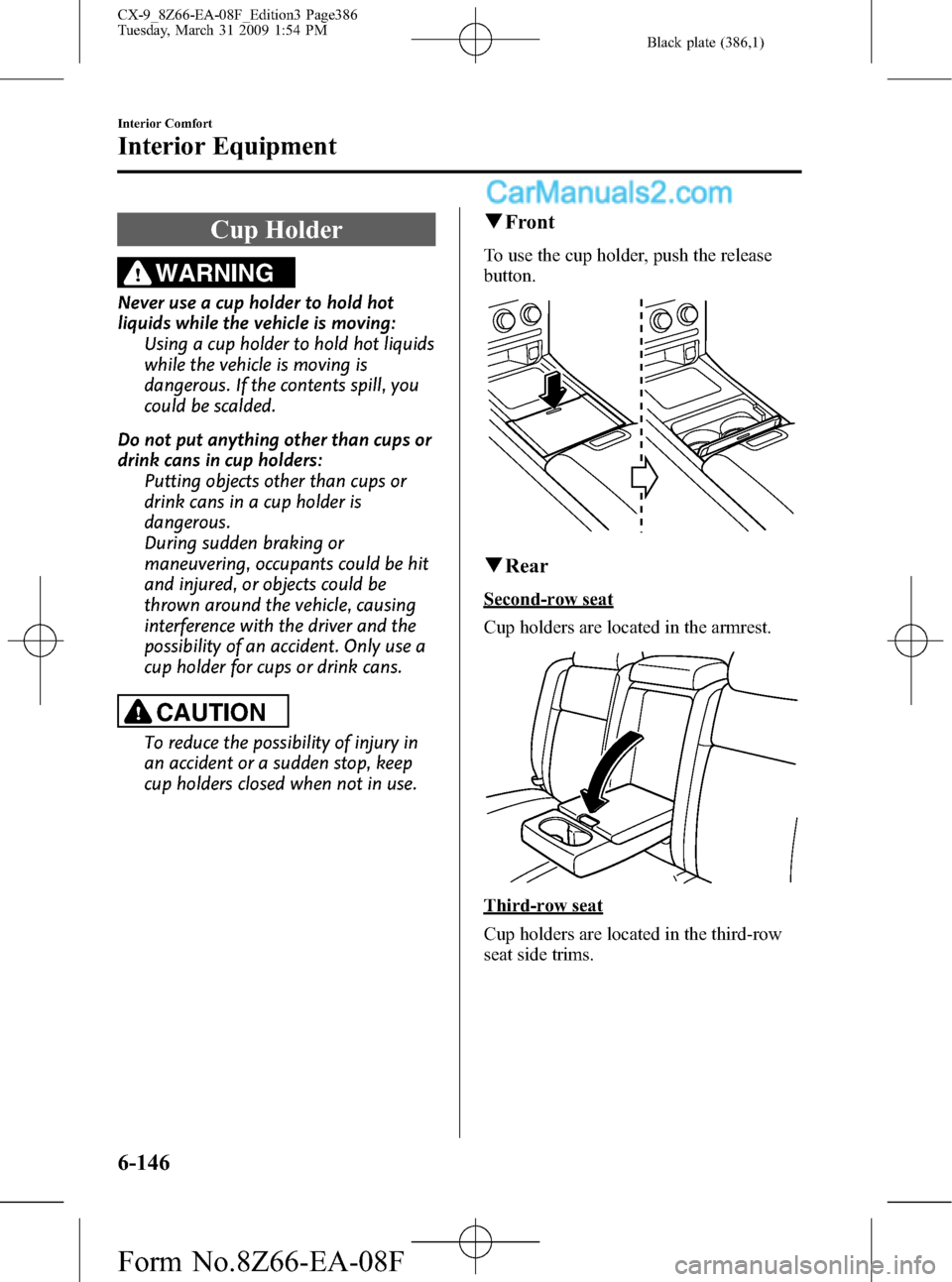

Cup Holder
WARNING
Never use a cup holder to hold hot
liquids while the vehicle is moving:
Using a cup holder to hold hot liquids
while the vehicle is moving is
dangerous. If the contents spill, you
could be scalded.
Do not put anything other than cups or
drink cans in cup holders:
Putting objects other than cups or
drink cans in a cup holder is
dangerous.
During sudden braking or
maneuvering, occupants could be hit
and injured, or objects could be
thrown around the vehicle, causing
interference with the driver and the
possibility of an accident. Only use a
cup holder for cups or drink cans.
CAUTION
To reduce the possibility of injury in
an accident or a sudden stop, keep
cup holders closed when not in use.
qFront
To use the cup holder, push the release
button.
qRear
Second-row seat
Cup holders are located in the armrest.
Third-row seat
Cup holders are located in the third-row
seat side trims.
6-146
Interior Comfort
Interior Equipment
CX-9_8Z66-EA-08F_Edition3 Page386
Tuesday, March 31 2009 1:54 PM
Form No.8Z66-EA-08F

Black plate (387,1)
Right-side
Left-sideí
Bottle Holder
Bottle holders are on the inside of the
doors.
Bottle holder
CAUTION
Do not use the bottle holders for
containers without caps. The
contents may spill when the door is
opened or closed.
Interior Comfort
Interior Equipment
6-147íSome models. CX-9_8Z66-EA-08F_Edition3 Page387
Tuesday, March 31 2009 1:54 PM
Form No.8Z66-EA-08F

Black plate (388,1)
Storage Compartments
WARNING
Keep storage boxes closed when
driving:
Driving with the storage boxes open
is dangerous. To reduce the
possibility of injury in an accident or
a sudden stop, keep the storage
boxes closed when driving.
CAUTION
Do not leave lighters or eyeglasses in
the storage boxes while parked under
the sun. A lighter could explode or
the plastic material in eyeglasses
could deform and crack from high
temperature.
qOverhead Console
This console box is designed to store
accessories.
Push and release to open.
qCoin Box
To open, press the release catch down and
pull the lid downward.
qGlove Box
To open the glove box, pull the latch
toward you.
Insert the key (auxiliary key
*) and turn it
clockwise to lock, counterclockwise to
unlock.
* Advanced key equipped vehicle
Lock
Unlock
6-148
Interior Comfort
Interior Equipment
CX-9_8Z66-EA-08F_Edition3 Page388
Tuesday, March 31 2009 1:54 PM
Form No.8Z66-EA-08F

Black plate (389,1)
qCenter Console
To open, push the button.
qArmrest Boxí
To open, pull the release catch.
qCargo Securing Loops
WARNING
Make sure luggage and cargo is
secured before driving:
Not securing cargo while driving is
dangerous as it could move or be
crushed during sudden braking or a
collision and cause injury.Use the loops in the luggage compartment
to secure cargo with a rope or net. The
tensile strength of the loops is 196 N (20
kgf, 44 lbf). Do not apply excessive force
to the loops as it will damage them.
qCargo Sub-Compartment
Center cargo sub-compartment
1. Lift the trunk board.
Interior Comfort
Interior Equipment
6-149íSome models. CX-9_8Z66-EA-08F_Edition3 Page389
Tuesday, March 31 2009 1:54 PM
Form No.8Z66-EA-08F

Black plate (390,1)
2. Secure the trunk board using the straps
on the third-row seatbacks.
Side cargo sub-compartment
Pull the compartment's strap to open the
cover.
Some models.
qShopping Bag Hook
The shopping bag hook can be used for
hanging shopping bags.
CAUTION
Do not hang excessive weight on the
shopping bag hook as it could be
damaged.
Shopping bag hook
(tensile strength:3 kg
(6.6 lb))
qRear Coat Hooks
WARNING
Never hang heavy or sharp objects on
the assist grips and coat hooks:
Hanging heavy or sharp-ended
objects such as a coat hanger from
the assist grips or coat hooks is
dangerous as they can fly off and hit
an occupant in the cabin if a curtain
air bag was to deploy, which could
result in serious injury or death.
Always hang clothes on the coat hooks
and the assist grips without hangers.
Coat hook
6-150
Interior Comfort
Interior Equipment
CX-9_8Z66-EA-08F_Edition3 Page390
Tuesday, March 31 2009 1:54 PM
Form No.8Z66-EA-08F
