Power liftgate drop prevention
mechanism
The power liftgate drop prevention
mechanism activates if the system detects
weight such as that caused by a snow-
laden liftgate when it is opened
electrically. After the liftgate is fully
opened, the beep sound will be heard and
the liftgate closes automatically.
NOTE
lIf the power liftgate is snow-laden, remove
the snow before operating the liftgate.
lTrying to force the power liftgate closed
manually immediately after it has fully
opened automatically may activate the
liftgate drop prevention mechanism.
However, this does not indicate a
malfunction.
Liftgate easy closure
The Easy Closure system automatically
closes the liftgate completely from the
near-shut position.
This system also operates when the
liftgate is closed manually.
WARNING
When closing a liftgate, always keep
hands and fingers away from the
liftgate:
Placing hands or fingers around a
liftgate is dangerous because the
liftgate closes automatically from the
near-shut position, which could
cause hands and fingers to be
pinched and injured.NOTE
lIf the liftgate handle is pulled while the
easy closure function is operating, the
liftgate can be opened.
lIf the liftgate is opened/closed repeatedly in
a short period of time, the easy closure
function may not operate. Wait for a while
and then try again.
Knowing Your Mazda
Doors and Locks
3-39
CX-9_8AU2-EA-09G_Edition5 Page121
Thursday, May 6 2010 4:52 PM
Form No.8AU2-EA-09G

Black plate (122,1)
Power Windows
The ignition switch must be in the ON
position for the power windows to
operate.
WARNING
Make sure the opening is clear before
closing a window:
Closing power windows are
dangerous. A person's hands, head,
or even neck could be caught by the
window and result in serious injury
or even death.
This warning applies especially to
children.
Always lock all passenger power
windows with the power window lock
switch on the driver's side while
children are in the vehicle, and never
allow children to play with power
window switches:
Leaving the power window switches
unlocked while children are in the
vehicle is dangerous. Power window
switches that are not locked with the
power window lock switch would
allow children to operate power
windows unintentionally which could
result in serious injury if a child's
hands, head or neck becomes caught
by the window.
qOperating the Front Power Windows
NOTElEach passenger power window can be
operated with each door switch when the
power window lock switch on the driver's
door is in the unlocked position (page
3-44).
lEach passenger power window can also be
operated by the power window master
control switches on the driver's door.
Driver's window
Left rear
window
Owner master control switch
Front passenger's
window
Right rear window
lThe following functions can be performed
for the front power windows using the
power window master control switches on
the driver's door or front passenger's door
switch.
lManual opening/closinglAuto-opening/closinglTwo-step down function
3-40
Knowing Your Mazda
Doors and Locks
CX-9_8AU2-EA-09G_Edition5 Page122
Thursday, May 6 2010 4:52 PM
Form No.8AU2-EA-09G

Black plate (123,1)
Manual opening/closing
To open a power window to the desired
position, lightly hold down the switch.
To close the power window to the desired
position, lightly pull up the switch.
Driver's window
Owner master control switch
Front passenger's
window
Open
Close
Close
Open
Front passenger switch
Auto-opening/closing
To fully open a power window
automatically, press the switch completely
down.
To fully close the power window
automatically, pull the switch completely
up.
To stop the power window partway, pull
or press the switch in the opposite
direction and then release it.NOTE
(POWER WINDOW RESET PROCEDURE)
If the battery was disconnected during vehicle
maintenance, or for other reasons such as a
switch continues to be operated after the
window is fully open/close, the power windows
will not fully open and close automatically.
Resetting of the automatic function can be
performed using the driver's master control
switch or the front passenger door switch.
The power window auto function reset
procedure can be done on one or both door
switches. The power window auto function will
only resume on the side that has been reset.
1. Turn the ignition switch to the ON position.
2. Make sure that the power window lock
switch located on the driver's door is not
depressed.
3. Press the switch and fully open the power
window.
4. Pull up the switch to fully close the power
window and continue holding the switch for
about 2 seconds after the window fully
closes.
5. Repeat Steps 3-4 for each front power
window.
6. Make sure that the power windows operate
correctly using the door switches.
Two-step down function
With the power window completely
closed, press the switch lightly and it will
open and stop about 3 cm (1 in) from the
top.
If you continue to press and hold the
switch, the window will resume opening
all the way.
Knowing Your Mazda
Doors and Locks
3-41
CX-9_8AU2-EA-09G_Edition5 Page123
Thursday, May 6 2010 4:52 PM
Form No.8AU2-EA-09G

Black plate (124,1)
NOTE
Pressing the power window switch once when
the window is fully closed will only open it
about 3 cm (1 in) to allow convenient
ventilation of the cabin.
Canceling the two-step down function
To cancel the two-step down function for
the front power windows, carry out the
following procedure using the master
control switches.
1. Turn the ignition switch to the ON
position and complete the following
procedure within 5 seconds:
Press the power window switch 2 times
firmly, then pull it 2 times firmly.
Driver's windowFront passenger's
window Owner master control switch
2. Turn the ignition switch to the LOCK
position.
3. With the ignition switch in the LOCK
position, and within 40 seconds, turn
the ignition switch to the ON position
and complete the following procedure
within 5 seconds:
Press the power window switch 2 times
firmly, then pull 2 times firmly.NOTE
lThe two-step down function cannot be
canceled if the procedure is not completed
within the specified times, or the procedure
is changed along the way. To redo the
procedure, first turn the ignition switch to
the LOCK position and proceed from the
beginning.
lIf you are unable to cancel the function
despite carrying out the cancellation
procedure, consult an Authorized Mazda
Dealer.
Restoring the two-step down function
With the two-step down function in the
canceled state, repeat the previous
procedure for canceling the function on
each door switch and it will be restored.
NOTE
If you are unable to restore the function despite
doing the restore procedure, consult an
Authorized Mazda Dealer.
Jam-safe window
If a person's hands, head or an object
blocks the window during the manual
closing operation or the auto-closing
operation, the window will stop and open
halfway.
WARNING
Make sure nothing blocks the window
just before it reaches the fully closed
position or while fully holding up the
power window switch:
Blocking the power window just
before it reaches the fully closed
position or while fully holding up the
power window switch is dangerous.
In this case, the jam-safe function
cannot prevent the window from
closing all the way. If fingers are
caught, serious injuries could occur.
3-42
Knowing Your Mazda
Doors and Locks
CX-9_8AU2-EA-09G_Edition5 Page124
Thursday, May 6 2010 4:52 PM
Form No.8AU2-EA-09G

Black plate (125,1)
NOTElDepending on driving conditions, a closing
power window could stop and start opening
when the window feels a shock that is
similar to something blocking it.
In the event the jam-safe function activates
and the power window cannot be closed
automatically, pull and hold the switch fully
and the window will close.
lThe jam-safe window function does not
operate until the system is re-initialized.
Engine-off power window operation
The power window can be operated for
about 40 seconds after the ignition switch
is turned from the ON position to the
ACC or LOCK position with all doors
closed. If any door is opened, the power
window will be inoperable.
NOTE
lFor engine-off operation of the power
window, the switch must be held up firmly
throughout window closure because the
auto-closing function will be inoperable.
lThe two-step down function is inoperable
during engine-off operation.

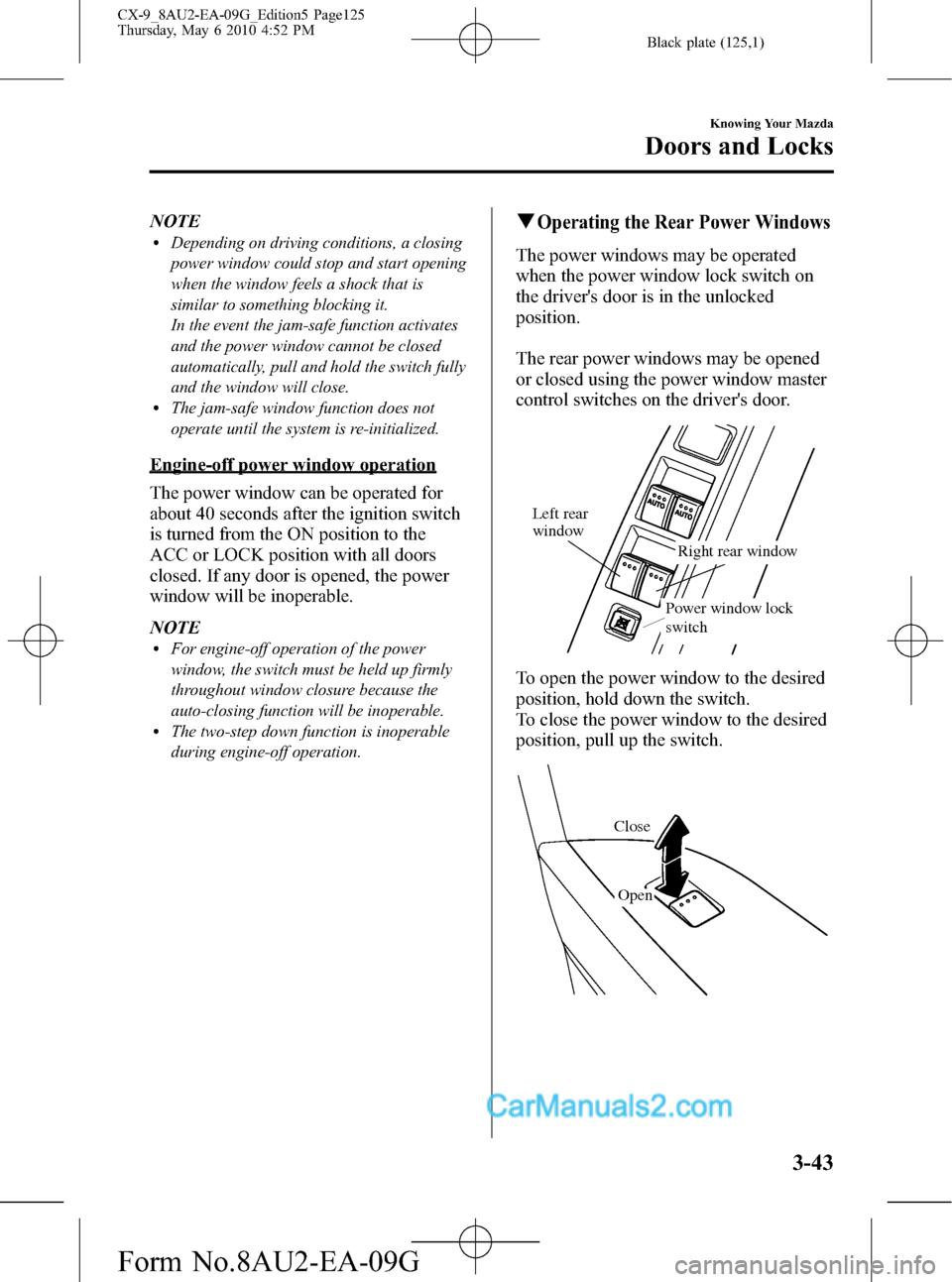

qOperating the Rear Power Windows
The power windows may be operated
when the power window lock switch on
the driver's door is in the unlocked
position.
The rear power windows may be opened
or closed using the power window master
control switches on the driver's door.
Left rear
window
Right rear window
Power window lock
switch
To open the power window to the desired
position, hold down the switch.
To close the power window to the desired
position, pull up the switch.
Close
Open
Knowing Your Mazda
Doors and Locks
3-43
CX-9_8AU2-EA-09G_Edition5 Page125
Thursday, May 6 2010 4:52 PM
Form No.8AU2-EA-09G

Black plate (126,1)
Engine-off power window operation
The power windows can be operated for
about 40 seconds after the ignition switch
is turned from the ON position to the
ACC or LOCK position with all doors
closed. If any door is opened, the power
windows will be inoperable.
qPower Window Lock Switch
With the lock switch in the unlocked
position (button not depressed), all power
windows on each door can be operated.
With the lock switch in the locked
position (button depressed), only the
driver's side power window can be
operated.
Locked position
Unlocked position
WARNING
Unless a passenger needs to operate a
power window, keep the power window
lock switch in the locked position:
Unintentional power window
operation is dangerous. A person's
hands, head, or neck could be caught
by the window and result in serious
injury.
qOpening/Closing the Power Windows
and the Moonroof from Outside
The front power windows and the
moonroof can be opened or closed from
outside the vehicle after the doors and the
liftgate are closed.
The front power windows may be
operated remotely when the power
window lock switch on the driver's door is
in the lock or unlocked position.
WARNING
Make sure the opening is clear before
closing a window and the moonroof:
Closing power windows and the
moonroof are dangerous. A person's
hands, head, or even neck could be
caught by the window or the
moonroof and result in serious injury
or even death.
This warning applies especially to
children.
NOTE
lThe power windows and the moonroof
cannot be opened or closed from outside
the vehicle under the following condition:
lA door or the liftgate is opened.lThe key is inserted into the ignition
switch.
lThe start knob is in any position except
LOCK. (With advanced key)
lThe power windows and the moonroof may
not close completely. Make sure all the
windows and the moonroof are closed.
If the power windows and the moonroof
cannot be closed completely, operate each
power window switch or the tilt/slide switch
from inside the vehicle. After closing the
windows and the moonroof from outside the
vehicle, verify that they are completely
closed.
3-44
Knowing Your Mazda
Doors and Locks
CX-9_8AU2-EA-09G_Edition5 Page126
Thursday, May 6 2010 4:52 PM
Form No.8AU2-EA-09G

Black plate (128,1)
2. Turn the key counterclockwise and
hold until the windows and the
moonroof are completely open. After
the doors and the liftgate are unlocked,
the windows and the moonroof fully
open automatically.
Open
To stop this operation, turn the key to the
center position, then turn it
counterclockwise again.
NOTE
The window and the moonroof opening
operation also can be stopped by turning the
key clockwise. However, the doors and the
liftgate will lock.
Closing
The windows and the moonroof can be
closed in case they are left open after
getting out of the vehicle.
NOTE
(With advanced key)
If the auto-lock function (page 3-8) has been
activated, the doors and the liftgate
automatically lock as you walk away from the
vehicle, however, the power windows and the
moonroof cannot be closed. When leaving the
vehicle, close the windows and the moonroof
using the power window switch or the tilt or
slide switch inside the vehicle, the key, or a
request switch on the front door handles.
With key
1. Insert the key in the driver's door key
cylinder.
2. Turn the key clockwise and hold until
the windows and the moonroof are
completely close. After the doors and
the liftgate are locked, the windows
and the moonroof close as long as the
key is turned.
Close
With request switch on the driver's
door (Advanced key)
1. If the doors and the liftgate are locked,
unlock them.
3-46
Knowing Your Mazda
Doors and Locks
CX-9_8AU2-EA-09G_Edition5 Page128
Thursday, May 6 2010 4:52 PM
Form No.8AU2-EA-09G

Black plate (129,1)
2. Press and hold the request switch on
the driver's door. After the doors and
the liftgate are locked, the windows
and the moonroof close as long as the
request switch is pressed.
Request switch
To stop the windows and the moonroof
from closing, release the request switch. If
the operation is performed from the
beginning again, the windows and the
moonroof close.
Fuel-Filler Lid and Cap
WARNING
When removing the fuel-filler cap,
loosen the cap slightly and wait for any
hissing to stop. Then remove it:
Fuel spray is dangerous. Fuel can
burn skin and eyes and cause illness
if ingested. Fuel spray is released
when there is pressure in the fuel
tank and the fuel-filler cap is
removed too quickly.
Before refueling, stop the engine, and
always keep sparks and flames away
from the filler neck:
Fuel vapor is dangerous. It could be
ignited by sparks or flames causing
serious burns and injuries.
Additionally, use of the incorrect fuel-
filler cap or not using a fuel-filler cap
may result in fuel leak, which could
result in serious burns or death in an
accident.
CAUTION
Always use only a genuine Mazda
fuel-filler cap or an approved
equivalent, available at an
Authorized Mazda Dealer. The wrong
cap can result in a serious
malfunction of the fuel and emission
control systems. It may also cause
the check engine light in the
instrument cluster to illuminate.
Knowing Your Mazda
Doors and Locks
3-47
CX-9_8AU2-EA-09G_Edition5 Page129
Thursday, May 6 2010 4:52 PM
Form No.8AU2-EA-09G

Black plate (130,1)
qFuel-Filler Lid
To open, pull the remote fuel-filler lid
release.
Remote fuel-filler
lid release
qFuel-Filler Cap
To remove the fuel-filler cap, turn it
counterclockwise.
To close the fuel-filler cap, turn it
clockwise until two or more clicks are
heard.
Open
Close
CAUTION
If the check fuel cap warning light
illuminates, the fuel-filler cap may
not be properly installed. If the
warning light illuminates, park your
vehicle safely off the right-of-way,
remove the fuel-filler cap and
reinstall it correctly. After the cap has
been correctly installed, the fuel cap
warning light may continue to
illuminate until a number of driving
cycles have been completed. A drive
cycle consists of starting the engine
(after four or more hours with the
engine off) and driving the vehicle on
city and highway roads.
Continuing to drive with the check
fuel cap warning light illuminated
could cause the check engine light to
illuminate as well.
NOTE
The removed cap can be attached to the inner
side of the lid during refueling to prevent fuel
on the cap from dripping onto the vehicle.
3-48
Knowing Your Mazda
Doors and Locks
CX-9_8AU2-EA-09G_Edition5 Page130
Thursday, May 6 2010 4:52 PM
Form No.8AU2-EA-09G
