Before Operation
qDisplay Opening/Closing
CAUTION
ØClose the display while the Rear
Entertainment System is not in
use. If the display is left open, a
passenger could be injured by
hitting the display, or the display
could be damaged.
ØDo not press the monitor screen
while opening the display. It may
cause a malfunction.
Opening the display
Press the monitor screen release knob and
open the display until it is in the lock
position.
Monitor screen
release knob
Closing the display
Close and press the display until a
clicking sound can be heard.NOTE
lIf the display is closed while the power is
on, it automatically turns off.
lThe display locks in two positions when
opened to 100 or 120-degrees.
qDisc Insertion/Ejection
CAUTION
If the signal surface of a disc is
touched, it could cause the sound to
skip. Pick up a disc by grasping the
edge of the hole and the outer edge.
NOTE
When no disc is inserted,“No Disc”is
displayed on the monitor.
Interior Comfort
Rear Entertainment System
6-83
CX-9_8AU2-EA-09G_Edition5 Page331
Thursday, May 6 2010 4:55 PM
Form No.8AU2-EA-09G

Black plate (332,1)
Inserting the disc
Insert the disc into the disc slot with the
label-side up.
Disc slot
CAUTION
Insert the disc with its label-side
(decorated side) facing upward. If the
disc is inserted upside-down, it may
cause a malfunction.
NOTE
If a disc is inserted while the Rear
Entertainment System is turned off but the
display is open, and when the ignition switch is
in the ACC or ON position, the system
automatically turns on and starts playback.
Ejecting the disc
Press the eject button to eject the disc.
Eject button
NOTElWhen the eject button is pressed, the disc is
ejected halfway.
lA disc can be ejected with the Rear
Entertainment System turned off.
qPicture Adjustment
The brightness (BRIGHT), color
adjustment (TINT), color density
(COLOR), and contrast (CONTRAST) of
the screen can be adjusted.
Press the picture adjust button
(PICTURE) on the remote controller to
change to the picture adjustment mode.
The picture mode changes in the order of
BRIGHT→TINT→COLOR
→CONTRAST→OFF each time the
button is pressed in this mode.
Press the picture adjust button (
)or(),
positioned to top/bottom of the picture
adjustment mode button (PICTURE), to
adjust each picture mode.
NOTE
lIf the picture adjustment mode is on and no
operation has been done for about 5
seconds, the mode is canceled
automatically.
lIf the picture is no longer adjustable by
pressing the picture adjust button (
)or
(
), it indicates that the adjustment value
has reached the maximum/minimum value.
Adjusting the brightness
1. Press the picture adjustment mode
button (PICTURE) and select the
BRIGHT mode.
2. Press the picture adjust button (
)or
(
) to adjust.
lPicture adjust button (): Brighten
6-84
Interior Comfort
Rear Entertainment System
CX-9_8AU2-EA-09G_Edition5 Page332
Thursday, May 6 2010 4:56 PM
Form No.8AU2-EA-09G

Black plate (333,1)
lPicture adjust button (): Darken
Adjusting the color adjustment
1. Press the picture adjustment mode
button (PICTURE) and select the TINT
mode.
2. Press the picture adjust button (
)or
(
) to adjust.
lPicture adjust button (): GreenlPicture adjust button (): Red
Adjusting the color density
1. Press the picture adjustment mode
button (PICTURE) and select the
COLOR mode.
2. Press the picture adjust button (
)or
(
) to adjust.
lPicture adjust button (): Darken
lPicture adjust button (): Lighten
Adjusting the contrast (definition)
1. Press the picture adjustment mode
button (PICTURE) and select the
CONTRAST mode.
2. Press the picture adjust button (
)or
(
) to adjust.
lPicture adjust button (): HigherlPicture adjust button (): Lower
qScreen Size Setting
The size of the screen can be changed.
Press the DISPLAY MODE button to set
the desired screen size.
The screen size changes in the order of
Full→Normal→Wide→Cinema each
time the button is pressed.
Interior Comfort
Rear Entertainment System
6-85
CX-9_8AU2-EA-09G_Edition5 Page333
Thursday, May 6 2010 4:56 PM
Form No.8AU2-EA-09G

Black plate (334,1)
Full screen
Image is displayed on the full screen.
* A 16:9 screen ratio image is shown in
the above figure.
Normal screen
A 4:3 screen ratio image is the standard
display, and black bands appear on each
side of the screen.
* A 16:9 screen ratio image is scaled to a
4:3 screen ratio.
Wide screen
The center part of the image is
compressed toward the center, and the
surrounding area is enlarged toward the
edge.
* A 16:9 screen ratio image is shown in
the above figure.Cinema screen
The image is enlarged upward and
downward. A 4:3 and 16:9 screen ratio
image are displayed with the upper/lower
part of the image cut off.
NOTE
Because images are enlarged lengthwise for
display, a horizontal streak may be seen,
however, it does not indicate a malfunction.
* A 16:9 screen ratio image is shown in
the above figure.
NOTE
The display varies depending on the style of
the image recorded on the disc.
Refer to the following table and set the screen
size.
Image style Recommendation
4:3 Normal or wide screen
16:9 Full screen
Letter box Full or cinema screen
qDisplay Off
Only sound, without image, can be
played.
Press and hold the DISPLAY button
(
) on the remote controller.
“DISPLAY OFF”is displayed, and then
image turns off.
Press any button on the remote controller
to display the image.
6-86
Interior Comfort
Rear Entertainment System
CX-9_8AU2-EA-09G_Edition5 Page334
Thursday, May 6 2010 4:56 PM
Form No.8AU2-EA-09G

Black plate (335,1)
qRemote Controller
Operate the Rear Entertainment System
with the remote controller except for disc
insertion/ejection.
CAUTION
Do not apply excessive force to the
remote controller or get it wet. Also,
do not leave the remote controller in
a place exposed to direct sunlight or
high temperature. It could cause a
malfunction.
NOTE
Operate the remote controller with it pointed
to the disc slot of the unit. Signals may not be
received depending of the angle.
Maintenance
Stow the remote controller in its case and
put it in the seatback pocket of a front
seat.
Place the remote controller into its case
properly in the direction shown in the
figure and stow it in the front seatback
pocket.
NOTE
If the remote controller is placed in the
incorrect direction, abnormal noise or an
operation error could result.
Using the remote controller
A battery has already been installed in the
remote controller.
Remove the electrical leak-protection
insulation sheet before using the remote
controller.
Insulation
sheet
Replacing the battery
If the buttons on the remote controller are
inoperable, or the operation range
becomes narrow or unsteady, the battery
may be dead.
Replace the battery using the following
procedure.
Interior Comfort
Rear Entertainment System
6-87
CX-9_8AU2-EA-09G_Edition5 Page335
Thursday, May 6 2010 4:56 PM
Form No.8AU2-EA-09G

Black plate (336,1)
Battery: CR2025 LITHIUM or
equivalent (1)
1. Press the battery case tab in the
direction indicated by the arrow using
your thumbnail, and pull out the
battery case.
Ta bBattery
case
2. Remove the old battery and install a
new one with the plus pole pointed up.
Battery (CR2025 LITHIUM or equivalent)
3. Press the battery case tab in the
direction of the arrow until a click
sound is heard.
NOTE
If the remote controller is inoperable even
after the batteries are replaced, consult an
Authorized Mazda Dealer.
CAUTION
ØInstall the battery with the correct
pole pointing in the correct
direction. Battery leakage could
occur if they are not installed
correctly.
ØWhen replacing the batteries, be
careful not to bend the electrical
terminals or get oil on them. Also,
be careful not to get dirt in the
remote controller as it could be
damaged.
6-88
Interior Comfort
Rear Entertainment System
CX-9_8AU2-EA-09G_Edition5 Page336
Thursday, May 6 2010 4:56 PM
Form No.8AU2-EA-09G

Black plate (337,1)
Sound Output
qSound Output from Vehicle Speakers
Vehicles with audio system
Change the audio system to the Rear Entertainment System mode. Sound/Music being
played by the Rear Entertainment System can be heard from the vehicle speakers.
For audio operation, refer to“Audio System”(page 6-17).
Press the AUX button (
) on the audio unit or the mode switch () of the audio
control switches on the steering wheel.“AUX”is displayed on the display and the audio
system changes to Rear Entertainment System sound.
Adjust the volume with the dial on the audio unit.
Vehicles with navigation system
Change the navigation system to the Rear Entertainment System mode. Sound/Music being
played by the Rear Entertainment System can be heard from the vehicle speakers.
For navigation system operation, refer to the separate manual“NAVIGATION SYSTEM”.
Press the SOURCE button (
), select the AUX2 mode.“RSES”is displayed on the
information display and it changes to the Rear Entertainment System sound.
Adjust the volume with the dial on the navigation unit.
qUsing the Headphone Speakers
CAUTION
ØFor safety reasons, the driver should never wear the headphones while driving.
Not being able to hear sound outside of the vehicle could result in a serious
accident.
ØUse the headphones with the volume set at moderate level. Listening at an
excessive volume level for extended periods of time will have an adverse effect on
your hearing ability.
ØIf the headphone arms are spread excessively is could result in damage.
ØDo not apply excessive force to the headphones or get them wet. Also, do not
leave the headphones in a place exposed to direct sunlight or high temperature. It
could cause a malfunction.
Interior Comfort
Rear Entertainment System
6-89
CX-9_8AU2-EA-09G_Edition5 Page337
Thursday, May 6 2010 4:56 PM
Form No.8AU2-EA-09G

Black plate (338,1)

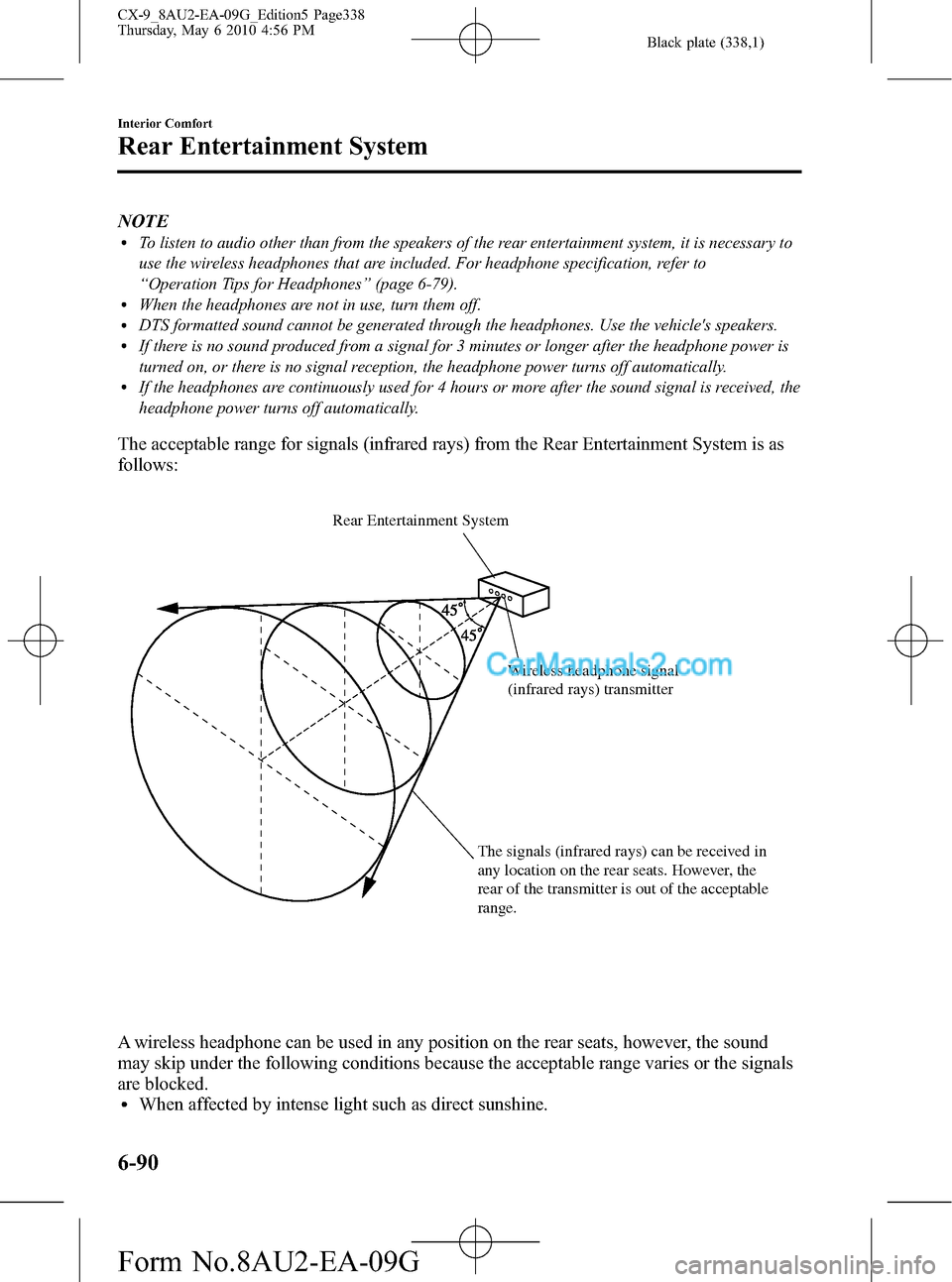

NOTElTo listen to audio other than from the speakers of the rear entertainment system, it is necessary to
use the wireless headphones that are included. For headphone specification, refer to
“Operation Tips for Headphones”(page 6-79).
lWhen the headphones are not in use, turn them off.lDTS formatted sound cannot be generated through the headphones. Use the vehicle's speakers.lIf there is no sound produced from a signal for 3 minutes or longer after the headphone power is
turned on, or there is no signal reception, the headphone power turns off automatically.
lIf the headphones are continuously used for 4 hours or more after the sound signal is received, the
headphone power turns off automatically.
The acceptable range for signals (infrared rays) from the Rear Entertainment System is as
follows:
Rear Entertainment System
Wireless headphone signal
(infrared rays) transmitter
The signals (infrared rays) can be received in
any location on the rear seats. However, the
rear of the transmitter is out of the acceptable
range.
A wireless headphone can be used in any position on the rear seats, however, the sound
may skip under the following conditions because the acceptable range varies or the signals
are blocked.
lWhen affected by intense light such as direct sunshine.
6-90
Interior Comfort
Rear Entertainment System
CX-9_8AU2-EA-09G_Edition5 Page338
Thursday, May 6 2010 4:56 PM
Form No.8AU2-EA-09G

Black plate (339,1)
lWhen the wireless headphone receiver does not point to the Rear Entertainment System
transmitter.
lWhen the signal is blocked by an obstruction such as the seat.
Replacing the battery
1. Remove the screw using a coin or equivalent, and remove the cover. Remove the
batteries.
Cover
Screw
2. Insert two AAA-size batteries. Match thepolarity of the batteries with
the
andmarks in the battery case.
3. Install the cover.
4. Install the screw.
NOTE
Battery life (reference)
Manganese batteries: About 20 hours
Alkaline batteries: About 40 hours
The battery life is indicated as a reference and does not provide any guarantees. The battery life
varies depending on usage conditions (volume, surrounding environment).
Interior Comfort
Rear Entertainment System
6-91
CX-9_8AU2-EA-09G_Edition5 Page339
Thursday, May 6 2010 4:56 PM
Form No.8AU2-EA-09G

Black plate (340,1)
CAUTION
ØIf the battery power is depleted the headphones will not operate properly. If any of
the following occurs, replace the batteries.
ØThe power indicator does not illuminate even when the power is turned on.
ØNoise is mixed with the sound.
ØThe reception range narrows.
ØPeriodically inspect the batteries for leakage.
ØIf the headphones are not to be used for an extended period, remove the batteries.
ØBe careful not to allow the battery case screw to become loose.
ØInstall the batteries with the (
)/() poles correctly positioned. Battery leakage
could occur if they are not installed correctly.
ØWhen replacing the batteries, be careful not to bend the electrical terminals or get
oil on them.
ØBe careful not to allow dirt to get into the headphones as it could damage them.
The following points regarding the battery must be observed.
If the batteries are not handled properly, it could result in a headphone malfunction.
ØDo not use rechargeable batteries.
ØWhen replacing the batteries, replace both batteries at the same time. Do not use
a new battery and an old battery, or the different types of battery.
6-92
Interior Comfort
Rear Entertainment System
CX-9_8AU2-EA-09G_Edition5 Page340
Thursday, May 6 2010 4:56 PM
Form No.8AU2-EA-09G
