audio MAZDA MODEL CX-9 2011 Navigation Manual (in English)

76
Before
UseGetting
started
RoutingAddress
Book
Vo i c e Recognition
Navigation
Set Up
RDM-TMC
Audio Operation
Navigation
Set Up
nOperating Tips for Single CD-MP3/
WMA Player
Condensation phenomenon
Immediately after turning on the heater
when the vehicle is cold, the CD or optical
components (prism and lens) in Single CD
MP3/WMA Player may become clouded with
condensation. At this time, the CD will eject
immediately when placed in the unit. A
clouded CD can be corrected simply by
wiping it with a soft cloth. Clouded optical
components will clear naturally in about an
hour. Wait for normal operation to return
before attempting to use the unit.
Handling Single CD-MP3/WMA Player
The following precautions should be
observed.
l
Do not spill any liquid on the audio system.
l Do not insert any objects, other than CDs,
into the slot.
l The CD revolves at high speed within the
unit. Defective (cracked or badly bent) CDs
should never be used. l
Do not use non-conventional discs such as
heart-shaped, octagonal discs, etc. The
disc may not eject resulting in a
malfunction.
l If the memory portion of the CD is
transparent or translucent, do not use the
disc.
l A new CD may have rough edges on its
inner and outer perimeters. If a disc with
rough edges is used, proper setting will not
be possible and Single CD-MP3/WMA
Player will not play the CD. In addition, the
disc may not eject resulting in a
malfunction.
Remove the rough edges in advance by
using a ball-point pen or pencil as shown
below. To remove the rough edges, rub the
side of the pen or pencil against the inner
and outer perimeter of the CD.
l When driving over uneven surfaces,
the sound may jump.
Transparent
2%:0:9)FSSO4EKI8LYVWHE]1E]41

77
Audio Operation
lUse discs that have been legitimately
produced. If illegally-copied discs such as
pirated discs are used, the system may not
operate properly.
l Be sure never to touch the signal surface
when handling the CDs. Pick up a CD by
grasping the outer edge or the edge of the
hole and the outer edge.
l Do not stick paper or tape on the CD.
Avoid scratching the reverse side (the side
without a label). The disc may not eject
resulting in a malfunction.
l Dust, finger smudges, and dirt can
decrease the amount of light reflected from
the signal surface, thus affecting sound
quality. If the CD should become soiled,
gently wipe it with a soft cloth from the
center of the CD to the edge.
l Do not use record sprays, antistatic
agents, or household spray cleaners.
Volatile chemicals such as benzine and
thinner can also damage the surface of the
CD and must not be used. Anything that
can damage, warp, or fog plastic should
never be used to clean CDs.
l Insert discs one by one. If two discs are
inserted at the same time, the system may
not operate properly.
l Single CD-MP3/WMA Player ejects the CD
if the CD is inserted upside down. Also
dirty and/or defective CDs may be ejected.
l Do not insert any disc with a peel-off seal
affixed to it. Handling Single CD-MP3/WMA Player
l
This unit may not be able to play certain
CD-R/CD-RWs made using a computer or
music CD recorder due to disc
characteristics, scratches, smudges, dirt,
etc., or due to dust or condensation on the
lens inside the unit.
l Storing CDs in the vehicle exposed to
direct sunlight or high temperature may
damage the CD-R/CD-RWs, and make
them unplayable.
l CD-R/CD-RW exceeding 700 MB cannot
be played.
l This unit may not be able to play certain
discs made using a computer due to the
application (writing software) setting used.
(For details, consult the store where the
application was purchased.)
l It is possible that certain text data, such as
titles, recorded on a CD-R/CD-RW may
not be displayed when musical data (CD-
DA) is playing.
l The period from when a CD-RW is
inserted to when it begins playing is longer
than a normal CD or CD-R.
l Completely read the instruction manual
and cautions for CD-R/CD-RWs.
l Do not use discs with cellophane tape
adhering, partially peeled off labels, or
adhesive material exuding from the edges
of the CD label. Also, do not use discs with
a commercially-available CD-R label
affixed. The disc may not eject resulting in
a malfunction.
2%:0:9)FSSO4EKI8LYVWHE]1E]41

78
Before
UseGetting
started
RoutingAddress
Book
Vo i c e Recognition
Navigation
Set Up
RDM-TMC
Audio Operation
Navigation
Set Up
nOperating tips for MP3
l
This audio system handles MP3 files that
have been recorded on CD-R/CD-RW/CD-
ROMs. Discs that have been recorded
using the following formats can be played:
• ISO 9660 level 1
• ISO 9660 level 2
• Joliet extended format
• Romeo extended format
l This unit handles MP3 files conforming to
the MP3 format containing both header
frames and data frames.
l If a disc has both music data (CD-DA) and
MP3 files, playback of the two file types
differs depending on how the disc was
recorded.
l Packet written discs cannot be played on
this unit.
l This unit does not play CDs recorded
using MP3i (MP3 interactive), MP3 PRO
and RIFF MP3 formats. Specialized glossary
MP3
Abbreviation for “MPEG Audio Layer 3”.
A technical standard for audio compression
as decided by an ISO (International
Organization for Standardization) MPEG
working group.
Use of MP3 allows for audio data to be
compressed to approximately a tenth of the
source data size.
ISO 9660
An international standard for logical
formatting of CD-ROM files and folders.
It is divided into three separate levels based
on differences in file naming procedures,
data configuration and other characteristics.
Bit rate
Refers to the volume of data per second,
expressed in bps (bits per second).
Generally, the larger the number of the
transfer bit rate when compressing an MP3
file, the more information regarding musical
reproduction it carries, and therefore the
better the sound quality.
Packet writing
A general term for the method, similar to that
used for floppy discs or hard drives, of
recording the required file in a single
increment on a CD-R and similar.
NOTE
Supply of this product only conveys a
license for private, non-commercial use
and does not convey a license nor imply
any right to use this product in any
commercial (i.e. revenue-generating) real
time broadcasting (terrestrial, satellite,
cable and/or any other media),
broadcasting/streaming via the Internet,
intranets and/or other networks or in other
electronic content distribution systems,
such as pay-audio or audio-ondemand
applications. An independent license for
such use is required. For details, please
visit http://www.mp3licensing.com.
CAUTION
This unit can only play MP3 files that have
an MP3 file extension (.mp3) attached.
Do not attach an MP3 file extension to
any other type file as it could cause noise
to be emitted or a malfunction in the unit.
2%:0:9)FSSO4EKI8LYVWHE]1E]41

79
Audio Operation
nOperating Tips for WMA
WMA is short for Windows Media Audio and
is the audio compression format used by
Microsoft.
Audio data can be created and stored at a
higher compression ratio than MP3.
*Microsoft and Windows Media are
registered trademarks of Microsoft
Corporation U.S. in the United States and
other countries.
Playable WMA file specification
CD-R and CD-RW including WMA files can
be played with this unit. Discs which conform
to the following formats can be played.
Playable WMA files are as follows: l
In a WMA file, the track name, artist name
and album name are recorded with data
called “WMA-Tag”, and the information can
be displayed.
l WMA files which do not comply with the
specific standard may not be played
correctly or its file and folder name may not
be displayed correctly.
l The file extension may not be provided
depending on the computer operating
system, version, software, or settings. In
this case, add the file extension “.wma” to
the end of the file name, and then write the
disc.
Item Content
Specification Windows Media
Audio Version
7.0, 8.0, 9.0
Sampling
frequency Bit rate 32kHz. . . . . . .
32, 40, 48 kbps
44.1kHz . . . . .
32, 48, 64, 80,
96, 128, 160,
192, 256, 320
kbps
48kHz. . . . . . .
64, 96, 128, 160,
192 kbps
VBR (Variable Bit
Rate) Supported
Channel mode Stereo/Monaural
WMA tag Title, artist name,
album name
CAUTION
This unit plays files with the (.wma) file
extension as a WMA file. Do not use the
WMA file extension for files other than
WMA files. It may cause noise or a
malfunction.
2%:0:9)FSSO4EKI8LYVWHE]1E]41

80
Before
UseGetting
started
RoutingAddress
Book
Vo i c e Recognition
Navigation
Set Up
RDM-TMC
Audio Operation
Navigation
Set Up

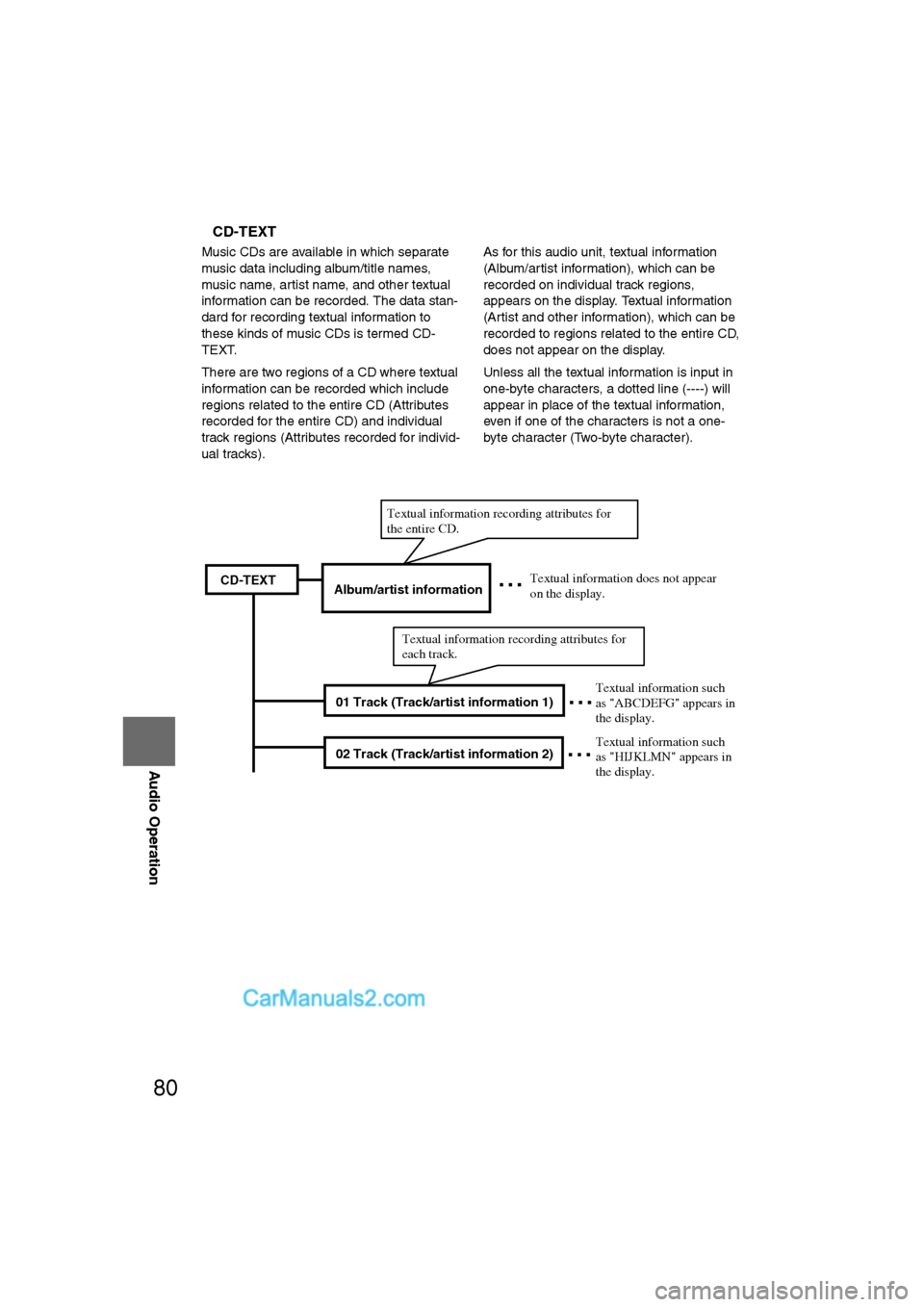

nCD-TEXT
Music CDs are available in which separate
music data including album/title names,
music name, artist name, and other textual
information can be recorded. The data stan-
dard for recording textual information to
these kinds of music CDs is termed CD-
TEXT.
There are two regions of a CD where textual
information can be recorded which include
regions related to the entire CD (Attributes
recorded for the entire CD) and individual
track regions (Attributes recorded for individ-
ual tracks). As for this audio unit, textual information
(Album/artist information), which can be
recorded on individual track regions,
appears on the display. Textual information
(Artist and other information), which can be
recorded to regions related to the entire CD,
does not appear on the display.
Unless all the textual information is input in
one-byte characters, a dotted line (----) will
appear in place of the textual information,
even if one of the characters is not a one-
byte character (Two-byte character).
Album/artist information
CD-TEXT
01 Track (Track/artist information 1)
02 Track (Track/artist information 2)Textual information recording attributes for
the entire CD.
Textual information does not appear
on the display.
Textual information such
as "ABCDEFG" appears in
the display.
Textual information such
as "HIJKLMN" appears in
the display.
Textual information recording attributes for
each track.
2%:0:9)FSSO4EKI8LYVWHE]1E]41

81
Audio Operation
lThe liquid crystal display may not open if the power supply had been interrupted due to the
vehicle battery being disconnected.
l If the liquid crystal display stays open/closed (or partly opened) and does not move when
the liquid crystal display is pressed, switch the ignition OFF and then ON again. Then try
the open/close operation again. If the liquid crystal display still does not move, contact an
Authorized Mazda Dealer.
The beep sound and voice guidance related to the audio operation are not heard while a
Bluetooth Hands-Free is being used.
Operating Tips for Display
nDo not place any objects on the dashboard. If you drop any objects onto
the dashboard or spill liquid on it, it may result in system malfunction.
nBe careful not to pinch your hands or fingers when the liquid crystal
display is closed.
nDo not open/close the liquid crystal display manually. It may damage the
equipment.
Beep sound and voice guidance restrictions while using Bluetooth Hands-Free
2%:0:9)FSSO4EKI*VMHE].YP]41

82
Before
UseGetting
started
RoutingAddress
Book
Voice Recognition
Navigation
Set Up
RDM-TMC
Audio Operation
Navigation
Set Up
nPower ON/OFF
Switch the ignition to ACC or ON.
Press the POWER/VOLUME dial to turn the audio system on.
Press the POWER/VOLUME dial again to turn the audio system off.
Note
To prevent the battery from being discharged, do not leave the audio system on for a long
period of time when the engine is not running.
nVolume adjustment
To adjust the volume, turn the POWER/VOLUME dial.
Turn the POWER/VOLUME dial to the right to increase volume, to the left to decrease it.
nAudio sound adjustment
1.Press the SOURCE button.
2.Select the desired on-screen button corresponding to one of the following modes.
• on-screen button : Audio mode (AM band)
• on-screen button : Audio mode (FM band)
• on-screen button : Satellite radio
• on-screen button : CD mode
• , on-screen button : Image and Sound playback is possible using a portable audio player connected to an external input terminal.*
• on-screen button : iPod mode
• on-screen button : BT-Audio mode
Power/Volume/Sound Controls
POWER/VOLUME dial
SOURCE button
2%:0:9)FSSO4EKI*VMHE].YP]41

83
Audio Operation
*The external input terminal is not equipped on your vehicle because it is not standard equipment.
3.Press the TUNE AUDIO dial to display the sound adjustment screen.
4.Select the on -screen button to display the sound adjustment screen.
nSound quality adjustment
TREBLE (treble sound)
Select the on-screen button to increase treble, and to decrease.
BASS (low pitch sound)
Select the on-screen button to increase bass, and to decrease.
nVolume balance adjustment
Front/back volume balance
Select the on-screen button to increase the volume at the front, and on-screen
button to increase the volume to the back.
Left/right volume balance
Select the on-screen button to increase the volume to the right, and on-screen button
to increase the volume to the left.
Note
l Pressing an on-screen adjustment button for 0.5 seconds or more progressively changes
the adjustment range towards +/–, up/down, or left/right.
l While an adjustment button is selected in this manner, the level indicator will momentarily
stop at the medium range position and a beep sound will be heard before proceeding.
l Select the on-screen button to reset bass, treble, and balance.
l To return to the previous screen, select the on-screen button.
nAudioPilot®2
AudioPilot®2 automatically adjusts audio volume and sound quality in accordance with the
level of noise entering the vehicle interior while driving. When AudioPilot®2 is turned ON, the
system automatically calculates the conditions for optimum hearing of sound which may be
difficult to hear depending on exterior noise.
Select the AudioPilot
®2 on-screen button when AudioPilot®2 is on. Select the
AudioPilot
®2 on-screen button when AudioPilot®2 is off.
AudioPilot
®2 is a registered trademark of Bose Corporation.
2%:0:9)FSSO4EKI8LYVWHE]1E]41

84
Before
UseGetting
started
RoutingAddress
Book
Vo i c e Recognition
Navigation
Set Up
RDM-TMC
Audio Operation
Navigation
Set Up
nCenterpoint®
Centerpoint® offers you the experience of 5.1 channel surround sound in your vehicle even
with your conventional 2 channel sound.
Select the Centerpoint on-screen button when Centerpoint
® is on. Select the Center-
point on-screen button when Centerpoint® is off.
Note
l Centerpoint® does not work with AM/FM/SIRIUS/AUX/BT-Audio.
l Centerpoint® operates only with a 2-channel stereo CD. Poor sound quality in the audio
signal playback could result from playing highly compressed audio such as MP3/WMA with
Centerpoint operating.
l
If a CD or a DVD is inserted in the Rear Entertainment System main unit and selected as an audio
source, and the CD or DVD audio is 5.1 DolbyDigital/DTS audio, Centerpoint® cannot be selected.
Centerpoint® is a registered trademark of Bose Corporation.
nRear seat-optimized (With Rear Entertainment System)
The rear seat-optimized function allows passengers to optimize the audio output to the rear
for a more pleasurable acoustic field.
Select the REAR SEAT-OPTIMIZED on-screen button to increase the surround effect
to the rear seat. Select the REAR SEAT-OPTIMIZED on-screen button to apply the sur-
round effect to all seats.
Note
Rear seat-optimized is only effective if a CD or a DVD is inserted in the Rear Entertainment
System main unit and selected as an audio source, and the CD or DVD audio is 5.1 DolbyDigital/
DTS audio.
nSurround
Centerpoint
When Centerpoint is on, the true surround sound effect of Centerpoint can be adjusted to any
one of five level between minimum and maximum enhancement.
Rear seat-optimized
When rear seat-optimized is on, the surround effect can be enjoyed at five separate levels.
IndicationEnhance change
Minimum
Low
Medium High
Maximum
IndicationEnhance change Minimum
Low
Medium
High
Maximum
2%:0:9)FSSO4EKI8LYVWHE]1E]41

85
Audio Operation
nRadio ON
1.Press the SOURCE button.
2.Select the or on-screen button to turn the radio on.
nBand selection
Choose AM by pressing the on-screen button and FM by pressing the on-screen
button.
The selected mode will be indicated. If FM stereo is being received, STEREO will be
displayed.
nTuning
The radio has the following tuning methods: Manual, Seek, Scan, Preset channel,
PTY(Program-type information) tuning, and Auto memory tuning. The easiest way to tune
stations is to set them on preset channels.
Note
l If the FM broadcast signal becomes weak, reception automatically changes from STEREO
to MONO for reduced noise, and the STEREO indicator will go out.
l Press the MAP/VOICE button to switch to the map screen.
l If the power supply is interrupted (fuse blows or the battery is disconnected), the preset
channels will be canceled.
nManual tuning
Turning the TUNE AUDIO dial will change the frequency higher or lower.
nSeek tuning
Pressing and holding the SEEK/TRACK button ( , ) will cause the tuner to seek a
higher or lower frequency automatically.
Operating the Radio
Channel preset on-screen button
SCAN button SOURCE buttonTUNE AUDIO dial
AUTO-M on-screen button
2%:0:9)FSSO4EKI8LYVWHE]1E]41
